Page 1
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 1 of 12
www.ktoutdoor.com
Additional Stator Shims Available
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 2 of 12
www.ktoutdoor.com
Additional Stator Shims Available
Ref # Part Number DescriptionQty
210983 Stator Shims 1/32"
22136 Stator Shims 3/64"
210985 Stator Shims 1/16"
22137 Stator Shims 5/64"
22138 Stator Shims 3/32"
22139 Stator Shims 7/64"
22140 Stator Shims 1/8"
22141 Stator Shims 9/64"
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 3 of 12
www.ktoutdoor.com

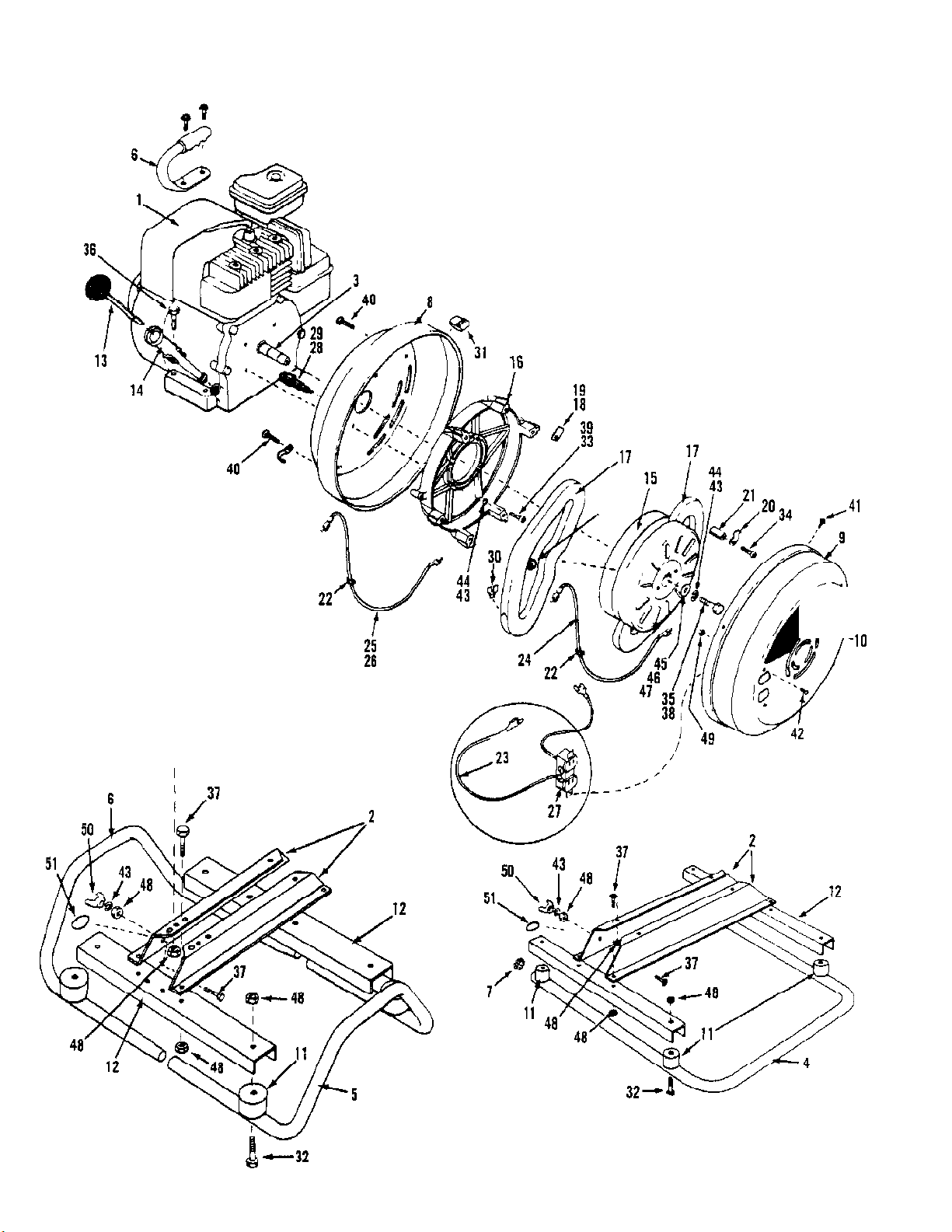

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 4 of 12
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 210498 Engine1
2 21844 Engine Rail2
3 22128 Crankshaft1
4 Tube Base Not required for this model
5 21901 Cradle Half2
6 Handle Assembly Not required for this model
7 Hole Plug Not required for this model
8 21602 Back Cover1
9 21666 Front Cover1
10 210077 Front Cover Label1
11 21804 Isolator4
12 21845 Isolator Channel2
13 21989 Dipstick1
14 21853 Dipstick Tube Assembly1
15 22171 Rotor1
16 22094 Stator Mount1
17 21848 Stator Half2
18 21884 Stator Shim Kit (1/32" pkg/3) See "Additional Stator
1
Shims Available" parts list.
19 21885 Stator Shim Kit (1/16" pkg/3) See "Additional Stator
20 21850 Holding Spring6
21 21860 Bushing6
22 21643 Wire Keeper6
23 22172 Wiring Harness (wires only)1
24 22098 Jumper Wire2
25 210242 Fuse Wire1
26 Fuse Wire Not required for this model
27 21788 Receptacle, 110v1
28 21270 Fuse Holder1
29 21281 Fuse1
30 21874 Terminal2
31 21726 Speed Nut4
32 21876 Bolt, Curved Head (5/16-18 x 1-1/4)4
33 22068 Screw, Hex Head Cap (5/16-24 x 1)4
33 Retaining Bolts Engine to Back Cover. Torque Value
34 21950 Screw, Hex Head Cap (1/4-20 x 1-1/4)6
34 Stator Retaining Screws Torque Value 55-60 In.lbs.
35 Screw, Hex Head Cap (5/16-24 x 2-3/8) Not required
1
Shims Available" parts list.
120-144 In.lbs.
for this model
36 21878 Screw, Hex Head Cap (5/16-18 x 3/4)4
37 21647 Screw, Hex Head Cap (5/16-18 x 1)5
38 22090 Screw, Hex Head Cap (3/8-24 x 3-3/4)1
38 Rotor Retaining Bolt Torque Value 360-420 In.lbs.
39 Screw, Hex Head Cap (3/8-16 x 1) Not required for
this model
40 22070 Screw, Thread Forming (1/4-20 x 3/4)3
40 Casting Retaining Bolts Torque Value 60-70 In.lbs.
41 21650 Screw, Pan Head Sheet Metal (No. 8)4
42 21899 Screw, Round Head Machine (No. 8-32 x 1/2)2
43 21657 Washer, Lock (5/16)6
44 21130 Washer, Lock (3/8)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 5 of 12
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
45 Washer, Flat (5/16 x 3/16) Not required for this model
46 22132 Washer, Flat (3/8 x 1/8)1
47 Washer, Flat (3/8 x 1/4) Not required for this model
48 21653 Nut, Keps (5/16-18)13
49 21675 Nut, Keps (No. 8-32)2
50 21654 Nut, Wing (5/16-18)1
51 22142 Ground Label1
Engine Head Bolts Torque Value 140 In.lbs.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 6 of 12
www.ktoutdoor.com
Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 7 of 12
www.ktoutdoor.com
Propane Conversion Kit
Ref # Part Number DescriptionQty
21708 HP-12OO, HP-2000 Propane Conversion Kit
21502 HP-3000 Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 8 of 12
www.ktoutdoor.com
Spark Arrester
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 9 of 12
www.ktoutdoor.com
Spark Arrester
Ref # Part Number DescriptionQty
392191 HP-1200 Spark Arrester
392195 HP-2000, HP-3000 Spark Arrester
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 10 of 12
www.ktoutdoor.com
Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 11 of 12
www.ktoutdoor.com
Special Tools
Ref # Part Number DescriptionQty
210118 Tool Kit Complete
21880 Rotor Holding Wrench
21925 Stator Clearance Gage
21877 Stator Shim Gage
21509 Rotor Gap Gage
21882 Rotor Puller Bolt (8" Rotor)
210117 Rotor Puller Bolt (9-1/2" Rotor)
22145 Puller Bolt Pilot
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-200044 HP-2000 12/79 to 08/84 IPL 22173-R1 Page 12 of 12
www.ktoutdoor.com

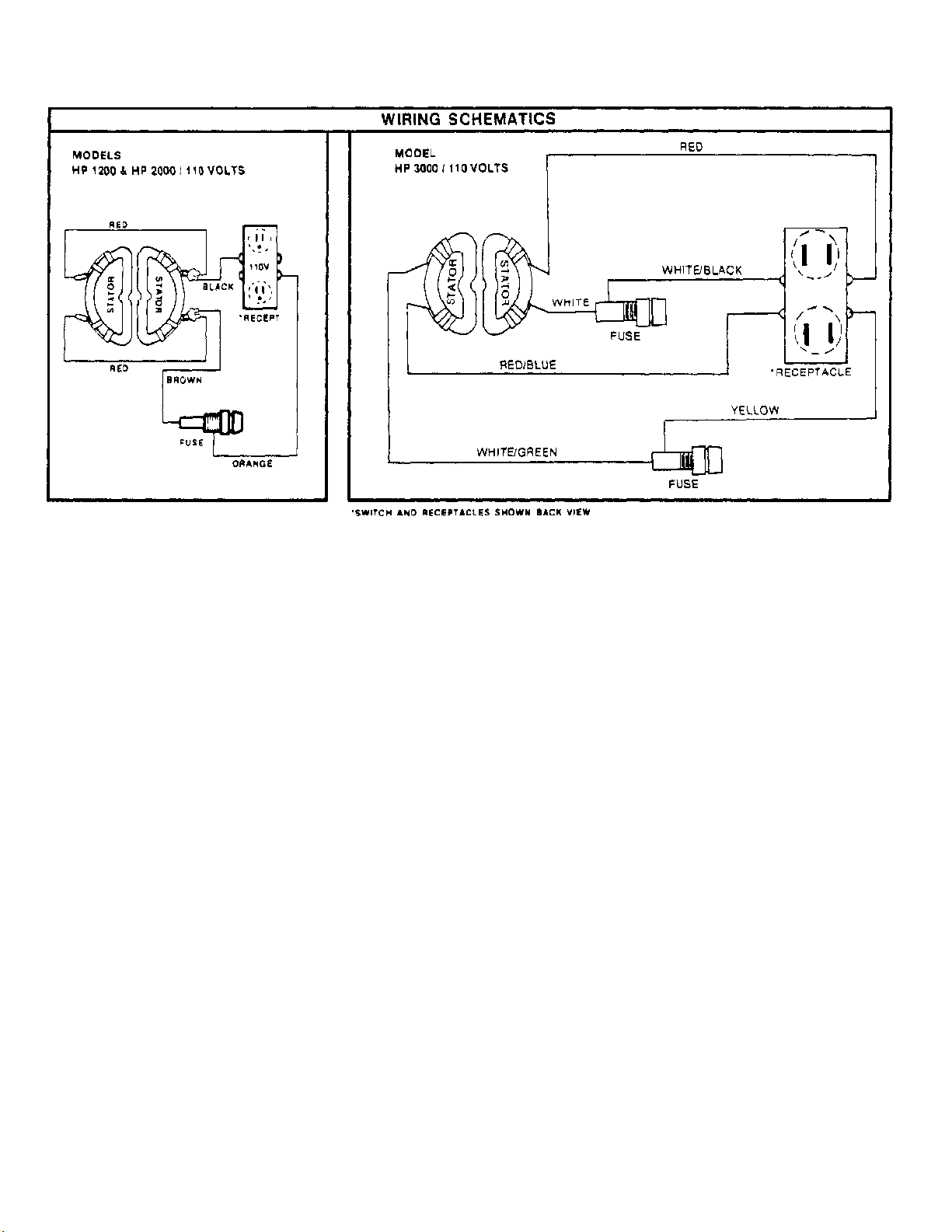

Wiring Schematics
K&T Saw Shop 606-678-9623 or 606-561-4983
