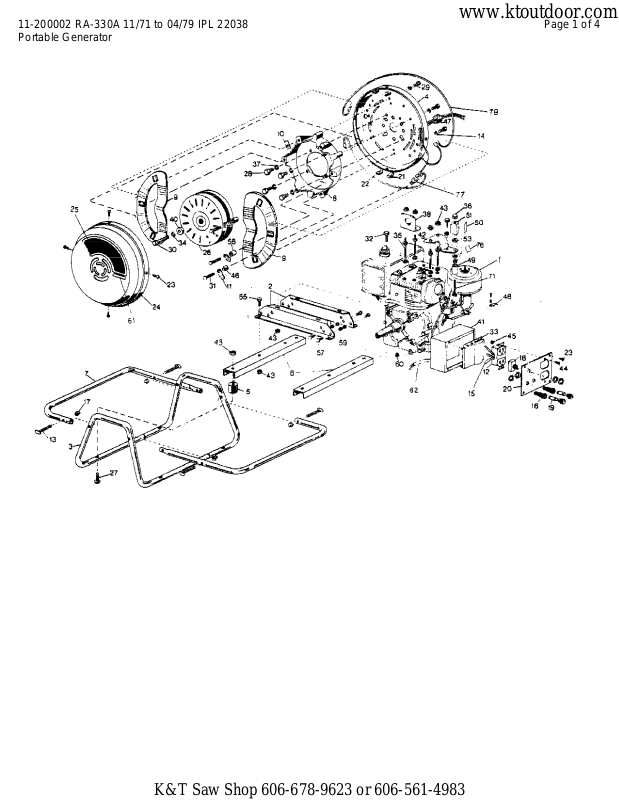

11-200002 RA-330A 11/71 to 04/79 IPL 22038 Page 1 of 4
www.ktoutdoor.com

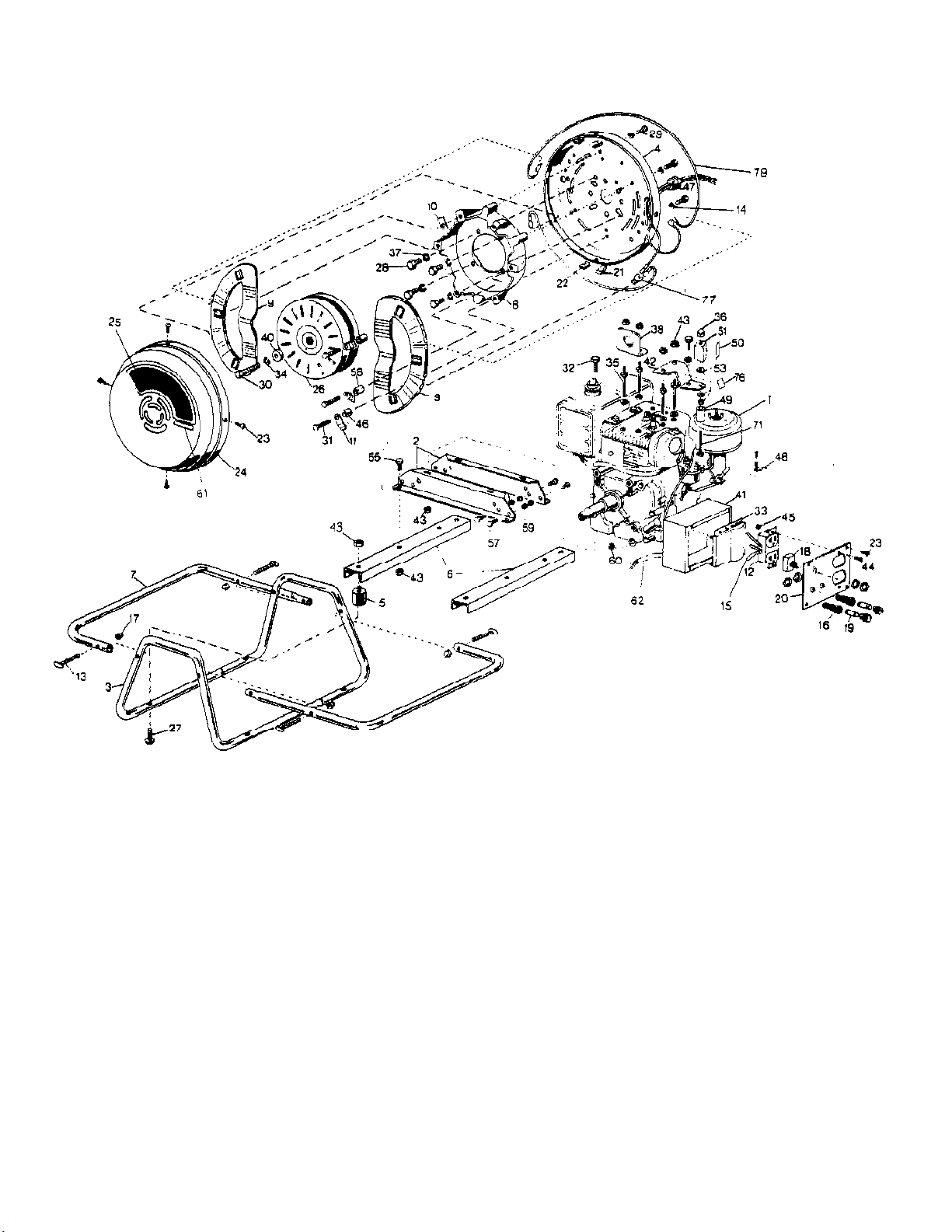

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200002 RA-330A 11/71 to 04/79 IPL 22038 Page 2 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 21785 Engine1
2 21844 Rails, Engine2
3 22016 Cradle2
4 21681 Back Cover1
5 21804 Isolators4
6 21846 Isolator Channels2
7 22017 Horizontal Frame2
8 11865 Casting, Stator Mount1
9 21866 Stator Half Includes item 102
10 21884 Shim 1/32 [pkg. 3]1
10 21885 Shim 1/16 [pkg. 3]1
11 21850 Holding Springs, Stator6
12 22018 Receptacle, 110V1
13 22019 1/4-20 x 2-1/4 RHMS4
14 21658 1/4 Lockwasher4
15 22020 Wire Harness (wires only)1
16 21270 Fuse Holder2
17 22021 1/4-20 Acorn Nut4
18 22022 Switch, S.P.S.T.1
19 21281 Fuses2
20 22023 Receptacle Box Cover1
21 21643 Wire Keepers5
22 21726 Speed Nuts4
23 21650 Screws, Pan No. 8 SHT. MTL.4
24 21690 Front Cover1
25 21868 Decal, Front Cover1
26 21103 Rotor Ass'y.1
27 21876 Bolt, Curve HD. 5/16-18 x 1-1/24
28 21003 Capscrews, Hex HD. 3/8-16 x 14
29 21020 Capscrews, Hex HD. 1/4-20 x 3/44
29 Casting Retaining Bolt Torque Value 60-70 in./lbs.
30 21143 Capscrews, Hex HD. 5/16-24 x 1-1/21
30 Rotor Retaining Bolt Torque Value 240-264 in./lbs.
31 21950 Capscrews, Hex HD. 1/4-20 x 1-1/46
31 Stator Retaining Screws Torque Value 55-60 in./lbs.
32 21878 Capscrews, Hex HD. 5/16-18 x 1-3/44
33 22024 Fuel Saver Module1
33 Retaining Bolts Engine to Back Cover RA-330A
Torque Value 216-240 in./lbs.
34 21657 5/16 Lockwasher1
34 Rotor Retaining Bolt Torque Value 240-264 in./lbs.
35 22025 Stud Bolt, Cylinder HD.4
36 22026 Acorn Nut 5/16-241
37 21130 3/8 Lockwasher4
38 22027 Lift Bracket1
40 21704 Washer, Flat 5/16 x 1/41
41 22028 Box & Bracket1
42 22029 Fuel Saver Bracket1
43 21653 Nuts, Keps 5/16-1813
44 21899 Screws, RD. HD. Mach. No. 8-32 x 1/22
45 21675 Nuts, Keps No. 8-322
46 21860 Bushings, Stator4
47 21789 Grommet, Strain Relief2
48 22030 Throttle Bracket1
49 22031 Solenoid1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200002 RA-330A 11/71 to 04/79 IPL 22038 Page 3 of 4
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
50 22032 Idle Control Label1
51 22033 Solenoid Cover1
53 22034 Nut, Hex Jam 5/16-243
55 21647 Capscrews, Hex HD. 5/16-18 x 14
57 21573 Capscrews, Hex HD. 1/4-20-5/84
58 21897 Cam Bushings2
59 21203 Nut, Hex 1/4-204
60 21766 Nut, Keps No. 6-324
61 21922 Wattage Label1
62 22035 Wire-Cable1
71 22036 Capscrew, Hex HD. 5/16-24 x 31
76 22037 Caution Hot Muffler Tag1
77 21874 Fast on Tab2
78 22054 Jumper Wire2
21881 Tool Kit Complete Special Tools
21880 Rotor Holding Wrench Special Tools
21295 Stator Clearance Gauge Special Tools
21877 Stator Shim Gauge Special Tools
21896 Rotor Gap Gauge Special Tools
21882 Rotor Puller Bolt (8" Rotor) Special Tools
21883 Rotor Puller Bolt (9-1/2") Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-200002 RA-330A 11/71 to 04/79 IPL 22038 Page 4 of 4
www.ktoutdoor.com

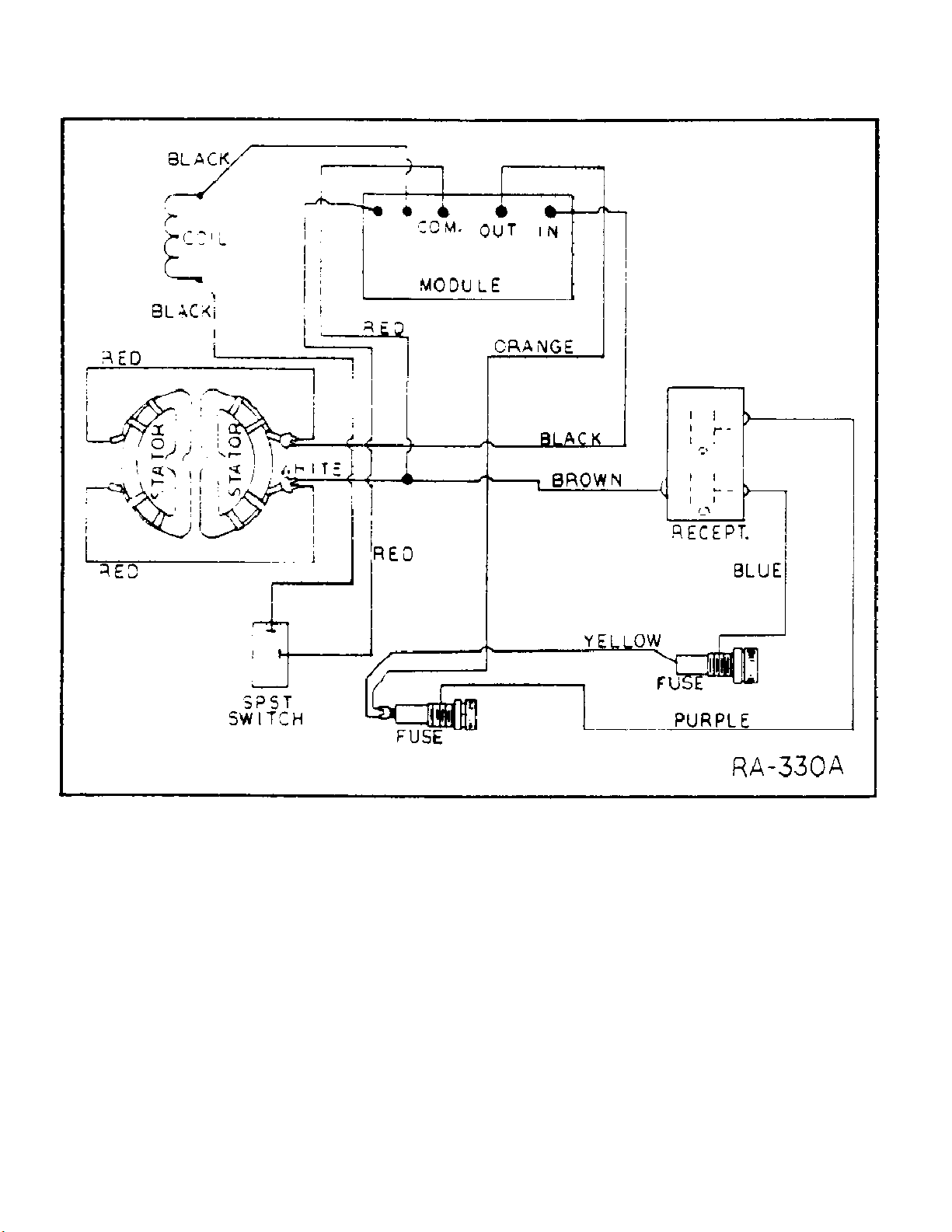

Wiring Schematic
