Page 1
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 1 of 18
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 2 of 18
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
86419 Guide - Timing
65778 Spark Plug - AC CS 41T
61040 Wrench - Screwdriver
64797 Wrench - Spark plug
83463 Kit - Gas & Go
86351 Kit - All weather fuel cap
85583 Kit - Spline socket
85584 Wrench - Spline socket
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 3 of 18
www.ktoutdoor.com

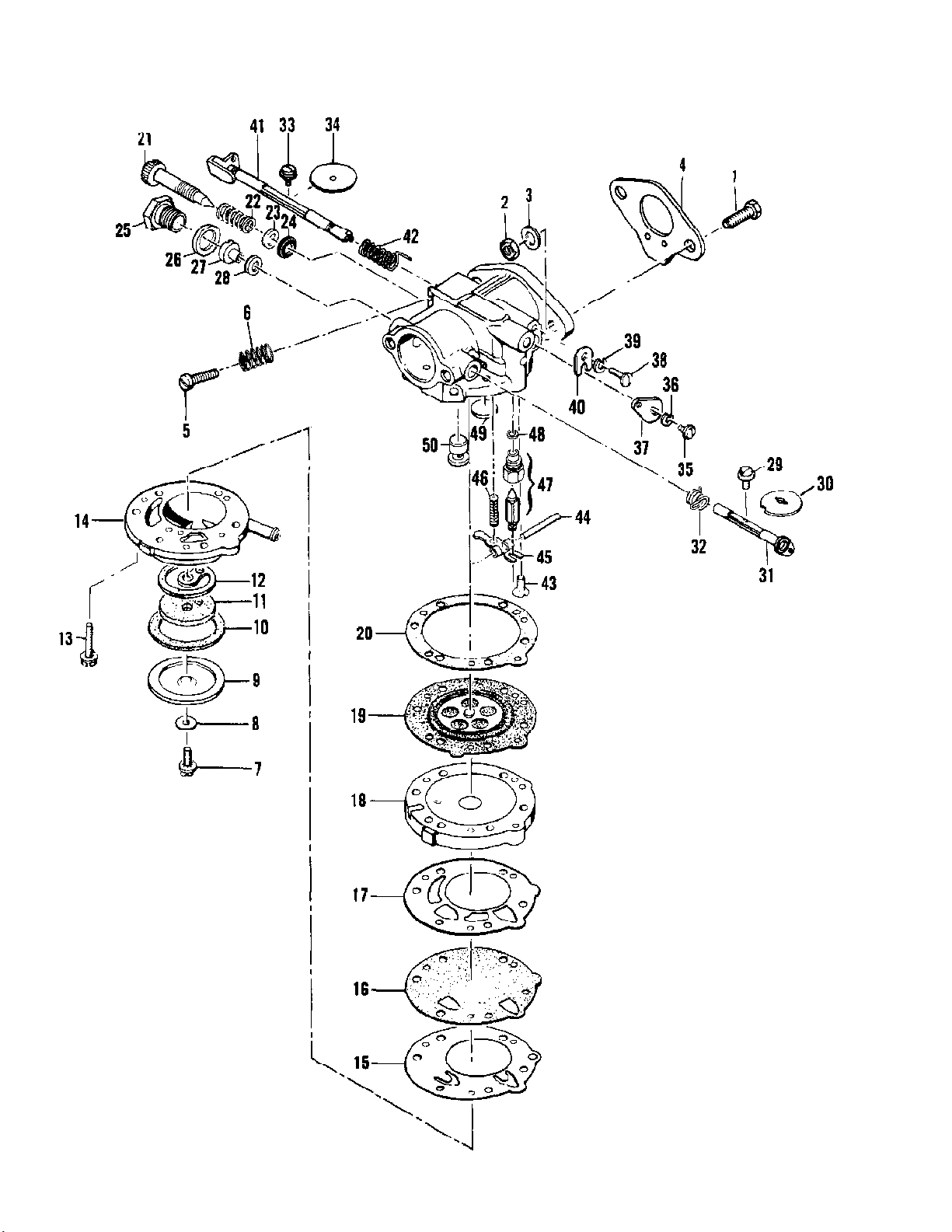

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 4 of 18
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 100882 Screw - Hex hd 1/4-20 x 3/42
2 103242 Nut - Hex 1/4-202
3 100005 Washer - 1/42
4 86286 Gasket - Carburetor1
86285 Carburetor Assy1
5 52940 Screw - Idle speed regulating1
6 51705 Spring - Idle speed screw1
7 50797 Screw - Fuel strainer cover1
8 50798 Gasket - Cover screw1
9 50796 Cover - Fuel strainer1
10 51704 Gasket - Cover1
11 53717 Filter - Fuel1
12 53565 Gasket - Filter1
13 87230 Screw Assy - Fil hd 6-32 x 3/46
14 87224 Body - Fuel pump1
15 84030 Diaphragm - Check valve1
16 84029 Diaphragm - Fuel pump1
17 65592 Gasket - Fuel pump1
18 87225 Cover - Diaphragm1
19 66167 Diaphragm - Metering1
20 65591 Gasket - Diaphragm1
21 87223 Needle - Idle fuel mixture1
22 52936 Spring - Needle1
23 52937 Washer - Needle1
24 52938 Packing - Needle1
25 84037 Plug - Main fuel jet1
26 52941 Gasket - Plug1
27 90430 Jet - Main fuel (0.038 orifice)1
84059 Jet - Main fuel (0.037 orifice) Alt.
90429 Jet - Main fuel (0.036 orifice) Alt.
90427 Jet - Main fuel (0.035 orifice) Alt.
28 84036 Gasket - Jet1
29 51721 Screw - Choke shutter (SEMS)1
30 84026 Shutter - Choke1
31 87227 Shaft Assy - Choke1
32 87226 Spring - Choke return1
33 51721 Screw - Throttle shutter1
34 84041 Shutter - Throttle1
35 51719 Screw - Throttle lever1
36 100261 Lockwasher - #41
37 90379 Lever - Throttle shaft1
38 51717 Screw - Throttle shaft clip1
39 100252 Lockwasher - #81
40 51716 Clip - Throttle shaft1
41 87228 Shaft Assy - Throttle1
42 87232 Spring - Throttle return1
43 66644 Screw - Lever pin1
44 84033 Pin - Lever1
45 84032 Lever - Inlet valve1
46 66404 Spring - Lever1
47 84034 Needle & Seat - Inlet1
48 51708 Gasket - Inlet1
49 51583 Plug - Welch 3/8 in.1
50 87229 Valve Assy - Check1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 5 of 18
www.ktoutdoor.com

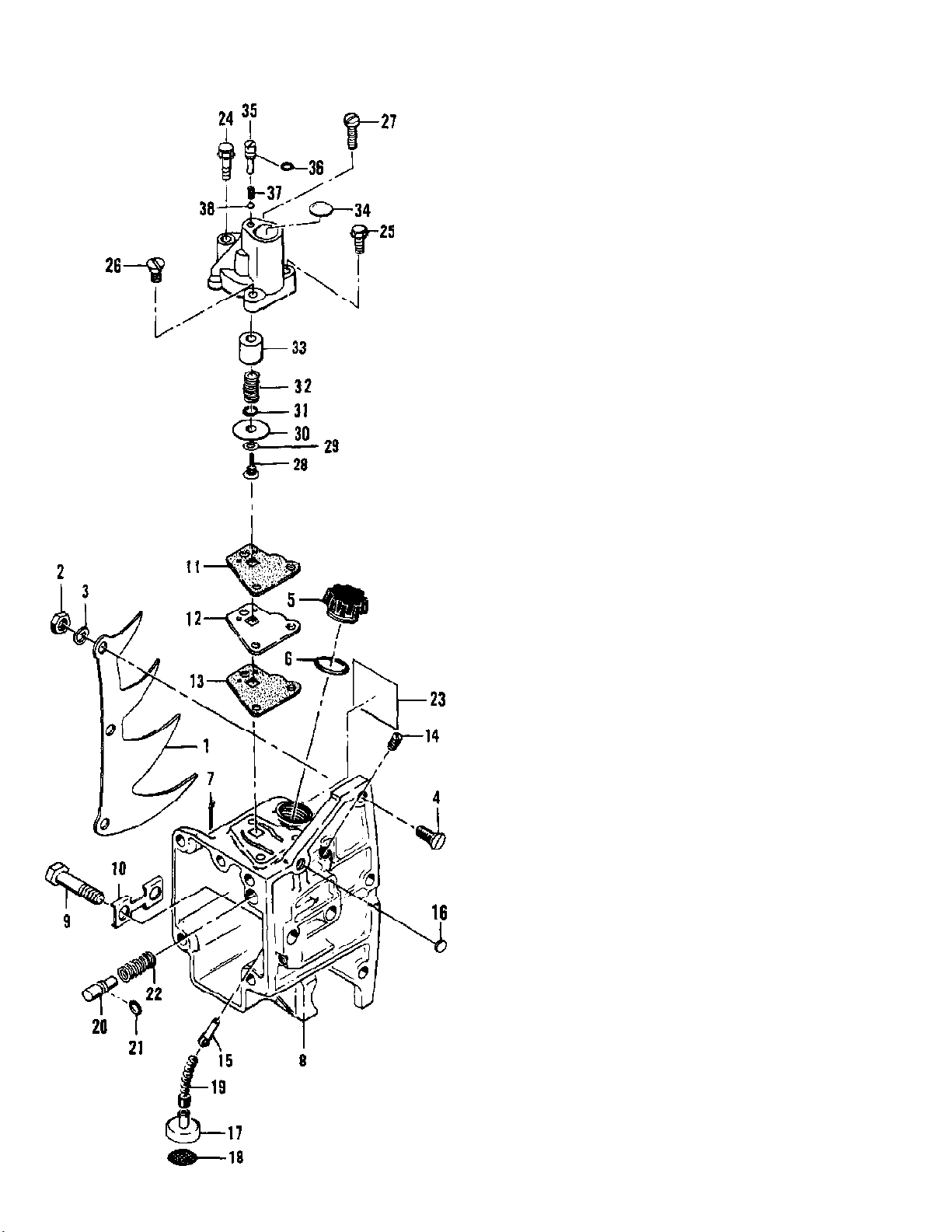

Chain Oiler Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 6 of 18
www.ktoutdoor.com
Chain Oiler Assembly
Ref # Part Number DescriptionQty
1 61331 Kit - Spike 4-tooth1
2 100152 Nut - Hex 1/4-203
3 100153 Lockwasher3
4 102088 Screw - Flat hd 1/4-20 x 3/43
5 57129A Cap - Oiler tank1
6 101148 "O" Ring - Oiler tank cap1
7 104062 Pin - Cotter1
8 63060 Housing Assy - Oiler1
9 51423B Bolt - Bar mounting2
10 51439 Plate - Lock1
11 86186 Gasket - Oil pump1
12 67471 Spacer - Pump body1
13 68794 Gasket - Spacer1
14 104869 Plug - Pipe 1/16-271
15 51982A Check Valve Assy - Oiler1
16 105677 Plug - Expansion 3/81
17 51505 Weight Assy - Oil line hose1
18 51506 Screen - Oil intake1
19 28007 Hose - Flexible1
20 63642 Piston Assy - Oiler1
21 103198 "O" Ring - Oiler piston1
22 51946 Spring - Oiler1
23 59445 Decal - Oiler1
24 110257 Screw - Hex hd 10-24 x 1-3/4 (SEMS)1
25 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
26 110245 Screw - Flat hd 10-24 x 3/41
83135 Pump Assy - Pulse1
27 110890 Screw - Fil hd 10-24 x 7/81
28 60260A Piston Assy1
29 60937 Washer1
30 86182 Ring - Piston
31 104001 "O" Ring - Piston1
32 86183 Spring - Piston1
33 67918 Sleeve - Piston1
34 110157 Plug - Expansion 5/81
35 60397A Screw - Fil hd1
36 60398B Washer1
37 60396B Spring - Ball check1
38 102809 Ball1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 7 of 18
www.ktoutdoor.com

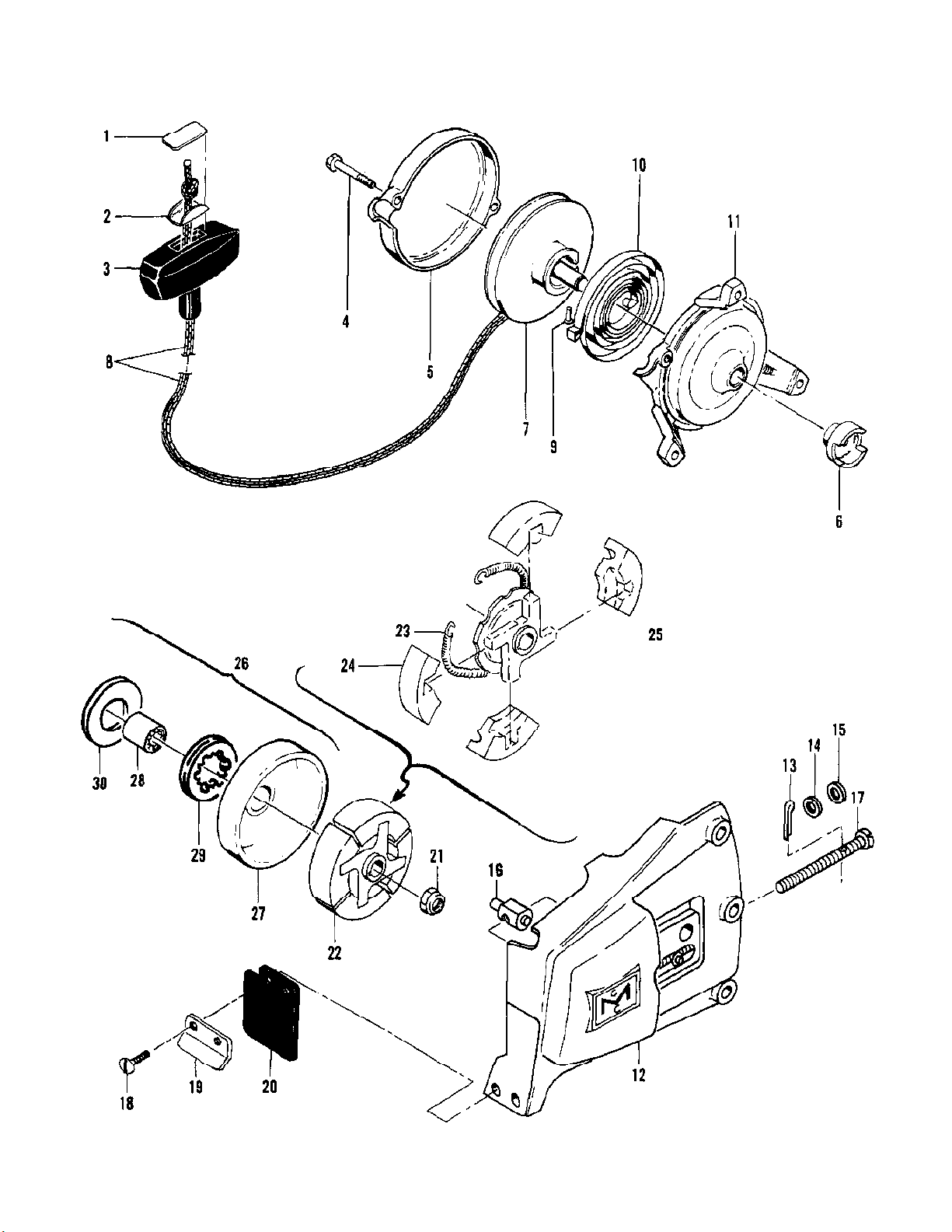

Starter, Clutch and Clutch Guard Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 8 of 18
www.ktoutdoor.com
Starter, Clutch and Clutch Guard Assembly
Ref # Part Number DescriptionQty
84211 Starter Assy1
1 57232 Plate - Handle1
2 57231 Cup - Handle1
3 57230 Handle1
4 104396 Screw - Pan hd 10-24 x 3/42
5 60647 Cover - Starter1
6 57790 Ratchet - Starter1
7 57792 Drum - Starter1
8 28716 Rope - Starter1
9 101136 Rivet - Rope1
10 51665 Spring - Rewind1
11 84212 Base - Starter1
12 85547 Guard Assy - Clutch1
13 105686 Pin - Cotter1
14 100004 Washer - 1/41
15 100005 Washer - 1/41
16 52207C Nut - Bar adjusting1
17 62057 Screw - Bar adjusting1
18 110041 Screw - Pan hd 8-32 x 1/22
19 69492 Retainer - Deflector1
20 69477 Deflector - Sawdust1
21 86113 Nut - Clutch1
22 89227 Clutch Assy1
23 85042 Spring - Clutch1
24 51464A Shoe - Clutch4
25 89226 Rotor Assy1
26 86350 Kit - Drum, sprocket, bearing1
86340 Kit - Drum, sprocket, bearing1
27 86343 Drum & Bearing1
28 87111 Bearing1
29 86342 Sprocket - 7-T .404
86341 Sprocket - 8-T .4041
30 86366 Washer - Sprocket1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 9 of 18
www.ktoutdoor.com

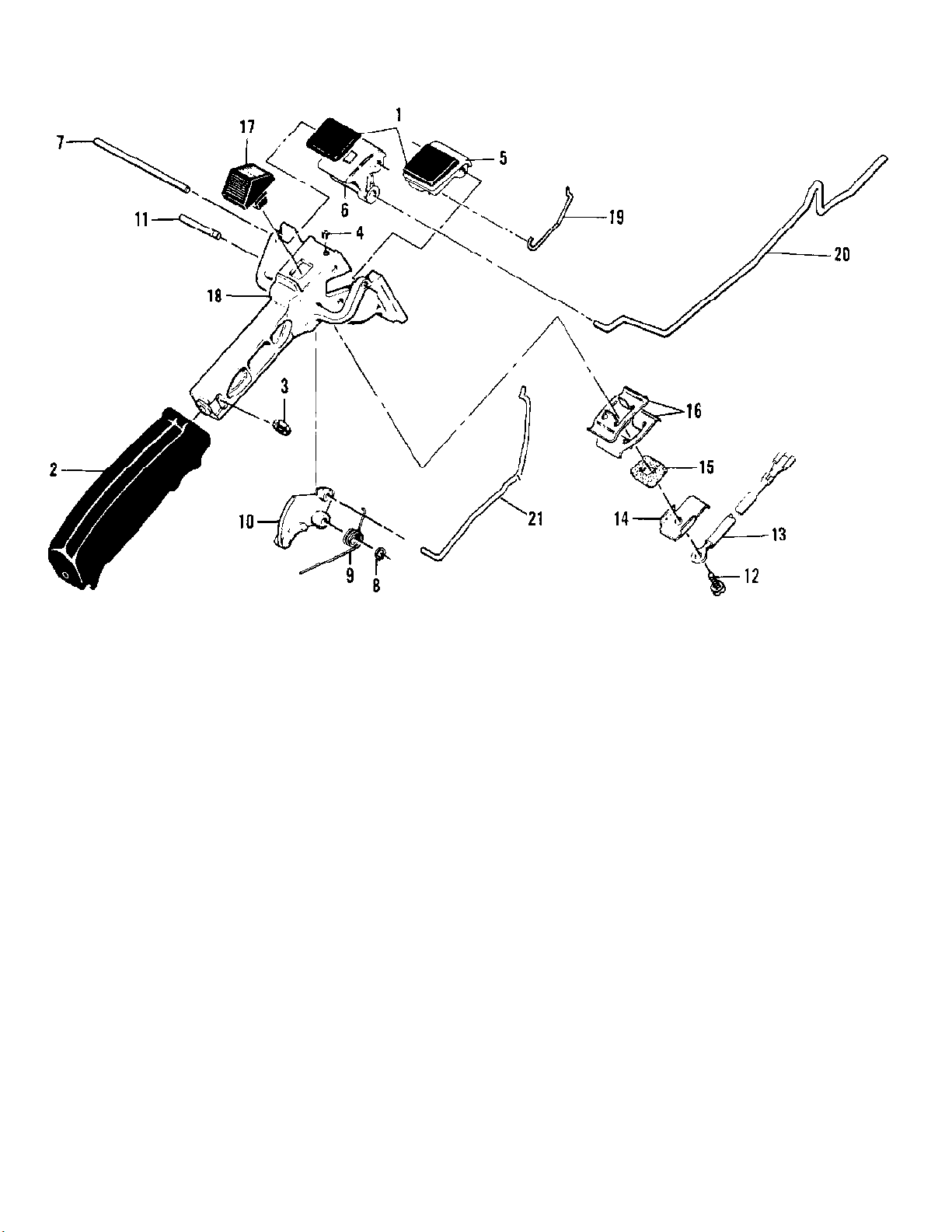

Handle and Control Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 10 of 18
www.ktoutdoor.com
Handle and Control Assembly
Ref # Part Number DescriptionQty
1 55670 Grommet2
64860 Handle and Control Assy1
2 55624A Grip - Handle1
3 101326 Nut - Hex 10-241
4 104484 Screw - Set 8-32 x 1/41
5 55968A Button - Choke1
6 55969A Button - Oiler control1
7 51344A Shaft - Choke and Oiler buttons1
8 104501 Retainer - Trigger pin1
9 55674 Spring - Trigger return1
10 63663 Trigger1
11 50507 Pin - Trigger1
12 110706 Screw - Fil hd 8-18 x 1/2 (SEMS)1
13 83661 Wire Assy - Stop switch1
14 51279 Contact - Switch1
15 51555 Insulator - Switch1
16 51554A Detent - Switch2
17 57718 Button - Switch1
18 55986 Handle1
19 84319 Pushrod - Choke1
20 51857B Pushrod - Oiler1
21 55873 Pushrod - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 11 of 18
www.ktoutdoor.com

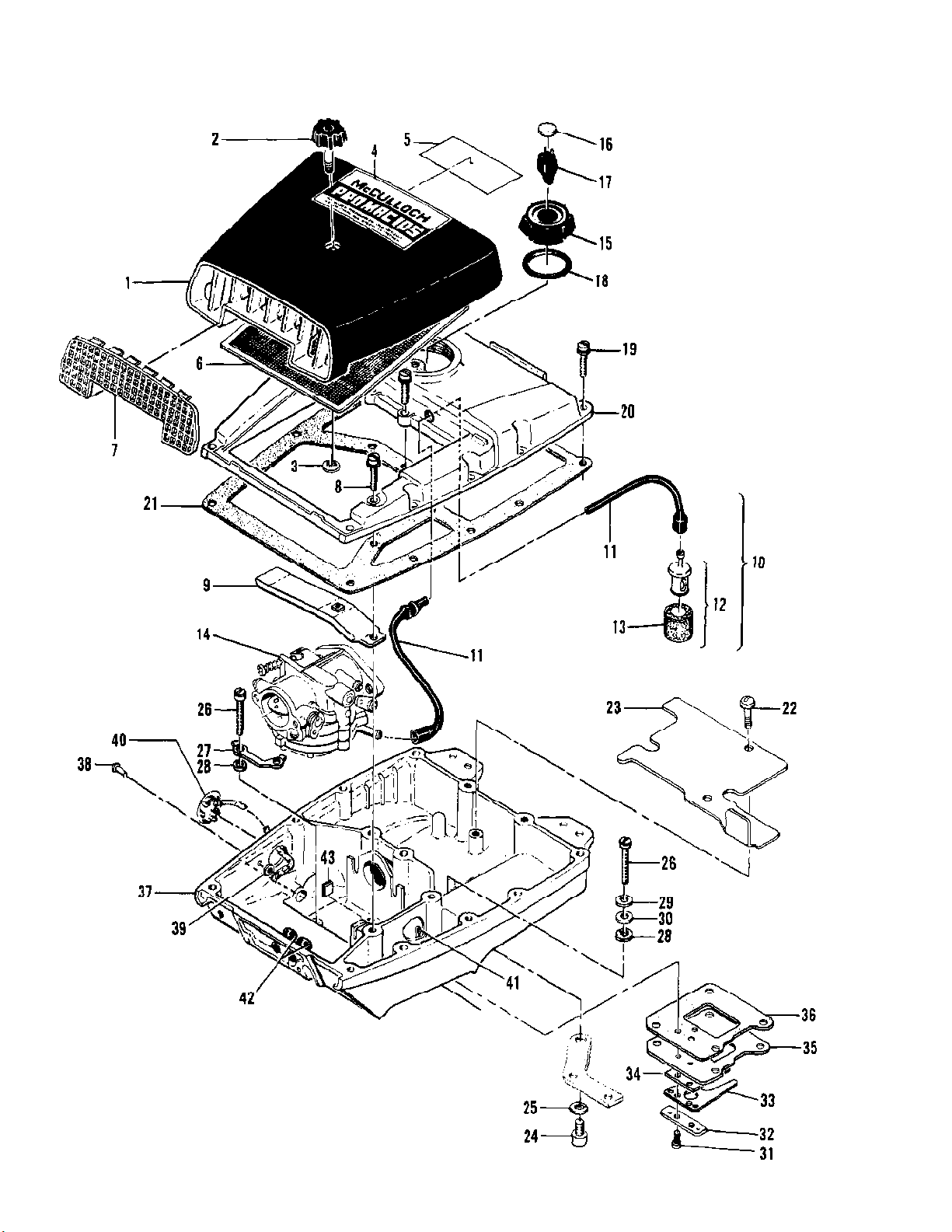

Fuel System Components
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 12 of 18
www.ktoutdoor.com
Fuel System Components
Ref # Part Number DescriptionQty
1 60427A Cover Assy - Air cleaner1
2 60243 Knob - Air cleaner cover1
3 83367 Retainer1
4 89296 Nameplate1
5 86198 Instruction Plate1
6 67931 Screen Assy - Air cleaner1
7 55659 Grill - Air cleaner cover1
8 104396 Screw - Pan hd 10-24 x 3/41
9 55634 Anchor Assy1
10 63831 Hose Assy - Fuel1
11 63669 Hose - Fuel1
12 53679B Pickup Assy - Fuel1
13 61159 Filter - Fuel pickup1
14 Carburetor Assy See "Carburetor Assembly"
illustrations and parts list.
15 55934B Cap Assy - Fuel1
16 55063 Filter - Fuel cap1
17 53766A Valve - Fuel cap1
18 101348 "O" Ring1
19 104396 Screw - Pan hd 10-24 x 3/414
20 62442A Cover - Fuel tank1
21 65632 Gasket - Fuel tank1
22 110054 Screw - Pan hd 6-32 x 3/8 (SEMS)2
23 63650 Liner - Fuel tank1
24 100633 Screw - Skt hd 1/4-20 x 1/21
25 105043 Lockwasher1
26 55948A Screw - Hex hd 10-24 x 1-1/84
27 68654 Lockplate - Fuel tank1
28 68203 Washer - Insulating4
29 102189 Washer - #102
30 103744 Washer - Sealing2
31 103740 Screw - Hex hd 8-32 x 5/82
32 51480 Lockplate1
33 86294 Stop - Reed1
34 86293 Valve - Reed1
35 86284 Plate - Reed1
36 86292 Gasket - Fuel tank1
37 86291 Bottom Fuel Tardy1
38 104504 Rivet1
39 101871 Washer - 1/81
40 51396A Cover Assy - Adjustment hole1
41 104310 Pin - Cotter1
42 68258 Grommet2
43 51394 Felt - Throttle Guide1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 13 of 18
www.ktoutdoor.com

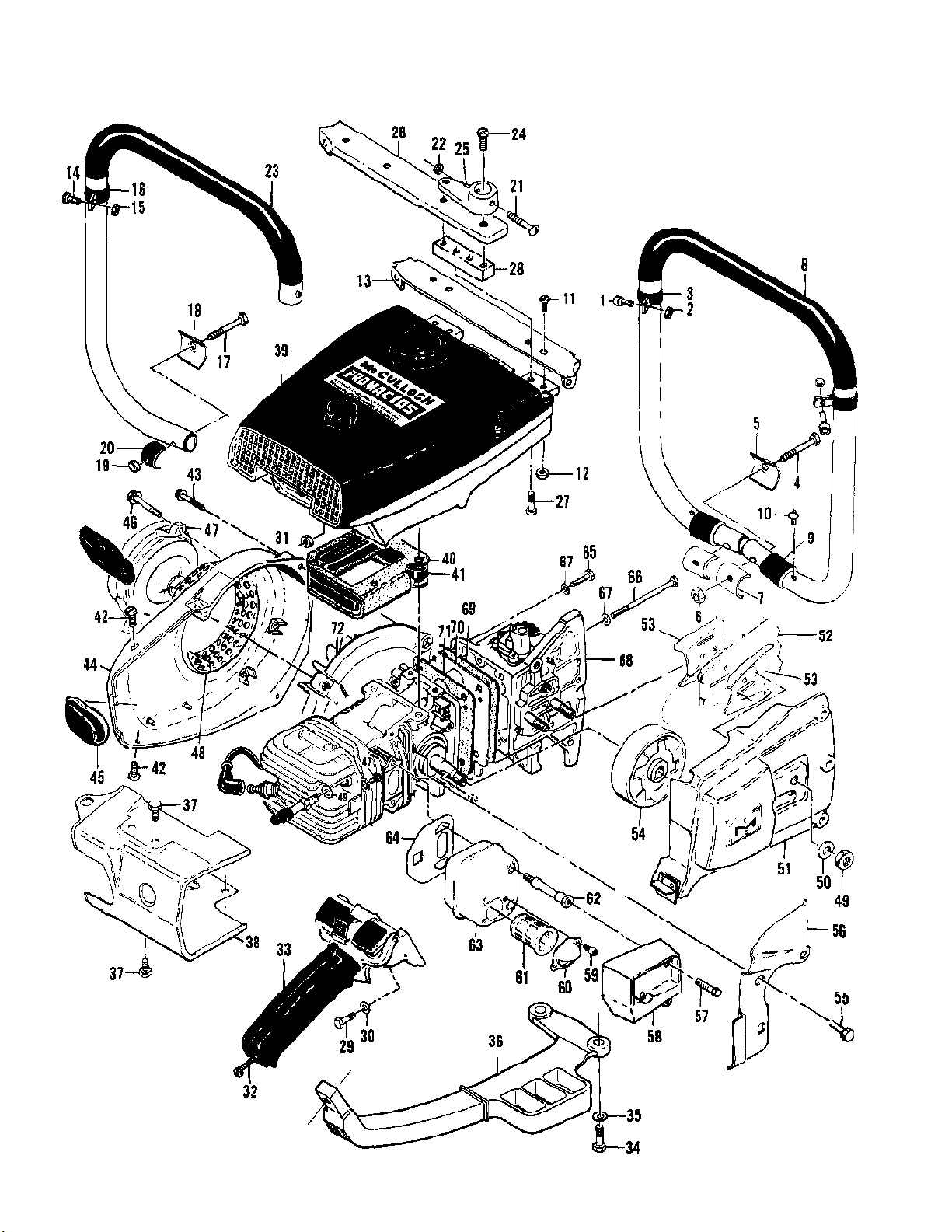

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 14 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110713 Screw - Skt hd 10-24 x 7/82
2 105367 Nut - Hex 10-242
3 103923 Clamp - Frame2
4 102125 Screw - Hex hd 1/4-20 x 1-3/42
5 63484 Clamp - Frame2
6 105394 Nut - Hex 1/4-202
7 83233 Spacer2
8 60231A Frame & Grip Assy1
9 69885 Protector - Frame2
10 84795 Rivet - Stop2
11 104393 Screw - Pan hd 10-24 x 3/84
12 101191 Nut - Hex 10-244
13 83363 Brace - Frame1
14 110713 Screw - Skt hd 10-24 x 7/81
15 105367 Nut - Hex 10-241
16 103923 Clamp - Frame1
17 102125 Screw - Hex hd 1/4-20 x 1-3/41
18 63484 Clamp - Frame1
19 105394 Nut - Hex 1/4-201
20 83233 Spacer1
21 102130 Screw - Hex hd 1/4-20 x 1-3/81
22 103242 Nut - Hex 1/4-201
23 60233 Frame & Grip Assy1
24 102500 Screw - Pan hd 10-24 x 1/24
25 89388 Bracket - Frame1
26 58279 Brace - Frame1
27 104950 Screw - Hex hd 10-24 x 5/84
28 69693 Spacer - Brace1
29 102761 Screw - Hex hd 10-24 x 7/82
30 102189 Washer - #102
31 102067 Nut - Hex 10-242
32 104397 Screw - Pan hd 10-24 x 7/81
33 Handle & Control Assy See "Handle & Control
Assembly" illustration and parts list.
34 101982 Screw - Hex hd 1/4-20 x 12
35 100005 Washer - 1/42
36 89373 Brace - Handle1
37 110581 Screw - Hex hd 10-24 x 3/83
38 89287 Shroud1
39 Fuel System Components See "Fuel System
Components" illustration and parts list.
40 65625 Gasket - Fuel tank insulator1
41 53684A Insulator - Fuel tank1
42 102500 Screw - Pan hd 10-24 x 1/22
43 104816 Screw - Hex hd 10-24 x 1-1/4 (SEMS)3
44 89242 Housing Assy - Fan1
45 85376 Cover - Spark plug1
46 104815 Screw - Hex hd 10-24 x 7/8 (SEMS)3
47 Starter Assy See "Sprocket & Clutch Assembly"
illustration and parts list.
48 84629 Guard - Sawdust1
49 110625 Nut - Hex 3/8-242
50 84623 Washer - Special2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 15 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
51 Clutch Guard Assy See "Sprocket & Clutch Assembly"
illustration and parts list.
52 Bar & Chain Assy1
53 64935 Plate - Bar protector2
54 Sprocket & Clutch Assys See "Sprocket & Clutch
Assembly" illustration and parts list.
55 104133 Screw - Pan hd 1/4-20 x 5/8 (SEMS)3
56 69464 Jacket - Cylinder1
57 110717 Screw - Hex hd 10-32 x 3/43
58 85459 Guard - Muffler1
85388 Kit - Muffler1
59 110664 Screw - Skt hd 10-24 x 3/82
60 84203 Deflector1
61 84690 Baffle1
62 85121 Screw - Shoulder3
63 85117 Muffler Assy1
64 89224 Gasket - Muffler1
65 103258 Screw - Hex hd 1/4-20 x 1-1/82
66 102127 Screw - Hex hd 1/4-20 x 3-1/42
67 100005 Washer - 1/44
68 Oiler Housing Assy See "Oiler Housing Assembly"
illustration and parts list.
69 86125 Gasket - Oiler housing1
70 60251A Cover - Crankcase bottom1
71 65654 Gasket - Bottom cover1
72 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 16 of 18
www.ktoutdoor.com

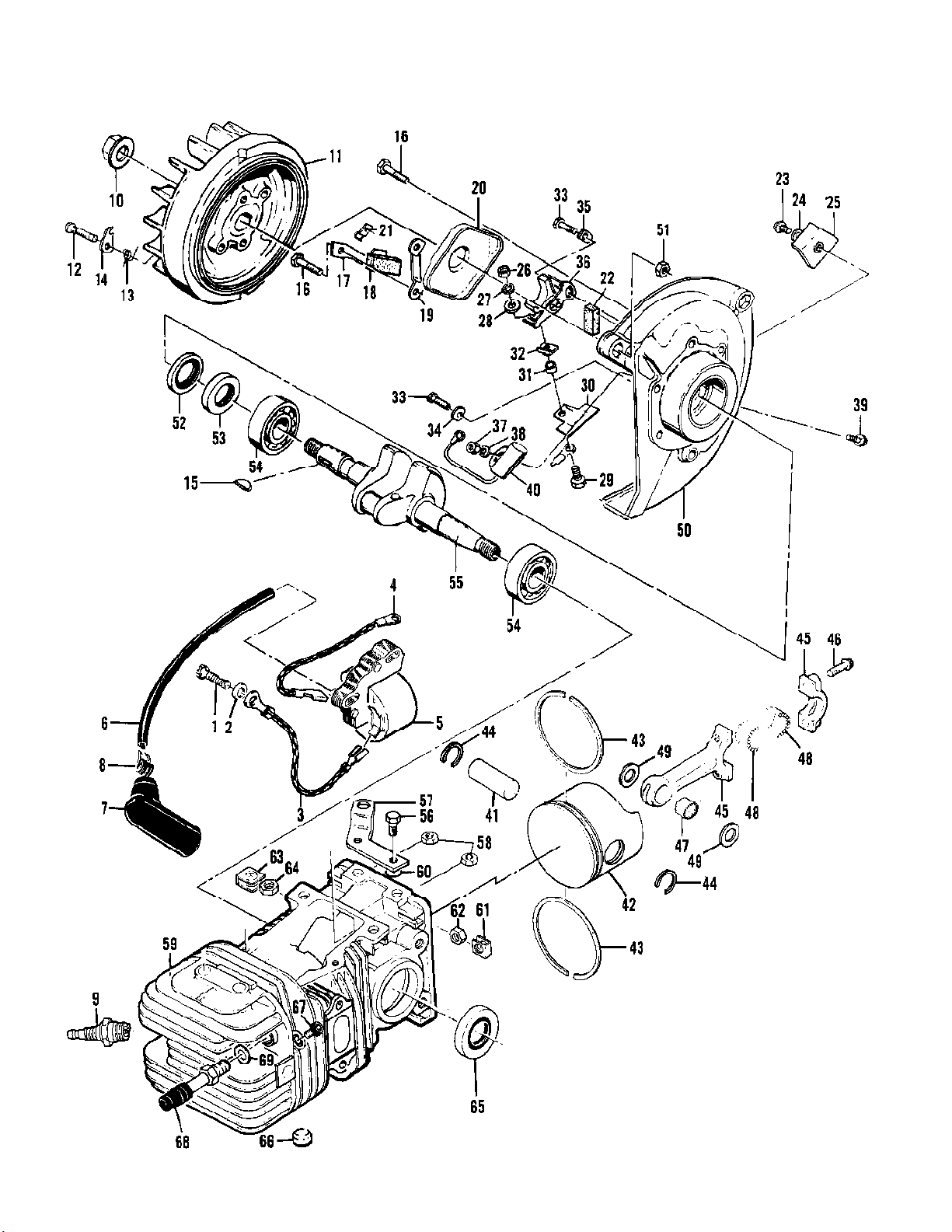

Powerhead
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 17 of 18
www.ktoutdoor.com
Powerhead
Ref # Part Number DescriptionQty
1 110713 Screw - Skt hd 10-24 x 7/82
2 83745 Washer - Special2
3 63639 Wire Assy - Ground1
4 63628 Wire Assy - Primary1
5 85243 Coil & Lamination Assy1
6 50120 Wire Assy - Spark plug1
7 55060 Boot1
8 55061 Connector1
9 63432 Spark Plug - AC CS 42T1
10 110655 Nut - Hex 7/16-201
11 68282 Flywheel & Pawl Assy1
12 36144B Pin - Pawl2
13 66351 Spring - Pawl2
14 24093 Pawl2
15 103879 Key - Woodruff1
16 110866 Screw - Hex hd 10-24 x 3/46
17 57815 Strap - Seal1
18 50664 Seal - Breaker box1
19 55977 Clip - Breaker box cover2
20 55766B Cover - Breaker box1
21 104230 Speednut1
22 54184 Wiper - Felt1
23 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
24 100080 Washer - #81
25 57829 Clamp - Wire1
26 104551 Nut - Hex 8-321
27 104553 Lockwasher - #81
28 100080 Washer - #81
29 110338 Screw - Hex hd 8-32 x 9/161
30 55782A Insulator - Wire1
31 57769 Insulator - Screw1
32 57770A Insulator - Spring1
33 104733 Screw - Fil hd 8-32 x 1/2 (SEMS)2
34 57767A Lockplate1
35 55778E Retainer - Breaker1
36 88807 Breaker Assy1
37 100251 Nut - Hex 8-321
38 100057 Lockwasher - #81
39 103748 Screw - Hex hd 8-32 x 1/21
40 85358 Condenser1
41 89204 Pin - Piston1
42 89251 Piston Assy1
43 89250 Ring Set - Piston1
44 85273 Ring - Retaining2
45 88623 Connecting Rod Assy1
46 110720 Screw - Special2
47 85607 Roller - Needle (Set of 22)1
48 85420 Roller - Needle24
49 85266 Washer - Thrust2
50 84193 Crankcase Cover Assy1
51 101326 Nut - Hex 10-243
52 57897 Seal - Oil1
53 57898 Seal - Oil1
54 110883 Bearing - Ball2
55 89222 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-11600078B PM 105 09/73 to 04/77 IPL 89297 Page 18 of 18
www.ktoutdoor.com
Powerhead
Ref # Part Number DescriptionQty
56 102762 Screw - Hex hd 10-24 x 1/22
57 53271 Bracket - Fuel tank1
58 101326 Nut - Hex 10-242
59 89265 Crankcase Assy1
60 89240 Spacer - Fuel tank bracket2
61 28053 Retainer - Nut2
62 101326 Nut - Hex 10-242
63 18556A Retainer - Nut6
64 105394 Nut - Hex 1/4-206
65 104432 Seal - Oil1
66 110685 Plug - Cup3
67 110681 Screw - Skt hd 10-24 x 1/41
68 85148 Valve - DSP1
69 85505 Washer - Valve1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
