Page 1
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 1 of 22
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 2 of 22
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
86218 Kit-Preheater
86209 Kit-Duct, Valve, Guard
84597 Baffle-Spark arrester
86943 Kit-Sprocket & Drum 8T .375P
86344 Kit-Sprocket & Drum 7T .404P
92455 Rope-Starter (100 ft)
85968 Guard-Hand
87839 Adapter-Bar mounting
91226 Wrench-Clutch retaining
63432 Spark Plug (standard)
63097 Spark Plug (hotter)
63746 Scrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 3 of 22
www.ktoutdoor.com

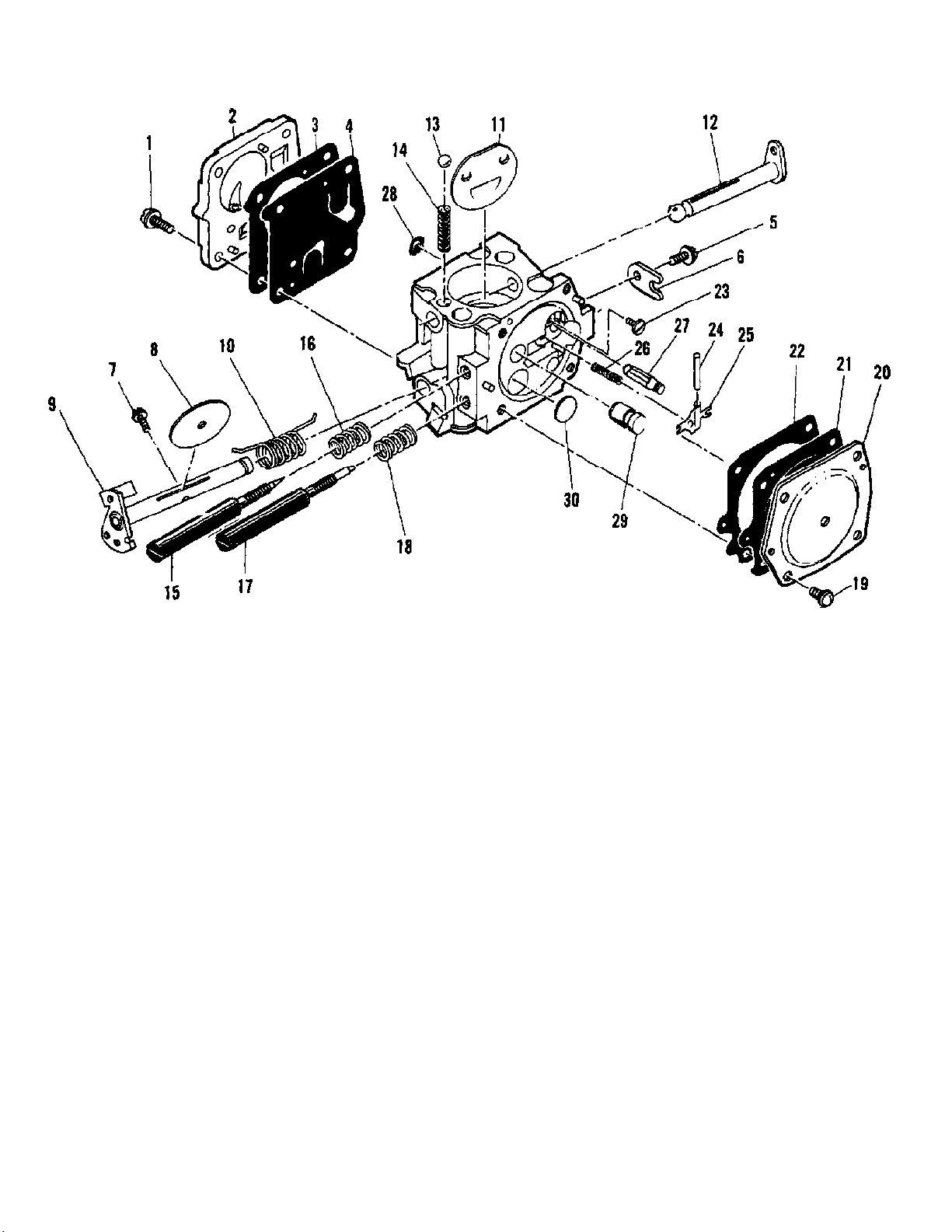

Carburetor Assembly (HS 111A)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 4 of 22
www.ktoutdoor.com
Carburetor Assembly (HS 111A)
Ref # Part Number DescriptionQty
85916 Carburetor Asy - HS 111A This is one of two
1 52933 Screw - Pump cover4
2 66628 Cover - Pump1
3 66629 Gasket - Cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Clip retainer1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Plate1
8 51720 Plate - Throttle1
9 83546 Shaft Asy - Throttle1
10 67136 Spring - Throttle return1
11 65856 Plate - Choke1
12 83725 Shaft Asy - Choke1
13 100071 Ball - Choke friction1
14 52930 Spring - Choke friction1
15 86169 Needle - High speed1
16 52936 Spring - High Speed needle1
17 86170 Needle - Idle1
18 67133 Spring - Idle needle1
19 51721 Screw - Diaphragm cover4
20 83724 Cover - Diaphragm1
21 66632 Diaphragm - Metering1
22 66633 Gasket - Diaphragm1
23 83479 Screw - Lever pin1
24 66636 Pin - Lever1
25 66638 Lever - Metering1
26 66404 Spring - Lever1
27 66637 Valve - Needle1
28 66623 Screen - Fuel inlet1
29 83729 Check Valve - Nozzle1
30 66622 Plug - Welch1
1
carburetors used alternately on models with serial
number prefix 10-, and 11-.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 5 of 22
www.ktoutdoor.com

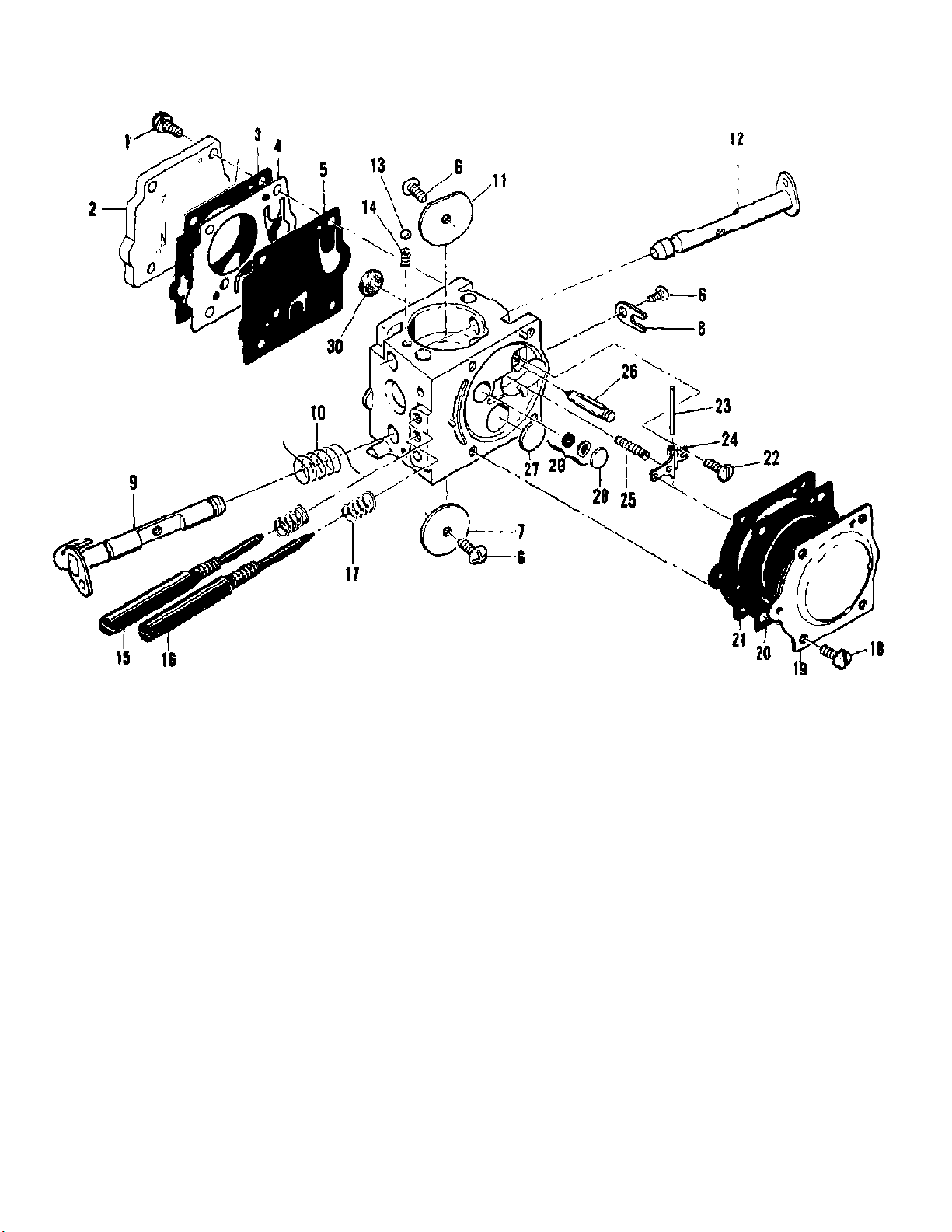

Carburetor Assembly (SDC 38A)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 6 of 22
www.ktoutdoor.com
Carburetor Assembly (SDC 38A)
Ref # Part Number DescriptionQty
87821 Carburetor Asy - SDC 38A1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 85980 Shaft Asy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 85979 Needle - High Speed1
16 85982 Needle - Idle1
17 67502 Spring - Needle2
18 70798 Screw - Diaphragm4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Asy1
30 67507 Screen - Fuel1
67482 Gasket Kit
85987 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 7 of 22
www.ktoutdoor.com

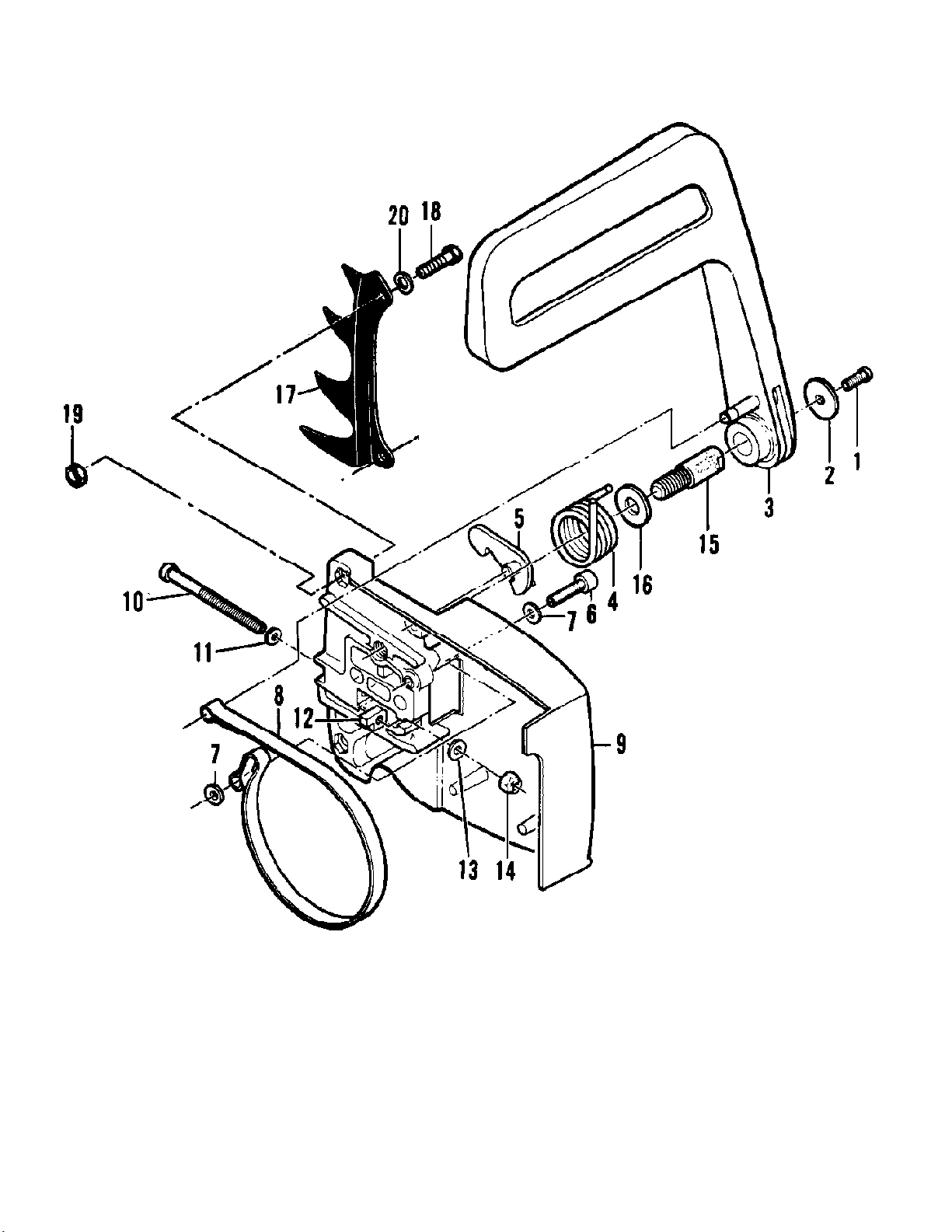

Chain Brake and Spike Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 8 of 22
www.ktoutdoor.com
Chain Brake and Spike Assembly
Ref # Part Number DescriptionQty
91278 CHAIN BRAKE Asy1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251A Lever Asy1
4 91239 Spring1
5 91235A Latch Asy1
6 105738 Screw - Skt hd 1/4-20 x 7/81
7 91274 Washer - Special2
8 91238 Band1
9 91249 Housing Asy1
10 110527 Screw - Fil hd 10-24 x 2-3/41
11 110264 Washer - #101
12 61705 Nut - Bar adjusting1
13 100002 Washer - #101
14 102067 Nut - Hx 10-241
15 91246 Pin - Lever pivot1
16 91245 Washer - Thrust1
17 86330 Kit - Spike1
18 102388 Screw - Hx hd 10-24 x 5/82
19 101191 Nut - Hx 10-242
20 24236 Washer - Special2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 9 of 22
www.ktoutdoor.com

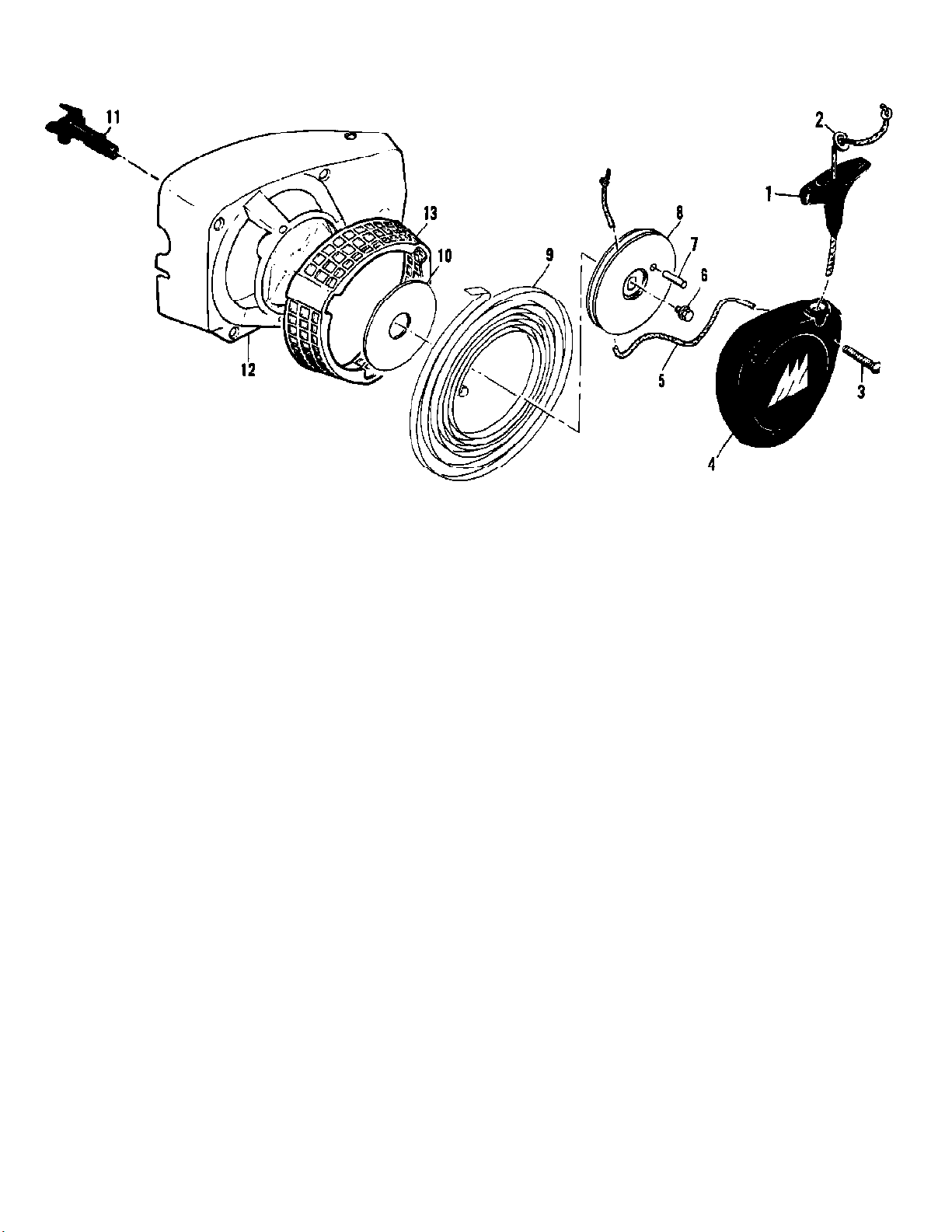

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 10 of 22
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
1 91255 Kit - Starter handle1
2 105490 Washer1
90921 Fan Housing & Starter Asy1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover Asy - Starter1
5 87670 Rope - Starter1
6 110341 Screw - Hex hd 10-24 x 1/21
7 105841 Pin - Roll1
8 87689 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 87693 Kit - Fan housing1
13 87674 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 11 of 22
www.ktoutdoor.com

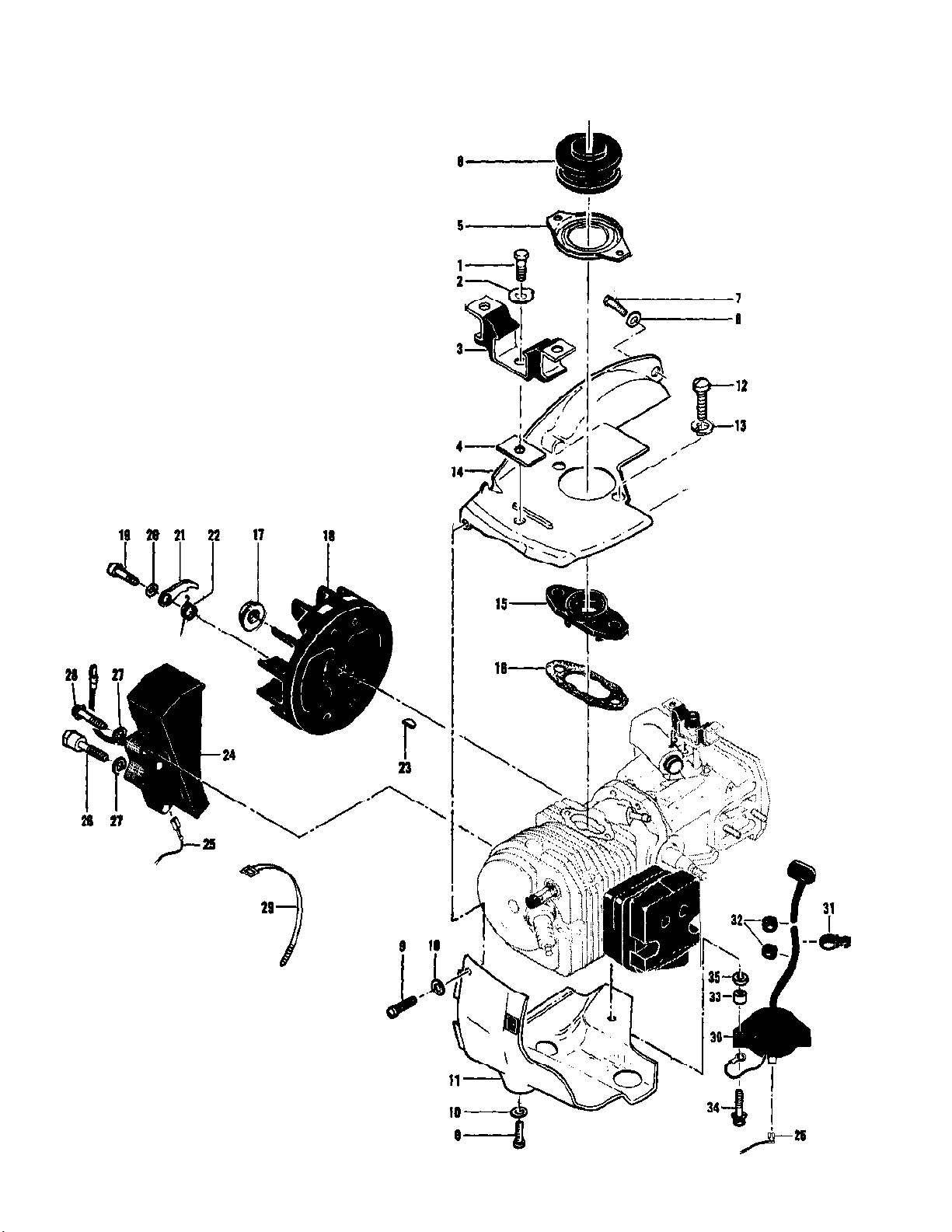

Flywheel & Ignition System
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 12 of 22
www.ktoutdoor.com
Flywheel & Ignition System
Ref # Part Number DescriptionQty
1 83811 Screw-Special1
2 69924 Lockplate1
3 91578A Mount Rear1
4 84619 Insulator1
5 86175 Clamp Asy-Boot1
6 88834A Boot-Port1
7 110776 Screw-Fil hd 8-32 x 3/81
8 100057 Lockwasher - #81
9 102500 Screw-Pan hd 10-24 X 1/22
10 100002 Washer-#102
11 92815 Shroud-Lower1
12 104396 Screw-Pan hd 10-24 X 3/42
13 101194 Lockwasher #102
14 88835A Shroud-Upper1
15 87844 Insulator-Inlet1
16 88740 Gasket-Insulator1
17 110703 Nut-Hex 3/8-241
18 92886 Flywheel Asy1
19 88804 Screw-Special2
20 83241 Washer-Special2
21 67546 Pawl-Starter2
22 67545 Spring-Pawl2
23 100106 Key-Woodruff1
24 92846 Module Asy-Stator1
25 92848 Wire Asy-Primary1
26 92889 Stud-Fan Housing Mounting1
27 100002 Washer #102
28 103947 Screw-Hx 10-24 x 1.01
29 93273 Tie Cable1
30 92847 Transformer Asy1
31 110973 Clip-Guide .3751
32 100268 Grommet2
33 92890 Spacer-Transformer2
34 110749 Screw-Hx W 10-24 x 1.122
35 100002 Washer #102
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 13 of 22
www.ktoutdoor.com

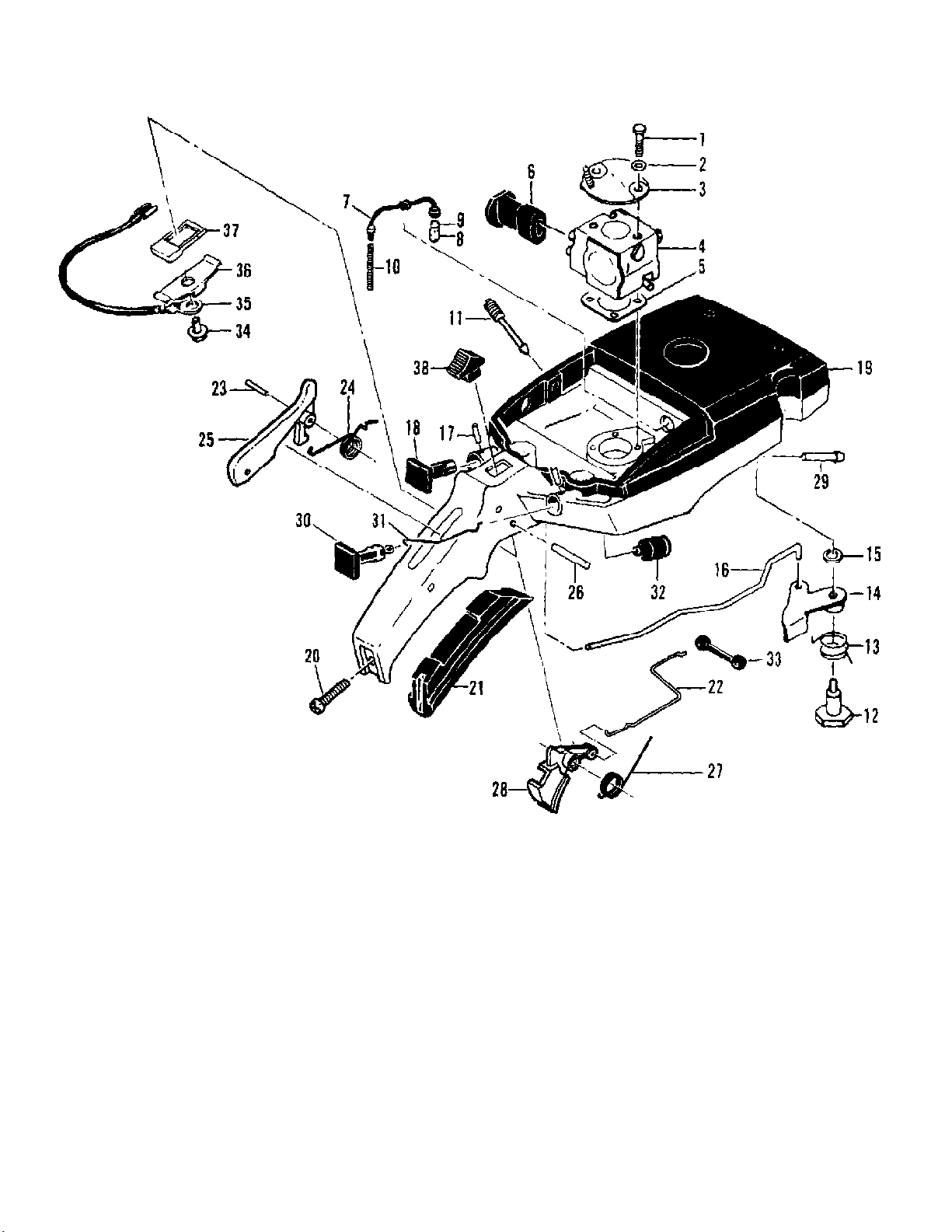

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 14 of 22
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 110894 Screw - Hx hd 10-24 x 2-1/82
2 110964 Washer2
3 83204 Bracket Assembly1
4 Carburetor Asy See "Carburetor Assembly (SDC
38A)" and "Carburetor Assembly (HS 111A)"
illustrations and parts lists.
5 86189 Gasket - Carburetor1
6 69629 Boot - Carburetor controls1
6 85901 Boot - Carburetor controls1
7 64848 Hose Assembly - Fuel1
8 63932 Filter - Fuel1
9 100440 Washer1
10 67944 Spring - Hose1
11 86273 Screw - Idle speed1
12 69594 Pivot - Oiler lever1
13 69781 Spring - Oiler lever1
14 69825 Lever Assembly - Oiler1
15 105048 Washer - 3/161
16 69802 Rod - Oiler1
17 105673 Pin - Roll 3/32 x 9/162
18 63044 Button - Oiler1
19 87888A Tank Assembly - Fuel1
20 105722 Screw - Fil hd 1/4-20 x 1-3/81
21 89400 Insert - Handle grip1
22 92155 Rod - Throttle1
23 105654 Pin - Roll 1/8 x 7/81
24 92154 Spring - Trigger release1
25 92153A Release - Trigger1
26 110378 Pin - Roll 3/16 x 15/161
27 92152 Spring - Trigger1
28 92151A Trigger - Throttle1
29 69600 Nipple - Pulse line1
30 69630 Button - Choke1
31 69631 Rod - Choke1
32 69597 Boot - Control rod2
33 69043 Snubber - Rod1
34 110706 Screw - Fil hd 8-18 x 1/2 (SEMS)1
35 92888 Wire Asy - Stop switch1
36 62451 Contact - Switch1
37 62950A Base - Switch1
38 68846 Button - Switch1
87821 Carburetor Asy
85916 Carburetor Asy
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 15 of 22
www.ktoutdoor.com

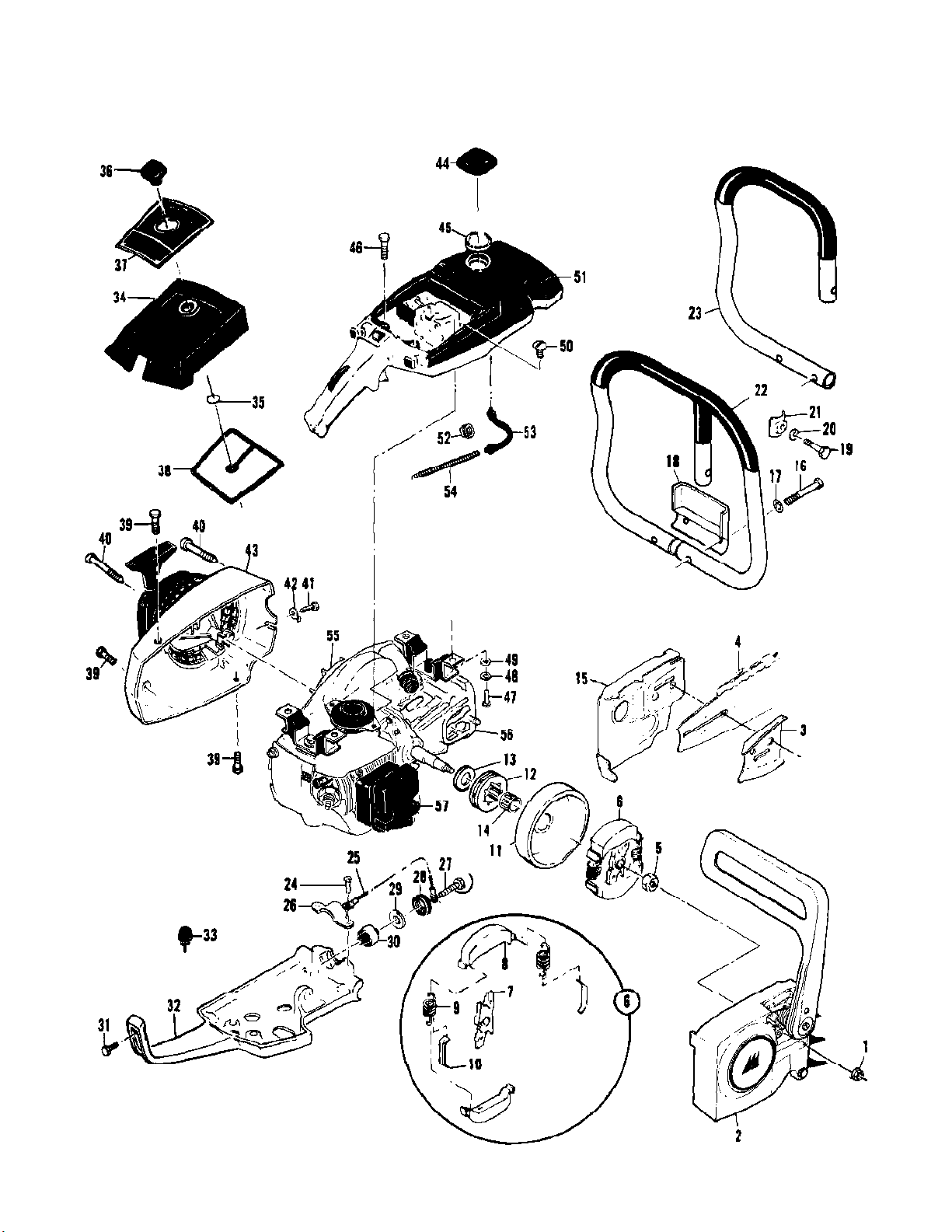

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 16 of 22
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 CHAIN BRAKE & Spike Asys See "Chain Brake &
Spike Assembly" illustration and parts list.
3 64325 Plate - Bar protector1
4 Bar & Chain
5 86113 Nut - Hx 3/8-24 (L.H.)1
6 87675 Clutch Asy1
7 89438 Rotor - Clutch1
8 67233 Shoe - Clutch2
9 83223 Spring - Clutch2
10 64583 Retainer - Clutch spring2
11 86942 Kit - Drum & Sprocket 7 T .375P1
12 86344 Sprocket1
13 86958 Washer - Sprocket1
14 110971 Bearing - Sprocket1
15 84978 Shield - Sawdust1
16 102433 Screw - Hx hd 10-24 x 1-5/82
17 101194 Lockwasher - #102
18 84798 Clamp - Frame1
19 102130 Screw - Hx hd 1/4-20 x 1-1/21
20 100153 Lockwasher - 1/41
21 63484 Clamp - Frame1
22 91632A Frame & Grip Asy Used on models 600439A,
1
600439D, 600439J, with serial number prefix 10-, 11.
23 91586 Frame Cr, Grip Asy Used on models 600439B,
24 104950 Screw - Hx hd 10-24 x 5/82
25 83828 Wire Asy - Ground1
26 83819 Clamp - Lower mount1
27 110679 Screw - Hx hd 1/4-20 x 21
28 84661 Grommet1
29 110845 Washer - 1/41
30 85898 Mount - Lower1
31 105722 Screw - Fil hd 1/4-20 x 1-3/81
32 92816 Brace - Frame1
33 89403 Bumper2
34 85850A Cover Asy - Air cleaner1
35 110565 Ring - Retaining1
36 68529 Knob - Cover1
37 91689A Nameplate1
38 85387 Filter - Air1
39 110741 Screw - Pan hd 10-24 x 1/23
40 87871 Screw - Special3
41 102762 Screw - Hx hd 10-24 x 1/21
42 69890 Lockplate1
43 Fan Housing & Starter Asy See "Fan Housing &
1
600439E, with serial number prefix 11.
Starter Assembly" illustration and parts list.
44 89322 Cap Asy - Fuel1
45 69767 Gasket1
46 110746 Screw - Hx hd 10-24 x 1/22
47 102861 Screw - Hx hd 1/4-20 x 5/82
48 100153 Lockwasher - 1/42
49 100005 Washer - 1/42
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 17 of 22
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
50 110807 Screw - Pan hd 8-32 x 5/162
51 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
52 87826 Clamp - Hose2
53 69598 Line - Pulse1
54 67944 Spring - Hose1
55 Flywheel & Ignition System See "Flywheel & Ignition
System" illustration and parts list.
56 Powerhead & Oiler Asys See "Powerhead & Oiler
Assembly" illustration and parts list.
57 Muffler Asy See "Muffler Assembly" illustration and
parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 18 of 22
www.ktoutdoor.com

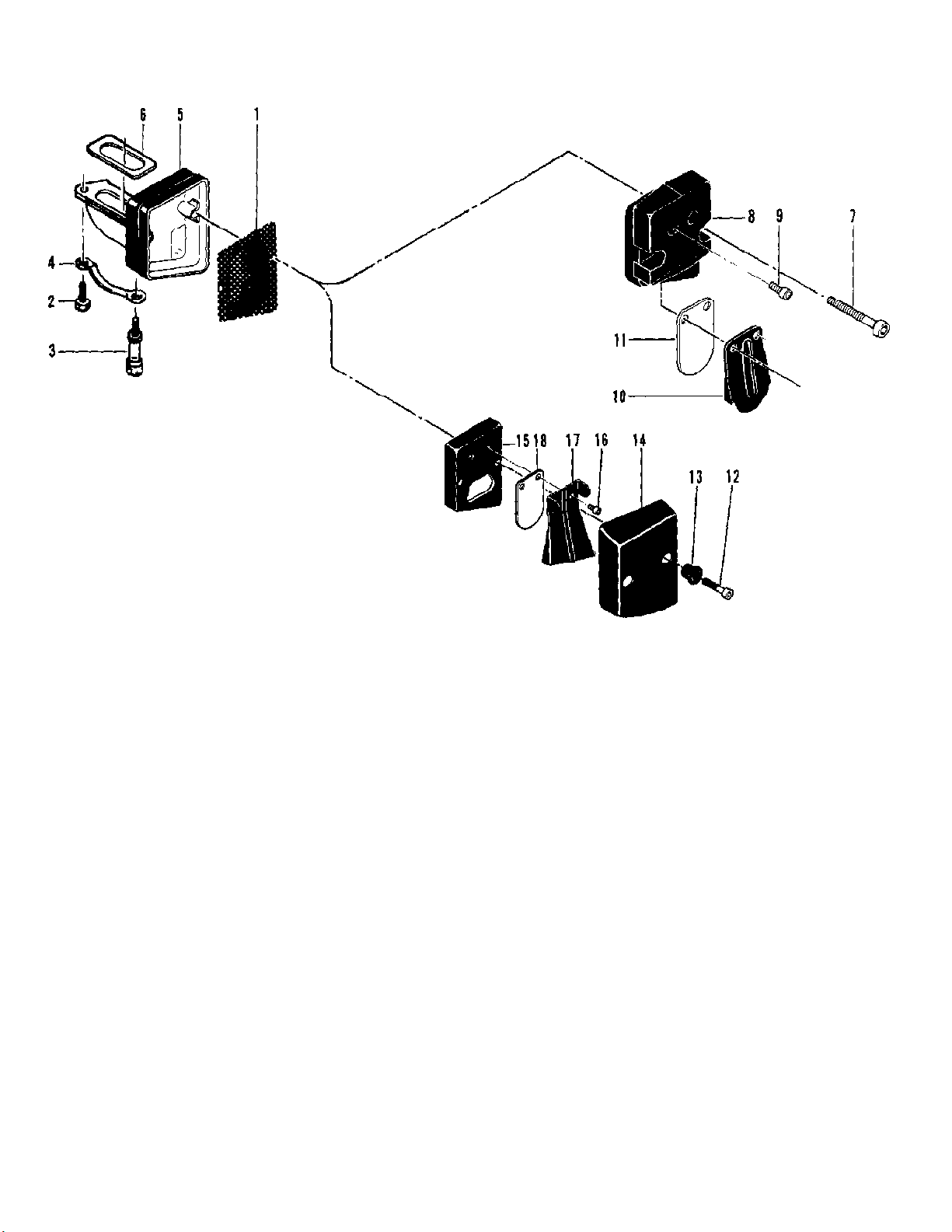

Muffler Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 19 of 22
www.ktoutdoor.com
Muffler Assembly
Ref # Part Number DescriptionQty
1 84580 Baffle-Muffler1
2 110529 Screw-Hx hd 10-24 x 1/21
3 84578 Screw-Special1
4 84579 Plate-Lock1
5 84572 Body & Duct Asy1
6 84577 Gasket-Muffler1
7 110440 Screw-Skt hd 10-24 x 1-3/42
8 84581A Kit-Cover & Valve Asy1
9 110472 Screw-Skt hd 8-32 x 5/162
10 87193 Stop-Reed1
11 85585 Valve-Reed1
12 110440 Screw-Skt hd 10-24 x 1-3/42
13 92539 Bushing-Spacer2
14 92538 Cover-Cooling1
15 92551 Cover/Valve Asy1
16 110472 Screw-Skt hd 8-32 x 5/162
17 92552 Stop-Reed1
18 85585 Valve-Reed1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 20 of 22
www.ktoutdoor.com

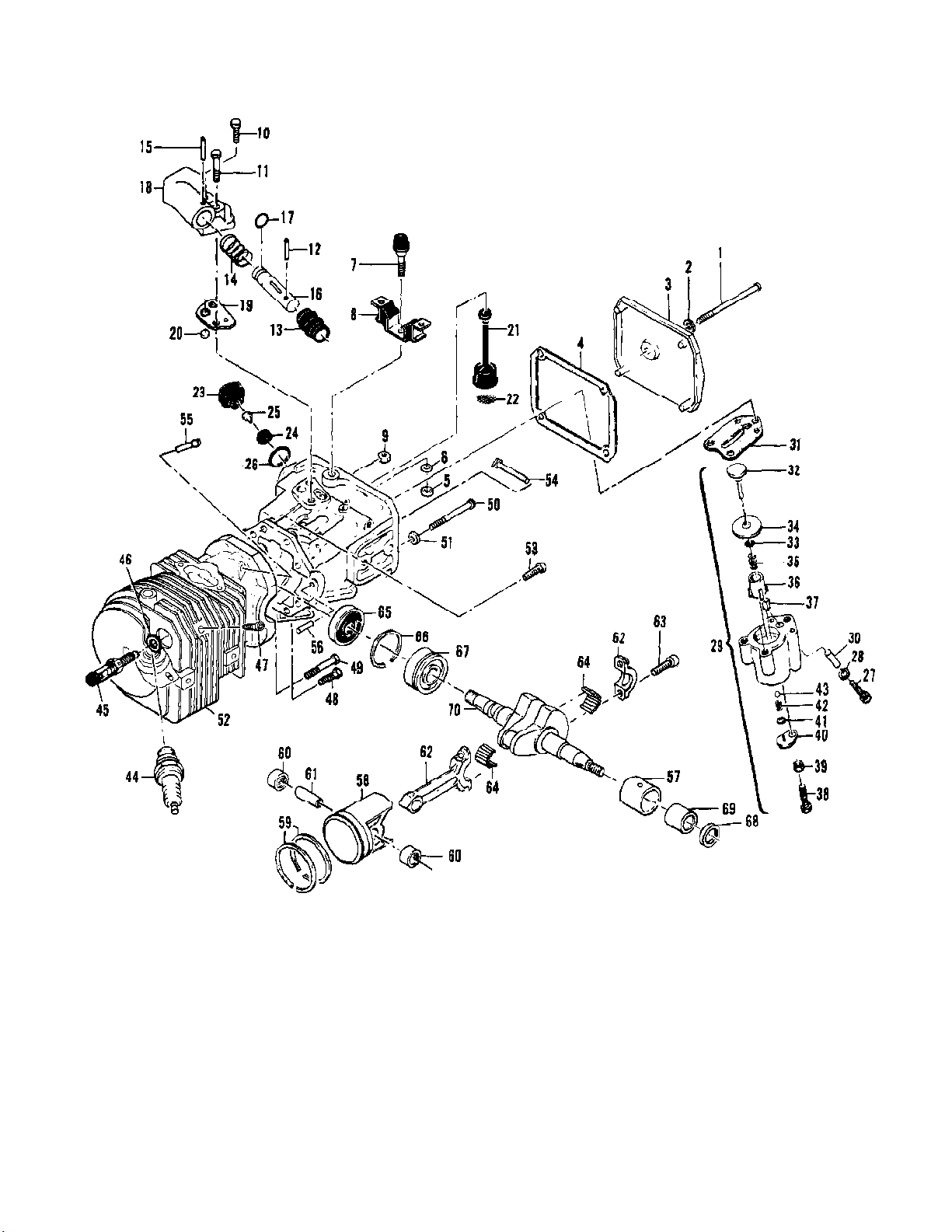

Powerhead & Oiler Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 21 of 22
www.ktoutdoor.com
Powerhead & Oiler Assembly
Ref # Part Number DescriptionQty
1 110291 Screw - Pan hd 10-24 x 2-5/81
2 110921 Washer - Sealing1
3 86304 Cover - Oil tank1
4 86306 Gasket - Cover1
5 101143 Nut - Hx 1/4-201
6 102523 Washer - 1/41
7 69832 Bumper - Front1
8 91582 Mount - Front1
9 100955 Nut - Hx 8-321
10 110670 Screw - Fil hd 8-32 x 1/21
11 105245 Screw - Fil hd 8-32 x 1 (SEMS)1
12 105673 Pin - Roll 3/32 x 9/161
13 69586 Boot - Plunger1
14 69585 Spring - Plunger1
15 101556 Pin - Roll 1/8 x 5/81
16 91219 Plunger - Pump1
17 105614 "O" Ring1
18 91218 Body - Oil pump1
19 91669 Gasket - Oil pump1
20 91668 Valve - Oiler1
21 91672 Hose - Oil1
22 51506 Screen - Hose1
23 87270 Cap - Oil tank1
24 87269 Retainer - Valve1
25 86402 Valve1
26 101148 "O" Ring1
27 110865 Screw - Skt hd 10-24 x 7/81
28 100003 Washer - #101
29 89115A Pump Asy - Pulse1
30 91774 Sleeve1
31 92818 Seal - Pulse pump1
32 60260A Piston Asy - Pump1
33 105603 "O" Ring1
34 86182 Ring - Piston1
35 60259 Spring - Piston1
36 62227 Sleeve - Adjustment1
37 91259 Pad - Oil pump1
38 110386 Screw - Hx hd 8-32 x 11
39 100251 Nut-Hx 8-321
40 62407 Cover-Outlet valve1
41 106104 "O" Ring1
42 92844 Spring-Outlet valve1
43 102809 Ball-Outlet valve1
44 63432 Spark Plug Used on models 600439A, 600439A,
1
600439A, 600439A, with serial number prefix 10-, and
11-.
93017 Spark Plug Used on models 600439E, with serial
45 87866 Valve-Dsp1
46 85505 Washer-Valve1
47 110681 Screw-Skt hd 10-24 x 1/41
48 110963 Screw-Hx hd 8-32 x 1.0 W1
49 110644 Screw-Hx hd 8-32 x 1-1/21
50 62105 Screw Asy-Sealing4
K&T Saw Shop 606-678-9623 or 606-561-4983
1
number prefix 11-.
Page 22
10-600439D SUPER PRO 81E 01/77 to 03/77 IPL 91690-R1 Page 22 of 22
www.ktoutdoor.com
Powerhead & Oiler Assembly
Ref # Part Number DescriptionQty
51 62842 Washer-Sealing4
52 93265 Kit-Cyl., C'case, Piston1
53 110288 Screw-Hx hd 8-32 x 3/42
54 62065 Bolt-Bar mounting2
55 69600 Nipple-Pulse line1
56 110851 Pin-Dowel1
57 87152 Insert-Bearing1
58 92518 Piston Asy (Identified A)1
92519 Piston Asy (Identified B)1
92520 Piston Asy (Identified C)1
59 87854 Ring Set-Piston1
60 110590 Bearing-Needle2
61 69020 Pin-Piston1
62 85237 Connecting Rod Asy1
63 61627A Screw-Special2
64 85246 Roller-(set of 22)1
65 61618 Seal-Oil1
66 63464 Ring-Snap1
67 63429B Bearing-Ball1
68 110260 Seal-Oil1
69 104357 Bearing-Needle1
70 92885 Crankshaft1
87151 Needle Insert/Bearing Asy
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
