Page 1
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 1 of 11
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 2 of 11
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
66977 Bar
65120M Chain
51445A Combination Wrench - Screwdriver
68947 Owner's Manual
52958 Spike
50134 Piston Assy - 0.020 in. oversize
55125 Ring Set - 0.020 in. oversize
36248 Wrench - Spark plug
63165 Spark Arrester
65712 Timing Guide
52949 Gasket and Packing Set (carb.)
52950 Repair Parts Kit (carb.)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 3 of 11
www.ktoutdoor.com

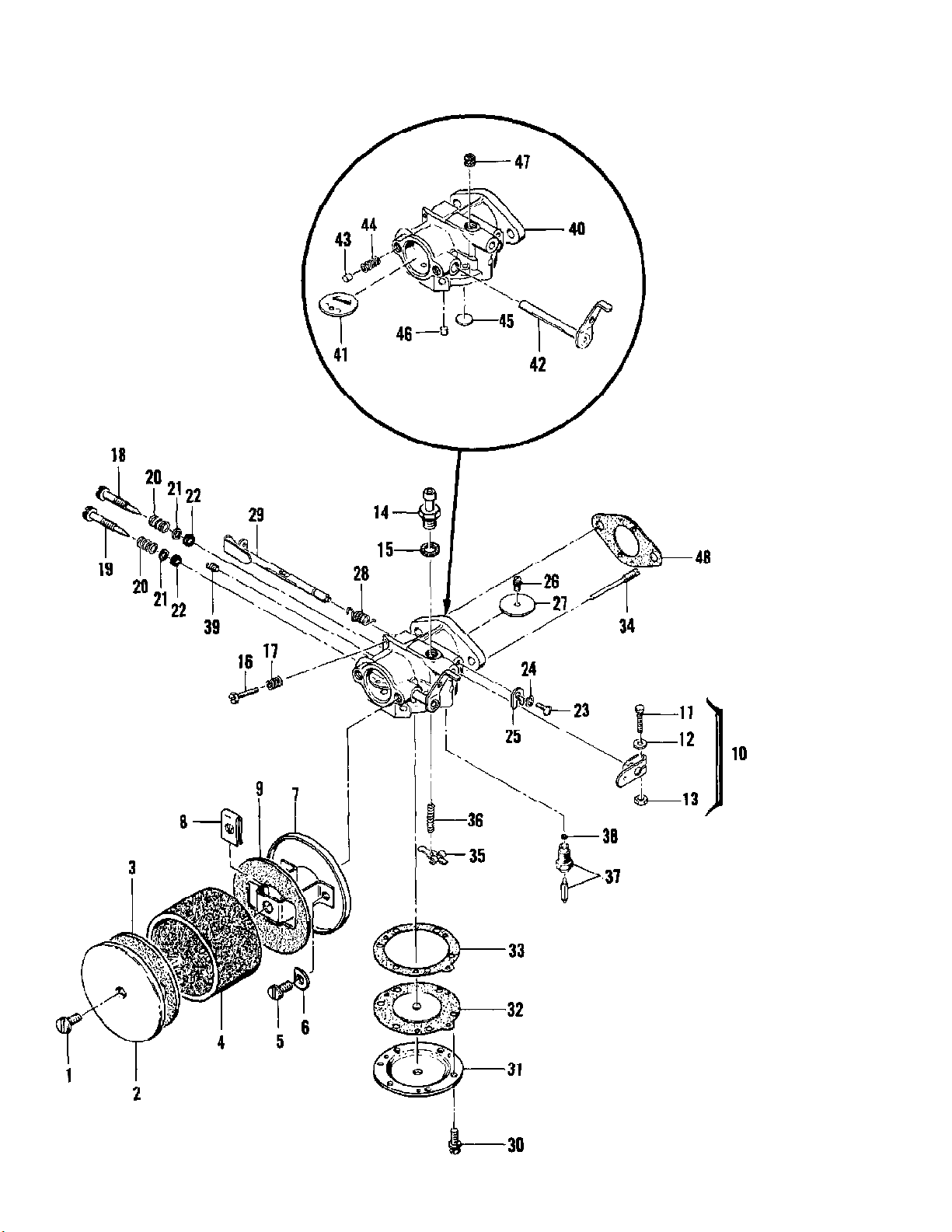

Carburetor And Air Filter
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 4 of 11
www.ktoutdoor.com
Carburetor And Air Filter
Ref # Part Number DescriptionQty
1 104393 Screw - Pan hd 10-24 x 3/81
2 63091 Cover Assy - Air cleaner1
3 63090 Gasket - Air cleaner cover1
4 52961 Screen - Air cleaner1
5 103705 Screw - Hex hd 10-32 x 3/82
6 36388 Lockplate2
7 52881B Plate Assy - Air cleaner1
8 104171 Nut - Speed1
9 63090 Gasket - Air cleaner1
10 52889 Lever Assy - Clamp1
11 105861 Screw - Rd hd 6-32 x 5/8 (SEMS)1
12 103693 Washer - #61
13 100298 Nut - Hex 6-321
52807 Carburetor Assy1
14 52939 Connection - Inlet1
15 52941 Gasket - Inlet connection1
16 52940 Screw - Idle speed1
17 51705 Spring - Idle speed screw1
18 52935 Needle - Idle adjusting1
19 52943 Needle - Main adjusting1
20 52936 Spring - Adjustment needle2
21 52937 Washer - Adjustment needle2
22 52938 "O" Ring2
23 51717 Screw - Throttle shaft clip1
24 100252 Lockwasher - Throttle shaft clip1
25 51716 Clip - Throttle shaft1
26 51721 Screw - Shutter1
27 51720 Shutter - Throttle1
28 52948 Spring - Throttle shaft1
29 52947 Shaft Assy - Throttle1
30 52933 Screw - Diaphragm cover6
31 52932 Cover - Diaphragm1
32 66167 Diaphragm Assy1
33 65591 Gasket - Diaphragm1
34 51710 Pinion - Inlet control lever1
35 51709 Lever - Inlet control1
36 51711 Spring - Inlet control lever1
37 52942 Needle & Seat Assy - Inlet1
38 51708 Gasket1
39 51589 Screw - Diaphragm chamber drain1
40 52927 Body Assy - Carburetor1
41 53813 Shutter - Choke1
42 52931 Shaft Assy - Choke1
43 52929 Pin - Friction1
44 52930 Spring - Choke shaft friction1
45 51583 Plug - Welch1
46 52928 Plug - Cup1
47 52953 Screen - Inlet connection1
48 65630 Gasket - Carburetor1
52950 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 5 of 11
www.ktoutdoor.com

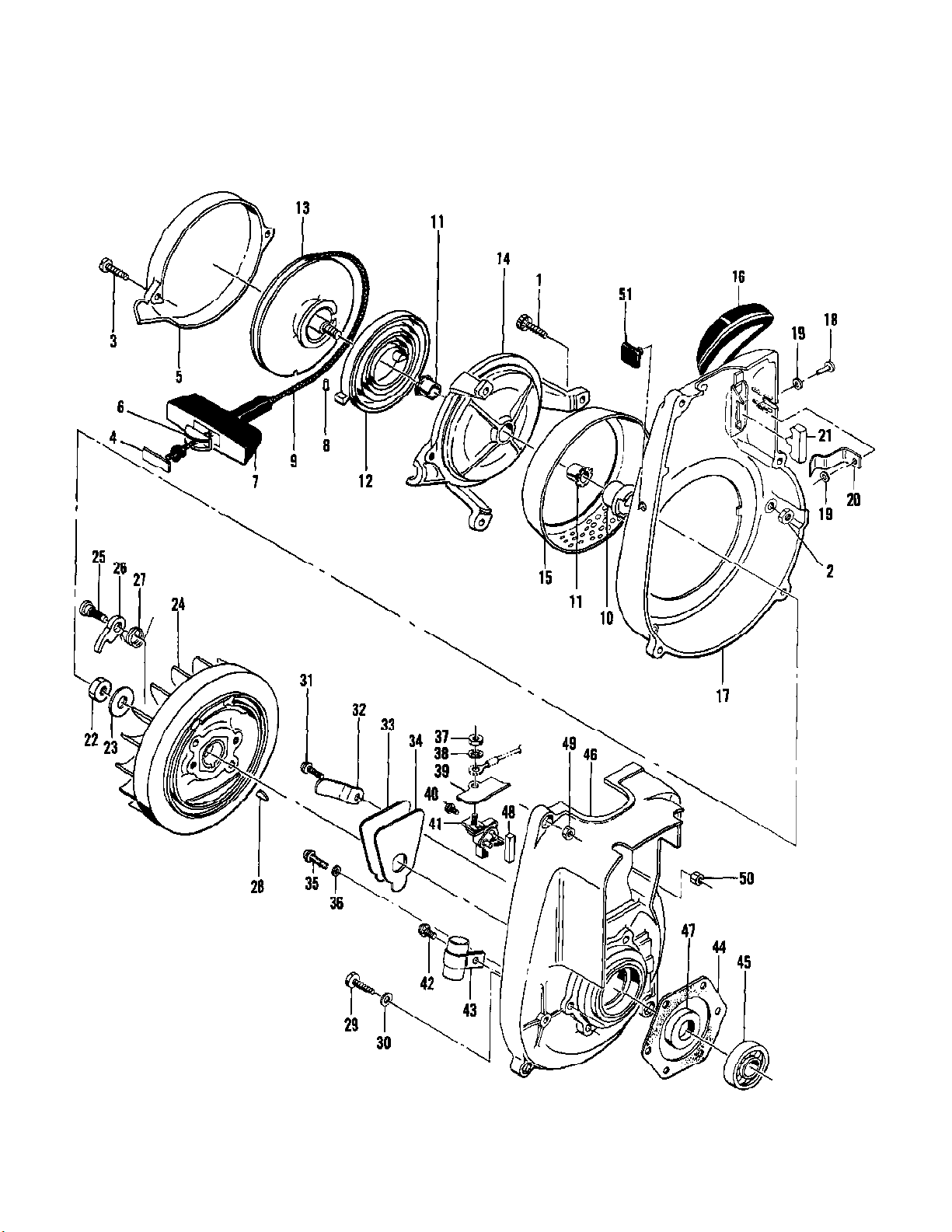

Fan Housing, Starter, Flywheel And Crankcase Cover
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 6 of 11
www.ktoutdoor.com
Fan Housing, Starter, Flywheel And Crankcase Cover
Ref # Part Number DescriptionQty
1 104815 Screw - Hex hd 10-24 x 7/83
2 101191 Nut - Hex 10-243
60130 Starter Assy1
3 104396 Screw - Pan hd 10-24 x 3/42
4 57232 Plate - Starter handle1
5 60647 Cover - Starter1
6 57231 Cup - Starter handle1
7 57230 Handle - Starter1
8 101136 Rivet - Rd hd 3/32 dia x 5/161
9 28716 Rope - Starter1
10 57790 Ratchet - Starter1
11 57535 Bushing - Starter base2
12 51665 Spring - Rewind1
13 57792 Drum - Starter1
14 60646 Base - Starter1
15 50581A Guard - Sawdust1
16 57565 Cover Assy - Spark plug1
17 57184B Housing Assy - Fan1
18 103819 Rivet1
19 24236 Washer2
20 50818 Spring - Switch1
21 50817 Button - Switch1
22 101179 Nut - Hex 7/16-201
23 101270 Washer - 7/161
24 68282 Flywheel & Pawl Assy1
25 36144B Pin - Starter pawl2
26 24093 Pawl - Starter2
27 50582 Spring - Pawl2
28 103879 Key - Woodruff #31
29 102289 Screw - Hex hd 10-24 x 3/43
30 102189 Washer - #103
31 104815 Screw - Hex hd 10-24 x 7/81
32 50671 Retainer - Breaker cover1
33 50588A Cover - Breaker box1
34 65584 Gasket - Breaker box1
35 55494 Screw Assy - Sealing #102
36 55492 Washer - Sealing2
37 100251 Nut - Hex 8-321
38 100057 Lockwasher - Internal #81
39 50381A Insulator - Breaker terminal1
40 103928 Screw - 8-32 x 1/2 (SEMS)1
41 50076A Breaker Assy1
42 103928 Screw - 8-32 x 1/2 (SEMS)1
43 50074 Condenser1
44 51240 Gasket - Cover1
45 100824 Bearing - Ball1
46 57126A Crankcase Cover Assy1
47 50663 Seal - Oil1
48 54184 Wiper - Felt1
49 101326 Nut - Hex 10-242
50 101326 Nut - Hex 10-242
51 55670 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 7 of 11
www.ktoutdoor.com

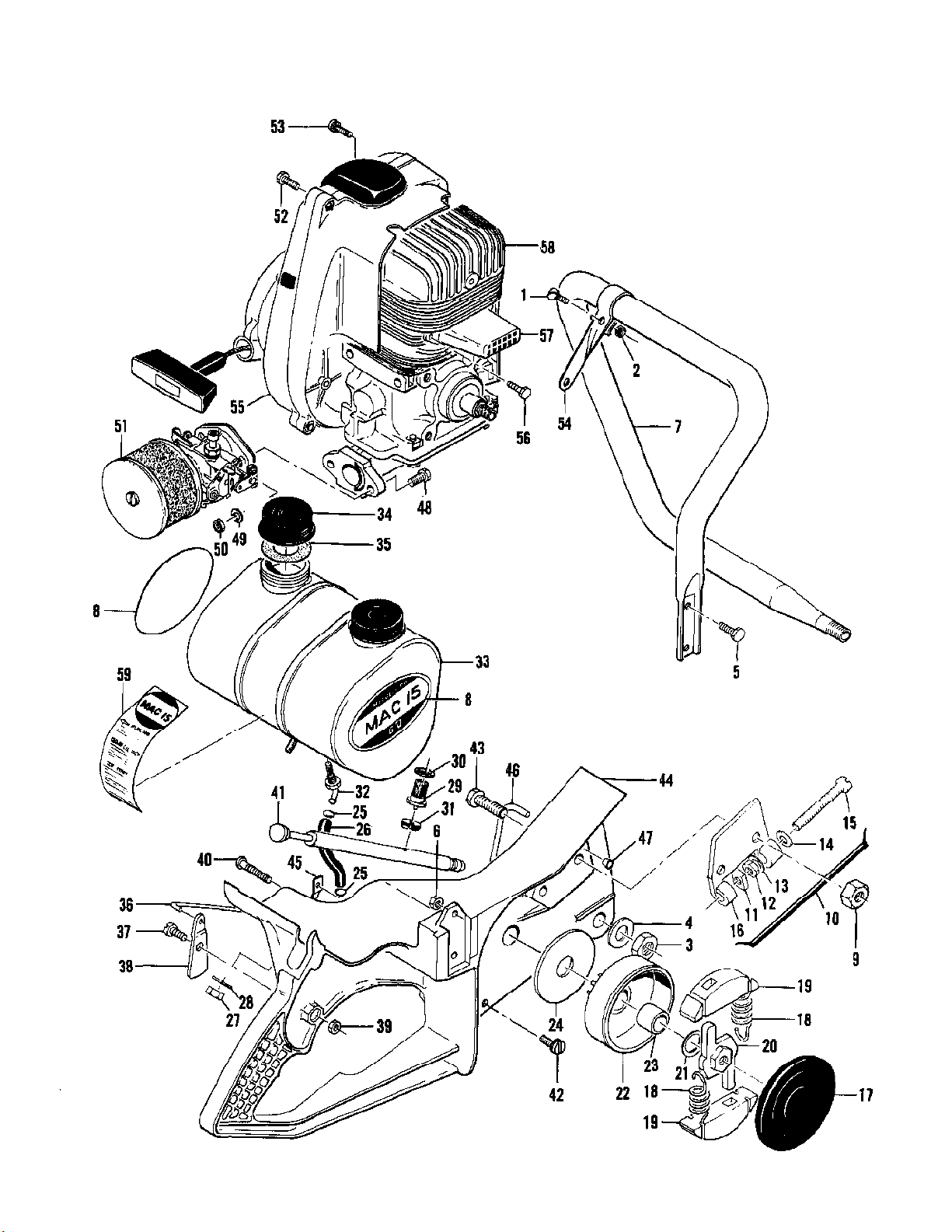

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 8 of 11
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 100716 Screw - Rd hd 10-24 x 5/81
2 101191 Locknut - 10-241
3 100604 Jamnut - 1/2-201
4 110010 Washer - Spring 1/21
5 102861 Screw - Hex hd 1/4-20 x 5/82
6 103242 Nut - Hex 1/4-201
7 52804 Frame1
8 52862 Nameplate2
9 103729 Nut - Hex 3/8-242
10 66275 Clamp Assy - Bar1
11 52828 Nut - Adjusting1
12 100640 Locknut - 1/4-281
13 102813 Washer - Spring1
14 102843 Washer - 1/41
15 103919 Bolt - Fil hd 1/4-28 x 2-1/21
16 66276 Clamp - Bar1
17 52837 Cover - Clutch1
52844 Clutch Assy1
18 63999 Spring - Clutch2
19 52845 Shoe - Clutch2
20 52846 Rotor - Clutch1
21 101270 Washer - 7/161
22 52878 Drum, Sprocket & Bushing Assy1
23 50128 Bushing1
24 50132 Washer - Sprocket1
25 50742 Clamp - Hose2
26 52808 Hose - Fuel1
27 101330 Nut - Hex 5/16-181
28 100443 Lockwasher - 5/161
29 65382 Filter Assy - Oil tank1
30 62779 Gasket - Filter1
31 52822 Gland - Oiler1
32 52887 Fitting - Fuel outlet1
33 62776 Tank Assy1
34 52923A Cap - tank2
35 52964 Gasket2
36 52824 Rod - Throttle1
37 52888 Screw - Trigger1
38 52823 Trigger1
39 101191 Nut - Hex 10-241
40 101449 Screw - Rd hd 8-32 x 5/81
41 65381 Pump Assy - Oiler1
42 110208 Screw - Flat hd 1/4-20 x 3/4 (SEMS)
43 52957 Bolt - Bar mounting2
44 68007 Handle Assy - Saw1
45 110180 Nut - Speed1
46 68005 Tube Assy - Oiler1
47 52876 Sleeve - Tube1
48 102121 Screw - Hex hd 1/4-20 x 7/82
49 100005 Washer - 1/42
50 103242 Nut - Hex 1/4-202
51 Carburetor & Air Filter See "Carburetor & Air Filter"
1
illustration and parts list.
52 104815 Screw - Hex hd 10-24 x 7/83
53 103947 Screw - 10-24 x 1 (SEMS)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 9 of 11
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
54 52883 Brace - Frame1
55 Fan Housing, Starter, Flywheel & Crankcase Cover
56 104840 Screw - Hex hd 10-24 x 3/42
57 50115 Pipe - Exhaust1
58 Powerhead See "Powerhead" illustration and parts
59 68727 Instruction Decal1
1
See "Fan Housing, Starter, Flywheel & Crankcase
Cover" illustration and parts list.
1
list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 10 of 11
www.ktoutdoor.com

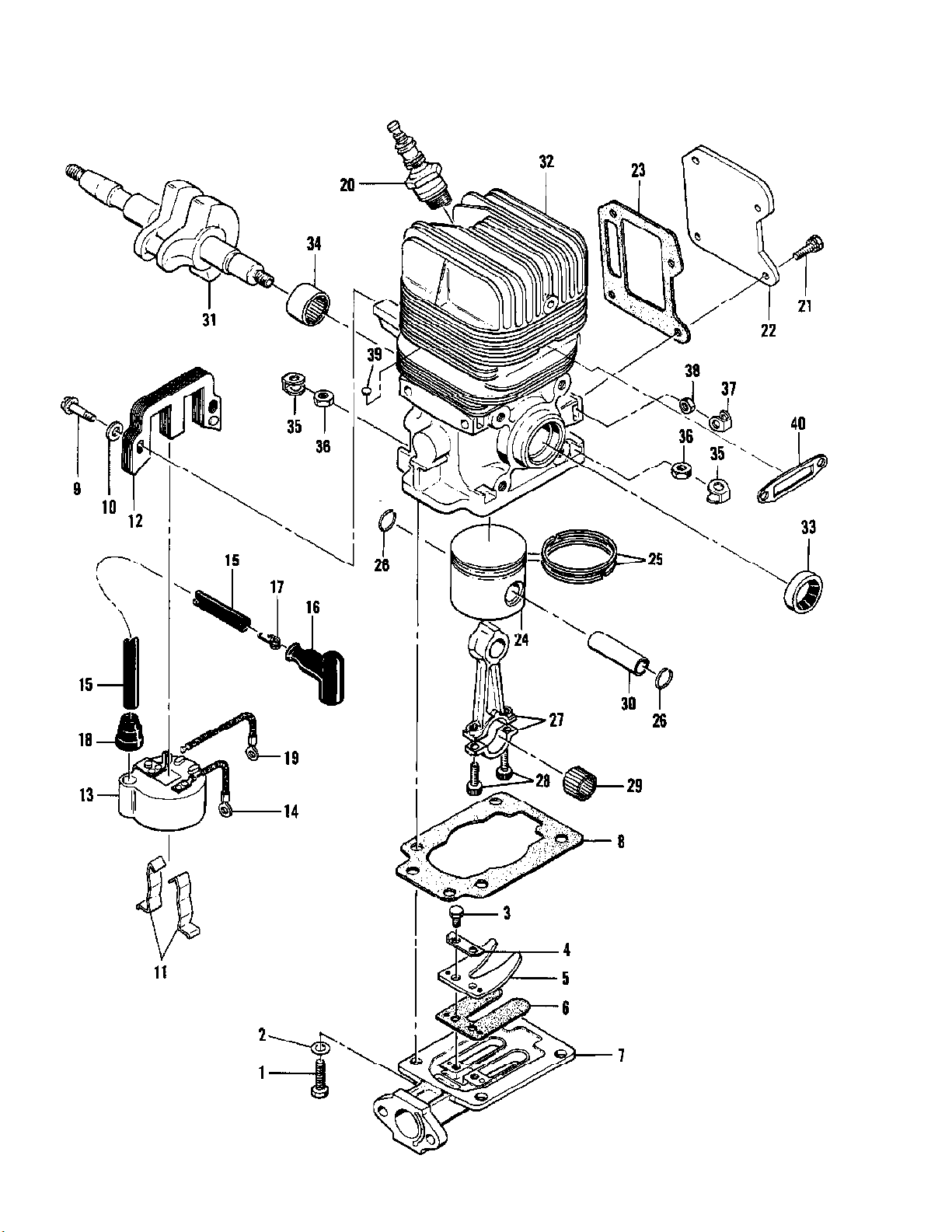

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
10-600090 MAC 15 12/62 to 10/88 IPL 68730 Page 11 of 11
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 102121 Screw - Hex 1/4-20 x 7/84
2 100005 Washer - 1/44
3 104476 Screw - Hex hd 8-32 x 5/162
4 51480 Lockplate1
5 48591 Guard - Reed1
6 48593 Valve - Reed1
7 52802B Adapter - Carburetor1
8 65578 Gasket - Carburetor adapter1
9 104815 Screw - 10-24 x 7/8 (SEMS)2
10 100352 Washer - #102
11 51253 Retainer - Coil2
12 51251 Lamination Assy1
13 57643A Kit - Coil & Terminal Assy1
14 101883 Wire Assy - Ground1
15 57648 Wire - Spark plug1
16 55060 Boot - Spark Plug1
17 55061 Connector1
18 55617 Nipple - Spark plug wire1
19 57225 Wire Assy - Primary1
20 Plug - Spark 14 mm1
21 103814 Screw - 10-24 x 5/8 (SEMS)4
22 8354 Cover - Transfer port1
23 48605 Insulator - Reed plate1
24 50206 Piston Assy - Standard1
25 55123 Ring Set - Standard piston1
26 50133 Ring - Retaining2
27 47903 Connecting Rod Assy1
28 60210A Screw - Socket hd 10-32 x 5/82
29 102742 Roller - Needle24
30 50207A Pin - Piston1
31 50659A Crankshaft1
32 52886A Cylinder Crankcase Assy1
33 104128 Seal - Oil1
34 104129 Bearing - Needle1
35 18556A Retainer - Nut6
36 105394 Nut - Hex 1/4-206
37 28053 Retainer - Nut2
38 101326 Nut - Hex 10-242
39 110179 Plug - Expansion2
40 53652 Gasket - Exhaust1
K&T Saw Shop 606-678-9623 or 606-561-4983
