Page 1
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 1 of 22
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 2 of 22
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
64797 Wrench - Spark plug
61040 Wrench - Combination
85584 Socket - Extension
85583 Key - Splined socket
65712 Guide - Timing
68256 Kit - Split bearing retainer
84688 Kit - Spark arrester baffle
85108 Retainer - Baffle
85463 Kit - Preheater
86351 Kit - Fuel cap cover
83463 Kit - Gas & Go
85376 Kit - Spark plug cover
85322 Kit - Fanhousing k cover
63097 Spark Plug (Standard)
63432 SPark Plug (Standard)
65778 Spark Plug (Cooler)
91435 Kit - CHAIN BRAKE
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 3 of 22
www.ktoutdoor.com

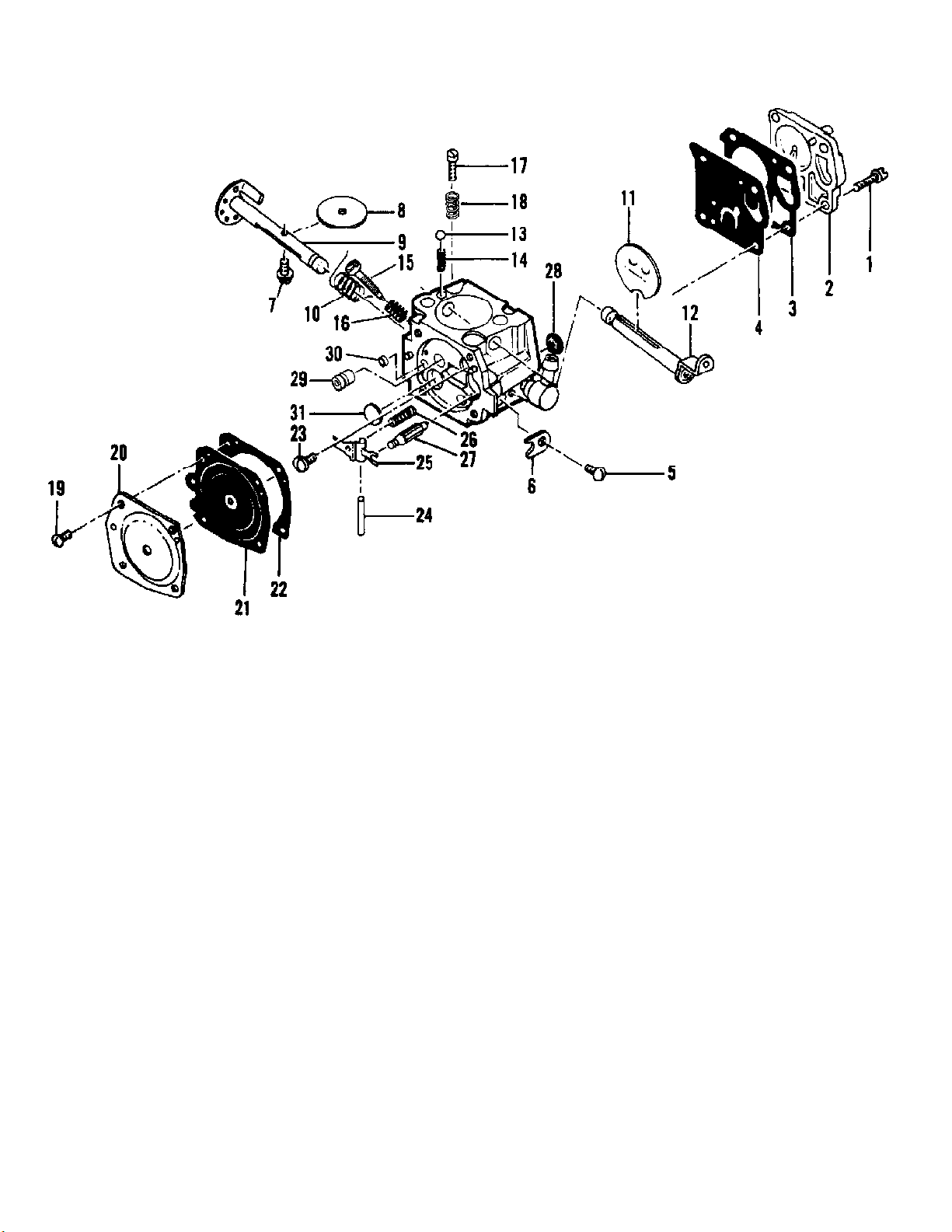

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 4 of 22
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87288 Carburetor Assembly1
1 52933 Screw - Pump Cover4
2 83731 Cover - Pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 88773 Shaft Assy - Throttle1
10 67136 Spring - Throttle shaft1
11 66639 Plate - Choke1
12 83717 Shaft Assy - Choke1
13 100071 Ball - Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Low speed mix1
16 66626 Spring - Needle1
17 66625 Screw - Idle speed1
18 66626 Spring - Idle speed screw1
19 61725 Screw - Diaphragm cover4
20 66631 Cover - Diaphragm1
21 66632 Diaphragm - Metering1
22 66633 Gasket - Diaphragm1
23 66644 Screw - Inlet lever pin1
24 66636 Pin - Inlet lever1
25 66638 Lever - Inlet1
26 66404 Spring - Inlet lever1
27 66637 Needle - Inlet1
28 66623 Screen - Fuel inlet1
29 88771 Jet - High speed fuel (029 std.)1
88772 Jet - High speed (028) Alt.
88781 Jet - High speed (027) Alt.
88780 Jet - High speed (026) Alt.
88769 Jet - High speed (030) Alt.
88770 Jet - High speed (031) Alt.
30 52928 Plug - Cup1
31 66622 Plug - Welch1
88774 Gasket Set
88775 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 5 of 22
www.ktoutdoor.com

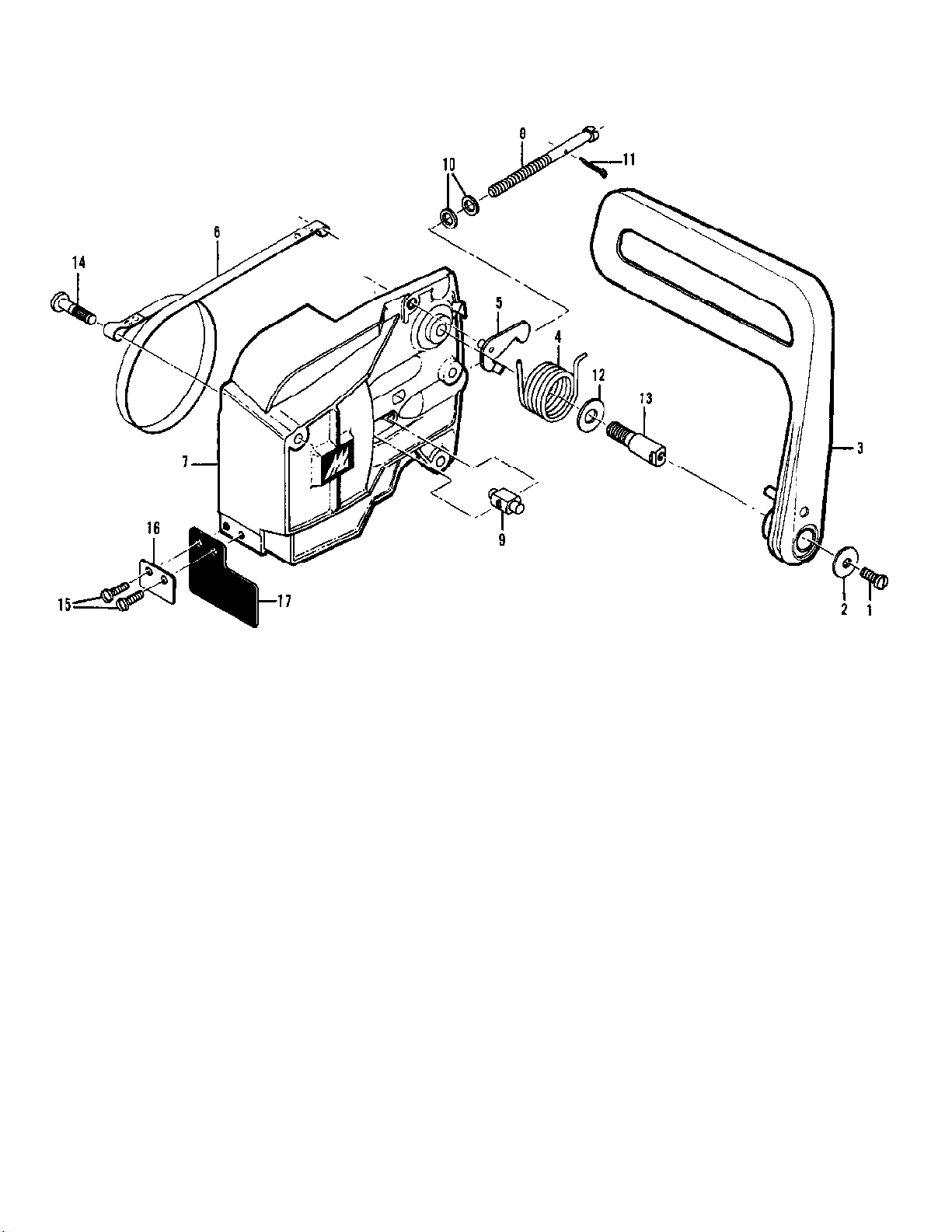

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 6 of 22
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
91436 CHAIN BRAKE1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251 Lever Asy - Brake1
4 91411 Spring - Activating1
5 91235A Latch Asy1
6 91410 Band - Brake1
7 91437 Housing Asy1
8 91761 Screw - Bar adjusting1
9 52207C Nut - Bar adjusting1
10 100004 Washer2
11 105686 Pin - Cotter1
12 91245 Washer - Thrust1
13 91246 Pin - Lever pivot1
14 91412 Pin - Brake band1
15 110041 Screw - Pan hd 8-32 x 1/22
16 69492 Retainer - Deflector1
17 69477 Deflector1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 7 of 22
www.ktoutdoor.com

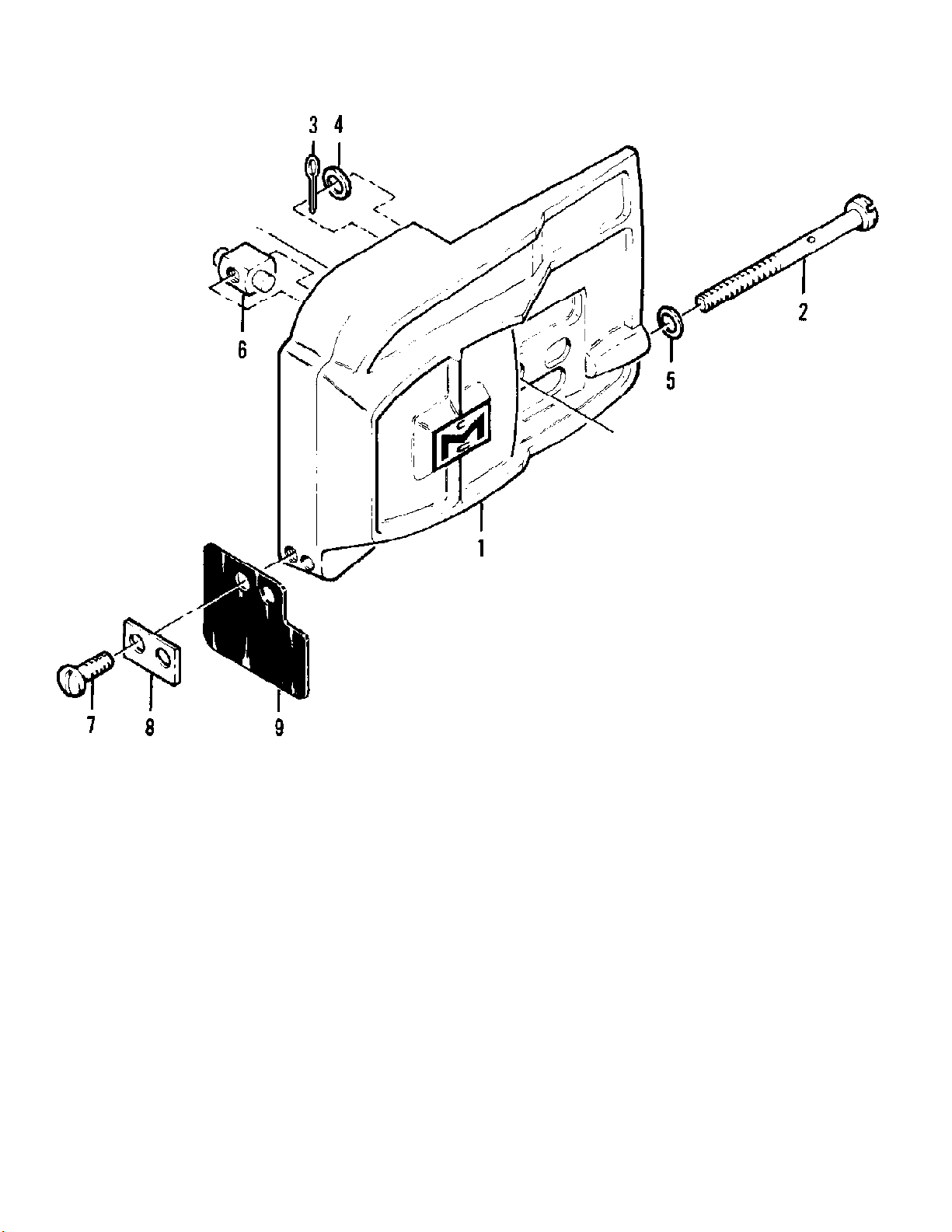

Clutch Guard Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 8 of 22
www.ktoutdoor.com
Clutch Guard Assembly
Ref # Part Number DescriptionQty
1 85547A Clutch Guard Asy1
2 62057 Screw - Adjustment1
3 105686 Pin - Cotter1
4 100004 Washer - 1/41
5 100005 Washer - 1/41
6 52207C Nut - Bar adjustment1
7 110041 Screw - Pan hd 8-32 x 1/22
8 69492 Retainer - Deflector1
9 69477 Deflector - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 9 of 22
www.ktoutdoor.com

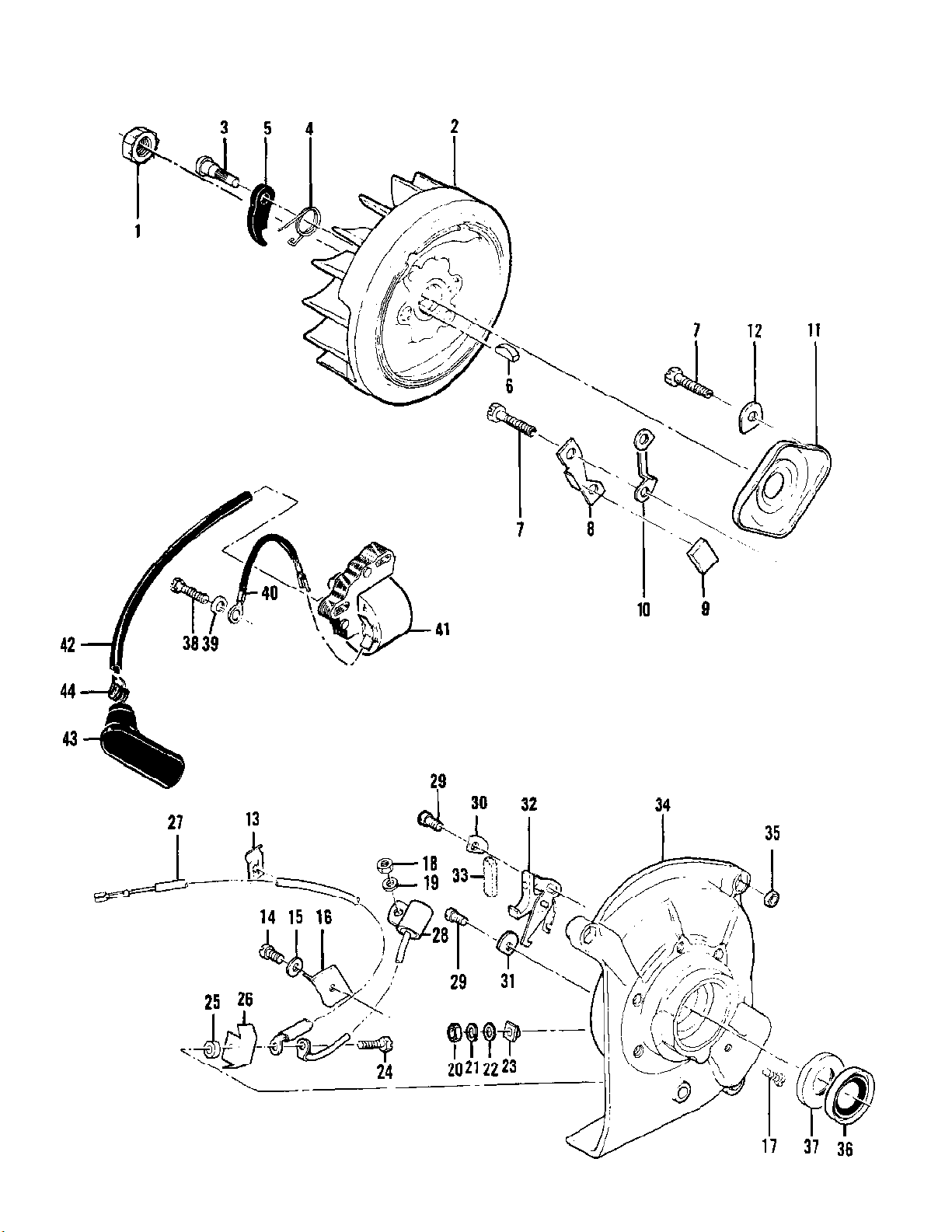

Crankcase Cover & Ignition Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 10 of 22
www.ktoutdoor.com
Crankcase Cover & Ignition Assemblies
Ref # Part Number DescriptionQty
1 110655 Nut - Hx 7/16-201
2 68282 Flywheel & Pawl Asy1
3 36144B Pin - Pawl2
4 66351 Spring - Pawl2
5 24093 Pawl - Starter2
6 100106 Key - Woodruff1
7 110866 Screw - Hx hd 10-24 x 3/46
8 57815 Strap - Seal1
9 50664 Seal - Breaker box1
10 55977 Clip - Cover2
11 55766B Cover - Breaker box1
12 36388 Plate - Lock1
13 104230 Nut - Speed1
14 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
15 100080 Washer - #81
16 57829 Clamp - Ignition wire1
17 103748 Screw - Hx hd 8-32 x 1/21
18 100251 Nut - Hx 8-321
19 100057 Washer - Lock 481
20 104551 Nut - Hx 8-321
21 104553 Washer - Lock #81
22 100080 Washer - #81
23 57770A Insulator - Breaker spring1
24 110338 Screw - Hx hd 8-32 x 9/161
25 57769 Insulator - Ignition screw1
26 55782A Insulator - Breaker terminal1
27 63628 Wire Asy - Primary1
28 85358 Condenser1
29 104733 Screw - Fil hd 8-32 x 1/2 (SEMS)2
30 57767A Plate - Lock1
31 55778E Washer - Breaker retainer1
32 88807 Breaker Asy1
33 54184 Wiper - Oil1
34 84193 Cover Asy - Crankcase1
35 101326 Nut - Hx 10-243
36 57898 Seal - Oil1
37 57897 Seal - Oil1
38 110713 Screw - Skt hd 10-24 x 7/82
39 83745 Washer - Special2
40 63639 Wire Asy - Ground1
41 85243 Coil & Lamination Asy1
42 50120 Wire Asy - Spark plug1
43 55060 Boot - Spark plug1
44 55061 Connector - Spark plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 11 of 22
www.ktoutdoor.com

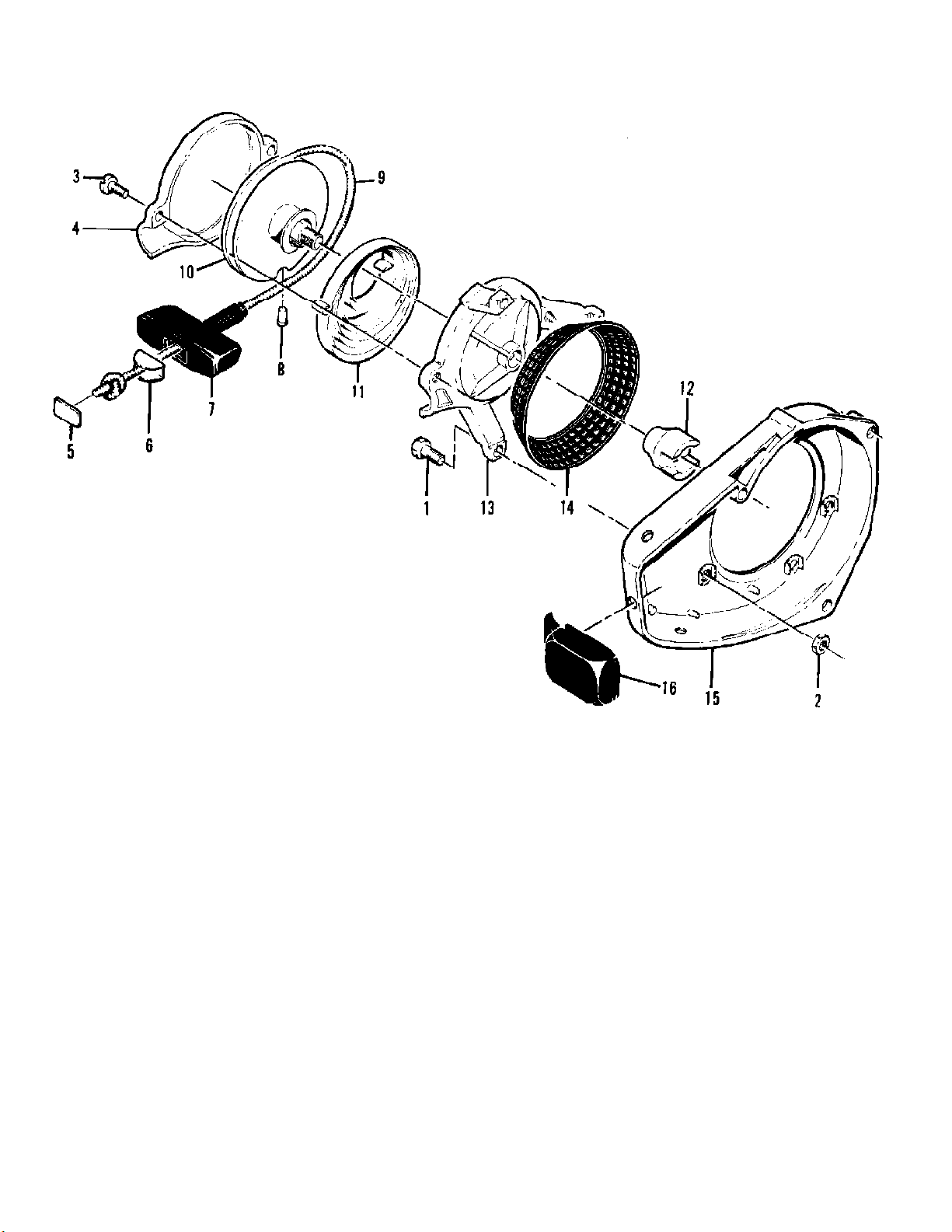

Fan Housing & Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 12 of 22
www.ktoutdoor.com
Fan Housing & Starter Assembly
Ref # Part Number DescriptionQty
1 110911 Screw - Hx hd 10-24 x 7/83
2 101326 Nut - Hx 10-243
85323 Starter Asy1
3 104396 Screw - Pan hd 10-24 x 3/42
4 60647 Cover - Starter1
5 57232 Plate - Starter handle1
6 57231 Cup - Handle1
7 57230 Handle - Starter1
8 101136 Rivet - Rope1
9 28716 Rope - Starter1
10 57792 Drum - Starter1
11 51665 Spring - Rewind1
12 84177 Ratchet - Starter1
13 84212 Base - Starter1
14 84629 Guard - Sawdust1
15 85317 Housing - Fan1
16 85376 Cover - Spark plug1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 13 of 22
www.ktoutdoor.com

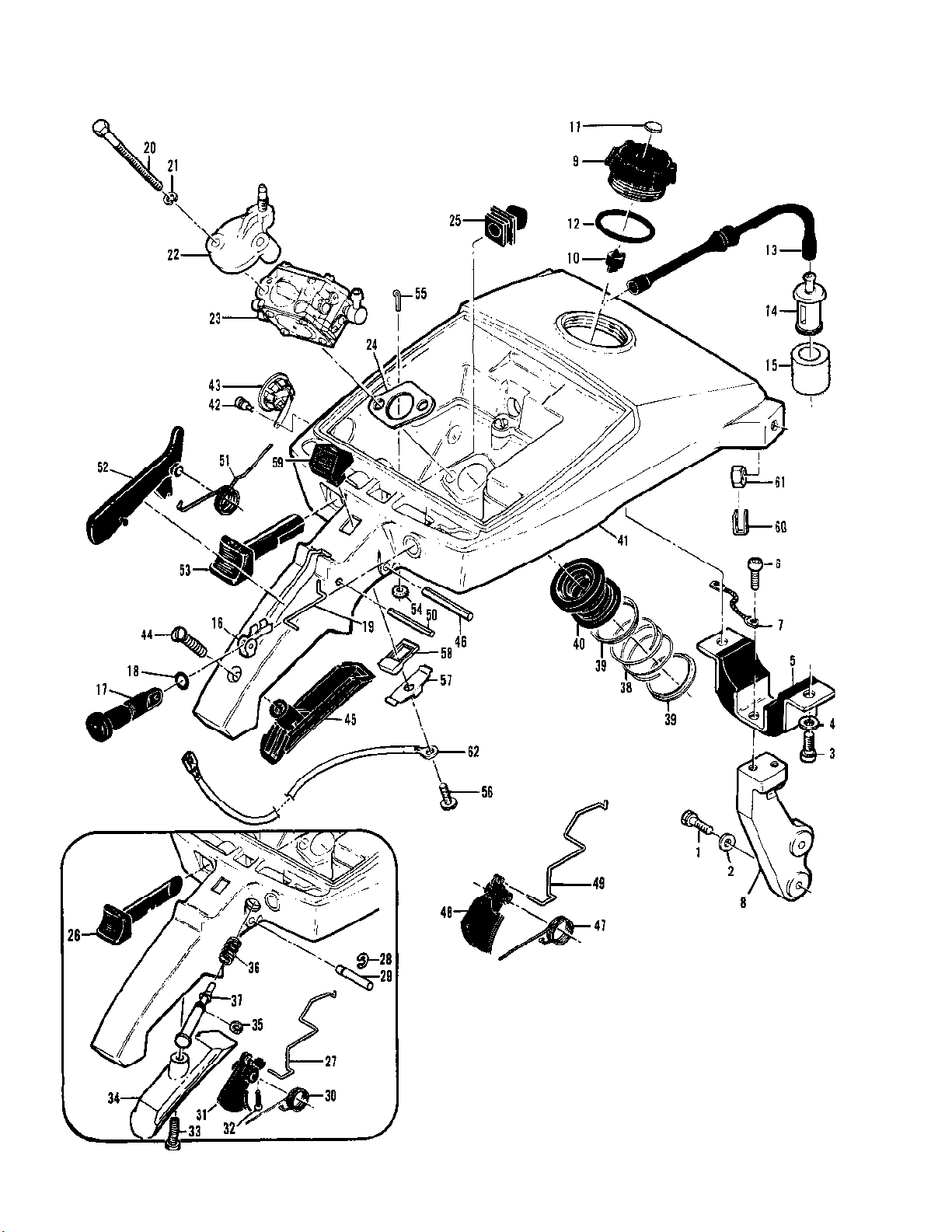

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 14 of 22
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 102761 Screw - Hx hd 10-24 x 7/82
2 83745 Washer - Special2
3 104895 Screw - Skt hd 10-24 x 5/82
4 83745 Washer - Special2
5 85897 Mount - Front1
6 104895 Screw - Skt hd 10-24 x 5/82
7 86365 Strap - Ground1
8 69422 Bracket - Mount1
9 559348 Cap Asy - Fuel1
10 53766A Valve - Check1
11 55063 Seal - Capillary1
12 101348 "O" Ring1
13 69312 Hose - Fuel1
14 53679B Pickup Asy - Fuel1
15 61159 Filter - Fuel1
16 69442 Retainer - Choke Rod1
17 69471 Button - Choke1
18 105614 "O" Ring1
19 69443 Rod - Choke1
20 110614 Screw - Hx hd 10-24 x 2-3/82
21 103174 Washer - Lock #102
22 69152 Anchor Asy - Air cleaner1
23 Carburetor Asy See "Carburetor Assembly"
1
illustration and parts list.
24 86189 Gasket - Carburetor1
25 69525 Grommet - Throttle rod1
26 69495 Plunger - Oiler1
27 84119 Rod - Throttle1
27 86149 Rod - Throttle1
28 104501 Retainer - Trigger pin1
29 69465 Pin - Trigger1
30 69466 Spring - Trigger1
31 84121 Trigger - Throttle1
31 86150 Trigger - Throttle1
32 110668 Screw - Fil hd 8-36 x 5/81
33 110724 Screw Fil hd 10-24 x 11
34 85660 Insert - Handle1
35 102189 Ring - Retaining1
36 84214 Spring - Throttle latch1
37 84213 Button - Throttle latch1
37 86151 Button - Throttle latch1
38 69565 Spring - Connector1
39 69371 Ferrule - Connector2
40 69889 Connector1
41 87289A Kit - Tank/Control Asy1
42 69360 Plug1
43 51396A Cover Asy - Adj hole1
44 92209 Screw - Insert1
45 92172 Insert - Handle1
46 110948 Pin - Roll 3/16 x 1-1/41
47 69466 Spring - Trigger1
48 92164 Trigger - Throttle1
49 86149 Rod - Throttle1
50 102419 Pin - Roll 1/8 x 11
51 92173 Spring - Trigger release1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 15 of 22
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
52 92165 Release - Trigger1
53 87285 Plunger - Oiler1
54 69352 Washer - Felt1
55 104310 Pin - Cotter1
56 110706 Screw - Pan hd 8-18 x 1/21
57 62451 Contact - Ignition switch1
58 62950A Base - Stop switch1
59 68846 Button - Stop switch1
60 28053 Retainer - Nut2
61 101326 Nut - Hx 10-242
62 83661 Wire Asy - Stop switch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 16 of 22
www.ktoutdoor.com

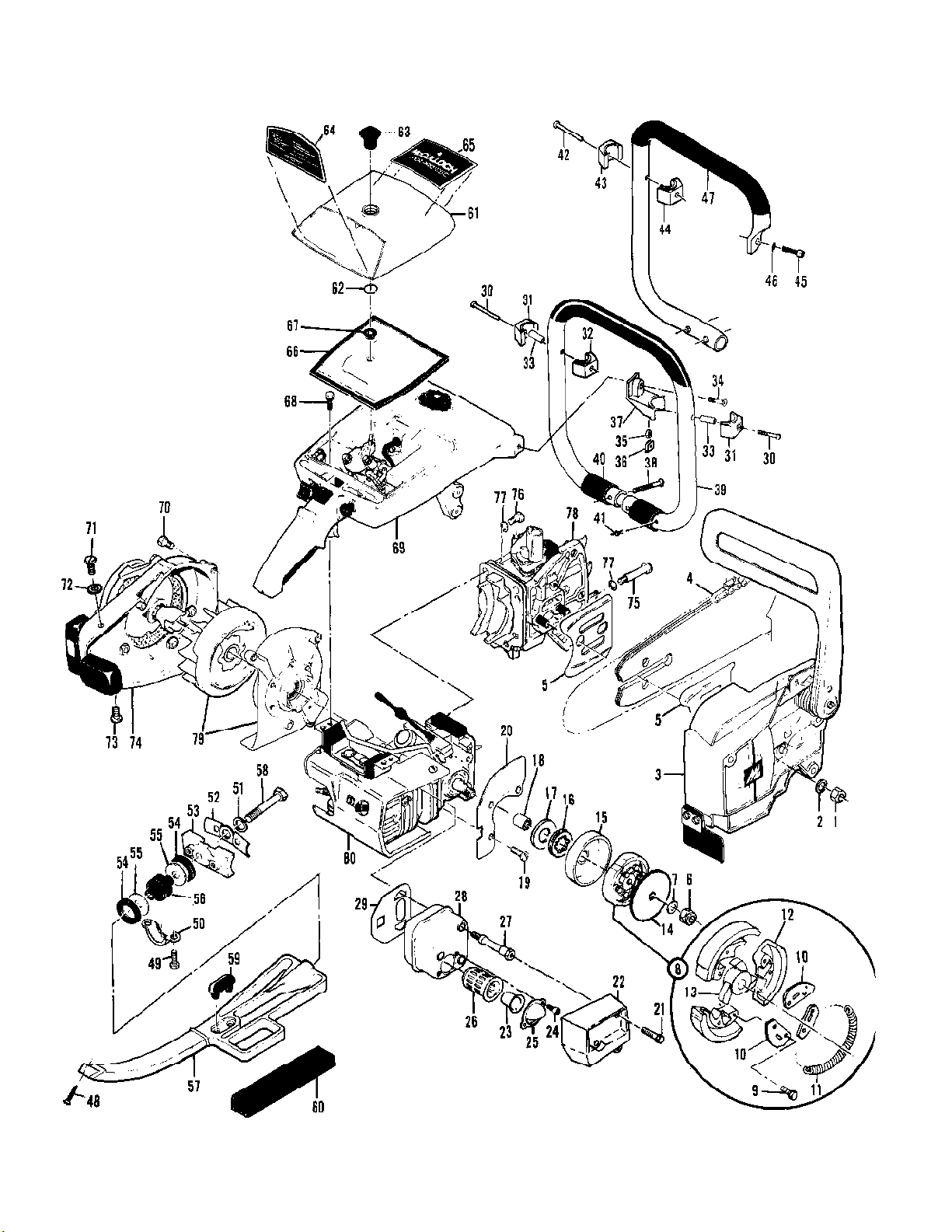

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 17 of 22
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110625 Nut - Hx 3/8-242
2 84623 Washer - Special2
3 Clutch Guard Asy See "Clutch Guard Assembly"
illustration and parts list.
3 CHAIN BRAKE Asy See "Chain Break Assembly"
illustration and parts list.
4 Bar and Chain1
5 64935 Plate - Bar Protector2
6 86113 Nut - Hx 3/8-24 (LH)1
7 100006 Washer - 3/81
8 88820 Clutch Asy1
9 110850 Screw - Hx hd 8-32 x 1/26
10 86409 Plate Asy - Retainer3
11 88735 Spring - Clutch1
12 88817 Shoe - Clutch3
13 86112 Rotor - Clutch1
14 91055 Plate - Clutch Protector1
15 90358 Kit - Drum/Spkt/Washer1
16 86342 Sprocket - 7T .404P1
17 86366 Washer - Sprocket1
18 90360 Bearing - Sprocket1
19 104133 Screw - Pan hd 1/4-20 x 5/8 (SEMS)3
20 69464B Jacket - Cylinder1
21 110717 Screw - Hx hd 10-32 x 3/43
22 85459 Guard - Muffler1
23 90716 Valve - Muffler1
85388 Kit - Muffler1
24 110664 Screw - Skt hd 10-24 x 3/82
25 84203 Deflector1
26 84690 Baffle - Muffler1
27 85121 Screw - Shoulder3
28 85117 Muffler Asy1
29 92776 Gasket - Muffler1
30 110605 Screw - Oval hd 10-24 x 22
31 69994 Collar - Frame2
32 69995 Collar - Frame1 or 2
33 69524 Bushing - Frame2
34 101986 Screw - Oval hd 10-24 x 11
35 101326 Nut - Hx 10-241
36 28053 Retainer - Nut1
37 91621 Collar - Frame1
38 110606 Screw - Oval hd 10-24 x 1-1/42
39 69468 Frame & Grip Asy1
39 91624A Frame & Grip Asy1
40 69885 Protector - Frame2
41 84795 Rivet - Stop2
42 110605 Screw - Oval hd 10-24 x 21
43 69994 Collar - Frame1
44 69995 Collar - Frame1
45 110714 Screw - Skt hd 10-24 x 3/41
46 24236 Washer - Special1
47 86106A Frame & Grip Asy1
48 101986 Screw - Oval hd 10-24 x 11
49 104950 Screw - Hx hd 10-24 x 5/82
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 18 of 22
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
50 83819 Clamp - Lower mount1
51 100004 Washer - 1/41
52 85581 Plate - Lock1
53 85220 Bracket - Lower mount1
54 84661 Grommet2
55 110845 Washer - Grommet2
56 85898 Mount -- Lower1
57 86302 Kit - Handle brace1
58 86301 Bolt - Handle brace1
59 69883 Bumper - Brace1
60 85651 Sleeve - Brace1
61 85092A Cover Asy - Air cleaner1
62 110565 Ring - Retaining1
63 68529 Knob - Cover1
64 91519 Plate - Instructions1
65 91518 Plate - Name1
66 69100 Filter - Air1
67 68528 Grommet - Filter1
68 104950 Screw - Hx hd 10-24 x 5/8 (SEMS)4
69 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
70 110910 Screw - Hx hd 10-24 x 1-3/8 (SEMS)3
71 104950 Screw - Hx hd 10-24 x 5/8 (SEMS)1
72 100002 Washer - #101
73 102500 Screw - Pan hd 10-24 x 1/21
74 Fan Housing & Starter Asy See "Fan Housing and
Starter Assemblies" illustration and parts list.
75 102127 Screw - Hx hd 1/4-20 x 3-1/42
76 103258 Screw - Hx hd 1/4-20 x 1-1/82
77 100005 Washer - 1/44
78 Oiler Tank & Pump Asys See "Oiler Tank & Pump
Assemblies" illustration and parts list.
79 Crankcase Cover & Ignition Asy See "Crankcase
Cover & Ignition Assemblies" illustration and parts list
80 Powerhead & Shroud Asys See "Powerhead &
Shroud Assemblies" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 19 of 22
www.ktoutdoor.com

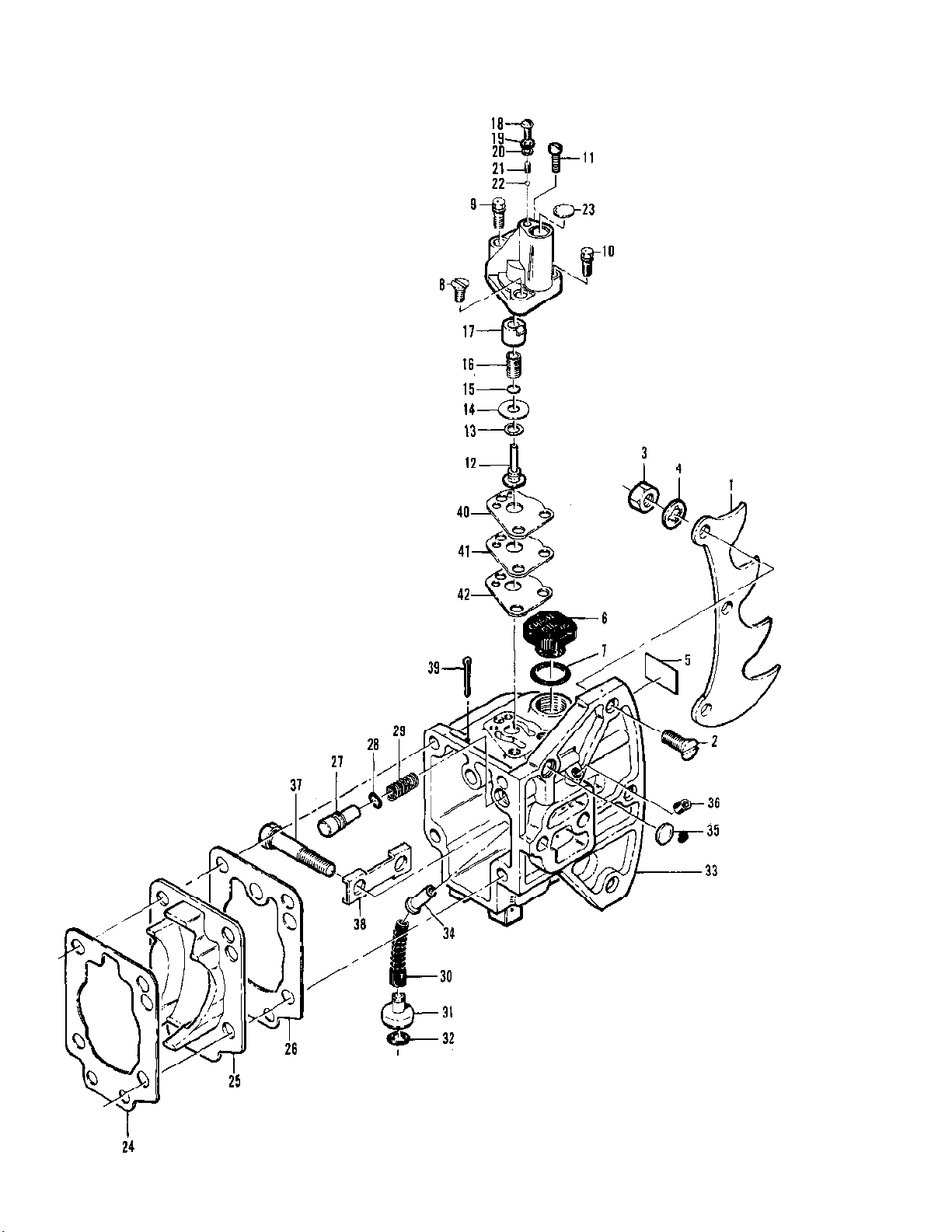

Oiler Tank & Pump Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 20 of 22
www.ktoutdoor.com
Oiler Tank & Pump Assemblies
Ref # Part Number DescriptionQty
1 61331 Kit - Spike1
2 102088 Screw - Fil hd 1/4-20 x 3/43
3 100152 Nut - Hx 1/4-203
4 100153 Washer - Lock3
5 89350 Decal - Oiler1
6 57129A Cap - Oil1
7 101148 "O" Ring1
8 110245 Screw - Fil hd 10-24 x 3/41
9 110257 Screw - Hx hd 10-24 x 1-3/41
10 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
89498 Pump Asy1
11 110890 Screw - Fil hd 10-24 x 1/81
12 60260A Piston Asy1
13 60937 Washer - Piston1
14 86182 Ring - Piston1
15 105603 "O" Ring1
16 86183 Spring - Piston1
17 67918 Sleeve - Adjustment1
18 60397A Screw - Special1
19 110613 Washer - #8 Hard1
20 60398B Washer - Special1
21 60396B Spring - Ball check1
22 102809 Ball check1
23 110157 Plug - Expansion1
24 65654 Gasket - Crankcase bottom cover1
25 86124 Cover - Crankcase bottom1
26 86125 Gasket - Oiler housing1
27 63643 Piston - Oiler1
28 105617 "O" Ring1
29 51946 Spring - Piston1
30 90995 Pickup Asy - Oil1
31 67569 Weight - Oil pickup1
32 67552 Screen - Oil pickup1
33 85392 Housing Asy - Oil1
34 51982A Valve Asy - Check1
35 110914 Plug - Cup1
36 91659 Plug - Pipe1
37 51423B Bolt - Bar2
38 51439 Plate - Lock1
39 104062 Pin - Cotter1
40 86186 Gasket - Pump1
41 67471 Spacer - Pump1
42 68794 Gasket - Spacer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 21
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 21 of 22
www.ktoutdoor.com

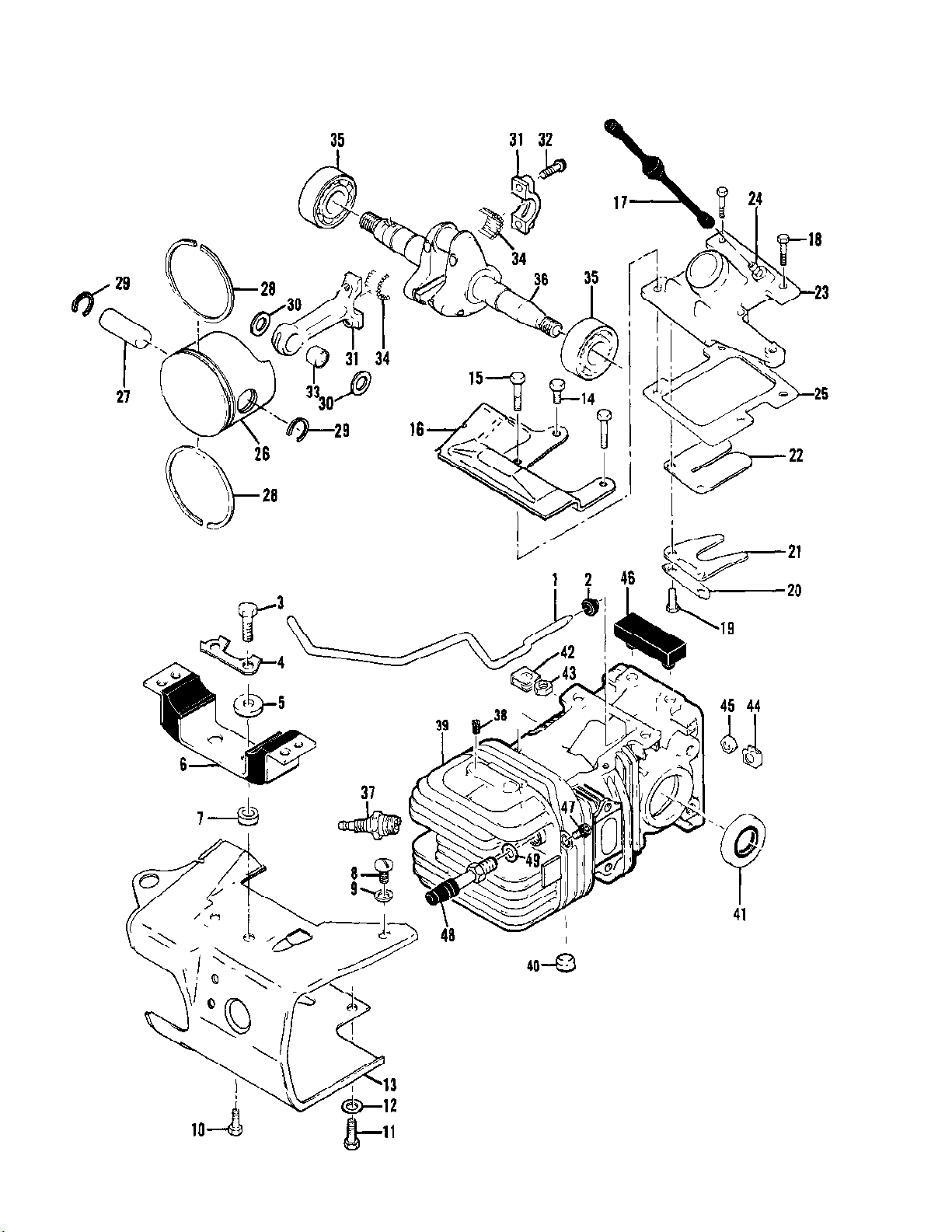

Powerhead & Shroud Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 22
10-600076 SUPER PRO 125C 01/77 to 06/77 IPL 92219-R1 Page 22 of 22
www.ktoutdoor.com
Powerhead & Shroud Assemblies
Ref # Part Number DescriptionQty
1 69460 Pushrod - Oiler1
2 57736 Seal - Pushrod1
3 102761 Screw - Hx hd 10-24 x 7/82
4 69654 Plate - Lock1
5 69417 Washer - Insulator2
6 85896 Mount - Rear1
7 85261 Spacer - Insulator2
8 104393 Screw - Pan hd 10-24 x 3/81
9 100003 Washer - #101
10 104950 Screw - Hx hd 10-24 x 5/81
11 102861 Screw - Hx hd 1/4-20 x 5/82
12 100005 Washer - 1/42
13 91106 Shroud1
14 110581 Screw - Hx hd 10-24 x 5/161
15 110748 Screw - Hx hd 10-24 x 12
16 85421 Baffle - Fan1
17 88759 Hose - Pulse line1
18 110621 Screw - Hx hd 10-24 x 3/4 (SEMS)2
85156 Manifold & Reed Asy1
19 103748 Screw - Hx hd 8-32 x 1/22
20 69501 Plate - Lock1
21 86294 Stop - Reed1
22 86293 Valve - Reed1
23 85235 Manifold & Pulse fitting1
24 69600 Fitting - Pulse1
25 69526 Gasket - Manifold1
26 85539 Piston Assembly1
27 89204 Pin - Piston1
28 85608 Ring Set1
29 85273 Ring - Retaining2
30 85266 Washer - Thrust2
31 88623 Connecting Rod Asy1
32 110720 Screw - Spline hd special2
33 85607 Roller - Needle (Set of 22)1
34 85420 Roller - Needle24
35 66016 Bearing - Ball2
36 85476 Crankshaft1
37 63432 Spark Plug1
37 63097 Spark Plug1
38 83374 Insert2
39 91110 Crankcase Assembly1
40 110685 Plug - Cup3
41 104432 Seal - Oil1
42 28053 Retainer - Nut2
43 101326 Nut - Hx 10-242
44 18556A Retainer - Nut6
45 105394 Nut - Hx 1/4-206
46 69872 Snubber - Fuel tank1
47 110681 Screw - Skt hd 10-24 x 1/41
48 85148 Valve - Comp. rel.1
49 85505 Washer - Valve1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
