Page 1
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 1 of 16
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 2 of 16
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
83434 Manual - Owner's
62827 Wrench - Screwdriver
63746 Scrench
63341A Kit - Spike
69058 Kit - Wrap-around frame
84922 Kit - Baffle
65712 Guide - Timing
63097 Spark Plug - AC CS45T
65778 Spark Plug - AC CS41T
69191 Kit - Pressure adaptor
84453 Kit - Piston tool
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 3 of 16
www.ktoutdoor.com

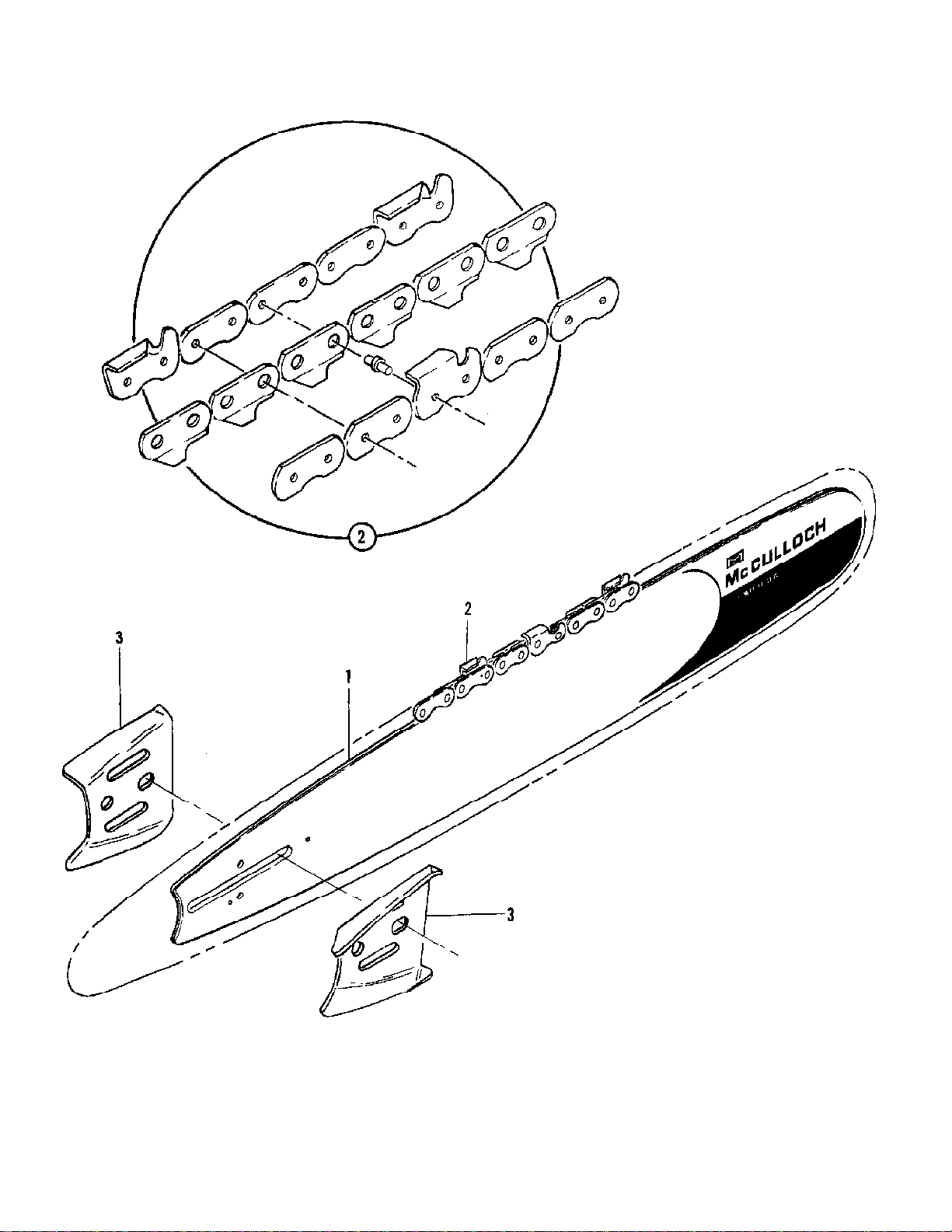

Bar and Chain Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 4 of 16
www.ktoutdoor.com
Bar and Chain Assemblies
Ref # Part Number DescriptionQty
1 63541 Bar
2 62556M Chain Assy
64330 Set - Bar Plate1
3 64325 Plate - Bar2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 5 of 16
www.ktoutdoor.com

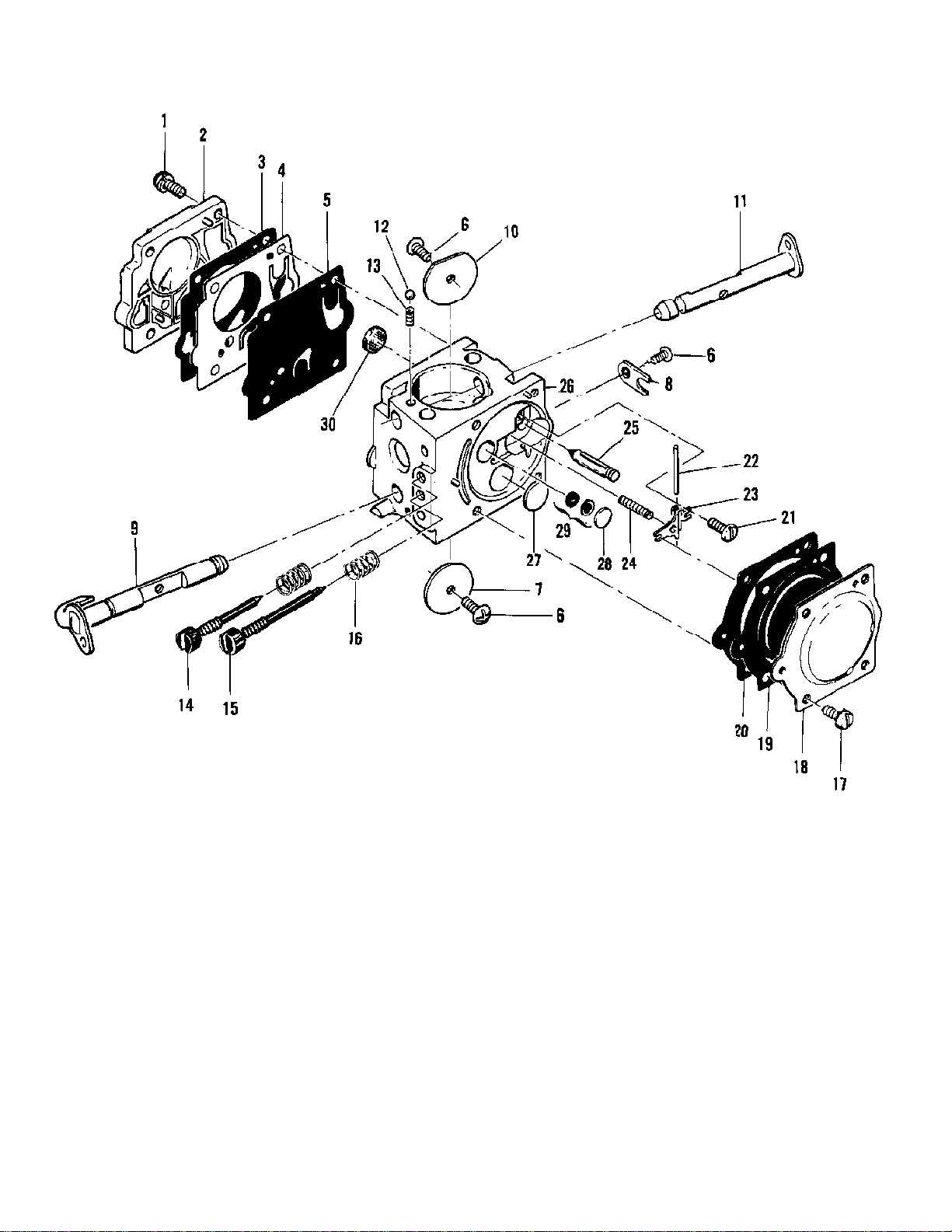

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 6 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
69942 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 68104 Needle - High speed1
15 68105 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphram1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 83759 Body Assy - Carburetor1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Assy1
30 67507 Screen - Fuel1
67482 Gasket Set
83764 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 7 of 16
www.ktoutdoor.com

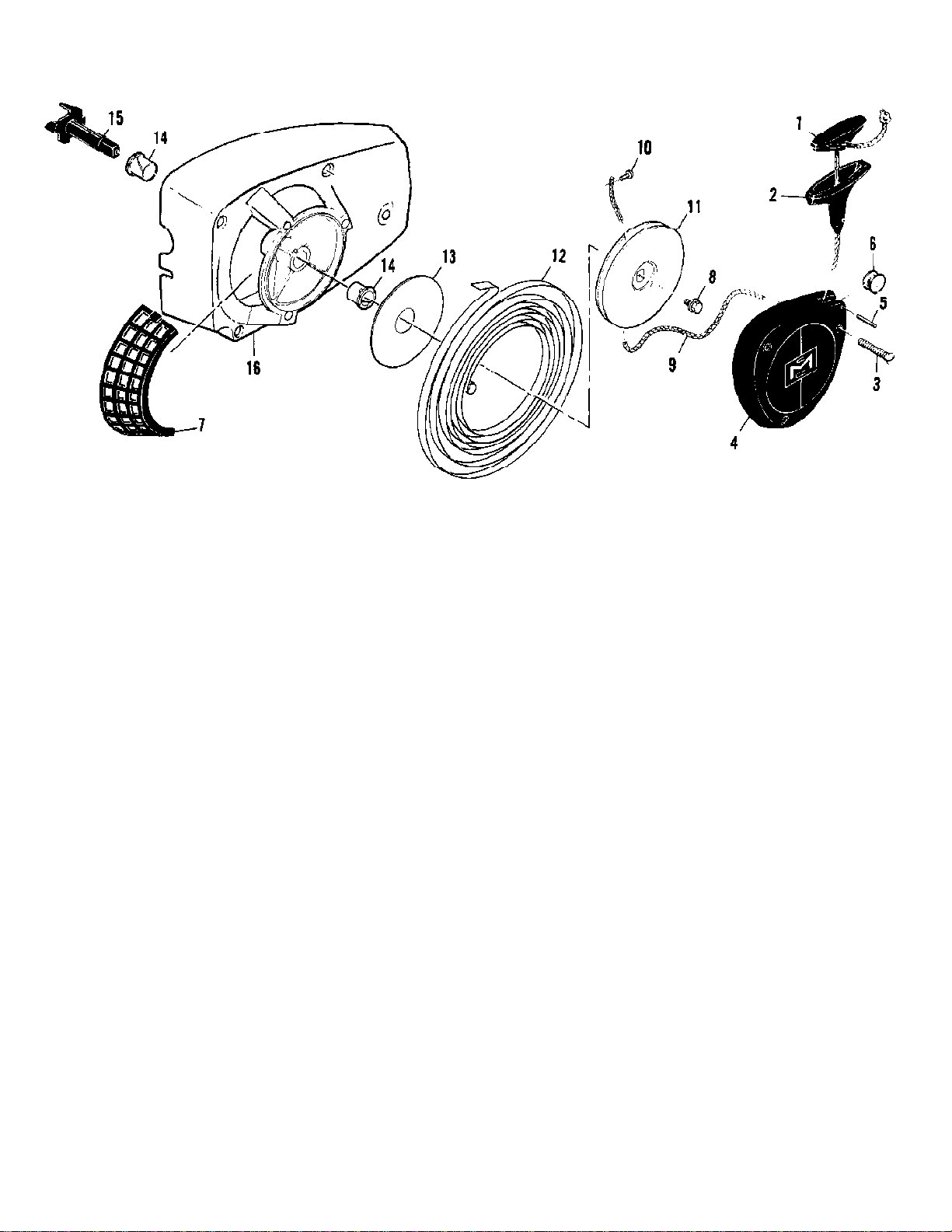

Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 8 of 16
www.ktoutdoor.com
Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
1 62191A Insert - Starter handle1
2 62190A Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 84559 Cover Assy - Starter1
5 110657 Pin - Roll1
6 84051 Pulley - Rope1
7 83598 Guard - Sawdust3
8 110529 Screw - Hex hd 10-24 x 1/21
9 69964 Rope - Starter1
10 110470 Rivet - Rope1
11 83597 Drum - Starter1
12 83334 Spring - Rewind1
13 83994 Shield - Spring1
14 57535 Bushing - Shaft2
15 83748 Shaft - Starter1
16 83958 Housing - Fan1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 9 of 16
www.ktoutdoor.com

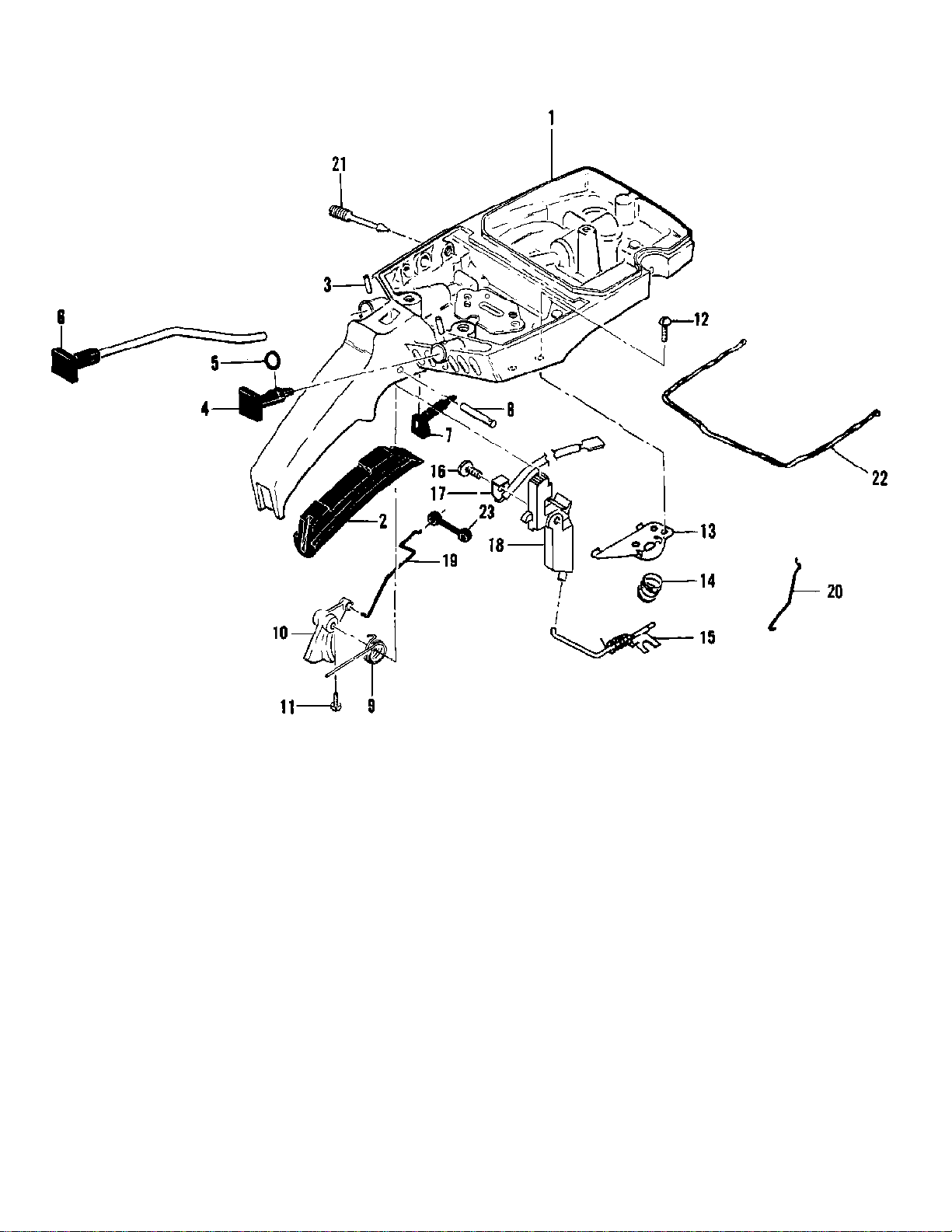

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 10 of 16
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 84183 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 69041 Button - Choke1
5 101056 "O" Ring1
6 64871 Button & Rod Assy1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 65734 Spring - Throttle return1
10 67224 Trigger1
11 110537 Screw - Fil hd 8-36 x 1/21
12 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)2
13 64721 Bracket - Lever Assy1
14 69687 Spring - Valve1
15 69811 Lever Assy - Compression release1
16 110385 Screw - Pan hd 8-32 x 3/81
17 65873 Wire Assy - Stop switch1
18 67209 Button - Control1
19 68170 Rod - Throttle1
20 69042 Rod - Choke
21 67271 Screw - Idle adjustment1
22 69564 Seal - AirboxAR
23 69043 Snubber - Rod1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 11 of 16
www.ktoutdoor.com

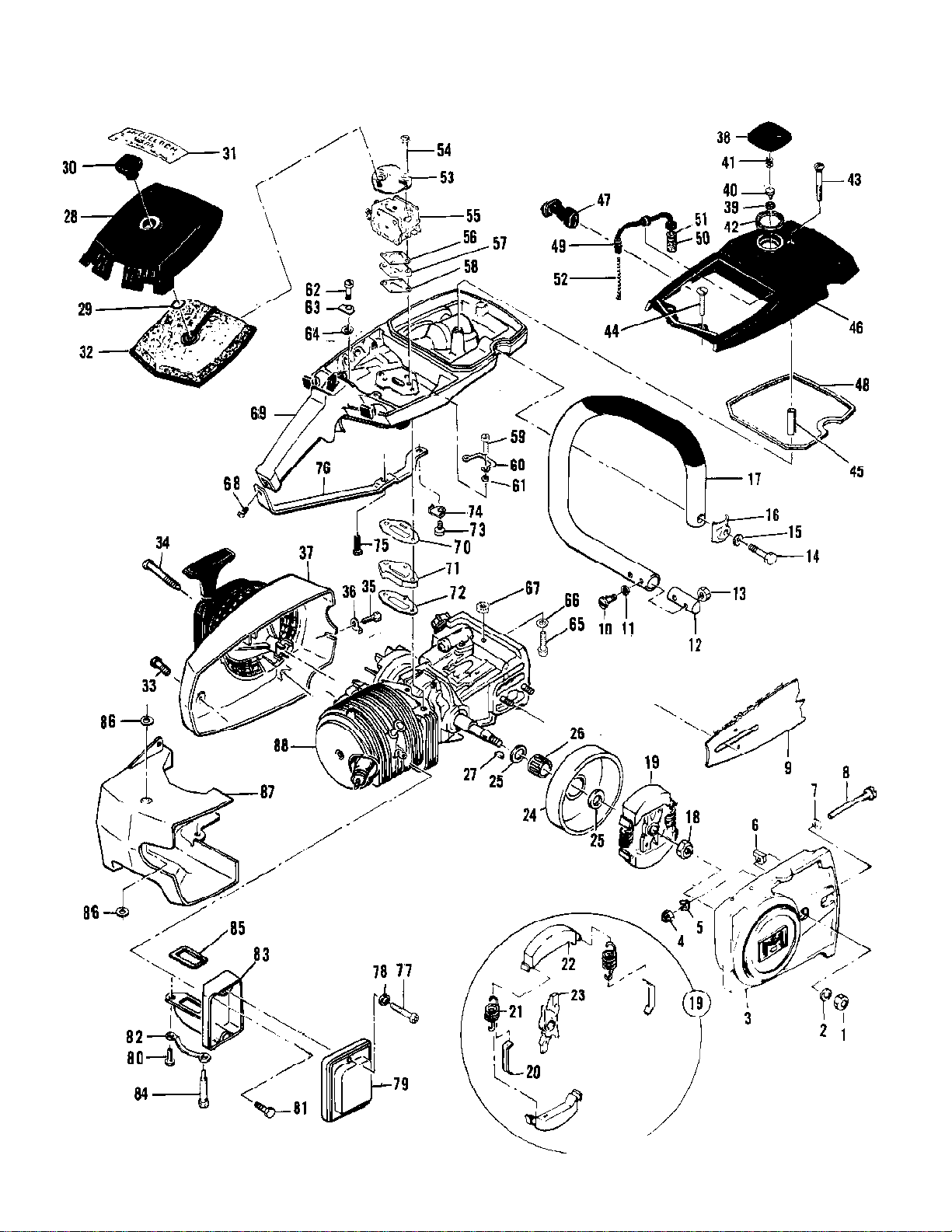

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 12 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 84530 Clutch Guard Assy1
4 102067 Nut - Hex 10-241
5 110387 Washer - Wavey1
6 61705 Nut - Bar adjustment1
7 110264 Washer - #101
8 102144 Screw - Bar adjustment1
9 Bar & Chain Assy See "Bar & Chain Assembly"
illustration and parts list.
10 102761 Screw - Hex hd 10-24 x 7/82
11 100352 Washer - #102
12 61678 Plug - Nut retainer1
13 101326 Nut - Hex 10-242
14 102130 Screw - Hex hd 1/4-20 x 1-1/21
15 100153 Lockwasher - 1/41
16 63484 Clamp - Frame1
17 84269 Frame & Grip Assy1
18 110594 Nut - Hex 3/8-241
19 67544 Clutch Assy1
20 64583 Retainer - Spring2
21 66384 Spring - Clutch2
22 67233 Shoe - Clutch2
23 62204C Rotor Assy1
24 65370 Kit - Sprocket & Drum1
25 61692 Shim2
26 110330 Bearing1
27 103879 Key - Woodruff1
28 68530 Cover Assy - Air cleaner1
29 110565 Ring - Retainer1
30 68529 Knob - Cover1
31 85014 Nameplate1
32 69922 Filter Assy - Air1
33 110684 Screw - Pan hd 10-24 x 3/81
34 62978 Screw - Special3
35 102762 Screw - Hex hd 10-24 x 1/21
36 69890 Lockplate1
37 Fan Housing & Starter Assy See "Fan Housing &
Starter Assembly" illustration and parts list.
38 68531 Cap Assy - Fuel1
39 68533 Plug1
40 63041 Valve1
41 63040 Spring1
42 69767 Gasket1
43 110402 Screw - Oval hd 12-24 x 2-3/81
44 103579 Screw - Fl hd 10-24 x 12
45 69686 Spacer1
46 84252 Cover - Fuel tank1
47 84253 Boot - Carburetor1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel1
50 63932 Filter - Fuel1
51 100440 Washer1
52 67944 Spring - Hose1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 13 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
53 83204 Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
56 83059 Gasket - Carburetor1
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110567 Screw - Hex hd 12-24 x 1-1/42
60 68582 Lockplate1
61 102115 Washer - #122
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 69516 Lockplate1
64 64856 Washer - Special1
65 102660 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 69772 Spacer1
68 106078 Screw - Pan hd 10-24 x 7/161
69 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
70 84082 Gasket - Fuel tank1
71 84080 Insulator - Fuel tank1
72 68594 Gasket - Insulator1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate1
75 110682 Screw - Hex hd 10-24 x 5/81
76 85007 Brace - Handle1
77 101563 Screw - Skt hd 10-24 x 1-1/42
78 110264 Washer - #102
79 83966 Cover - Muffler1
80 84776 Screw - Special1
81 110529 Screw - Hex hd 10-24 x 1/21
82 67922 Lockplate1
83 83106 Body & Duct Assy1
84 68187 Screw - Special1
85 84007 Gasket - Spark arrester1
86 68581 Insulator - Shroud2
87 67910 Shroud1
88 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 14 of 16
www.ktoutdoor.com

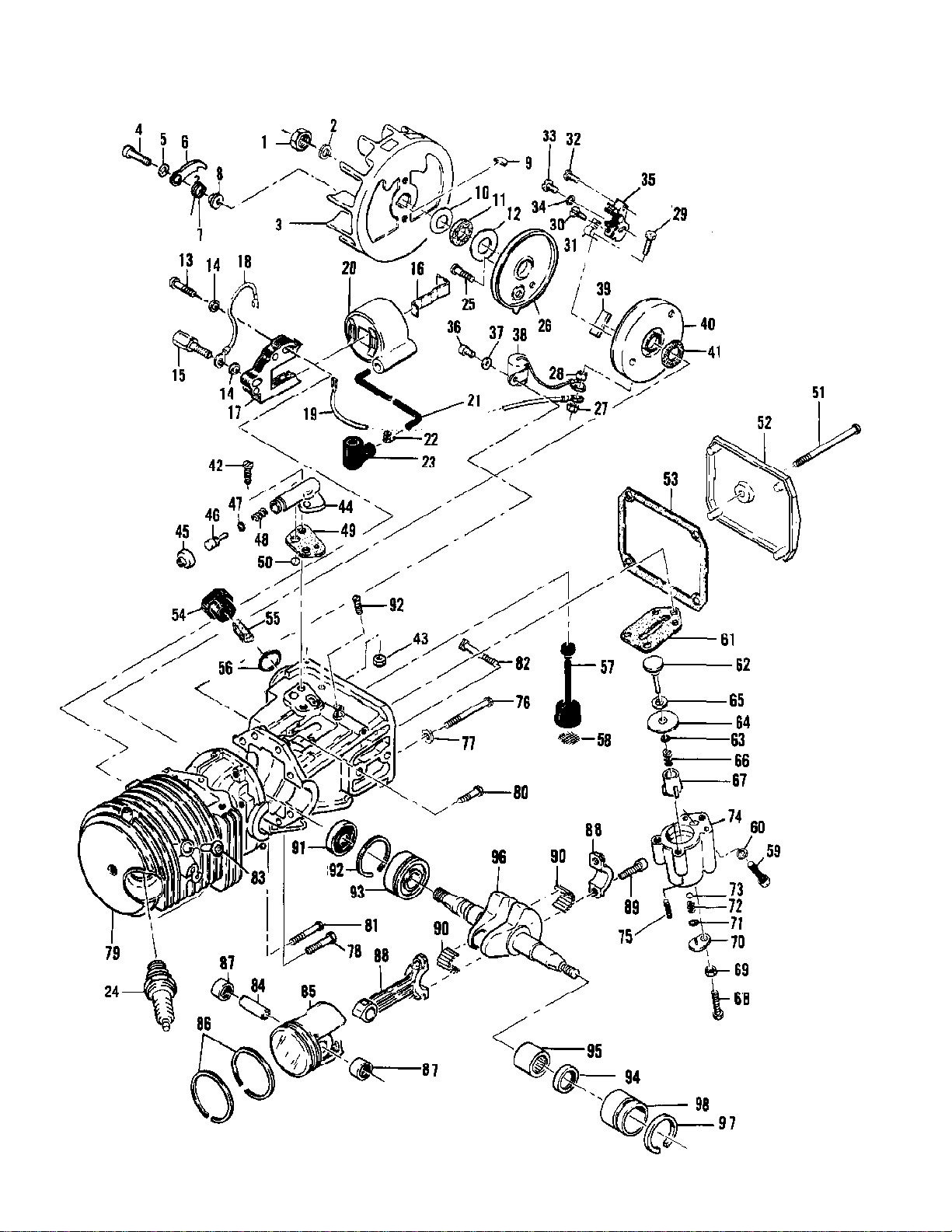

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 15 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 101141 Nut - Hex 3/8-241
2 105999 Washer - 3/81
3 67845 Flywheel1
4 102660 Screw - Skt hd 10-24 x 7/82
5 83241 Washer - Special2
6 67546 Pawl - Starter2
7 67545 Spring - Pawl2
8 67547 Pivot - Pawl2
9 103879 Key - Woodruff1
10 67057 Washer - Thrust1
11 67056 Seal - Breaker box Cover1
12 67054 Washer - Thrust1
13 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
14 100003 Washer - #102
15 83512 Stud - Special1
16 51253 Retainer - Coil1
17 68164 Lamination Assy1
18 84686 Wire Assy - Ground1
19 69344 Wire Assy - Primary1
20 69798 Kit - Coil1
21 69966 Wire Assy - Spark plug1
22 62932 Connector1
23 62926 Boot1
24 63432 Spark Plug - AC CS 42 T1
25 110349 Screw - Rd hd 8/32 x 3/41
26 62362 Cover - Breaker box1
27 100298 Nut - Hex 6-321
28 62365 Spacer - Breaker1
29 110346 Screw - Hex hd 6-32 x 3/41
30 110489 Screw - Pan hd 6-32 x 7/16 s/t1
31 83126 Strap - Conduction1
32 100934 Screw - Rd hd 8-32 x 3/81
33 110445 Screw - Truss hd 8-32 x 3/81
34 105976 Washer - 81
35 66231 Breaker Assy1
36 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
37 100080 Washer - #81
38 67960 Condenser1
39 54184 Wiper - Cam1
40 84329 Box - Breaker1
41 67051 Seal - Breaker box1
42 110623 Screw - Fil hd 8-32 x 1/22
43 100955 Nut - Hex 8-321
44 84156 Housing - Pump1
45 62262 Cap - Housing1
46 62266 Plunger - Pump1
47 101056 "O" Ring1
48 66687 Spring - Pump1
49 62230 Gasket - Pump1
50 62909 Valve - Pump1
51 110291 Screw - chain hd 10-24 x 2-5/81
52 63072 Cover - Oil tank1
53 62116 Gasket - Cover1
54 68809 Cap - Oil tank1
55 84953 Plug - Cap1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
10-600052 MAC 7-10A CHAIN SAW 09/70 to 09/71 IPL 85017 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 101148 "O" Ring1
57 62123B Hose Assy - Oil1
58 51506 Screen - Hose1
59 102660 Screw - Skt hd 10-24 x 7/81
60 24236 Washer - Special1
61 83790 Gasket - Pulse pump1
83786 Pump Assy - Pulse1
62 60260A Piston Assy - Pump1
63 104001 "O" Ring1
64 60263 Ring - Piston1
65 60937 Washer - Teflon1
66 60259 Spring - Piston1
67 62227 Sleeve - Adjustment1
68 110386 Screw - Hex hd 8-32 x 11
69 100251 Nut - Hex 8-321
70 62407 Cover - Outlet valve1
71 106104 "O" Ring1
72 62885A Spring - Outlet valve1
73 102809 Ball1
74 83787 Body Assy - Pump1
75 110643 Screw - Set1
76 62105 Screw Assy - Sealing4
77 62842 Washer - Sealing4
78 110288 Screw Assy - Hex 8-32 x 3/41
79 84105 Crankcase Assy1
80 110288 Screw Assy - Hex 8-32 x 3/42
81 110618 Screw Assy - Hex 8-32 x 1-3/81
82 62065 Bolt - Bar mounting2
83 84221 Valve - DSP1
84 69020 Pin - Piston1
85 69030 Piston Assy1
86 63290 Ring Set - Piston1
87 110590 Bearing - Needle2
88 83060 Connecting Rod Assy1
89 61627A Screw - Skt hd special2
90 63225 Roller - Needle (set of 20)1
91 61618 Seal - Oil1
92 63464 Ring - Snap1
93 63429B Bearing - Ball1
94 110260 Seal - Oil1
95 104357 Bearing - Needle1
96 63336 Crankshaft1
97 63699 Ring - Bearing insert1
98 63701 Insert - Bearing1
K&T Saw Shop 606-678-9623 or 606-561-4983
