Page 1
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 1 of 16
www.ktoutdoor.com

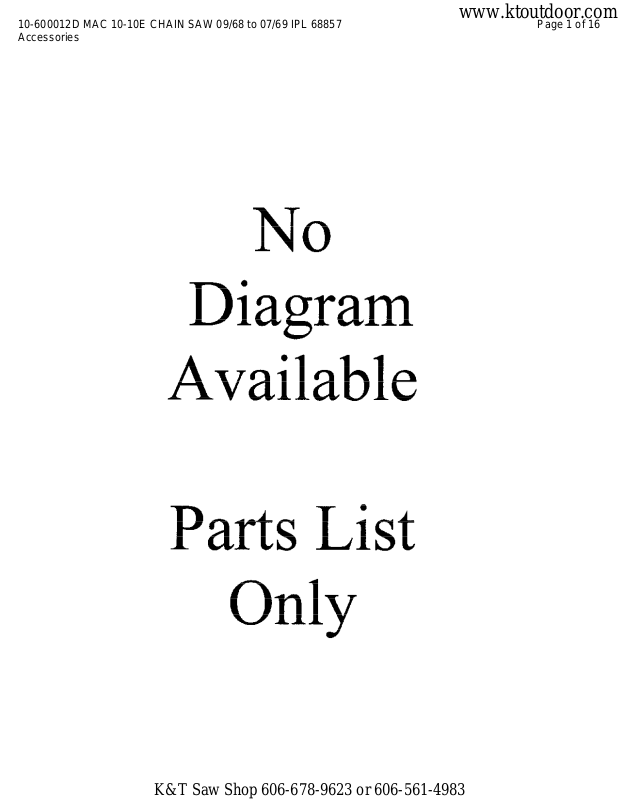

Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 2 of 16
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
68965 Manual - Owner's
63084 Manual - Shop
62827 Wrench
63341A Kit - Spike
66316 Kit - Wrap-around frame
63746 Kit - Wrench
65325 Baffle - Spark arrester
64330 Plate Set - Bar protector (2)
67098 Charger Assy - Battery
63432 Spark Plug - AC CS42T
65778 Spark Plug - AC CS41T
68224 Piston Assy 0.020 in. oversize
62813 Ring Set - Piston 0.020 in oversize
103512 Bearing - Needle (2)
68225 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
103512 Bearing - Needle (2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 3 of 16
www.ktoutdoor.com

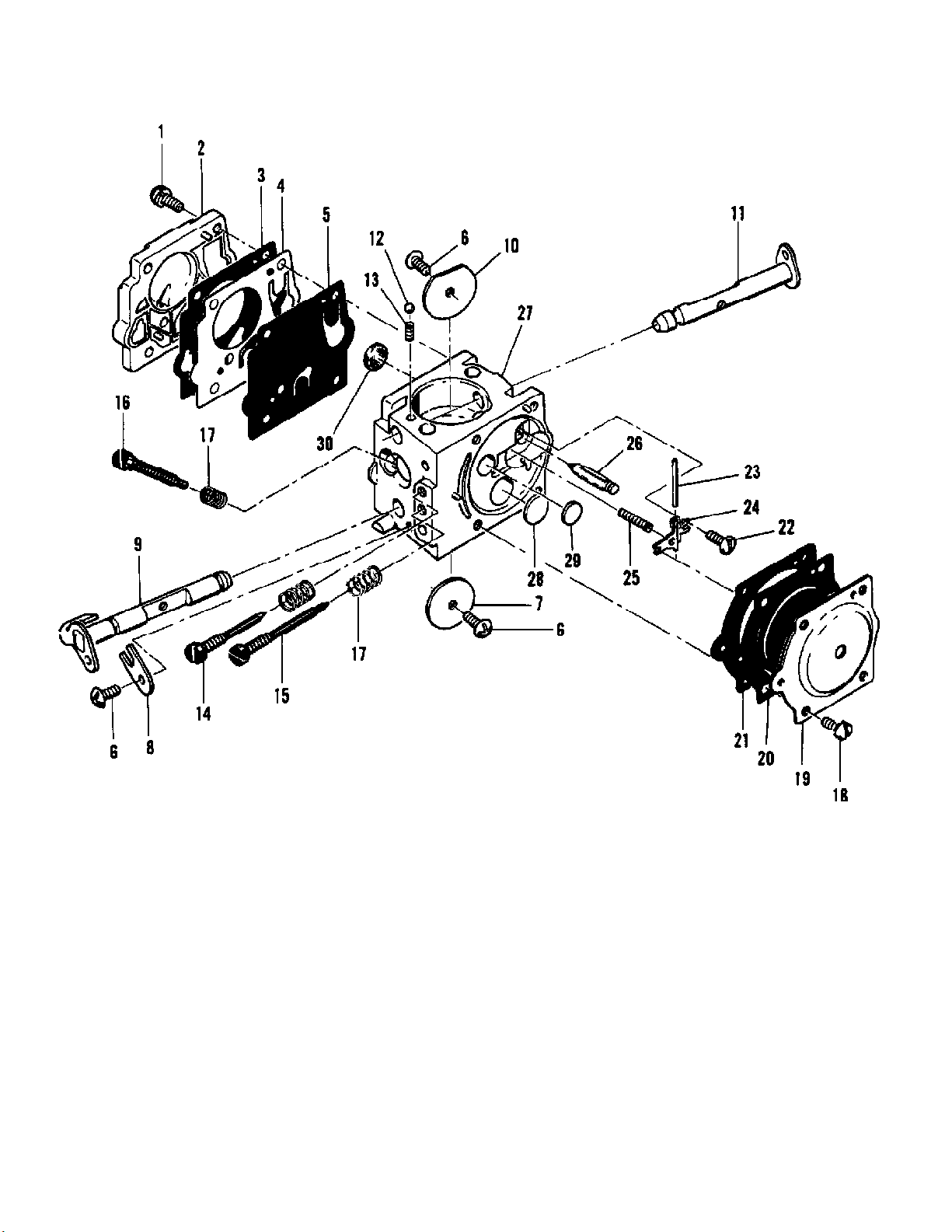

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 4 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
67876 Carburetor Assy1
1 67501 Screw - Pump cover4
2 67484 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 67497 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 67487 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 68104 Needle - High speed1
15 68105 Needle - Idle1
16 68106 Screw - Idle adjustment1
17 67502 Spring - Needle3
18 70798 Screw - Diaphragm cover4
19 67485 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pm1
23 67508 Pm - Lever1
24 67509 Lever - Metering1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 68103 Body Assy - Carburetor1
28 67492 Plug - 3/81
29 67493 Plug - 5/161
30 67507 Screen - Fuel1
67482 Gasket Set
68107 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 5 of 16
www.ktoutdoor.com

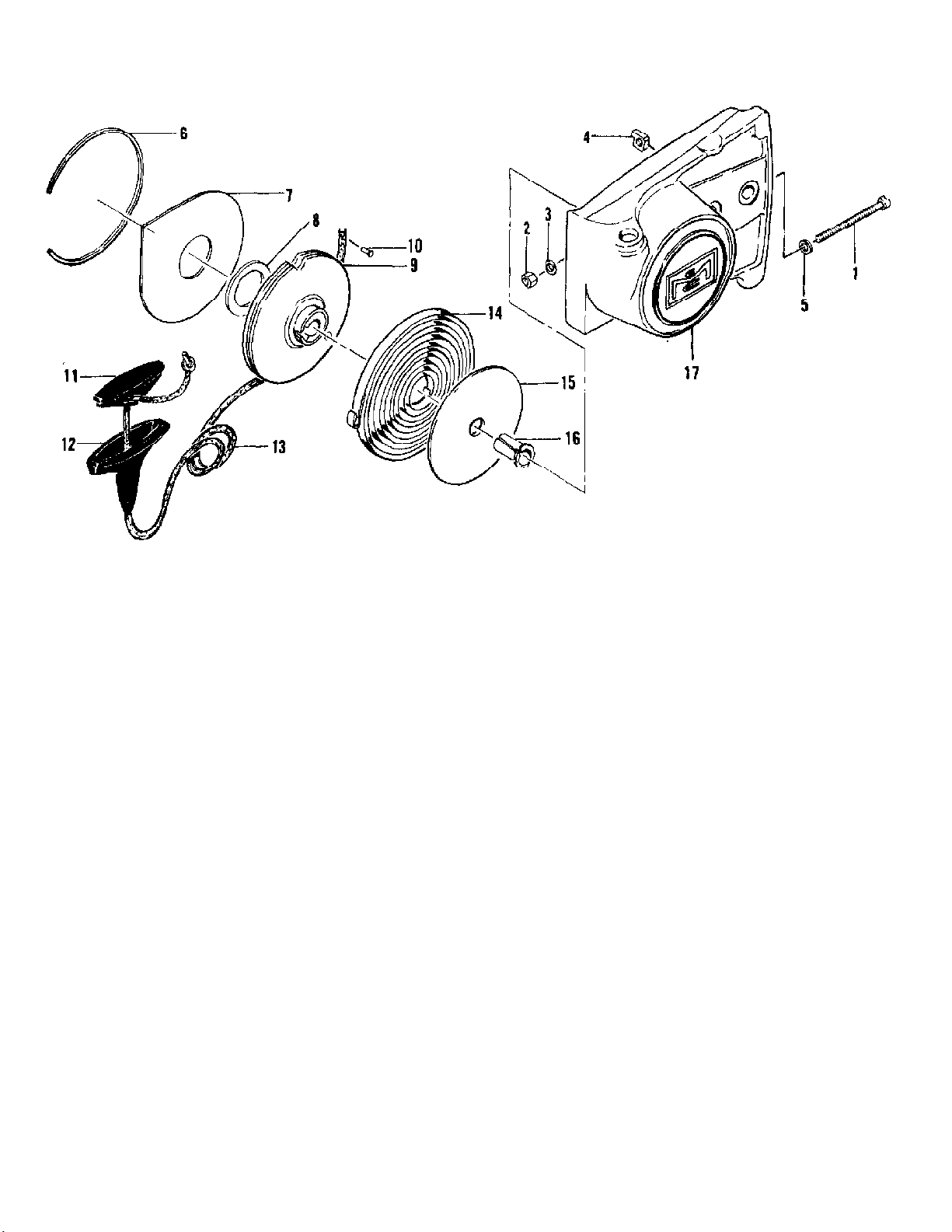

Clutch Guard And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 6 of 16
www.ktoutdoor.com
Clutch Guard And Starter Assembly
Ref # Part Number DescriptionQty
67206 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex #101
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 101174 Washer - #101
6 61705 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 68695 Drum - Starter1
10 110470 Rivet - Starter rope1
11 62191A Inset - Handle1
12 62190A Handle - Starter1
13 67125 Rope - Starter1
14 68626 Spring - Rewind1
15 63987 Shield - Spring1
16 61635A Bushing - Nyliner1
17 67207 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 7 of 16
www.ktoutdoor.com

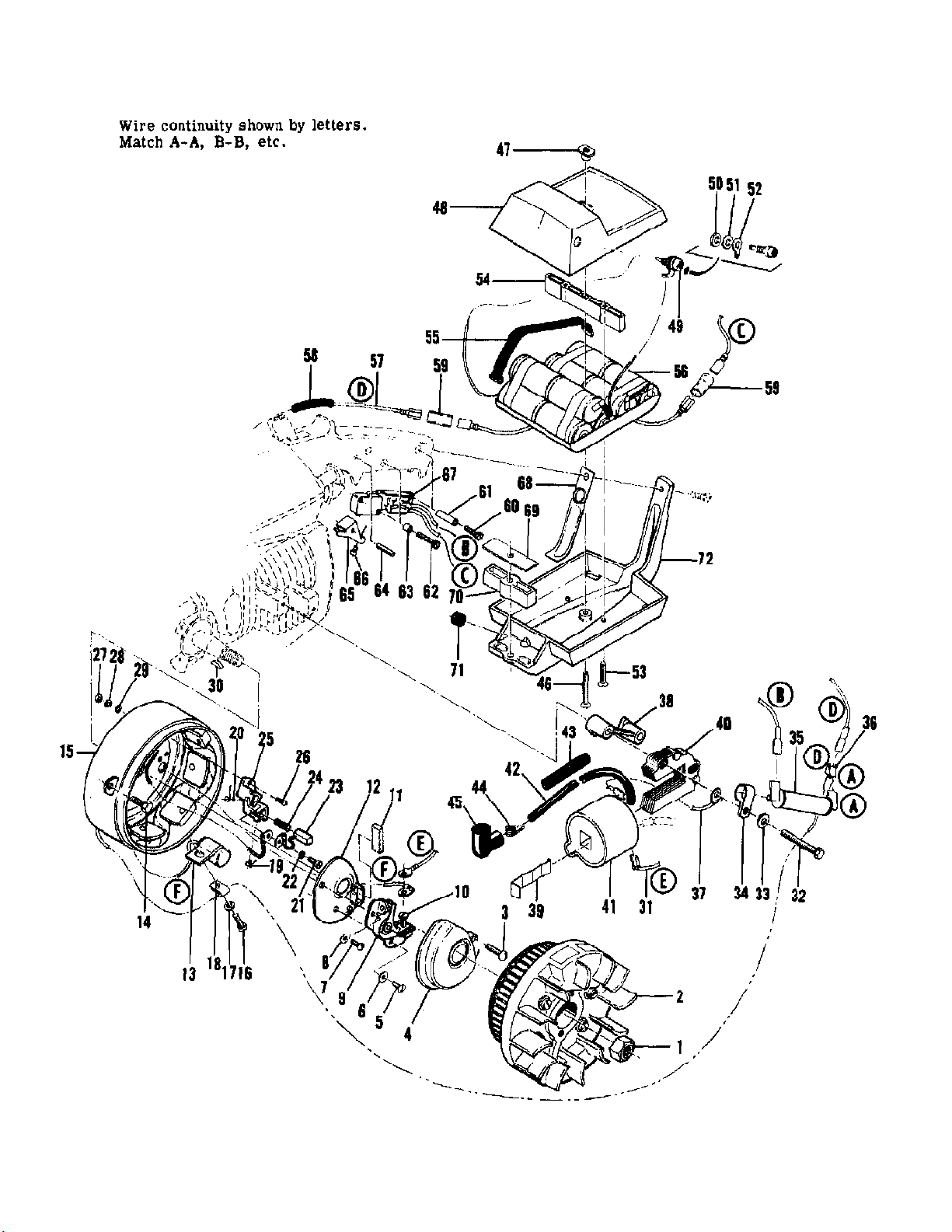

Electrical Components
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 8 of 16
www.ktoutdoor.com
Electrical Components
Ref # Part Number DescriptionQty
1 110594 Nut - Hex 3/8-241
2 65995 Armature & Flywheel Assy1
3 110560 Screw - Rd hd 8-32 x 5/81
4 65415 Top - Breaker box1
5 110559 Screw - Tr hd 8-32 x 1/21
6 105976 Washer - #81
7 100690 Screw - Rd hd 8-32 x 1/21
8 100080 Washer - #81
9 66231 Breaker Assy1
10 110489 Screw - Pan hd 6-32 x 7/161
11 54184 Wiper1
12 65414 Base - Breaker points1
13 64624 Condenser1
14 110446 Screw - Hex hd 10-24 x 3/42
15 65996 Housing Assy - Field coil1
16 66005 Screw - Fil hd 8-32 x 5/161
17 105464 Lockwasher - #81
18 66004 Clamp1
19 66777 Spring - Brush clip1
20 66776 Spring - Brush clip1
21 65997 Screw - Fil hd 5-40 x 1/42
22 65998 Lockwasher - #52
23 65999 Brush2
24 66003 Spring - Brush2
25 66778 Kit - Brush holder1
26 66007 Screw2
27 66009 Nut2
28 66008 Lockwasher2
29 66162 Washer2
30 103879 Key - Woodruff1
31 64609 Wire Assy - Primary1
32 110450 Screw - Hex hd 10-24 x 1-5/82
33 100003 Washer - #102
34 65517 Clamp - Mounting2
35 65518 Resistor1
36 110478 Terminal - Wire1
37 62819 Wire Assy - Ground1
38 64653 Spacer - Coil1
39 51253 Retainer - Coil1
40 68164 Lamination Assy1
41 64619 Coil & Terminal Assy1
42 67400 Wire Assy - Spark plug1
43 67127 Sleeve - Wire Assy1
44 62932 Connector1
45 62926 Boot - Spark plug1
46 110480 Screw - Fl hd 8-32 x 1-3/81
47 65319 Insert - Cover1
48 65470 Cover - Battery box1
49 65567 Phono Jack1
50 65876 Nut1
51 65875 Washer1
52 65877 Terminal1
53 100403 Screw - Fl hd 8-32 x 12
54 66234 Spacer - Battery1
55 65501 Strap Assy - Battery2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 9 of 16
www.ktoutdoor.com
Electrical Components
Ref # Part Number DescriptionQty
56 66161 Battery Assy1
57 65541 Wire Assy - Battery to resistor1
58 80975 Sleeve - Wire Assy1
59 65306 Sleeve - Wire terminal2
60 110462 Screw - Pan hd 4-40 x 11/161
61 64874 Spacer - Long1
62 110463 Screw - Pan hd 4-40 x 13/162
63 64873 Spacer - Short2
64 110451 Pin - Roll1
65 64681 Actuator1
66 110477 Screw - Actuator pan hd 6-32 x 3/161
67 68145 Switch - Regulator Assy1
68 64727 Strip - Handle brace1
69 65512 Insulator - Shroud1
70 66206 Spacer - Handle1
71 101230 Grommet - Handle brace1
72 66671 Brace - Handle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 10 of 16
www.ktoutdoor.com

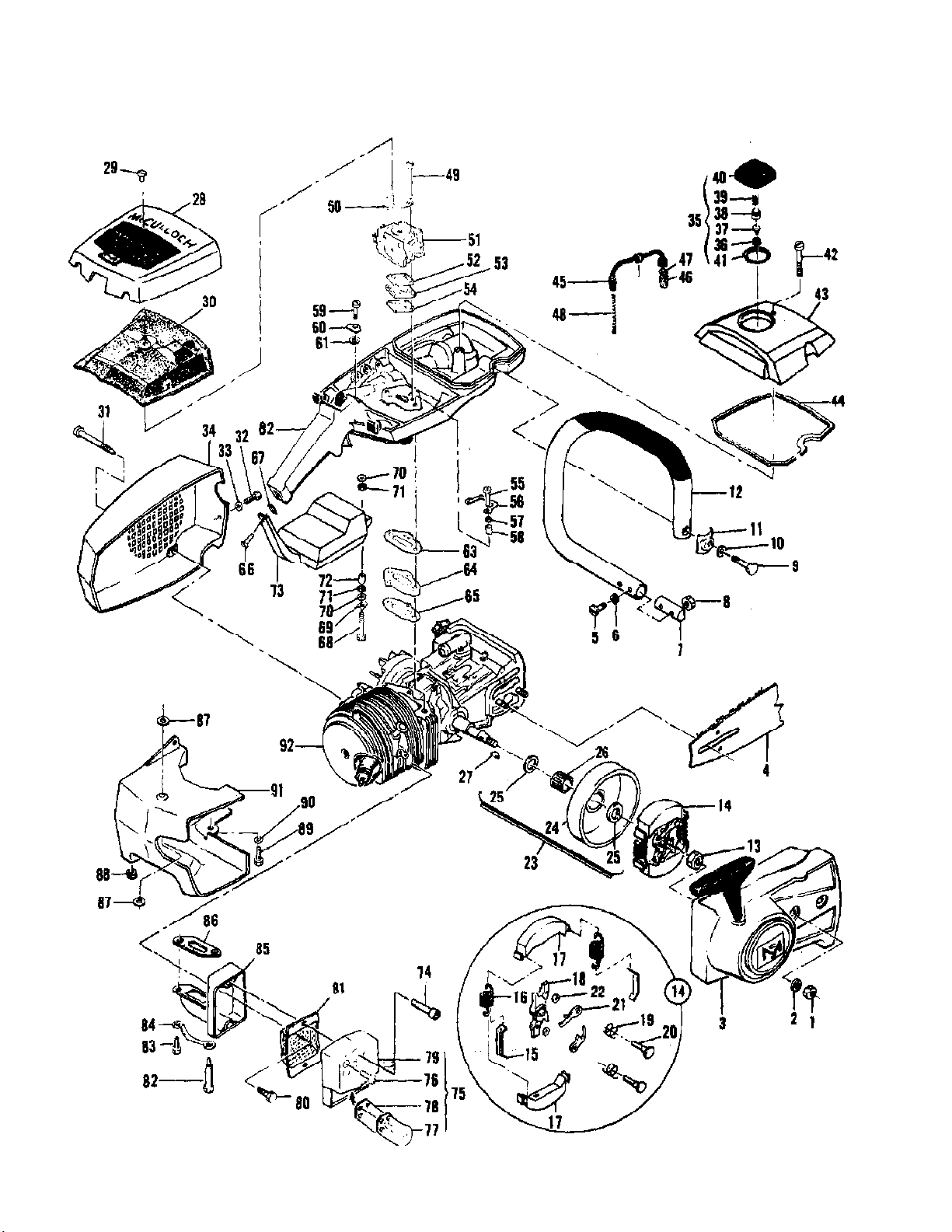

Engine
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 11 of 16
www.ktoutdoor.com
Engine
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard & Starter Assy See "Clutch Guard &
1
Starter Assembly" illustration and parts list.
4 Bar & Chain See "Powerhead Assembly" illustration
5 102761 Screw - Hex hd 10-24 x 7/82
6 100352 Washer - #102
7 61678 Plug - Nut retainer1
8 101326 Nut - Hex 10-242
9 102130 Screw - Hex 1/4-20 x 1-1/21
10 100153 Lockwasher - 1/41
11 63484 Clamp - Frame1
12 66315 Frame & Grip Assy1
13 110594 Nut - Hex 3/8-241
14 68835 Clutch Assy1
15 64583 Retainer2
16 66384 Spring - Clutch2
17 67233 Shoe - Clutch2
18 68842 Rotor Assy1
19 68837 Spring - Pawl2
20 67112 Rivet2
21 68836 Pawl2
22 65473 Washer - Special2
23 65370 Kit - Sprocket & Drum Assy1
24 65368 Sprocket & Drum Assy1
25 61692 Shim2
26 110330 Bearing1
27 103879 Key - Woodruff1
28 68861 Cover Assy - Air cleaner1
29 65813 Nut1
30 66774 Filter - Air1
31 64626 Screw - Special3
32 105348 Screw - 10-24 x 1/2 (SEMS)1
33 110264 Washer - #101
34 67297 Housing - Fan1
35 68531 Cap Assy - Fuel1
36 68533 Plug1
37 63041 Valve1
38 62316 Guide1
39 63040 Spring1
40 68532 Body1
41 68653 Gasket1
42 110334 Screw - Oval hd 12-24 x 1-3/41
43 69684 Cover - Fuel tank1
44 69345 Gasket - Cover1
45 64848 Hose Assy - Fuel1
46 63932 Filter - Fuel1
47 100440 Washer1
48 67944 Spring - Hose stiffener1
49 110551 Screw - Hex hd 10-24 x 2-1/82
50 68807 Bracket Assy1
51 Carburetor Assy See "Carburetor Assembly"
1
and parts list.
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 12 of 16
www.ktoutdoor.com
Engine
Ref # Part Number DescriptionQty
52 68132 Gasket - Carburetor1
53 66678 Spacer - Carburetor1
54 68131 Gasket - Spacer1
55 110553 Screw - Hex hd 10-24 x 1-3/82
56 68582 Lockplate1
57 100003 Washer2
58 66189 Sleeve2
59 110516 Screw - Hex hd 10-24 x 1-1/81
60 69516 Lockplate1
61 64856 Washer - #101
62 Fuel Tank Assy See "Fuel Tank Assembly" illustration
63 68130 Gasket - Fuel tank1
64 66659 Insulator - Fuel tank1
65 68130 Gasket - Insulator1
66 110223 Screw - Oval hd 10-24 x 5/81
67 66672 Cushion - Handle brace1
68 102765 Screw - Hex hd 10-24 x 1-3/41
69 66673 Lockplate1
70 105831 Washer - Steel2
71 71017 Washer - Rubber2
72 66674 Sleeve - Handle brace1
73 Handle Brace & Battery Assy See "Electrical
1
and parts list.
1
Components" illustration and parts list.
74 110473 Screw - Skt hd 10-24 x 1-5/82
75 65532 Cover and Valve Asy1
76 110472 Screw - Skt hd 8-32 x 5/163
77 69077 Stop - Reed valve1
78 64785 Valve - Reed1
79 65419 Cover Asy - Spark arrester1
80 110341 Screw - Hex hd 10-24 x 1/21
81 62379B Baffle1
82 68187 Screw - Hex hd 10-24 x 1-3/81
83 110506 Screw - Hex hd 10-24 x 5/81
84 67922 Lockplate1
85 68186 Body and Duct Assy1
86 68149 Gasket - Spark arrester1
87 68581 Insulator - Shroud2
88 101230 Grommet1
89 103469 Screw - Hex hd 10-24 x 3/81
90 100352 Washer1
91 67377 Shroud1
92 Powerhead Assy See "Powerhead Assembly"
1
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 13 of 16
www.ktoutdoor.com

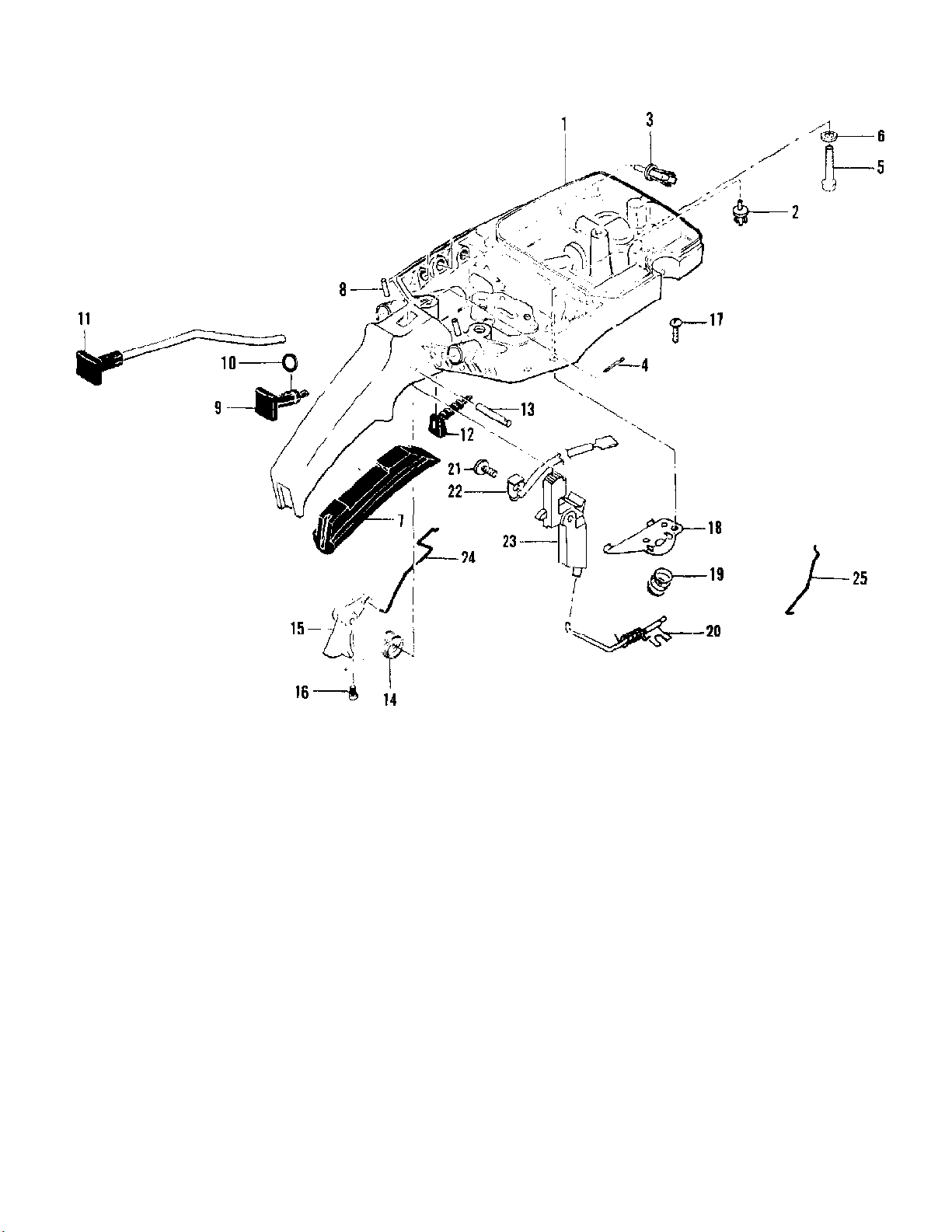

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 14 of 16
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 68683 Fuel Tank Assy1
2 105788 Rivet2
3 110531 Rivet3
4 100010 Pin - Cotter1
5 102660 Screw - Skt hd 10-24 x 7/81
6 100003 Washer - #101
7 64872 Grip - Handle1
8 105673 Pin - Roll 3/32 x 9/162
9 68517 Button - Choke1
10 101056 "O" Ring1
11 64871 Button & Rod Assy1
12 68522 Seal - Throttle rod1
13 110378 Pin - Roll 3/16 x 15/161
14 65734 Spring - Throttle return1
15 67224 Trigger1
16 110537 Screw - Trigger adjustment1
17 105249 Screw - Rd hd H-32 x 3/82
18 64721 Bracket - Lever Assy1
19 69687 Spring - Valve1
20 67220 Lever Assy Compression release1
21 110385 Screw - Pan hd 8-32 x 3/81
22 65873 Wire Assy - Stop switch1
23 67210 Button - Control1
24 68170 Rod - Throttle1
25 67355 Rod - Choke1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 15 of 16
www.ktoutdoor.com

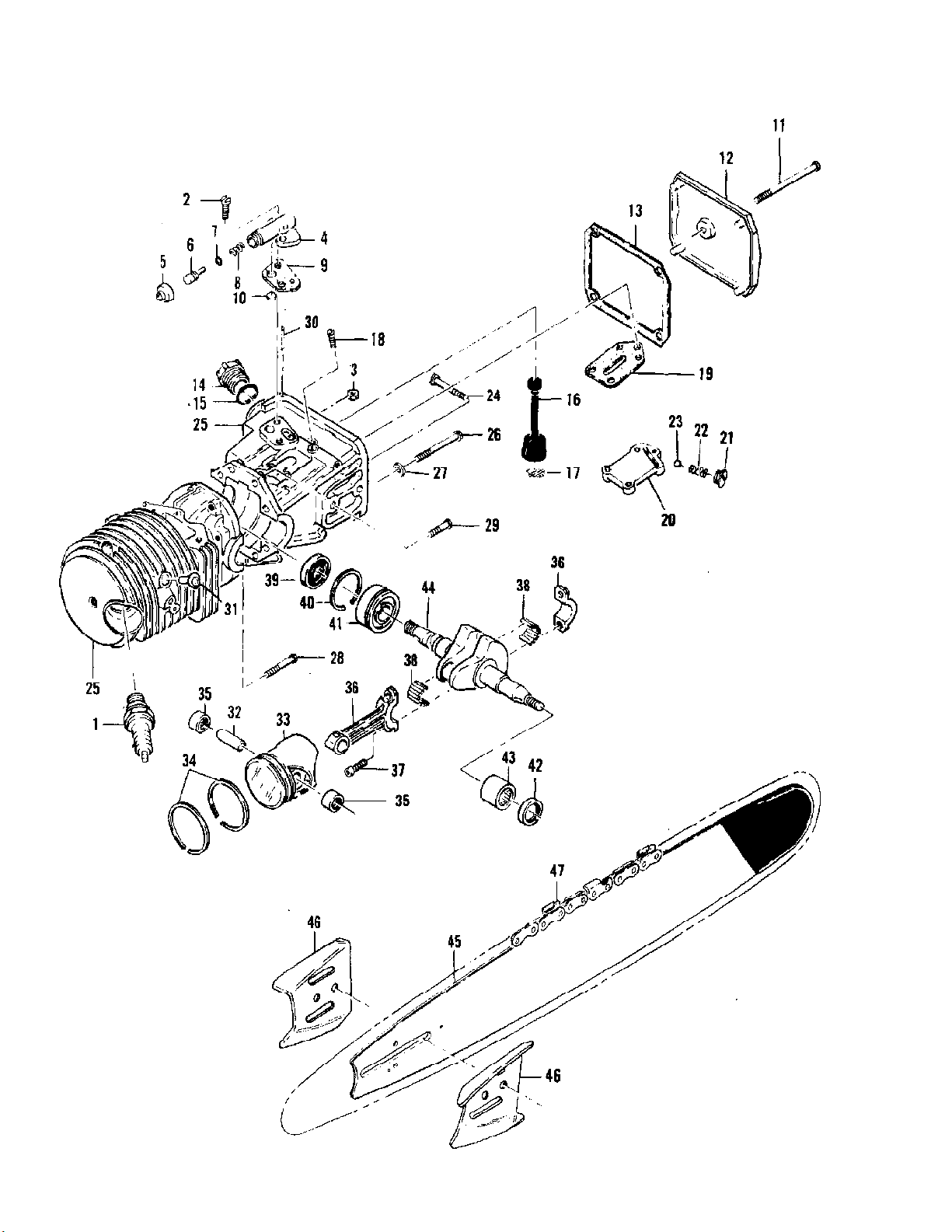

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
10-600012D MAC 10-10E CHAIN SAW 09/68 to 07/69 IPL 68857 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 63097 Spark Plug - AC CS45T1
2 100414 Screw - Fil hd 8-32 x 1/22
3 100955 Nut - Hex 8-321
4 62261A Housing - Pump1
5 62262 Cap - Housing1
6 62266 Plunger - Pump1
7 101056 "O" Ring - Plunger1
8 66687 Spring - Plunger1
9 62230 Gasket - Pump1
10 62909 Valve - Pump1
11 110291 Screw - Pan hd 10-24 x 2-3/41
12 63072 Cover - Oil tank1
13 62116 Gasket - Cover1
14 57129A Cap - Oil tank1
15 101148 "O" Ring - Cap1
16 62123B Hose Assy - Oil1
17 51506 Screen - Hose1
18 110333 Screw - Oval hd 8-32 x 1/23
19 62274 Gasket1
20 68711 Body Assy - Check valve1
21 68714 Screw - 1/4-201
22 63034 Spring - Check valve1
23 100071 Ball - 5/32 dia.1
24 62065 Bolt - Bar2
25 67216 Crankcase Assy1
26 62105 Screw Assy - Sealing4
27 62842 Washer - Sealing4
28 110289 Screw Assy - 8-32 x 1-1/81
29 110288 Screw Assy - 8-32 x 3/43
30 100010 Pin - Cotter1
31 64755 Valve - Compression release1
32 61649 Pin - Piston1
33 68226 Piston Assy1
34 62814 Ring Set - Piston1
35 103512 Bearing2
36 65401 Connecting Rod Assy1
37 61627A Screw - Skt hd 8-36 x 1/22
38 63225 Roller - Needle (set of 20)1
39 65746 Oil Seal1
40 63464 Ring - Snap1
41 63429B Bearing - Ball1
42 65747 Oil Seal1
43 104357 Bearing - Needle1
44 63336 Crankshaft1
45 63541 Bar
46 64325 Plate - Bar Protector2
47 62556M Chain Assy
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
