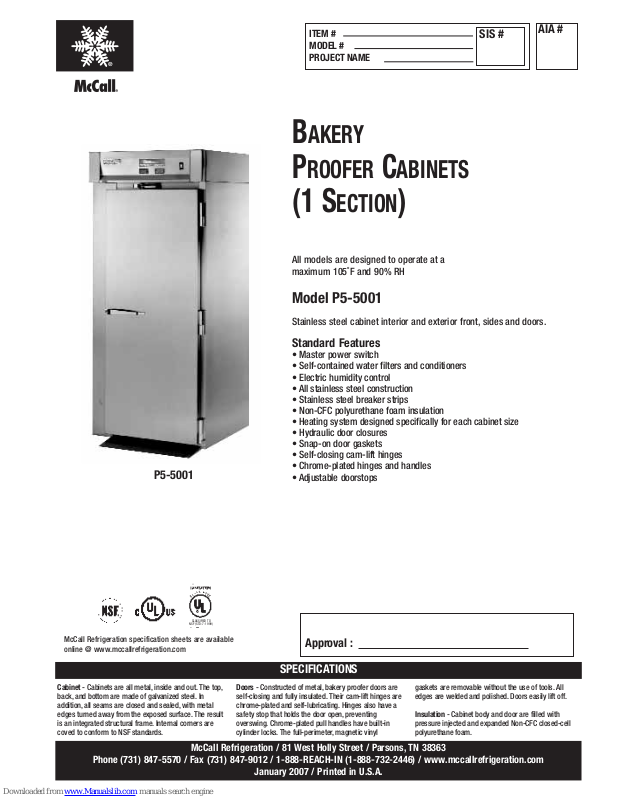

McCall P5-5001 Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

B

AKERY

P

ROOFERCABINETS

(1 S

ECTION

)

All models are designed to operate at a
maximum 105˚F and 90% RH

Model P5-5001

Stainless steel cabinet interior and exterior front, sides and doors.

Standard Features

• Master power switch

• Self-contained water filters and conditioners

• Electric humidity control

• All stainless steel construction

• Stainless steel breaker strips

• Non-CFC polyurethane foam insulation

• Heating system designed specifically for each cabinet size

• Hydraulic door closures

• Snap-on door gaskets

• Self-closing cam-lift hinges

• Chrome-plated hinges and handles

• Adjustable doorstops

SPECIFICATIONS

Cabinet - Cabinets are all metal, inside and out. The top,

back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards.

Doors - Constructed of metal, bakery proofer doors are
self-closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl

gaskets are removable without the use of tools. All
edges are welded and polished. Doors easily lift off.

Insulation - Cabinet body and door are filled with
pressure injected and expanded Non-CFC closed-cell
polyurethane foam.

Approval :

P5-5001

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

DIMENSIONS

Width: 38.6"
Height: 87"
Depth: cabinet only 33.19"
Depth: over hardware 36.94"
Depth: door open 90° 65.75"
Net Door Opening: width 27.38"
Net Door Opening: height 73"
Racks per section: 1
Plumbing Requirements: Water Line 0.5"

Drain Line 0.5"

Shipping Weight

ELECTRICAL

Heater Wattage 1,500
Voltage (60 hz, 1 ph) 230
Total Amperage: 6.9

OPTIONS

 Finished Back.

38.56

87

BAKERY PROOFER CABINETS
(1 SECTION)

Specifications subject to change without notice.
Certain options and accessories may affect
UL/NSF listing and electrical requirements.

Model P5-5001

One

Section

LEGEND:

C CONTROL BOX
D FLOOR DRAIN
E ELECTRICAL CONNECTION
W WATER CONNECTION

Model P5-5001

460 lbs.

FRONT VIEW

33.19

37.19

D

E

C

W

McCall Bakery Proofer Cabinets Shall Have:

Cabinets operate a maximum 105˚F temperature with 90% RH. Self
contained water filters and conditioners. Stainless steel front, doors and
floor. Self-closing all metal doors with welded and polished corners. Cam-lift
hinges with concealed light switch. Adjustable doorstops. Exterior digital
thermometer (1000 series) dial thermometer (2000-4000 series). Chrome­plated door handles with security lock. Removable stainless steel ramp, each
door opening. Master Power Switch. Cord and plug attached.
Dimensions: Width=38.6"/Height=87"

Bidding Specifications

TOP VIEW

DIMENSIONS

ONE

SECTION

AIA #

16040
