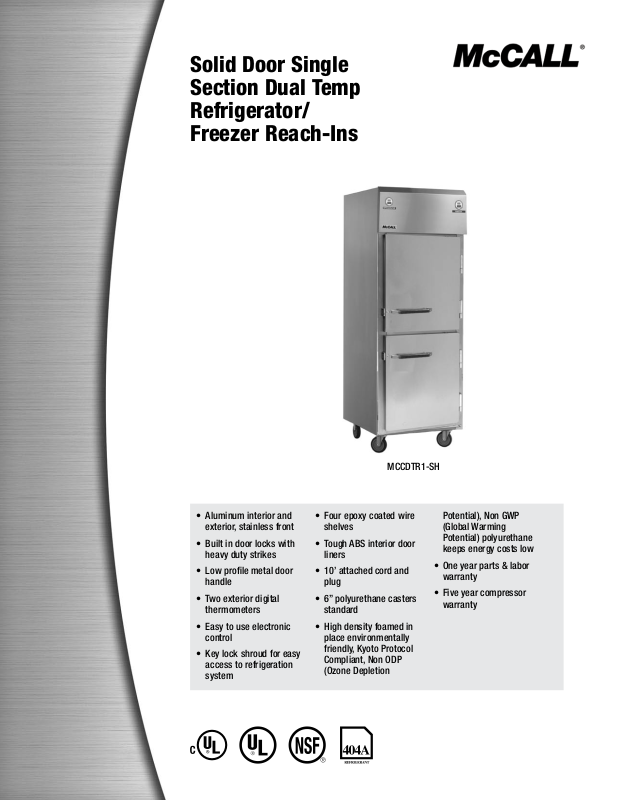

McCall MCCDTR1-SH User Manual
Solid Door Single
Section Dual Temp
Refrigerator/
Freezer Reach-Ins
Aluminum interior and
•
exterior, stainless front
Built in door locks with
•
heavy duty strikes
Low profile metal door
•
handle
Two exterior digital
•
thermometers
Easy to use electronic
•
control
Key lock shroud for easy
•
access to refrigeration
system
MCCDTR1-SH
Four epoxy coated wire
•
shelves
Tough ABS interior door
•
liners
10’ attached cord and
•
plug
6” polyurethane casters
•
standard
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
One year parts & labor
•
warranty
Five year compressor
•
warranty
Solid Door Single Section Dual Temp Refrigerator/Freezer Reach-Ins
29.00”
73.7cm
34.00”
86.4cm
56.00”
142.2cm
25.00"
63.5cm
52.00"
132.1cm
34.00”
86.4cm
48.00”
121.9cm
44.00"
111.8cm
34.00”
86.4cm
30.00"
76.2cm
6.12”
15.5cm
81.12”
205.0cm
29.00
34.00
75.00”
190.5cm
28.00"
71.1cm
28.00"
71.1cm
Specifications
MODEL DESCRIPTION VOLTAGE AMPS
MCCDTR1-SH Top Refrigerator
Bottom Freezer
MCCDBR1-SH Bottom Refrigerator
Top Freezer
115/60/1 12.0
115/60/1 12.0
Specifications
Exterior: Models shall have corrosion resistant
aluminum on exterior cabinet sides and will have
stainless front and shroud.
Interior: Cabinet interior shall be corrosion resistant
heavy gauge aluminum. Bottom and top surfaces
shall be die stamped to provide radius corners and
recessed floor. Four epoxy coated wire shelves are
provided. Shelves rest on clips which are adjustable
on 1” increments on stainless steel pilasters affixed
to the cabinet interior. Pilasters are removable without
tools for cleaning. Mounted to the interior ceiling of
each compartment, the interior incandescent lights
are controlled automatically through a switch mounted
in the hinge assembly to protect against breakage.
Doors: Exterior shall be corrosion resistant stainless
steel. Interior liner is a resilient high impact, easily
cleanable ABS material. Each door has two edge
mount, self closing, cam lift style hinges. Doors can
be removed from the cabinet without the use of tools.
Metal door handle is a low profile design minimizing
impact on aisle space. Keyed door lock is mounted
in the door next to the handle. Lock engages into a
heavy duty strike mounted to the cabinet face. Door
gaskets are magnetic and mount to the door snapping
in place and are removable without tools.
Refrigeration system: Each compartment has
its own separate refrigeration system. Condensing
units are located on top of the cabinet, outside the
food zone, behind the upper shroud. Evaporator coils
are located inside the cabinet mounted to the interior
ceiling of each compartment. Defrost is automatic.
Condensate travels down a tube in the cabinet side
wall to a receptacle mounted to the exterior bottom
of the cabinet where it is evaporated with the aid of
an electric heater. Each compartment’s temperature
is individually monitored, controlled, and displayed on
the exterior of the cabinet. Refrigerator compartment
maintains between 33°F and 41°F. Freezer
compartment maintains temperature between 0ºF
and -5ºF.
Electrical: Unit comes with one 10’ cord and
plug with single point connection to all cabinet and
refrigeration system electronics. It is attached to
a junction box mounted on the exterior top of the
cabinet.
Casters: Units are standard with 6” high polyurethane
casters.
McCall reserves the right to make changes to the
design or specifications without prior notice.
PLAN VIEW
ELEVATION VIEW
STORAGE
CU.FT.
10.81ft
10.81ft
10.81ft
10.81ft
SHELVES
SQ.FT.
3
4.23
3
4.23
3
4.23
3
4.23
NO. OF
SHELVES
2
2
2
2
UNIT H.P.
1/5
1/4
1/5
1/4
CABINET
BTU/HR
455
744
455
744
END VIEW
BTU/HR
SYSTEM
CAP
1543
1260
1543
1260
SHIP
WEIGHT
525lbs
(238kg)
525lbs
(238kg)
NEMA PLUG
5-20P 6.70
5-20P 6.70
ENERGY
(KWH)
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCD1 ©2010 McCall 08/10
