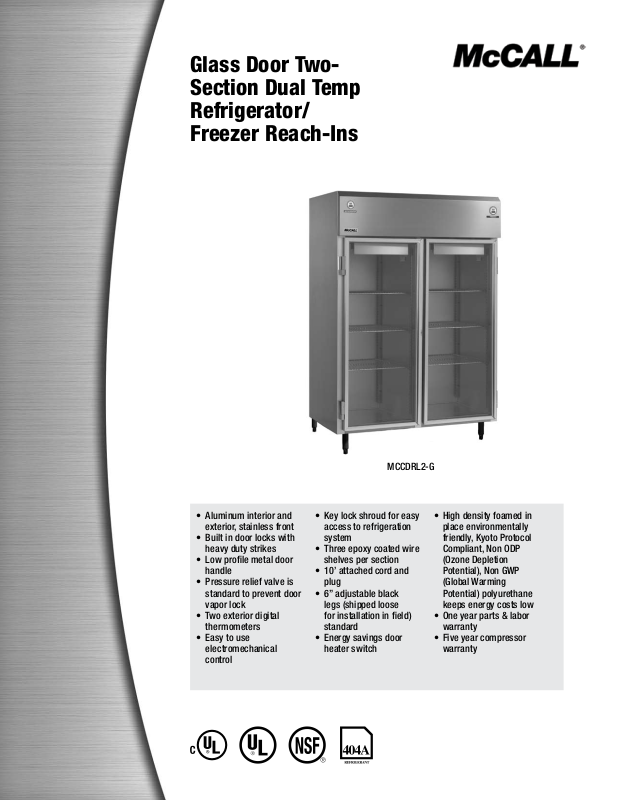

McCall MCCDLR2-G User Manual

Glass Door Two­Section Dual Temp
Refrigerator/
Freezer Reach-Ins

Aluminum interior and

•
exterior, stainless front
Built in door locks with

•
heavy duty strikes
Low profile metal door

•
handle
Pressure relief valve is

•
standard to prevent door
vapor lock
Two exterior digital

•
thermometers
Easy to use

•
electromechanical
control

MCCDRL2-G

Key lock shroud for easy

•
access to refrigeration
system
Three epoxy coated wire

•
shelves per section
10’ attached cord and

•
plug
6” adjustable black

•
legs (shipped loose
for installation in field)
standard
Energy savings door

•
heater switch

High density foamed in

•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
One year parts & labor

•
warranty
Five year compressor

•
warranty

6.12”

15.5cm

81.12”

206.0cm

75.00”

190.5cm

58.00”

147.3cm

30.00”

76.2cm

56.00”

142.2cm

83.00”

210.8cm

52.00"

132.1cm

79.00"

200.7cm

34.00”

86.4cm

34.00”

86.4cm

56.00

34.00

83.00

34.00

56.00

34.00

83.00

34.00

SPECIFICATION LINE

Glass Door Two-Section Dual Temp Refrigerator/Freezer Reach-Ins

Specifications

MODEL DESCRIPTION VOLTAGE AMPS

MCCDRL2-G, MCCDRL2-GH

LEFT DR REF

RIGHT DR FRZ

115/208-230 8.0

Specifications

Exterior: Models shall have corrosion resistant
aluminum on exterior cabinet sides and will have
stainless front and shroud.

Interior: Cabinet interior shall be corrosion resistant
heavy gauge aluminum. Bottom and top surfaces
shall be die stamped to provide radius corners and
recessed floor. Three epoxy coated wire shelves are
provided per section. Shelves rest on clips which
are adjustable on 1” increments on stainless steel
pilasters affixed to the cabinet interior. Pilasters are
removable without tools for cleaning. Mounted to
the interior ceiling of each compartment, the interior
fluorescent lights are controlled automatically through
a switch mounted in the hinge assembly to protect
against breakage. An air duct shall be mounted to
the ceiling assuring low velocity, even air movement
throughout the cabinet interior.

Doors: Double paned tempered thermopane glass.
Constructed with a combination of extruded aluminum
and PVC. Each door has two edgemount, self-closing,
cam lift style hinges. Doors can be removed from
the cabinet without the use of tools. Door handle
is continuous along vertical dimension of the door.
Door gaskets are magnetic and mount to the door,
snapping in place and removable with out tools. Keyed
door lock is mounted to the door. Lock engages into a
heavy duty strike mounted to the cabinet face.

Refrigeration system: Each compartment has
its own separate refrigeration system. Condensing
units are located on top of the cabinet, outside the
food zone, behind the removable upper shroud.
Evaporator coils are located inside the cabinet
mounted to the interior ceiling of each compartment.
Defrost is automatic. Condensate travels down a tube
in the cabinet side wall to a receptacle mounted
to the exterior bottom of the cabinet where it is
evaporated with the aid of an electric heater. Each
compartment’s temperature is individually monitored
and controlled using an electronic temperature
control, which provides improved pull down times,
reduces compressor cycling and longer compressor
life with lower energy consumption. Two exterior
digital thermometers display temperature. Refrigerator
compartment maintains between 27°F and 40°F.
Freezer compartment maintains temperature between

-5ºF and 0ºF.

Electrical: Unit comes with one 10’ cord and
plug with single point connection to all cabinet and
refrigeration system electronics. It is attached to
a junction box mounted on the exterior top of the
cabinet.

Legs: Units are standard with painted metal legs and
are 6” high with 1” adjustability. Shipped loose for field
installation.

McCall reserves the right to make changes to the
design or specifications without prior notice.

PLAN VIEW

ALL MODELS

ELEVATION VIEW

MCCDRL2-G

STORAGE

CU.FT.

24.96

24.96

SHELVES

SQ.FT.

12.81

12.81

NO. OF

SHELVES

3
3

ELEVATION VIEW

MCCDRL2-GH

UNIT H.P.

1/4
1/2

BTU/HR

SYSTEM CAP

2092
1923

SHIP

WEIGHT

730lbs

(331kg)

NEMA PLUG

14-20P N/A

ALL MODELS

ENERGY

(KWH)

END VIEW

McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

Phone: [phone]
Fax: [phone]
www.mccallrefrigeration.com

DSMCCD2-G ©2009 McCall 09/09
