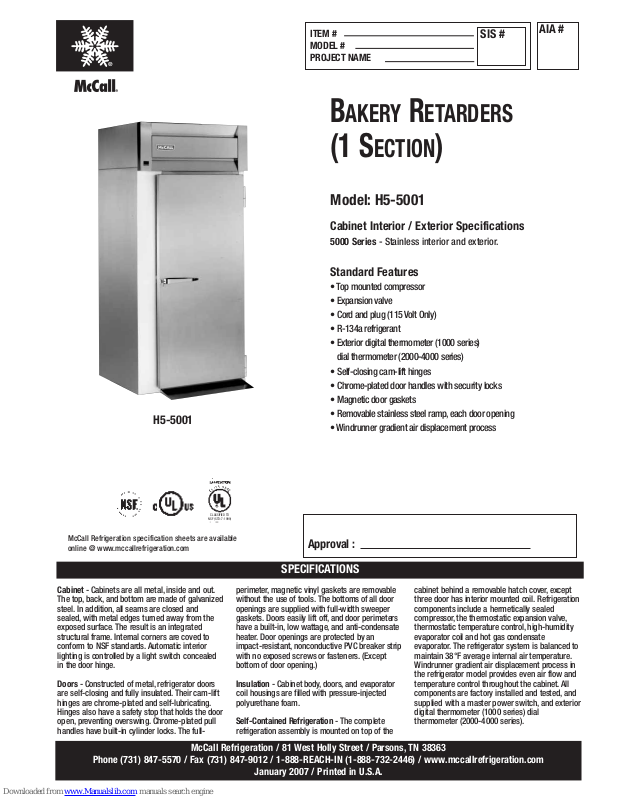

McCall H5-5001, H5-5001RT Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

B

AKERY

R

ETARDERS

(1 S

ECTION

)

Cabinet - Cabinets are all metal, inside and out.

The top, back, and bottom are made of galvanized
steel. In addition, all seams are closed and
sealed, with metal edges turned away from the
exposed surface. The result is an integrated
structural frame. Internal corners are coved to
conform to NSF standards. Automatic interior
lighting is controlled by a light switch concealed
in the door hinge.

Doors - Constructed of metal, refrigerator doors
are self-closing and fully insulated. Their cam-lift
hinges are chrome-plated and self-lubricating.
Hinges also have a safety stop that holds the door
open, preventing overswing. Chrome-plated pull
handles have built-in cylinder locks. The full-

perimeter, magnetic vinyl gaskets are removable
without the use of tools. The bottoms of all door
openings are supplied with full-width sweeper
gaskets. Doors easily lift off, and door perimeters
have a built-in, low wattage, and anti-condensate
heater. Door openings are protected by an
impact-resistant, nonconductive PVC breaker strip
with no exposed screws or fasteners. (Except
bottom of door opening.)

Insulation - Cabinet body, doors, and evaporator
coil housings are filled with pressure-injected
polyurethane foam.

Self-Contained Refrigeration - The complete
refrigeration assembly is mounted on top of the

cabinet behind a removable hatch cover, except
three door has interior mounted coil. Refrigeration
components include a hermetically sealed
compressor, the thermostatic expansion valve,
thermostatic temperature control, high-humidity
evaporator coil and hot gas condensate
evaporator. The refrigerator system is balanced to
maintain 38°F average internal air temperature.
Windrunner gradient air displacement process in
the refrigerator model provides even air flow and
temperature control throughout the cabinet. All
components are factory installed and tested, and
supplied with a master power switch, and exterior
digital thermometer (1000 series) dial
thermometer (2000-4000 series).

Cabinet Interior / Exterior Specifications

5000 Series - Stainless interior and exterior.

Standard Features

• Top mounted compressor

• Expansion valve

• Cord and plug (115 Volt Only)

• R-134a refrigerant

• Exterior digital thermometer (1000 series)
dial thermometer (2000-4000 series)

• Self-closing cam-lift hinges

• Chrome-plated door handles with security locks

• Magnetic door gaskets

• Removable stainless steel ramp, each door opening

• Windrunner gradient air displacement process

Approval :

SPECIFICATIONS

H5-5001

Model: H5-5001

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

38.56

36.88

33.19

65.81

40.6

33.19

98.42

BAKERY RETARDERS
(1 SECTION)

72.88

77.75

72.44

33.25
14

91.75

TOP VIEW

SIDE VIEW

H5-5001 41.6 38.6 91.8 33.2 36.9 72.9 27.4

115 12

208/230 7.5 1/2 3012

H5-5001RT 41.6 38.6 91.8 33.2 40.6 72.9 27.4

115 12.3

208/230 7.8 1/2 3012

Depth Door Door Cord Cord Perm Perm Refrig.

MODEL Capacity Width Height Depth Overall Opening Opening Conn Conn Conn Conn Comp Refrig.

(cu. ft.) (in.) (in) Body (in.) Height Width Volts Amps Volts Amps H.P. BTUH

(in.)

(2)
DIMENSIONAL DATA

(3)
ELECTRICAL DATA

(60HZ, 1 PH)

(4)
REFRIGERATION

(5)
SHIPPING WT. LBS.

(1)
BASE

Model: H5-5001

460 lbs.
480 lbs.

McCall Bakery Retarders shall have:

Stainless steel front, doors and floor. Self-closing all metal doors with
welded and polished corners. Cam-lift hinges that concealed light switches.
Adjustable doorstops. Exterior digital thermometer (1000 series) dial
thermometer (2000-4000 series). System is balanced to maintain 38˚F
average internal temperature. Chrome-plated door handles with security
lock. Removable stainless steel ramp, each door opening. Master Power
Switch. Cord and plug attached. R-134a refrigerant. 41.6 cubic ft. capacity.
Dimensions: Width =38.6"/Height =91. 8"

Bidding Specifications

38.56

TOP VIEW

(PASS-THRU)

AIA #

16037
