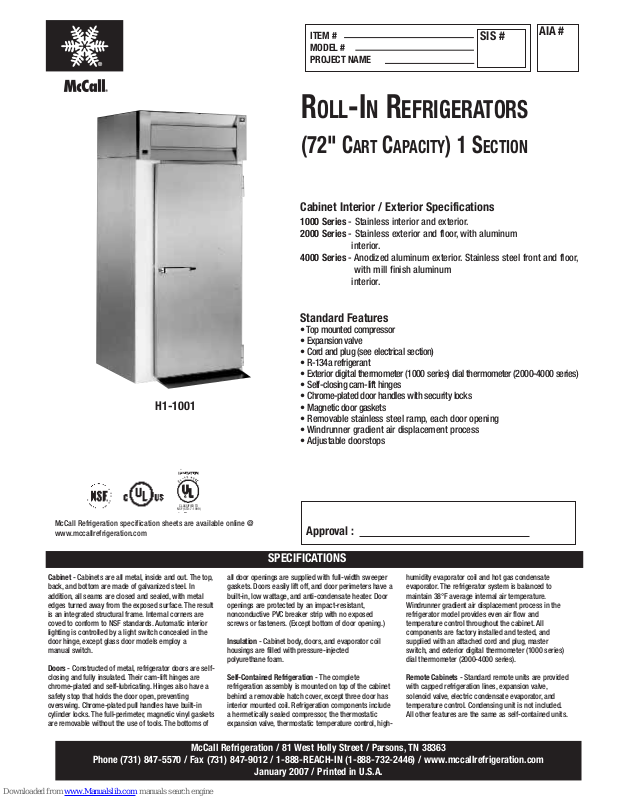

McCall H1-1001, 1000, 2000, 4000 Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

Approval :

SPECIFICATIONS

Cabinet - Cabinets are all metal, inside and out. The top,

back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The result
is an integrated structural frame. Internal corners are
coved to conform to NSF standards. Automatic interior
lighting is controlled by a light switch concealed in the
door hinge, except glass door models employ a
manual switch.

Doors - Constructed of metal, refrigerator doors are self­closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl gaskets
are removable without the use of tools. The bottoms of

all door openings are supplied with full-width sweeper
gaskets. Doors easily lift off, and door perimeters have a
built-in, low wattage, and anti-condensate heater. Door
openings are protected by an impact-resistant,
nonconductive PVC breaker strip with no exposed
screws or fasteners. (Except bottom of door opening.)

Insulation - Cabinet body, doors, and evaporator coil
housings are filled with pressure-injected
polyurethane foam.

Self-Contained Refrigeration - The complete
refrigeration assembly is mounted on top of the cabinet
behind a removable hatch cover, except three door has
interior mounted coil. Refrigeration components include
a hermetically sealed compressor, the thermostatic
expansion valve, thermostatic temperature control, high-

humidity evaporator coil and hot gas condensate
evaporator. The refrigerator system is balanced to
maintain 38°F average internal air temperature.
Windrunner gradient air displacement process in the
refrigerator model provides even air flow and
temperature control throughout the cabinet. All
components are factory installed and tested, and
supplied with an attached cord and plug, master
switch, and exterior digital thermometer (1000 series)
dial thermometer (2000-4000 series).

Remote Cabinets - Standard remote units are provided
with capped refrigeration lines, expansion valve,
solenoid valve, electric condensate evaporator, and
temperature control. Condensing unit is not included.
All other features are the same as self-contained units.

Cabinet Interior / Exterior Specifications

1000 Series - Stainless interior and exterior.
2000 Series - Stainless exterior and floor, with aluminum

interior.

4000 Series - Anodized aluminum exterior. Stainless steel front and floor,

with mill finish aluminum

interior.

Standard Features

• Top mounted compressor

• Expansion valve

• Cord and plug (see electrical section)

• R-134a refrigerant

• Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series)

• Self-closing cam-lift hinges

• Chrome-plated door handles with security locks

• Magnetic door gaskets

• Removable stainless steel ramp, each door opening

• Windrunner gradient air displacement process

• Adjustable doorstops

H1-1001

R

OLL

-INR

EFRIGERATORS

(72" CART CAPACITY) 1 SECTION

McCall Refrigeration specification sheets are available online @
www.mccallrefrigeration.com

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

Refrig.

Comp

H.P

Refrig.

BTUH

Cord
Conn
Volts

Cord

Conn

Amps

Perm
Conn

Volts

Perm
Conn
Amps

Door

Opening

Width

Door

Opening

Height

Depth

Overall

(in.)

Depth

Body

(in.)

475

610

425

525

660

475

525

660

475

675

725

450

675

725

500

Nomenclature Example:

H

X-XX01

H = 72" High Cart

Cart Not Included

1 - 10
2 - 20

4 - 40

1 Section Cabinet

72.88

91.75

77.75

72.44

33.25

ROLL-IN REFRIGERATORS
(72" CART CAPACITY) 1 SECTION

1 - 10 - Stainless interior and exterior.
2 - 20 - Stainless exterior and aluminum interior.
4 - 40 - Anodized aluminum exterior / stainless

steel front and floor, with mill finish
aluminum interior.

Series Key X = Series

HX-XX01 41.6 38.6 91.8 33.2 36.9 72.9 27.4

115 10.5

208/230 1/2

UHX-XX01 41.6 38.6 91.8 33.2 36.9 72.9 27.4

115

12.7 208/230 1/2

HX-XX01RT 41.6 38.6 91.8 33.2 40.6 72.9 27.4

115

10.8 208/230 1/2

UHX-XX01RT 41.6 38.6 91.8 33.2 40.6 72.9 27.4

115 13

208/230 1/2

HX-XX01GD 41.6 38.6 91.8 33.2 36.9 72.9 27.4

115 11.2

208/230 1/2

UHX-XX01GD 41.6 38.6 91.8 33.2 36.9 72.9 27.4

115 14.3

208/230 1/2

(2)
DIMENSIONAL DATA

(3)
ELECTRICAL DATA

(60HZ, 1 PH)

(4)
REFRIGERATION

(5)
SHIPPING WT. LBS.

(1)
BASE

1000
Series

2000
Series

4000
Series

OPTIONS

U  Upgraded

refrigeration system

RT  Roll Thru
R  Remote
GD  Glass Door

E  Electric condensate

Evaporator
A  Audio Visual Alarm
S  50 HZ

 Digital thermometer

Description

Model Suffix

Description

Model Suffix

Description

Model Suffix

Height

(in.)

Width

(in.)

Capacity

(cu. ft.)

MODEL

NOTE: UH01, UH01RT, UH01GD, H02 AMP RATING SHOWN WITH OUT ELECTRIC CONDENSATE PAN.
NOTE: H01, H01RT, H01GD AMP RATING SHOWN WITH ELECTRIC CONDENATE PAN.

Bidding Specifications

McCall Roll-In Cabinets shall have:

Top mounted compressor. Automatic defrost. Expansion Valve. Hot gas
condensate evaporator. Matched and balanced system. Exclusive Windrunner Gradient Air
Displacement Process. Stainless steel front, doors and floor. Self-closing all metal door with
welded and polished corners. Cam-lift hinges with concealed light switches. Adjustable
doorstops. Removable stainless steel ramp, each door opening. Exterior digital thermometer
(1000 series) dial thermometer (2000-4000 series). Chrome-plated door handles with
security locks. Accepts 72" cart. (not included) Master Power Switch. R-134a refrigerant.
Dimensions: Width=38.6"/Height=91.8"

475

610

425

36.88

33.19

98.43

TOP VIEW
(ROLL-IN)

SIDE VIEW

TOP VIEW

(ROLL-THRU)

38.56

36.88

33.19

65.81

38.56

7.5

7.8

8.0

9.0

9.3

7.7

3012

3012
4140
3012

4140

4140
