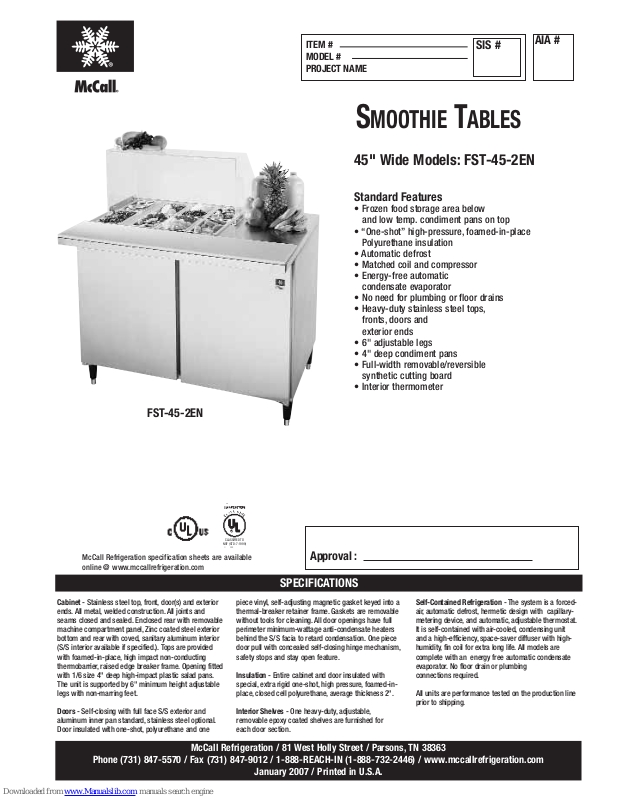

McCall FST-45-2EN Specifications
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
S
MOOTHIETABLES
Cabinet - Stainless steel top, front, door(s) and exterior
ends. All metal, welded construction. All joints and
seams closed and sealed. Enclosed rear with removable
machine compartment panel, Zinc coated steel exterior
bottom and rear with coved, sanitary aluminum interior
(S/S interior available if specified.). Tops are provided
with foamed-in-place, high impact non-conducting
thermobarrier,raised edge breaker frame. Opening fitted
with 1/6 size 4" deep high-impact plastic salad pans.
The unit is supported by 6" minimum height adjustable
legs with non-marring feet.
Doors - Self-closing with full face S/S exterior and
aluminum inner pan standard, stainless steel optional.
Door insulated with one-shot, polyurethane and one
piece vinyl, self-adjusting magnetic gasket keyed into a
thermal-breaker retainer frame. Gaskets are removable
without tools for cleaning. All door openings have full
perimeter minimum-wattage anti-condensate heaters
behind the S/S facia to retard condensation. One piece
door pull with concealed self-closing hinge mechanism,
safety stops and stay open feature.
Insulation - Entire cabinet and door insulated with
special, extra rigid one-shot, high pressure, foamed-inplace, closed cell polyurethane, average thickness 2".
Interior Shelves - One heavy-duty,adjustable,
removable epoxy coated shelves are furnished for
each door section.
Self-Contained Refrigeration - The system is a forcedair, automatic defrost, hermetic design with capillarymetering device, and automatic, adjustable thermostat.
It is self-contained with air-cooled, condensing unit
and a high-efficiency, space-saver diffuser with highhumidity, fin coil for extra long life. All models are
complete with an energy free automatic condensate
evaporator. No floor drain or plumbing
connections required.
All units are performance tested on the production line
prior to shipping.
45" Wide Models: FST-45-2EN
Standard Features
• Frozen food storage area below
and low temp. condiment pans on top
• “One-shot” high-pressure, foamed-in-place
Polyurethane insulation
• Automatic defrost
• Matched coil and compressor
• Energy-free automatic
condensate evaporator
• No need for plumbing or floor drains
• Heavy-duty stainless steel tops,
fronts, doors and
exterior ends
• 6" adjustable legs
• 4" deep condiment pans
• Full-width removable/reversible
synthetic cutting board
• Interior thermometer
AIA #
ITEM #
MODEL #
PROJECT NAME
SIS #
Approval :
SPECIFICATIONS
CLASSIFIED TO
NSF (STD-7-1999)
McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com
FST-45-2EN
McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
Capacity Cabinet
Model (Cu. Ft.) Length Top Amps
FST-45-2EN 10 45" 34" 35.50" 8 Std. 1/4 Size Pans. 8.5
45.0
30.0
TOP VIEW
34.0
14.0
10.0
35.5
SIDE VIEWFRONT VIEW
14.5
FST-45-2EN
SMOOTHIE TABLES
Swivel casters, two with
brakes and two without brakes.
Stainless steel interior.
Stainless steel exterior rear and
access panel.
Door lock, individual cylinder type,
keyed alike.
OPTIONS
115 Volt, 60 Hz, 1 phase, 6', (3) wire power cord and
polarized plug (NEMA 5-15).
Specifications subject to change without notice.
Depth
Height
Shipping
Weight
(lbs.)
Work
Height
DIMENSIONS
230
Description
Bidding Specifications
McCall Smoothie Tables shall have:
Stainless steel top, door(s), front and exterior ends. One-shot
high-pressure, foamed in place polyurethane insulation.
Automatic defrost. Energy-free automatic condensate evaporator.
All metal construction. Matched coil and compressor. 1 shelf per
section. No need for plumbing or drains. Stainless steel tops, fronts, doors and
exterior ends. 6" adjustable legs. 4" deep pan inserts.
Interior thermometer. Cord and plug attached. 115V, 60 Hz,NEMA 5-15
