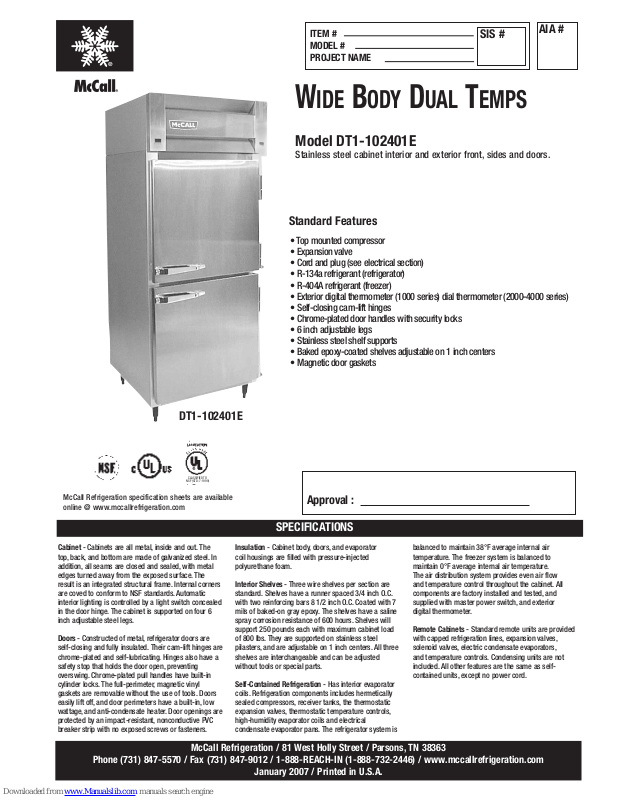

McCall DT1-102401E Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

W

IDEBODY

D

UALTEMPS

SPECIFICATIONS

Cabinet - Cabinets are all metal, inside and out. The

top, back, and bottom are made of galvanized steel. In
addition, all seams are closed and sealed, with metal
edges turned away from the exposed surface. The
result is an integrated structural frame. Internal corners
are coved to conform to NSF standards. Automatic
interior lighting is controlled by a light switch concealed
in the door hinge. The cabinet is supported on four 6
inch adjustable steel legs.

Doors - Constructed of metal, refrigerator doors are
self-closing and fully insulated. Their cam-lift hinges are
chrome-plated and self-lubricating. Hinges also have a
safety stop that holds the door open, preventing
overswing. Chrome-plated pull handles have built-in
cylinder locks. The full-perimeter, magnetic vinyl
gaskets are removable without the use of tools. Doors
easily lift off, and door perimeters have a built-in, low
wattage, and anti-condensate heater. Door openings are
protected by an impact-resistant, nonconductive PVC
breaker strip with no exposed screws or fasteners.

Insulation - Cabinet body, doors, and evaporator
coil housings are filled with pressure-injected
polyurethane foam.

Interior Shelves - Three wire shelves per section are
standard. Shelves have a runner spaced 3/4 inch O.C.
with two reinforcing bars 8 1/2 inch O.C. Coated with 7
mils of baked-on gray epoxy. The shelves have a saline
spray corrosion resistance of 600 hours. Shelves will
support 250 pounds each with maximum cabinet load
of 800 lbs. They are supported on stainless steel
pilasters, and are adjustable on 1 inch centers. All three
shelves are interchangeable and can be adjusted
without tools or special parts.

Self-Contained Refrigeration - Has interior evaporator
coils. Refrigeration components includes hermetically
sealed compressors, receiver tanks, the thermostatic
expansion valves, thermostatic temperature controls,
high-humidity evaporator coils and electrical
condensate evaporator pans. The refrigerator system is

balanced to maintain 38°F average internal air
temperature. The freezer system is balanced to
maintain 0°F average internal air temperature.
The air distribution system provides even air flow
and temperature control throughout the cabinet. All
components are factory installed and tested, and
supplied with master power switch, and exterior
digital thermometer.

Remote Cabinets - Standard remote units are provided
with capped refrigeration lines, expansion valves,
solenoid valves, electric condensate evaporators,
and temperature controls. Condensing units are not
included. All other features are the same as self­contained units, except no power cord.

• Top mounted compressor

• Expansion valve

• Cord and plug (see electrical section)

• R-134a refrigerant (refrigerator)

• R-404A refrigerant (freezer)

• Exterior digital thermometer (1000 series) dial thermometer (2000-4000 series)

• Self-closing cam-lift hinges

• Chrome-plated door handles with security locks

• 6 inch adjustable legs

• Stainless steel shelf supports

• Baked epoxy-coated shelves adjustable on 1 inch centers

• Magnetic door gaskets

Approval :

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

Model DT1-102401E

Stainless steel cabinet interior and exterior front, sides and doors.

Standard Features

CLASSIFIED TO

NSF (STD-7-1999)

DT1-102401E

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

Notes: *X-XX Indicates variation in series

**Based on 90°F ambient and 20°F evaporating temperature (refrig.) and 90°F ambient and -20°F
evaporating temperature (frzr.).

Specifications subject to change without notice.

Certain options and accessories may affect UL/NSF listing and electrical requirements.
***Electrical condensate has separate cord connection not to be electrically connected to cabinet.

WIDE BODY DUAL TEMPS

One

Section

Model DT1-102401E

 Audio visual alarm.
 Finished back.

 Tray slides
 Stainless steel shelves.



extra epoxy coated shelves.

 Dial thermometer

OPTIONS

33.5

13.56

64.94

33.25

37.94

66.5

1.19 (ALL FREEZERS)

34.31

84.5

POWER

CONNECTION

TOP VIEW

SIDE VIEW

DIMENSIONS

Model DT1-102401E

650 lbs.

McCall Wide Body Dual Temp Cabinets shall have:

Matched and balanced system. Stainless steel front, doors and floor.
Self-closing all metal doors with welded and polished corners. Cam-lift
hinges with concealed light switches. Adjustable doorstops. Exterior
digital thermometer (1000 series) dial thermometer (2000-4000 series).
Chrome-plated door handles with security lock. Stainless steel pilasters
adjustable on 1" centers. Three epoxy coated shelves per section.
6" adjustable legs. Master Power Switch.
Cord and plug attached 28.5 cubic ft. capacity.
Dimensions: Width =33.25"/Height =84.5"

Bidding Specifications

ELECTRICAL

One Section

Model Number* DTX-XX24 01 E ***

Refrigerator Freezer

Compressor HP 1/3 1/4
Voltage (60 hz, 1 ph) 115 115
Total Amperage: 7.4 7.9
BTU/HR** 2400 906
Cord connection - ANSI 5-20P

Description

Net Capacity: 28.5

cu.ft.

Capacity per section: 11.75
Width: 33.25"
Height: including 6" legs 84.5"
Depth: cabinet only -

including controls 31.18"

Depth: over hardware -

reach-in 37.81"

Depth: door open 90° -

reach-in 66.5"

Net Door Opening:

width 26.87"

Net Door Opening:

height - half doors 26.34"
Adjustable Shelves 4
Shipping Weight

AIA #

6

16022
