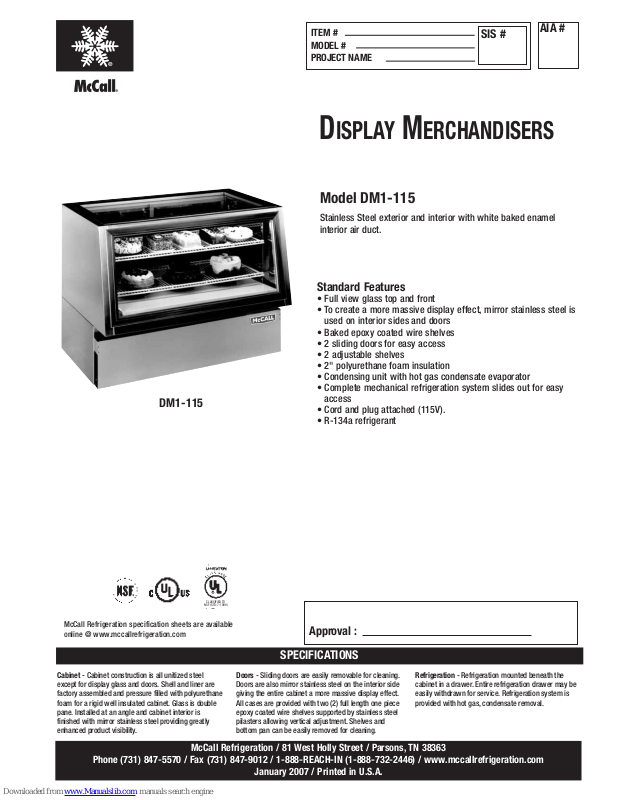

McCall DM1-115 Specifications

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

D

ISPLAY

M

ERCHANDISERS

SPECIFICATIONS

Cabinet - Cabinet construction is all unitized steel

except for display glass and doors. Shell and liner are
factory assembled and pressure filled with polyurethane
foam for a rigid well insulated cabinet. Glass is double
pane. Installed at an angle and cabinet interior is
finished with mirror stainless steel providing greatly
enhanced product visibility.

Doors - Sliding doors are easily removable for cleaning.
Doors are also mirror stainless steel on the interior side
giving the entire cabinet a more massive display effect.
All cases are provided with two (2) full length one piece
epoxy coated wire shelves supported by stainless steel
pilasters allowing vertical adjustment. Shelves and
bottom pan can be easily removed for cleaning.

Refrigeration - Refrigeration mounted beneath the
cabinet in a drawer. Entire refrigeration drawer may be
easily withdrawn for service. Refrigeration system is
provided with hot gas, condensate removal.

Model DM1-115

Stainless Steel exterior and interior with white baked enamel
interior air duct.

Approval :

Standard Features

• Full view glass top and front

• To create a more massive display effect, mirror stainless steel is
used on interior sides and doors

• Baked epoxy coated wire shelves

• 2 sliding doors for easy access

• 2 adjustable shelves

• 2" polyurethane foam insulation

• Condensing unit with hot gas condensate evaporator

• Complete mechanical refrigeration system slides out for easy
access

• Cord and plug attached (115V).

• R-134a refrigerant

CLASSIFIED TO

NSF (STD-7-1999)

McCall Refrigeration specification sheets are available
online @ www.mccallrefrigeration.com

AIA #

ITEM #
MODEL #
PROJECT NAME

SIS #

DM1-115

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363

Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com

January 2007 / Printed in U.S.A.

DIMENSIONS

Net Capacity: 14.0 cu.ft.
Width: 48"
Height: 36"
Depth: 31.5"
Door Height: 16.75"
Adjustable Shelves: 2
Shipping Weight

ELECTRICAL

115V 230V

Compressor Horsepower: 1/2 1/2
Total Amperage: 14.5 8
Electrical Connection: 5-20P Perm.

Cord (3 wire + gr)

Certain options and accessories may affect
UL/NSF listing and electrical requirements.

Specifications subject to change without notice.

EVAP.
BOX

CONTROL
BOX

48

42.75

18.63

31.56

27.5

18.31

23

36.16

24

CONDENSER
AIR EXHAUST

CONDENSER
AIR
INLET

13

DISPLAY MERCHANDISERS

 Remote

OPTIONS

MODEL DM1-115

Model DM1-115

625 lbs.

TOP VIEW

SIDE VIEW

BACK VIEW

Bidding Specifications

McCall Display merchandisers shall have:

Full view glass top and front. 2 sliding doors. 2 adjustable baked
epoxy coated wire shelves. Mirror stainless steel on interior sides and
doors. Condensing unit with hot gas
condensate evaporator. Slide out refrigeration system.
R-134a refrigerant. Cord and plug attached. 115V, 14.5 amps.
14 cu.ft. capacity Width=48"/Depth=31.5"/Height=36"

Description

AIA #

16049
