REFERENCE
RKM113 / RKM116 / RKM168 / RKM169 RCM213 / RCM216

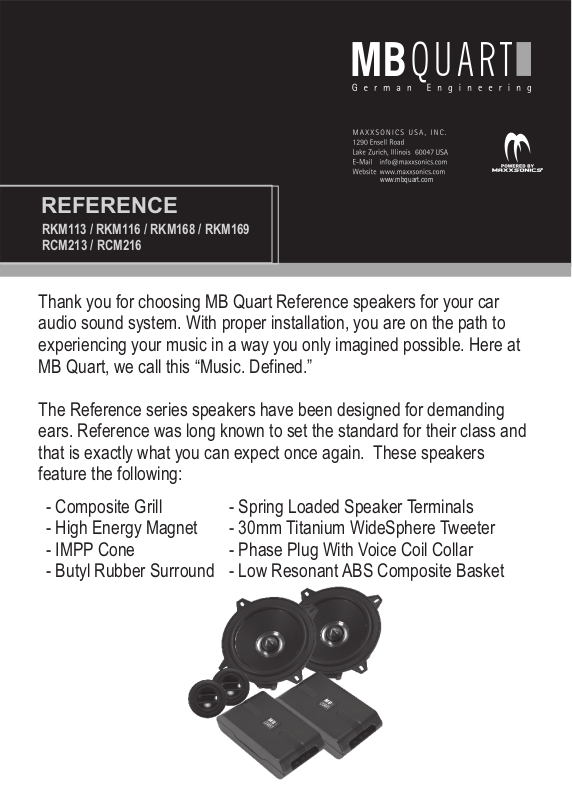

Thank you for choosing MB Quart Reference speakers for your car audio sound system. With proper installation, you are on the path to experiencing your music in a way you only imagined possible. Here at MB Quart, we call this “Music. Defined.”
The Reference series speakers have been designed for demanding ears. Reference was long known to set the standard for their class and that is exactly what you can expect once again. These speakers feature the following:
- Composite Grill
- High Energy Magnet
- IMPP Cone
- Butyl Rubber Surround
- Spring Loaded Speaker Terminals
- 30mm Titanium WideSphere Tweeter
- Phase Plug With Voice Coil Collar
- Low Resonant ABS Composite Basket
REFERENCE
RKM113 / RKM116 / RKM168 / RKM169 RCM213 / RCM216
As with all high quality car audio products, we recommend professional installation by an authorized MB Quart dealer. Your dealers knowledge and experience can ensure a problem free and cosmetically integrated installation.
If you choose to install the speakers yourself, please read the entire manual very carefully.
SPEAKER LOCATION AND MOUNTING TIPS
THE FIRST STEP IS THOROUGH PLANNING BEFORE THE INSTALLATION BEGINS. THE SPEAKER SCREW HOLE CONFIGURATION WILL WORK WITH MOST DOMESTIC AND FOREIGN VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE PROPER IMAGING AND MAXXIMUM PERFORMANCE.
Factory Speaker Replacement Location and Installation
1. Before you alter the vehicles interior materials, be sure there is adequate room and clearance for the speaker depth to clear the windows and other moving parts. (See speaker measurement page).
2. If you are using the speaker wires provided in this kit, be sure to route wires through the factory door grommet as shown in the speaker mounting diagram.
3. After securing the speaker and checking clearances, connect the red/black speaker audio wires to the correct speaker + and - spade terminals.
Custom Speaker Location and Installation
1. Follow steps 1-3 above.
2. Use the speaker mounting diagrams and speaker hole cut-out dimensions on the following pages.
3. Always mount the left and right side speakers on the same plane. This means that each speaker should be the same height from the floor and same distance from the firewall. Do not mount one speaker higher, lower, further forward or further behind the other.
1
REFERENCE
Flush Mount Method
Mounting Surface
Mounting Brackets
Mounting Bracket Washers
Mounting Bracket Screws
Surface Angle Mount Method
Cup Mounting Screws
Mounting Surface
Top Mounted Method
Cup Mounting Screws
Mounting Surface
IN OUT
T- T+ W- W+
2
RKM113
60mm / 2.36”
114mm / 5.67”
164mm / 6.47”
40 80
4
88
50 - 32,000
80
40
4
88
50 - 32,000
40 80
4
88
50 - 32,000
80
40
88
50 - 32,000
4
80
40
88
50 - 32,000
40 80
88
50 - 32,000
4
3
RKM116
60mm / 2.36”
114mm / 5.67”
164mm / 6.47”
55
110
4
88
50 - 32,000
110
55
4
88
50 - 32,000
55
110
4
88
50 - 32,000
110
55
88
50 - 32,000
4
110
55
88
50 - 32,000
55
110
88
50 - 32,000
4
4
RKM168
62.3mm / 2.45”
126.8mm / 4.99”
142.4mm / 5.61”
180mm / 7.09”
195.5mm / 7.7”
55
110
4
89
50 - 32,000
110
55
4
89
50 - 32,000
55
110
4
89
50 - 32,000
110
55
89
50 - 32,000
4
110
55
89
50 - 32,000
55
110
89
50 - 32,000
4
5
RKM169
79.5mm / 3.13”
148.6mm / 5.85”
190.8mm / 7.51”
220.7mm / 8.69”
267.6mm / 10.54”
65
130
4
89
40 - 32,000
130
65
4
89
40 - 32,000
65
130
4
89
40 - 32,000
130
65
89
40 - 32,000
4
130
65
89
40 - 32,000
65
130
89
40 - 32,000
4
6
RCM213
60mm / 2.36”
114mm / 5.67”
164mm / 6.47”
45 90
4
87
50 - 32,000
90
45
4
87
50 - 32,000
45 90
4
87
50 - 32,000
90
45
87
50 - 32,000
4
90
45
87
50 - 32,000
45 90
87
50 - 32,000
4
7
RCM216
60mm / 2.36”
114mm / 5.67”
164mm / 6.47”
60
120
4
87
50 - 32,000
120
60
4
87
50 - 32,000
60
120
4
87
50 - 32,000
120
60
87
50 - 32,000
4
120
60
87
50 - 32,000
60
120
87
50 - 32,000
4
8
www.mbquart.com
REFERENCE
RKM113 / RKM116 / RKM168 / RKM169 RCM213 / RCM216
car audio
Check out our videos of new products,
events and technical tutorials at
www.youtube.com/maxxsonicsusainc
PART#U213
