MB QUART QUB User Manual

AUDIO MOUNT KIT

P/N 2880458

APPLICATION

2009-2015 SPORTSMAN XP MODELS, 2015 SPORTSMAN SP 570 AND 570 TOURING MODELS;
SPORTSMAN 570 AND SPORTSMAN 570 TOURING MODELS;
SPORTSMAN ACE MODELS;
RANGER AND RZR MODELS

BEFORE YOU BEGIN

Read these instructions thoroughly and make sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.

8

4

KIT CONTENTS

Ref Qty Part Description Part Number

1 1 Audio Cable 2412741

2 2 Plastic Clamp 2878747
3 1 Charger 4015142

4 1 Bluetooth Speaker 4015226
5 1 Audio Mount Bracket, XP 5260513

6 1 Audio Mount Base 5260511

7 1 Audio Mount Bracket, SPH 5260512

8 1 Strap Audio Mount 5415440

10

7

12

6

9

11

2

5

1

3

P/N 9925685 Rev 01 09/14 Page 1 of 8

Ref Qty Part Description Part Number

9 1 Pad 5415441
10* 4 Screw 7517396
11* 4 Nyloc Nut 7541925

12* 4 Tuok Rivet 7661855

1 Instructions 9925685

Items marked (*) are included in Hardware Kit PN 2205767.

TOOLS NEEDED

Safety Glasses 5/16” Drill Bit Drill Metric Socket Set and Ratchet

APPROXIMATE ASSEMBLY TIME

10-15 min

IMPORTANT

Your Polaris AUDIO MOUNT KIT is exclusively designed for your vehicle. Please read the installation

instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris.
For your safety, and to ensure a satisfactory installation, perform all installation steps correctly in the
sequence shown.

INSTALLATION INSTRUCTIONS

FOR SPORTSMAN XP MODELS 2009-2015, 2015 SPORTSMAN SP 570 AND 570 TOURING MODELS

1. Place the vehicle in “PARK” and turn the key to “OFF” position. Remove the key from the vehicle.

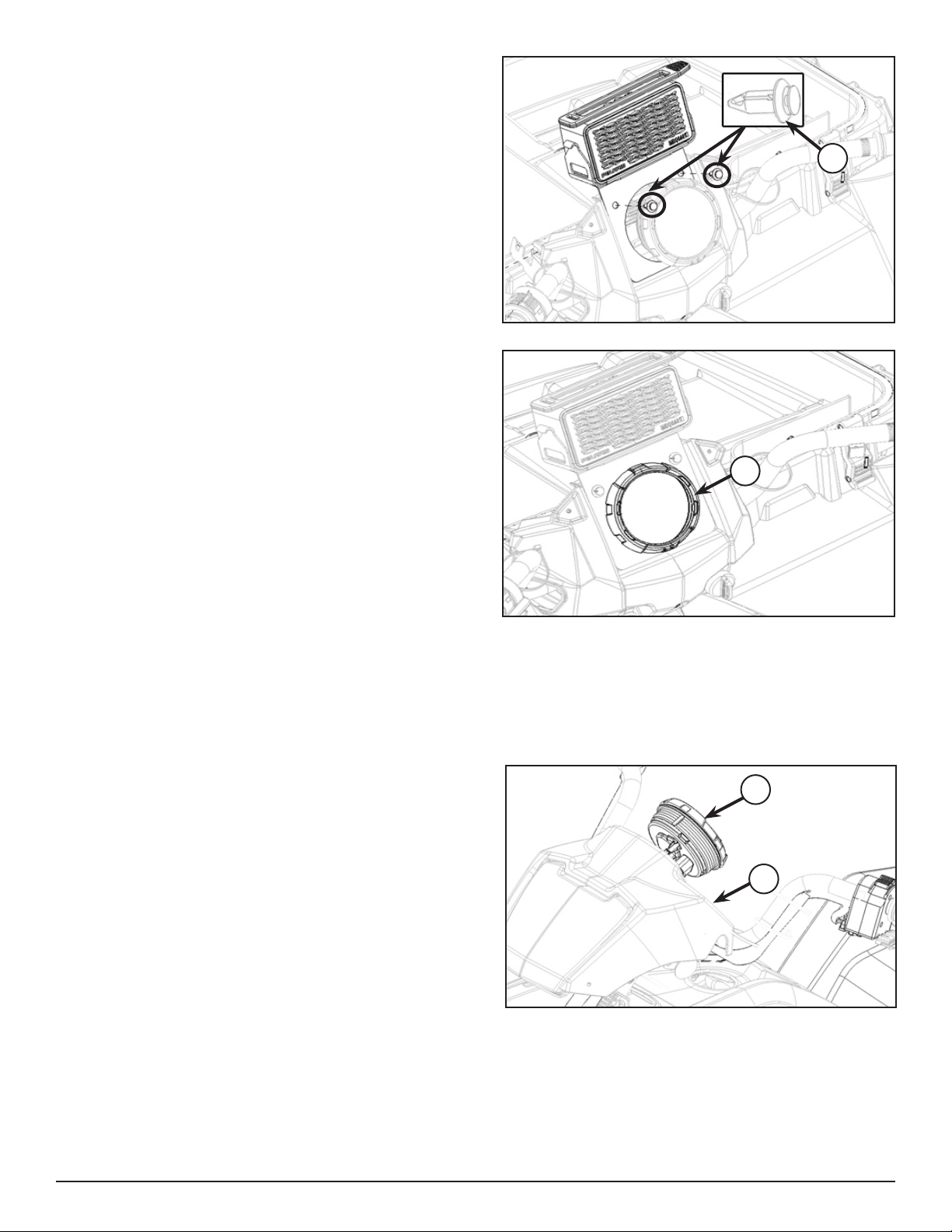

2. Push out cluster with bezel assembly (A) by hand
from pod (B). If Bezel separates from gauge don’t
be alarmed, you will snap it back into place in a
later step. If you cannot remove the cluster by hand,
consider removing the front pod (C) by removing six

screws (D). See gures.

C

A

B

A

D

P/N 9925685 Rev 01 09/14 Page 2 of 8

B

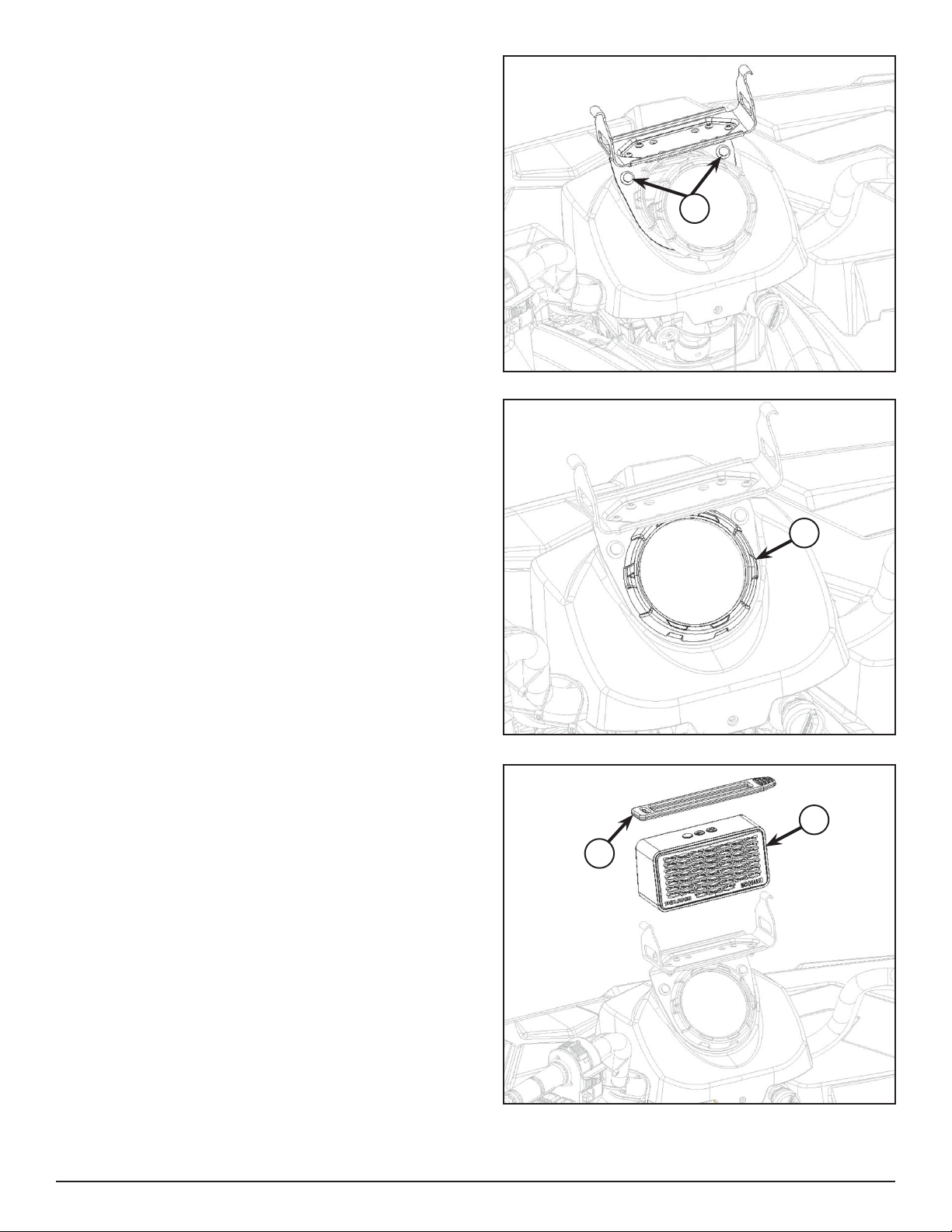

3. Align audio mount bracket (5) on the pod (B) and
use as template to drill the holes (E) of dia 5/16” as

shown in gure.

B

E

5

4. Fasten audio mount bracket (5) with audio mount
base (6) using four screws (10) and nyloc nuts (11).

Tighten screws until snug.

5. Snap t bluetooth speaker (4) and strap (8) on to the

audio mount assembly as shown in gure.

10

6

5

11

8

4

P/N 9925685 Rev 01 09/14 Page 3 of 8
