DASH AUDIO KIT

P/N 2884213

APPLICATION

Verify accessory fitment at MBQuart.com.

BEFORE YOU BEGIN

Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.

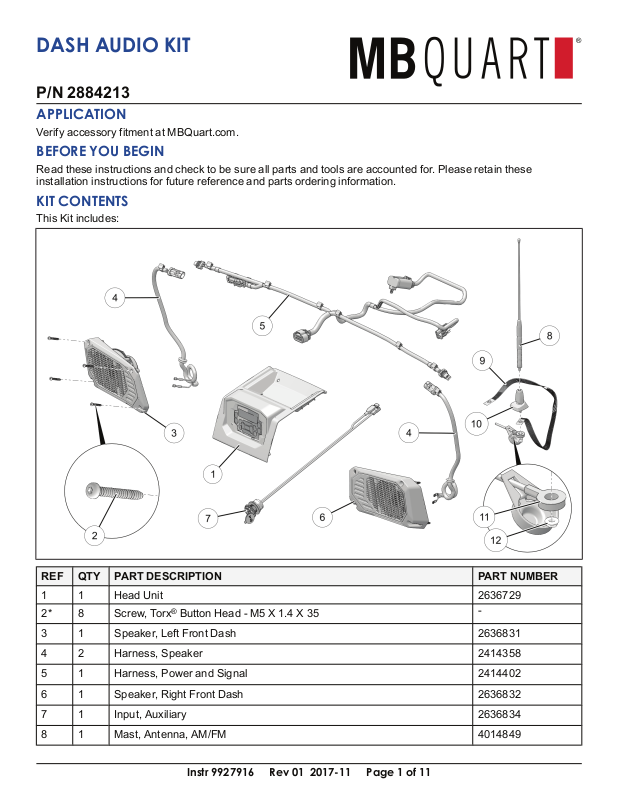

KIT CONTENTS

This Kit includes:

REF

11Head Unit 2636729

2* 8 Screw, Torx

31Speaker, Left Front Dash 2636831

42Harness, Speaker 2414358

61Speaker, Right Front Dash 2636832

71Input, Auxiliary 2636834

81Mast, Antenna, AM/FM 4014849

QTY PART DESCRIPTION

Button Head - M5 X 1.4 X 35

1 Harness, Power and Signal 2414402

Instr 9927916 Rev 01 2017-11 Page 1 of 11

PART NUMBER

Page 2

REF

9 1 Ground Strap, Antenna, AM/FM 4017858

10 1 Base, Antenna, AM/FM 4016695

11 1 Harness, Antenna Signal (with boot) 2411489

12 1 Nut, Hex Flange - M5 X 0.8 7547437

Items marked (*) are included in Hardware Kit PN 2207078.

QTY PART DESCRIPTION

1 Instructions 9927916

PART NUMBER

TOOLS REQUIRED

• Safety Glasses

• Cutting Tool

• Drill

• Drill Bit: 1/8 inch (3 mm), 3/16 inch (5 mm), 1/4 inch (6 mm), 1/2 inch (12 mm)

• Hole Saw: 1 inch (25 mm)

• Pliers, Push Pin Rivet

• Ruler

• Screwdriver Set, Torx

• Socket Set, Metric

• Wrench Set, Metric

IMPORTANT

Your Dash Audio Kit is exclusively designed for your vehicle. Please read the installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris. For your safety, and to ensure a satisfactory installation, perform all installation steps correctly in the sequence shown.

ASSEMBLY TIME

Approximately 90 minutes

NOTE

Additional time may be required for optional steps, or

to accommodate other accessories.

Instr 9927916 Rev 01 2017-11 Page 2 of 11

Page 3

HARNESS DETAIL

HEAD UNITqq:

REF PART DESCRIPTION WIRE

COLOR

1A Connector, Head Unit

1B Connector, USB Black

1C Connector, REMOTE ON

1D Connector, Antenna Signal

1E Connector, Speaker, Front

1F Connector, Speaker, Rear

1G Connector, AUX 1 IN White 4 female

SPEAKER HARNESS

Blue

Black

Brown

PIN QTY/ GENDER

12 male

RF coaxial

CONNECTS TO

Power and signal harness connector 5A

Auxiliary input

Nothing (unused)

Antenna harness 11A

Nothing (functionality provided through connector 1A)

Auxiliary input

, connector 7A

, connector

, connector 7B

REF PART DESCRIPTION WIRE

COLOR

4A Connector, Power and Signal Harness

4B Clip, Edge

4C Grommet

Instr 9927916 Rev 01 2017-11 Page 3 of 11

- -

PIN QTY/ GENDER

2 male

CONNECTS TO

Power and signal harness connectors 5E and 5H

Vehicle structure

Page 4

REF

4D Terminal, Spade (3/16 inch), Speaker Red

4E Terminal, Spade (1/8 inch), Speaker Black

PART DESCRIPTION

WIRE COLOR

PIN QTY/ GENDER

CONNECTS TO

Speaker terminal

eory

, positive (+)

, negative (–)

POWER AND SIGNAL HARNESS

REF PART DESCRIPTION WIRE

5B Clip, Edge

Connector, Head Unit

COLOR

- -

PIN QTY/ GENDER

12 female

CONNECTS TO

Head unit

Vehicle structure

, connector 1A

5C Connector, Speaker, Right Rear

(identified as RH SPEAKER; taped to breakout; with cap)

5D Connector, Speaker, Left Rear (identified

as LH SPEAKER; taped to breakout; with cap)

5E Connector, Speaker, Left Front (identified

as LH SPEAKER)

5F Relay/Fuse Block

5G Connector, Terminal Block

5H Connector, Speaker, Right Front

(identified as RH SPEAKER)

* Or compatible kit.

- -

2 female

OPTIONAL: Rear Roof Speaker Kit (PN 2882876) or Door Speaker Kit

2 female

3 female Vehicle terminal block

2 female

(PN 2882889)*

Speaker harness

Vehicle structure

Speaker harness

, connector 4A

Instr 9927916 Rev 01 2017-11 Page 4 of 11

Page 5

AUXILIARY INPUTuu:

REF

7A Connector, USB

7B Connector, 3.5 mm Stereo

ANTENNA HARNESS

REF

11A Connector, Antenna Signal

11B Connector, Antenna Base (with boot)

PART DESCRIPTION

WIRE COLOR

- -

WIRE COLOR

PIN QTY/ GENDER

4 male

PIN QTY/ GENDER

RF coaxial

FIAMM

CONNECTS TO

Head unit

CONNECTS TO

Head unit

Antenna base

, connector 1B

, connector 1G

, connector 1D

Instr 9927916 Rev 01 2017-11 Page 5 of 11

Page 6

INSTALLATION INSTRUCTIONS

1. Shift vehicle transmission into “PARK”. Turn

ignition switch to “OFF” position and remove key.

2. Flip up passenger seat bottom, remove driver’s

seat and underseat storage compartment, then disconnect black negative (-) cable from battery.

3. Gain access.

a. Remove hood.

b. If installed, remove or open windshield (as

applicable) to gain access to upper dash.

c. Remove upper dash cupholder by removing

two push pin rivets rearward. Retain rivets. Cupholder will not be reused.

, then sliding cupholder

e. Open door to upper storage compartment.

Remove four screws compartment, then remove compartment/door assembly from dash. Retain screws.

f. Remove upper dash.

i. Remove six push pin rivets

forward edge of dash.

from forward wall of

along

d. Tilt steering wheel to full down position. Detach

instrument cluster hood by removing two push pin rivets cluster) rearward. Disconnect instrument cluster wiring harness. Retain rivets.

, then slide hood (with instrument

ii. Remove five push pin rivetsEfrom LH side

of dash: two at center cupholder, two at instrument cluster, and one on underside of dash above cupholder.

Instr 9927916 Rev 01 2017-11 Page 6 of 11

Page 7

iii. Remove three push pin rivetsFfrom RH

side of dash: two inside upper storage area and one on underside of dash.

iv. Remove upper dash from vehicle.

4. Install speakers and speaker harnesses.

a. Using 1/8 inch (3 mm) drill bit, drill out four

fastener dimples penetrate panel surface and enter pre-drilled bosses on opposite side of panel.

. Only drill deep enough to

NOTE

All holes drilled from rear (passenger) side of panel.

Forward side shown below for reference only.

b. Reaching down through upper dash cavity,

route spade terminals 4D and 4E on speaker harness compartment, then secure grommet 4C in hole.

down through hole in speaker

NOTE

See previous section, HARNESS DETAIL, for

connector identification.

c. Join speaker harnessrto speakere:

i. Connector 4E (1/8 inch spade, BLACK

wire) to negative (–) terminal on speaker

ii. Connector 4D (3/16 inch spade, RED wire)

to positive (+) terminal on speaker

d. Install LH speaker

compartment using four screws overtighten screws.

e. Repeat Steps 4a. through d. for RH side using

speaker

into speaker

. Do not

Instr 9927916 Rev 01 2017-11 Page 7 of 11

Page 8

5. Install head unit harness.

NOTE

See previous section, HARNESS DETAIL, as well

as head unit operating instructions for connector

identification.

IMPORTANT

Control drill depth to prevent damage to underlying

structure or components.

d. Open power cap on vehicle terminal block at

any open location, then plug in connector 5G.

a. Detach firewall grommet

pulling forward slightly. Cut grommet radially from center of hole upwards, completely through grommet wall, as shown in care to ensure any existing wire harness passing through grommet is not damaged.

from firewall by



. Use

NOTE

Purpose of cutting grommet is to enable power and

signal harness

b. Route all harness components EXCEPT relay/

fuse block 5F and terminal block connector 5G from under-hood compartment rearward through firewall grommet compartment.

Reinstall firewall grommet into firewall with cut oriented at 12 o’clock position.

to pass through grommet.



into upper dash



e. On LH side of harness

connector 5E to speaker harness connector 4A on harness

f. OPTIONAL: If Rear Speaker Kit (PN 2882876)

or Door Speaker Kit (PN 2882889) is installed, then remove caps from connectors 5C and 5D on harness door speaker connectors.



and join to corresponding rear or



join front speaker



NOTE

Connectors 5C and 5D are taped to harness

breakout from factory.

g. Secure both harnesses

leg of front dash bracket using one edge clip 4B and three edge clips 5B.

h. On RH side of harness

connector 5H to speaker harness connector 4A on harness



andto lower LH



join front speaker



c. Drill out one accessory plug (1/4 inch) on

under-hood liner, just forward of air intake ducts, then install relay/fuse block 5F using attached fir tree clip.

Instr 9927916 Rev 01 2017-11 Page 8 of 11

i. Secure both harnesses

leg of front dash bracket using one edge clip 4B and three edge clips 5B.

andto lower RH



Page 9

6. Install AM/FM antenna.

NOTE

See previous section, HARNESS DETAIL, for

connector identification.

b. Insert threaded post and alignment pin located

on antenna base fender, attach one end of ground strap connector 11B on antenna harness secure with STEEL nut

through drilled holes in

. Install rubber boot.

and

, then

a. Mark two holes on top of right front fender for

alignment pin

, both located on antenna basea.

and antenna mounting post

NOTE

Exact base location is not critical. However, if mast

tilt functionality is desired, ensure location allows

desired tilt, and that ground strap

chassis ground location. See Step c. below.

Mark center of alignment pin hole (15 mm) REARWARD from center of mounting post hole marked locations:

• 3/16 inch (5 mm) diameter hole for alignment pin

• 1/2 inch (12 mm) diameter hole for mounting post

as shown, then drill holes at

can reach

9/16 inch

IMPORTANT

Control drill depth to prevent damage to underlying

structure or components.

IMPORTANT

Do NOT remove NYLON nut pre-installed to

threaded post.

NOTE

Fender shown partially transparent for clarity.

c. Remove nutMfrom ground stud, install loose

end of ground strap

, then reinstall nut.

NOTE

Ground strap improves AM reception.

d. Route connector 11A on antenna harness

rearward through firewall grommetHinto upper dash compartment.

NOTE

Antenna will be connected to head unit in Step 9.

Coil and stow excess antenna harness length in

upper dash compartment.

Instr 9927916 Rev 01 2017-11 Page 9 of 11

Page 10

e. Thread antenna mastiinto antenna basea.

7. OPTIONAL: Install auxiliary input. a. Gain access.

i. Remove two push pin rivets

face of control panel. Retain rivets.

from lower

b. Drill 1 inch diameter hole through lower center

cavity for installation of auxiliary input

Remove nut and rubber gasket from auxiliary input then reinstall gasket and nut.

c. Reconnect electrical harnesses disconnected

in Step a. above, then reinstall control panel using two retained rivets

, route wires rearward through opening,

NOTE

Auxiliary input will be connected to head unit in Step

ii. Rotate bottom of control panel rearward,

disengaging two side tabs upper tabs panel.

out of slots in main dash

, then drop two

8. Reinstall all access EXCEPT upper dash cupholder. See Step 3.

9. Hold head unit make the following connections:

a. Join connector 5A on harness

1A on head unit

b. Join connector 11A on antenna harness

connector 1D on head unit

c. Join connector 7A on auxiliary input

connector 1B on head unit

d. Join connector 7B on auxiliary input

connector 1G on head unit

10.Install head unit (with bezel) into upper dash cutout using two retained push pin rivets

near upper dash cutout and

to connector

iii. Label and disconnect electrical harnesses

from switches, sockets, or other devices in control panel.

Instr 9927916 Rev 01 2017-11 Page 10 of 11

Page 11

11. Reconnect black negative (-) cable to battery, then reinstall under-seat storage compartment and driver’s seat.
