MBM BC-12 Operation Manual
MULTI CARD CUTTER
Operation Manual
＊Be sure to read this manual to operate the machine safty and properly.
＊Keep the manual in handy place for further reference.
＊Be sure to include this manual with the machine when transferring or
leasing it to another person.
＊The manual is supposed to be changed or renewed without prior notice.
BC
-
12
Operation Manual
V.2.0
September 2011
BC-12
MULTI CARD CUTTER
1
BC-12 Operation Manual
Contents
Introduction ·············································································································· 2
Explanation of Symbols ·························································································· 2
Safety Instructions ································································································ 3-5
Main Specifications ································································································ 6
Accessories ············································································································· 6
1. Installation Precautions ····················································································· 7-8
2. Part Names ······································································································ 9-10

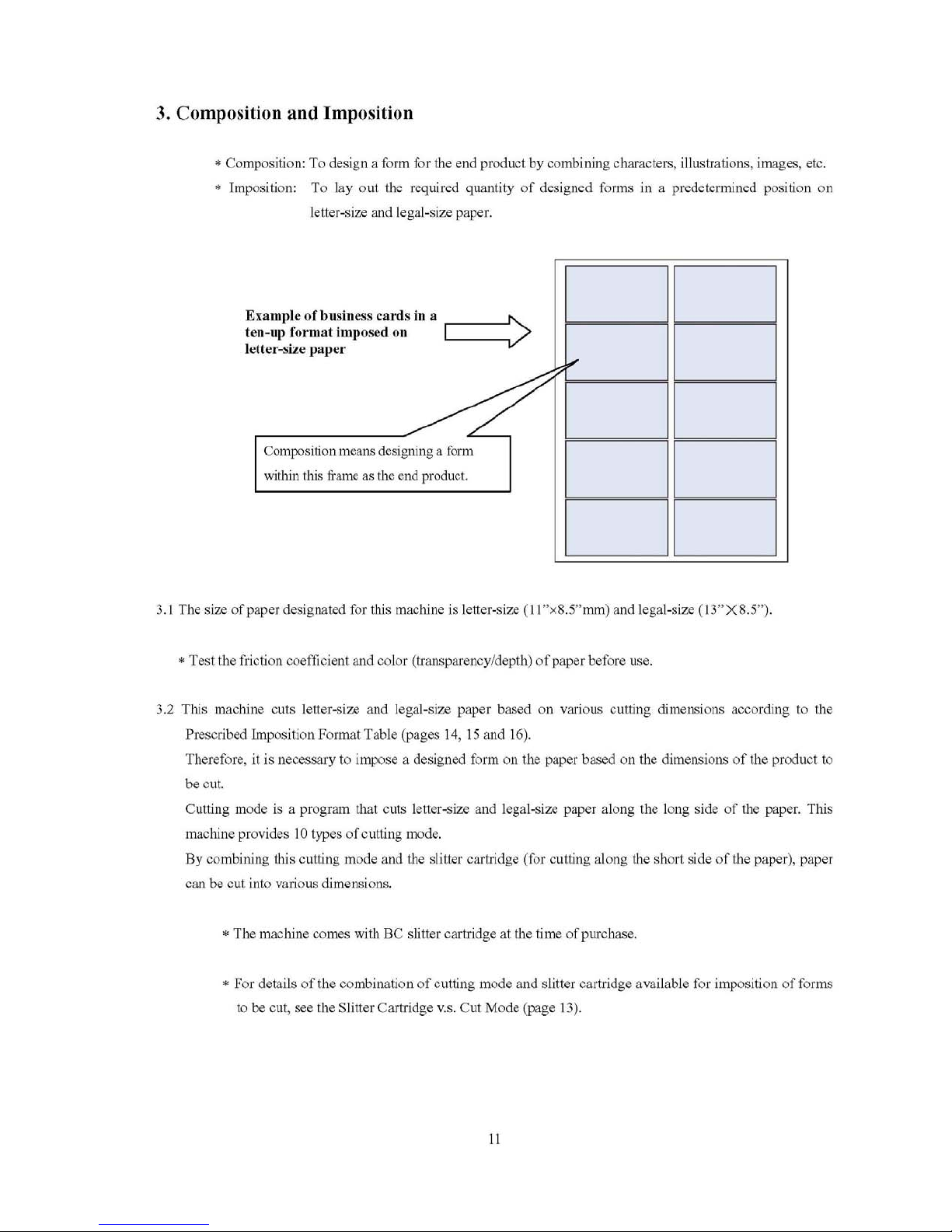

3. Composition and Imposition ········································································· 11-16
4. Preparations for Operation ············································································ 17-18
5. How to Use ··································································································· 19-30
6. Handling of the Trash Box ················································································ 31
7. Power Off ········································································································· 31
8. Maintenance ·································································································· 32-33
9．Option ··············································································································· 34
10. Troubleshooting Q&A ················································································· 35-36
2
Explanation of Symbols
The following safety symbols are used in this operation manual and on the labels attached to the
machine body. Understand each symbol and its associated instruction.
Introduction
Thank you for purchasing BC-12.
BC-12 is an automatic cutter that accurately cuts letter-size and legal-size paper to
produce various sizes of individual cards such as business cards imposed and printed in
advance.
This operation manual describes how to obtain the best performance from the machine
and to use it safely without troubles.
Be sure to read this manual before installation and operation, then keep the manual
carefully in a handy place for further reference.
When transferring or leasing this machine to another person, be sure to include this
manual with it.
Prohibited
Must be grounded Unplug
General instruction
Do not expose to
wet conditions
Do not touch
with wet hands
Do not
disassemble
WARNING
Misuse of the machine could cause major injury or death to the
operator.
Misuse of the machine could cause injury to the operator or damage to
property.
CAUTION
3
Safety Instructions
Connect the power plug into an outlet rated at 120V.
It is prohibited to connect it to an outlet with many other plugs connected or to
an auxiliary power outlet. Doing so may generate heat and cause fire or an
electric shock.
It is prohibited to use power other than the designated one (AC120V).
Doing so could cause fire or an electric shock.
Handle the power plug carefully.
1. Do not connect the power plug if foreign matter such as dust is attached.
2. Make sure the plug is properly inserted into the outlet.
It is prohibited to use power cords other than the one provided with the
machine.
Do not use the provided power cord for other purposes.
Do not damage the power cord. Doing so could cause fire or an electric shock.
Do not put heavy objects on it, pull it, bend it forcibly, or modify it.
Do not operate the machine without grounding. Doing so could cause fire or an
electric shock. Be sure to ground the machine. If the outlet is not triplex
(three-pins), be sure to ground it securely using the ground adapter.
Never disassemble the cutter unit.
It is prohibited to connect or disconnect the power plug with wet hands.
Doing so could cause an electric shock.
WARNING
4
Before removing jammed paper, first turn off the power switch.
To remove a sheet of paper caught in the cutter unit, first release the error, press
the Start Key to disengage the cutter, turn off the power switch, then remove
the sheet.
Do not remove the transparent cover of the trash box. This transparent cover is
part of the cover of the slitter unit.
Do not wet the machine with water.
Doing so could cause fire or an electric shock.
If you notice a strange sound or smell, turn off the power switch immediately,
disconnect the power plug, then call your dealer for repair.
Otherwise, fire or an electric shock could result.
Never disassemble the slitter cartridge.
When lifting the machine body, securely hold the bottom plate with both of your
hands. If you grab part of the plastic cover, it may damage the cover and the
machine could fall and cause an injury.
Do not rub your hands on the edges of cut paper.
Doing so could injure your hands.
Do not use the machine in dusty or damp conditions.
Doing so could cause fire or an electric shock.
CAUTION
5
Remove the power plug from the outlet when the machine will not be used for a
long time.
When moving the machine, first turn off the power switch and disconnect the
power plug from the outlet.
When installing or removing an optional device, carefully follow the
instructions in the relevant operation manual.
Regularly disconnect the power plug from the outlet and clean the area around
the pins. If the plug is kept connected for a long time, the area around the pins
may become dusty, which could cause a short-circuit and result in fire.
Do not place the machine on an unstable place.
It may fall down, resulting in an injury.
When disconnecting the power plug, hold the plug and pull it out. Do not pull
on the cord.
6
Main Specifications
Supported paper size letter-size 11”×8.5” (279.4×215.9mm, within ±0.5mm from each side)
legal-size 14”×8.5” (355.6×215.9mm, within ±0.5mm from each side)
Paper thickness 0.13–0.30mm
Paper weight 110–302g/m
2
Paper feed tray capacity 50 sheets (for 0.2mm-thick paper)

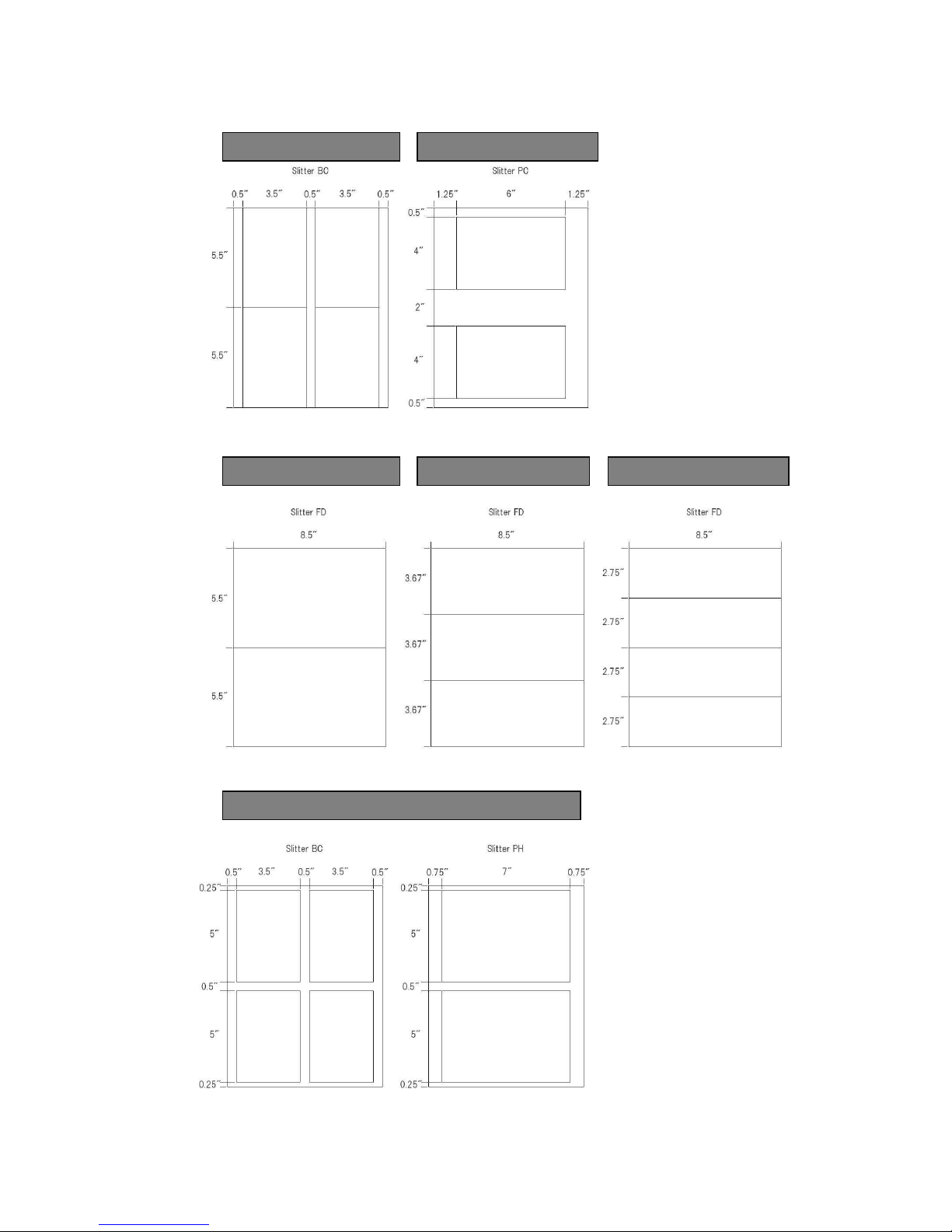

Finished size For the dimensions of paper that can be cut into, see pages 14, 15 and 16.
Card receiving capacity 500 sheets for business cards (for 0.2mm-thick paper)
Product receiving capacity 120 sheets for business cards (for 0.2mm-thick paper)
(50–100 sheets for other types of card)
(It varies depending on the dimensions and type of paper to be cut)
Cutting speed 1 min. 18 sec. for 100 business cards (based on 10-up and single cutting)
Dimensions 750mm (W) × 435mm (D) × 290mm (H)
Net weight 24kg
Power requirements AC120V, 60Hz
Power input 0.7A max.
Accessories
After unpacking, make sure that the following accessories are present.
Other accessories
• Power cord
• Operation manual

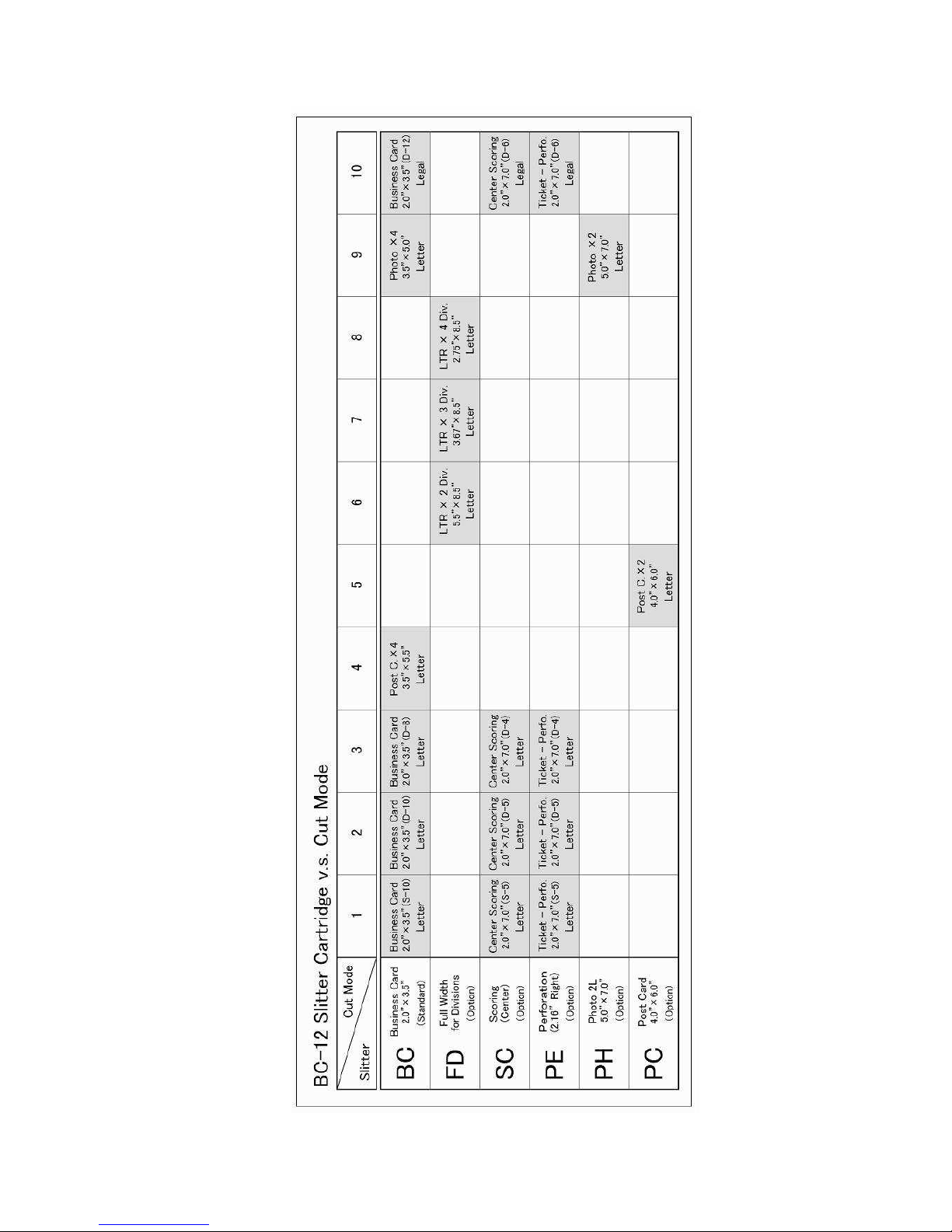

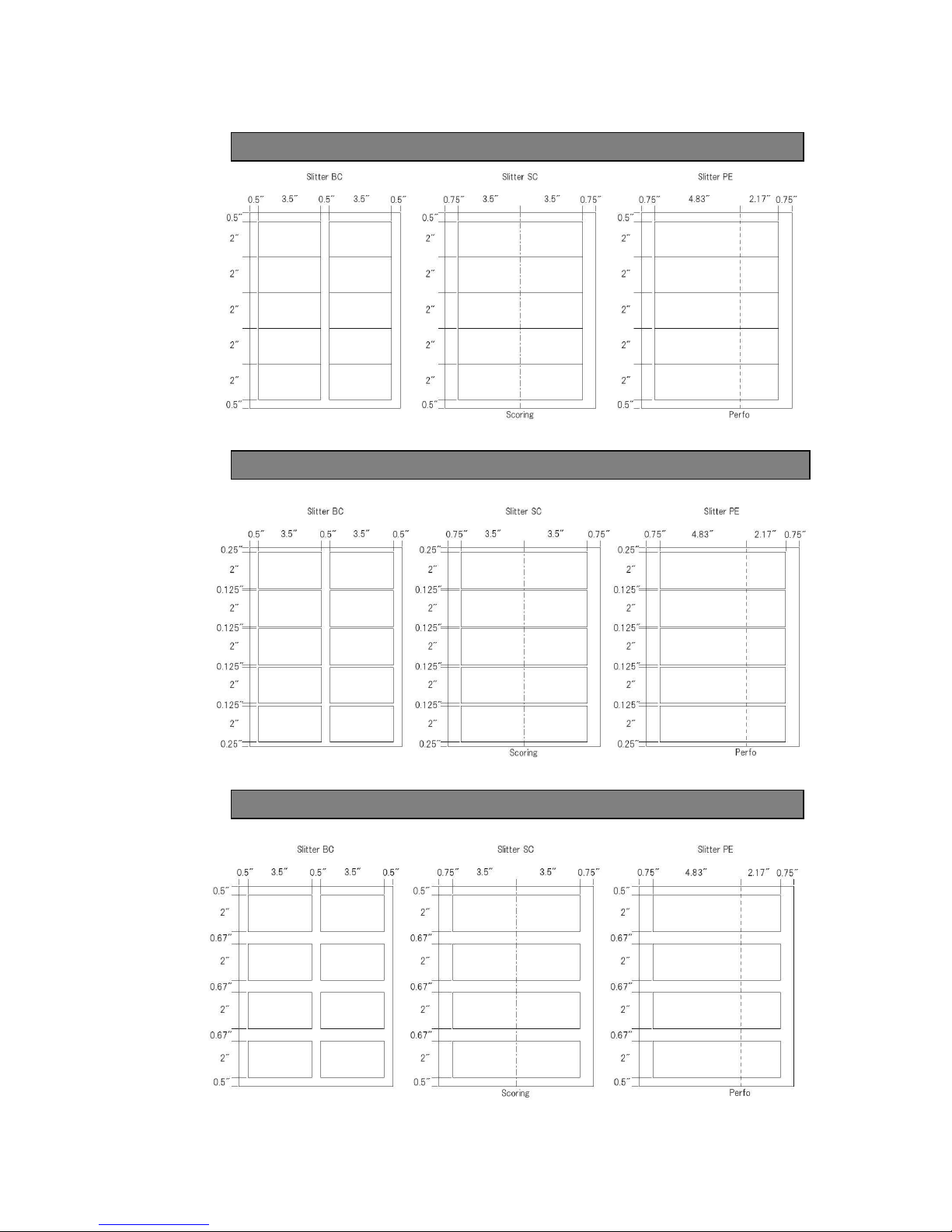

• Slitter Cartridge v.s. Cut Mode

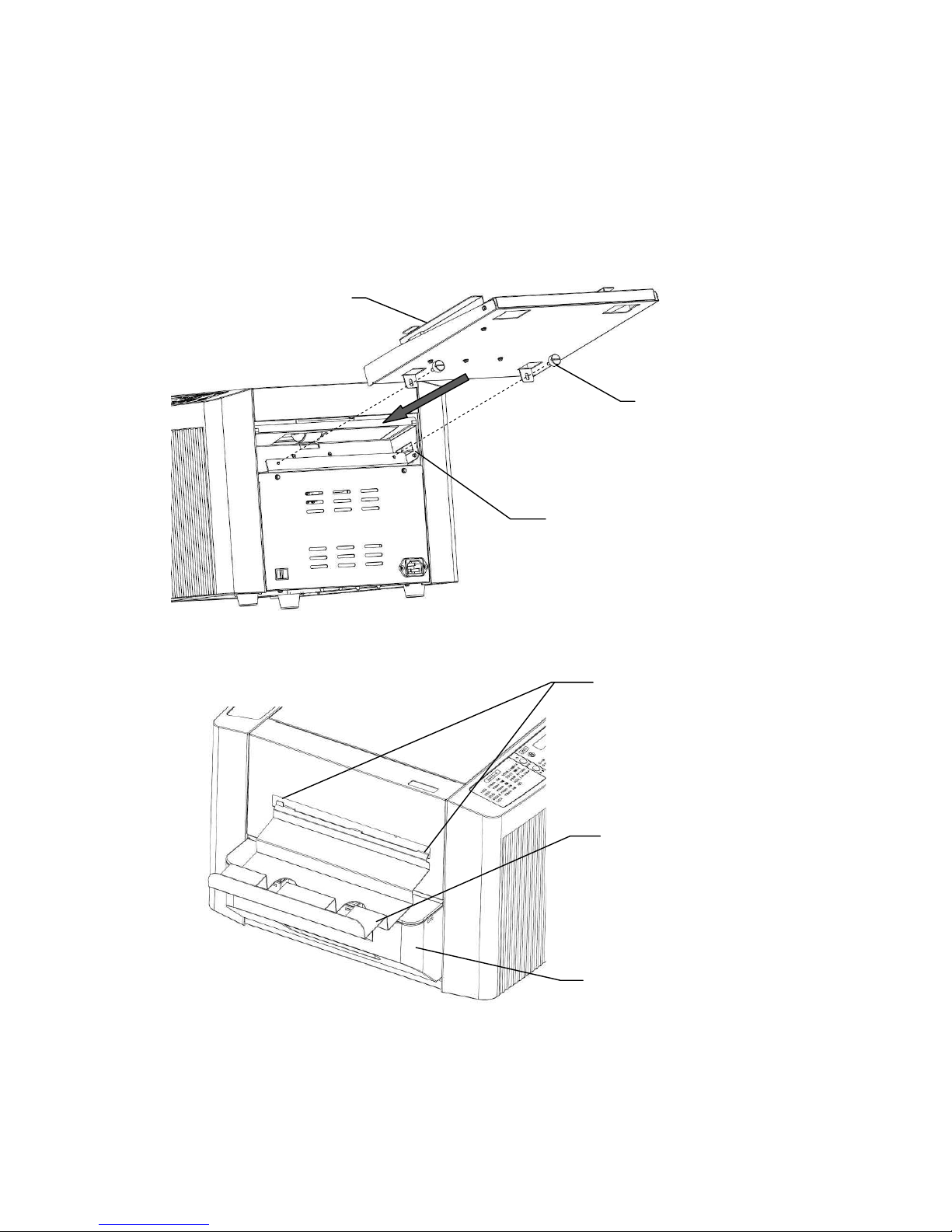

Paper feed tray
Product receiver
Trash box
Paper feed tray
fixing thumbscrew
(2 locations)
Machine body
Card receiver
7
1. Installation Precautions
∗ Recommended operating temperature
range: 10–40°C
∗ It is preferable to use the machine at a
humidity of 50% or higher.
• Do not put the
machine on an
unstable surface.
• Avoid areas with high moisture, excessive dust,
oily smoke or steam.
• Keep the machine
away from fire or
heating equipment.
• Do not leave the
machine exposed to
direct sunlight for
many hours.
• Do not drop the machine or
hit it against something.
8
• Earth (ground)
Earth terminal
• No wet hands
•
Danger of
an
electric shock
•
Do
not spill cold or
hot water on the
machine.
• Do not place any
object on top of the
machine.
•
When carry
ing the machine,
be sure to place both of your
hands underneath to hold it.
•
Do not place the machine in
extremely hot or cold areas.
•
Connecting
many
leads into a single
outlet is dangerous.
•
Do not use the machine
with any current and voltage
other than 120 VAC.
9
2. Part Names
Top panel
Front cover
Rear cover
Product receiver

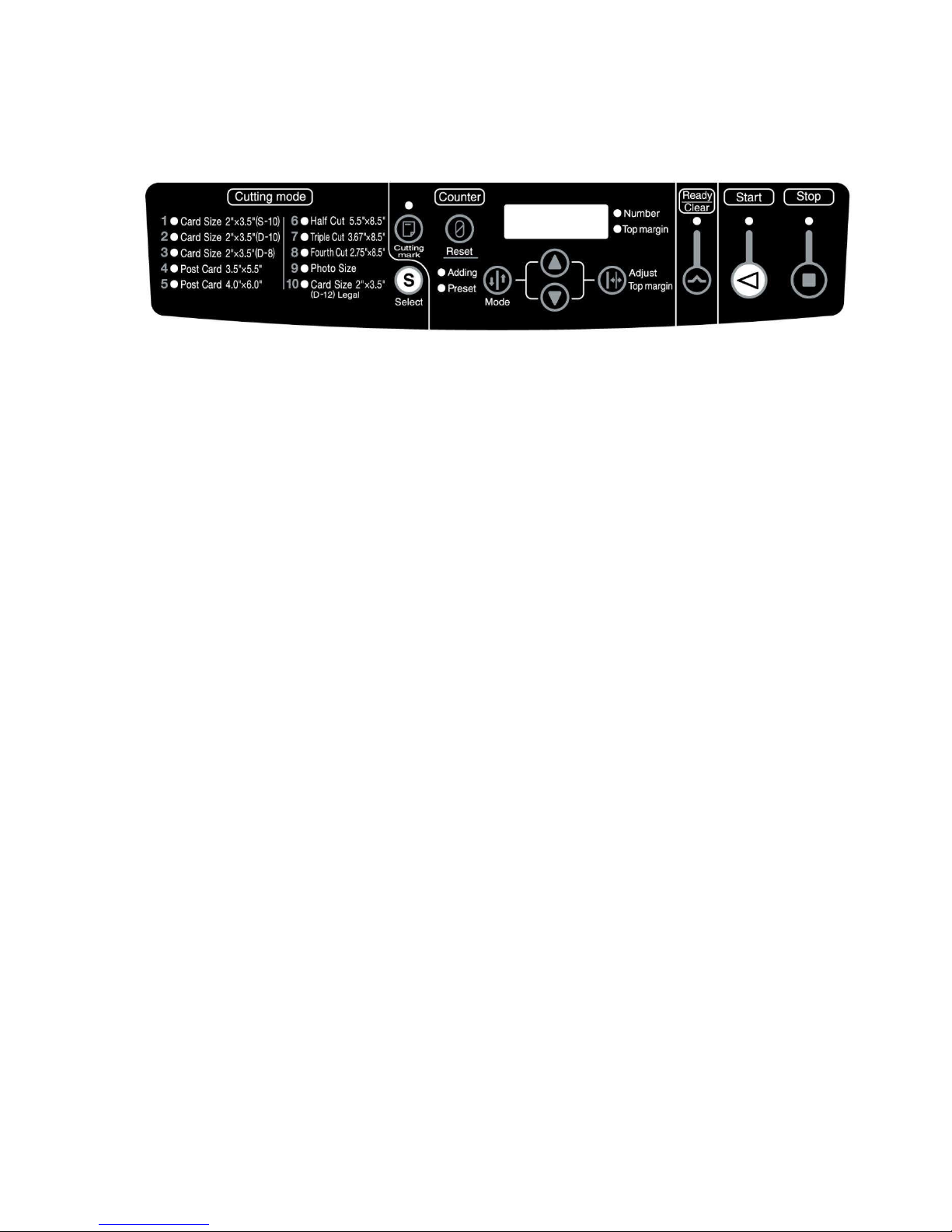

Operation panel
Paper feed tray
Slitter cover
Trash box
Power inlet
Power switch
Slitter check panel
Card receiver
10

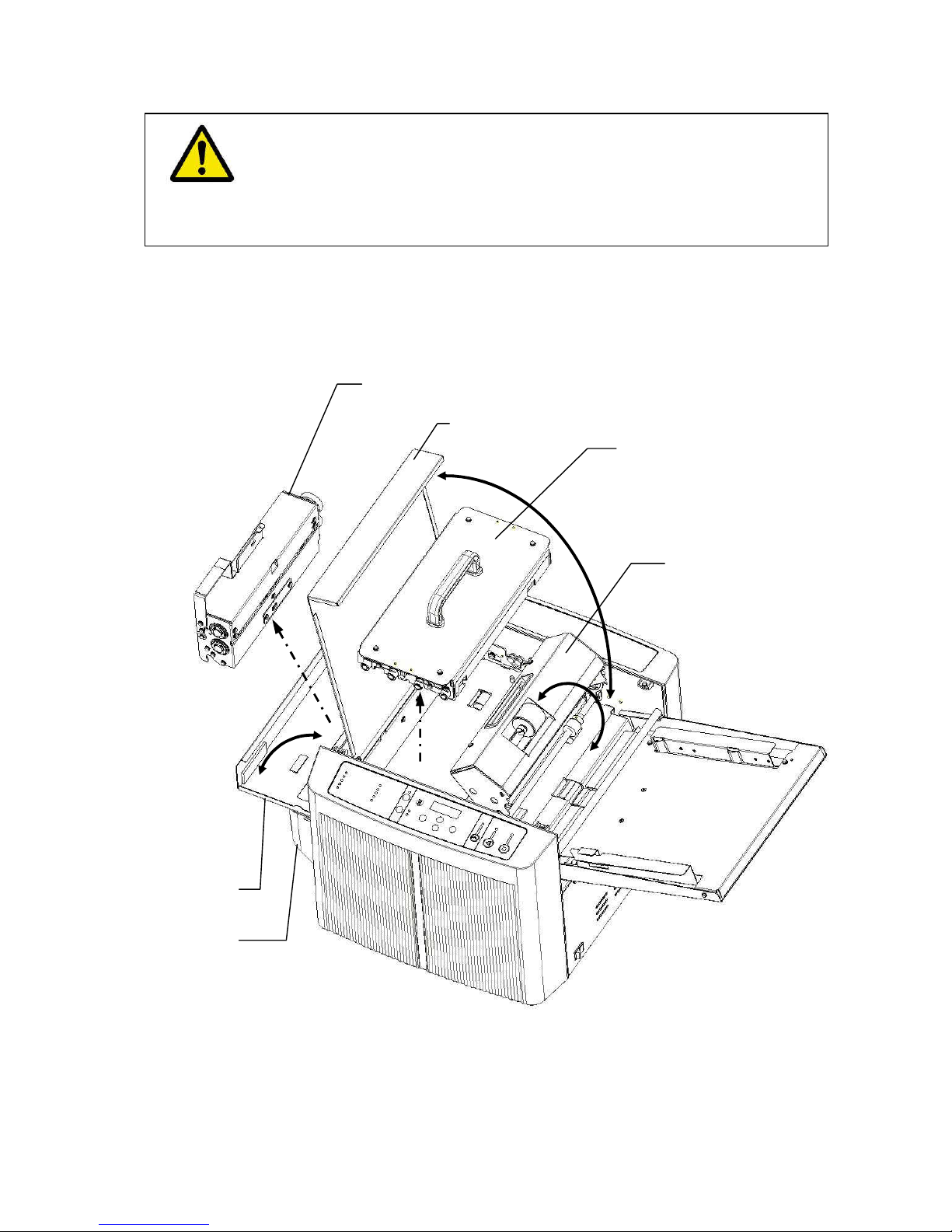

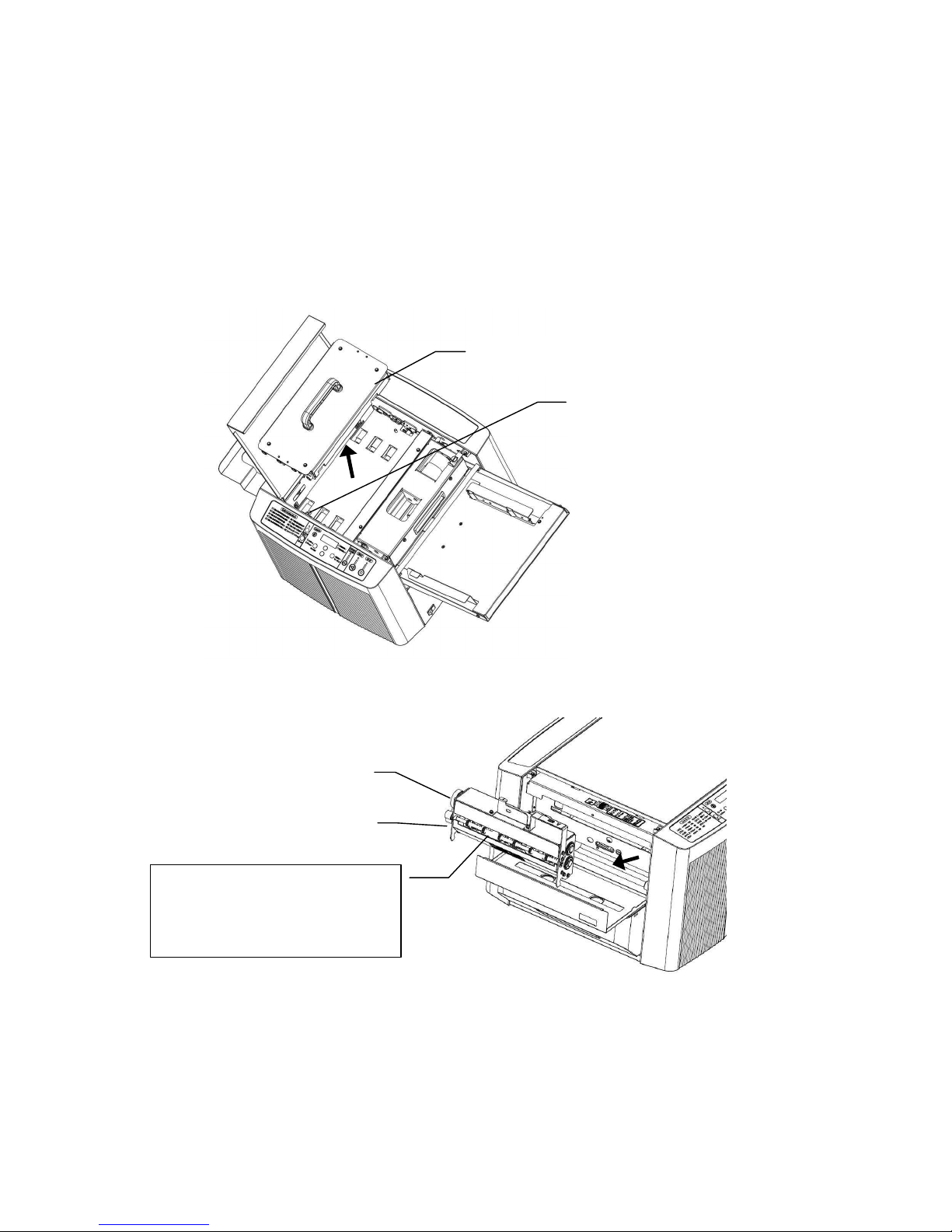

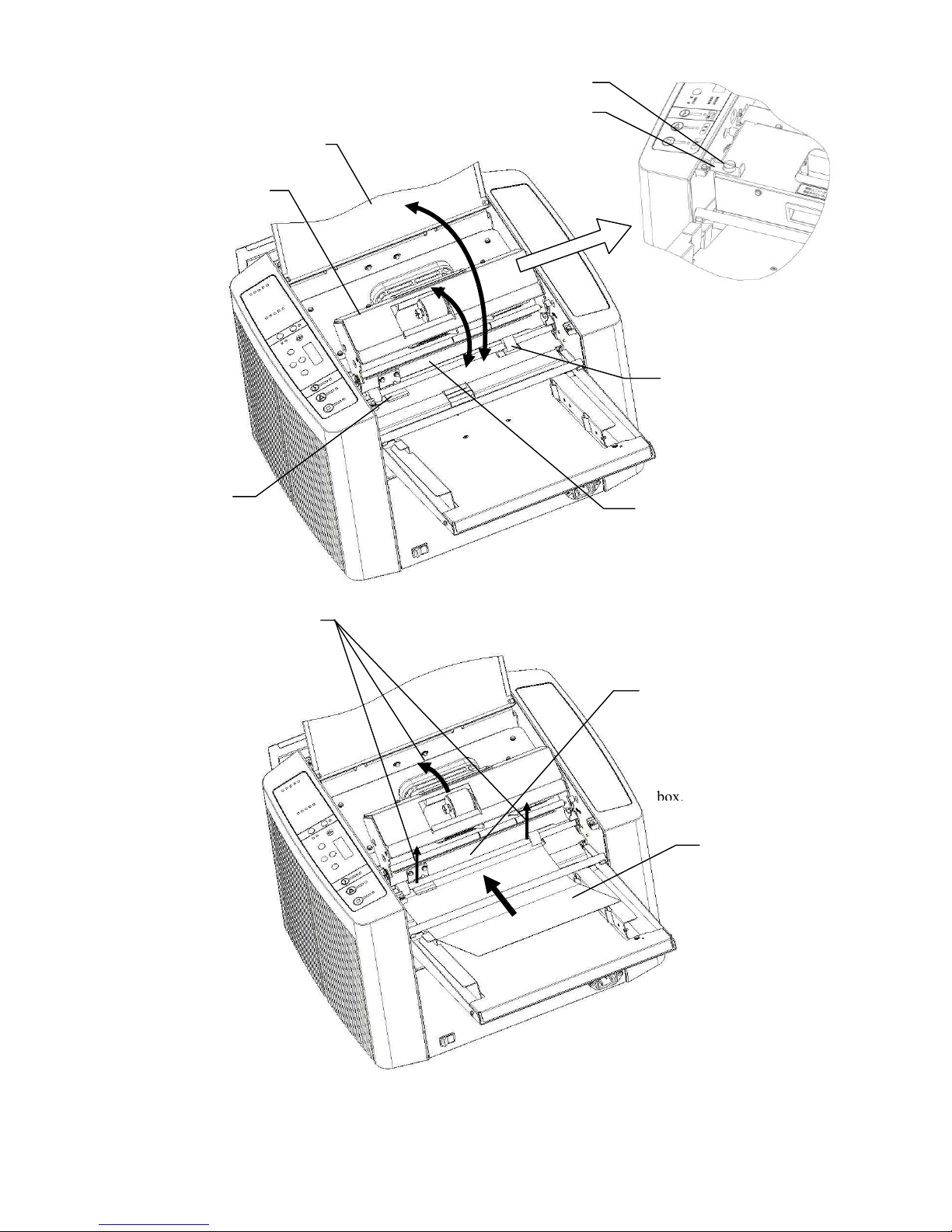

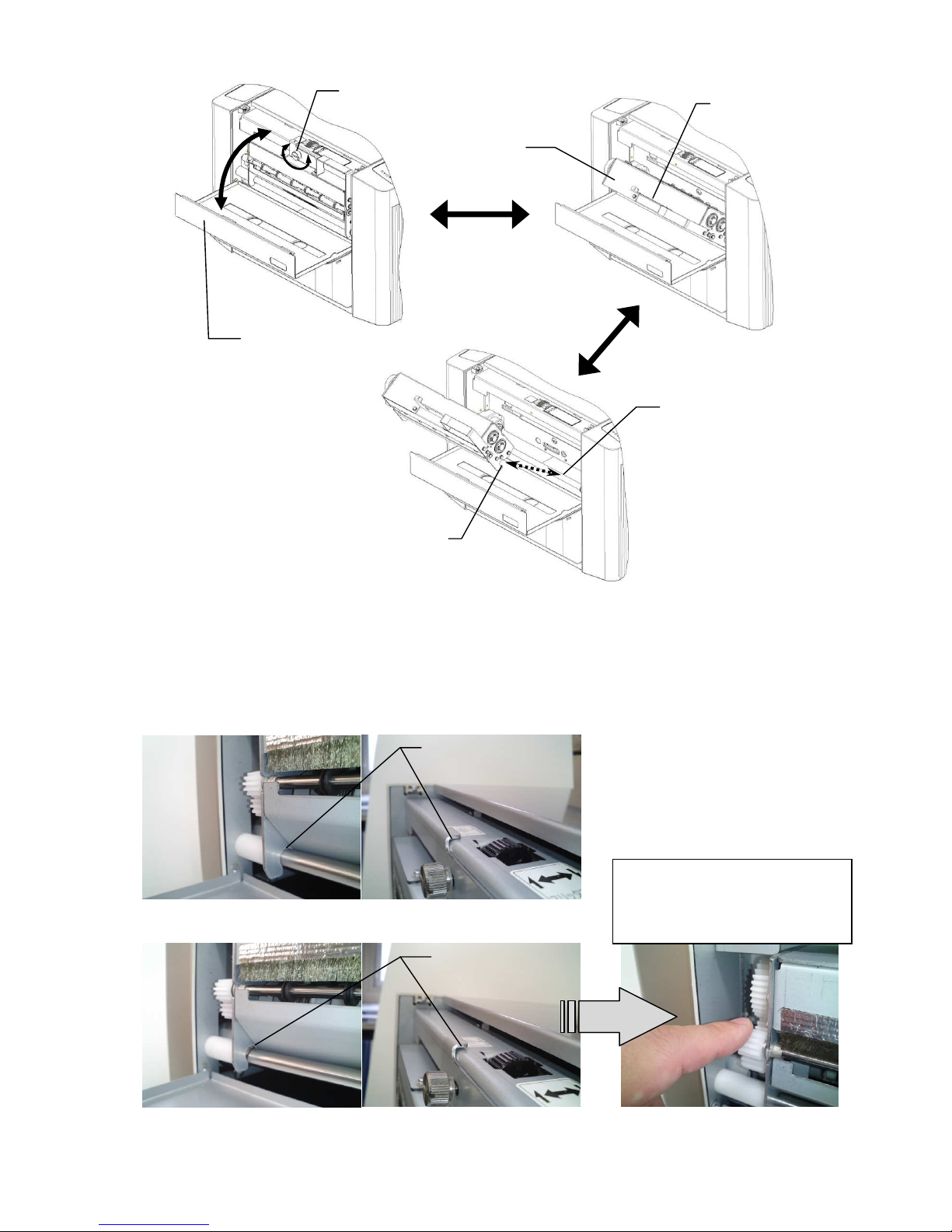

Slitter cartridge
Pressure roller unit
Paper feed unit

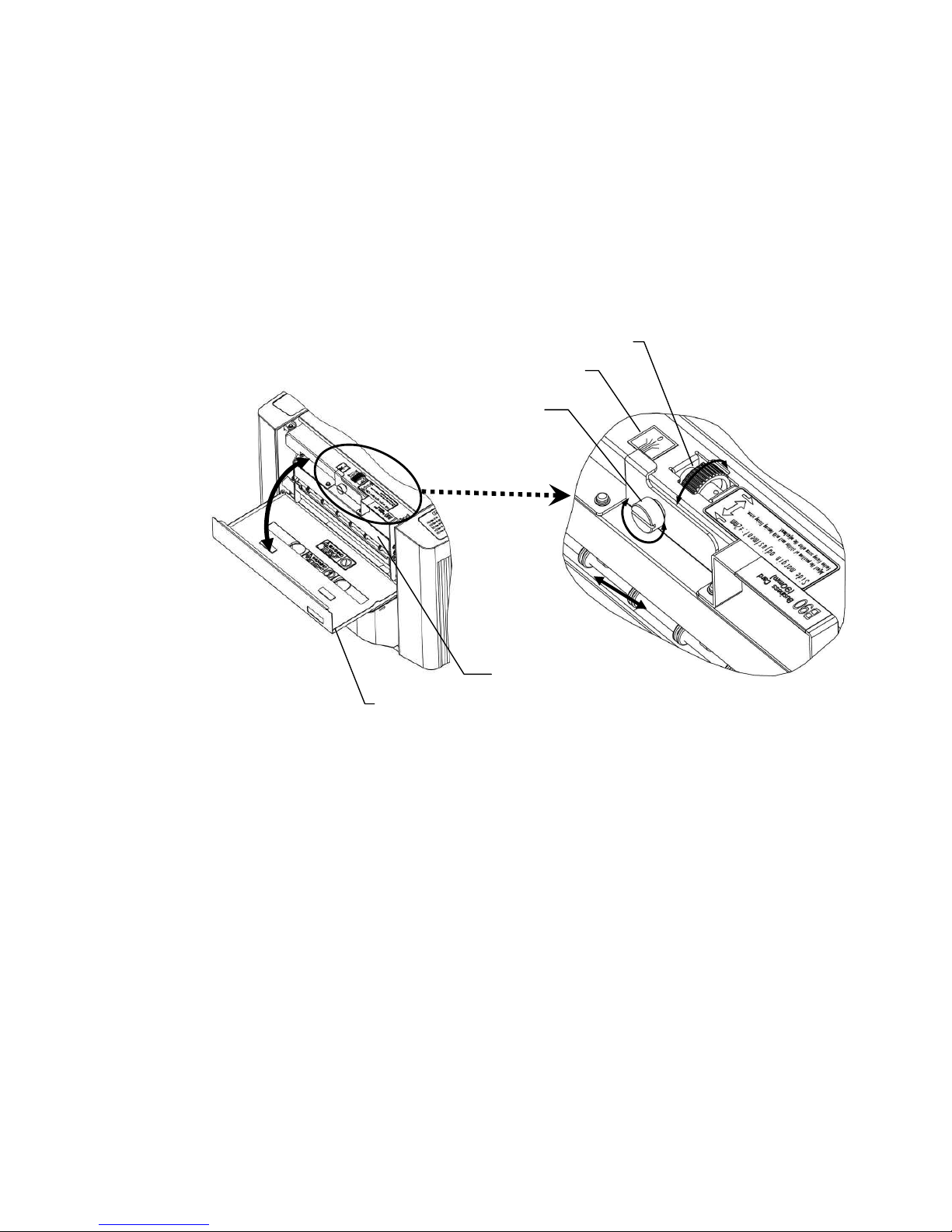

Slitter cartridge adjustment
Slitter cartridge fixing
thumbscrew
Paper feed unit fixing thumbscrew
Paper feed unit fixing plate
