Mazzer GRINDER-DOSER MIN, GRINDER-DOSER MINI, GRINDER-DOSER LUX, GRINDER-DOSER SUPER JOLLY, COFFEE GRINDER SUPER JOLLY User Manual
1
ENGLISH
CONTENTS
1) Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2
2) Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3) General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4) Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5) Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6) Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
7) Installation and wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
8) Operation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
9) Warnings regarding operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10) Safety devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
11) Warnings regarding safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
12) Noise levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
13) Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
14) Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2
1) FOREWORD
Read this manual from cover to cover before using the appliance as it contains
important instructions for the safety, operation and maintenance of the appliance.
Look after this manual and keep it in a safe place.
The manufacturer reserves the right to make changes to the product and to the
manual.

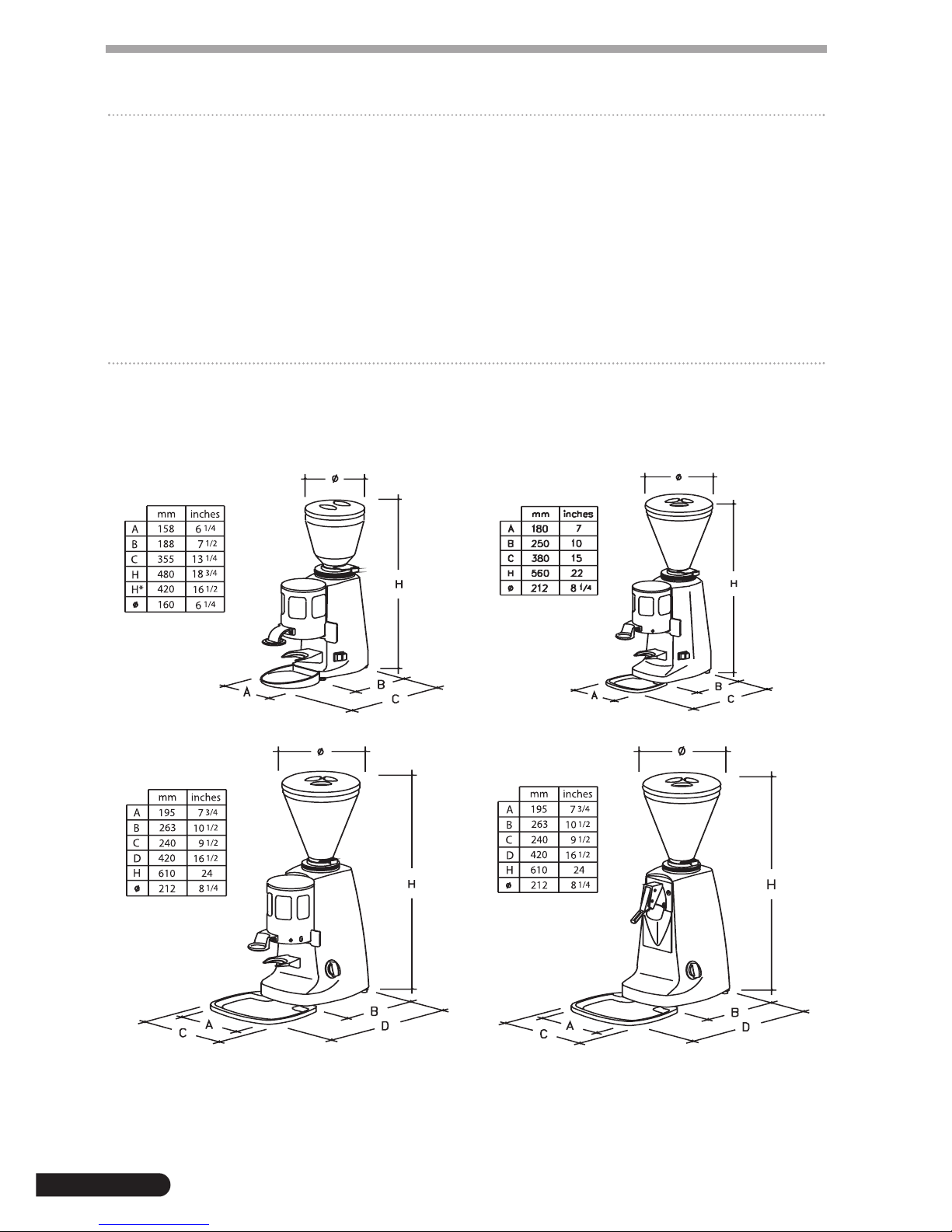

2) DIMENSIONS
GRINDER-DOSER
SUPER JOLLY
COFFEE GRINDER
SUPER JOLLY
GRINDER-DOSER
MINI
GRINDER-DOSER
LUX
*alternative height
with optional hopper
3
ENGLISH

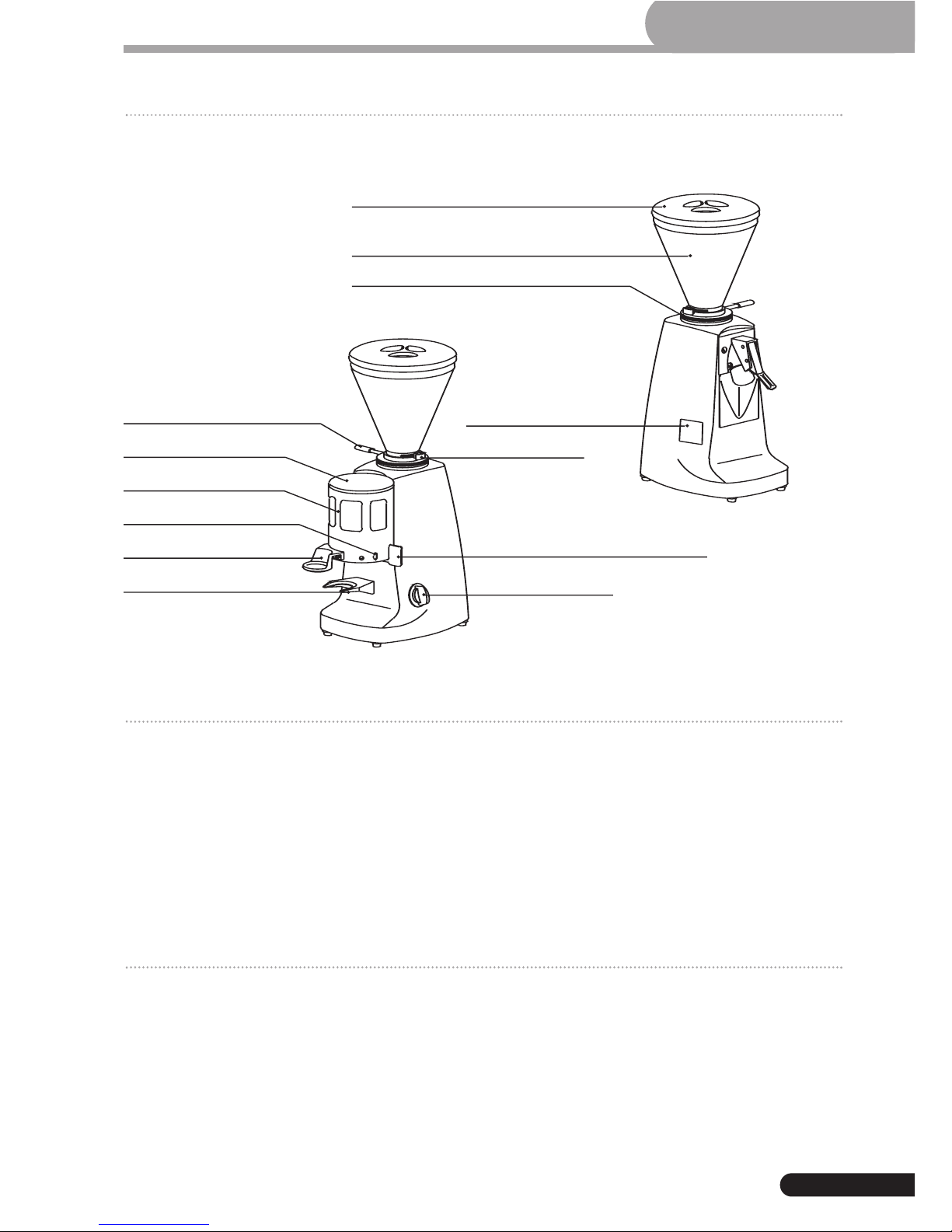

3) GENERAL DESCRIPTION
4) PACKAGING
On opening the packaging, check carefully to make sure the appliance is intact and
that there are no signs of damage. If in any doubt, do not use the unit and contact
personnel with the appropriate professional skills.
The packaging materials must be kept out of the reach of children as they represent a potential source of danger.
Keep the packaging until the warranty has expired.
5) DISPOSAL
Do not litter: dispose of the packaging materials according to the laws in force.
Should you decide not to use the appliance any more, remember to unplug it so
that it cannot be used, and then cut the cable in the point where it comes out of
the appliance.
Contact specialized firms for information on the disposal of the components of the
appliance.
GRINDING ADJUSTMENT DISK HANDLE
HOPPER COVER
HOPPER
(coffee bean container)
COFFEE GRINDING ADJUSTMENT DISK
DOSER COVER
DOSER
COUNTER
COFFEE PRESSING DEVICE
FILTER HOLDER FORK
LOCKING SLIDE
SERIAL NUMBER LABEL
SWITCH
DOSING LEVEL
4
6) USE
This appliance has been designed solely for grinding coffee beans.Any other use is
understood to be improper, and consequently hazardous.The manufacturer cannot
be held responsible for any damage as a result of improper or incorrect use.
Do not use the appliance for grinding other types of food, or anything else.
Do not use the doser (grinder-doser version) to store foods or measure them.
THE COFFEE GRINDERS AND COFFEE GRINDER-DOSERS MANUFACTURED
BY OUR COMPANY ARE INTENDED FOR SKILLED PERSONNEL ONLY FOR
PROFESSIONAL USE AND NOT FOR HOUSEHOLD USE.The user must be an
adult. Do not allow children or incapable persons to use the appliance.
7) INSTALLATION AND WIRING
The appliance must be installed by skilled technical personnel in conformity with
the safety rules in force. Incorrect installation may result in injury of persons or
animals, or damage to property, for which the manufacturer cannot be held
responsible.
•
The appliance must be placed on a stable, flat surface.
•
Before plugging in the appliance, make sure the voltage and frequency values of
the supply mains correspond to the ratings indicated on the label featuring the
appliance’s technical data.
•
The wall socket must be fitted with an efficient earth contact. Consequently, it
is essential to make sure the earth system is efficient and in conformity with
current safety rules. If in any doubt, have the system thoroughly checked by personnel with the appropriate professional skills.
IT IS COMPULSORY TO EARTH THE APPLIANCE.
The manufacturer cannot be held responsible in the event this regulation is not
complied with.
•
It is essential to make sure the ratings of the system are suitable for the power
absorbed by the appliance - as indicated on the label featuring the technical data
- and that the wall socket is protected against overcurrents.
•
Do not use extension cables, plug adapters for multiple sockets or makeshift
connections.
•
In EEC member countries, the regulation in force calls for the external equipotential terminal on the outer part of the appliance’s base plate to be connected
5
ENGLISH
to a equipotential node if the installation is to be correct.
•
The motor must rotate clockwise. If the rotation of three-phase motors is to
be inverted, by inverting the two power supply wires inside the plug, this must
be carried out by skilled personnel.
•

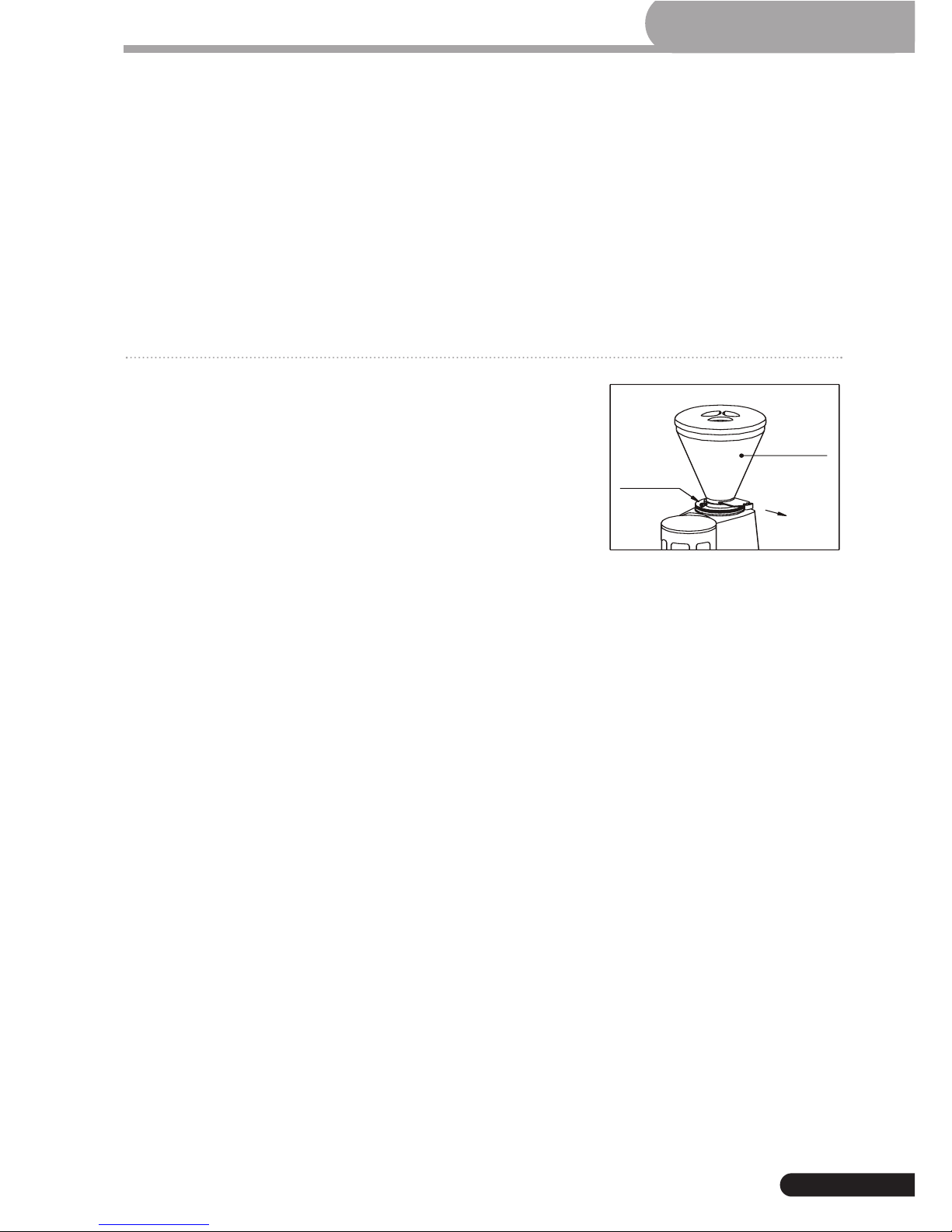

THE HOPPER MUST BE FASTENED TO THE APPLIANCE’S GRINDING
SYSTEM BY MEANS OF THE RELEVANT SCREW which must be inserted in
the threaded hole located on the upper grinding blade holder and in the hole
on the neck of the hopper.
8) OPERATION OF THE APPLIANCE
PRELIMINARIES
Make sure the hopper is positioned correctly on the
appliance and is fastened to the upper grinding blade
holder by means of the relevant screw.
Close the locking slide and fill the hopper with coffee
beans. Open the locking slide so that the beans are
allowed to drop into the grinding system.
SWITCHING THE APPLIANCE ON AND OFF
GRINDER-DOSERS WITH MANUAL SWITCH AND COFFEE GRINDERS
The on-off switch is used to turn the appliance both on and off.
To switch on: set the switch to I.
To switch off: set the switch to O.
GRINDER-DOSERS WITH TIME SWITCH
In order to switch the appliance on, turn the timer knob clockwise.
The appliance switches off automatically. In order to switch it off manually, turn the
knob anticlockwise all the way.
AUTOMATIC GRINDER-DOSERS
In order to power up the appliance, turn the on-off switch knob to I. In order to switch the appliance on manually, the switch knob must be turned all the way (to START).
The appliance starts automatically every 12 portions of coffee (every 6 portions in
the model MINI/LUX and in the versions with shorter doser group). It switches
off automatically when the doser is filled with ground coffee.
In order to switch off the appliance manually, set the on-off switch knob to O.
HOPPER
SAFETY
SCREW
HOPPER
O
P
E
N
6
ADJUSTING GRINDING
In order to achieve finer or coarser grinding, the adjustment disk located under the hopper must be adjusted using the relevant
handle.
In order to increase the coarseness of
the ground coffee, the disk must be
rotated clockwise; to decrease, turn the
disk anticlockwise.
The disk remains in the chosen position
without having to be locked in place.
The adjustment must be performed with the motor on, and preferably without any
coffee between the grinding blades.
Grind small amounts of coffee in order to determine the optimal degree of fineness.
In the grinder-doser version, if the coffee comes out of the espresso coffee machine very quickly, it means the coffee is ground too coarse.Vice versa, if it comes out
too slowly, it means the coffee is ground too fine. Nonetheless, bear in mind that
there are many conditions liable to influence the correct supply, such as the weight of the portions, the compacting, the espresso machine settings, and the cleaning of the filters.
COFFEE DOSE ADJUSTMENT
(grinder-doser version)
In order to adjust the size of the portion dispensed, the small knob located in the
centre of the ground coffee storage container must be turned while holding still
the star shaped dosing unit.
COARSER GRINDING FINER GRINDING
COFFEE DOSE ADJUSTMENT
REDUCE THE DOSE
(turn clockwise)
COLLECTING THE DOSE
INCREASE THE DOSE
(turn anticlockwise)
7
ENGLISH
By turning the small knob clockwise, the portion is reduced. Turning it anticlockwise results in an increase.
In order to collect the portions of ground coffee dispensed, insert the coffee machine’s
filter holder all the way onto the fork-shaped support under the ground coffee outlet.
In
order to release a portion of ground coffee, the doser lever must be pulled all the
way and allowed to return on its own. Pull twice in a row for a double portion.
In manual coffee grinder-dosers and those with time switches, in order to assure the
portions are regular, check every now and again to make sure the amount of coffee
ground to be found in the doser is sufficient to cover the feeding star unit.
To centre the coffee drop into the filter holder, it is possible to carry out a sideways
adjustment of the support fork located under the dispenser, by slightly loosening the
fixing screws and then tightening them again after having moved the fork into the new
position.

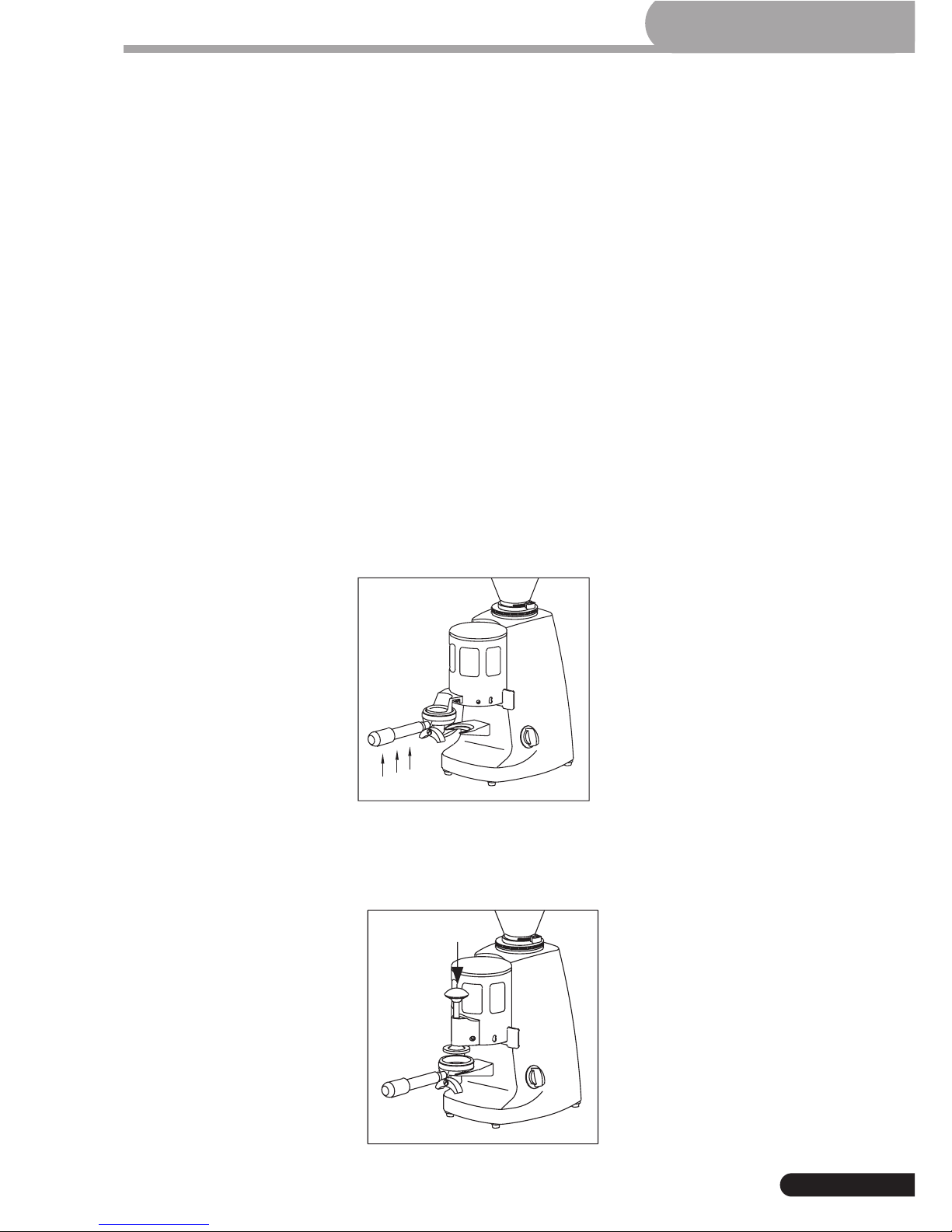

PRESSING (grinder doser version)
STATIC PRESSING DEVICE
Place the filter holder against the underside of the pressing device and push
upwards
SPRING PRESSING DEVICE
Place the compacting disk against the upper face of the filter holder inserted in the
fork-shaped support and press down on the spring pressing device knob
9) WARNINGS REGARDING OPERATION
•
Do not leave the appliances turned ON without coffee in the hopper.
•
In the grinder-doser version, avoid pulling the doserlever partially, always pull it
all the way.
•
In the coffee grinder version it is essential that nothing hinders the flow of
ground coffee from the outlet in any way in order to prevent the risk of the
appliance stopping. Consequently, avoid using coffee bags which are too small
with respect to the amount of coffee to be ground. At the end of each grindingcycle, shake the handle of the pipe for a complete outlet of the coffee.
•
FIRST INSTALLATION
For the correct use of the grinding blades,at the first installation or whenever the
grinding blades have been replaced, grind some doses of coffee. Do not use those
first doses.
•
OPERATING RANGE OF THE MOTOR:
IN THE VERSIONS WITH SINGLE-PHASE MOTORS, OBSERVE THE DUTY
CYCLE STATED IN THE LABEL LOCATED ON THE SIDE OF THE APPLIANCE.
E.g : a data on the label 35s ON / 45s OFF points out an allowed duty cycle of
35 seconds switched on and 45 seconds switched off.
APPLIANCES WITH THREE-PHASE MOTORS ARE ALLOWED FOR CONTINUOUS WORKING.
In order to achieve good grinding, it is nonetheless recommended to operate the
appliance at intervals, allowing it to operate for no more than 10-15 minutes at a time.
10) SAFETY DEVICES
•
THERMAL OVERLOAD PROTECTION
The appliance’s motor is protected against overheating resulting from overcurrents by a thermal overload protection which, when tripped, cuts off the power
supply to the motor. Should the protection trip as a result of anomalous operation, such as the grinding blades jamming, the appliance must be turned off using
the on-off switch, UNPLUGGED FROM THE MAINS, AND SKILLED TECHNICAL PERSONNEL CONTACTED. NEVER PERFORM ANY WORK ON THE
APPLIANCE WHILE IT IS ATTACHED TO THE MAINS, TO AVOID THE RISK
THAT MOTOR TURNS ON SUDDENLY.
If the appliance overheats as a result of the motor stopping, allow the appliance
to cool down before performing any repair work.
8
•

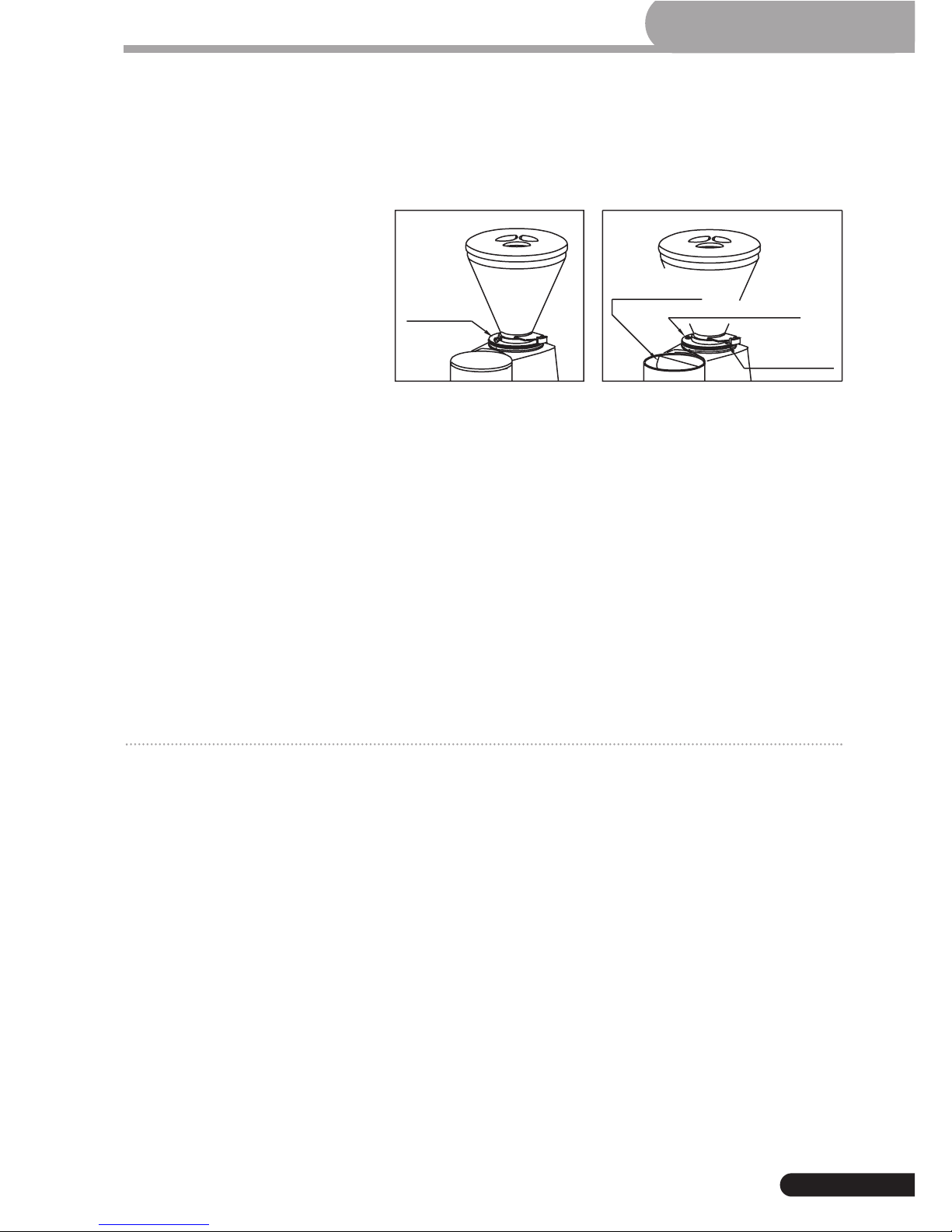

SAFETY SCREWS
•
The hopper must always be attached to the upper grinding blade holder using the relevant screw, which must not be removed by the user
under any circumstances.
•
In order to prevent the
adjustment disk from being
removed - which would
make the rotating parts
accessible - there is a
safety screw on the actual
disk: said screw must be
positioned in whichever of the two holes on the disk enables the wider and most
suitable range of grinding adjustment, and must not be removed by the user
under any circumstances.
•
COFFEE OUTLET GUARD
The coffee outlet guard must always be fixed to the doser using the relevant
screws, wich must never be removed by the user.
The removal of the coffee outlet guard can be done by skilled technical personnel only after disconnecting the appliance from the power supply by unplugging.
Before reconnecting the appliance to the power supply, fix the safety device to
the doser by the relevant screws.
11) WARNINGS REGARDING SAFETY
This electrical appliance must be used in conformity with the rules in force governing safe operation.
•
WHEN OPERATING THE APPLIANCE, BEWARE OF THE MOVING MECHANICAL PARTS’ IN THE AREA OF THE GRINDING BLADES AND OF THE
GROUND COFFEE OUTLET.
BEFORE REMOVING THE HOPPER FROM THE GRINDING SYSTEM,
DISCONNECT THE POWER SUPPLY.
AVOID REMOVING FOREIGN BODIES FROM THE GRINDING SYSTEM OR
HOPPER WITHOUT FIRST UNPLUGGING THE APPLIANCE FROM THE
MAINS.
•
Take care, as the grinding blades may continue rotating for a short while even
after the appliance is switched off.
•
THE USER IS NOT AUTHORIZED TO REMOVE SCREWS OR ANY PARTS
SCREWED ONTO THE APPLIANCE.
HOPPER
SAFETY
SCREW
ALTERNATIVE
TAPPED HOLE
DISK SAFETY SCREW
COFFEE OUTLET
GUARD
9
ENGLISH
•
In the event the appliance is not working properly or is faulty, contact skilled
technical personnel, and do not attempt to make repairs yourself.
•
BEFORE PERFORMING ANY WORK ON THE APPLIANCE, INCLUDING
CLEANING AND/OR MAINTENANCE, DISCONNECT IT FROM THE
POWER SUPPLY BY UNPLUGGING.TURNING OFF THE APPLIANCE USING
ITS MASTER SWITCH DOES NOT ASSURE THE SAME CONDITIONS OF
SAFETY.
•
When the appliance is left unattended, the appliance’s power supply must be
disconnected using its master switch (for example, at night, during work breaks,
midweek closing or holidays).
•
Do not let liquids of any kind come into contact with the internal or external
parts of the appliance.
•
Never put ground coffee in the hopper intended only for coffee beans.
•
Do not tamper with the appliance.
•
DO NOT TUG ON THE SUPPLY CABLE TO UNPLUG THE APPLIANCE
FROM THE MAINS.
•
Do not touch the appliance with damp or wet hands or feet.
•
Do not use the appliance barefoot.
The manufacturer cannot be held responsible for bodily injury or damage to property if these regulations are not complied with.
12) NOISE LEVEL
EEC Countries:
The maximal noise emission of our coffee-grinders or grinder-dosers (valued as
acoustic power) is 81 dB(A), measured in ISO 3741 reverberating chamber,
according to EN 60704-1:1998 and EN 60704-3:1996.
The daily personal noise exposure of a worker, due only to an appliance’s limit
operation of 240 min. per eight hours, is 78 dB(A), according to ED 86/188/EEC
and ED 2003/10/EEC.Therefore during he appliance’s normal operation, no provisions are to be taken in order to prevent such risks arising or likely to arise
from noise exposure at work (articles 3-8 of ED 2003/10/EEC).
USA & CANADA:
The noise level of our appliances is included within the limits stated in U.S. regulation 29 CFR 1910.95 (‘Occupatinal Health and Environment Control Occupational noise exposure’) for eight hours continuosly in a day.
Said noise level has been determined on identical news appliances
10
13) MAINTENANCE
It is essential to check the state of the supply cable and plug periodically.
IN THE EVENT THE SUPPLY CABLE OR PLUG ARE DAMAGED, CALL IN SKILLED TECHNICAL PERSONNEL TO REPLACE THEM, THIS TO PREVENT ANY
RISK.
IN CE-CERTIFIED APPLIANCES,A SPECIAL TOOL IS REQUIRED TO OPEN THE
BASE PLATE TO GET AT THE CABLE.
It is recommended to use original spare parts only.
In order to assure the lasting efficiency of the appliance, skilled technical personnel must be called in to perform periodical maintenance, including detailed checks
of the state of those components subject to wear.
The state of the grinding blades must be checked periodically. Keeping the grinding
blades in an excellent state assures high-quality grinding, resulting in greater productivity and limited overheating.
When using coffee blends of average hardness, it is advisable to replace the grinding blades approximately every:
400 kg for the Super Jolly model
300 kg for the Mini model
350 kg fot the Lux model.
14) CLEANING THE APPLIANCE
DISCONNECT THE APPLIANCE’S POWER SUPPLY BY UNPLUGGING IT
BEFORE CLEANING.
THE APPLIANCE MUST NOT BE CLEANED USING WATER JETS.
Do not install the appliance in rooms where water jets are used for cleaning.
THE APPLIANCE MUST BE CLEANED PERIODICALLY BY SKILLED TECHNICAL PERSONNEL ONLY.
Use perfectly clean, disinfected cloths or brushes for cleaning.
Do not use abrasive products as these are liable to take the sheen off shiny parts.
Hopper
Wash the hopper once it has been removed from the appliance (unscrewing the
relevant fastening screw), using neutral soap and water, rinse abundantly with
lukewarm water and dry thoroughly.
It is advisable to clean the hopper periodically.
Once the hopper has been cleaned, it must be attached to the upper grinding blade
holder using the relevant screw.
11
ENGLISH
Grinding system
Remove the safety screw which prevents the adjustment disk from being removed.
Unscrew the adjustment disk by turning it clockwise. Having removed the upper
grinding blade holder, clean the grinding blades, threads and the entire grinding
system thoroughly using a clean brush and cloth.
Having refitted the upper grinding blade holder in the relevant slot,screw the adjustment disk back on, put the self-locking screw back in whichever of the two holes
on the disk enables the best adjustment and, having refitted the hopper and secured, adjust the grinding as required.
Doser (Coffee grinder-version)
Having discharged the ground coffee, clean the doser’s star unit with a clean brush,
expelling the material removed by pulling the doser lever.
Use a dry cloth to thoroughly clean the outlet of the ground coffee on the bottom of the doser.
When a more thorough cleaning is required, the operation must be performed
only by skilled technical personell, after disconnecting the appliance from
the power supply, according to the following instructions:
1. Remove the coffee outlet guard unscrewing the relevant screws;
2. Unscrew the hexagonal-head screw that fix the coffee dose adjustment knob;
3. Unscew (anticlockwise) the coffee dose adjustment knob holding the doser’s
stars unit (female dosing star and the upper dosing star) pushed down;
4. Remove the doser’s stars unit;
5. Remove the central spring;
6. Clean thoroughly the bottom of the doser, especially the sharp edges on sight
and the outlet of the ground coffee.
In order to reassemble the doser, follow the previous instructions in inverted
order; pay attention that the feather of the coffee-outlet covering section plate is
correctly set in the proper slide on the side of the basin.
Spout (Coffee grinder with bag holder)
Wipe clean the spout from which ground coffee is released using a dry cloth.
All right reserved. It is prohibited to reproduce, adapt or translate this document
without prior written authorization.
First Editon: 2001
Last revised: SJ07 07/2009
12
Loading...
