A Word to Mazda Owners

Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete customer satisfaction in mind.

To help ensure enjoyable and trouble-free operation of your Mazda, read this manual carefully and follow its recommendations.

An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is necessary, that's the place to go.

Our nationwide network of Mazda professionals is dedicated to providing you with the best possible service.

We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure and in your full satisfaction with your Mazda product.

Mazda Motor Corporation

HIROSHIMA, JAPAN

Important Notes About This Manual

Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.

All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.

Event Data Recorder

This vehicle is equipped with an event data recorder. In the event of a crash, this device records data related to vehicle dynamics and safety systems for a short period of time. These data can help provide a better understanding of the circumstances in which crashes and injuries occur and lead to the designing of safer vehicles.

Air Conditioning and the Environment

Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda Dealer.

Perchlorate

Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries, ...] may contain Perchlorate Material– Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Please be aware that this manual applies to all models, equipment and options. As a result, you may find some explanations for equipment not installed on your vehicle.

Printed in Japan July 2009(Print2)

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page4 Friday, June 5 2009 2:23 PM

How to Use This Manual

Black plate (4,1)

We want to help you get the most driving pleasure from your vehicle. Your owner's manual, when read from cover to cover, can do that in many ways.

Illustrations complement the words of the manual to best explain how to enjoy your Mazda. By reading your manual, you can find out about the features, important safety information, and driving under various road conditions.

The symbol below in this manual means “Do not do this” or “Do not let this happen”.

Index: A good place to start is the Index, an alphabetical listing of all information in your manual.

NOTE

A NOTE provides information and sometimes suggests how to make better use of your vehicle.

The symbol below, located on some parts of the vehicle, indicates that this manual contains information related to the part. Please refer to the manual for a detailed explanation.

You'll find several WARNINGs, CAUTIONs, and NOTEs in the manual.

WARNING

A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.

CAUTION

A CAUTION indicates a situation in which bodily injury or damage to your vehicle, or both, could result if the caution is ignored.

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page5 Friday, June 5 2009 2:23 PM

Black plate (5,1)

Your Vehicle at a Glance

Interior, exterior views and part identification of your Mazda.

Essential Safety Equipment

Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Knowing Your Mazda

Explanation of basic operations and controls; opening/closing and adjustment of various parts.

Before Driving Your Mazda

Important information about driving your Mazda.

Driving Your Mazda

Explanation of instruments and controls.

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio system.

In Case of an Emergency

Helpful information on what to do in an emergency.

Maintenance and Care

How to keep your Mazda in top condition.

Customer Information and Reporting Safety Defects

Important consumer information including warranties and add-on equipment.

Specifications

Technical information about your Mazda.

Index

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page6 Friday, June 5 2009 2:23 PM

Black plate (6,1)

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page7 Friday, June 5 2009 2:23 PM

Black plate (7,1)

Your Vehicle at a Glance

Interior, exterior views and part identification of your Mazda.

Interior Overview .......................................................................... 1-2

Interior Equipment (View A) .................................................... 1-2

Interior Equipment (View B) .................................................... 1-3

Interior Equipment (View C) .................................................... 1-4

Exterior Overview ......................................................................... 1-5

Front .......................................................................................... 1-5

Rear ........................................................................................... 1-6

Form No.8AS7-EA-09E

1-1

CX-7_8AS7-EA-09E_Edition2 Page8 Friday, June 5 2009 2:23 PM

Your Vehicle at a Glance

Interior Overview

Interior Equipment (View A)

Black plate (8,1)

Power window lock switch ................................................................................ page 3-43

Power window switches .................................................................................... page 3-39

Door-lock knob .................................................................................................. page 3-32

Power door lock switch ..................................................................................... page 3-32

Outside mirror switch ........................................................................................ page 3-63

Headlight leveling switch .................................................................................. page 5-64

TCS-OFF switch ................................................................................................ page 5-23

BSM OFF switch ............................................................................................... page 5-36

Lighting control/Turn signals ............................................................................ page 5-60

Dashboard illumination knob ............................................................................ page 5-41

Instrument cluster .............................................................................................. page 5-38

Wiper and washer lever ..................................................................................... page 5-65

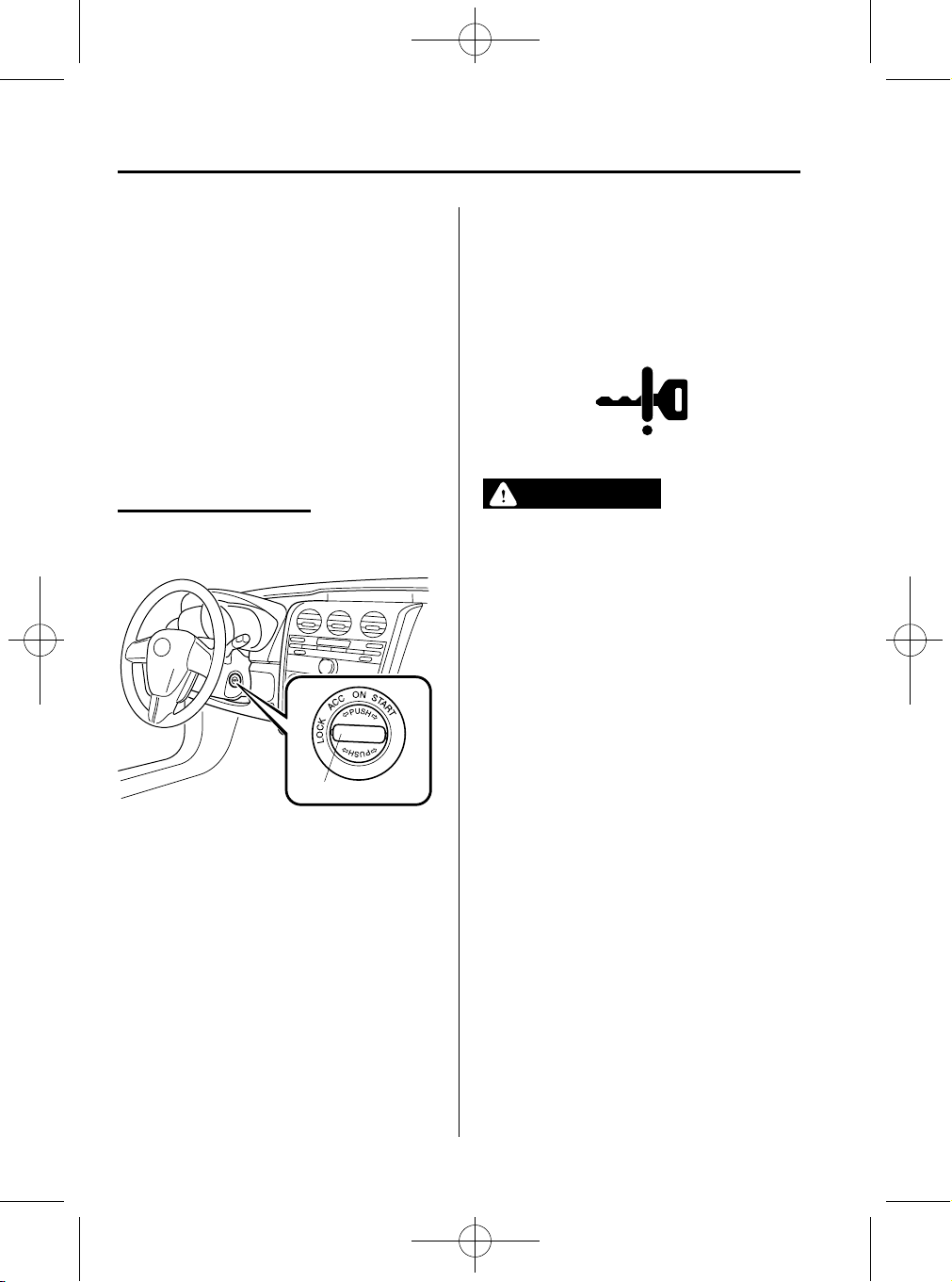

Ignition switch ..................................................................................................... page 5-2

Lock release lever .............................................................................................. page 3-63

Parking brake ....................................................................................................... page 5-6

Hood release handle .......................................................................................... page 3-48

1-2

The equipment and installation position varies by vehicle

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page9 Friday, June 5 2009 2:23 PM

Black plate (9,1)

Your Vehicle at a Glance

Interior Overview

Interior Equipment (View B)

Audio control switch ......................................................................................... page 6-56

Air bags ............................................................................................................. page 2-44

Multi information display ................................................................................ page 6-102

Multi information display (MID) with compact navigation system (if

equipped) .............................................................................. Refer to the separate manual

Climate control system ........................................... ............................................. page 6-2

Hazard warning flasher switch .......................................................................... page 5-71

Information display .......................................................................................... page 6-100

Audio system ..................................................................................................... page 6-15

Glove box .............................................................. .......................................... page 6-120

Rear window defroster switch ........................................................................... page 5-70

Accessory socket ............................................................................................. page 6-122

Seat warmer switches ........................................................................................ page 2-14

AT shift lever (Sport AT) ................................................................................... page 5-10

Cruise control switches ...................................................................................... page 5-19

7-inch navigation system (if equipped) ................................ Refer to the separate manual

1-3The equipment and installation position varies by vehicle

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page10 Friday, June 5 2009 2:23 PM

Your Vehicle at a Glance

Interior Overview

Interior Equipment (View C)

Black plate (10,1)

Luggage compartment light ....................................................... ........................ page 6-99

Seat belt ............................................................................................................. page 2-16

Air bags ............................................................................................................. page 2-44

Overhead light ................................................................................................... page 6-98

Center console ................................................................................................. page 6-121

Bottle holder .................................................................................................... page 6-120

Remote fuel-filler lid release ............................................................................. page 3-47

Vanity mirror ...................................................................................................... page 6-97

Moonroof switch ............................................................................................... page 3-49

Rearview mirror .............................. ................................................................... page 3-64

Sunvisor ............................................................................................................. page 6-97

Front seats ............................................................................................................ page 2-2

Cup holder ....................................................................................................... page 6-119

Accessory socket ............................................................................................. page 6-122

Rear seat .............................................................................................................. page 2-9

Luggage compartment cover ............................................................................. page 3-37

1-4

The equipment and installation position varies by vehicle

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page11 Friday, June 5 2009 2:23 PM

Black plate (11,1)

Your Vehicle at a Glance

Exterior Overview

Front

Hood .................................................................................................................. page 3-48

Windshield wiper blades .................................................................................... page 8-30

Moonroof ........................................................................................................... page 3-49

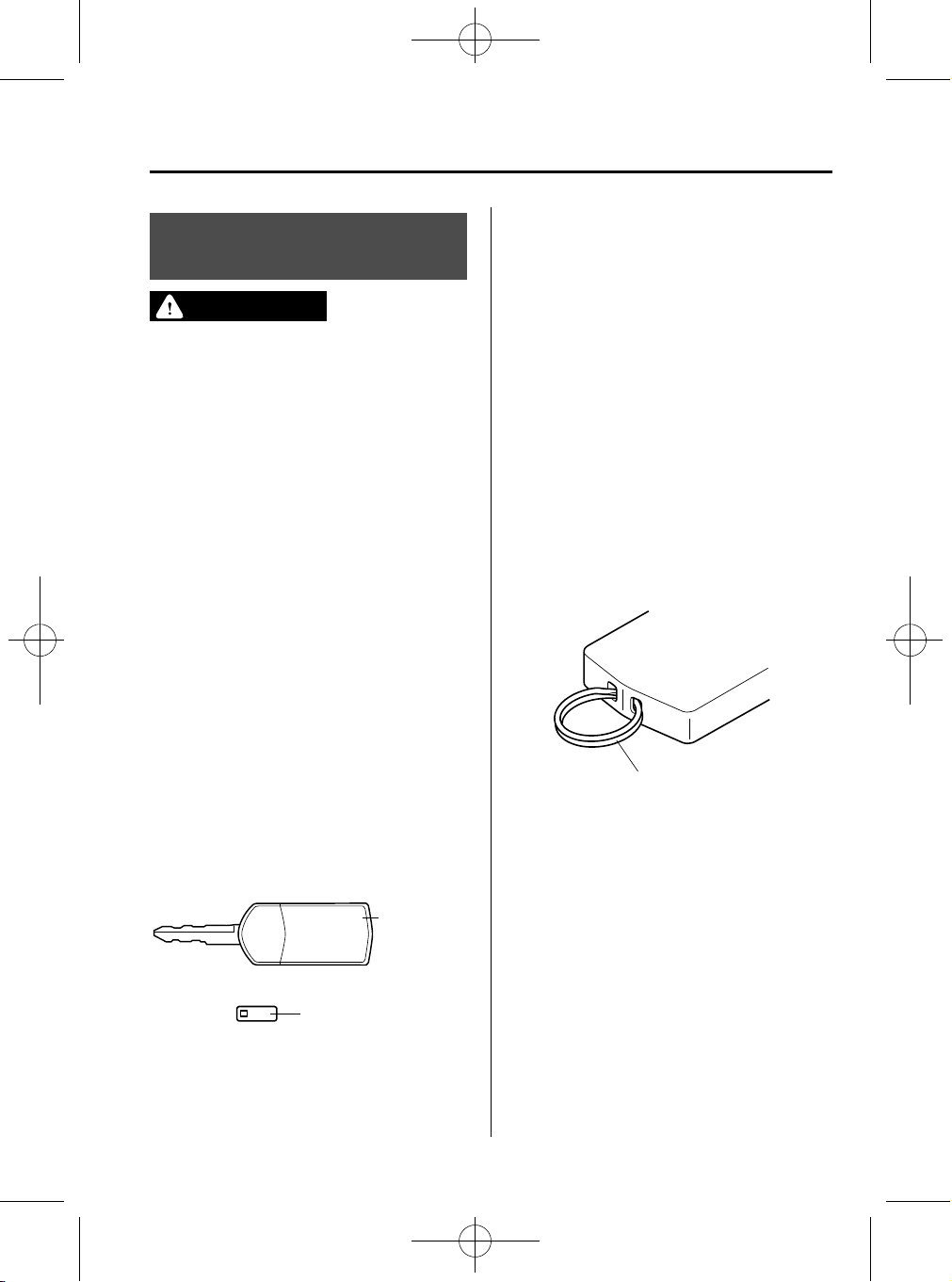

Doors and keys .................................................................................................. page 3-31

Fuel-filler lid ...................................................................................................... page 3-46

Tires ................................................................................................................... page 8-36

Light bulbs ......................................................................................................... page 8-41

1-5The equipment and installation position varies by vehicle

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page12 Friday, June 5 2009 2:23 PM

Your Vehicle at a Glance

Exterior Overview

Black plate (12,1)

Rear

Rear wiper blade ................................................................................................ page 8-32

Liftgate .............................................................................................................. page 3-36

Light bulbs ......................................................................................................... page 8-41

Antenna ............................................................................................................. page 6-14

Child safety locks .............................................................................................. page 3-35

Outside mirror .................................................................................................... page 3-63

Tires ................................................................................................................... page 8-36

Rear view parking camera (Without 7-inch navigation system) ...................... page 6-113

Rear view parking camera (With 7-inch navigation system) (if

equipped) .............................................................................. Refer to the separate manual

1-6

The equipment and installation position varies by vehicle

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page13 Friday, June 5 2009 2:23 PM

Black plate (13,1)

Essential Safety Equipment

Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Seats ............................................................................................... 2-2

Front Seats (Manually Operated Seats) ..................................... 2-2

Front Seats (Electrically Operated Seats) .................................. 2-4

Rear Seat ................................................................................... 2-9

Head Restraints ........................................................ ............... 2-13

Seat Warmer

Seat Belt Systems ........................................................................ 2-16

Seat Belt Precautions .............................................................. 2-16

Seat Belt (Except Center-Rear Position) ................................. 2-20

Front Seat Belt Pretensione r and Load Limiting Systems ....... 2-22

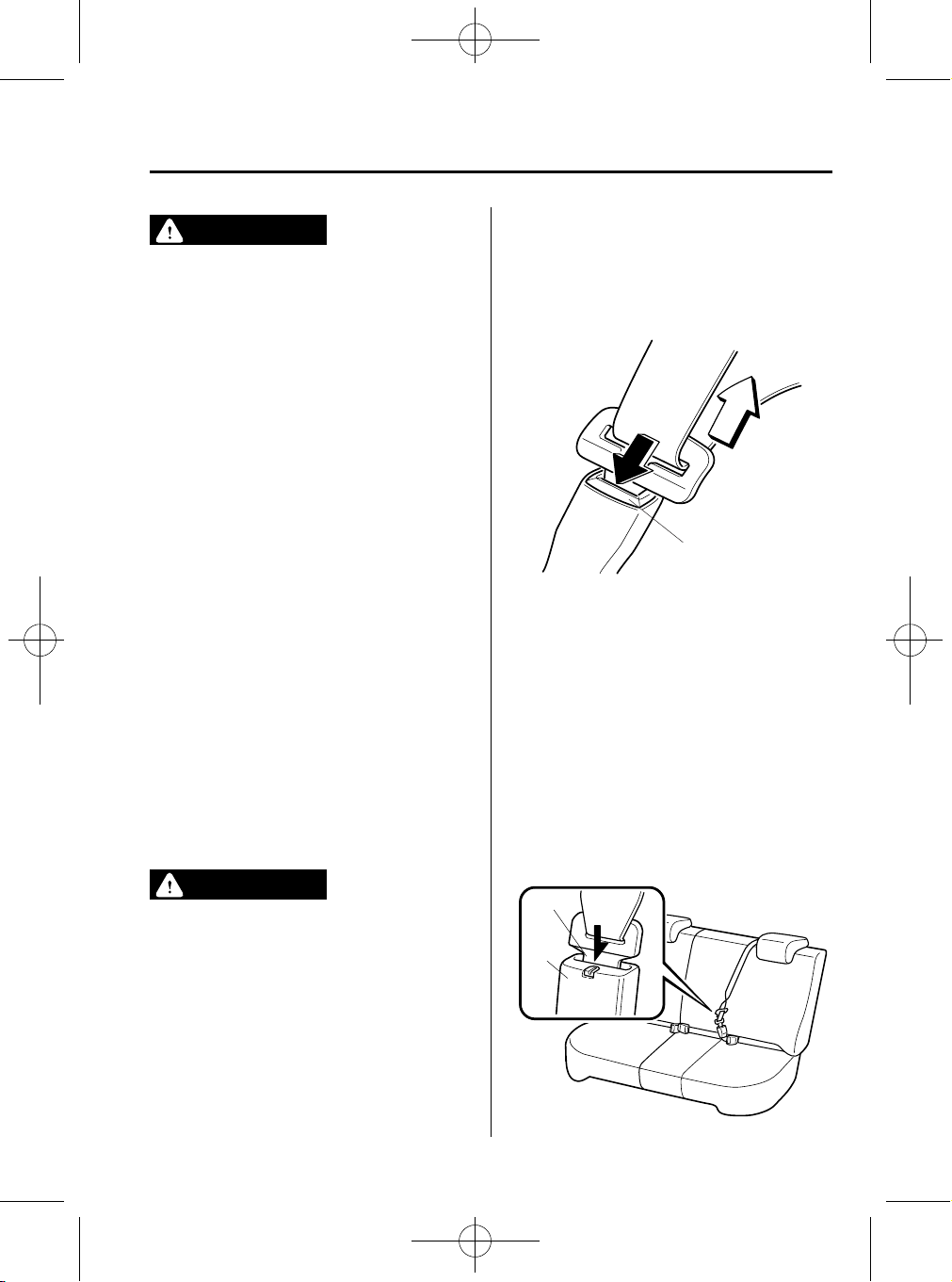

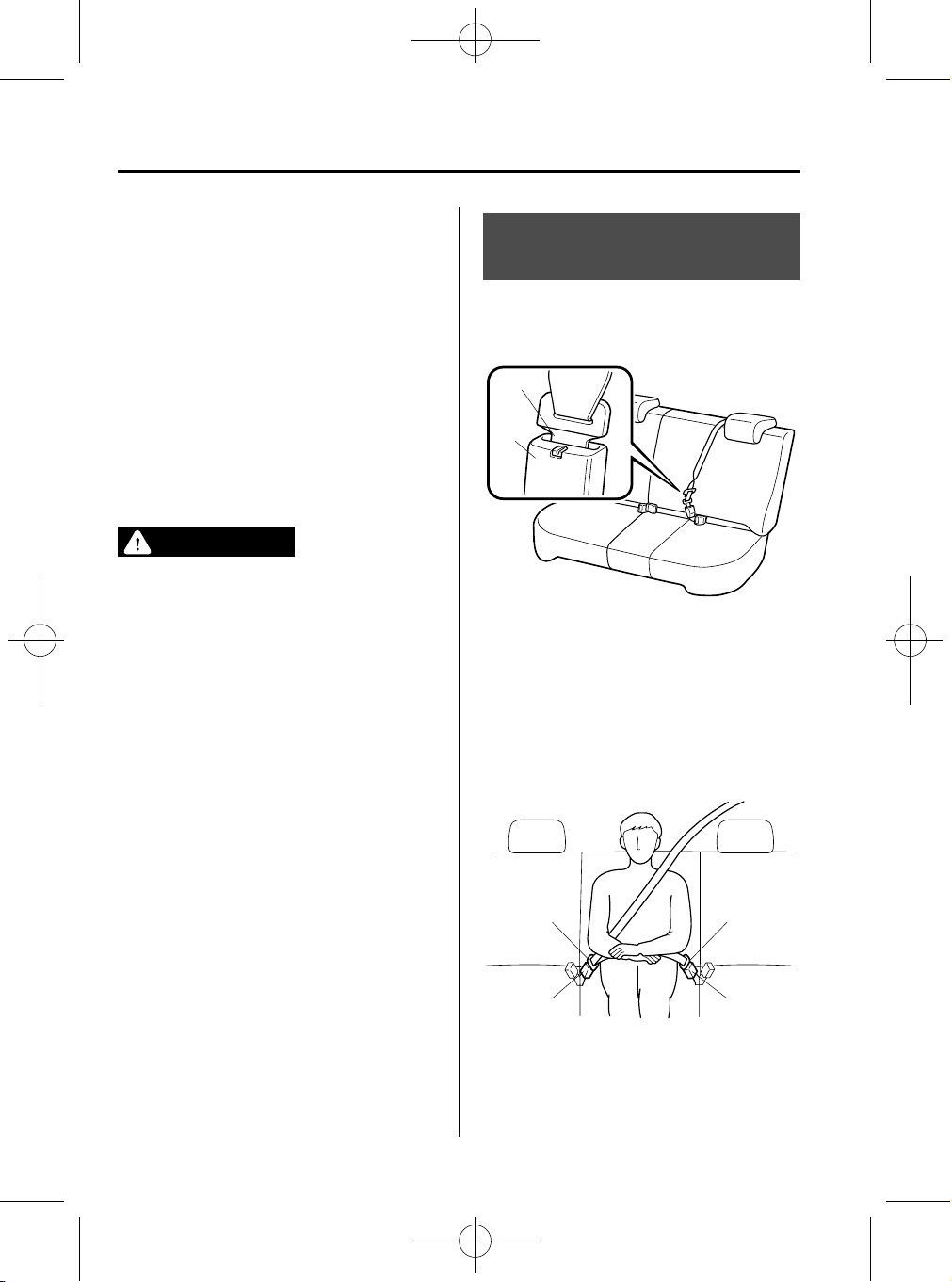

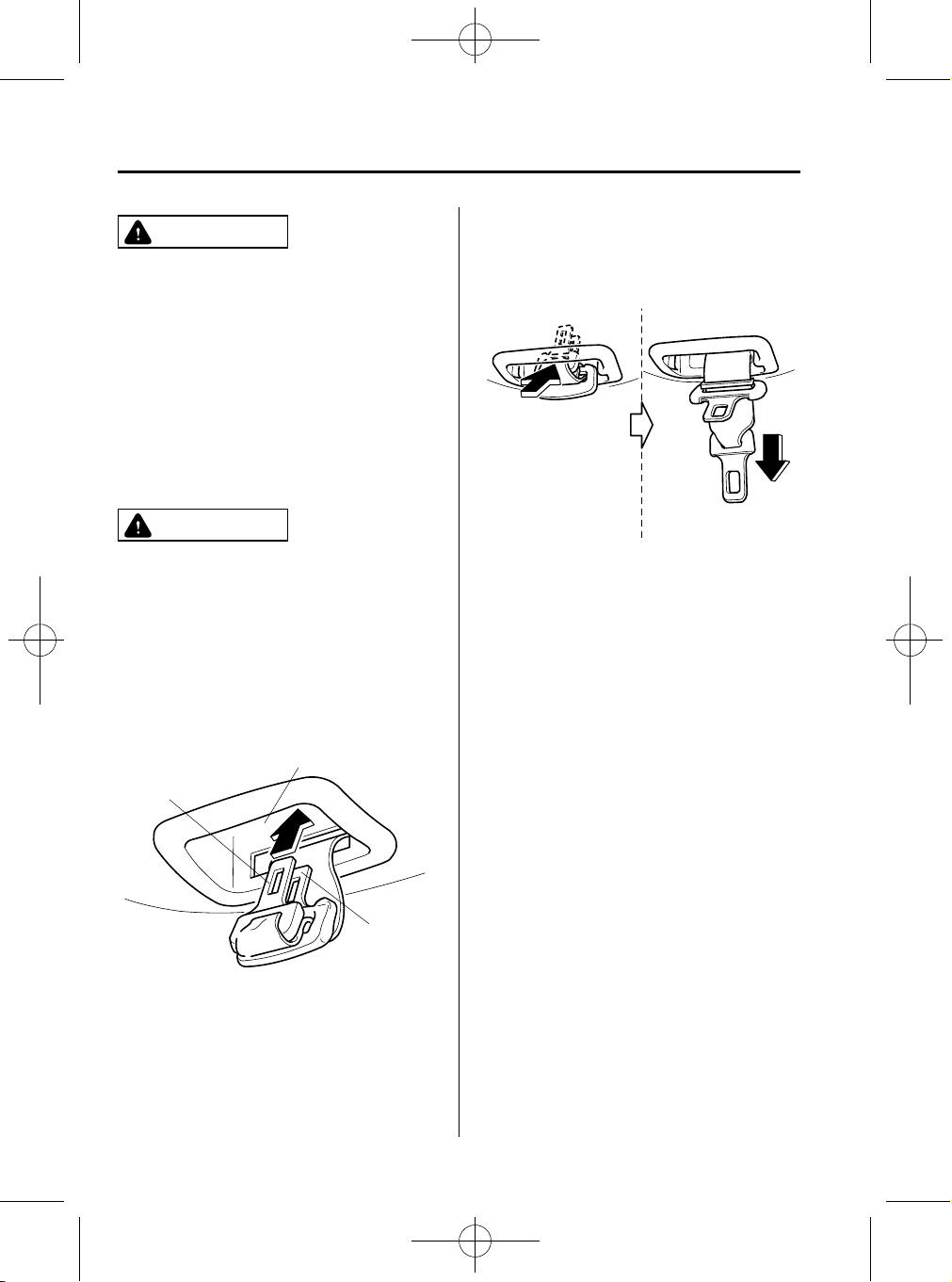

Center-Rear Position Seat Belt ................................................ 2-24

Seat Belt Extender ................................................................... 2-27

Seat Belt Warning Light/Beep ................................................ 2-28

Child Restraint ............................................................................ 2-30

Child Restraint Precautions ..................................................... 2-30

Installing Child-Restraint Systems .......................................... 2-34

LATCH Child-Restraint Systems ............................................ 2-40

......................................................................... 2-14

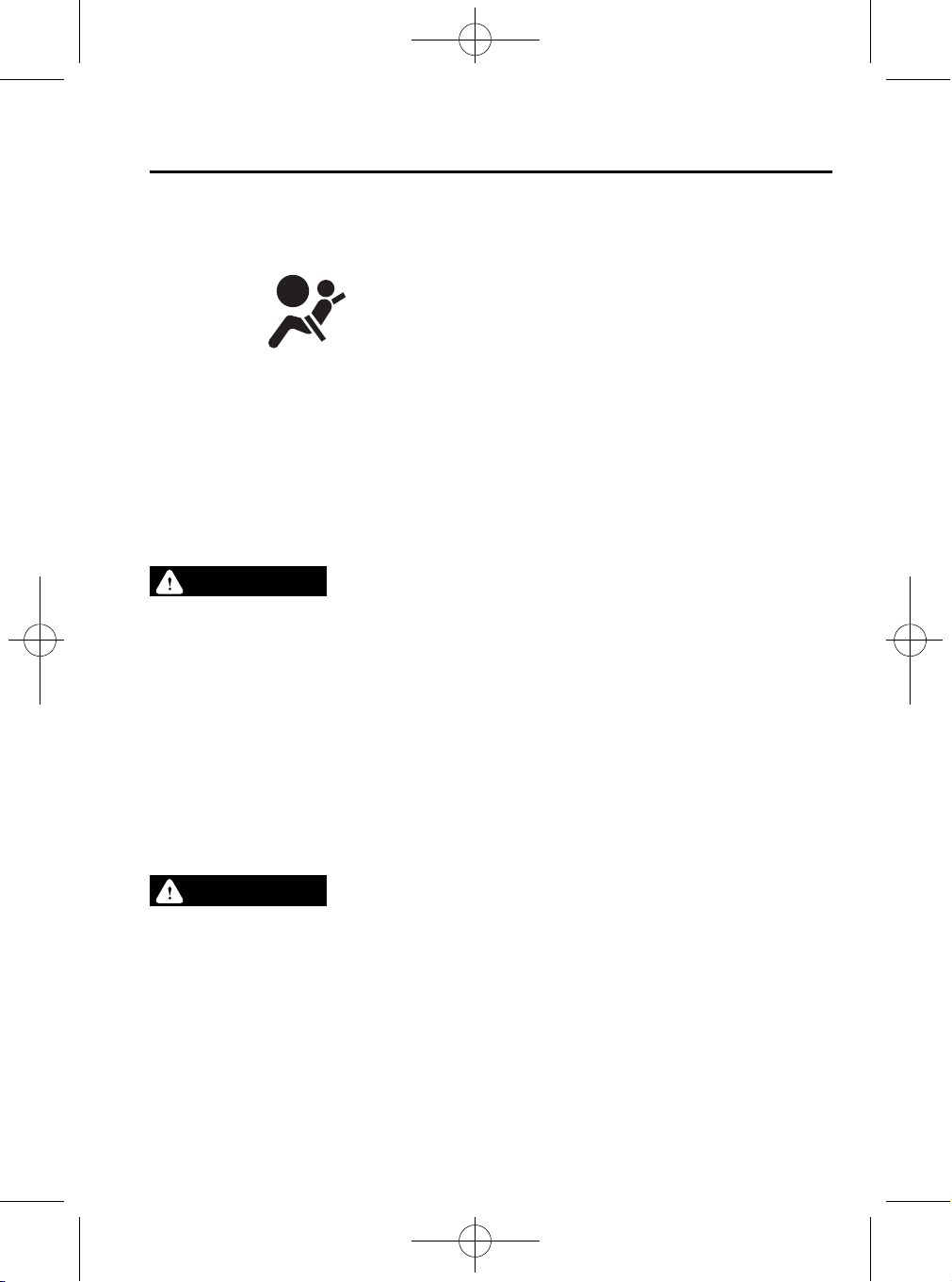

SRS Air Bags ............................................................................... 2-44

Supplemental Restraint System (SRS) Precautions ................ 2-44

Supplemental Restraint System Components ......................... 2-49

How the SRS Air Bags Work .................................................. 2-50

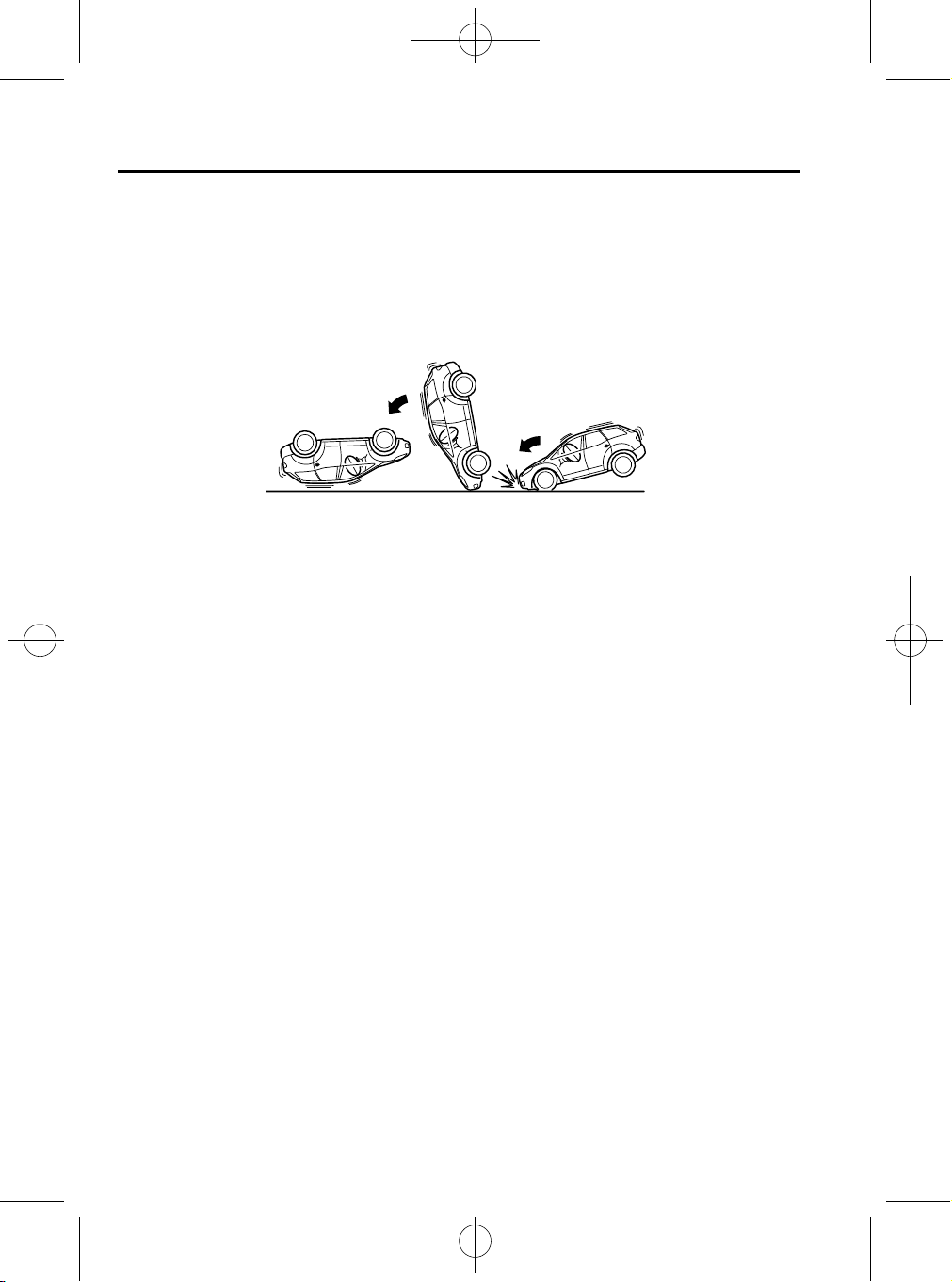

SRS Air Bag Deployment Criteria .......................................... 2-54

Limitations to SRS Air Bag .................................................... 2-55

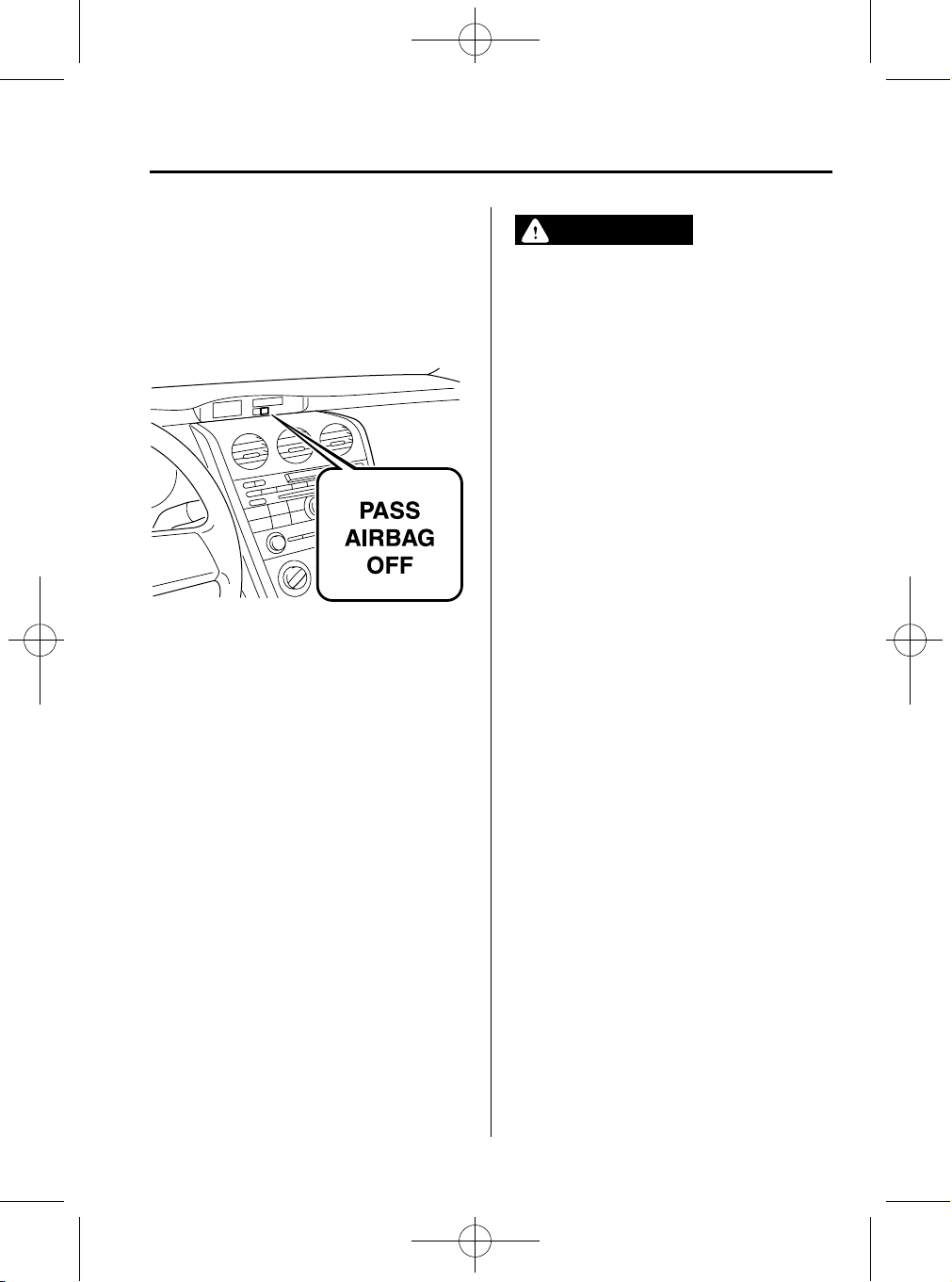

Driver and Front Passenger Occupant Classification

System ..................................................................................... 2-57

Monitoring and Maintenance .................................................. 2-62

Form No.8AS7-EA-09E

Some models.

2-1

CX-7_8AS7-EA-09E_Edition2 Page14 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (14,1)

Front Seats (Manually Operated Seats)

WARNING

Do not modify or replace the front seats:

Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts is dangerous. The front seats contain air bag components essential to the supplemental restraint system. Such modifications could damage the supplemental restraint system and result in serious injur y. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats.

Do not drive with damaged front seats:

Driving with damaged front seats is dangerous. A collision, even on e not strong enough to inflate the air bags, could damage the front seats which contain essential air bag components. If there was a subsequent collision, an air bag may not deploy which could lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags after a collision.

Make sure the adjustable components of a seat are locked in place:

Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury. Make su re the adjustable components of the seat are locked in place by attempting to slide the seat forward and backward and rocking the seatback.

qSeat Slide

WARNING

Adjust the drive r's seat only when the vehicle is stopped:

Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose control of the vehicle and have an accident.

To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever.

2-2

Form No.8AS7-EA-09E

Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

CX-7_8AS7-EA-09E_Edition2 Page15 Friday, June 5 2009 2:23 PM

Black plate (15,1)

Essential Safety Equipment

Seats

qSeat Recline

WARNING

Do not drive with either front seat reclined:

Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from seat belts. Du ring sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries. For maximum protection, sit well back and upright.

Always sit in the passenger seat properly with the seatback upright and feet on the floor:

Your front passenger seat has weight sensors, sitting in the front passenger seat improperly out of position or with the seatback reclined too far while the vehicle is moving is dangerous as it can take off weight from the seat bottom and affect the weight determination of the front passenger sensing system. As a result the front passenger will not have the supplementary protection of the air bag and seat belt pretensioner, which could result in serious injury. Always sit upright against the seatback with your feet on the floor.

Do not drive with the seatback unlocked:

All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After adjusting the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.

To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever.

Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

Form No.8AS7-EA-09E

2-3

CX-7_8AS7-EA-09E_Edition2 Page16 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (16,1)

CAUTION

When returning a rear-reclined seatback to its uprigh t position, make sure you hold onto the seatback with your other hand while operating the lever. If the seatback is not supported, it will flip forward suddenly and could cause injury.

Height Adjustment (Driver's Seat)

To adjust the seat height, move the lever up or down.

Down

Front Seats (Electrically Operated Seats)

WARNING

Do not modify or replace the front seats:

Do not drive with damaged front seats:

2-4

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page17 Friday, June 5 2009 2:23 PM

Black plate (17,1)

Essential Safety Equipment

Seats

CAUTION

Ø The seat-bottom power

adjustment is operated by moto rs. Avoid extended operation because excessive use can damage the motors.

Ø To prevent the battery from

running down, avoid using the power adjustment when the engine is stopped. The adjuster uses a large amount of electrical power.

Ø Do not use the switch to make

more than on e adjustment at a time.

qSeat Slide

To slide the seat, move the slide lifter switch on the outside of the seat to the front or back and hold it. Release the switch at the desired position.

qSeat Recline

WARNING

Do not drive with either front seat reclined:

Always sit in the front passenger seat properly with the seatback upright and feet on the floor:

Form No.8AS7-EA-09E

2-5

CX-7_8AS7-EA-09E_Edition2 Page18 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (18,1)

To change the seatback angle, press the front or rear side of the reclining switch. Release the switch at the desired position.

Height Adjustment (Driver's Seat)

To adjust the seat height, move the switch up or down.

qSeat Position Memory

One-touch seat position programming and activation is available on the driver's seat.

CAUTION

When activating the seat position, do not place your hands or fingers around the seat bottom. The seat moves to the desired position automatically, and if your hands or fingers are placed around the seat bottom, it could cause injury.

Set button

Programming of the driver's seat positions is possible using the following functions:

Programming buttons 1, 2, or 3 and the set button.

Operation using the advanced key/

retractable type key Programmed seat positions can be activated using the following functions:

Programming buttons 1, 2, or 3.

Operation using advanced keyless

functions/keyless entry system

NOTE

Individual seat positions can be programmed to the three available programming buttons on the side of the driver's seat, plus one seat position for each advanced key/retractable type key used with the vehicle.

2-6

Some models.

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page19 Friday, June 5 2009 2:23 PM

Black plate (19,1)

Essential Safety Equipment

Seats

Operation using the seat-side buttons

Programming

Park the vehicle in a safe location before performing the seat position programming. (Vehicle must be stopped)

1. Adjust the seat to the desired position. For each seat position adjustment method refer to the following pages: Seat Slide (page 2-5) Seat Recline (page 2-5) Height Adjustment (page 2-6)

2. Press the desired programming button 1, 2, or 3 while pressing the set button until a beep sound is heard. The button is programmed after a beep sound is heard. Other buttons can be programmed using the same procedure.

NOTE

Vehicle maintenance or other reasons requiring the vehicle battery to be disconnected will result in the seat position memory being erased. In this case, re-program the seat positions.

Setting the driver's seat to a preprogrammed position

There are two methods for setting the driver's seat to a pre-programmed position. For example, the type A method can be used before sitting in the seat and while the driver's door is open, and the type B method can be used after getting in the vehicle with the driver's door closed.

NOTE

In the following cases, the seat position set function cancels:

Any of the seat adjustment switches are operated.

The set button is pressed.

A programming button 1, 2, or 3 is pressed.

The vehicle starts moving.

Vehicle locking/unlocking is done using the transmitter.

Vehicle locking/unlocking is done by pressing the request switch on a front door while the advanced key is being carried.

TYPE B

When the ignition switch the ON position or the driver's door is closed, press and hold the desired programming button 1, 2, or 3.

NOTE

In the following cases, the seat position set function cancels:

Any of the seat adjustment switches are operated.

The set button is pressed.

The vehicle starts moving.

Operation using the advanced key/ retractable type key

With advanced key

Lock button

Unlock button

TYPE A

When the ignition switch in the LOCK position and the driver's door is open, press the programming button 1, 2, or 3 for the desired seating position.

Form No.8AS7-EA-09E

2-7

CX-7_8AS7-EA-09E_Edition2 Page20 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (20,1)

With retractable type key

Lock button

Unlock button

Programming

One seat position can be programmed into each advanced key/retractable type key. After the following condit ions have been met, operate the seat and the advanced key/retractable type key to program the seat positions.

The ignition switch in the LOCK position (The auxiliary key/retractable type key is removed from the ignition switch)

The driver's door is open

1. Adjust the seat to the desired position. For each seat position adjustment method, refer to the following pages: Seat Slide (page 2-5) Seat Recline (page 2-5) Height Adjustment (page 2-6)

2. Press and hold the unlock button on the advanced key/retractable type key while pressing the set button until a beep sound is heard. The advanced key/retractable type key is programmed after a beep sound is heard.

Seat position memory setting procedure

To set the driver's seat to pre-programmed position, turn the ignition switch to the LOCK position, unlock the doors using any of the following methods, and then open the driver's door within about 40 seconds.

Press the unlock switch on the advanced key/retractable type key.

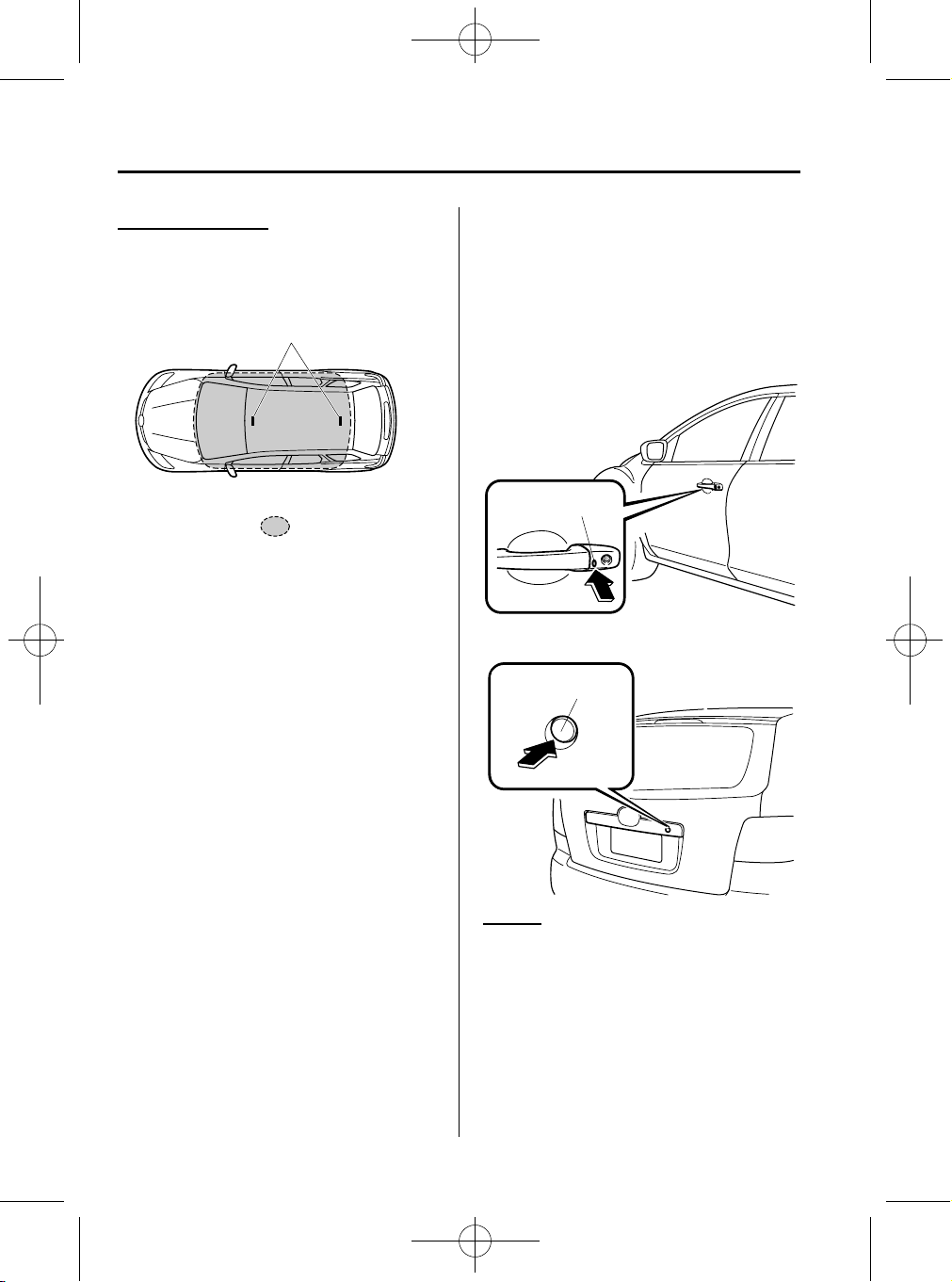

Press the request switch on a front door or liftgate while the advanced key is being carried.

NOTE

If any of the following occurs, the seat position activation function cancels:

The lock/unlock button is pressed while the key is not inserted into the ignition switch.

A seat adjustment switch is operated.

The vehicle starts moving.

The selected programming button 1, 2, or 3 is pressed.

The request switch on a front door or liftgate is pressed while the advanced key is being carried.

The set button is pressed.

Erasing memory

After the following condit ions have been met, press the lock button on the advanced key/retractable type key while pressing the set button until a beep sound is heard.

The ignition switch is in the LOCK position (The auxiliary key/retractable type key is removed from the ignition switch)

The driver's door is open

2-8

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page21 Friday, June 5 2009 2:23 PM

Black plate (21,1)

Essential Safety Equipment

Seats

NOTE

Memory will also be erased if any of the following operations are performed:

The advanced key/retractable type key code has been changed. Refer to Immobilizer System (with Advanced Key) on page 3-52. Refer to Immobilizer System on page 3-56.

The vehicle battery is disconnected for vehicle maintenance or other reasons.

qLumbar Support Adjustment

To increase the seat firmness, pull the lever forward. Push the lever backward to decrease firmness.

Rear Seat

WARNING

Do not stack cargo higher than the seatbacks:

Stacking luggage or other cargo higher than the seatbacks, and placing articles on the rear seat is dangerous. During sudden braking or a collision, objects can fly around and become projectiles that may hit and injure passengers.

Make sure luggage and cargo is secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.

Make sure the adjustable components of a seat are locked in place:

Adjustable seats that are not securely locked are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury.

Form No.8AS7-EA-09E

Do not drive with the seatback unlocked:

All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After returning the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.

2-9

CX-7_8AS7-EA-09E_Edition2 Page22 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (22,1)

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:

Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or even a minor collision, a ch ild not in a proper seat or child-restraint system and seat belt could be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The child in the baggage area could be thrown into other occupants and cause serious injury.

NOTE

When returning a rear seat to its original position, also replace the seat belt to its normal position. Verify that the seat belt pulls out and retracts.

qSplit-Folding Rear Seatback

The seatbacks can be folded down to provide more space in the luggage compartment.

To fold down the seatbacks

WARNING

Always remove the child-restraint system from the rear seat before operating the remote handle levers for the rear seat:

Operating (pulling) the remote handle levers while a rear-facing child-restraint system is in the rear seat is dangerous. It could cause injury to a child seated in the childrestraint system when the seatback suddenly flips forward.

Make sure there is nobody in the rear seat area before operating (pulling) the remote handle levers:

Not checking the rear seat area for persons before folding the seatbacks down with the remote handle levers is dangerous. The rear seat area is difficult to see from the rear of the vehicle. Operating (pulling) the remote handle levers without checking could cause injury to a person when a seatback suddenly flips forward.

2-10

Form No.8AS7-EA-09E

CAUTION

Before folding the seatbacks down with the remote handle levers, make sure there is no cup in a rear cup holder. Folding the seatbacks with the remote handle levers while a cup is in the cup holder could soil or damage the seat bottom and seatback.

CX-7_8AS7-EA-09E_Edition2 Page23 Friday, June 5 2009 2:23 PM

Black plate (23,1)

Essential Safety Equipment

Seats

When using the remote handle levers:

CAUTION

Be careful of the following when using the remote handle levers: Ø On a downward slope, the

seatback could flip forw ard faster than on a flat surface.

Ø On an upward slope, the seatback

may not fo ld down. When the seatbacks cannot be folded down with levers, pull the rear seatback forward from inside the vehicle.

1. Unfasten the lap portion of the centerrear seat belt (page 2-24).

CAUTION

Always unfasten the lap portion of the belt before folding left-rear seatback. Leaving the lap portion of the belt fastened could cause damage to the seat belt, buckle and seatback.

2. After checking that the rear seats are clear, open the liftgate compartment and pull the remote handle levers on the left and right sides of the liftgate compartment.

When using the rear seatback knobs:

CAUTION

When operating the rear seatback knob, make sure you support the seatback with your hand. If the seatback is not supported with your hand, it will flip forward suddenly and could cause injury to the finger that pushes the rear seatback knob down.

1. Unfasten the lap portion of the centerrear seat belt (page 2-24).

CAUTION

Always unfasten the lap portion of the belt before folding the rear-left seatback. Leaving the lap portion of the belt fastened could cause damage to the seat belt, buckle and seatback.

2. Support the seatback with your hand.

3. Push the rear seatback knob down.

Form No.8AS7-EA-09E

To return the seatbacks to the upright position

1. Lift the seatbacks upright.

2-11

CX-7_8AS7-EA-09E_Edition2 Page24 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (24,1)

2. Pull on the top of the seatbacks from inside the vehicle to make sure they are locked.

3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed properly for passenger use (page 2-24).

WARNING

Always make sure the seat belts are fully pulled out from under the seatbacks:

A seat belt caught under a seatback after the seatback is returned to its upright position is dangerous. In a collision or sudden stop, the seat belt cannot provide adequate protection.

When returning the seatback to the upright position, make sure there is no red indication:

A rear seatback not fully returned and locked in the upright position is dangerous. Sudden stops or maneuvering could cause a seatback to flip forward suddenly resulting in injury. If the red indicator is visible on the back of the rear seatback knob, the seatback is not locked in the upright position.

qArmrest

The rear armr est in the center of the rear seatback can be used (no occupant in the center seat) or placed upright.

Locked position

Unlocked position

Red indicator

2-12

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page25 Friday, June 5 2009 2:23 PM

Black plate (25,1)

Essential Safety Equipment

Seats

Head Restraints

Head restraints are intended to help protect you and the passengers from neck injury.

WARNING

Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted:

Driving with the head restraints adjusted too low or removed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

Height adjustment

To raise a head restraint, pull it up to the desired position. To lower the head restraint, press the stopcatch release, then push the head restraint down. Adjust the head restraint so that the top is even with the top of the passenger's ears, never the passenger's neck to prevent injury.

Front seat

Rear seat

Removal/Installation

To remove the head restraint, pull it up while pressing the stop-catch . To install the head restraint, press the uprights into the holes while pressing the stop-catch.

WARNING

Always drive with the head restraints set up when seats are being used and make sure they are properly set up:

Driving with the head restraints not set up is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

Form No.8AS7-EA-09E

2-13

CX-7_8AS7-EA-09E_Edition2 Page26 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seats

Black plate (26,1)

Seat Warmer

The front seats are electrically heated. The ignition switch must be in the ON position.

Press the switch to turn the seat warmer on or off. When the switch is in the ON position, the indicator light will come on.

WARNING

Ø Be careful when using the seat

warmer. The heat from the seat warmer may be too hot for some people, as indicated below, and could cause a low-temperature burn.

Infants, small babies, elderly people, and physically challenged people

People with delicate skin

People who are excessively fatigued

People who are drunk

People who have taken sleepinducing medicine such as sleeping pills or cold medicine

Ø Do not use the seat warmer with

anything having high moistureretention ability such as a blanket or cushion on the seat. The seat may be heated excessively and cause a low-temperature burn.

Ø Do not use the seat warmer even

when taking a short nap in the vehicle. The seat may be heated excessively and cause a lowtemperature burn.

Ø Do not place heavy objects with

sharp projections on the seat, or insert needles or pins into it. This could cause the seat to become excessively heated and result in injury from a minor burn.

2-14

Some models.

Form No.8AS7-EA-09E

CAUTION

Do not use organic solvents to clean the seat. It may damage the seat surface and the heater.

CX-7_8AS7-EA-09E_Edition2 Page27 Friday, June 5 2009 2:23 PM

NOTE

Use the seat warmer when the engine is running, and do not continue to use it for a long period of time. The temperature of the seat warmer cannot be adjusted beyond High and Low because the seat warmer is controlled by a thermostat.

Black plate (27,1)

Essential Safety Equipment

Seats

Form No.8AS7-EA-09E

2-15

CX-7_8AS7-EA-09E_Edition2 Page28 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Black plate (28,1)

Seat Belt Systems

Seat Belt Precautions

Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts.

All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when not in use.

The driver's seat belt has no provisions for child-restraint systems and has only an emergency locking mode. The driver may wear it comfortably, and it will lock during a collision.

However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for child-restraint systems, automatic locking mode. While we recommend you put all children in the rear seats, if you must use the front passenger seat for a child, slide the front passenger seat as far back as possible and make sure any child-restraint system is secured properly.

2-16

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page29 Friday, June 5 2009 2:23 PM

Black plate (29,1)

Essential Safety Equipment

Seat Belt Systems

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:

Not wearing a seat belt is extremely dangerous. During a collision, occupants not wearing seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle. They could be seriously injured or even killed. In th e same collision, occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:

Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to absorb the impact. This puts more force on the bones beneath the belt, which could cause serious injury or death.

Never use one seat belt on more than one person at a time:

Using one seat belt for more than one person at a time is dangerous. A seat belt used in this way cannot spread the impact forces properly and the two passengers could be crushed together and seriously injured or even killed. Never use one belt for more than on e person at a time and always operate the vehicle with each occupant properly restrained.

Do not operate a vehicle with a damaged seat belt:

Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has been expended:

One or both front air bags may deploy, and the corresponding pretensioner(s) may also deploy at the same time. Like the air bags, the front seat belt pretensioners will only function once. While it is safer to use a post-crash (a seat belt that was used in an accident) than no front seat belt at all, using a front seat belt with an expended pretensioner or load limiter loaded reduces the safety available to you. If the front seat belt pretensioners are not replaced, the risk of injury in a collision will increase. Expended front seat belt pretensioners and air bags must be replaced after any collision which caused them to deploy. Additionally, the load limiter will only limit loads on the chest once in a collision and this is another reason to have the front seat belts inspected. Always have an Authorized Mazda Dealer inspect the front seat belt pretensioners and air bags after any collision.

In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt.

Form No.8AS7-EA-09E

2-17

CX-7_8AS7-EA-09E_Edition2 Page30 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Black plate (30,1)

Seat Belt Systems

CAUTION

Belt retraction may become diffic ult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to “Cleaning the Lap/Shoulder Belt Webbing” (page 8-61).

qPregnant Women and Persons with Serious Medical Conditions

Pregnant women should always wear seat belts. Ask your doctor for specific recommendations. The lap belt should be worn SNUGLYAND AS LOW AS POSSIBLE OVER THE HIPS. The shoulder belt should be worn across your shoulder properly, but never across the stomach area. Persons with serious medical condit ions also should wear seat belts. Check with your doctor for any special instructions regarding specific medical conditions.

qEmergency Locking Mode

In the emergency locking mode, the belt remains comfortable on the occupant and the retractor will lock in position during a collision. When the seat belt is fastened, it will always be in the emergency locking mode until it is switched to automatic locking mode by pulling it all the way out to its full length. If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it may be in the automatic locking mode because the belt has been pulled too far out. To return the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level area, retract the belt fully to convert it back to emergency locking mode and then extend it around you again. If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again slowly.

2-18

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page31 Friday, June 5 2009 2:23 PM

Black plate (31,1)

Essential Safety Equipment

Seat Belt Systems

qAutomatic Locking Mode

Always use the automatic locking mode to keep the child-restraint system from shifting to an unsafe position in the event of an accident. To enable seat belt automatic locking mode, pull it all the way out and connect it as instructed on the child-restraint system. It will retract down to the child-restraint system and stay locked on it. See the section on child restraint (page 2-30).

Form No.8AS7-EA-09E

2-19

CX-7_8AS7-EA-09E_Edition2 Page32 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seat Belt Systems

Black plate (32,1)

Seat Belt (Except CenterRear Position)

qFastening the Seat Belt

1. Grasp the seat belt tongue.

2. Slowly pull out the lap/shoulder belt.

Lap/shoulder belt

Seat belt tongue

3. Insert the seat belt tongue into the seat belt buckle until you hear a click sound.

Seat belt tongue

WARNING

Positioning the Shoulder Portion of the Seat Belt:

Improper positioning of the shoulder portion of th e seat belt is dangerous. Always make sure the shoulder portion of th e seat belt is positioned across your shoulder and near your neck, but never under your arm, on your neck, or on your upper arm.

4. Position the lap belt as low as possible, not on the abdominal area, then adjust the shoulder belt so that it fits snugly against your body.

Take up slack Keep low on hip bone

Too high

Seat belt buckle

2-20

Form No.8AS7-EA-09E

WARNING

Positioning the Lap Portion of the Seat Belt:

The lap portion of the seat belt worn too high is dangerous. In a collision, this would concentrate the impact force directly on the abdominal area, causing serious injury. Wear the lap portion of th e belt snugly and as low as possible.

CX-7_8AS7-EA-09E_Edition2 Page33 Friday, June 5 2009 2:23 PM

Black plate (33,1)

Essential Safety Equipment

Seat Belt Systems

qUnfastening the Seat Belt

Depress the button on the seat belt buckle. If the belt does not fully retract, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Button

NOTE

When using the center-rear seat belt, refer to “Center-Rear Position Seat Belt” (page 2-24).

If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer.

qFront Shoulder Belt Adjuster

Adjust the height of the shoulder belt if the seat belt touches your neck, or if it crosses your arm instead of your shoulder. To raise the shoulder belt adjuster, push the adjuster up. To lower the shoulder belt adjuster, pull the adjuster and slide it down. Make sure the adjuster is locked.

To raise To lower

WARNING

Positioning the Shoulder Portion of the Seat Belt:

Improper positioning of the shoulder portion of the seat belt is dangerous. Always make sure the shoulder portion of the seat belt is positioned across your shoulder and near your neck, but never under your arm, on your neck, or on your upper arm.

Form No.8AS7-EA-09E

2-21

CX-7_8AS7-EA-09E_Edition2 Page34 Friday, June 5 2009 2:23 PM

Essential Safety Equipment

Seat Belt Systems

Black plate (34,1)

Front Seat Belt Pretensioner and Load Limiting Systems

For optimum protection, the driver and front passenger seat belts are equipped with pretensioner and load limiting systems. For both these systems to work properly you must wear the seat belt properly.

Pretensioners:

The front seat belt retractors remove slack quickly as the air bags are expanding. For deployment details, refer to the SRS Air Bag Deployment Criteria (page 2-54). In addition, the pretensioner system for the front passenger, like the front passenger air bag, is designed to only deploy in accordance with the total seated weight on the front passenger seat. Any time the air bags and seat belt pretensioners have fired they must be replaced. For details, refer to the driver and front passenger occupant classification system (page 2-57).

Load limiter:

The load limit ing system releases belt webbing in a controlled manner to reduce belt force on the occupant's chest. While the most severe load on a seat belt occurs in frontal collisions, the load limiter has an automatic mechanical function and can activate in any accident mode with sufficient occupant movement. Even if the pretensioners have not fired, the load limiting function must be checked by an Authorized Mazda Dealer.

WARNING

Wear seat belts only as recommended in this owner's manual:

Incorrect positioning of the driver and front passenger seat belts is dangerous. Without proper positioning, the pretensioner and load limiting systems cannot provide adequate protection in an accident and this could result in serious injury. For more det ails about wearing seat belts, refer to “Fastening the seat belts” (page 2-20).

Have your seat belts changed immediately if the pretensioner or load limiter has been expended:

One or both front air bags may deploy, and the corresponding pretensioner(s) may also deploy at the same time. Like the air bags, the front seat belt pretensioners will only function once. While it is safer to use a post-crash (a seat belt that was used in an accident) than no front seat belt at all, using a front seat belt with an expended pr etensioner or load limiter loaded reduces the safety available to you. If the front seat belt pretensioners are not replaced, the risk of injury in a collision will increase. Expended front seat belt pretensioners and air bags must be replaced after any collision which caused them to deploy. Additionally, the load limiter will only limit loads on the chest once in a collision and this is another reason to have the front seat belts inspected. Always have an Authorized Mazda Dealer inspect the front seat belt pretensioners and air bags after any collision.

2-22

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page35 Friday, June 5 2009 2:23 PM

Black plate (35,1)

Essential Safety Equipment

Seat Belt Systems

Do not modify the components or wiring, or use electronic testing devices on the pretensioner system:

Modifying the components or wiring of the pretens ioner system, including the use of electronic testing devices is dangerous. You could ac cidentally activate it or make it inoperable which would prevent it from activating in an accide nt. The occupants or repairers could be seriously injured.

Properly dispose of the pretensioner system:

Improper disposal of the pretensioner system or a vehicle with nondeactivated pretensioners is dangerous. Unless all sa fety procedures are followed, injury could result. Ask an Authorized Mazda Dealer how to safely dispose of the pretensioner system or how to scrap a pretensioner-equipped vehicle.

NOTE

The pretensioner system will activate in a moderate or severe frontal, near-frontal collision or roll-over accident. The pretensioner system for the front passenger is designed to only deploy in accordance with the total seated weight on the front passenger seat. It will not activate in most side or rear impacts.

Some smoke (non-toxic gas) will be released when the air bags and pretensioners deploy. This does not indicate a fire. This gas normally has no effect on occupants, however, those with sensitive skin may experience light skin irritation. If residue from the deployment of the air bags or the front pretensioner system gets on the skin or in the eyes, wash it off as soon as possible.

Air Bag/Front Seat Belt Pretensioner System Warning Light

If the air bag/front seat belt pretensioner system is working properly, the warning light illuminates when the ignition switch is turned to the ON position or after the engine is cranked. The warning light turns off after a specified period of time.

A system malfunction is indicated if the warning light constantly flashes, constantly illuminates or does not illuminate at all when the ignition switch is turned to the ON position. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not work in an accident.

WARNING

Never tamper with the air bag/ pretensioner systems and always have an Authorized Mazda Dealer perform all servicing and repairs:

Self-servicing or tampering with the systems is dangerous. An air bag/ pretensioner could accidentally activate or become disabled causing serious injury or death.

Form No.8AS7-EA-09E

2-23

CX-7_8AS7-EA-09E_Edition2 Page36 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Seat Belt Systems

Air Bag/Front Seat Belt Pretensioner System Warning Beep

If a malfunction is detected in the air bag/ front seat belt pretensioner systems and the warning light, a warning beep sound will be heard for about 5 seconds every minute.

The air bag and seat belt pretensioner system warning beep sound will continue to be heard for approximately 35 minutes. Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible.

WARNING

Do not drive the vehicle with the air bag/front seat belt pretensioner system warning beep sounding:

Driving the vehicle with the air bag/ front seat belt pretensioner system warning beep sounding is dangerous. In a collision, the air bags and the front seat belt pretensioner system will not deploy and this could result in death or serious injury. Contact an Authorized Mazda Dealer to have the vehicle inspected as soon as possible.

Black plate (36,1)

Center-Rear Position Seat Belt

Before using the center-rear lap/shoulder belt make sure tongue (A) and anchor buckle (B) are fastened.

(A)

(B)

qFastening the Seat Belt

1. Grasp the seat belt tongue (C).

2. Slowly pull out the lap/shoulder belt.

3. Insert the seat belt tongue (C) into the seat belt buckle (D) until you hear a click sound.

2-24

Form No.8AS7-EA-09E

(C)

(D)

(A)

(B)

CX-7_8AS7-EA-09E_Edition2 Page37 Friday, June 5 2009 2:24 PM

Black plate (37,1)

Essential Safety Equipment

Seat Belt Systems

WARNING

Fastening the Center-Rear Seat Belt with Only One Buckle:

Fastening the center-rear seat belt with only one buckle is dangerous. If only one pair of seat belt tongues and buckles is fastened (either seat belt tongue (C) and seat belt anchor buckle (D) or seat belt tongue (A) and seat belt buckle (B)), then the seat belt cannot provide full protec tion. In a sudden stop or collision, the user could slide under the belt and suffer serious injuries. Always make sure that both pai rs of seat belt tongues and buckles are fastened properly.

Positioning the Shoulder Portion of the Seat Belt:

4. Position the lap belt as low as possible, not on the abdominal area, then adjust the shoulder belt so that it fits snugly against your body.

WARNING

Positioning the Lap Portion of the Seat Belt:

qUnfastening the Seat Belt

Depress the button on the seat belt buckle. If the belt does not fully retract, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Button

NOTE

If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer.

qRetracting the Center Seat Belt to

Lower the Seatbacks for Carrying Cargo

To retract the center belt and lower the seatbacks for carrying cargo, insert a small object such as a key in the seat belt anchor buckle (B) slot.

(A)

(B)

Form No.8AS7-EA-09E

2-25

CX-7_8AS7-EA-09E_Edition2 Page38 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Seat Belt Systems

Black plate (38,1)

CAUTION

Always unfasten the lap portion of the belt before folding the left-rear seatback. Leaving the lap portion of the belt fastened could cause damage to the seat belt, seat belt buckle and seatback.

qStowing and pulling out the

Center-Rear Position Seat Belt

The center-rear position seat belt can be stowed using the following procedure.

CAUTION

When stowing the seat belt, make sure the belt is locked securely into the recess. If the seat belt is not properly stowed, it might get caught in the seats and be damaged.

To stow the seat belt, retract the belt, put the seat belt tongues (A) and (C) together and insert them into the recess.

Ceiling recess

(A)

To pull out the seat belt, slide the seat belt tongue (A) with your finger while moving it downward, and slowly pull out the seat belt from the ceiling recess.

NOTE

To encourage rear seat passengers to wear their seat belts, we suggest leaving the center-rear lap position of the belt fastened at all times except when folding the rear seat forward.

Pulling the seat belt all the way out will switch it to automatic locking mode. If automatic locking mode is not needed, retract the seat belt fully to convert it back to emergency locking mode.

qRe-attaching the Seat Belt after

the Rear Seatbacks are Returned to their Upright Positions

(C)

2-26

Form No.8AS7-EA-09E

To re-attach the center seat belt after the rear seats are returned to their upright positions, grasp the seat belt tongue (A) and insert it into the seat belt anchor buckle (B) until you hear a click sound. It is now secure for passenger use.

NOTE

After returning the left-rear seatback to its upright position, fasten the lap portion of the belt.

CX-7_8AS7-EA-09E_Edition2 Page39 Friday, June 5 2009 2:24 PM

Black plate (39,1)

Essential Safety Equipment

Seat Belt Systems

Seat Belt Extender

If your seat belt is not long enough, even when fully extended, a seat belt extender may be available to you at no charge from your Authorized Mazda Dealer. This extender will be only for you and for the particular vehicle and seat. Even if it plugs into other seat belts, it may not hold in the critical moment of a crash. When ordering an extender, only order one that provides the necessary additional length to fasten the seat belt properly. Please contact your Authorized Mazda Dealer for more information.

WARNING

Do not use a seat belt extender unless it is necessary:

Using a seat belt extender when not necessary is dangerous. The seat belt will be too long and not fit properly. In an accident, the seat belt will not provide adequate protection and you could be seriously injured. Only use the extender when it is required to fasten the seat belt properly.

Do not use an improper extender:

Using a seat belt extender that is for another person or a different vehicle or seat is dangerous. The seat belt will not provide adequate protection and the user could be seriously injured in an accident. Only use the extender provided for you and for the particular vehicle and seat. NEVER use the extender in a different vehicle or seat. If you sell your Mazda, do not leave your seat belt extender in the vehicle. It could be used accidentally by the new owner of the vehicle. After removing the seat belt extender, discard it. Never use the seat belt extender in any other vehicle you may own in the future.

Form No.8AS7-EA-09E

Do not use an extender that is too long:

Using an ext ender that is too long is dangerous. The seat belt will not fit properly. In an accident, the seat belt will not provide adequate protection and you could be seriously injured. Do not use the extender or choose one shorter in length if the distance between the extender's buckle and the center of the user's body is less than 15 cm (6 in).

2-27

CX-7_8AS7-EA-09E_Edition2 Page40 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Seat Belt Systems

Black plate (40,1)

NOTE

When not in use, remove the seat belt extender and store it in the vehicle. If the seat belt extender is left connected, the seat belt extender might get damaged as it will not retract with the rest of the seat belt and can easily fall out of the door when not in use and be damaged. In addition, the seat belt warning light will not illuminate and function properly.

Seat Belt Warning Light/Beep

The seat belt warning light illuminates and a beep sound will be heard if the driver's seat belt is not fastened when the ignition switch is turned to the ON position.

Conditions of operation

Condition Result

The driver's seat belt is not fastened when the ignition switch is turned to the ON position.

The driver's seat belt is fastened while the warning light and the beep sound are activated.

The driver's seat belt is fastened before the ignition switch is turned to the ON position.

The warning light flashes and a beep sound will be heard for about 6 seconds.

The warning light turns off and the beep sound stops.

The warning light will not illuminate and the beep sound will not be heard.

2-28

Form No.8AS7-EA-09E

qBelt Minder

NOTE

The belt minder can be deactivated. Consult an Authorized Mazda Dealer to deactivate or restore the seat belt minder.

CX-7_8AS7-EA-09E_Edition2 Page41 Friday, June 5 2009 2:24 PM

Black plate (41,1)

Essential Safety Equipment

Seat Belt Systems

Driver seated/Front passenger not seated

The belt minder is a supplemental warning to the seat belt warning function. If the driver's seat belt is not fastened when the ignition switch is turned to the ON position, the warning light/beep operates to give you further reminders according to the chart below.

Vehicle speed

Condition

Seat belt

Indicator

Beep

: Fastened : Unfastened : Illuminated : Flashing : Beep

Between 0 ― 20

km/h

(0 ― 12 mph)

20 km/h

(12 mph) or

Once the beep sound is heard, it continues sounding even if the vehicle speed lowers to 20 km/h (12 mph) or less until the seatbelt is fast ened or the beep sound period has passed.

Driver seated/Front passenger seated

The seat belt warning function reminds the front passenger to fasten the seat belt according to the chart below.

Vehicle speed

Condition

Seat belt (Driver)

Seat belt (Passenger)

Indicator

Beep

: Fastened : Unfastened : Illuminated : Flashing : Beep

Between 0 ― 20

km/h

(0 ― 12 mph)

20 km/h

(12 mph) or

Placing heavy items on the front passenger seat may cause the front passenger seat belt warning function to operate depending on the weight of the item.

Once the beep sound is heard, it continues sounding even if the vehicle speed lowers to 20 km/h (12 mph) or less until the seatbelt is fast ened or the beep sound period has passed.

NOTE

To allow the front passenger seat weight sensor to function properly, do not place and sit on an additional seat cushion on the front passenger seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.

When a small child sits on the front passenger seat, it is possible that neither the warning light nor the warning beep operate.

Form No.8AS7-EA-09E

2-29

CX-7_8AS7-EA-09E_Edition2 Page42 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (42,1)

Child Restraint

Child Restraint Precautions

Mazda strongly urges the use of child-restraint systems for children small enough to use them.

You are required by law to use a child-restraint system for children in the U.S. and Canada. Check your local and state or provincial laws for specific requirements regarding the safety of children riding in your vehicle.

Whatever child-restraint system you consider, please pick the appropriate one for the age and size of the child, obey the law and follow the instructions that come with the individual child-restraint system.

A child who has outgrown child-restraint systems should sit in the rear and use seat belts, both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to the center of the vehicle in the outboard seats, and towards the buckle on the right if the child is seated on the center seat.

Statistics confirm that the rear seat is the best place for all chil dren up to 12 years of age, and more so with a supplemental restraint system (air bags).

A rear-facing child-res traint system should NEVER be used on the front seat with the air bag system activated. The front passenger's seat is also the least preferred seat for other child-restraint systems.

To reduce the chance of injuries caused by deployment of the front passenger air bag, the front passenger seat weight sensors work as a part of the supplemental restraint system. This system deactivates the front passenger front and side air bags and also the front passenger seat belt pretensioner system when the total seated weight on the front passenger seat is less than approximately 30 kg (66 lb).

When an infant or small child sits on the front passenger seat, the system shuts off the front passenger front and side air bags and seat belt pretensioner system, so make sure the front passenger air bag deactivation indicator light illuminates.

Even if the front passenger air bag is shut off, Mazda strongly recommends that children be properly restrained and child-restraint systems of all kinds are properly secured on the rear seats which are the best place for children.

For more details, refer to “Front passenger seat weight sensors” (page 2-57).

2-30

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page43 Friday, June 5 2009 2:24 PM

Black plate (43,1)

Essential Safety Equipment

Child Restraint

WARNING

Use the correct size child-restraint system:

For effective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size. If not, the child could be seriously injured or even killed in an accident.

Follow the ma nufacturer's instructions and always keep the child-restraint system buckled down:

An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move causing serious injury or death to the child or other occupants. Make sure any child-restraint system is prope rly secured in place according to the childrestraint system manufacturer's instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-restraint systems and the corresponding tether anchor.

Always secure a child in a proper child-restraint system:

Holding a chi ld in your arms while the vehicle is moving is extremely dangerous. No matter how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision and it could result in serious injury or death to the child or other occupants. Even in a moderate accident, the child may be exposed to air bag forces that could resu lt in serious injury or death to the child, or the child may be slammed into an adult, causing injury to both child and adult.

Never use a rear-facing child-restraint system in the front seat with an air bag that could deploy:

Rear-facing child-restraint systems on the front seat are particularly dangerous even though you may feel assured that a front passenger air bag will not deploy based on the fact that the front passenger air bag deactivation indicator light illuminates. The child-restraint system can be hit by a deploying air bag and moved violently backward resulting in serious injury or death to the child.

2-31

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page44 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (44,1)

Child Restraint

Do not install a front-facing child-restraint system on the front passenger seat unless it is unavoidable:

In a collision, the force of a deploying air bag could cause serious injury or death to the child. If installing a front-facing child-restraint system on the front passenger seat is unavoidable, move the front passenger seat as far back as possible.

Seating a child in a child-restraint system on the front passenger seat is dangerous:

Your vehicle is equipped with front passenger seat weight sensors. Even with the front passenger seat weight sensors, if you must use the front passenger seat to seat a child, using a child in a child-restraint system on the front passenger seat under the following conditions increases the danger of the front passenger air bag deploying and could result in serious injury or death to the child. Ø The total seated weight of the child with the child-restraint system on the front

passenger seat is approximately 30 kg (66 lb) or more with a child in the childrestraint system.

Ø Luggage or other items are placed on the seat with the child in the child-restraint

system.

Ø A rear passenger or luggage pushing or pulling down on the front passenger

seatback.

Ø A rear passenger puts their feet on the front seat rails. Ø Luggage or other items are placed on the seatback or hung on the head restraint. Ø Heavy items are placed in the seatback map pocket. Ø The seat is washed. Ø Liquids are spilled on the seat. Ø The front passenger seat is moved backward, pushing into luggage or other items

placed behind it.

Ø The front passenger seatback contacts the rear seat. Ø Luggage or other items are placed between the front passenger seat and driver

seat.

Ø Any accessories, which might increase the total seated weight on the front

passenger seat, are attached to the front passenger seat. The designated positions with seat belts on the rear seats are the safest places for children. Always use seat belts and child restraints.

2-32

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page45 Friday, June 5 2009 2:24 PM

Black plate (45,1)

Essential Safety Equipment

Child Restraint

Do not allow a child or anyone to lean over or against the side window of a vehicle with side and curtain air bag s:

It is dangerous to allow anyone to lean over or against the side window, the area of the front passenger seat, the front and rear window pillars and the roof edge along both sides from which the side and curtain air bags deploy, even if a child-restraint system is used. The impact of inflation from a side or curtain air bag could cause serious injury or death to an out of position child. Furthermore, leaning over or against the front door could block the side and curtain air bags and eliminate the advantages of supplemental protection. With the front air bag and the additional side air bag that comes out of the front seat, the rear seat is always a better location for children. Take special care not to allow a child to lean over or against the side window, even if the child is seated in a child-restraint system.

Never use one seat belt on more than one person at a time:

Always remove the child-restraint system from the rear seat before operating the remote handle levers for the rear seat:

Operating the remote handle levers while a rear-facing child-restraint system is in the rear seat is dangerous. It could cause injury to a child seated in the childrestraint system when the seatback suddenly flips forward.

CAUTION

A seat belt or child-restraint system can become very hot in a closed vehicle during warm weather. To avoid burning yourself or a child, check them before you or your child touches them.

NOTE

Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. When using these anchors to secure a child-restraint system, refer to “LATCH Child-Restraint Systems” (page 2-40).

2-33

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page46 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Child Restraint

Black plate (46,1)

Installing Child-Restraint Systems

Accident statistics reveal that a child is safer in the rear seat. The front passenger's seat is clearly the worst choice for any child under 12, and with rear-facing childrestraint systems it is clearly unsafe due to air bags.

Some child-restraint systems now come with tethers and therefore must be installed on the seats that take tethers to be effective. In your Mazda, tethered child-restraint systems can only be accommodated in the three positions on the rear seat.

Even if your vehicle is equipped with front passenger seat weight sensors (page 2-57), which automatically deactivates the front passenger air bag, a rear seat is the safest place for a child of any age or size.

Some child-restraint systems also employ specially designed LATCH attachments; refer to “LATCH Child-Restraint Systems” (page 2-40).

WARNING

Tethered Child-Restraint Systems Work Only on Tether-Equipped Rear Seats:

Installation of a tether equipped child-restraint system in the front passenger's seat defeats the safety design of the system and will result in an increased chance of serious injury if the child-restraint system goes forward without benefit of being tethered. Place tether equipped child-restraint systems where there are tether anchors.

qRear Seat Child-Restraint System

Installation

Follow these instructions when using a child-restraint system, unless you are attaching a LATCH-equipped childrestraint system to the rear LATCH lower anchors. Refer to “LATCH ChildRestraint Systems” (page 2-40).

NOTE

Follow the child-restraint system manufacturer's instructions carefully. If you are not sure whether you have a LATCH system or tether, check in the child-restraint system manufacturer's instructions and follow them accordingly. Depending on the type of child-restraint system, it may use LATCH system instead of seat belts or if the belt goes across the child's chest, may recommend against using automatic locking mode.

1. Make sure the seatback is securely latched by pushing it back until it is fully locked.

2. Raise the head restraint to the top locked position (except center seat position). Refer to Head Restraints on page 2-13.

3. Secure the child-restraint system with the lap portion of the lap/shoulder belt. See the manufacturer's instructions on the child-restraint system for belt routing instructions.

2-34

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page47 Friday, June 5 2009 2:24 PM

Black plate (47,1)

Essential Safety Equipment

Child Restraint

4. To get the retractor into the automatic locking mode, pull the shoulder belt portion of the seat belt until the entire length of the belt is out of the retractor.

5. Push the child-restraint system firmly into the vehicl e seat. Be sure the belt retracts as snugly as possible. A clicking noise from the retractor will be heard during retraction if the system is in the automatic locking mode. If the belt does not lock the seat down tight, repeat this step.

NOTE

Inspect this function before each use of the child-restraint system. You should not be able to pull the shoulder belt out of the retractor while the system is in the automatic locking mode. When you remove the child-restraint system, be sure the belt fully retracts to return the system to emergency locking mode before occupants use the seat belts.

6. If your child-restraint system requires the use of a tether strap, refer to the manufacturer's instructions to hook and tighten the tether strap.

Anchor bracket location (Outboard)

Form No.8AS7-EA-09E

Tether strap position (Outboard)

Tether strap

Forward

2-35

CX-7_8AS7-EA-09E_Edition2 Page48 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Child Restraint

Black plate (48,1)

Anchor bracket location (Center)

Tether strap position (Center)

WARNING

Use the tether and tether anchor only for a child-restraint system:

Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or da mage the tether or tether anchor and result in injury.

Always route the tether strap between the head restra int and the seatback (Except center position):

Routing the tether strap on top of the head restraint is dangerous. In a collision the tether strap could slide off the head restraint and loosen the child-restraint system. The childrestraint system could move which may result in death or injury to the child.

Always attach the tether strap to the correct tether anchor position:

Attaching the tether strap to the incorrect tether anchor position is dangerous. In a collision, the tether strap could come off and loosen the child-restraint system. If the childrestraint system moves it could result in death or injury to the child.

2-36

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page49 Friday, June 5 2009 2:24 PM

Black plate (49,1)

Essential Safety Equipment

Child Restraint

qIf You Must Use the Front Seat

for Children

If you cannot put all children in the rear seat, at least put the smallest children in the rear and be sure the largest child up front uses the shoulder belt over the shoulder. NEVER put a rear-facing child-restraint system on the front passenger seat, even with a seat weight sensor equipped vehicle. This seat is also not set up for tethered child-restraint systems, put them in one of the rear seat positions set up with tether anchors. Likewise the LATCH child-restraint system cannot be secured in the front passenger's seat and should be used in the rear seat. Do not allow anyone to sleep against the side window if you have an optional side and curtain air bag, it could cause serious injuries to an out of position occupant. As children more often sleep in cars, it is better to put them in the rear seat. If installing the child-restraint system on the front seat is unavoidable, follow these instructions when using a front-facing child-restraint system in the front passenger's seat.

NOTE

To check if your front seats have side air bags: Mazda vehicles equipped with side air bag will have a “SRS AIRBAG” tag on the outboard shoulder of the front seats.

To check if your vehicle has curtain air bags: Mazda vehicles equipped with curtain air bag will have an “SRS AIRBAG” marking on the window pillars along the roof edge.

WARNING

Always move the front passenger seat as far back as possible if installing a front-facing child-restraint system on it is unavoidable:

As your vehicle has front air bags and doubly so because your vehicle has side air bags, a front-facing child-restraint system should be put on the front passenger seat only when it is unavoidable. Even if the front passenger air bag deactivation indicator light illuminates, always move the seat as far back as possible, because the force of a deploying air bag could cause serious injury or death to the child.

Never use a rear-facing child-restraint system in the front seat with an air bag that could deploy:

Rear-facing child-restraint systems on the front seat are particularly dangerous. Even in a moderate collision, the child-restraint system can be hit by a deploying air bag and moved violently backward resulting in serious injury or death to the child. Even though you may feel assured that the front passenger air bag will not deploy based on the fact that the front passenger air bag deactivat ion indicator light illuminates.

Form No.8AS7-EA-09E

2-37

CX-7_8AS7-EA-09E_Edition2 Page50 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Child Restraint

Black plate (50,1)

Do not allow a child or anyone to lean over or against the side window of a vehicle with side and curtain air bags:

qFront Passenger's Seat Child-

Restraint System Installation

1. Slide the seat as far back as possible.

2. Secure the child-restraint system with the lap portion of the lap/shoulder belt. See the manufacturer's instructions on the child-restraint system for belt routing instructions.

3. To get the retractor into the automatic locking mode, pull the shoulder belt portion of the seat belt until the entire length of the belt is out of the retractor.

4. Push the child-restraint system firmly into the vehicl e seat. Be sure the belt retracts as snugly as possible. A clicking noise from the retractor will be heard during retraction if the system is in automatic locking mode. If the belt does not lock the seat down tight, repeat the previ ous step and also this one.

NOTE

Follow the child-restraint system manufacturer's instructions carefully. Depending on the type of child-restraint system, it may not employ seat belts which are in automatic locking mode.

2-38

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page51 Friday, June 5 2009 2:24 PM

Black plate (51,1)

Essential Safety Equipment

Child Restraint

5. Make sure the front passenger air bag deactivation indicator light illuminates after installing a child-restraint system on the front passenger seat. Refer to Front passenger air bag deactivation indicator light on page 2-57.

WARNING

Do not seat a child in a child-restraint system on the front passenger seat if the front passenger air bag deactivation indicator light does not illuminate:

While it is always better to install any child-restraint system on the rear seat, it is imperative that a childrestraint system ONLY be used on the front passenger seat if the deactivation indicator light illuminates when the child is seated in the child-restraint system (page 2-57). Seating a child in a childrestraint system installed on the front passenger seat with the front passenger air bag deactivation indicator light not illuminated is dangerous. If this indicator light does not illuminate even when the total seated weight is less than approximately 30 kg (66 lb), this means that the front passenger front and side air bags, and seat belt pretensioner are ready for deployment. If an accident were to deploy an air bag, a child in a childrestraint system sitting in the front passenger seat could be seriously injured or killed. If the indicator light does not illum inate after seating a child in a child-restraint system on the front passenger seat, seat a child in a child-restraint system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.

Form No.8AS7-EA-09E

2-39

CX-7_8AS7-EA-09E_Edition2 Page52 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (52,1)

Child Restraint

LATCH Child-Restraint Systems

Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. Both anchors must be used, otherwise the seat will bounce around and put the child in danger. Most LATCH child-restraint systems must also be used in conjunction with a tether to be effective. If they have a tether you must use it to better assure your child's safety.

WARNING

Follow the ma nufacturer's instructions for the use of the child-restraint system:

An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move causing serious injury or death to the child or other occupants. Make sure the child-restraint system is properly secured in place according to the childrestraint system manufacturer's instructions.

Never attach two child -restraint systems to the same LATCH lower anchor:

Attaching two child-restraint systems to the same LATCH lower anchor is dangerous. In a collision, one anchor may not be strong enough to hold two child-res traint system attachments, and it may break, causing serious injury or death. If you use the seat position for another child-restraint system when an outboard LATCH position is occupied, use the center seat belts instead, and the tether if tether-equipped.

Make sure the child-restraint system is properly secured:

An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move causing serious injury or death to the child or other occupants. Follow the child-restraint system manufacturer's instructions on belt routing to secure the seat just as you would with a child in it so that nobody is tempted to put a child in an improperly secured seat later on. When not in use, remove it from the vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-restraint systems.

Make sure there are no seat belts or foreign objects near or around the LATCH childrestraint system:

Not following the child-restraint system manufacturer's instructions when installing the child-restraint system is dangerous. If seat belts or a foreign object prevent the child-restraint system from being securely attached to the LATCH lower anchors and the child-restraint system is installed improperly, the child-restraint system could move in a sudden stop or collision causing serious injury or death to the child or other occupants. When installing the child-restraint system, make sure there are no seat belts or foreign objects near or around the LATCH lower anchors. Always follow the child-restraint system manufacturer's instructions.

2-40

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page53 Friday, June 5 2009 2:24 PM

Black plate (53,1)

Essential Safety Equipment

Child Restraint

Child-Restraint System Installation Procedure (Rear Outboard Seats)

1. Make sure the seatback is securely latched by pushing it back until it is fully locked.

2. Expand the open seams on the rear of the seat bottom slightly to verify the locations of the LATCH lower anchors.

NOTE

The markings above the LATCH lower anchors indicate the locations of LATCH lower anchors for the attachment of a child-restraint system.

5. If your child-restraint system came equipped with a tether, that means it is very important to properly secure the tether for child safety. Please carefully follow the child-restraint system manufacturer's instructions when installing tethers.

Anchor bracket location

Tether strap position

Tether strap

3. Raise the head restraint to the top locked position. Refer to Head Restraints on page 2-13.

4. Secure the child-restraint system using BOTH LATCH lower anchors, following the child-restraint system manufacturer's instruction. Pull on the child-restraint to be sure both anchors are engaged.

Form No.8AS7-EA-09E

Forward

2-41

CX-7_8AS7-EA-09E_Edition2 Page54 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Child Restraint

WARNING

Use the tether and tether anchor only for a child-restraint system:

Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or da mage the tether or tether anchor and result in injury.

Always route the tether strap between the head restra int and the seatback:

Always attach the tether strap to the correct tether anchor position:

Black plate (54,1)

Child-Restraint System Installation Procedure (Center-Rear Seat)

The LATCH lower anchors at the center of the rear seat are much further apart than the sets of LATCH lower anchors for child-restraint system installation at other seating positions. Child-restraint systems with rigid LATCH attachments cannot be installed on the center seating position. Some LATCH equipped child-restraint systems can be placed in the center position and will reach the nearest LATCH lower anchors which are 400 mm (15.75 in) apart. LATCH compatible child-restraint systems (with attachments on belt webbing) can be used at this seating position only if the child-restraint system manufacturer's instructions state that the child-restraint system can be installed to LATCH lower anchors that are 400 mm (15.75 in) apart. Do not attach two child-restraint systems to the same LATCH lower anchor. If your childrestraint system has a tether, it must also be used for your child's optimum safety.

2-42

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page55 Friday, June 5 2009 2:24 PM

Black plate (55,1)

Essential Safety Equipment

Child Restraint

WARNING

Use the tether and tether anchor only for a child-restraint system:

Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or da mage the tether or tether anchor and result in injury.

Always attach the tether strap to the correct tether anchor position:

1. Make sure the seatback is securely latched by pushing it back until it is fully locked.

2. Expand the open seams on the rear of the seat bottom slightly to verify the locations of the LATCH lower anchors.

3. Secure the child-restraint system using BOTH LATCH lower anchors, following the child-restraint system manufacturer's instructions. Pull on the child-restraint to be sure both anchors are engaged.

4. If your child-restraint system came equipped with a tether, that means it is very important to properly secure the tether for child safety. Please carefully follow the child-restraint system manufacturer's instructions when installing tethers.

Anchor bracket location

NOTE

The markings above the LATCH lower anchors indicate the locations of LATCH lower anchors for the attachment of a child-restraint system.

Form No.8AS7-EA-09E

Tether strap position

2-43

CX-7_8AS7-EA-09E_Edition2 Page56 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (56,1)

SRS Air Bags

Supplemental Restraint System (SRS) Precautions

The front and side supplemental restraint systems (SRS) include 6 air bags. Please verify the air bags equipped on your vehicle by locating the “SRS AIRBAG” location indicators. These indicators are visible in the area where the air bags are installed.

The air bags are installed in the following locations:

The steering wheel hub (driver air bag)

The front passenger dashboard (front passenger air bag)

The outboard sides of the front seatbacks (side air bags)

The front and rear window pillars, and the roof edge along both sides (curtain air bags)

The air bag supplemental restraint systems are designed to provide supplemental protection in certain situations, so seat belts are always important in the following ways:

Without seat belt usage, the air bags cannot provide adequate protection during an accident. Seat belt usage is necessary to:

Keep the occupant from being thrown into an inflating air bag.

Reduce the possibility of injuries during an accident that is not designed for air bag inflation, such as rear impact.

Reduce the possibility of injuries in frontal, near frontal, side collisions or roll-over accidents that are not severe enough to activate the air bags.

Reduce the possibility of being thrown from your vehicle.

Reduce the possibility of injuries to lower body and legs during an accident because the air bags provide no protection to these parts of the body.

Hold the driver in a position which allows better control of the vehicle.

Your vehicle is also equipped with a driver and front passenger occupant classification system. For details, refer to the driver and front passenger occupant classification system (page 2-57).

Small children must be protected by a child-restraint system as stipulated by law in every state and province. In certain states and provinces, larger children must use a child-restraint system (page 2-30).

Carefully consider which child-restraint system is necess ary for your child and follow the installation directions in this Owner's Manual as well as the child-restraint system manufacturer's instructions.

2-44

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page57 Friday, June 5 2009 2:24 PM

WARNING

Seat belts must be worn in air bag equipped vehicles:

Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inflate only in the first accident, such as frontal, near frontal, side collisions or roll-over accident that are at least moderate. Vehicle occupants should always wear seat belts.

Children should not ride in the front passenger seat:

Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit by a deploying air bag and be seriously injured or even killed. Even if the front passenger air bag deactivation indicator light illuminates, always move the front passenger seat as far back as possible. A sleeping child is more likely to lean against the door and be hit by the side air bag in a moderate, right-side collision. Whenever possible, always secure a child 12 years and under on the rear seat with an appropriate child-restraint system for the child's ag e and size.

Black plate (57,1)

Essential Safety Equipment

SRS Air Bags

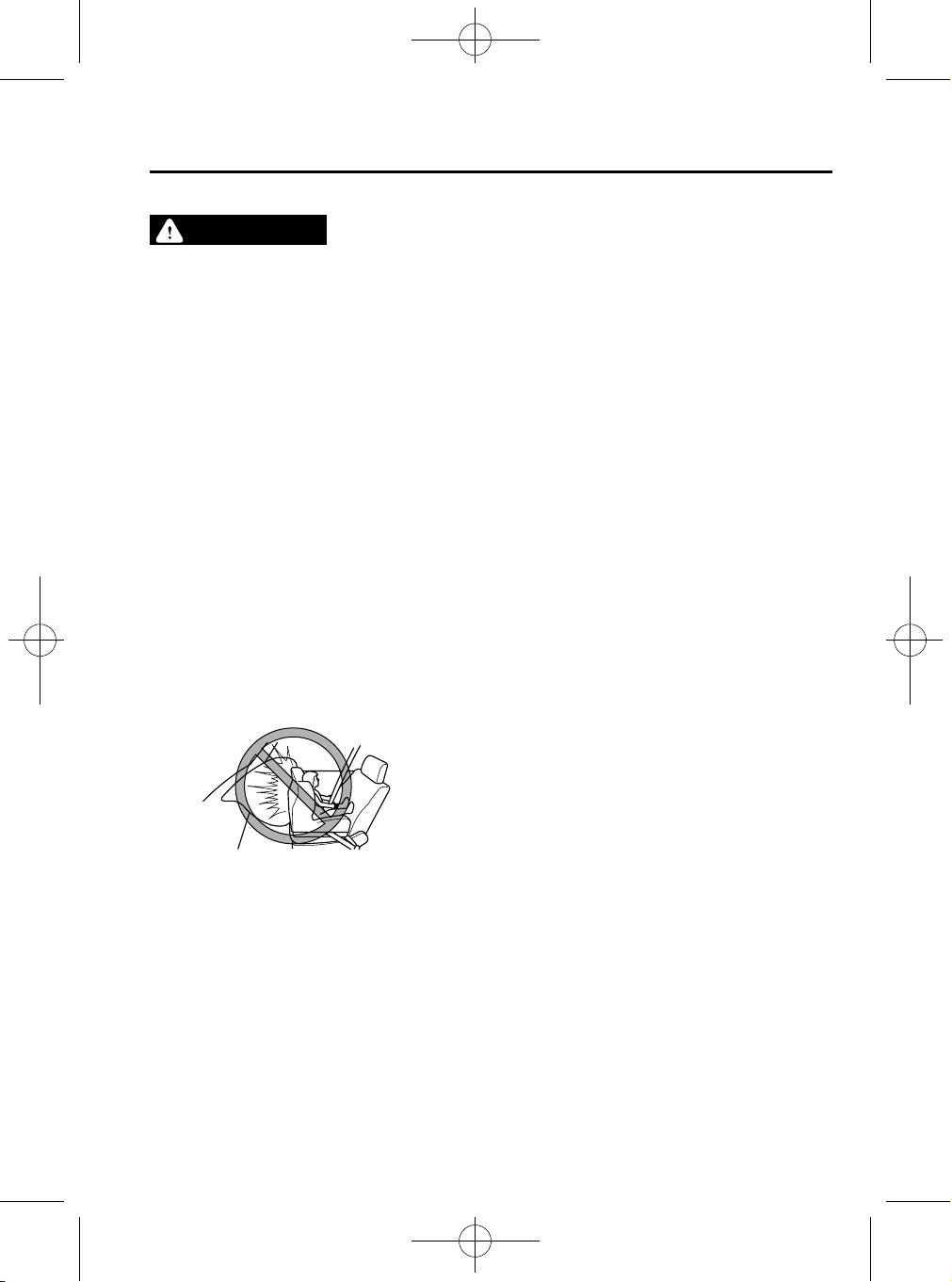

Never use a rear-facing child-restraint system in the front seat with an air bag that could deploy:

Do not sit too close to the driver and front passenger air bags:

Sitting too close to the driver and front passenger air bag modules or placing hands or feet on them is extremely dangerous. The driver and front passenger air bags inflate with great force and speed. Serious injuries could occur if someone is too close. The driver should always hold onto only the rim of the steering wheel. The front seat passenger should keep both feet on the floor. Front seat occupants should adjust their seats as far back as possible and always sit upright against the seatbacks with seat belts worn properly.

Form No.8AS7-EA-09E

2-45

CX-7_8AS7-EA-09E_Edition2 Page58 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (58,1)

SRS Air Bags

Sit in the center of the seat and wear seat bel ts properly:

Sitting too close to the side air bag modules or placing hands on them, or sleeping up against the door or hanging out the windows is extremely dangerous. The side and curtain air bags inflate with great force and speed directly expanding along the door on the side the car is hit. Serious injury could occur if someone is sitting too close to the door or leaning against a window, or if rear seat occupants grab the sides of the front seatbacks. Give the side and curtain air bags room to work by sitting in the center of the seat while the vehicle is moving with seat belts worn properly.

Do not attach objects on or around the area where driver and front passenger air bags deploy:

Attaching an object to the driver and front passenger air bag modules or placing something in front of them is dangerous. In an accident, an object could interfere with air bag inflation and injure the occupants.

Do not attach objects on or around the area where a side air bag deploys:

Attaching things to the front seat in such a way as to cover the outboard side of the seat in any way is dangerous. In an accident the object could interfere with the side air bag, which inflates from the outboard side of the front seats, impeding the added protection of the side air bag system or redirecting the air bag in a way that is dangerous. Furthermore, the bag could be cut open releasing the gas. Do not hang net bags, map pouches or backpacks with side straps on the front seats. Never use seat covers on the front seats. Always keep the side air bag modules in your front seats free to deploy in the event of a side collision.

Do not attach objects on or around the area where a curtain air bag deploys:

Attaching objects to the areas where the curtain air bag activates such as on the windshield glass, side door glass, front and rear window pillars and along the roof edge and assist grips is dangerous. In an accident the object could interfere with the curtain air bag, which inflates from the front and rear window pillars and along the roof edge, impeding the added protection of the curtain air bag system or redirecting the air bag in a way that is dangerous. Furthermore, the bag could be cut open releasing the gas. Do not place hangers or any other objects on the assist grips. When hanging clothes, hang them on the coat hook directly. Always keep the curtain air bag modules free to deploy in the event of a side collision or roll-over accident.

Do not place luggage or other objects under the front seats:

Placing luggage or other objects under the front seats is dangerous. The components essential to the supplemental restraint system could be damaged, and in the event of a side collisi on, the appropriate air bags may not deploy, which could result in death or serious injury. To prevent damage to the components essential to the supplemental restraint system, do not place luggage or other objects under the front seats.

2-46

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page59 Friday, June 5 2009 2:24 PM

Black plate (59,1)

Essential Safety Equipment

SRS Air Bags

Do not touch the components of the supplemental restraint system after the air bags have inflated:

Touching the components of the suppleme ntal restraint system after the air bags have inflated is dangerous. Immediately after inflation, they are very hot. You could get burned.

Never install any front-end equipment to your vehicle:

Installation of front-end equipment, such as fronta l protection bar (kangaroo bar, bull bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The air bag crash sensor system could be affected. This could cause air bags to inflate unexpectedly, or it could prevent the air bags from inflating during an accident. Front occupants could be seriously injured.

Do not modify the suspension:

Modifying the vehicle suspension is dangerous. If the vehicle's height or the suspension is modified, the vehicle will be unable to accurately detect a collision or roll-over accident resulting in incorrect or unexpected air bag deployment and the possibility of serious injuries.

Do not use tires or wheels other than those specified for your Mazda:

Use of any tire or wheel other than those specified for your Mazda (page 10-7) is dangerous. Use of such wheels will prevent the vehicle's accident detections system from accurately detecting a collis ion or roll-over accident resulting in incorrect or unexpected air bag deployment and the possibility of serious injuries.

Do not overload your vehicle:

Overloading your vehicle is dangerous as is could prevent the air bag crash sensor system from accurately detecting a collision or roll-over accident resulting in incorrect or unexpected air bag deployment and the possibility of serious injuries. The gross ax le weight rating (GAWR) and the gross vehicle weight rating (GVWR) for your vehicle are on the Mot or Vehicle Safety Standard Label on the driver door frame. Do not exceed these ratings.

Do not drive the vehicle off-road:

Driving your Mazda off-road is dangerous because the vehicle has not been designed to do such. Driving the vehicle off-road could prevent the air bag crash sensor system from accurately detecting a collis ion or roll-over accident resulting in incorrect or unexpected air bag deployment and the possibility of serious injuries.

Form No.8AS7-EA-09E

2-47

CX-7_8AS7-EA-09E_Edition2 Page60 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (60,1)

SRS Air Bags

Do not modify the supplemental restraint system:

Modifying the components or wiring of the supplemental restraint system is dangerous. You could ac cidentally activate it or make it inoperable. Do not make any modifications to the supplemental restraint system. This includes installing trim, badges, or anything else over the air bag modules. It also includes installing extra electrical equipment on or near system components or wiring. An Authorized Mazda Dealer can provide the specia l care needed in the removal and installation of front seats. It is important to protect the air bag wiring and connections to assure that the bags do not accidentally deploy, the driver seat slide position sensor and front passenger seat weight sensors are not damaged and that the seats retain an undamaged air bag connection.

NOTE

When an air bag deploys, a loud inflation noise can be heard and some smoke will be released. Neither is likely to cause injury, however, the texture of the air bags may cause light skin injuries on body parts not covered with clothing through friction.

Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.

2-48

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page61 Friday, June 5 2009 2:24 PM

Supplemental Restraint System Components

Black plate (61,1)

Essential Safety Equipment

SRS Air Bags

Driver/Front passenger dual stage inflators and air bags Crash and roll -over sensor, and diagnostic module (SAS unit) Front seat belt pretensioner and load limiting systems (page 2-22) Front air bag sensor Side crash sensors Air bag/front seat belt pretensioner system warning light (page 2-53) Side and curtain inflators and air bags Front passenger air bag deactivation indicator light (page 2-57) Front passenger seat weight sensors (page 2-57) Front passenger seat weight sensor control module Driver and front passenger seat belt buckle switches (page 2-61) Driver seat slide position sensor (page 2-57)

Form No.8AS7-EA-09E

2-49

CX-7_8AS7-EA-09E_Edition2 Page62 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (62,1)

SRS Air Bags

How the SRS Air Bags Work

Your Mazda is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident. The SRS air bags are designed to provide further protection for passengers in addition to the seat belt functions. Be sure to wear seat belts properly.

qFront Seat Belt Pretensioners

The front seat belt pretensioners are designed to deploy in moderate or severe frontal, near frontal collisions or roll-over accidents.

qDriver Air Bag

The driver's air bag is mounted in the steering wheels. When air bag crash sensors detect a frontal impact of greater than moderate force, the driver's air bag inflates quickly helping to reduce injury mainly to the driver's head or chest caused by directly hitting the steering wheel. The driver's dual-stage air bag controls air bag inflation in two energy stages. During an impact of moderate severity the driver's air bag deploys with lesser energy, whereas during more severe impacts, it deploys with more energy.

2-50

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page63 Friday, June 5 2009 2:24 PM

Black plate (63,1)

Essential Safety Equipment

SRS Air Bags

qFront Passenger Air Bag

The front passenger air bag is mounted in the front passenger dashboard. The inflation mechanism for the front passenger air bag is the same as the driver's air bag, as mentioned above. In addition, the front passenger air bag is designed to only deploy in accordance with the total seated weight on the front passenger seat. For details, refer to the driver and front passenger occupant classification system (page 2-57).

qSide Air Bags

The side air bags are mounted in the outboard sides of the front seatbacks. When the air bag crash sensors detect a side impact of greater than moderate force, the system inflates the side air bag only on the side in which the vehicle was hit. The side air bag inflates quickly to reduce injury to the driver or front passenger's chest caused by directly hitting interior parts such as a door or window. In addition, the front passenger side air bag is designed to only deploy in accordance with the total seated weight on the front passenger seat. For details, refer to the driver and front passenger occupant classification system (page 2-57).

2-51

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page64 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (64,1)

SRS Air Bags

qCurtain Air Bags

The curtain air bags are mounted in the front and rear window pillars, and the roof edge along both sides. When the air bag crash sensors detect a side impact of greater than moderate force, the curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard passenger's head caused by directly hitting interior parts such as a door or window.

In a side impact:

Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that side only to inflate.

The only one side of curtain air bag will deploy only on the side the vehicle receives the force of the impact.

In a roll-over:

In response to a vehicle roll-over, both curtain air bags inflate.

Both curtain air bags will deploy after the roll-over accident is detected.

2-52

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page65 Friday, June 5 2009 2:24 PM

Black plate (65,1)

Essential Safety Equipment

SRS Air Bags

qAir Bag/Front Seat Belt Pretensioner System Warning Light

If the air bag/front seat belt pretensioner system is working properly, the warning light illuminates when the ignition switch is turned to the ON position or after the engine is cranked. The war ning light turns off after a specified period of time.

WARNING

Never tamper with the air bag/ pretensioner systems and always have an Authorized Mazda Dealer perform all servicing and repairs:

Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could accidentally activate or become disabled causing serious injury or death.

qAir Bag/Front Seat Belt Pretensioner System Warning Beep

If a malfunction is detected in the air bag/front seat belt pretensioner systems and the warning light, a warning beep sound will be heard for about 5 seconds every minute.

The air bag and seat belt pretensioner system warning beep sound will continue to be heard for approximately 35 minutes. Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible.

WARNING

Do not drive the vehicle with the air bag/front seat belt pretensioner system warning beep sounding:

Driving the vehicle with the air bag/front seat belt pretensioner system warning beep sounding is dangerous. In a collision, the air bags and the front seat belt pretensioner system will not deploy and this could result in death or serious injury. Contact an Authorized Mazda Dealer to have the vehicle inspected as soon as possible.

Form No.8AS7-EA-09E

2-53

CX-7_8AS7-EA-09E_Edition2 Page66 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (66,1)

SRS Air Bags

SRS Air Bag Deployment Criteria

This chart indicates the applicable SRS equipment that will deploy depending on the type of collision. (The illustrations are the representative cases of collisions.)

Types of collision

A severe frontal/near frontal

collision

SRS

equipment

A severe side

collision

A roll-over/near

roll-over

A rear collision

Front seat

belt

pretensioner

Driver air

bag

Front

passenger air

bag

Side air bag

Curtain air

bag

X: The SRS air bag equipment is designed to deploy in a collision.

: The front passenger front and side air bags and the seat belt pretensioner are designed to

(both sides) X*1(both sides)

X*1(impact side only)

X (impact side only) X (both sides)

No air bag and front seat belt pretensioner will be activated in a rear collision.

deploy depending on the condition of the total seated weight on the front passenger seat.

2-54

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page67 Friday, June 5 2009 2:24 PM

Black plate (67,1)

Essential Safety Equipment

SRS Air Bags

Limitations to SRS Air Bag

In severe collisions or roll-overs such as those described previously in “SRS Air Bag Deployment Criteria”, the applicable SRS air bag equipment will deploy. However, in some accidents, the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:

The following illustrations are examples of front/near front collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Impacts involving trees or poles

Rear-ending or running under a truck's tail gate

Frontal offset impact to the vehicle

Limitations to side collision detection:

The following illustrations are examples of side collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Side impacts involving trees or poles

Side impacts with two-wheeled vehicles

Form No.8AS7-EA-09E

2-55

CX-7_8AS7-EA-09E_Edition2 Page68 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (68,1)

SRS Air Bags

Limitations to roll-over detection:

The following illustration is an example of an accident that may not be detected as a rollover accident. Therefore, the front seat belt pretensioners and curtain air bags may not deploy.

Pitch end over end

2-56

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page69 Friday, June 5 2009 2:24 PM

Black plate (69,1)

Essential Safety Equipment

SRS Air Bags

Driver and Front Passenger Occupant Classification System

First, please read “Supplemental Restraint System (SRS) Precautions” (page 2-44) carefully.

qDriver Seat Slide Position Sensor

Your vehicle is equipped with a driver seat slide position sensor as a part of the supplemental restraint system. The sensor is located under the driver seat. The sensor determines whether the driver seat is fore or aft of a reference position and sends the seat position to the diagnostic module (SAS unit). The SAS unit is designed to control the deployment of the driver air bag depending on how close the driver seat is to the steering wheel. The air bag/front seat belt pretensioner system warning light flashes if the sensor has a possible malfunction (page 2-53).

qFront Passenger Seat Weight Sensors

Your vehicle is equipped with a front passenger seat weight sensors as a part of the supplemental restraint system. These sensors are located under both of the front passenger seat rails. These sensors determine the total seated weight on the front passenger seat. The SAS unit is designed to prevent the front passenger front and side air bags and seat belt pretensioner system from deploying if the total seated weight is less than approximately 30 kg (66 lbs). To reduce the chance of injuries caused by deployment of the front passenger air bag, the system deactivates the front passenger front and side air bags and also the seat belt pretensioner system when:

There is no passenger in the front passenger seat. (The front passenger air bag deactivation indicator light does not illuminate.)

The total seated weight on the front passenger seat is less than approximately 30 kg (66 lbs). (The front passenger air bag deactivation indicator light illuminates.)

This system shuts off the front passenger front and side air bags and seat belt pretensioner system, so make sure the front passenger air bag deactivation indicator light illuminates according to the following table.

The air bag/front seat belt pretensioner system warning light flashes and the front passenger air bag deactivation indicator light illuminates if the sensors have a possible malfunction. If this happens, the front passenger front and side air bags and seat belt pretensioner system will not deploy.

Form No.8AS7-EA-09E

2-57

CX-7_8AS7-EA-09E_Edition2 Page70 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (70,1)

SRS Air Bags

Front passenger air bag deactivation indicator light

This indicator light illuminates to remind you that the front passenger front and side air bags and seat belt pretensioner will not deploy during a collision.

If the front passenger weight sensors are normal, the indicator light illuminates when the ignition switch is turned to the ON position. For a specified of time it goes out.

The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:

Total seated weight on the

front passenger seat

Empty (Not occupied)

Less than approx. 30 kg (66 lbs)

Approx. 42 kg (93 lbs) or more

* If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates,

however this does not indicate a malfunction.

The curtain air bag is ready for inflating despite the chart above.

Front passenger air bag

deactivation indicator light

Front passenger front and

side air bags

OFF Deactivated Deactivated

ON Deactivated Deactivated

OFF Ready Ready

Front passenger seat

belt pretensioner

system

If the front passenger air bag deactivation indicator light does not illuminate when the ignition switch is turned to the ON position and does not illuminate as indicated in the above chart, do not allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work properly in an accident.

2-58

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page71 Friday, June 5 2009 2:24 PM

WARNING

Do not decrease the total seated weight on the front passenger seat:

When an adult or large child sits on the front passenger seat, decreasing the total seated weight on the front passenger seat from the total seated weight of approximately 42 kg (93 lbs) required for air bag deployment is dangerous. The front passenger seat weight sensors will detect the reduced total seated weight condition and the front passenger front and side air bags and seat belt pretensioner system will not deploy during an accident. The front passenger will not have the supplementary protection of the air bag, which could result in serious injury. Decreasing the total seated weight on the front passenger seat from the total seated weight of approximately 42 kg (93 lbs) could result in an air bag not deploying under the following conditions, for example:

Ø A rear passenger pushes up on the front passenger seat with their feet. Ø Luggage or other items placed under the front passenger seat or between the

front passenger seat and driver seat that push up the front passenger seat bottom.

Ø The front passenger seat occupant sits in a manner that does not place the entire

weight of the occupant on the seat such as by sitting too close to the door, grasping the assist grip or the rim of the moonroof and sitting with the seatback reclined too far.

Ø Any accessories which might decrease the total seated weight on the front

passenger seat are attached to the front passenger seat. The front passenger front and side air bags and seat belt pretensioner systems will deactivate if the total seated weight on the front passenger seat is close to 30 kg (66 lbs) and they will reactivate before the weight exceeds 42 kg (93 lbs).

Black plate (71,1)

Essential Safety Equipment

SRS Air Bags

Form No.8AS7-EA-09E

2-59

CX-7_8AS7-EA-09E_Edition2 Page72 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (72,1)

SRS Air Bags

Do not increase the total seated weight on the front passenger seat:

When an infant or small child sits on the front passenger seat, increasing the total seated weight on the front passenger seat from the total seated weight of approximately 30 kg (66 lbs) is dangerous. The front passenger seat weight sensors will detect the increas ed total seated weight, which could result in the unexpected deployment of the front passenger front and side air bags and seat belt pretensioner system in an accident and may cause serious injury. Increasing the total seated weight on the front passenger seat beyond the total seated weight of approximately 30 kg (66 lbs) could result in the front passenger front and side air bags and seat belt pretensioner system deployment in an accident under the following conditions, for example: Ø Luggage or other items are placed on the seat with the child in the child-restraint

system.

Ø A rear passenger or luggage push or pull down on the front passenger seatback. Ø A rear passenger steps on the front passenger seat rails with their feet. Ø Luggage or other items are placed on the seatback or hung on the head restraint. Ø Heavy items are placed in the seatback map pocket. Ø The seat is washed. Ø Liquids are spilled on the seat. Ø The front passenger seat is moved backward, pushing into luggage or other items

placed behind it.

Ø The front passenger seatback contacts the rear seat. Ø Luggage or other items are placed between the front passenger seat and driver

seat.

Ø Any accessories which might increase the total seated weight on the front

CAUTION

Ø To assure proper deployment of the front air bag and to prevent damage to the

sensors in the front seat bottoms:

Do not place sharp objects on the front seat bottoms or leave heavy luggage on them.

Do not spill any liquids on the front seats or under the front seats.

Ø To allow the sensors to function properly, always perform the following:

Adjust the front seats as far back as possible and always sit upright against the seatbacks with seat belts worn properly.

If you place your child on the front passenger seat, secure the child-restraint system properly and slide the front passenger seat as far back as possible (page 2-38).

2-60

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page73 Friday, June 5 2009 2:24 PM

Black plate (73,1)

Essential Safety Equipment

SRS Air Bags

NOTE

The system requires about 10 seconds to alternate between turning the front passenger front and side air bags and seat belt pretensioner system on or off.

The front passenger air bag deactivation indicator light may illuminate repeatedly if luggage or other items are put on the front passenger seat, or if the temperature of the vehicle's interior changes suddenly.

The front passenger air bag deactivation indicator light may illuminate for 10 seconds if the total seated weight on the front passenger seat changes.

If the front passenger air bag deactivation indicator light does not illuminate after installing a child-restraint system on the front passenger seat, install the child-restraint system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.

qDriver and Front Passenger Buckle Switches

The buckle switches on the front seat belts detect whether or not the front seat belts are securely fastened and further control the deployment of the air bags.

Form No.8AS7-EA-09E

2-61

CX-7_8AS7-EA-09E_Edition2 Page74 Friday, June 5 2009 2:24 PM

Essential Safety Equipment

Black plate (74,1)

SRS Air Bags

Monitoring and Maintenance

qConstant Monitoring

The following components of the air bag systems are monitored by a diagnostic system:

Crash sensors, and diagnostic module (SAS unit)

Front air bag sensor

Air bag modules

Side crash sensors

Air bag/Front seat belt pretensioner system warning light

Front seat belt pretensioners

Front passenger air bag deactivation indicator light

Related wiring

Driver seat slide position sensor

Front passenger seat weight sensors

Front passenger seat weight sensor control module

The diagnostic module continuously monitors the system's readiness. This begins when the ignition switch is turned to the ON position and continues while the vehicle is being driven.

qMaintenance

The air bag systems do not require regular maintenance. But if any of the following occurs, take your vehicle to an Authorized Mazda Dealer as soon as possible:

The air bag system warning light flashes.

The air bag system warning light remains illuminated.

The air bag system warning light does not illuminate when the ignition switch is turned to the ON position.

The air bag system warning beep sound is heard.

The air bags have deployed.

Front passenger air bag deactivation indicator light does not illuminate when the ignition switch is turned to the ON position or does not illuminate as indicated in the chart. For more details about this indicator light and this chart, refer to “Front passenger seat weight sensors” (page 2-57).

2-62

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page75 Friday, June 5 2009 2:24 PM

Black plate (75,1)

Essential Safety Equipment

SRS Air Bags

WARNING

Do not operate a vehicle with damaged air bag/seat belt pretensioner system components:

Expended or damaged air bag/seat belt pretensioner system components must be replaced after any collision which caused them to deploy or damage them. Only a trained Authorized Mazda Dealer can fully evaluate these systems to see that they will work in any subsequent accident. Driving with an expended or damaged air bag or pretensioner unit will not afford you the necessary protection in the event of any subsequent accident which could result in serious injury or death.

Do not remove interior air bag parts:

Removing any components such as the front seats, front dashboard, the steering wheel or parts on the front and rear window pillars and along the roof edge, containing air bag parts or sensors is dangerous. These parts contain essential air bag components. The air bag could accidentally activate and cause serious injuries. Always have an Authorized Mazda Dealer remove these parts.

Dispose of the air bag properly:

Improper disposal of an air bag or a vehicle with live air bags in it can be extremely dangerous. Unless all sa fety procedures are followed, injury can result. Ask an Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air bag equipped vehicle.

NOTE

If it becomes necessary to have the components or wiring system for the supplementary restraint system modified to accommodate a person with certain medical conditions in accordance with a certified physician, contact an Authorized Mazda Dealer, refer to “Customer Assistance (U.S.A.)” (page 9-2).

Form No.8AS7-EA-09E

2-63

CX-7_8AS7-EA-09E_Edition2 Page76 Friday, June 5 2009 2:24 PM

Black plate (76,1)

2-64

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page77 Friday, June 5 2009 2:24 PM

Black plate (77,1)

Knowing Your Mazda

Explanation of basic operations and controls; opening/closing and adjustment of various parts.

Advanced Keyless Entry and Start System ................................ 3-2

Advanced Keys

Operation Using Advanced Keyless Functions ......................... 3-7

Operation Using Advanced Key Functions ............................. 3-14

Advanced Key Suspend Function ........................................... 3-18

Warning and Beep Sounds ...................................................... 3-19

Setting Change (Function Customization) .............................. 3-21

When Warning Indicator/Beep is Activated ............................ 3-22

Doors and Locks ......................................................................... 3-23

Keys (with Retractable Type Key) .......................................... 3-23

Keyless Entry System ............................................................. 3-24

Door Locks ............................................................................. 3-31

Liftgate .................................................................................... 3-36

Power Windows ............... ....................................................... 3-39

Fuel-Filler Lid and Cap ........................................................... 3-46

Hood ....................................................................................... 3-48

Moonroof

...................................................................... 3-2

............................................................................. 3-49

Security System ........................................................................... 3-52

Immobilizer System (with Advanced Key) ............................. 3-52

Immobilizer System (without Advanced Key) ........................ 3-56

Theft-Deterrent System

Steering Wheel and Mirrors ...................................................... 3-63

Steering Wheel ........................................................................ 3-63

Mirrors .................................................................................... 3-63

Form No.8AS7-EA-09E

........................................................ 3-60

Some models.

3-1

CX-7_8AS7-EA-09E_Edition2 Page78 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (78,1)

Advanced Keys

The advanced keyless functions (advanced keyless entry and start system) enables the following operations while the advanced key is being carried (page 3-7).

Locking/unlocking the doors and the liftgate without operating the key.

Starting the engine without operating the key. Additional functions are available using the buttons on the advanced key. Refer to Operation Using Advanced Key Functions on page 3-14.

The following operations are possible using the transmitter of the keyless entry system

from a distance (Lock/Unlock/Panic button):

Locking/unlocking the doors and the liftgate.

Opening the power windows and the moonroof.

Turning on the alarm.

Locking/unlocking the doors or starting the engine using the auxiliary key.

WARNING

Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them:

Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed. Children may find these new kinds of keys to be an interesting toy to play with and could cause the power windows or other controls to operate, or even make the vehicle move.

Radio waves from the advanced key may affect medical equipment such as pacemakers:

Before using the advanced key near people who use medical equipment, ask the medical equipment manufacturer or your physician if radio waves from the advanced key will affect the equipment.

NOTE

The driver must carry the advanced key to ensure the system functions properly.

Refer to Immobilizer System (page 3-52) for information regarding keys and engine starting.

(With theft-deterrent system)

Refer to Theft-Deterrent System (page 3-60) for information regarding keys and the prevention of

vehicle and vehicle contents theft.

3-2

Some models.

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page79 Friday, June 5 2009 2:24 PM

Black plate (79,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

Lock button

Operation indicator light

Unlock button

Panic button

Auxiliary key

Key code number plate

A code number is stamped on the plate attached to the key set; detach this plate and store it in a safe place (not in the vehicle) for use if you need to make a replacement key.

Also write down the code number and keep it in another safe and handy place, but not in the vehicle.

If your key is lost, consult your Authorized Mazda Dealer with the code number ready.

Form No.8AS7-EA-09E

3-3

CX-7_8AS7-EA-09E_Edition2 Page80 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Black plate (80,1)

Advanced Keyless Entry and Start System

CAUTION

Ø Because the advanced key uses low-intensity radio waves, it may not function

correctly under the following conditions:

The advanced key is carried with communication devices such as cellular phones.

The advanced key contacts or is covered by a metal object.

The advanced key is near electronic devices such as personal computers or cell phones.

Non-Mazda genuine electronic equipment is installed in the vehicle.

There is equipment which discharges radio waves near the vehicle.

If the vehicle is near equipment such as wireless pay devices installed at certain gas stations.

Ø The advanced key may consume battery power excessively if it receives high-

intensity radio waves. Do not place the advanced key near electronic devices such as televisions or personal computers.

Ø To avoid damage to the advanced key, DO NOT:

Drop the advanced key.

Get the advanced key wet.

Disassemble the advanced key.

Expose the advanced key to high temperatures on places such as the dashboard or hood, under direct sunlight.

Place heavy objects on the advanced key.

Put the advanced key in an ultrasonic cleaner.

Put any magnetized objects close to the advanced key.

NOTE

Battery life is about one year. Be sure to replace the battery as soon as you see the green KEY

indicator light in the instrument cluster begin flashing for 30 seconds after turning off the engine,

otherwise, you will not be able to start the engine using the advanced keyless start system once the

battery is completely dead Refer to KEY warning light (red) on page 5-54. If this occurs, you will

have to either force-start the engine or use the auxiliary key Refer to Advanced Key Battery Dead

Warning on page 3-20.

Additional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6 advanced keys

can be used with the advanced keyless functions per vehicle.

3-4

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page81 Friday, June 5 2009 2:24 PM

Black plate (81,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

qAdvanced Key Maintenance

CAUTION

Ø Make sure the battery is installed

with the correct pole facing upward. Battery leakage could occur if it is not installed correctly.

Ø When replacing the battery, be

careful not to bend the electrical terminals or get oil on them. Also be careful not to get dirt in the transmitter as it could be damaged.

Ø There is the danger of explosion if

the battery is not correctly replaced.

Ø Replace only with the same type

battery (CR2025 or equivalent).

Ø Dispose of used batteries

according to the following instructions.

Insulate the plus and minus terminals of the battery using cellophane or equivalent tape.

Never disassemble.

Never throw the battery into fire or water.

Never deform or crush.

Replacing the battery at an Authorized Mazda Dealer is recommend ed to prevent damage to the advanced key. If replacing the battery by yourself, follow the instruction below.

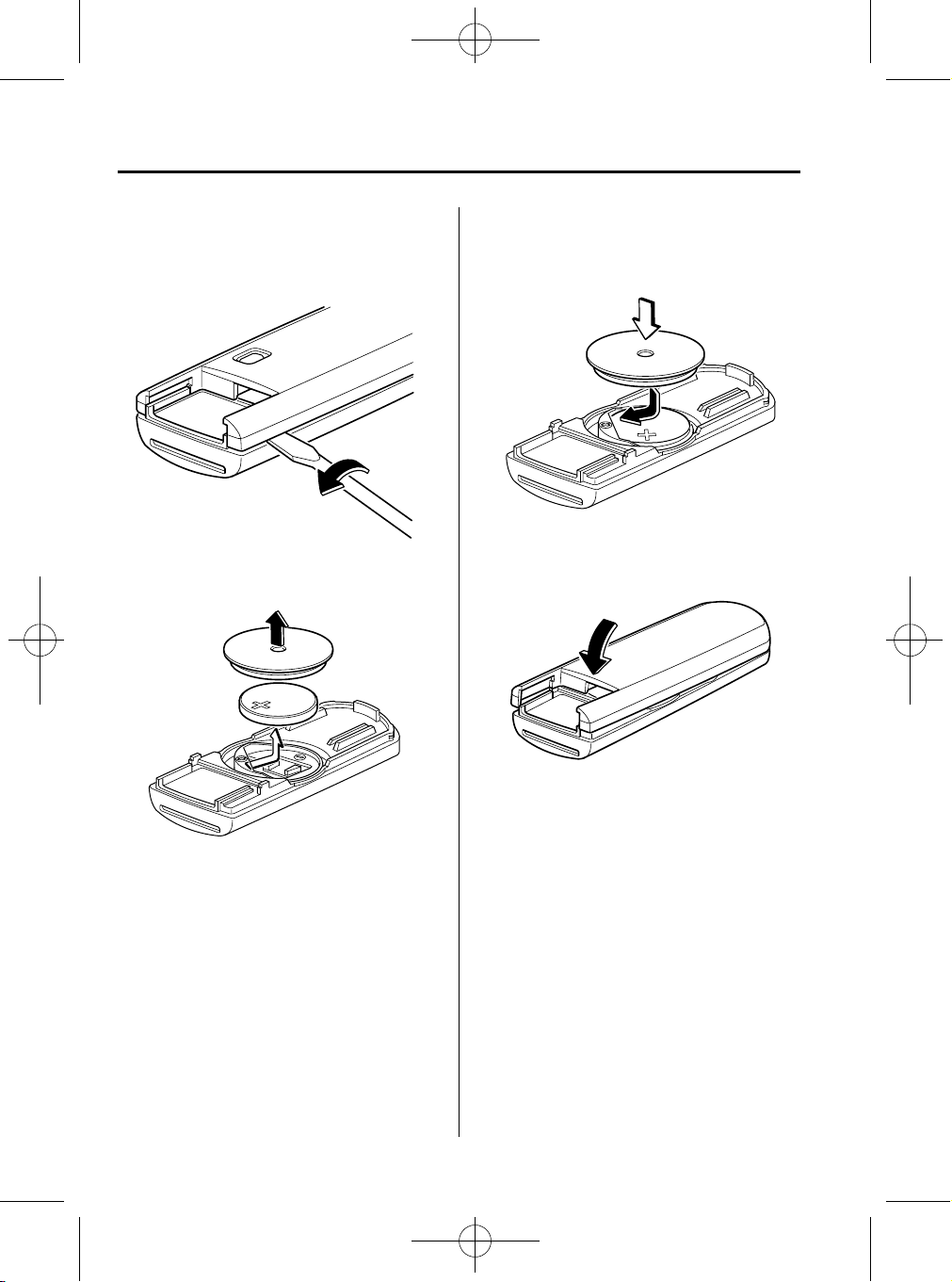

Replacing the advanced key battery

1. Pull out the auxiliary key.

2. Insert a flathead screwdriver into the groove shown in the figure and rotate the screwdriver to open the cover slightly.

The following conditions indicate that the battery power is low:

The KEY indicator light (green) flashes in the instrument cluster for about 30 seconds after the engine is turned off.

The system does not operate and the operation indicator light on the transmitter does not flash when the buttons are pressed.

The system's operational range is reduced.

Form No.8AS7-EA-09E

3-5

CX-7_8AS7-EA-09E_Edition2 Page82 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (82,1)

3. Insert the flathead screwdriver into the gap between the cover and the transmitter, and then rotate the screwdriver to detach the cover.

4. Remove the battery cap, then remove the battery.

5. Insert a new battery with the positive pole facing up, and then cover the battery with the battery cap.

6. Close the cover.

3-6

Form No.8AS7-EA-09E

7. Reinsert the auxiliary key.

CX-7_8AS7-EA-09E_Edition2 Page83 Friday, June 5 2009 2:24 PM

Black plate (83,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

CAUTION

Ø Be careful not to allow the rubber

ring shown in the figure to be scratched or damaged.

Ø If the rubber ring detaches,

reattach it before inserting a new battery.

Rubber ring

qService

If you have a problem with the advanced keyless functions, consult an Authorized Mazda Dealer.

If your advanced key is lost or stolen, bring all remaining advanced keys to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen advanced key inoperative.

Operation Using Advanced Keyless Functions

qOperational Range

The system operates only when the driver is in the vehicle or within operational range while the advanced key is being carried.

NOTE

When the battery power is low, or in places where there are high-intensity radio waves or noise, the operational range may become narrower or the system may not operate.

Locking, unlocking the doors and the liftgate

The operational range for locking/ unlocking the doors is an area of up to 80 cm (31 in) from the center of the front door handles. The operational range for locking/ unlocking the liftgate is an area of up to 80 cm (31 in) from the center of the liftgate.

Exterior transmitter

CAUTION

Radio equipment like this is governed by laws in the United States. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Form No.8AS7-EA-09E

Operational range

NOTE

The system may not operate if you are too close to the windows, door handles, or liftgate.

3-7

CX-7_8AS7-EA-09E_Edition2 Page84 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (84,1)

Starting the engine

The operational range for starting the engine includes nearly the entire cabin area except for the luggage compartment.

Interior transmitter

Operational range

NOTE

The luggage compartment is out of the operational range, however, starting the engine may be possible.

The engine may not start if the advanced key is placed in the following areas:

Around the dashboard

In the storage compartments such as the glove box

Starting the engine may be possible even if the advanced key is outside of the vehicle and extremely close to a door and window, however, always start the engine from the driver's seat. If the vehicle is started and driven away while the advanced key is not in the vehicle, the vehicle will not restart after it is turned off and the ignition switch is turned to the Lock position.

If the advanced key is detected within operational range, the operation indicator light on the transmitter flashes momentarily.

qLocking, Unlocking with Request

Switch

All doors and the liftgate can be locked/ unlocked by pressing the request switch on the front doors or the liftgate while the advanced key is being carried.

Front doors

Request switch

Liftgate

Request switch

To lock

To lock the doors and the liftgate, press the request switch. A beep sound will be heard once and the hazard warning lights will flash once.

3-8

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page85 Friday, June 5 2009 2:24 PM

Black plate (85,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

NOTE

(Without theft-deterrent system)

The hazard warning lights will flash once to indicate that the doors and the liftgate are locked.

(With theft-deterrent system)

The hazard warning lights only flash when the theft deterrent system is armed. The hazard warning lights do not flash if all the doors and the liftgate are locked before the theft-deterrent system is properly armed. Refer to the theft-deterrent system on page 3-60.

To unlock

Driver's door request switch

To unlock the driver's door, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice. To unlock all doors and the liftgate, press the request switch again within 3 seconds and two more beep sounds will be heard.

NOTE

(Without theft-deterrent system)

The hazard warning lights will flash twice to indicate that the doors and the liftgate are unlocked.

(With theft-deterrent system)

The hazard warning lights only flash when the theft deterrent system is turned off. The hazard warning lights do not flash unless the theft deterrent system has been properly turned off. Refer to the theft-deterrent system on page 3-60.

Front passenger door/liftgate request switch

To unlock the doors and the liftgate, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice.

NOTE

The request switch on the driver's door can be used to close the power windows and the moonroof. Refer to the following pages: Opening/Closing the Power Windows (page 3-43) Opening/Closing the Moonroof (page 3-50)

Confirm that all doors and the liftgate are securely locked.

All doors and the liftgate cannot be locked when any door or the liftgate is open.

A beep sound is heard for confirmation when the doors and the liftgate are locked/ unlocked using the request switch. If you prefer, the beep sound can be turned off (page 3-21).

The setting can be changed so that the doors and the liftgate are locked automatically without pressing the request switch (page 3-21).

(Auto-lock function)

A beep sound is heard when all doors and the liftgate are closed while the advanced key is being carried. All doors and the liftgate are locked automatically after about 3 seconds when the advanced key is out of the operational range. Also, the hazard warning lights flash once. (Even if the driver is in the operational range, all doors and the liftgate are locked automatically after about 30 seconds.) If you are out of the operational range before the doors and the liftgate are completely closed or another advanced key is left in the vehicle, the auto-lock function will not work. Always make sure that all doors and the liftgate are closed and locked before leaving the vehicle.

Form No.8AS7-EA-09E

3-9

CX-7_8AS7-EA-09E_Edition2 Page86 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

(Auto re-lock function)

After unlocking doors and the liftgate by pressing the request switch, all doors and the liftgate will automatically lock and the hazard warning light will flash if any of the following operations are not performed within about 30 seconds.

A door or the liftgate is opened.

The auxiliary key is inserted into the ignition switch.

The start knob is pushed.

qStarting the Engine

Ignition switch positions

As there is no a traditional key, some of the ignition switch funct ions are different.

Start knob

LOCK (Released)

The steering wheel locks to help protect against theft.

LOCK (Depressed)

The ignition switch can be turned to the ACC position when the KEY indicator light (green) illuminates in the instrument cluster.

WARNING

Before leaving the driver's seat, always put the key or start knob to LOCK position, set the parking brake and make sure the shift lever is in P:

It is important to place the key or start knob in the LOCK position even if you are not removing the key from the ignition or leaving the vehicle. Leaving the key in other positions will disable some of the vehicle security systems and run the battery down. Leaving the driver's seat without putting the ignition switch in LOCK position, setting the parking brake and shifting the shift lever to P is dangerous. Unexpected vehicle movement could occur. This could cause an accident.

Black plate (86,1)

3-10

Form No.8AS7-EA-09E

NOTE

If turning the ignition switch is difficult, jiggle the steering wheel from side to side.

The ignition switch cannot be turned from the ACC position to the LOCK position when the shift lever is not in P.

CX-7_8AS7-EA-09E_Edition2 Page87 Friday, June 5 2009 2:24 PM

Black plate (87,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

ACC (Accessory)

The steering wheel unlocks and some electrical accessories will operate.

NOTE

The Advanced Keyless Entry System does not function in the ACC position, and the doors will not lock/unlock using the transmitter or request switches even if the advanced key is carried away from the vehicle.

This is the normal running position after the engine is started. The warning lights (except brakes) should be inspected before the engine is started (page 5-43).

NOTE

When the ignition switch is turned to the ON position, the sound of the fuel pump motor operating near the fuel tank can be heard. This does not indicate an abnormality.

START

The engine is started in this position. It will crank until you release the start knob; then it returns to the ON position. The brake warning light can be checked after the engine is started (page 5-43).

Starting the engine

NOTE

Engine-starting is controlled by the spark ignition system. This system meets all Canadian Interference-Causing Equipment Standard requirements regulating the impulse electrical field strength of radio noise.

The advanced key must be carried because the advanced key carries an immobilizer chip that must communicate with the engine controls at short range.

When starting the engine, be sure the start knob is securely attached before trying to operate it. If the knob becomes detached from the ignition switch, re-attach it by pushing it on to the ignition switch.

Form No.8AS7-EA-09E

1. Make sure the advanced key is being carried.

2. Occupants should fasten their seat belts.

3. Make sure the parking brake is on.

4. Depress the brake pedal.

5. Put the vehicle in park (P). If you must restart the engine while the vehicle is moving, shift into neutral (N).

3-11

CX-7_8AS7-EA-09E_Edition2 Page88 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (88,1)

NOTE

The starter will not operate if the shift lever is not in P or N.

6. Push the start knob slowly all the way in.

7. Verify that the KEY indicator light (green) illuminates in the instrument cluster. The KEY warning light (red) means you cannot continue to start the engine using the Advanced Keyless System. You may have to use the auxiliary key instead (page 3-22).

NOTE

In the following cases, the KEY warning light (red) illuminates and the engine will not start.

The advanced key battery is dead.

The advanced key is out of operational range.

The advanced key is placed in areas where it is difficult for the system to detect the signal (page 3-7).

A key from another manufacturer similar to the advanced key is in the operational range.

8. Turn the ignition switch to the ACC position while pushing the start knob in.

3-12

Form No.8AS7-EA-09E

9. Turn the ignition switch from the ACC position to the START position and hold (up to 10 seconds at a time) until the engine starts.

CAUTION

Do not try the starter for more than 10 seconds at a time. If the engine stalls or fails to start, wait 10 seconds before trying again. Otherwise, you may damage the starter and drain the battery.

10. After starting the engine, let it idle for

about 10 seconds.

CX-7_8AS7-EA-09E_Edition2 Page89 Friday, June 5 2009 2:24 PM

Black plate (89,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

NOTE

In extremely cold weather or after the vehicle has not been driven in several days, let the engine warm up without operating the accelerator.

Whether the engine is cold or warm, it should be started without use of the accelerator.

If the engine does not start the first time, refer to Starting a Flooded Engine under Emergency Starting. If the engine still does not start, have your vehicle inspected by an Authorized Mazda Dealer (page 7-13).

Turning off the engine

1. Move the shift lever to the P position.

2. Turn the ignition switch from the ON position to the ACC position.

NOTE

When the engine is turned off and the ignition switch it turned from the ACC position to the LOCK position, the KEY indicator light (green) flashes in the instrument cluster for about 30 seconds if the battery power of the advanced key is low. Replace the battery with a new one. Refer to Battery Replacement (page 3-7).

NOTE

When turning the ignition switch to the LOCK position, the ignition switch has to be pushed in from the ACC position and turned. Without being pushed in, the ignition switch stops at the ACC position and the vehicle battery may be discharged if the ignition switch is left in the ACC position. When leaving the vehicle, make sure the ignition switch is turned to the LOCK position.

If the vehicle is left with the ignition switch not in the LOCK position, a beep sound is heard and the indicator light flashes to notify the driver. Refer to Warning Beep (page 3-19).

3. Push in the start knob from the ACC position and turn it to the LOCK position.

CAUTION

When leaving the vehicle, make sure the ignition switch is turned to the LOCK position.

Form No.8AS7-EA-09E

3-13

CX-7_8AS7-EA-09E_Edition2 Page90 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (90,1)

Operation Using Advanced Key Functions

qKeyless Entry System

This system uses the more traditional keyless entry buttons to remotely lock and unlock the doors and the liftgate, and opens the power windows, and opens the power windows and the moonroof. It can also help you signal for attention. Press the buttons slowly and carefully.

NOTE

The keyless entry system is designed to operate up to about 2.5 m (8 ft) from the center of the vehicle, but this may vary due to local conditions.

The system does not operate when the auxiliary key is in the ignition switch.

With the start knob installed in the LOCK position, the system is fully operational. If the ignition switch is not in the LOCK position or the start knob is pushed in, the system does not operate.

All doors and the liftgate cannot be locked by pressing the lock button while any door or the liftgate is open. The hazard warning lights will also not flash.

If the transmitter does not operate when pressing a button or the operational range becomes too small, the battery may be dead. To install a new battery, refer to Maintenance (page 3-5).

Transmitter

Lock button

Operation indicator light

Unlock button

Panic button

NOTE

The unlock button can be used to open the power windows and the moonroof, but the lock button cannot be used to close the power windows and the moonroof. Refer to the following pages: Opening/Closing the Power Windows (page 3-43) Opening/Closing the Moonroof (page 3-50)

The operation indicator light flashes when the buttons are pressed.

Lock button

To lock the doors and the liftgate, press the lock button. A beep sound will be heard once and the hazard warning lights will flash once.

To confirm that all doors and the liftgate have been locked, press the lock button again within 5 seconds. If they are closed and locked, the horn will sound.

3-14

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page91 Friday, June 5 2009 2:24 PM

Black plate (91,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

NOTE

(Without theft-deterrent system)

The hazard warning lights will flash once to indicate that all doors and the liftgate are locked.

(With theft-deterrent system)

The hazard warning lights flash when the theft deterrent system is armed. The hazard warning lights do not flash if all the doors and the liftgate are locked before the theft-deterrent system is properly armed. When the doors are locked by pressing the lock button on the transmitter while the theftdeterrent system is armed, the hazard warning lights will flash once to indicate that the system is armed. Refer to the theft-deterrent system on page 3-60.

NOTE

All doors and the liftgate cannot be locked when any door or the liftgate is open.

Confirm that all doors and the liftgate are locked visually or audibly by use of the double click.

Unlock button

To unlock the driver's door, press the unlock button. A beep will be heard twice and the hazard warning lights will flash twice.

NOTE

(Without theft-deterrent system)

The hazard warning lights will flash twice to indicate that all doors and the liftgate are unlocked.

(With theft-deterrent system)

The hazard warning lights flash when the theft deterrent system is turned off. The hazard warning lights do not flash unless the theft deterrent system has been properly turned off. When the doors are unlocked by pressing the unlock button on the transmitter while the theft-deterrent system is turned off, the hazard warning lights will flash twice to indicate that the system is turned off. Refer to the theft-deterrent system on page 3-60.

NOTE

(Auto re-lock function)

After unlocking with the transmitter, All doors and the liftgate will automatically lock if any of the following operations are not performed within about 30 seconds. If your vehicle has a theft-deterrent system, the hazard warning lights will flash for confirmation.

A door or the liftgate is opened.

The auxiliary key is inserted into the ignition switch.

The start knob is pressed.

To unlock all doors and the liftgate, press the unlock button again within 3 seconds and two more beep sounds will be heard.

Form No.8AS7-EA-09E

Panic button

If you witness from a distance someone attempting to break into or damage your vehicle, pressing the panic button will activate the vehicle's alarm.

NOTE

The panic button will work whether any door or the liftgate is open or closed.

3-15

CX-7_8AS7-EA-09E_Edition2 Page92 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

(Turning on the alarm)

Pressing the panic button for 1 second or more will trigger the alarm for about 2 minutes and 30 seconds, and the following will occur:

The horn sounds intermittently.

The hazard warning lights flash.

NOTE

However, if the driver is too close to the vehicle the panic button may not function.

(Turning off the alarm)

The alarm stops by pressing any button on the transmitter.

Black plate (92,1)

3-16

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page93 Friday, June 5 2009 2:24 PM

Declaration of Conformity

Keyless entry system

Black plate (93,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

Form No.8AS7-EA-09E

3-17

CX-7_8AS7-EA-09E_Edition2 Page94 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

Black plate (94,1)

qAuxiliary Key Function

Use the auxiliary key stored in the advanced key in the event of a dead transmitter battery or malfunction.

Removing the auxiliary key

Pull out the auxiliary key from the advanced key.

Locking, unlocking the doors

The doors can be locked/unlocked using the auxiliary key, refer to Locking, Unlocking with Key (page 3-31).

Starting the engine

The engine can be started with the auxiliary key, refer to Ignition Switch (page 5-2).

Advanced Key Suspend Function

If one advanced key is left in the vehicle and a second advanced key is used to lock it, the functions of the advanced key left in the vehicle is temporarily suspended to prevent theft of the vehicle. The following are inoperable:

Starting the engine using the start knob.

Operating the request switches. To restore these functions, perform any one of the following:

Press the lock or unlock button on the

advanced key which has had its

functions temporarily suspended.

While carrying another advanced key,

push in the start knob until the KEY

indicator light (green) illuminates.

Insert the auxiliary key and turn the

ignition switch to the ON position.

3-18

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page95 Friday, June 5 2009 2:24 PM

Black plate (95,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

Warning and Beep Sounds

System Malfunction Warning Light

If any malfunct ion occurs in the advanced keyless function, the KEY warning light (red) in the instrument cluster illuminates continuously.

CAUTION

If the KEY warning light (red) remains illuminated, do not continue to drive the vehicle with the advanced keyless function. Park the vehicle in a safe place and use the auxiliary key to continue driving the vehicle. Have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. Refer to Ignition Switch (page 5-2).

qStart Knob Not in LOCK

Warning Beep

If the start knob is in the ACC position and the driver's door is opened, a continuous beep sound will be heard to notify the driver that the start knob has not been returned to the LOCK position. In this case, the keyless entry system does not operate, the car cannot be locked, and the battery will run down.

qAdvanced Key Removed from

Vehicle Warning Beep

Under the following conditions, a beep sound will be heard and the KEY warning light (red) will flash continuously when the start knob has not been returned to the LOCK position to notify the driver that the advanced key has been removed. The KEY warning light (red) will stop flashing when the advanced key is back inside the vehicle:

The start knob has not been returned to the LOCK position, the driver's door is open, and the advanced key is removed from the vehicle. (A beep sound will be heard three times.) However the beep sound will be heard continuously when the start knob is in the ACC position and the door is open due to the activation of the warning beep sound indicating that the start knob is not in the LOCK position.

The start knob has not been returned to the LOCK position and all the doors are closed after removing the advanced key from the vehicle. (A beep sound will be heard six times.)

NOTE

Because the advanced key utilizes low-intensity radio waves, the Advanced Key Removed From Vehicle Warning may activate if the advanced key is carried together with a metal object or it is placed in a poor signal reception area within the vehicle.

Form No.8AS7-EA-09E

3-19

CX-7_8AS7-EA-09E_Edition2 Page96 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Advanced Keyless Entry and Start System

qRequest Switch Inoperable

Warning Beep

If the request switch for a front door or the liftgate is pressed under the following conditions while the advanced key is being carried, a beep will be heard 6 times to indicate that the front doors and the liftgate cannot be locked.

A door or the liftgate is open (door ajar included).

The start knob has not been returned to the LOCK position.

The auxiliary key is inserted into the ignition switch.

qAdvanced Key Battery Dead

Warning

When the start knob is returned to the ACC or LOCK position from the ON position, the KEY indicator light (green) flashes for approximately 30 seconds indicating that the remaining battery power is low. Replace with a new battery before the advanced key becomes unusable. Refer to Advanced Key Maintenance (page 3-5).

NOTE

The advanced key can be set so that the KEY indicator light (green) does not flash even if the battery power is low. Refer to Setting Change (page 3-21).

The advanced key is not within

operational range.

The advanced key is placed in areas

where it is difficult for the system to

detect the signa l (page 3-7).

A key from another manufacturer

similar to the advanced key is in the

operational range.

qAdvanced Key Left-in-vehicle

Warning Beep

If an advanced key is left in the vehicle cabin and all the doors and the liftgate are locked using a separate advanced key, a beep sound is heard for about 10 seconds to remind the driver that the advanced key has been left in the vehicle cabin. If this happens, the doors and the liftgate lock but the functions of the advanced key left in the vehicle cabin may be temporarily suspended. Perform the following procedure to restore the functions of the advanced key (page 3-18).

Black plate (96,1)

Engine Start Not Permitted Warning

Under the following conditions, the KEY warning light (red) flashes to inform the driver that the start knob will not rotate to the ACC position even if it is pushed in from the LOCK position.

The advanced key battery is dead.

3-20

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page97 Friday, June 5 2009 2:24 PM

Black plate (97,1)

Knowing Your Mazda

Advanced Keyless Entry and Start System

Setting Change (Function Customization)

The following function settings are possible. These settings can only be changed by an Authorized Mazda Dealer.

Setting Function At Initial Setting

Advanced key battery dead indicator

Lock/unlock operation confirmation beep

sound

Autolock function

*1: When the autolock function is operating, the warning sound will be heard regardless of the setting. *2: When the autolock function is enabled, windows will not automatically close. You must close them before

leaving vehicle.

KEY indicator light (green) flashes to indicate that the advanced key battery power is low.

A beep sound is heard to confirm that all doors or the liftgate have been locked/unlocked. Activated Deactivated

When all doors and the liftgate are closed and the advanced key is being carried and out of operational range, all the doors and the liftgate

automatically lock after 3 seconds. (Even if the driver is in the operational range, all doors and the liftgate are locked automatically after about 30 seconds.)

Activated Deactivated

Deactivated Activated

After Setting

Change

Form No.8AS7-EA-09E

3-21

CX-7_8AS7-EA-09E_Edition2 Page98 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Black plate (98,1)

Advanced Keyless Entry and Start System

When Warning Indicator/Beep is Activated

Under the following conditions, warning beeps are heard and a warning/indicator light in the instrument cluster illuminates to noti fy the driver of improper operation of the advanced key to prevent theft of the vehicle (page 3-19).

Warning How to check

When a door is open, a continuous beep sound will be heard.

When a door is open, three beep sounds are heard, and the KEY warning light (red) in the instrument cluster flashes.

When a door is closed, a beep sound is heard six times, and the KEY warning light (red) in the instrument cluster flashes.

When locking the doors, the chime sounds for about ten seconds.

When attempting to lock the doors by pressing the request switch on the front doors, and six beep sounds are heard.

When the KEY indicator light (green) flashes in the instrument cluster.

When the KEY warning light (red) remains illuminated in the instrument cluster.

Check whether the start knob has been returned to the LOCK position.

Check whether the advanced key has been removed from the vehicle.

Check whether the advanced key has been left in the vehicle.

Check whether the start knob has been returned to the LOCK position.

Check whether a door or the liftgate is open.

The advanced key battery power is low. Replace the battery with a new one. Refer to Advanced Key Maintenance on page 3-5.

The advanced key is malfunctioning. Park the vehicle in a safe place, and use the auxiliary key to continue driving the vehicle. Have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.

3-22

Form No.8AS7-EA-09E

CX-7_8AS7-EA-09E_Edition2 Page99 Friday, June 5 2009 2:24 PM

Black plate (99,1)

Knowing Your Mazda

Doors and Locks

Keys (with Retractable Type Key)

WARNING

Do not leave the key in your vehicle with children and keep them in a place where your child ren will not find or play with them:

Leaving children in a vehicle with the key is danger ous. This could result in someone being badly injured or even killed. Children may find these new kinds of keys to be an interesting toy to play with and could cause the power windows or other controls to operate, or even make the vehicle move.

NOTE

Refer to Immobilizer System (page 3-56) for information regarding keys and engine starting.

(With theft-deterrent system)

Refer to Theft-Deterrent System (page 3-60) for information regarding keys and the prevention of vehicle and vehicle contents theft.

A code number is stamped on the plate attached to the key set; detach this plate and store it in a safe place (not in the vehicle) for use if you need to make a replacement key.

NOTE

Write down the code number and keep it in a separate, safe and convenient place, but not in the vehicle. If your key is lost, consult your Authorized Mazda Dealer and have your code number ready.

Some types of key chains cannot be attached to the retractable type key. In this case, use the key ring provided with the transmitter which has the key code number plate attached.

Key ring

The keys operate all locks.

Retractable type key

Key code number plate

Form No.8AS7-EA-09E

3-23

CX-7_8AS7-EA-09E_Edition2 Page100 Friday, June 5 2009 2:24 PM

Knowing Your Mazda

Doors and Locks

Black plate (100,1)

Key extend/retract method (Retractable type key)

To extend the key, press the release button.

To retract the key, rotate it into the holder while pressing the release button.

Keyless Entry System

This system remotely locks and unlocks the doors and the liftgate, and opens the power windows and the moonroof. It can also help you signal for attention. Press the buttons slowly and carefully.

CAUTION

To avoid damage to the transmitter, do not:

Ø Drop the transmitter. Ø Get the transmitter wet. Ø Disassemble the transmitter. Ø Expose the transmitter to any kind

of magnetic field.

Ø Expose the transmitter to high

temperatures on places such as the dashboard or hood, under direct sunlight.

3-24

Form No.8AS7-EA-09E
