Mazda 5 2009 User Manual

A Word to Mazda Owners

Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete customer satisfaction in mind.

To help ensure enjoyable and trouble-free operation of your Mazda, read this manual carefully and follow its recommendations.

An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is necessary, that's the place to go.

Our nationwide network of Mazda professionals is dedicated to providing you with the best possible service.

We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure and in your full satisfaction with your Mazda product.

Mazda Motor Corporation

HIROSHIMA, JAPAN

Important Notes About This Manual

Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.

All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.

Event Data Recorder

This vehicle is equipped with an event data recorder. In the event of a crash, this device records data related to vehicle dynamics and safety systems for a short period of time. These data can help provide a better understanding of the circumstances in which crashes and injuries occur and lead to the designing of safer vehicles.

Air Conditioning and the Environment

Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda Dealer.

Perchlorate

Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries, ...] may contain Perchlorate Material– Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Please be aware that this manual applies to all models, equipment and options. As a result, you may find some explanations for equipment not installed on your vehicle.

Printed in Japan June 2008(Print1)

How to Use This Manual

We want to help you get the most driving pleasure from your vehicle. Your owner's manual, when read from cover to cover, can do that in many ways.

Illustrations complement the words of the manual to best explain how to enjoy your Mazda. By reading your manual, you can find out about the features, important safety information, and driving under various road conditions.

The symbol below in this manual means “Do not do this” or “Do not let this happen”.

Index: A good place to start is the Index, an alphabetical listing of all information in your manual.

NOTE

A NOTE provides information and sometimes suggests how to make better use of your vehicle.

The symbol below, located on some parts of the vehicle, indicates that this manual contains information related to the part. Please refer to the manual for a detailed explanation.

You'll find several WARNINGs, CAUTIONs, and NOTEs in the manual.

WARNING

A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.

CAUTION

A CAUTION indicates a situation in which bodily injury or damage to your vehicle, or both, could result if the caution is ignored.

Your Vehicle at a Glance

Interior, exterior views and part identification of your Mazda.

Essential Safety Equipment

Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Knowing Your Mazda

Explanation of basic operations and controls; opening/closing and adjustment of various parts.

Before Driving Your Mazda

Important information about driving your Mazda.

Driving Your Mazda

Explanation of instruments and controls.

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio system.

In Case of an Emergency

Helpful information on what to do in an emergency.

Maintenance and Care

How to keep your Mazda in top condition.

Customer Information

Important consumer information including warranties and add-on equipment.

Specifications

Technical information about your Mazda.

Index

Your Vehicle at a Glance

Interior, exterior views and part identification of your Mazda.

Dashboard and Interior Overview .............................................. 1-2

Exterior Overview ......................................................................... 1-4

1-1

Your Vehicle at a Glance

Dashboard and Interior Overview

1-2

The equipment and installation position varies by vehicle

Your Vehicle at a Glance

Dashboard and Interior Overview

Power window switches .................................................................................... page 3-14

Lighting control ................................................................................................. page 5-45

Turn and lane-change signals ............................................................................ page 5-48

Instrument cluster .............................................................................................. page 5-28

Air bags ............................................................................................................. page 2-38

Wiper and washer lever ..................................................................................... page 5-49

Hazard warning flasher switch .......................................................................... page 5-55

Information display ............................................................................................ page 6-66

Audio system ..................................................................................................... page 6-18

Climate control system ........................................... ............................................. page 6-2

Glove box .............................................................. ............................................ page 6-71

Rear ventilation system ..................................................................................... page 6-17

Cup holder ......................................................................................................... page 6-68

Parking brake ....................................................................................................... page 5-6

MT shift lever ...................................................................................................... page 5-9

AT shift lever (Sport AT) ................................................................................... page 5-11

Ignition switch ..................................................................................................... page 5-2

Steering column release lever ............................................................................ page 3-26

Hood release handle .......................................................................................... page 3-17

Outside mirror switch ........................................................................................ page 3-26

Power window lock switch ................................................................................ page 3-15

Interior light ....................................................................................................... page 6-64

Seat belts ............................................................................................................ page 2-14

Sunvisor ............................................................................................................. page 6-64

Map light ........................................................................................................... page 6-65

Rearview mirror .............................. ................................................................... page 3-27

Vanity mirror ...................................................................................................... page 6-64

Front seats ............................................................................................................ page 2-2

Second-row seat ................................................................................................... page 2-5

Third-row seat ..................................................................................................... page 2-9

Navigation system (if equipp ed) .......................................... Refer to the separate manual

1-3The equipment and installation position varies by vehicle

Your Vehicle at a Glance

Exterior Overview

1-4

The equipment and installation position varies by vehicle

Your Vehicle at a Glance

Exterior Overview

Rear window defroster ....................................................................................... page 5-54

Rear wiper blade ................................................................................................ page 8-27

Light bulbs ......................................................................................................... page 8-35

Liftgate .............................................................................................................. page 3-12

Antenna ............................................................................................................. page 6-18

Fuel-filler lid ...................................................................................................... page 3-16

Sliding doors ........................................................................................................ page 3-9

Power windows ................................................................................................. page 3-14

Outside mirror .................................................................................................... page 3-26

Child safety locks ............................................. ................................................. page 3-11

Tires ................................................................................................................... page 8-31

Hood .................................................................................................................. page 3-17

Windshield wiper blades .................................................................................... page 8-26

Moonroof ........................................................................................................... page 3-19

Doors and keys .................................................................................................... page 3-7

1-5The equipment and installation position varies by vehicle

1-6

Essential Safety Equipment

Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Seats ............................................................................................... 2-2

Front Seats ................................................................................ 2-2

Second-Row Seats .................................................................... 2-5

Third-Row Seat ......................................................................... 2-9

Head Restraints ....................................................................... 2-11

Seat Warmer

Seat Belt Systems ........................................................................ 2-14

Seat Belt Precautions .............................................................. 2-14

Seat Belt .................................................................................. 2-18

Front Seat Belt Pretensione r and Load Limiting Systems ....... 2-20

Seat Belt Extender ................................................................... 2-22

Seat Belt Warning Light/Beep ................................................ 2-23

Child Restraint ............................................................................ 2-25

Child Restraint Precautions ..................................................... 2-25

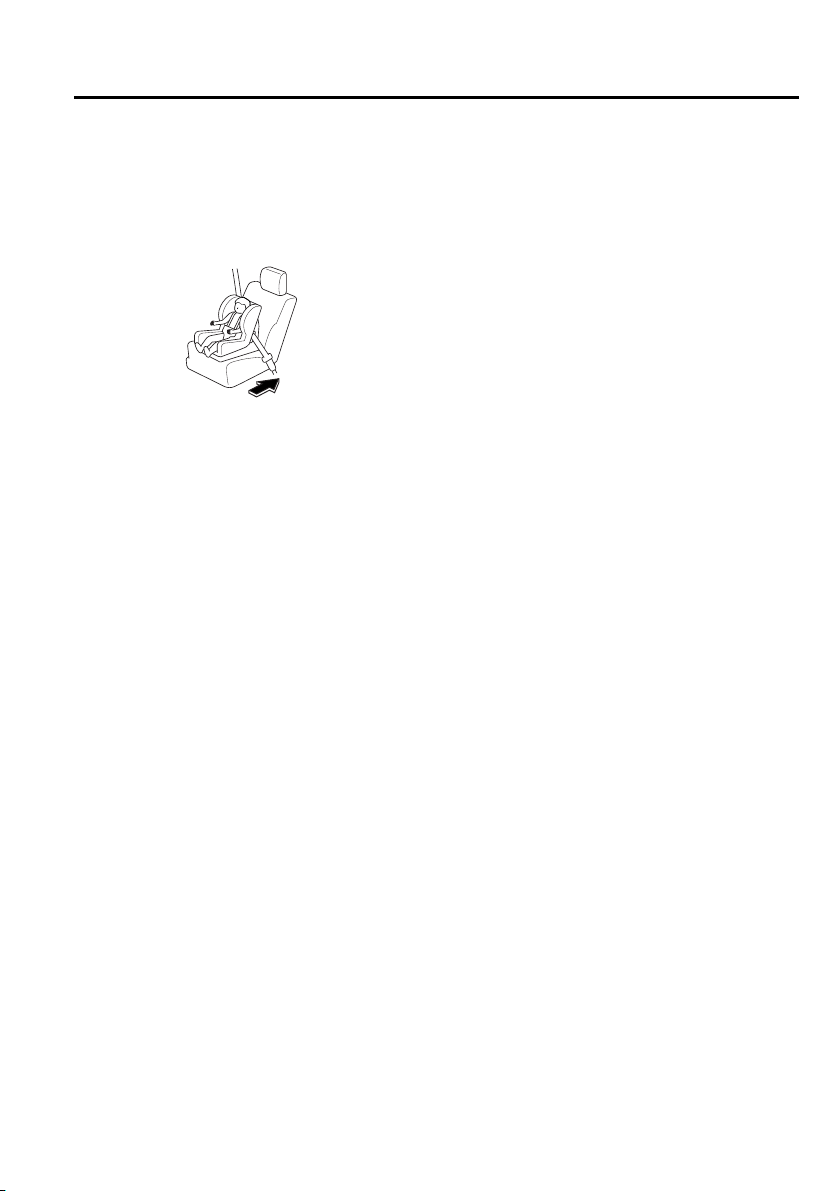

Installing Child-Restraint Systems .......................................... 2-29

LATCH Child-Restraint Systems ............................................ 2-35

......................................................................... 2-12

SRS Air Bags ............................................................................... 2-38

Supplemental Restraint Systems (SRS) Precautions ............... 2-38

Supplemental Restraint System Components ......................... 2-42

How the Air Bags Work .......................................................... 2-44

Some models.

2-1

Essential Safety Equipment

Seats

Front Seats

WARNING

Do not modify or replace the front seats:

Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts is dangerous. The front seats contain air bag components essential to the supplemental restraint system. Such modifications could damage the supplemental restraint system and result in serious injur y. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats.

Do not drive with damaged front seats:

Driving with damaged front seats is dangerous. A collision, even on e not strong enough to inflate the air bags, could damage the front seats which contain essential air bag components. If there was a subsequent collision, an air bag may not deploy which could lead to injuries. Always have an Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags after a collision.

qSeat Slide

WARNING

Adjust the drive r's seat only when the vehicle is stopped:

Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose control of the vehicle and have an accident.

To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever.

Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

Make sure the adjustable components of a seat are locked in place:

Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury. Make su re the adjustable components of the seat are locked in place by attempting to slide the seat forward and backward and rocking the seatback.

2-2

Essential Safety Equipment

Seats

qSeat Recline

WARNING

Do not drive with either front seat reclined:

Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from seat belts. Du ring sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries. For maximum protection, sit well back and upright.

Always sit in the passenger seat properly with the seatback upright and feet on the floor:

Your front passenger seat has weight sensors, sitting in the front passenger seat improperly out of position or with the seatback reclined too far while the vehicle is moving is dangerous as it can take off weight from the seat bottom and affect the weight determination of the front passenger sensing system. As a result the front passenger will not have the supplementary protection of the air bag and seat belt pretensioner, which could result in serious injury. Always sit upright against the seatback with your feet on the floor.

Do not drive with the seatback unlocked:

All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After adjusting the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.

To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever.

Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

2-3

Essential Safety Equipment

Seats

CAUTION

When returning a rear-reclined seatback to its uprigh t position, make sure you hold onto the seatback with your other hand while operating the lever. If the seatback is not supported, it will flip forward suddenly and could cause injury.

Height Adjustment (Driver's Seat)

By moving the seat lever up or down, the driver's seat bottom height can be adjusted.

Down

qArmrest

The armrest can be used or placed upright.

WARNING

Never position the shoulder portion of a front seat belt over the armrest:

Positioning the shoulder portion of a front seat belt over the armrest is dangerous as it cannot provide adequate protection in a collision and could result in serious injuries.

qLumbar Support Adjustment

(Driver's Seat)

Move the lever forwards to adjust the lumbar support as required.

2-4

Essential Safety Equipment

Seats

Second-Row Seats

WARNING

Do not stack cargo higher than the seatbacks:

Stacking luggage or other cargo higher than the seatbacks is dangerous. During a sudden stop or collision, objects can fly around and become projectiles that could hit and injure passengers.

Make sure luggage and cargo is secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.

Make sure the adjustable components of a seat are locked in place by attempting to slide the seat forward and backward and rocking the seatback:

Adjustable seats that are not securely latched are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury.

Adjust the seat only when the vehicle is stopped:

Adjusting the seat while the vehicle is moving is dangerous. Sudden braking or a collision could cause serious injury.

Do not drive with the seatback unlocked:

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:

Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or even a minor collision, a ch ild not in a proper seat or child-restraint system and seat belt could be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The child in the baggage area could be thrown into other occupants and cause serious injury.

NOTE

The second-row seats cannot be removed.

When returning a second-row seat to its original position, also replace the seat belt to its normal position. Verify that the seat belt pulls out and retracts.

2-5

Essential Safety Equipment

Seats

qSeat Slide

To move the seat forward or backward, raise the lever and slide the seat to the desired position and release the lever.

Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

qSeat Recline

WARNING

Do not drive with the seats reclined:

Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from the seat belts. During sudden braking or a collision, you can slide under the lap belt and suffer serious internal injuries. For maximum protection, sit well back and upright.

Do not recline a second-row seatback when the third row seat is occupied:

Reclining the second-row seatback when the third-row seat is occupied is dangerous.Because the clearance in the third-row seat is limited, occupants in the third-row seat could be hurt seriously on a reclined second-row seatback.

To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever.

2-6

Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

Essential Safety Equipment

Seats

CAUTION

qArmrest

The armrest can be used or placed upright.

WARNING

Never position the shoulder portion of a second-row seat belt over the armrest:

Positioning the shoulder portion of a second-row seat belt over the armrest is dangerous as it cannot provide adequate protection in a collision and could result in serious injuries.

qThird-Row Seat Access

Passenger ingress

To reach the third-row seat, raise the lever of the second-row seat. The seatback will tilt forward.

After entering the vehicle, return the seatback to its upright position.

Passenger egress

Pull the belt and fold the seatback forward. The seatback will tilt forward.

After exiting the vehicle, return the seatback to its upright position.

2-7

Essential Safety Equipment

Seats

qFolding the Second-Row Seats

To create a flat luggage compartment space, lift the seat-bottoms of the secondrow seats and fold the seatbacks forward.

Folding the seatbacks

1. Insert the second-row outboard seat belts in the retainers.

2. Move the seat all the way back.

3. Lower the head restraint all the way down (page 2-11).

4. Pull the strap and lift the end of the seat-bottom up and forward.

6. Raise the lever and fold the seatback forward.

CAUTION

Ø When folding a seatback, always

hold onto the seatback with your other hand while operating the lever. If the seatback is not supported, it will flip forward suddenly and could cause injury.

Ø When folding the seatback of the

right second-row seat, make sure the storage box is stowed. If the storage box is not stowed, it could be damaged.

5. If the armr est and storage box are in the position for use, store them. Refer to Storage Box on page 6-73.

2-8

Essential Safety Equipment

Seats

NOTE

To create a flat luggage compartment space from the rear of the vehicle to the back of the front seats, fold the second-row and third-row seats (page 2-10).

Returning seatbacks to their original positions

1. Return the seatback to its original position while raising its lever. Make sure the seatback is secured by attempting to lightly move it forward and back.

Third-Row Seat

WARNING

Do not stack cargo higher than the seatbacks:

Stacking luggage or other cargo higher than the seatbacks is dangerous. During a sudden stop or collision, objects can fly around and become projectiles that could hit and injure passengers.

Make sure luggage and cargo is secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.

Do not drive with the seatback unlocked:

All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After returning the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.

2. Return the seat-bottom to its original position and secure it. After returning the seat-bottom to its original position, make sure the seat-bottom is secured by attempting to lightly move it up and down.

2-9

Essential Safety Equipment

Seats

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:

NOTE

The third-row seat cannot be removed.

When returning a third-row seat to its original position, also replace the seat belt to its normal position. Verify that the seat belt pulls out and retracts.

qSplit-Folding the Third-Row

Seatback

2. Insert the third-row outboard seat belts in the retainers.

3. Lower the head restraints all the way down (page 2-11).

4. Pull the strap and fold the seatback forward.

To create a flat luggage compartment space, fold the seatbacks forward.

To fold third-row seat

1. Slide the second-row seat all the way forward.

2-10

Essential Safety Equipment

Seats

NOTE

To create a flat luggage compartment space from the rear of the vehicle to the back of the front seats, fold the second-row and third-row seats (page 2-8).

To return third-row seat to its original position

Return the seatback to its original position while pulling its strap. Make sure the seatback is secured by attempting to lightly move it forward and back.

Head Restraints

Head restraints are intended to help protect you and the passengers from neck injury.

WARNING

Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted:

Driving with the head restraints adjusted too low or removed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

Height adjustment

To raise a head restraint, pull it up to the desired position. To lower the head restraint, press the stopcatch release, then push the head restraint down. Adjust the head restraint so that the top is even with the top of the passenger's ears, never the passenger's neck to prevent injury.

Front seat

2-11

Essential Safety Equipment

Seats

Second-Row seat

Third-Row seat

Seat Warmer

The front seats are electrically heated. The ignition switch must be in the ON position.

Press the switch to turn the seat warmer on or off. When the switch is in the ON position, the indicator light will come on.

OFF

Indicator

Removal/Installation

To remove the head restraint, pull it up while pressing the stop-catch . To install the head restraint, press the uprights into the holes while pressing the stop-catch.

WARNING

Always drive with the head restraints set up when seats are being used and make sure they are properly set up:

Driving with the head restraints not set up is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

2-12

Some models.

Essential Safety Equipment

Seats

WARNING

Ø Be careful when using the seat

warmer. The heat from the seat warmer may be too hot for some people, as indicated below, and could cause a low-temperature burn.

Infants, small babies, elderly people, and physically challenged people

People with delicate skin

People who are excessively fatigued

People who are drunk

People who have taken sleepinducing medicine such as sleeping pills or cold medicine

Ø Do not use the seat warmer with

anything having high moistureretention ability such as a blanket or cushion on the seat. The seat may be heated excessively and cause a low-temperature burn.

Ø Do not use the seat warmer even

when taking a short nap in the vehicle. The seat may be heated excessively and cause a lowtemperature burn.

Ø Do not place heavy objects with

sharp projections on the seat, or insert needles or pins into it. This could cause the seat to become excessively heated and result in injury from a minor burn.

NOTE

Use the seat warmer when the engine is running, and do not continue to use it for a long period of time. The temperature of the seat warmer cannot be adjusted beyond High and Low because the seat warmer is controlled by a thermostat.

CAUTION

Do not use organic solvents to clean the seat. It may damage the seat surface and the heater.

2-13

Essential Safety Equipment

Seat Belt Systems

Seat Belt Precautions

Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts.

All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when not in use.

The driver's seat belt has no provisions for child-restraint systems and has only an emergency locking mode. The driver may wear it comfortably, and it will lock during a collision.

However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for child-restraint systems, automatic locking mode. While we recommend you put all children in the rear seats, if you must use the front passenger seat for a child, slide the front passenger seat as far back as possible and make sure any child-restraint system is secured properly.

2-14

Essential Safety Equipment

Seat Belt Systems

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:

Not wearing a seat belt is extremely dangerous. During a collision, occupants not wearing seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle. They could be seriously injured or even killed. In th e same collision, occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:

Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to absorb the impact. This puts more force on the bones beneath the belt, which could cause serious injury or death.

Never use one seat belt on more than one person at a time:

Using one seat belt for more than one person at a time is dangerous. A seat belt used in this way cannot spread the impact forces properly and the two passengers could be crushed together and seriously injured or even killed. Never use one belt for more than on e person at a time and always operate the vehicle with each occupant properly restrained.

Do not operate a vehicle with a damaged seat belt:

Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has been expended:

One or both front air bags may deploy, and the corresponding pretensioner(s) may also deploy at the same time. Like the air bags, the seat belt pretensioners will only function once. While it is safer to use a post-crash (a seat belt that was used in an accident) than no seat belt at all, using a seat belt with an expended pretensioner or load limiter loaded reduces the safety available to you. If the seat belt pretensioners are not repla ced, the risk of injury in a collision will increase. Expended seat belt pretensioners and air bags must be replaced after any collision which caused them to deploy. Additionally, the load limiter will only limit loads on the chest once in a collision and this is another reason to have the front seat belts inspected. Always have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags after any collision.

2-15

Essential Safety Equipment

Seat Belt Systems

CAUTION

Belt retraction may become diffic ult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to “Cleaning the Lap/Shoulder Belt Webbing” (page 8-54).

Ring

qPregnant Women and Persons with Serious Medical Conditions

Pregnant women should always wear seat belts. Ask your doctor for specific recommendations. The lap belt should be worn SNUGLYAND AS LOW AS POSSIBLE OVER THE HIPS. The shoulder belt should be worn across your shoulder properly, but never across the stomach area. Persons with serious medical condit ions also should wear seat belts. Check with your doctor for any special instructions regarding specific medical conditions.

qEmergency Locking Mode

In the emergency locking mode, the belt remains comfortable on the occupant and the retractor will lock in position during a collision. When the seat belt is fastened, it will always be in the emergency locking mode until it is switched to automatic locking mode by pulling it all the way out to its full length. If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it may be in the automatic locking mode because the belt has been pulled too far out. To return the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level area, retract the belt fully to convert it back to emergency locking mode and then extend it around you again. If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again slowly.

2-16

Essential Safety Equipment

Seat Belt Systems

qAutomatic Locking Mode

Always use the automatic locking mode to keep the child-restraint system from shifting to an unsafe position in the event of an accident. To enable seat belt automatic locking mode, pull it all the way out and connect it as instructed on the child-restraint system. It will retract down to the child-restraint system and stay locked on it. See the section on child restraint (page 2-25).

2-17

Essential Safety Equipment

Seat Belt Systems

Seat Belt

qFastening the Seat Belt

1. Grasp the seat belt tongue.

2. Slowly pull out the lap/shoulder belt.

Lap/shoulder belt

Seat belt tongue

3. Insert the seat belt tongue into the seat belt buckle until you hear a click sound.

Seat belt tongue

WARNING

Positioning the Shoulder Portion of the Seat Belt:

Improper positioning of the shoulder portion of th e seat belt is dangerous. Always make sure the shoulder portion of th e seat belt is positioned across your shoulder and near your neck, but never under your arm, on your neck, or on your upper arm.

4. Position the lap belt as low as possible, not on the abdominal area, then adjust the shoulder belt so that it fits snugly against your body.

Take up slack Keep low on hip bone

Too high

2-18

Seat belt buckle

WARNING

Positioning the Lap Portion of the Seat Belt:

The lap portion of the seat belt worn too high is dangerous. In a collision, this would concentrate the impact force directly on the abdominal area, causing serious injury. Wear the lap portion of th e belt snugly and as low as possible.

+ 346 hidden pages

Mazda 5 2009 User Manual

A Word to Mazda Owners

How to Use This Manual

Table of Contents

Your Vehicle at a Glance

Dashboard and Interior Overview

Exterior Overview

Essential Safety Equipment

Seats

Front Seats

Second-Row Seats

Third-Row Seat

Head Restraints

Seat Warmer

Seat Belt Systems

Seat Belt Precautions

Seat Belt
