Mazda 3 Hatchback 2019 Owners Guide

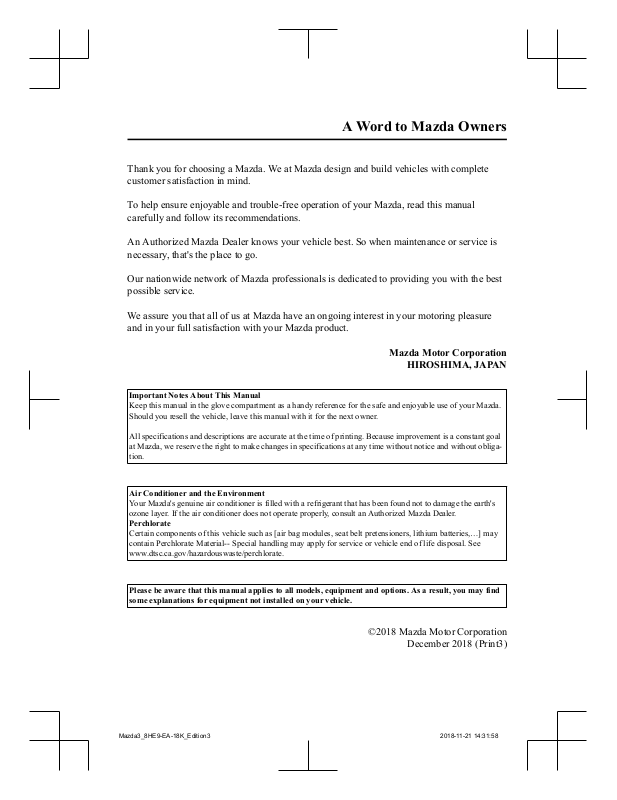

A Word to Mazda Owners
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of your Mazda.
Should you resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal
at Mazda, we reserve the right to make changes in specifications at any time without notice and without obliga‐
tion.
Air Conditioner and the Environment
Your Mazda's genuine air conditioner is filled with a refrigerant that has been found not to damage the earth's
ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries,…] may
contain Perchlorate Material-- Special handling may apply for service or vehicle end of life disposal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may find
some explanations for equipment not installed on your vehicle.
©2018 Mazda Motor Corporation
December 2018 (Print3)
How to Use This Manual
We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The symbol below in this manual means
“Do not do this” or “Do not let this
happen”.
Index: A good place to start is the Index,
an alphabetical listing of all information in
your manual.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
NOTE
A NOTE provides information and
sometimes suggests how to make better
use of your vehicle.
The following symbol, located on some
parts of the vehicle, indicates that this
manual contains information related to the
part.
Please refer to the manual for a detailed
explanation.
WARNIN G
A WARNING indicates a situation in which
serious injury or death could result if the
warning is ignored.
CAUTION
A CAUTION indicates a situation in which
bodily injury or damage to your vehicle, or
both, could result if the caution is ignored.
Table of Contents
Pictorial Index
Interior, exterior views and part identification of your Mazda.
Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Before Driving
Use of various features, including keys, doors, mirrors and windows.
When Driving
Information concerning safe driving and stopping.
Interior Features
Use of various features for ride comfort, including air-conditioning system
and audio system.
Maintenance and Care
How to keep your Mazda in top condition.
If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
1
2
3
4
5
6
7
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on
equipment.
Specifications
Technical information about your Mazda.
Index
8
9
10
1
Pictorial Index
Interior, exterior views and part identification of your Mazda.
Interior Overview..............................1-2
Interior Equipment (View A)........1-2
Interior Equipment (View B)........1-3
Interior Equipment (View C)........1-4
Interior Equipment (View D)........1-5
Interior Equipment (View E)........1-6
Exterior Overview.............................1-8
4-Door...........................................1-8
5-Door...........................................1-9
1-1
Pictorial Index
Interior Overview
Interior Equipment (View A)
Interior Equipment (View A)
▼
① High beam control switch..................................................................................... page 4-89
② Lighting control.....................................................................................................page 4-43
③ Turn and lane-change signals................................................................................page 4-49
④ Audio remote control switches..............................................................................page 5-19
⑤ INFO switch..........................................................................................................page 4-14
⑥ Cruise control switches.....................................................page 4-120, 4-129, 4-141, 4-210
⑦ Wiper and washer lever.........................................................................................page 4-50
⑧ i-ACTIVSENSE switch........................................................................................ page 4-85
⑨ 360° view monitor switch...................................................................................page 4-173
⑩ Parking sensor switch.........................................................................................page 4-237
⑪ DSC OFF switch................................................................................................... page 4-77
⑫ Position memory buttons.......................................................................................page 2-10
⑬ Trunk release button..............................................................................................page 3-19
⑭ Outside mirror switches........................................................................................ page 3-29
⑮ Power window switches........................................................................................page 3-34
⑯ Power window lock switch................................................................................... page 3-34
⑰ Door-lock switch...................................................................................................page 3-15
⑱ Door-lock knob..................................................................................................... page 3-17
1-2
The equipment and installation position varies by vehicle
Interior Equipment (View B)
Interior Equipment (View B)
▼
Pictorial Index
Interior Overview
① Instrument cluster..................................................................................................page 4-12
② Active driving display........................................................................................... page 4-28
③ Mazda Connect......................................................................................................page 5-14
④ Climate control system............................................................................................page 5-2
⑤ Heated steering wheel switch................................................................................page 2-21
⑥ Seat warmer switches............................................................................................page 2-20
⑦ Hazard warning flasher switch..............................................................................page 4-57
⑧ Rear window defogger switch...............................................................................page 4-55
⑨ Glove compartment...............................................................................................page 5-41
⑩ External input terminal..........................................................................................page 5-14
⑪ Push button start......................................................................................................page 4-4
⑫ Horn.......................................................................................................................page 4-56
⑬ Lock release lever................................................................................................... page 2-5
⑭ Hood release handle.............................................................................................. page 6-12
⑮ Storage pocket.......................................................................................................page 5-41
The equipment and installation position varies by vehicle
1-3
Pictorial Index
Interior Overview
Interior Equipment (View C)
Interior Equipment (View C)
▼
① Head restraint........................................................................................................ page 2-17
② Front seat.................................................................................................................page 2-5
③ Seat belt................................................................................................................. page 2-23
④ Bottle holder..........................................................................................................page 5-39
⑤ Vanity mirror.........................................................................................................page 5-33
⑥ Sunvisor.................................................................................................................page 5-33
⑦ Overhead light (front)/Map lights......................................................................... page 5-34
⑧ Overhead console.................................................................................................. page 5-41
⑨ Moonroof switch................................................................................................... page 3-36
⑩ Rearview mirror.................................................................................................... page 3-31
⑪ Vent......................................................................................................................... page 5-3
⑫ Cup holder.............................................................................................................page 5-38
⑬ Shift lever/Selector lever............................................................................. page 4-30, 4-32
⑭ Drive selection switch...........................................................................................page 4-78
⑮ Commander switch................................................................................................page 5-17
⑯ Electric Parking Brake (EPB) switch....................................................................page 4-63
⑰ AUTOHOLD switch............................................................................................. page 4-70
1-4
The equipment and installation position varies by vehicle
Interior Equipment (View D)
Interior Equipment (View D)
▼
Pictorial Index
Interior Overview
① Push knob (5-door)................................................................................................page 2-14
② Head restraint........................................................................................................ page 2-17
③ Child safety lock................................................................................................... page 3-18
④ Rear coat hook.......................................................................................................page 5-40
⑤ Power window switch........................................................................................... page 3-34
⑥ Overhead light (rear)............................................................................................. page 5-34
⑦ Door-lock knob..................................................................................................... page 3-17
⑧ Assist grip..............................................................................................................page 5-39
⑨ Center console.......................................................................................................page 5-41
⑩ Accessory socket...................................................................................................page 5-36
⑪ External input terminal..........................................................................................page 5-14
⑫ Bottle holder.......................................................................................................... page 5-39
⑬ Rear seat................................................................................................................ page 2-14
⑭ Cup holder.............................................................................................................page 5-38
⑮ Armrest..................................................................................................................page 2-17
⑯ ISOFIX lower anchors (Mexico)/LATCH lower anchors (Except Mexico).........page 2-50
⑰ Seat belt.................................................................................................................page 2-23
The equipment and installation position varies by vehicle
1-5
Pictorial Index
Interior Overview
Interior Equipment (View E)
4-Door
▼
① Remote handles..................................................................................................... page 2-14
② Trunk light.............................................................................................................page 5-34
1-6
The equipment and installation position varies by vehicle
Pictorial Index
Interior Overview
5-Door
▼
① Luggage compartment cover.................................................................................page 3-21
② Anchor brackets.................................................................................................... page 2-42
③ Luggage compartment light.................................................................................. page 5-34
The equipment and installation position varies by vehicle
1-7
Pictorial Index
Exterior Overview
4-Door
▼
4-Door
① Windshield wiper blades....................................................................................... page 6-20
② Moonroof...............................................................................................................page 3-36
③ Door.......................................................................................................................page 3-11
④ Window................................................................................................................. page 3-33
⑤ Touch sensor..........................................................................................................page 3-13
⑥ Fuel-filler lid......................................................................................................... page 3-26
⑦ Outside mirror....................................................................................................... page 3-29
⑧ Touch sensor..........................................................................................................page 3-13
⑨ Trunk lid................................................................................................................page 3-18
⑩ Electric trunk lid opener........................................................................................page 3-19
1-8
The equipment and installation position varies by vehicle
▼
Pictorial Index
Exterior Overview
5-Door
5-Door
① Windshield wiper blades....................................................................................... page 6-20
② Moonroof...............................................................................................................page 3-36
③ Door.......................................................................................................................page 3-11
④ Window................................................................................................................. page 3-33
⑤ Touch sensor..........................................................................................................page 3-13
⑥ Fuel-filler lid......................................................................................................... page 3-26
⑦ Outside mirror....................................................................................................... page 3-29
⑧ Touch sensor..........................................................................................................page 3-13
⑨ Liftgate.................................................................................................................. page 3-18
⑩ Electric liftgate opener.......................................................................................... page 3-19
⑪ Rear window wiper blade......................................................................................page 6-24
The equipment and installation position varies by vehicle
1-9
MEMO
1-10
2
Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats....................................................2-2
Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.....................................2-14
Head Restraints...........................2-17
Seat Warmer/Heated Steering
Wheel................................................2-20
Seat Warmer
Heated Steering Wheel
Seat Belt Systems.............................2-23
Seat Belt Precautions..................2-23
Seat Belt......................................2-26
Seat Belt Warning Systems.........2-27
Front Seat Belt Pretensioner and
Load Limiting Systems...............2-28
Seat Belt Extender......................2-30

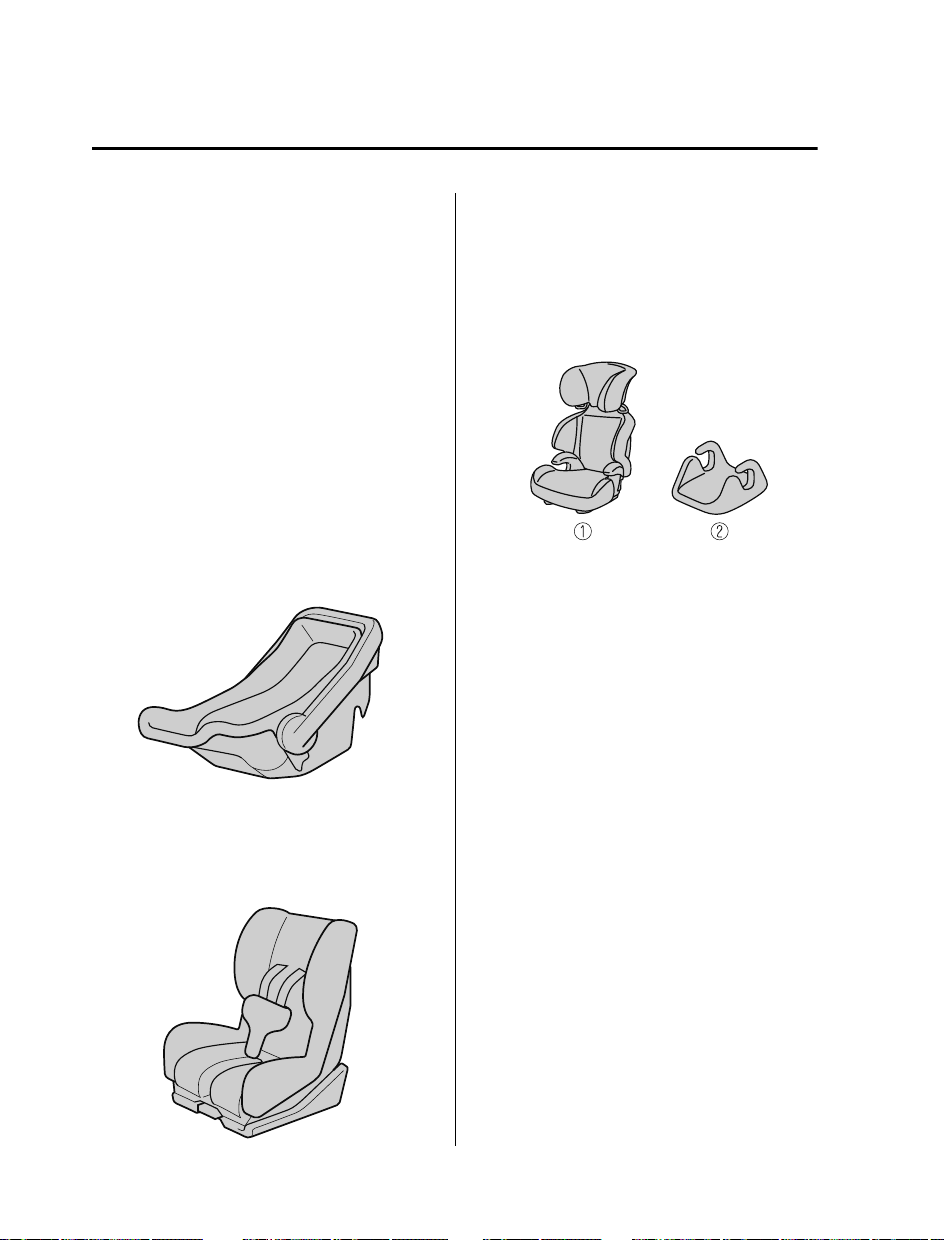

Child Restraint................................ 2-32
Child-Restraint Precautions........2-32
Child-Restraint System
Installation..................................2-37
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-39

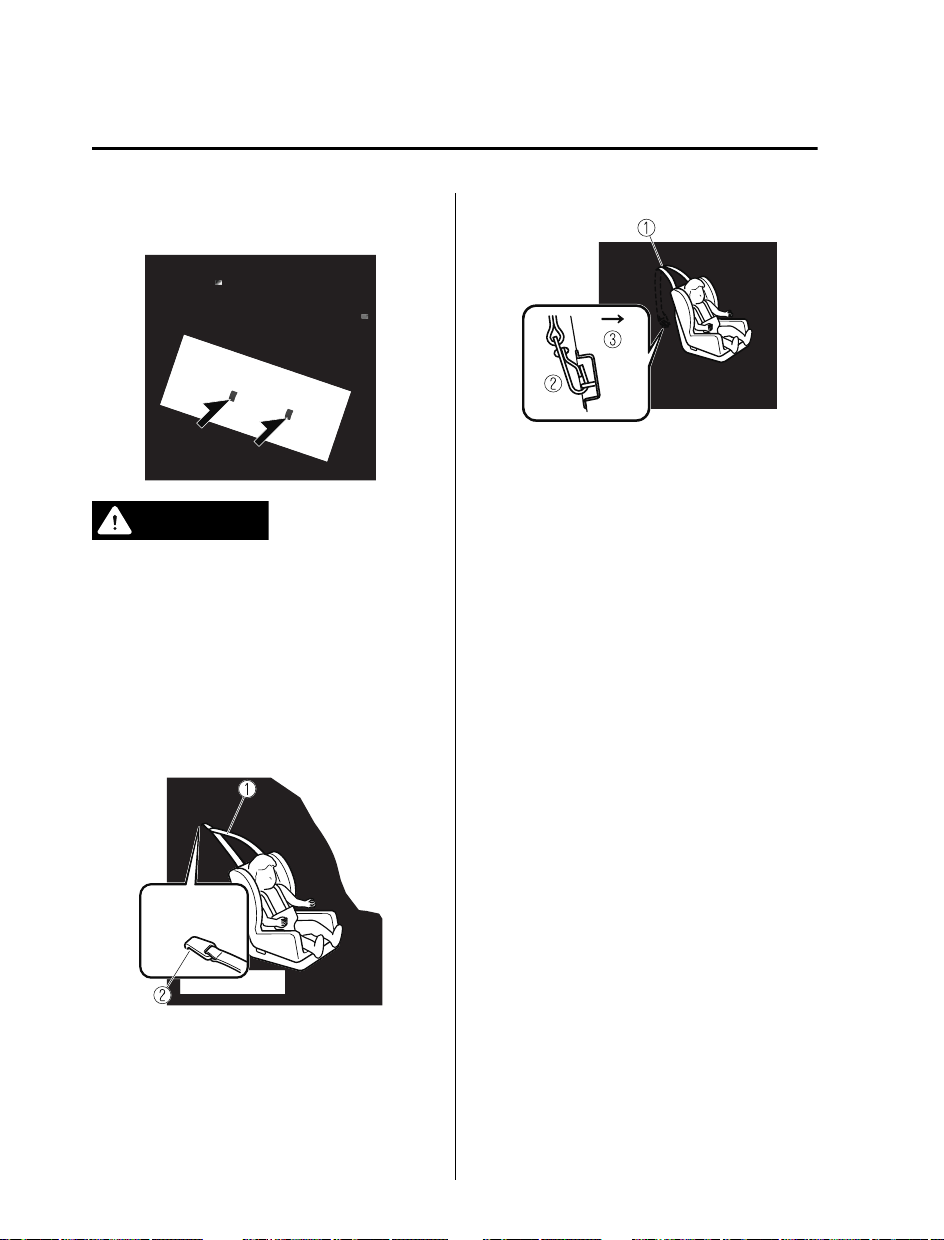

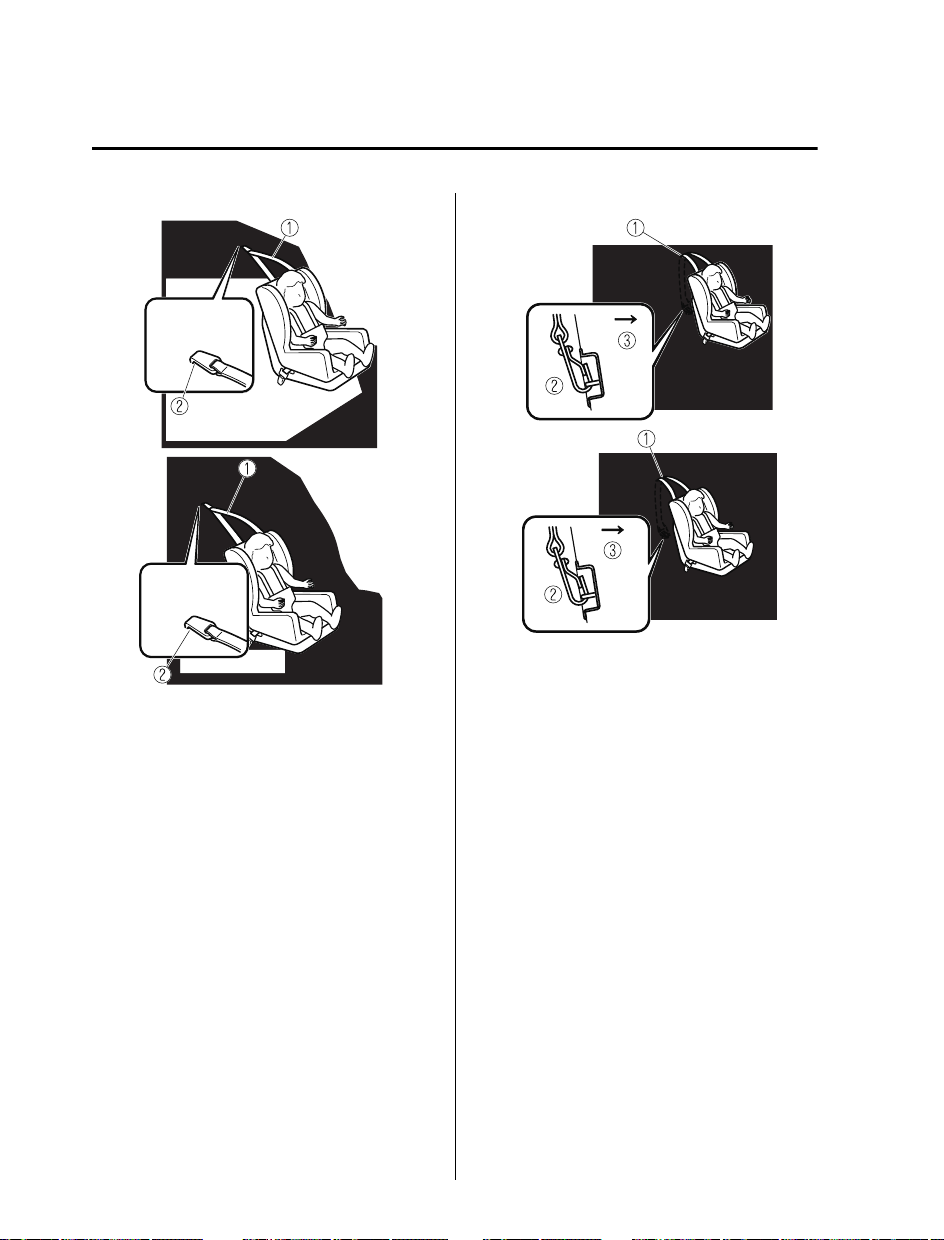

Installing Child-Restraint
Systems.......................................2-42
*
..............................2-20
*
............. 2-21
SRS Air Bags....................................2-55
Supplemental Restraint System
(SRS) Precautions.......................2-55

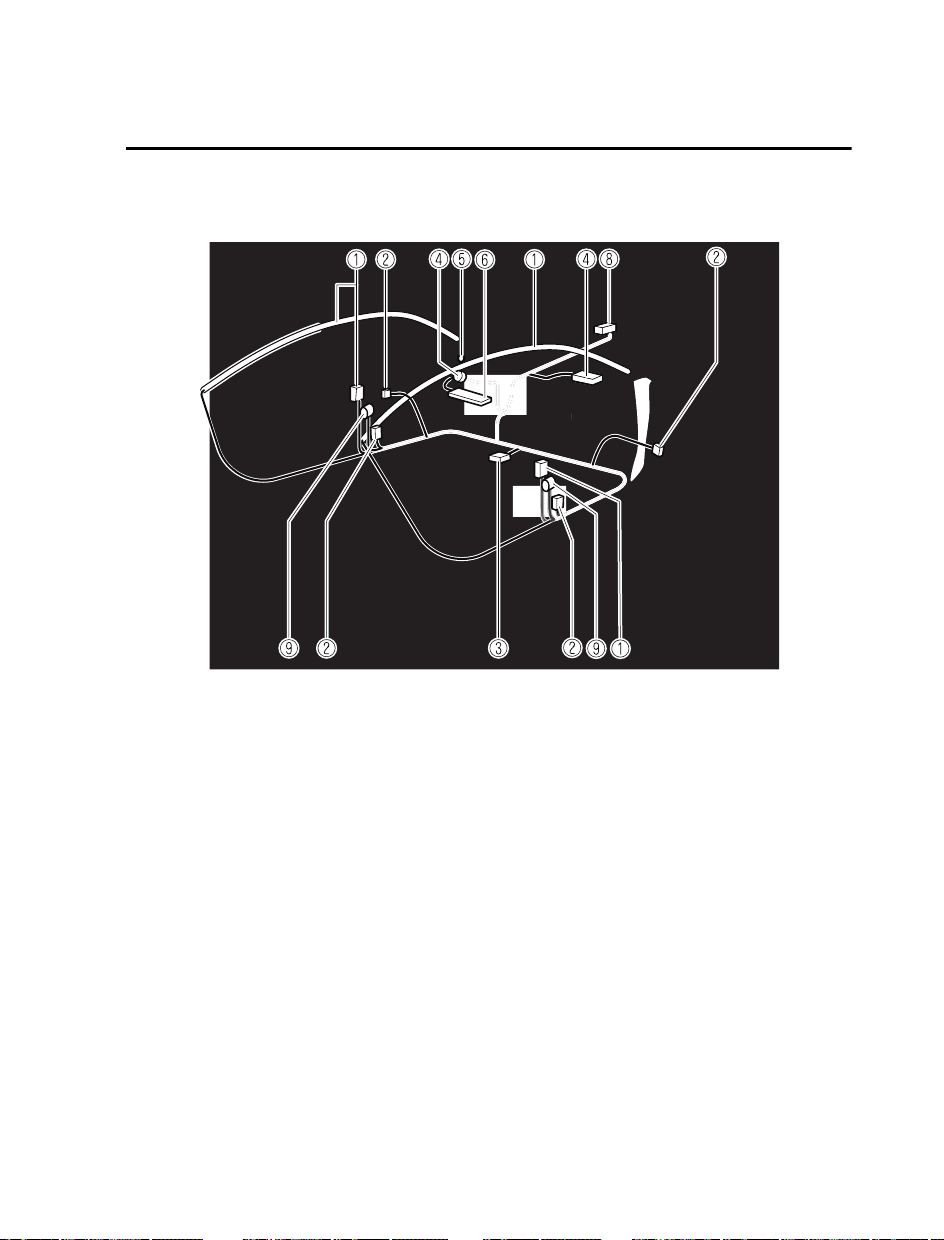

Supplemental Restraint System
Components................................2-62

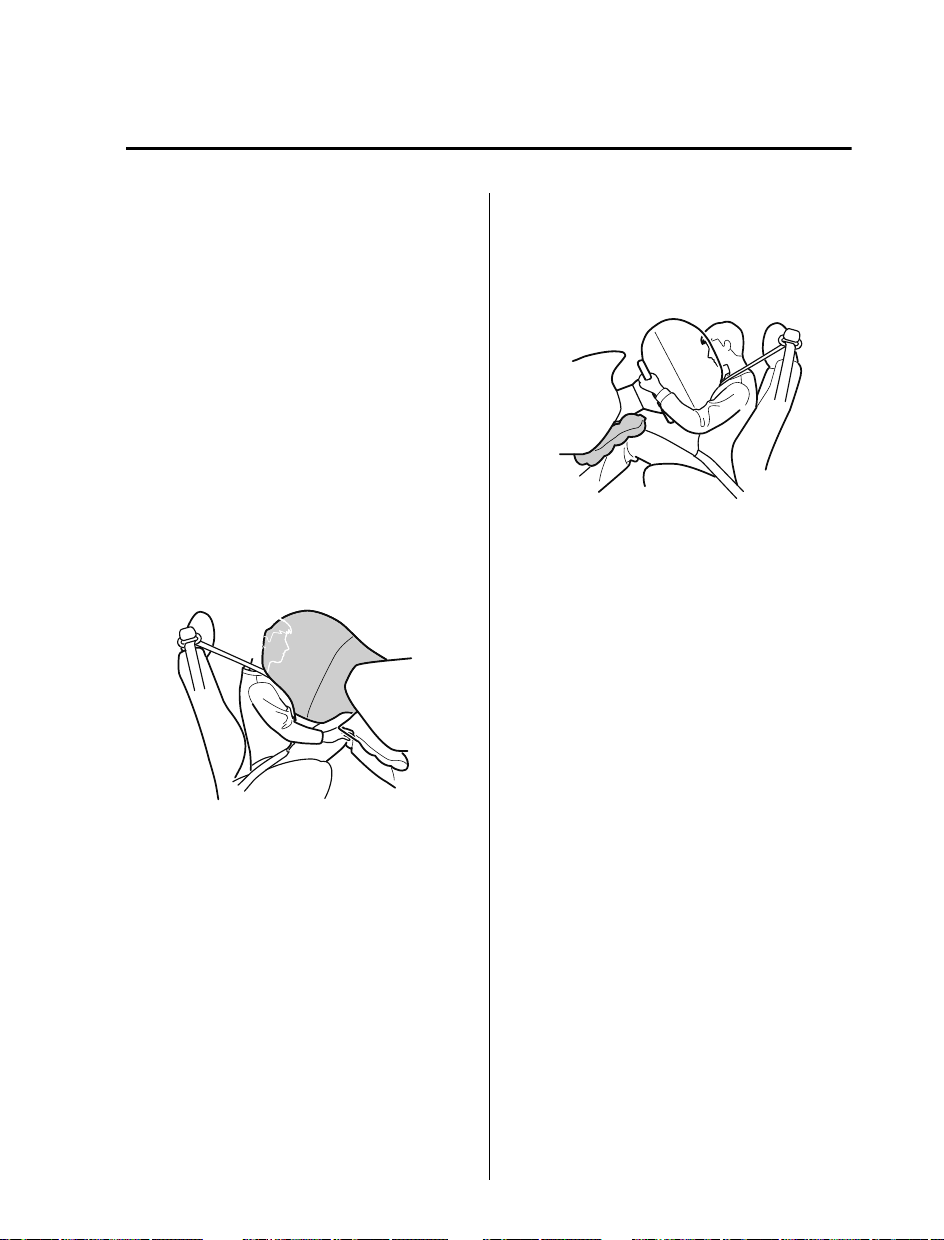

How the SRS Air Bags Work..... 2-64
SRS Air Bag Deployment
Criteria........................................2-68
Limitations to SRS Air Bag........2-70

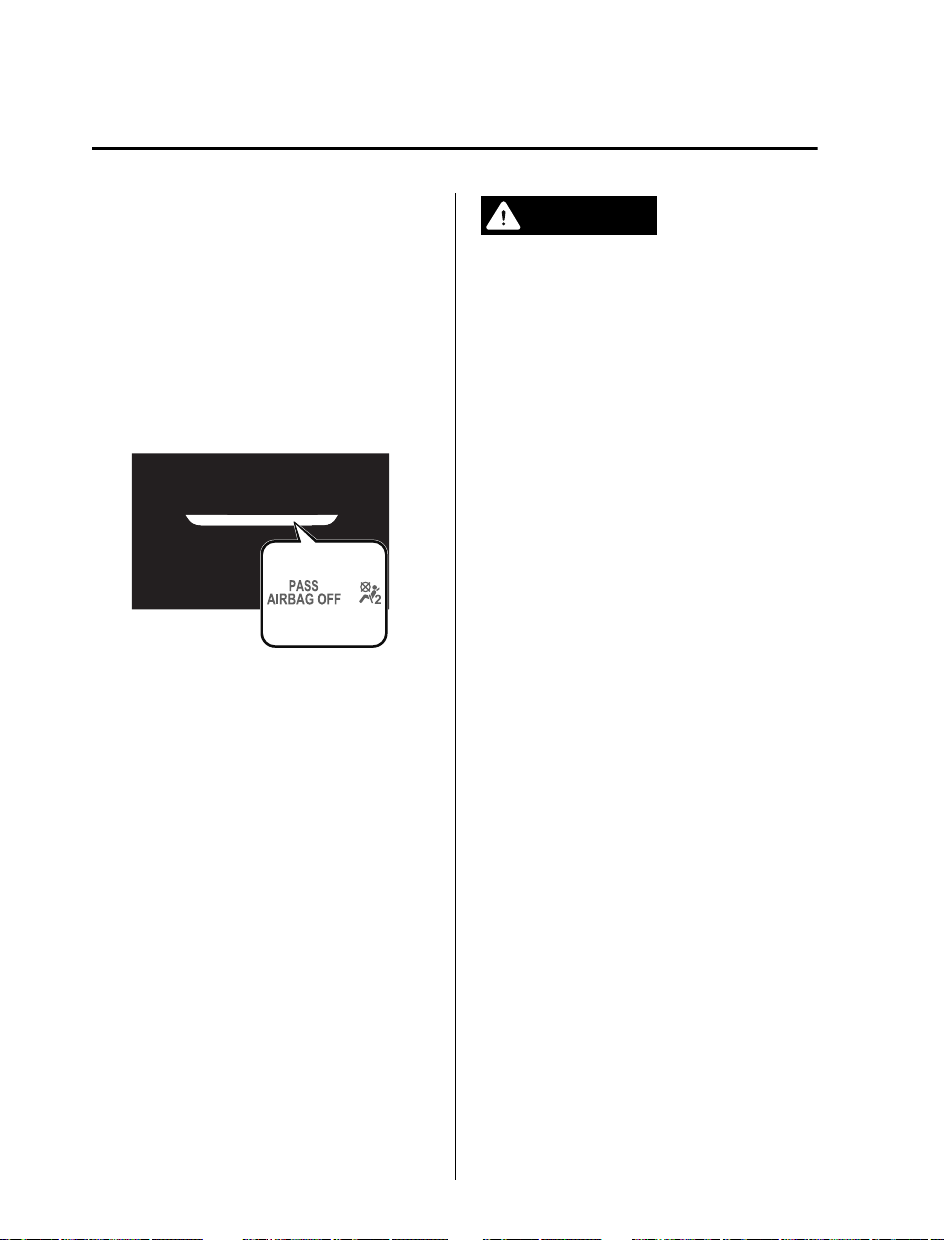

Driver and Front Passenger
Occupant Classification System
....................................................2-71
Constant Monitoring...................2-76
*
.......
*Some models.
2-1
Essential Safety Equipment
Seats
Seat Precautions
Seat Precautions
▼
WARNIN G
Make sure the adjustable components of a
seat are locked in place:
Adjustable seats and seatbacks that are
not securely locked are dangerous. In a
sudden stop or collision, the seat or
seatback could move, causing injury. Make
sure the adjustable components of the seat
are locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is
dangerous as it could result in serious
injury if a child's hands or feet become
caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role
in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can
allow passengers to be ejected or thrown
around and baggage to strike occupants in
a sudden stop or collision, resulting in
severe injury. After adjusting the seatback
at any time, even when there are no other
passengers, rock the seatback to make sure
it is locked in place.
Do not modify or replace the front seats:
Modifying or replacing the front seats such
as replacing the upholstery or loosening
any bolts is dangerous. The front seats
contain air bag components essential to
the supplemental restraint system. Such
modications could damage the
supplemental restraint system and result in
serious injury. Consult an Authorized
Mazda Dealer if there is any need to
remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as
seat cushions torn or damaged down to
the urethane, is dangerous. A collision,
even one not strong enough to
air bags, could damage the front seats
which contain essential air bag
components. If there was a subsequent
collision, an air bag may not deploy which
could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front
seats, front seat belt pretensioners and air
bags after a collision.
Do not drive with either front seats
reclin ed:
Sitting in a reclined position while the
vehicle is moving is dangerous because you
do not get the full protection from seat
belts. During sudden braking or a collision,
you can slide under the lap belt and
serious internal injuries. For maximum
protection, sit well back and upright.
inate
the
suer
Adjust a seat only when the vehicle is
stopped:
If the seat is adjusted while the vehicle is
being driven, the seating posture may
become unstable and the seat could move
unexpectedly resulting in injury.
2-2
Essential Safety Equipment
Seats
Do not place an object such as a cushion
between the seatback and your back:
Putting an object such as a cushion
between the seatback and your back is
dangerous because you will be unable to
maintain a safe driving posture and the
seat belt cannot function at its full capacity
in a collision, which could result in a serious
accident, injury or death.
Do not place objects under the seat:
The object could get stuck and cause the
seat to not be xed securely, and result in
an accident.
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo higher
than the seatbacks is dangerous. During
sudden braking or a collision, objects can
around and become projectiles that
y
may hit and injure passengers.
Make sure luggage and cargo is secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be crushed
during sudden braking or a collision and
cause injury.
Never allow a passenger to sit or stand on
the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a child to
sit up on the folded seatback while the
vehicle is moving is particularly dangerous.
In a sudden stop or even a minor collision,
a child not in a proper seat or
child-restraint system and seat belt could
be thrown forward, back or even out of the
vehicle resulting in serious injuries or death.
The child in the baggage area could be
thrown into other occupants and cause
serious injury.
Never give the car keys to children and do
not allow them to play in the vehicle (4–
Door):
Playing with the folding rear seats is
dangerous. Once the seatbacks are back
up, a child in the trunk would not be able to
get out the way they had entered. If you
have small children, keep the seatbacks
locked.
Always leave your car locked and keep the
car keys safely away from children (4–
Door):
Leaving your car unlocked or the keys in
reach of children is dangerous. Children
who nd their way into the trunk through
an unlocked rear seatback or an open
trunk can become accidentally locked in
the trunk. This could result in death or
brain damage from heat prostration,
particularly in the summer. Always lock the
doors and the trunk, and as an added
measure, keep the rear seatbacks locked,
whether you have children in your home or
not.
2-3
Essential Safety Equipment
Seats
CAUTION
When operating a seat, be careful not to
put your hands or ngers near the
moving parts of the seat or on the side
trim to prevent injury.
When moving the seats, make sure there
is no cargo in the surrounding area. If the
cargo gets caught it could damage the
cargo.
(Manual Seat)
When moving the seats forward and
rearward or returning a rear-reclined
seatback to its upright position, make
sure you hold onto the seatback with
your hand while operating. If the
seatback is not held, the seat will move
suddenly and could cause injury.
When inserting your hand under the seat
to clean the cabin or pick up something
you dropped under the seat, be careful
not to hurt yourself. If you contact the
moving parts of the seat rail or seat
frame, it could result in injury.
Do not use the switch to make more
than one adjustment at a time.
NOTE
When returning a rear seat to its
original position, place the seat belt in
its normal position. Verify that the seat
belt pulls out and retracts.
(Power Seat)
The seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
To prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.
2-4
Essential Safety Equipment
Seats
Front Seat
Adjusting the Driver's Seat
▼
Using the driving position set up
procedure recommended by Mazda allows
you to maintain a relaxed posture, drive
the vehicle for longer periods without
feeling tired, and make quick operations
naturally.
Also, you can be assured of a clear view in
the forward direction to help you drive
more safely and comfortably.
The adjustments for the driving position
recommended by Mazda are done using
the following procedures.
1. Moving the steering wheel and seat to
their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward
and back.
4. Adjusting the seat height.
5. Adjusting the height on the front edge
of the seat bottom.
6. Adjusting the steering wheel position.
7. Adjusting the head restraint position.
Manual seat
1. Seat Slide
To move a seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its
original position and the seat is locked
in place by attempting to push it
forward and backward.
2. Height Adjustment
To adjust the seat height, move the
lever up or down.
3. Height Adjustment for Front Edge
of Seat Bottom
To adjust the height for front edge of
the seat bottom, rotate the dial to the
desired position.
2-5
Essential Safety Equipment
Seats
4. Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position
and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to push
it forward and backward.
Power seat
3. Height Adjustment for Front Edge
of Seat Bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch.
4. Seat Recline
To change the seatback angle, press the
front or rear side of the reclining
switch. Release the switch at the
desired position.
5. Lumbar Support Adjustment
To increase the seat firmness, press
and hold the front part of the switch to
the desired position, then release it.
Press the rear part of the switch to
decrease firmness.
Before making adjustments to the
driving position recommended by
Mazda
Before making adjustments, move the
steering wheel and seat to their default
positions.
How to move the steering wheel to its
default position
1. Seat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
2. Height Adjustment
To adjust the seat height, move the
slide lifter switch up or down.
2-6
WARNIN G
Never adjust the steering wheel while the
vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving it
can very easily cause the driver to abruptly
turn to the left or right. This can lead to loss
of control or an accident.
Essential Safety Equipment
Seats
After adjusting the steering wheel position,
make sure it is securely locked by trying to
move it up and down:
Driving with the steering wheel not
securely locked in position is dangerous. If
the steering wheel moves unexpectedly
while driving, you could lose control of the
steering resulting in an accident.
Lower the lever, move the steering wheel
to the lowest position, and then push it
down and all the way back.
How to move a driver’s seat to its
default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Lower the front edge of the seat
bottom to its lowest height.
4. Sit squarely in the seat and rest your
back against the seatback.
Seat adjustment procedure for the
driving position recommended by
Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing
a comfortable seated posture.
1. With your posture slightly slouched,
move the seatback forward to the angle
where your waist feels slightly
cramped.
1. Manual Seat
2. Power Seat
2-7
Essential Safety Equipment
Seats
2. Move the seatback backward to a
comfortable seated posture without any
feeling of cramping in your waist.
1. Manual Seat
2. Power Seat
Adjusting the seat position forward and
back (sliding)
Adjust the seat to the position best for
operating the accelerator and brake pedals.
1. Place your left foot on the footrest,
your right foot between the accelerator
and brake pedals, and position your
heel to the position allowing easy
switching between the pedals.
2. With your heel set on the floor, set
your right foot on the brake pedal and
move the seat forward as far as
possible until you feel a slight
cramping in your ankle.
2-8
1. Manual Seat
2. Power Seat
3. With your right foot set on the brake
pedal, move the seat back until you no
longer feel cramping in your ankle.
Essential Safety Equipment
Seats
4. With your heel set on the floor, make
sure you can move your foot between
the brake pedal and accelerator pedal
smoothly.
5. Depress the accelerator pedal
completely with your heel set on the
floor and make sure that your ankle
does not feel over-stretched.
Adjusting the seat height
Adjust the seat height to a position where
you have a clear forward view and you can
drive the vehicle easily.
1. With your back resting against the
seatback, raise the seat to the height
where you can see the rear edge area of
the hood surface from the windshield.
1. Manual Seat
2. Power Seat
1. Manual Seat
2. Power Seat
2-9
Essential Safety Equipment
Seats
Adjusting the height on the front edge
of the seat bottom
Adjust the height on the front edge of the
seat bottom to the position where the back
of your knees contacts the front edge of
the seat bottom.
1. With your right foot set on the
accelerator pedal, adjust the height on
the front edge of the seat bottom so
that the back of your knees lightly
contacts the front edge of the seat
bottom.
2. Depress the accelerator pedal and
make sure that you no longer feel
cramping in the back of your knees.
Adjusting the steering wheel position
Adjust the steering wheel to the position
where it can be operated easily and the
gauges can be viewed easily.
1. With your back resting against the
seatback, extend both arms, place them
on the top of the steering wheel, and
pull the steering wheel towards you to
the position of your wrists.
2. Adjust the steering wheel height so
that the gauges can be viewed easily.
3. Raise the lever to securely lock the
steering wheel.
1. Manual Seat
2. Power Seat
2-10
*Some models.
Adjusting the head restraint position
To prevent shock to the head and neck,
adjust the head restraints to their correct
positions.
Refer to Height Adjustment on page
2-17.
Driving Position Memory (Power
▼
The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.
Seat)
*
Essential Safety Equipment
Seats
Driver’s seat position (seat slide, height
adjustment, front edge of seat bottom,
seat recline)
Refer to Adjusting the Driver's Seat on
page 2-5.
Active driving display (display position,
brightness level, display information)
Refer to Active Driving Display on page
4-28.
Outside mirror angle
Refer to Outside Mirrors on page 3-29.
CAUTION
Do not place
bottom of the seat while the seat memory
function is operating. The seat moves
automatically while the seat memory
function is operating and ngers or hands
could get pinched and injured.
1. 1 button
2. 2 button
3. SET button
A driving position can be programmed to
the following parts.
Position memory button
Transmitter used for vehicle
or hands around the
ngers
NOTE
Lumbar support adjustment cannot be
programmed.
Programming
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in the P
position.
3. Switch the ignition ON.
4. Adjust the following parts to the
desired conditions.
Driver's seat
Active driving display
Outside mirrors
5. Press the SET button continuously
until a sound is activated.
6. Do the following operation within 5
seconds after the sound is activated to
program the driving position.
Programming to a position
memory button
Press the button you want to
program, either 1 or 2 button.
Programming to the transmitter
Press the unlock button on the
transmitter.
A sound is activated when the
operation is completed correctly.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
If the angle of the outer mirrors only
changes a little, the angle of the outer
mirrors may not have been programmed
correctly.
2-11
Essential Safety Equipment
Seats
If the angle of the outer mirrors is
adjusted close to the limits of its range
of motion, the driving position can be
successfully programmed, but it may fail
when calling up the programmed
driving position.
Calling up the programmed driving
position
Using the position memory button
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in the P
position.
3. Switch the ignition ON.
4. Press the programming button for the
driving position you want to call up
(button 1 or 2).
5. A sound is activated when the
adjustment to the programmed driving
position is completed.
NOTE
When adjustment of the driving position
is not necessary, a sound is not
activated.
The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.
Programming button 1 or 2 is pressed.
The lock button or unlock button on
the transmitter is pressed.
The vehicle starts moving.
The active driving display is adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Using the transmitter
1. Unlock the driver's door using one of
the following methods.
Touch the sensing area of the door
release touch sensor.
Press the unlock button on the
transmitter.
2. When you open the driver's door
within 90 seconds after unlocking the
doors, the adjustment of the following
parts starts.
Driver's seat
Active driving display (When the
ignition is switched ON, the adjusted
active driving display is activated.)
Outside mirrors
A sound is activated when the
adjustment is completed.
NOTE
When adjustment of the driving position
is not necessary, a sound is not
activated.
The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.
Programming button 1 or 2 is pressed.
The lock button or unlock button on
the transmitter is pressed.
The vehicle starts moving.
The active driving display is adjusted.
2-12
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Erasing programmed driving positions
Erasing the driving positions
programmed to the key
1. Switch the ignition OFF.
2. Press the SET button continuously
until a sound is activated.
3. Press the lock button on the transmitter
within 5 seconds after the sound is
activated.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
Essential Safety Equipment
Adjusting the Front Passenger's
▼
Seat
Seats
1. Seat Slide
To move a seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its
original position and the seat is locked
in place by attempting to push it
forward and backward.
2. Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position
and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to push
it forward and backward.
2-13
Essential Safety Equipment
Seats
Rear Seat
Split Folding the Seatbacks
▼
By lowering the rear seatbacks the luggage
compartment space can be expanded.
WARNIN G
Do not drive the vehicle with occupants on
folded down seatbacks or in the luggage
compartment.
Putting occupants in the luggage
compartment is dangerous because seat
belts cannot be fastened which could lead
to serious injury or death during sudden
braking or a collision.
Do not allow children to play inside the
vehicle with the seatbacks lowered.
Allowing children to play in the vehicle
with the seatbacks folded down is
dangerous. If a child enters the luggage
compartment and the seatbacks were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported with
the seatbacks folded down.
Driving without tightly securing cargo and
luggage is dangerous as it could move and
become an obstruction to driving during
emergency braking or a collision resulting
in an unexpected accident.
When transporting cargo, do not allow the
cargo to exceed the height of the
seatbacks.
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility to
the rear and sides of the vehicle is reduced
which could interfere with driving
operations and lead to an accident.
Lowering the seatbacks
CAUTION
(5–Door)
When folding the seatback forward,
always support the seatback with your
hand. If it is not supported by a hand,
or the hand pressing the push
ngers
knob could be injured.
Check the position of a front seat before
folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a rear
seatback all the way down because it
may hit the seatback of the front seat
which could scratch or damage the front
seat or its pocket. Lower or remove the
head restraint on the rear outboard seat
if necessary.
2-14
Essential Safety Equipment
Seats
(4–Door)
1. Open the trunk lid and pull the lever of
the seatback you want to fold down.
2. Open a rear door and fold the rear seat
forward.
(5–Door)
Press the push knob to fold down the
seatback.
To return the seatback to its upright
position:
WARNIN G
When returning a seatback to its upright
position, make sure the 3-point seat belt is
not caught in the seatback and the 3-point
seat belt is not twisted.
If the seat belt is used while it is twisted and
caught in the seatback, the seat belt
cannot function at its full capacity, which
could cause serious injury or death.
When returning a seatback to its upright
position, make sure that it is rmly locked
and the red indication is not visible (5–
Door).
If the red indication is visible behind the
push knob, it means the seatback is not
locked. If the vehicle is driven without the
seatback locked, it could fold down
suddenly and cause an accident.
1. Locked position
2. Unlocked position
3. Red indication
2-15
Essential Safety Equipment
Seats
1. Make sure that the seat belt passes
through the seat belt guide correctly
and it is not twisted, then raise the
seatback while preventing the seat belt
from being caught in the seatback.
(4–Door)
1. Seat belt guides
(5–Door)
1. Red indication
2. Seat belt guide
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
