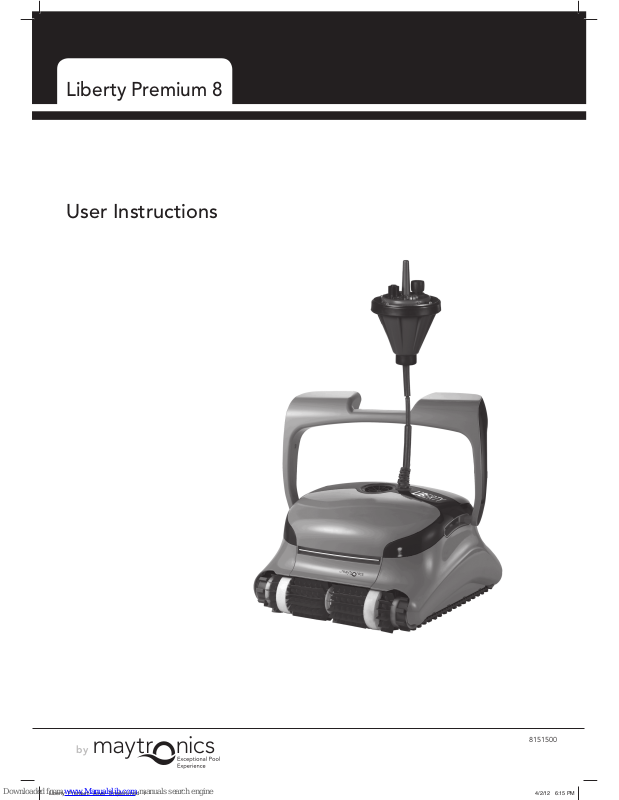

Maytronics Liberty Premium 8 Instructions Manual

by

8151500

User Instructions

Liberty Premium 8

Liberty_Premium_cover_English.indd 1Liberty_Premium_cover_English.indd 1 4/2/12 6:15 PM4/2/12 6:15 PM

Liberty_Premium_cover_English.indd 2Liberty_Premium_cover_English.indd 2 4/2/12 6:15 PM4/2/12 6:15 PM

Contents

1. INTRODUCTION ...................................................................... 2

2. WARNINGS AND CAUTIONS.................................................. 2

3. SPECIFICATIONS ..................................................................... 3

3.1. Robot specifiactions ......................................................... 3

3.2. Charger specifications ...................................................... 3

3.3. Battery specifications ....................................................... 3

4. WHAT YOU’LL FIND INSIDE THE BOX ................................... 4

5. USING THE POOL CLEANER ..................................................5

5.1. Preparing the robot for use .............................................. 5

5.2. The interactive float ......................................................... 7

6. PLACING THE ROBOT IN THE WATER ................................... 8

7. TAKING THE ROBOT OUT OF THE WATER ........................... 9

7.1. Turning the robot off ........................................................ 9

7.2. Pulling the robot out of the water .................................... 9

8. ROUTINE MAINTENANCE ...................................................... 11

8.1. Cleaning the filter cartridges ............................................ 11

8.2. Dismantling and cleaning the impeller ............................ 12

8.3. Storing the robot .............................................................. 13

9. USING THE REMOTE CONTROL ............................................ 14

9.1. The control panel ............................................................ 14

9.2. Manual direction control mode ........................................ 15

9.3. Automatic mode settings ................................................. 16

10. TROUBLESHOOTING GUIDE ................................................. 17

11. CADDY ASSEMBLY INSTRUCTIONS ...................................... 18

Liberty Premium 8

User Instructions

EN

Liberty_Premium_English.indd 1Liberty_Premium_English.indd 1 4/2/12 6:19 PM4/2/12 6:19 PM

2

Liberty Premium 8 | User Instructions

1. INTRODUCTION

Thank you for purchasing the Liberty Premium 8 cordless robotic pool cleaner.
Like all robots from Maytronics, your new Liberty Premium 8 robot is designed for easy, reliable
and efficient operation.

Please read this instruction manual carefully and be sure to follow all the recommendations regarding
operation and care of your robot Liberty. This is essential for optimal cleaning and to protect your
robot at all time, whether in use or in storage.

1. The Liberty Premium 8 is a cordless, battery-powered robotic pool cleaner designed to clean any
residential pool up to 15m (50ft) in length. It is particularly suited for pools with irregular shapes
and/or in-pool features, such as bridges, fountains, pillars, and other obstacles that may hinder the
free movement of a power cable.

2. The Liberty Premium 8 is a wall-climbing model; it cleans the pool floor, walls, and waterline
without intervention.

3. The robot is battery-operated and must be charged before each use by the charger that is
supplied with it.

4. The default duration of the cleaning cycle is 1hr. and 15 min. The duration can be changed to a
1hr. and 30 min. This is done with the remote control.

5. Charging the robot takes 4-5 hrs., after which the robot is ready for use.

6. Upon completion of an operating cycle, the robot automatically moves to one of the pool walls
before switching off. This makes it easier to take the robot out of the water for charging and
cleaning the cartridges.

7. If the robot completes its work and stops at an inaccessible location inside the pool, it can be
steered with the remote control to a more accessible location, this must be done within 12 hours
from the robot’s completion of the operating cycle.

8. If required, the robot can be steered with the remote control during its operation.

9. The pool cleaner can work under a pool cover.

2. WARNINGS AND CAUTIONS

1. Use only the original charger supplied with the robot and manufactured by Maytronics.

2. Place the charger in a shaded dry area during both charging and storage.

3. Always place the charger at a minimum of 3m (10ft) distance from the edge of the pool, especially
during charging.

4. Prior to connecting the float and charger for charging purposes, verify that the connector and
socket are dry and clean.

5. Before operation, disconnect the charging cable and close the charging socket cover.

6. Do not open or disassemble the motor unit in any way.

7. Ensure the electrical outlet used for charging is protected by a ground fault interrupter (GFI) or an
earth leakage interrupter (ELI).

8. Do not enter the pool while the pool cleaner is working.

9. The pool cleaner must be charged before storage.

Liberty_Premium_English.indd 2Liberty_Premium_English.indd 2 4/2/12 6:19 PM4/2/12 6:19 PM

Liberty Premium 8 | User Instructions

3

3. SPECIFICATIONS

3.1. Robot specifiactions

• Motor protection: IP 68

• Minimum pool depth: 0.80m (2.6ft)

• Maximum pool depth: 5m (16.4ft)

The pool water conditions must be within the following parameters:

PH 7.0-7.8

Temperature 6-34°C (43-93°F)

Salt Max 5,000 ppm

Chlorine Max 4 ppm

3.2. Charger specifications

Digital switch-mode charger:

• Input: 100-250AC volts
50-60Hz

115W

• Output: 26 VDC

IP 54

3.3. Battery specifications

• Application: Robotic pool cleaner

• Battery type: Lithium ion

• Battery Configuration: 6S4P

• Nominal Voltage: 22.2V

• Maximum Charge Voltage: 25.2V

• Discharge Cut-off Voltage: 18V

• Typical Capacity: 10400mAh

• Standard Discharge Current: 1.7A

• Maximum Charging Current: 4.5A

• Operating Temperature: 0-45°C (charging)

-10-60°C (discharging)

• Storage Temperature: 0-30°C

• Safety Device: Each cell is equipped with a safety vent system. Each pack is equipped with a

protection circuit against over-voltage, over-discharge and over-current.

• Safety Regulation: UL1642, (UL file no.: MH21015), UN38.3

Liberty_Premium_English.indd 3Liberty_Premium_English.indd 3 4/2/12 6:19 PM4/2/12 6:19 PM

4

Liberty Premium 8 | User Instructions

4. WHAT YOU’LL FIND INSIDE THE BOX

Wonder Brush

For smooth ceramics.

Combined Brush

For rough ceramic
surface and mosiac tiles.

PVC Brush

For concrete, PVC,
fiberglass and liner.

Caddy

Charger

Brushes - options

Filteration

Pulling Hook

Liberty Premium 8

Remote Control Unit

Cartridge with

Ultra-fine filters

Spring net filter

X4

Charging Cable

Liberty_Premium_English.indd 4Liberty_Premium_English.indd 4 4/2/12 6:19 PM4/2/12 6:19 PM

Liberty Premium 8 | User Instructions

5

5. USING THE POOL CLEANER

5.1. Preparing the robot for use

5.1.1. Assembling the Caddy kit

For instructions on how to assemle the Caddy see page 18.

5.1.2. Caddy and charger positioning

Position the charger at a distance of at least
3m (10ft) from the edge of the pool.

5.1.3. Adjusting the handle angle

The robot’s handle should be adjusted and locked diagonally in order to ensure optimum cleaning
results.

The handle angle can be adjusted also to determine the speed at which the robot advances along
the water-line.

To adjust the handle angle:

A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.

10ft/3m

A

B

Liberty_Premium_English.indd 5Liberty_Premium_English.indd 5 4/2/12 6:19 PM4/2/12 6:19 PM
