Maytag MVW7230HC, MVW7230HW User Manual

WASHER INSTALLATION & CARE INSTRUCTION MANUAL
MANUEL D’INSTRUCTION D’INSTALLATION
ETD’ENTRETIENDE LA LAVEUSE
MANUAL DE INSTRUCCIONES PARA LA INSTALACIÓN
YELCUIDADO DE LA LAVADORA
Table of Contents
WASHER SAFETY .........................................................2
INSTALLATION REQUIREMENTS ................................3
INSTALLATION INSTRUCTIONS ..................................5
WASHER MAINTENANCE AND CARE ........................9
Table des matières
SÉCURITÉ DE LA LAVEUSE ......................................12
EXIGENCES D’INSTALLATION ..................................13
INSTRUCTIONS D’INSTALLATION ............................15
Raccordement des tuyaux d’alimentation ...........17
ENTRETIEN ET RÉPARATION DELA LAVEUSE .......19
Non utilisation et entretien enpériode
Índice
SEGURIDAD DE LA LAVADORA ................................ 22
REQUISITOS DE INSTALACIÓN ................................23
Herramientas y piezas ........................................... 23
Requisitos de ubicación ........................................24
Sistema de desagote .............................................24
Requisitos eléctricos .............................................25
INSTRUCCIONES DE INSTALACIÓN ........................26
Conecte la manguera de desagote ......................27
Conexión de las mangueras deentrada ..............27
Nivelación de la lavadora ......................................28
Lista de control de la instalación terminada .......29
MANTENIMIENTO Y CUIDADO DELA LAVADORA .30
Mangueras de entrada de agua ............................ 30
Cuidado de la lavadora .......................................... 30
Cuidado durante períodos sin uso yen
lasvacaciones ........................................................ 31
Limpieza del depósito ............................................ 31
Cuidado para el almacenamiento durante
elinvierno................................................................31
Transporte de la lavadora ...................................... 31
Cómo reinstalar o usar la lavadoranuevamente ...32
W11197727A
WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
follow instructions.
You
can be killed or seriously injured if you don't
instructions.
follow
2
INSTALLATION REQUIREMENTS Tools and Parts
Gather required tools and parts before starting installation.
Tools needed
Pliers that open to 1¾" Level
4" min.
Wood Block Ruler or measuring tape
Parts supplied:
NOTE: All parts supplied for installation are in cardboard
insert in the top of the washer.
Drain hose with clamp,
U-form, and cable tie
Parts needed (Not supplied with washer):
Inlet hoses with at
washers
Bucket
3
Location Requirement
3"
4.5"
(114 mm)
Select proper location for your washer to improve performance and minimize noise and possible “washer walk”. Install your washer in a basement, laundry room, closet, or recessed area.
You will need
ʍ
A water heater set to 120°F (49°C).
ʍ
A grounded electrical outlet located within 4 ft. (1.2 m) of power cord on back of washer.
ʍ
Hot and cold water faucets located within 3 ft. (0.9 m) of hot and cold water fill valves on washer, and water pressure of 20-100 psi (138-690 kPa).
ʍ
A level floor with maximum slope of 1" (25 mm) under entire washer. Installing on carpet is not recommended.
ʍ
Floor must support washer’s total weight (with water and load) of 315 lbs (143 kgs).
IMPORTANT: Do not install, store, or operate washer where it will be exposed to weather or in temperatures below 32°F (0°C).Water remaining in washer after use may cause damage in low temperatures. See the “Winter Storage Care” section for winterizing information.
Proper installation is your responsibility.
Recessed area or closet installation
(76 mm)
Drain System
Drain system can be installed using a oor drain, wall standpipe, oor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
39"
4.5"
(114 mm)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 96" (2.44 m) from bottom of washer. If you must install higher than 96" (2.44 m), you will need a sump pump system.
Wall standpipe drain system
4.5"
(114 mm)
(990 mm)
14" max.
(356 mm)
5"
(127 mm)
1"
(25 mm)
"
20
(508 mm)
1"
(25 mm)
3"
(76 mm)
2
48 in.
(310 cm2)
2
24 in.
(155 cm2)
Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required. This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and oor moldings. Add spacing of 1" (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.
See requirements for oor standpipe drain system.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number 285834), 2 Connector Kits (Part Number 285835), and an Extension Drain Hose (Part Number 285863) that may be purchased separately. To order, please see toll-free phone numbers in “Assistance or Service” section. Minimum siphon break: 28" (710 mm) from bottom of washer. (Additional hoses may be needed.)
Laundry tub drain system
39"
(990 mm)
Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at least 39" (990 mm) above oor; install no higher than 96" (2.44 m) from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of drain hose should be inside standpipe or below the top of wash tub. Secure drain hose with cable tie.
4
Electrical Requirements
48"
(1.2 m)
WARNING
WARNING
INSTALLATION INSTRUCTIONS
Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
ʍ
A 120 V, 60 Hz., AC only, 15 or 20 A, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit breaker serving only this appliance be provided.
ʍ
This washer is equipped with a power supply cord having a 3 prong grounding plug.
ʍ
To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.
ʍ
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
ʍ
Do not ground to a gas pipe.
ʍ
Check with a qualified electrician if you are not sure the washer is properly grounded.
ʍ
Do not have a fuse in the neutral or ground circuit.
Before you start: Remove shipping materials. It is necessary to remove all shipping materials for proper
operation and to avoid excessive noise from washer.
1. Move washer
Move washer to within 4 ft. (1.2 m) of its nal location; it must be in a fully upright position.
NOTE: To avoid oor damage, set washer onto cardboard before moving it and make sure lid is taped shut.
2. Remove shipping base
To avoid damaging oor, place cardboard supports from shipping carton on oor behind washer. Tip washer back and place on cardboard supports. Remove shipping base. Set washer upright.
IMPORTANT: Removing shipping base is necessary for proper operation. If your washer includes a sound shield, please refer to the instructions included with the sound shield to install it at this time.
5

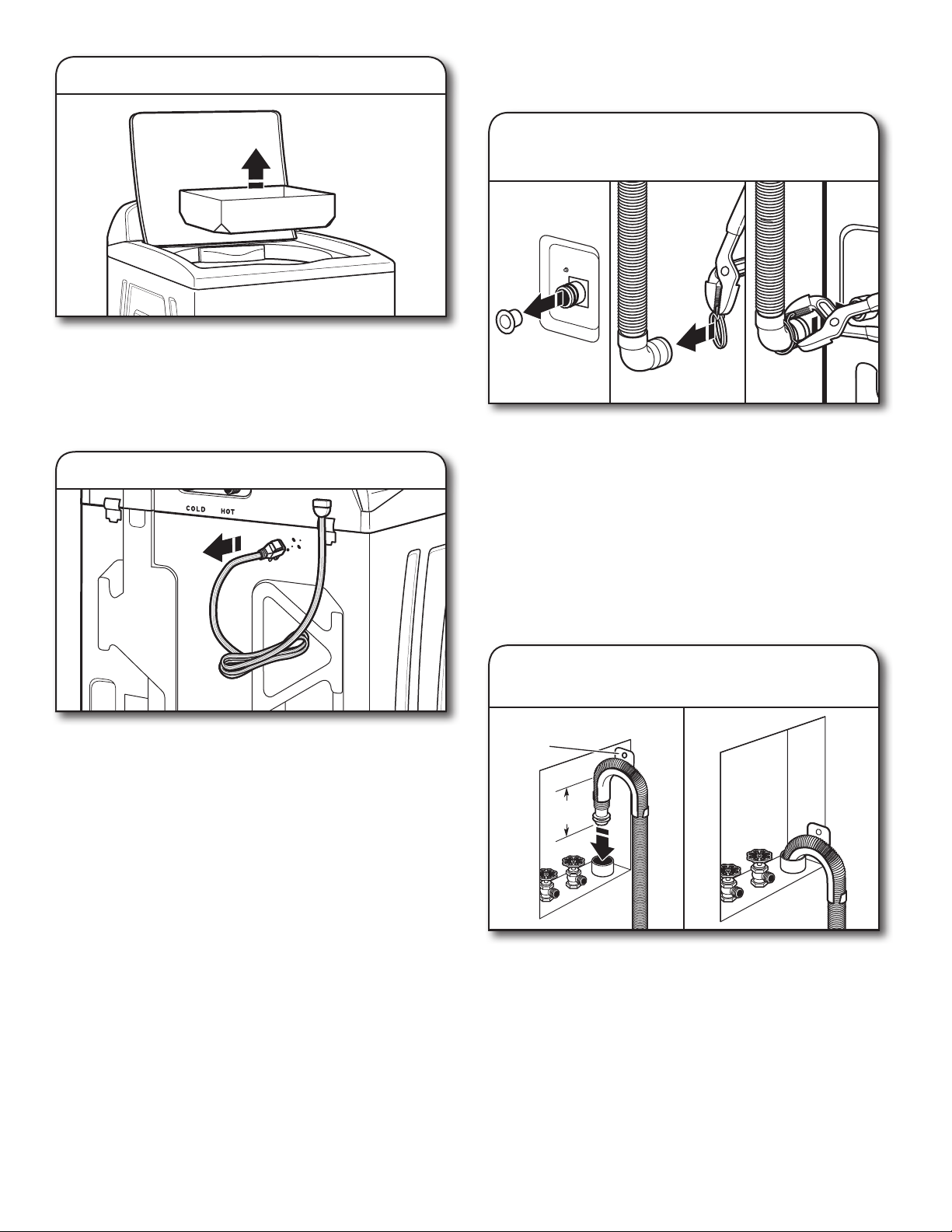

3. Remove packing tray from tub
Remove tape from washer lid, open lid, and remove cardboard packing tray from tub. Remove all other packaging materials from washer tub. Be sure to remove all parts from tray.
NOTE: Keep tray in case you need to move washer later.
4. Free power cord
Connect Drain Hose
5. Attach drain hose to drain port
Remove the red plastic plug from the black drain port on the back of the washer.
If clamp is not already in place on elbow end of drain hose, slide it over end as shown. Squeeze clamp with pliers and slide black elbow end of drain hose onto black drain port and secure with clamp.
For a laundry tub or standpipe drain, go to step 6. For a oor drain, remove the preinstalled drain hose form as
shown in Step 7. You may need additional parts with separate directions. See the “Tools and Parts” section.
Firmly grasp power cord plug and pull to free from rear panel. Gently place power cord over console to allow free access to back of washer.
6. Place drain hose in standpipe
Drain hose form
4.5"
(114 mm)
Place hose into standpipe (shown in picture) or over side of laundry tub.
IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on bottom of laundry tub. Drain hose form must be used.
6

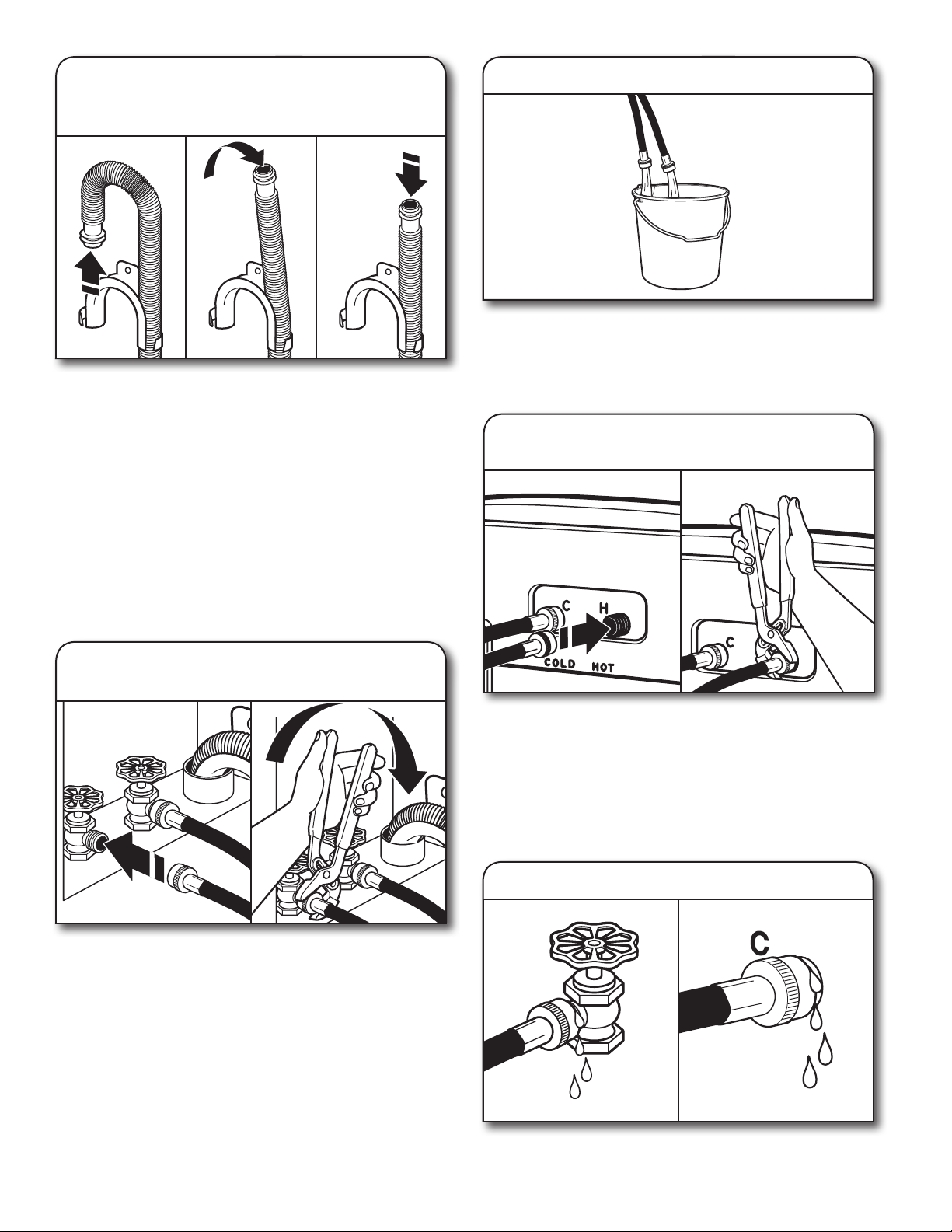

7. Remove drain hose form
(oor drain installations only)
For oor drain installations, you will need to remove the drain hose form from the end of the drain hose. You may need additional parts with separate directions. See the “Tools and Parts” section.
9. Clear water lines
Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to avoid clogs. Water should run until clear.
Make note of which hose is connected to hot water to help in attaching hoses to washer correctly.
Connect Inlet Hoses
Washer must be connected to water faucets with new inlet hoses with at washers (not provided). Do not use old hoses.
NOTE: Both hoses must be attached and have water owing to inlet valves. If you are only connecting to a cold water faucet, you must use a Y-adapter (not provided).
8. Connect inlet hoses to water faucets
Attach hose to hot water faucet. Screw on coupling by hand until it is seated on washer. Use pliers to tighten couplings an additional two-thirds turn. Repeat this step with second hose for cold water faucet.
IMPORTANT: Do not overtighten or use tape or sealants on valve when attaching to faucets or washer. Damage can result.
10. Connect inlet hoses to washer
Attach hot water hose to hot water inlet valve marked with a red ring. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve.
IMPORTANT: To reduce risk of hose failure, replace the hoses every ve years. Record hose installation or replacement dates for future reference.
ʍ
Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.
11. Check for leaks
Turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.
7

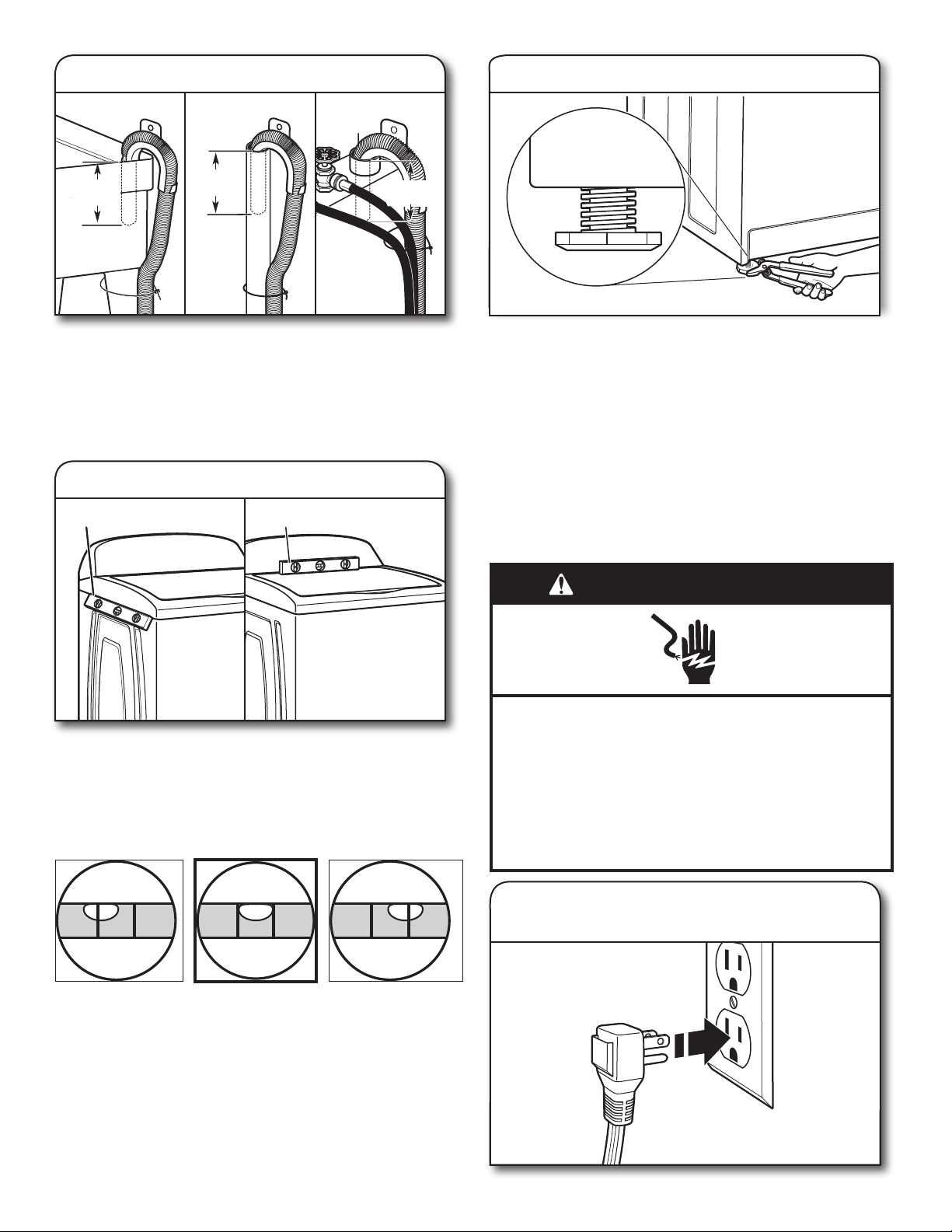

12. Secure drain hose
Laundry Tub Standpipe Wall
14. Adjust leveling feet
4.5"
4.5"
(114 mm)
(114 mm)
Secure drain hose to laundry tub leg, drain standpipe, or inlet hoses for wall standpipe with cable tie.
4.5"
(114 mm)
4.5"
4.5"
(113 mm)
(114 mm)
Level Washer
IMPORTANT: Level washer properly to reduce excess noise and
vibration.
13. Check levelness of washer
Place level herePlace level here
Models with
plastic feet
If washer is not level:
Use adjustable pliers to turn the plastic leveling foot counterclockwise to lower the washer or clockwise to raise the washer. On all models, recheck levelness of washer and repeat as needed.
HELPFUL TIPS:
ʍ
You may need to adjust two different feet to level your unit. Ensure each foot remains secured to the washer’s base.
ʍ
You may want to prop up the front of the washer about 4" (102 mm) with a wood block or similar object that will support the weight of the washer when making the adjustments.
WARNING
Move the washer to its nal location. Place a level on top edges of washer. Use side seam as a guide to check levelness of sides. Check levelness of front using lid, as shown. Rock washer back and forth to make sure all four feet make solid contact with oor. If washer is level, skip to step 15.
Not Level LEVEL Not Level
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
15. Plug into a grounded 3 prong outlet
8
Complete Installation Checklist
❑ Check electrical requirements. Be sure you have correct
electrical supply and recommended grounding method.
❑ Check that all parts are now installed. If there is an extra part,
go back through steps to see what was skipped.
❑ Check that you have all of your tools. ❑ Check that shipping materials were completely removed from
washer.
❑ Check that the washer is level. ❑ Check that water faucets are on. ❑ Check for leaks around faucets and inlet hoses. ❑ Remove protective film from console and any tape remaining
on washer.
❑ Check that washer is plugged into a grounded 3 prong outlet. ❑ Dispose of/recycle all packaging materials. ❑ Read the “Washer Care” section in this book. ❑ To test and clean your washer, measure 1/2 of normal
recommended amount of powdered or liquid detergent and pour it into washer basket or detergent dispenser (on some models). Close lid. Select any cycle. Start washer and allow to complete full cycle.
WASHER MAINTENANCE AND CARE
WATER INLET HOSES
Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.
NOTE: This washer does not include inlet hoses. See the “Installation & Care Instructions Manual” for more information.
WASHER CARE
Recommendations to Help Keep Your Washer Clean and Performing at its Best
1. Always use High Efciency (HE) detergents and follow the
HE detergent manufacturer’s instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.
2. Use warm and hot wash water settings sometimes (not
exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.
3. Always leave the washer lid open between uses to help
dry out the washer and prevent the buildup of odor-causing residue.
Cleaning Your Top Loading Washer
Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

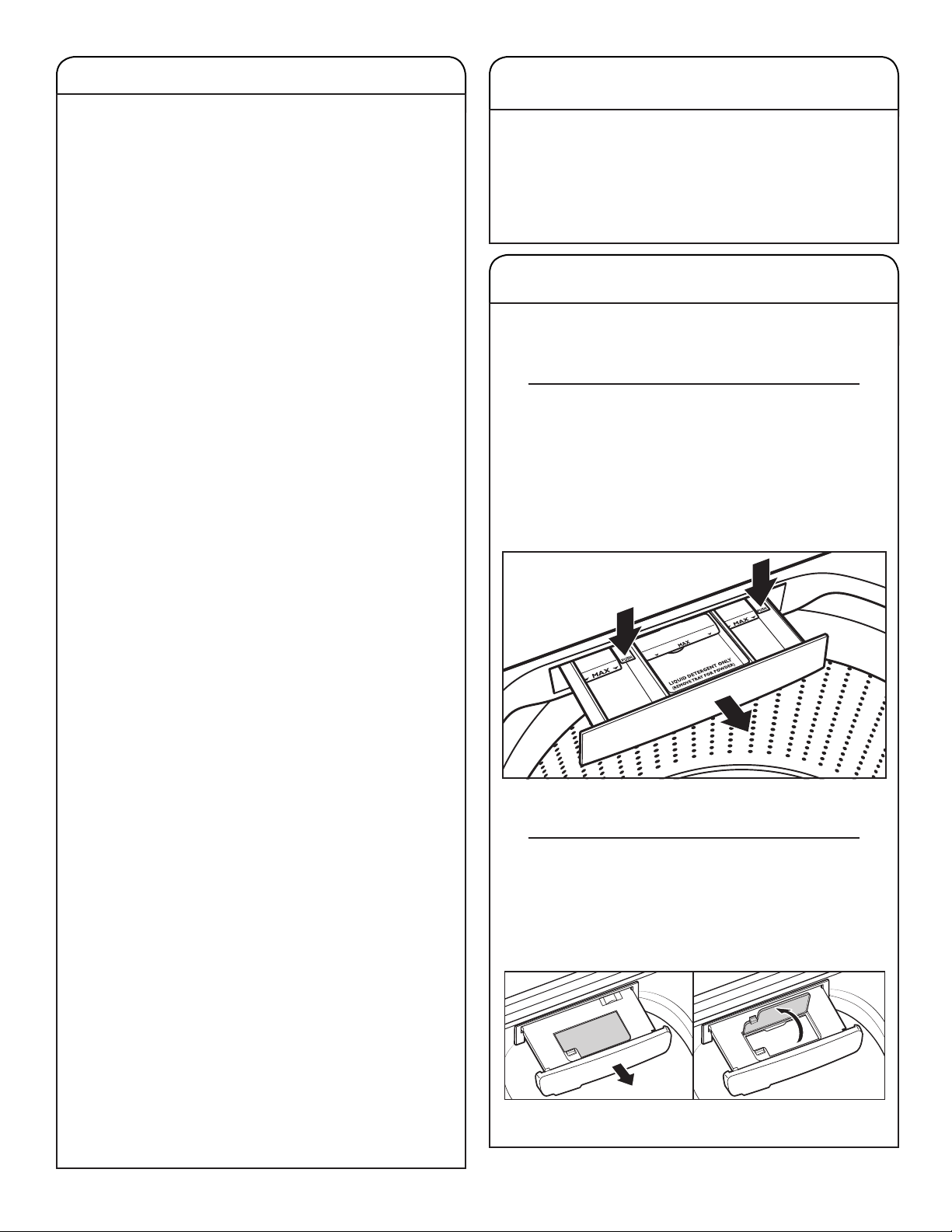

Cleaning the Inside of the Washer
To keep your washer odor-free, follow the usage instructions provided above, and use this recommended monthly cleaning procedure:
Clean Washer Cycle
This washer has a special cycle that uses higher water volumes in combination with affresh® Washer Cleaner or liquid chlorine bleach to clean the inside of the washer.
Begin procedure
1. affresh® Washer Cleaner Cycle Procedure (Recommended for Best Performance):
a. Open the washer lid and remove any clothing or items. b. Place an affresh® Washer Cleaner tablet in the bottom
of the washer basket.
c. Do not place an affresh® Washer Cleaner tablet in the
detergent dispenser.
d. Do not add any detergent or other chemical to the
washer when following this procedure.
e. Close the washer lid. f. Select the CLEAN WASHER cycle. g. Touch and hold the START/PAUSE button to begin the
cycle. The Clean Washer Cycle Operation is described below.
NOTE: For best results, do not interrupt cycle. If cycle
must be interrupted, touch POWER. After the Clean Washer cycle has stopped, run a RINSE & SPIN cycle to rinse cleaner from washer.
9
WASHER CARE (cont.)
NON-USE AND VACATION CARE
2. Chlorine Bleach Procedure (Alternative):
a. Open the washer lid and remove any clothing or items. b. Add 1 cup (236 mL) of liquid chlorine bleach to the
bleach compartment.
NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time.
c. Close the washer lid. d. Do not add any detergent or other chemical to the
washer when following this procedure.
e. Select the CLEAN WASHER cycle. f. Touch and hold the START/PAUSE button to begin the
cycle. The Clean Washer Cycle Operation is described below.
NOTE: For best results, do not interrupt cycle. If cycle
must be interrupted, touch POWER. After the Clean Washer cycle has stopped, run a RINSE & SPIN cycle to rinse cleaner from washer.
Description of Clean Washer Cycle Operation:
1. This cycle will ll to a water level higher than in normal
wash cycles to provide rinsing at a level above the water line for normal wash cycle.
2. During this cycle, there will be some agitation and
spinning to increase the removal of soils.
After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior.
Cleaning the Dispensers
After a period of using your washer, you may nd some residue buildup in the washer’s dispensers. To remove residue from the dispensers, wipe them with a damp cloth and towel dry. Do not attempt to remove the dispensers or trim for cleaning. The dispensers and trim are not removable. If your model has a dispenser drawer, however, remove the drawer and clean it before or after you run the Clean Washer cycle. Use an all purpose surface cleaner, if needed.
Cleaning the Outside of the Washer
Use a soft, damp cloth or sponge to wipe away any spills. Use only mild soaps or cleaners when cleaning external washer surfaces.
IMPORTANT: To avoid damaging the washer’s nish, do not use abrasive products.
Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:
1. Unplug or disconnect power to washer.
2. Turn off water supply to washer, to avoid ooding due
to water pressure surge.
CLEANING YOUR DISPENSER
(*Varies according to model)
You may nd laundry product residue leftover in your dispenser drawer or in bulk dispenser. To remove residue, follow below recommended cleaning procedures:
Dispenser Drawer
1. Pull drawer out until you feel resistance.
2. Push 2 tabs downward, and then continue pulling out.
3. Wash in warm, soapy water, using a mild detergent.
4. Rinse with warm water.
5. Air dry, or dry with a towel, then place back into slot.
IMPORTANT: Dispenser drawer and tray are not dishwasher
safe.
Bulk Dispenser
1. Pull drawer completely out.
2. Open dispenser lid.
3. Rinse with warm water.
4. Air dry or dry with a towel, then place back into slot.
10
IMPORTANT: Bulk dispenser and tray are not dishwasher
safe.
Loading...
+ 22 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
