Use & Care Guide
Dishwasher
MAYTAG
MSE 860 FARS
Quick Guide
1. Loading baskets
Remove large food particles and debris. There is no need to rinse thanks to the Super
Cleaning System™.
2. Dispensing dishwasher detergent
The detergent compartment has a small compartment for pre-wash and one for main
wash.
3. Ensure that the spray arms can rotate freely
4. Turn on the main switch
5. Select program and press start
For washing normally soiled mixed loads use the
Normal wash program with 65°C and normal drying.
To save more water and energy use economy temperature and economy drying.
6. Close the door
Mini Program Guide
Program
Options
How the
machine
works
Temperature
Main wash
Final rinse
Auto
wash
--
40-60°C
60°C
Heavy
wash
70°C
70°C
Normal
wash
65°C
70°C
Delicate
wash
50°C
60°C
Quick
wash
--
30°C
50°C
Rinse
& Dry
program
--
50°C
2
Contents
Page
Quick guide 2
Contents 3-4
Before doing your first wash 5
Read through the directions for use
Take care with certain materials
Check the door
Check water hardness level
Machines with water softener
Safety 6
General
Winter storage/Transport
Overfill protection
Cleaning
Packaging materials
Scrapping
Child safety 7
Child-safe button lock
Child-safe dishwashing
Protect your children! Dishwasher detergent
is corrosive
Options 13
Temperature
Drying
If the machine is switched off at
the main switch
Eco-dishwashing 14
Only perform washes with a full machine
Wash at a lower temperature
Select program with Eco dry
Do not rinse before dishwashing
Choose environmentally-friendly
dishwasher detergent
Connect to cold water supply
Settings 15
Reprogramming
Child-safe button lock
Setting water hardness
Setting a signal
Press start 16
Changing options
Do you want to load more dishes?
After dishwashing
Parts of the dishwasher 8
Technical information 8
Baskets 9
Control panel 10
Dispenser 10
Basic Course 11-13
Load the baskets correctly
Dispensing dishwasher detergent
Selecting programs
Fragile dishes 17
Fragile decoration
Crystal/ glass
Silver
Cutlery with glued handles
Wood
Aluminium
Plastic
Protect plastic goods
Standard program 18-19
Cleaning 21-22
Coarse filter
Fine filter
Drain pump
Spray arms
Door
3
Rinse aid 23
Pour in rinse aid
Select dosage
Fitting strip seal
(on floor plinth covering plate)
NB! Not all models
Salt 24
Pour in salt
Fault indications 25
Troubleshooting 26-28
The dishes are not clean
Stains or a film on the china
The china has a whitish-blue sticky film
Stains on stainless steel or silver
Stains which remain after dishwashing.
Rattling sounds during dishwashing
The machine will not start
Water remains in the machine
Bad odour in the machine
Performance information 29

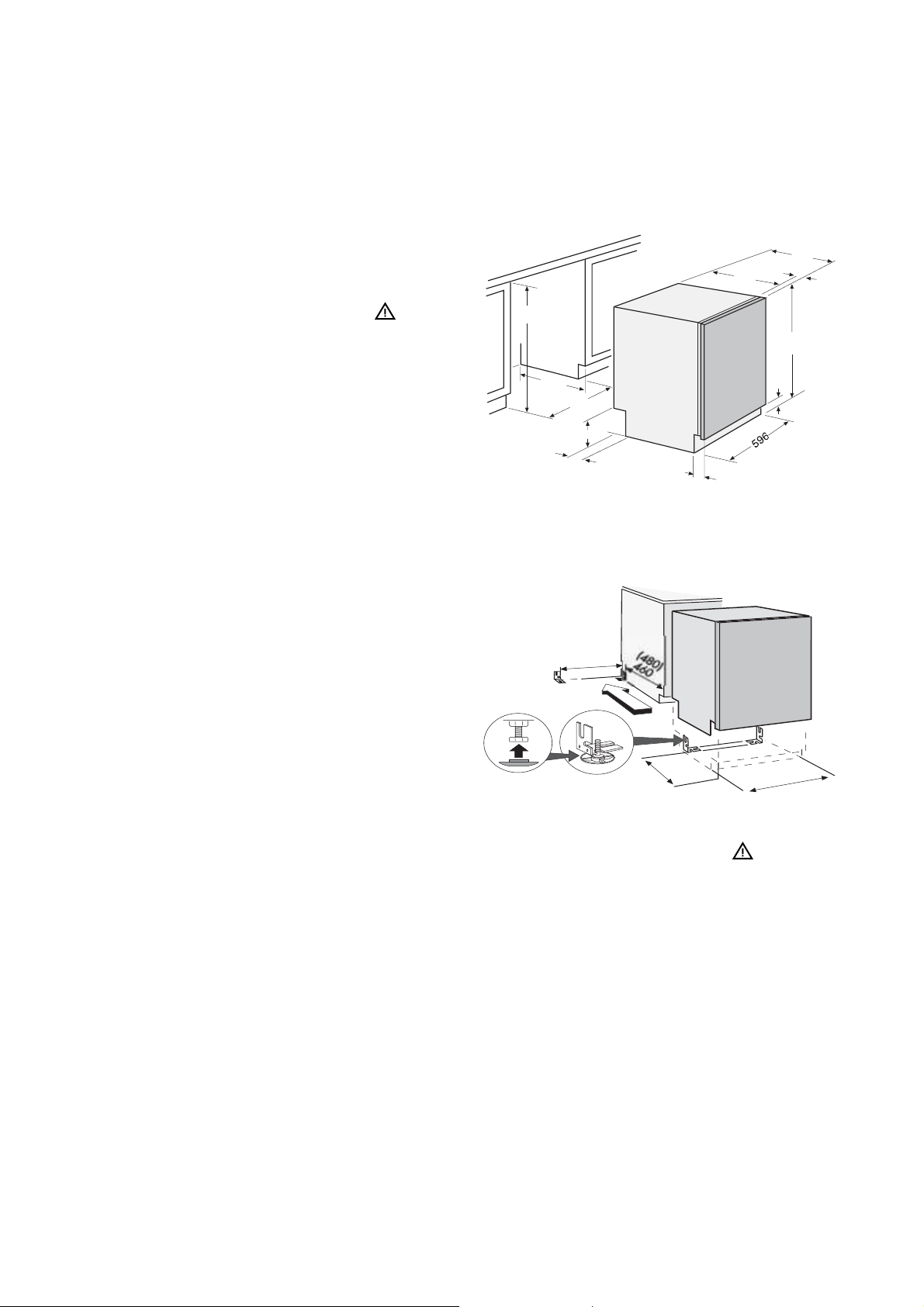

Installation 30-34
Suggestions on positioning the
dishwasher
A. Built-in
B. Freestanding
C. Semi-freestanding
Connection to water supply
Connection to electricity

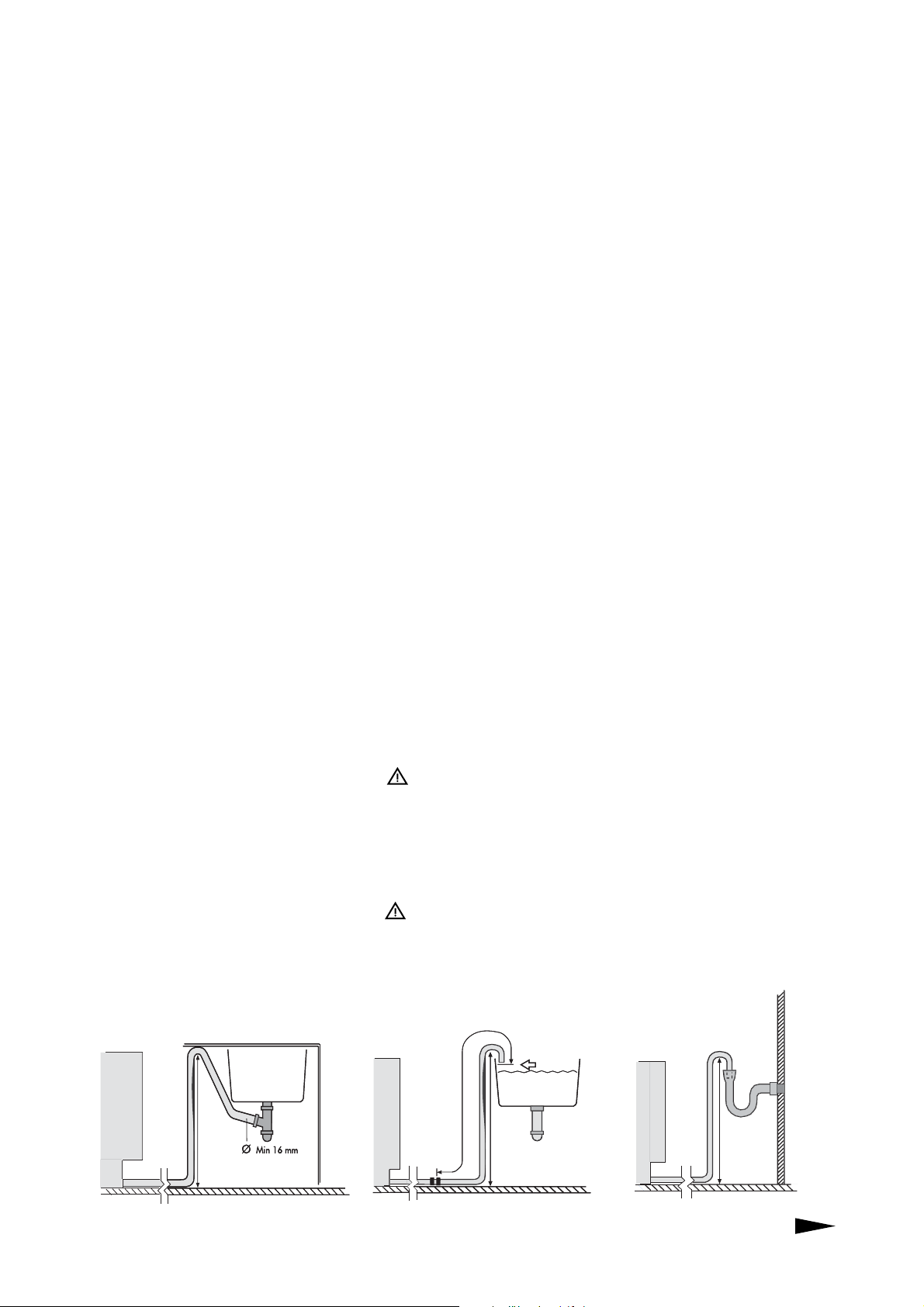

Connection to drainage
Setting water hardness 34
Setting water hardness
Service & guarantee 35
Own comments 36-38
Search words 39
Positioning the machine
A. Adjusting machines with six feet
(freestanding dishwasher)
B. Adjusting machines with
three or four feet
C. Adjusting machines with adjustable foot
Adjusting the plinth
(Only if you have a kick-plate
as an accessory)
Screw the dishwasher into place
4
Before doing your first wash
Read through the directions for use
Read through the directions for use before
starting to use your machine, especially the
Safety, Child Safety and Basic Course
sections.
Take care with certain materials
Read the section ‘Fragile Dishes’ before
washing china with unglazed decoration or
other household goods made of plastic,
wood or crystal requiring careful treatment.
Check the door
Check that the door of the dishwasher fits
properly: open the door a little and let it go.
Does it stay exactly where you released it?
If not, you should check the installation
instructions or consult the installer.
Check the water hardness level
Phone your local Water Board to check the
water hardness in your area. This is important
when dispensing dishwasher detergent and
rinse aid.
If you have a machine with a water
softener
Once you know the water hardness, you
can set the water softener, see Settings.
Before you start dishwashing, you must
also fill with salt, see Salt.
5
Safety
General
Winter storage/Transport
• Read and keep the directions for use!
• Installation of water, drainage and electricity must be carried out by a qualified
professional.
• Do not use the dishwasher for any purposes other than those stated in these
directions for use.
• Do not load the dishwasher door or the
dishwasher baskets with anything other
than dishes.
• Only use dishwasher detergent!
• Place knives and other sharp objects so
that they cannot cause injury to people or
damage the dishwasher.
Never put dishes containing solvent residue
in the machine due to risk of explosion.
Neither may dishes containing ashes, wax
or lubricating grease be washed in the
dishwasher.
Cleaning
Only use a slightly damp cloth for cleaning
around the edge of the door. Do not use a
spray bottle! Water can penetrate into the
lock and come into contact with the electrical components.
Packaging materials
Sort at source in accordance with the recommendations of your local authority.
Scrapping
When the time comes for the machine to be
scrapped, it should immediately be rendered unusable. Remove the plug and cut
off the lead as short as possible.
Contact your refuse collection department
or your local authority for information on the
correct way to dispose of the machine!
The machine is manufactured and labelled
for recycling.
Winter storage/Transport
Store the machine away from frost.
Avoid long journeys in extreme cold. Transport the machine in an upright position or
lying on its back.
Overfill protection
The overfill protector starts pumping out
water and closes off the water intake if the
machine’s water level exceeds the normal
level. If the overfill protector starts up, shut
off the water supply and phone for service.
See ‘Troubleshooting’ on pages 26-28.
6
Child Safety!
Child-safe button lock
To prevent children starting the machine,
you can activate a button lock.
Proceed as follows:
1. Switch off the dishwasher with the main
switch.
2. Press and hold the Temperature button,
and at the same time switch on the main
switch.
3.Press the Drying button until “Child lock”
appears in the display.
4. Select: On with the Temperatur button.
5. Continue with the Drying button until you
get back to the main menu or press the
Start/stop button.
6. A key symbol appears in the display if
you have activated the child lock.
To deactivate the button lock temporarily
when you want to start the machine, press
the Temperature and Drying buttons
simultaneously. The button lock will then
automatically switch on again after 3 minutes.
To deactivate the button lock altogether, use
the same procedure as for activation, but
select Off instead.
Advice!
You can read more about this in the Settings
chapter.
Child-safe dishwashing
• Use the knife basket, or knife holder, for
all long/sharp items.
• Always close the door and start the program immediately once dishwasher detergent has been added.
• Keep children away from the dishwasher
when it is open. There might be remains of
dishwasher detergent present!
• Do not allow children to use or play with
the dishwasher. Always take particular care
when the door is open.
Protect your children!
- Dishwasher detergent is
corrosive!
Store dishwasher detergent and rinse aid
out of the reach of children! Should dishwasher detergent be swallowed, immediately drink one or two glasses of milk or
water. Do not attempt to induce vomiting.
Contact a doctor! Should dishwasher detergent come into contact with the eyes, rinse
(for at least 15 minutes) with copious
amounts of water.
7
Parts of the dishwasher*
1. Knife basket (*Not all models)
2. Upper basket
3. Lamp
4. Spray arms
5. Lower basket
6. Cutlery basket
7. Rinse Aid Filling
8. Dishwasher detergent compartment
9. Main switch
10. Program panel
11. Filter
12. Type plate
* Details may differ
depending on model and market!
9
8
1
2
3
4
5
6
11
7
10
12
Technical information
Height
Width
Depth
Weight
Capacity**
Water pressure
Connection
Max output
Accessories
* Details may differ depending on model and
market!
**In accordance with standard, EN 50242.
***See type plate.
****Without fitted wooden door.
820-870 mm
596 mm
550 mm****
48 kg/51 kg with water softener*
12 place settings
0.03-1.0 MPa (0.3–10 kp/cm2)
1-phase, 230 V, 50Hz 10/10A***
1 900 W***
Work surface, Side panels, Anti-tilt
8
Baskets*
Upper basket
1
Lower basket
1. Wine glass shelf
2
3
2. Folding glass support
3. Divided cup shelves
4. Knife stop (* Not all models )
5. Folding plate stand
6. Cutlery basket with door and folding handle
*Details may differ depending on the model and
market!
4
5
Cutlery basket
6
Knife basket ( *Not all models )
9
Control panel
Start
Stop
Prog
1 2
Prog
1. Program selector
2. Display window
3. Temperature button
Dispenser
4. Start/stop
5. Drying button
3
5
4
Start
Stop
1 3
2
1. Compartment for main wash dishwasher detergent
2. Compartment for pre-wash detergent
3. Inspection window for rinse aid (not all
models)
4. Rinse aid cover
4
5
5. Detergent compartment cover
10
Basic Course
Below are step by step instructions to help you
achieve the best possible dishwashing results.

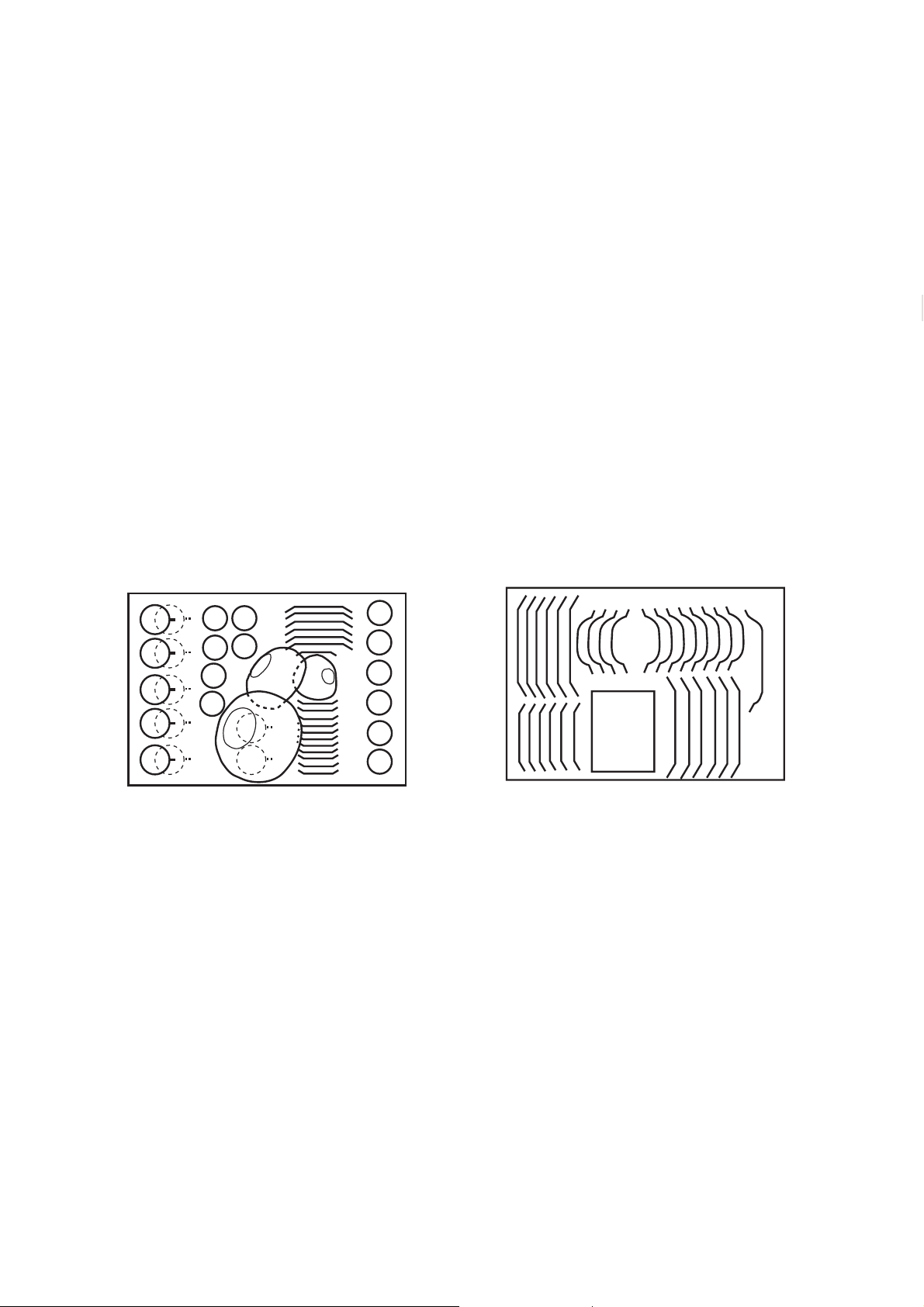

Load the baskets correctly!
Your dishwasher is equipped with Super
Cleaning System™. It is therefore not necessary to rinse the dishes before washing.
Simply remove large food particles and debris. Convenient and environmentally friendly!
Place glasses, cups, bowls, side plates and
dishes in the upper basket, wine glasses
should be placed on the shelf with the wavy
edge, and knives in the knife stand if present.
NB!
Ensure that all soiled surfaces face inwards
or downwards!
The cutlery basket has a folding flap in the
middle for small items or narrow shafts,
such as electric whisks.
Place long cutlery and carving knives in the
special knife box (if available) or in the
upper basket.
Check that the spray arms are able to move
freely.
See the section entitled Fragile Items if you
want to wash objects that may be fragile.
Place dinner plates, side plates, serving
dishes, saucepans and cutlery (in the cutlery basket) in the lower basket. The removable plate insert, which comes with certain
models, can be easily removed to provide
room for large plates, saucepans and pots,
or placed in three alternative positions.
Stand the cutlery with handles downward
and as spread out as possible. Ensure that
spoons are not resting inside each other.
Do not put cutlery made of different materials, e.g. silver and stainless steel, in the
same compartment (risk of stains).
Dispensing dishwasher
detergent
Detergent should be dispensed in accordance
with the water’s hardness level.
Follow the dosage instructions on the detergent package. If your machine is fitted with a
water softener, dispense as for soft water.
Pour the dishwasher detergent into the dishwasher detergent compartment. There is one
compartment for pre-wash and one for main
wash, see Dispenser. Phone the dishwasher
detergent manufacturer if you have any questions regarding the detergent.
CAUTION!
Protect your children!
- Dishwasher detergent is corrosive!
11
NB!
Only use dishwasher detergent
Detergent for washing by hand cannot be
used as the build-up of foam impedes the
machine’s performance.
Lower basket wash
When you only want to wash plates and
cutlery in the lower basket you can use the
lower basket wash.
Press the main switch
and select programme
Select a programme by pressing the programme selector one or more times until the
required programme is displayed.
Auto wash
The dishwasher detects how soiled the
dishes are and adjusts water consumption
and temperature accordingly.
Heavy wash
The Heavy Wash programme should be
used for heavily soiled dishes, e.g. saucepans, pots and gratin dishes. If there is still
space in the machine after loading such
items, you can add plates etc.
Normal wash
Used for washing normally soiled dishes
such as plates, serving dishes, cups and
glasses, etc.
Delicate wash
If the dishes are not heavily soiled, you can
select Light wash. This program is intended
for glass and china which has just been
used and therefore does not need such a
powerful program.
Fragile dishes
can be washed using the Light wash
program. Deselect the heat dry if you want
to be particularly careful. See also the chapter on Fragile dishes.
Quick wash
Select Quick Wash if the dishes are very
lightly soiled. This program is used for very
lightly soiled glass and china, e.g. coffee
cups.
Rinse & Hold
For rinsing the dishes while waiting for the
machine to be filled.
For washing normally soiled mixed loads
use the Normal wash program with 65°C
and normal drying.
To save more water and energy use 55°C
and economy drying.
Mixed wash
This dishwashing programme is used for
lightly soiled dishes in the upper basket and
heavily soiled dishes in the lower basket.
Upper basket wash
If you only have cups and glasses in the
upper basket which require washing, you
can use this programme.
12
Rinse & Dry
The Rinse & Dry program comprises one
rinse with heat and drying. It is a suitable
program if you are planning to make jam
and want to rinse and warm previously
washed glass jars.
If you wish to use additional options,
continue to point 4. Otherwise you can
now start the machine, see point 5.
Options
Select options
To select an option, press one of the option
buttons
Drying
You can select different drying time lengths
depending on how dry you want your dishes to
be when the machine has finished. The temperature can be selected in all programmes
except Auto wash, Rinse & Hold and
Rinse & Dry programmes.
By pressing the drying button you can select
‘Short drying’, ‘Economy drying’
symbol is shown in the form of a wavy line) or
‘Normal drying’
in the form of three wavy lines) .
Temperature
The temperature can be changed in all programmes except the Auto wash, Rinse & Hold
and Rinse & Dry programmes.
By pressing one or more times on the
Temperature button, you can advance to the
desired temperature, from cold (incoming water
temp.), 30°, 40°, 50°, 55°, 60°, 65°, 70°, 75°C. In
the Delicate wash and Quick wash programmes
you can only select temperatures up to 60°C.
(the drying symbol is shown
(the drying
13
Eco-dishwashing
Only perform washes with a full
machine
Waiting to run the wash until the machine is
full saves energy.
Wash at a lower temperature
If the load is only lightly soiled, you can
lower the temperature.
Select program with Economy
drying
To save more energy - use Economy drying.
You will get a better drying result if you
leave the door slightly open after the end of
the program.
Do not rinse before dishwashing
Thanks to the dishwasher’s Super Cleaning
System™ you do not need to rinse the
dishes under running water before loading
them into the machine.
Choose environmentally-friendly
dishwasher detergent
Read environmental declarations on the
package!
Connect to cold water supply
If the machine is connected to the cold
water, the operating time will be longer, as it
takes longer to heat up the water. However,
the extended washing time means that it is
possible to operate a program with a lower
washing temperature and still achieve the
same results.
14
Specialsettings
Language, Child lock, Buzzer
volume, Water hardness,
Temperature unit, Machine
information, Reset machine to the
original settings
You will probably only need to adjust these
settings when the machine is new.
To get to the Specialsettings
1. Turn the machine off with the main power
button.
2. Press and hold the Temperature button
and at the same time turn the machine on
with the main power button .
3. Release Temperatur button and you will
now be in special settings.
4. Press the Drying button until the desired
setting appears in the display.
Language
Using the Temperature button, select the
language you wish to use. Continue using
the Drying button and adjust other settings if
required, or press Start/stop if you want to
start the machine.
Adjust the volume with the Temperature
button. Select from 1, 2, 3, 4, 5, 6, 7, 8, 9 and
0 = Off. Continue with the Drying button to
make further adjustments or press Start/
Stop.
Water hardness (machine with
water softener)
Phone your local water
board to check the
water hardness in your
area. The machine is
set for low water hardness on delivery.
Set the desired hardness with the
Temperatur button.
Select from 1, 2, 3, 4, 5,
6, 7, 8, 9 and 0 =
without water softener
as well as machines
with water softener and low hardness.
Continue with the Drying button to make
further adjustments or press Start/Stop.
No. ˚dH ˚fH
0-5 0-9
0
6-8 9-14
1
9-11 15-20
2
12-14 21-25
3
15-19 26-34
4
20-24 35-43
5
25-29 44-52
6
30-39 53-70
7
40-49 71-88
8
50+
9
89+
Temperature unit
Using the Temperature button, choose if the
temperature is to be displayed in °C or °F.
Continue with the Drying button to make
further adjustments or press Start/Stop.
Child lock
Select ‘On’ with the Temperature button to
activate the child lock. Continue with the
Drying button to make further adjustments
or press Start/Stop.
To temporarily deactivate the child lock
when starting the machine, press the Drying
and the Temperature buttons
simultaneously.
The child lock comes back on automatically
after three minutes.
Buzzer volume
If you wish, the machine will emit a buzzer
signal to let you know when it is finished.
Machine information
By pressing the Temperature button, you can see
how much water the machine used the last time it
was operated. You can also see how many times it
has been used since it was new.
To exit Special settings
Press the Drying button or Start/Stop.
Resetting the machine
Switch off machine at the main switch. Hold in the
Programme button while pressing the main switch
The machine will reset itself to the original settings
(with the exception of water hardness and language).
15
Press Start/Stop and close
the door
The dishwasher will now start. It manages
the entire wash automatically. Ensure that
the door is properly closed or the machine
will not start.
Changing options
If you want to change program after having
started the machine, press the Start/Stop
button for three seconds. Then select a new
program and press the Start/Stop button.
Do you want to load more dishes?
Open the door; the machine stops automatically, put in the dishes, close the door and
the dishwasher will continue from where it
left off.
If the machine is switched off with
the main switch
(or in the event of a power cut) before the
washing program has been completed, the
interrupted program will continue when
power comes back on.
NB!
If the power is switched off, or if the door is
open for more than 2 minutes during drying,
the program is interrupted.
After dishwashing
Once the machine has finished, it is only
drawing standing current. Should you wish
to disconnect the current completely, just
switch off at the main switch. Turn off the
water tap if the machine is not to be used for
an extended period, e.g. during holidays.
Advice!
For even quicker drying, allow the door to
stand slightly ajar.
16
Fragile dishes
A number of household goods are not suitable for machine washing. There can be
many reasons for this. Certain materials
cannot withstand intense heat, others can
be damaged by the dishwasher detergent.
Fragile decoration
China with decoration on top of the glaze
(the article has a rough feel) should not be
machine washed.
Crystal/ glass
Place the articles so that they do not knock
together during the wash. Use the lowest
possible wash temperature and the shortest
possible program. Do not heat dry! Antique
and very fragile items should not be machine washed.
Glass which is machine washed at high
temperatures can in time develop a grey
film which cannot be removed. Wash fine
glass at the lowest temperature and with a
low dosage of dishwasher detergent.
Wood
Wooden articles should only be machine
washed if they are labelled as dishwasher
proof.
Aluminium
Aluminium can be dulled by machine washing. However, good quality aluminium
saucepans can be machine washed, although a reduction in lustre should be expected.
Plastic
Certain types of plastic cannot withstand
the high temperature generated in machine
dishwashing.
To protect plastic articles
Select a program with Economy
temperature and Economy drying.
Silver
Silver and stainless items should not come
into contact with each other as the silver
can discolour.
Cutlery with glued handles
Certain types of adhesive cannot withstand
machine washing. In such cases the handles
can come loose.
17
Standard program
Program
Press
Program
Options
How the
machine works
Temperature
Pre-wash with
SCS* (number)
Main wash
(number)
Auto
wash
40-60°C
0/1
1
Heavy
wash
70°C
2
1
Tested
program
Normal
wash
55°C
--
1
Normal
wash
65°C
2
1
Rinse & Dry
(number)
Final rinse
Fan
Consumption
values
Wash time
1.
(approx. min)**
Energy
1.
(approx. kWh)
Wash time
2.
(approx. min)**
Energy
2.
(approx. kWh)
Water consumption (litres)
2/3
60°C
Ye s
75-150
0,7-1,0
90-175
0,8-1,4
9-15
3
70°C
Ye s
160
0,9
190
1,8
18
2
60°C
Ye s
--
--
145
1,0
9,9
2
70°C
Ye s
125
0,8
140
1,5
15,5
* SCS = Super Cleaning System™.
** Wash times may vary depending on water temperature, variations in voltage, etc.
1. Connection to hot water approx. 60°C.
2. Cold water connection approx. 15°C.
18
Standard program
Program
Press
Program
Options
How the
machine works
Temperature
Pre-wash with
SCS* (number)
Main wash
(number)
Rinse & Dry
(number)
Final rinse
Upper
basket wash
55˚C
--
1
2
60˚C
Lower
basket wash
55˚C
--
1
2
70˚C
Delicate
wash
50˚C
--
1
2
60˚C
Quick wash
--
30˚C
--
1
2
50˚C
Rinse & Dry
program
--
--
--
1
50˚C
Fan
Consumption
values
1. Wash time
(approx. min)**
1. Energy
(approx. kWh)
2. Wash time
(approx. min)**
2. Energy
(approx. kWh)
Water consumption (litres)
* SCS = Super Cleaning System™.
** Wash times may vary depending on water temperature, variations in voltage, etc.
1. Connection to hot water approx. 60°C.
2. Cold water connection approx. 15°C.
Yes
120
0.6
135
1.0
8.0
Yes
120
0.6
140
1.1
8.0
Yes
85
0.6
100
1.0
9.5
--
15
0.02
20
0.1
8.0
Yes
40
0.4
45
0.5
3.0
19
The display
When you have selected programme and
option, the display shows the length of time
the programme took the last time it was
used. When you have started the machine,
the display window shows how much of the
programme time remains.
This time can vary a little from one occasion
to another depending on the temperature of
the inlet water, the amount of dishes, the
ambient temperature, etc.
During the time the programme is operating,
the time is counted down and the remaining
programme time is shown in the window.
The remaining time is shown e.g. as 1:02,
which means that 1 hour and 2 minutes of
the programme remain.
NB!
During the first run of each programme, the
remaining time display can be slightly misleading as the machine is estimating the
time. If the programme takes longer than
expected, it displays 1 minute until the
programme is finished.
20
Cleaning
Cleaning
The dishwasher’s inner container is made of
stainless steel and is kept clean through
normal use. However, if you have calciferous
(hard) water, lime deposits can form in the
dishwasher. In this case, run a normal wash
program with two tablespoons of citric acid in
the dishwasher detergent compartment.
Coarse filter
The coarse filter collects large food particles which cannot get past the outflow
pump. Lift out and empty the coarse filter as
necessary. Don’t forget to replace it!
Coarse
filter
Fine filter
After 300 dishwashing cycles, ‘Clean filter’
appears in the display (applies only to certain
models and markets).
1. The fine filter is removed by first turning the
tubular strainer of the filter anti-clockwise and
then lifting it straight up.
2. Clean with a dishwashing brush. Ensure
that the edges are properly sealed when
replacing the fine filter.
The message is cancelled by pressing on
one of the buttons or the main switch.
Drainage pump
The pump can be accessed from the inside
of the machine.
1. Always remove the plug from the wall
socket before you clean the pump.
2. Remove the coarse screen first by
pressing together the two lugs and pulling
the screen upwards.
3. Now loosen the tubular part of the screen
by turning it anticlockwise and removing the
fine screen.
4. Finally remove the small adapter to the
left of the bottom drain.
5. It’s possible, by inserting your finger in
the hole, to turn the pump impeller and
remove any blockage.
6. Refit the adapter and screens.
7. Insert the plug in the wall socket.
Tubular
strainer
Fine filter
Adapting
piece
21
If you still cannot start the machine and a
humming noise can be heard, then the
overfilling protection has been activated.
• Shutoff the water
• Remove the plug from the wall socket
• Call Service
CAUTION!
Do not forget to replace the adapting piece.
Spray arms
The holes and bearings can occasionally
become clogged.
1. Pull the lower spray arm straight up to
release it.
2. Scrape away the debris with a needle or
similar. The spray arms also have holes on
the underside.
To release the upper spray arm, the upper
basket must be removed.
3. Pull out the basket and turn the basket
stop outwards on both rails (see picture).
The basket can now be removed.
4. Remove the upper spray arm in the same
way as the lower arm and clean it.
Door
When cleaning the edge around the door,
use only a slightly damp cloth, possibly with
a little detergent. Do not use a spray bottle
or similar around the door catch. This is to
ensure that water does not penetrate into
the door catch and come into contact with
the electrical components.
CAUTION!
Do not use a spray bottle or similar around
the door catch.
Tip!
In order to prevent bad odours in the
dishwasher, clean the strips and corners
with a dish brush and low-lather detergent.
22
Rinse aid
Pour in rinse aid
Drying proceeds more quickly if you use
rinse aid.
Machines with indicator on the panel
When the rinse aid has run out and more is
needed, the rinse aid symbol on the panel
lights up*.
To fill with rinse aid:
1. Turn and lift up the cover of the rinse aid
compartment to the right of the dispenser.
This is where you top up and set the
amount of rinse aid to be dispensed in each
wash.
2. Carefully pour in rinse aid up to the knob
for dosage setting.
Alter dosage if required. Do not forget to
close the cover.
Select dosage
The dispenser is usually set at 1= soft water.
However, depending on the water hardness, it may be necessary to change the
dosage.
Open the rinse aid cover . Here you will find
the dispenser’s adjustment dial. Settings 1-6:
the harder the water, the higher the dosage.
When the water hardness exceeds 10-12 odH
you should use rinse aid with citric acid (acid
rinse aid) if the machine does not have a water
softening filter. If the machine has a water
softening filter, dispense as for soft water.
Too much rinse aid can lead to the build-up
of foam. If your water is particularly soft, you
can dilute the rinse aid (1 part rinse aid, 1
part water).
*NB!
After filling there may be a short delay
before the signal light goes out.
Machines with refill indicator
There is a refill indicator in the middle of the
dispenser (see picture). If the refill indicator
is totally black, there is sufficient rinse aid.
However, if the indicator has a more
transparent appearance, you need to top up
with rinse aid (see above).
Open
Refill indicator
Closed
Too much rinse aid can cause streaks on
the dishes, while too little can result in water
stains.
Cover for rinse aid
Open by turning and lifting the cover!
23
Salt
(applies to dishwashers with water softeners)
Pour in salt
Before using a dishwasher with a water
softening filter, you must fill the salt compartment with salt. Use coarse salt or special salt for dishwashers.
It is best to fill with salt when you are about
to do a wash, as the dishwasher needs to
be rinsed out immediately after filling.
Proceed as follows the first time:
1. First unscrew the cover as illustrated.
2. Place the funnel, which is supplied with
the dishwasher, into the compartment’s filler
hole. First pour in approximately 1 litre of
water.
3. Then fill the compartment with max 1.5 kg
salt.
4. Wipe away excess salt so that the cover
can be properly screwed into place.
5. Run a Normal wash program so that any
salt in the machine is rinsed away.
Cover for the salt compartment
When the salt runs out, the salt symbol on
the display* lights up (this function is not
available on all machines). Unscrew the
cover and fill the compartment with salt.
Water is only needed on the first occasion!
Wipe clean and screw back in place. Run a
Normal wash program so that any salt is
rinsed away.
The indicator is not working
If the indicator is not working, this may be
because the float, which is positioned under
the cover, has become stuck in salt residue.
The float can be reached through the green
arm located under the cover of the salt
compartment. Move the float arm up and
down to loosen it. Once the float has been
loosened, press it down again.
Models without a salt symbol in the display
show green in the salt compartment cover
when there is sufficient salt.
*NB!
After filling, there may be a short delay
before the signal light goes out.
CAUTION!
Never pour dishwasher detergent into the
salt compartment. It will destroy the water
softener!
24
Fault indications
Display Type of fault Action
Overfilling Too much water in the machine Phone for service
Water inlet fault Fault in the water inlet Check that the tap is open
Inlet valve leakage Inlet valve leakage Shut off the tap and phone for
service
Drainage fault Blocked drain See ‘Possible causes’ in chapter
Troubleshooting
Blocked filter Clogged filter Clean filters, see chapter
Cleaning
To remove the fault indications from the display, turn off the main switch and then turn it
back on again.
25
Troubleshooting
Problems Possible causes Action
The dishes are not clean.
• The spray arms are not
rotating.
• Old dishwasher detergent.
NB! Detergent is a perishable.
• Incorrect dosage of
detergent.
• Insufficiently powerful
dishwashing program.
• Incorrect program chosen.
• Incorrect loading of the
dishwasher.
• Lift off the arms and clean.
• Avoid large packs.
• Dispense according to the
level of water hardness.
• Select the Temperature
normal option or switch to a
more powerful program.
• Change to a more intensive program.
• Do not cover china with
large bowls or similar.
•Avoid placing very tall
glasses in the corners of
baskets.
Stains or a film on the
china.
• Glasses and cups have
tipped over during the wash.
• Dishwasher fitted with
water softener is leaking
salt.
• Incorrectly set water softener.
• Incorrectly set rinse aid
dispenser.
• The salt compartment is
empty.
• Phosphate-free detergent in
combination with hard water.
• Too high a temperature
and/or too much detergent
can cause etching on (crystal) glass. Unfortunately this
cannot be remedied, only
prevented!
• Load the china securely.
• Check that the cover of the
salt compartment is properly
screwed on. Otherwise
phone for Service.
• See the chapter on water
softeners.
• See the chapter on rinse
aid.
• Top up with salt.
• Change detergent.
• Wash (crystal) glass at a
low temperature and dispense dishwasher detergent
with care. Contact the dishwasher detergent
manufacturer.
26
Problems
Possible causes Action
The china has a whitishblue sticky film.
Stains on stainless steel
or silver.
Stains which remain after
dishwashing.
• Too high dosage of rinse
aid.
• Certain food remnants
such as mustard, mayonnaise, lemon, vinegar, salt
and dressings can cause
stains on stainless steel if
allowed to remain for any
length of time. All stainless
steel can mark silver if
allowed to come into contact
during the dishwashing
process. Aluminium can
also cause stains on dishes.
• Lipstick and tea can be
difficult to remove.
• Reduce dosage. See the
chapter on rinse aid. If the
water is very soft, you could
try diluting the rinse aid (1
part rinse aid, 1 part water).
• Rinse off food residue of
this type if you do not intend
to start the dishwasher
immediately.
• Seperate your cutlery into
the varians compartments in
the basket. Make sure silver
and stainless steel are not
together.
• Change to a detergent with
bleach.
Rattling sound during
dishwashing.
The machine will not start.
To restart the machine,
press Start/stop for 3
seconds. Now select a
new programme and
press Start/stop.
• The dishes are not properly loaded or the spray
arms are not rotating.
• You have forgotten to
switch on the main switch.
• The door is not properly
closed.
• A fuse has blown.
• The plug is not plugged in.
• The water tap is off.
• Overfilling/leakage
• A droning sound (drainage
• Check that the china is
loaded securely. Spin the
spray arms to make sure
that they rotate.
• Check
• Check
• Check
• Check
• Check
1. Close the water tap.
27
Problems
Possible causes Action
Water remains in the
machine.
pump) can be heard from
the machine, this does not
stop when the power is
switched off using the main
power switch.
• Obstruction in the drain
hose.
• Kinks in the drain hose.
• The filters are clogged.
• Items in the drain pump.
2. Pull out the plug.
3. Call a service engineer
• Disconnect the drain hose
where it is connected to the
sink’s water trap. Check that
no debris has become stuck.
Is the cone-shaped part of
the pipe cut so that the
diameter is at least 16 mm?
• Check that the hose is free
from kinks or sharp bends.
• Clean out the coarse filter,
the fine filter and the filter.
• Clean out the drain pump.
See chapter on cleaning
Bad odour in the machine
The dishes are not
sufficiently dry
• Dirt along the strips and in
corners
• Drying power too low.
The machine is not fully
loaded.
The rinse aid has run out or
the set dose is too low.
• Clean with a dish brush
and low-lather detergent.
• Activate the Normal drying
option (not all models).
Put a full load in the
machine.
Replenish rinse aid or
increase the dose of rinse
aid.
Open the door slightly once
the program has finished.
28
Performance information
Test dosage
Strong wash/Normal wash
Main wash 25 gram Standard detergent.
Rinse aid dosage 3.
Energy labelling
Europe: EN 50242
Dishwasher program:
Normal wash 55°C, economy drying
Program time: 145 minutes.
Connection: Coldwater
Test method noise measurement: IEC-704-3
Example of dishwasher loading
EN 50 242
EN 50 242
Technical information
Height: 820-870 mm
Width: 596 mm
Weight: 48 kg*
51 kg with water softener*
Capacity: 12 IEC place settings
Water pressure: 0.03-1.0 MPa
0.3-10 kp/cm2 (Bar)
3-100 N/cm
Connection: See type plate
Output: See type plate
*The weight can vary due to varying specifications.
2
29
550
5
6
Installation
Suggestions on positioning the
dishwasher
The dishwasher can be built in, fully freestanding or semi-freestanding.
CAUTION!
Connection to electricity, water and drainage must be carried out by a suitably qualified person.
A. Built-in
The dishwasher can be built in under a
worktop with a working height of 820 - 870 mm.
The width measurement must be at least 600
mm. For additional measurements, see picture.
B. Freestanding
A freestanding dishwasher must be fitted with
anti-tilt. This comprises two fastening irons
which are screwed into place as illustrated.
The dishwasher is then pushed in so that
the fastening irons grip onto the rear feet.
The dishwasher cannot now tilt in the event
a load is placed on the open door. If the
dishwasher is to be fully freestanding, both
side panels and the work top should be
fitted. These accessories can be purchased
where you purchased the dishwasher.
Built-in installation
820-870
570
600
175-230
50
50-105
Freestanding installation
413
455-47
100150
820870
00
570
20
Tip!
A machine with side panels and a counter
top (freestanding) can, of course, also be
installed as a built-in unit.
C. Semi-freestanding
If the dishwasher is positioned so that either
side is visible, a side panel can be fitted.
These accessories can be purchased
where you purchased the dishwasher.
30
CAUTION!
A fully freestanding dishwasher must be
fitted with anti-tilt.
Connection to water
There must be a shut-off tap on the water
supply pipe. The shut-off tap should be
positioned above the work surface or at the
front of the sink unit.
The water supply pipe has a connection
with a 1/2” or 3/4” internal thread depending
on country.
When the installation is complete, the shutoff tap should be opened to allow the pressure to settle for a while and to check that
all connections are tight.
Connection to electricity
A dishwasher fitted with a lead and plug
must be connected to an earthed socket.
Repairs and maintenance relating to safety
or performance must be carried out by a
qualified professional.
Connection to drainage
When the drain hose is routed to a
connection nipple at the sink’s water trap
(see illustration 1), note that the hose must
be fastened level with the underside of the
sink unit – otherwise the dishwater from the
sink can run down into the dishwasher. The
drain hose is threaded onto a cone-shaped
connecting pipe at the sink unit’s water trap.
The cone-shaped pipe must be cut to an
internal diameter of at least 16 mm. For
other alternative connections, see
illustrations 2 and 3.
The drain hose may be lengthened by a
maximum of 3 m (the total length of the
drain hose may not exceed 4.5 m). Any
connections and connecting pipes must
have an internal diameter of at least 16 mm.
However, the drain hose should ideally be
replaced with a new hose without joins.
Technical data
See the type plate on the right hand side of
the door.
CAUTION!
The lead must be disconnected or the socket
voltage-free while the work is carried out!
Connection to drainage
NB!
The hose must be fastened level with the
underside of the sink unit.
Illustration 1 Illustration 2
Max 950 mm
Min 350 mm
No part of the drain hose may be more than
950 mm above the bottom of the machine.
The hose must not be routed directly to the
floor drain or similar. In such cases, the
hose can act as a siphon and empty the
dishwasher.
The hose must always discharge at least
350 mm above the bottom of the machine.
Illustration 3
Max 3 m
Max 950 mm
Min 350 mm
Max 950 mm
Min 350 mm
31
Positioning the machine
Steel feet
Stålfötter
A. Adjusting machines with six feet
(freestanding dishwasher)
1. Adjust the height of the dishwasher with
the four steel feet.
2. Lock the feet with the nuts.
NB! The dishwasher must not be allowed to
lean more than 5 mm.
3. After the steel feet have been adjusted,
screw down the two rubber feet tightly
against the floor.
The rubber feet now work as anti-tilt protection.
B. Adjusting machines with three or four
feet
1. Start by measuring the height from the
floor to the underside of the work surface.
2. Install the sliding feet on the dishwasher.
5. Check that the height of the machine
corresponds to the height from the floor to the
underside of the work surface. Tighten the
locking nuts (locking nut) on the rear feet.
6. Push the dishwasher into place.
7. Finely adjust the front feet (the machine
may lean max. 5 mm) and tighten the locking nuts.
C. Adjusting machines with adjustable
foot
1. Start by measuring the height from the
floor to the underside of the work surface.
2. Install the sliding feet on the dishwasher.
3. Measure the height from the floor to the
top edge of the dishwasher.
4. Tilt the dishwasher forward a fraction and
roughly adjust the rear foot by screwing the
set screw at the front clockwise to raise or
anti-clockwise to lower (illustrated below).
Use a broad screwdriver or a hexagonal
head screwdriver.
5. Adjust the front feet by turning them clockwise to raise or anti-clockwise to lower.
6. Check that the height of the machine
corresponds to the height from the floor to
the underside of the work surface.
7. Push the dishwasher into place.
8. Finely adjust the feet (the machine may
lean max. 5 mm) and tighten the locking
nuts on the front feet.
3. Measure the height from the floor to the
top edge of the dishwasher.
4. Adjust all the feet by screwing them
clockwise to raise or anti-clockwise to lower.
32
A
Not all models
To prevent kinks, pull the drain hose and the
connecting pipe.
Adjusting the plinth
(Only if you have kick-plate as accessory)
The dishwasher has two kick-plates (certain
models).
The taller one should be used if the machine is to
be 850 - 870 mm high and the plinth depth can
be varied between 45 - 105 mm. The lower one is
to be used if the machine will be 820 - 845 mm
with a plinth depth of between 50 - 105 mm.
Attach the enclosed felt insulation to the kickplate (some models).
Fitting fixed kick-plate
Fitting strip seal
(on the floorplinth covering plate)
Proceed as follows:
1. Remove the plastic plinth by gripping with
both hands under the plastic plinth(A), and
breaking outwards and upwards.
Set the correct plinth depth as follows:
1. Press the grey catches towards each other
and pull out the holders as far as required.
Press in the catches so that they lock the
brackets in place.
2. Hang the kick-plate onto the holders by
inserting it into the grooves.
Screw the dishwasher into place
If the machine is to be screwed in at the sides,
the enclosed plastic plugs are used for covering
the screw holes. After fixing check that the front
feet are in contact with the floor.
2. Undo the two screws on the covering
plate(B).
3. Glue the accompanying rubber strip(C) to the
underside of the covering plate (against the
floor).
4. Screw the covering plate back into place.
Adjust the covering plate so that the rubber strip
is just in contact with the floor.
C
5. Replace the plastic plinth
33
Setting water hardness
Setting water hardness (machines with water softener)
Before starting to use the dishwasher, you should set the correct water hardness. Phone
your local water board to ascertain the water hardness in your area. The machine is set for
low water hardness on delivery.
1. Turn the machine off with the main power button.
2. Press and hold the Temperature button and at the same time turn the machine on with
the main power button
3. Release the Temperature button and you will now be in special settings.
4. Set the desired hardness with the Set button. Select from 1, 2, 3, 4, 5, 6, 7, 8, 9 and 0 =
without water softener as well as machines with water softener and low hardness.
No. ˚dH ˚fH
0
1
2
3
4
5
6
7
8
9
0-5 0-9
6-8 9-14
9-11 15-20
12-14 21-25
15-19 26-34
20-24 35-43
25-29 44-52
30-39 53-70
40-49 71-88
50+
89+
6. Press the Start/Stop button to confirm the setting.
34
Service & guarantee
Service
Before calling for service, check to see
whether the faults is due to something that
you can put right yourself. See Trouble
shooting pages 26-28.
Guarantee
For guarantee details, see the guarantee
card.
35
Own comments
36
Own comments
37
Own comments
38
Search words
A
Advice! 7, 16
After dishwashing 16
C
Child safe 7
Citric acid 21, 23
Cleaning 6, 21
Connection 19, 29, 31
Control panel 10
Crystal 3, 5, 17, 26
Cutlery basket 8, 9, 11
D
Dishwasher detergent 3, 6, 7, 11, 24
Door 5, 16
Drainage 21, 28, 31
E
Efter disken 16
Environment 3, 11, 14, 40
F
Fault indications 25
Fragile dishes 12
Fyll korgarna 11
H
Hardness 5, 23, 26
Heavy wash 12, 29
I
Installation 6, 30
K
Knife basket 7, 8
L
Loading baskets 2
Lower basket 8, 9, 11, 12
O
Output 8
P
Plastic 3, 5, 17, 33
Plinth 33
R
Recycling 6
Rinse aid 4, 5, 22, 23, 29
S
Salt 4, 5, 24
Scrapping 3
Select program 14, 17
Select programme 12
Service 6, 25, 34, 35
Service & guarantee 34, 35
Settings 3, 15
Spray Arms 2
Spray arms 11, 22
Stains 26, 27
Standard program 18, 19
T
Temperatur 13
Temperature 10, 14, 15, 19, 26
The Display 24
The display 20
The door 2, 22
the Door 30
Transport 6
U
Upper 11
Upper basket 8, 9, 11, 12, 22
V
Water 8, 16, 18, 19, 23, 25, 29, 31
Winter storage 3, 6
M
Main Switch 2, 16
Main switch 8, 12, 16
N
Normal Wash 21
Normal wash 24, 29
39
Art. No: 80 785 79. Rev. 03 • We reserve the right to make changes.
Printed on environmentally-friendly paper which meets the demands of Friends of the Earth and the
Swedish Society for Nature Conservation.
40
Loading...
