Maxxus 4.2I User Manual
Treadmill
MAXXUS 4.2i
INSTALLATION & OPERATING MANUAL
Safety InstructionsIndex
Index 2
Safety Instructions 3
Overview of the Device 4
Assembly Material and Tools 4
Scope of Delivery 4
Assembly 5 – 6
Folding Mechanism 6 – 7
Transport 8
Mains Cable 9
Safety Key 9
What to do in an Emergency 10
Care, Cleaning & Maintenance 11

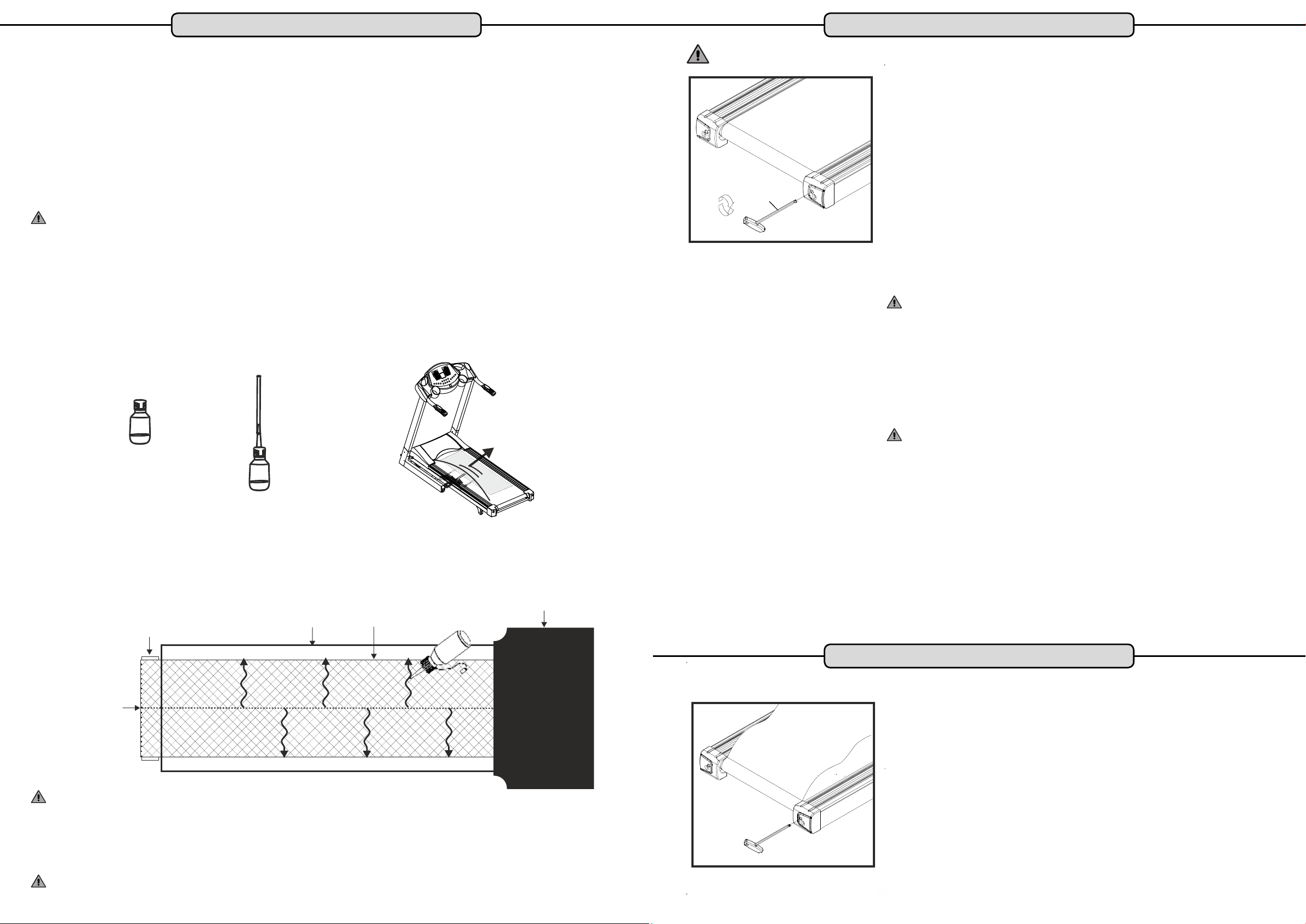

Lubricating the Treadmill Belt 12
Adjusting the Treadmill Belt 13
Re-Tensioning the Treadmill Belt 13

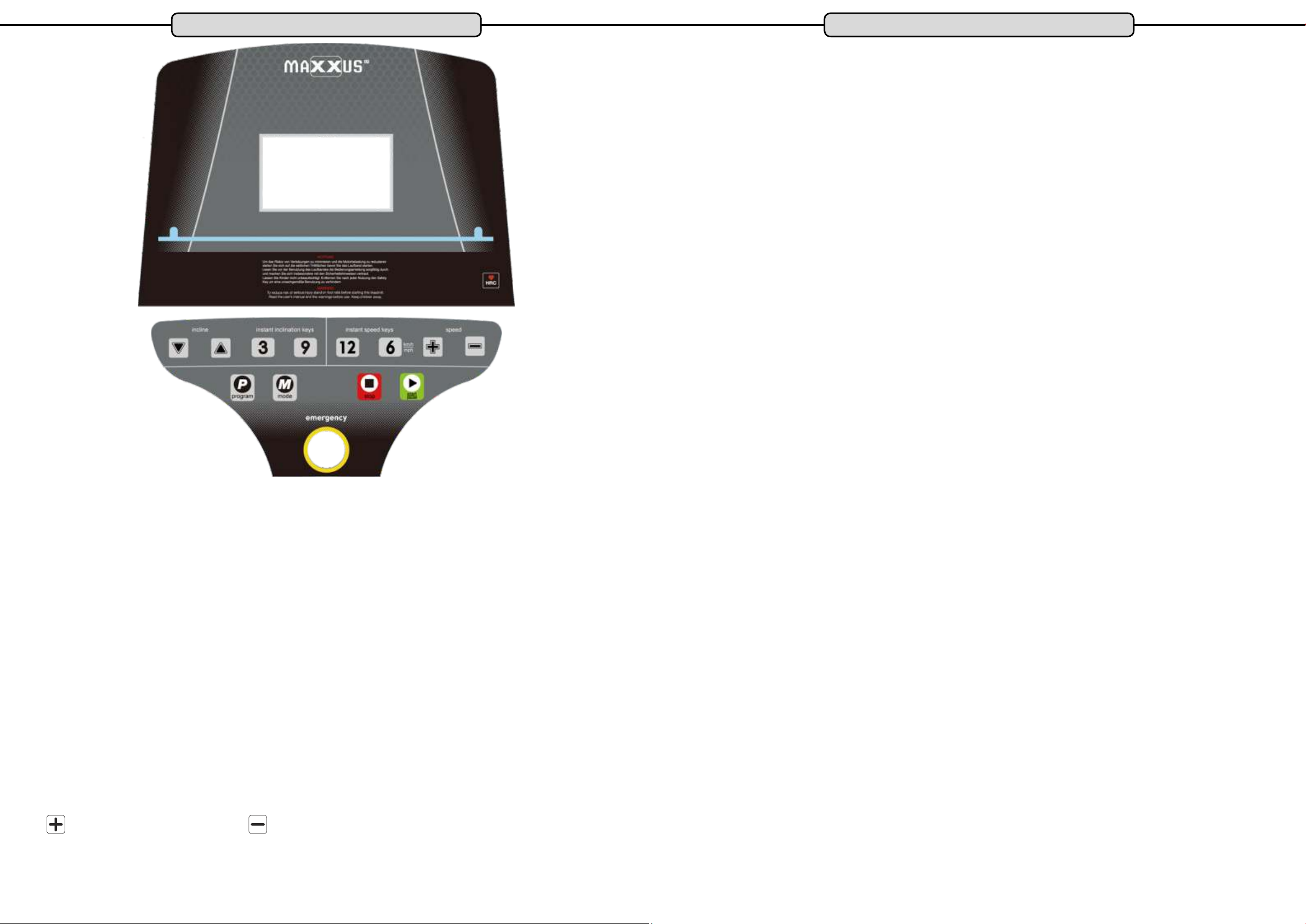

Cockpit 14 – 20
Heart Rate Measurement 21
Warning about Pulse and Heart Rate Monitoring 22
Pulse Monitoring using Hand Sensors 22
Heart Rate Monitoring using a Chest Belt 22

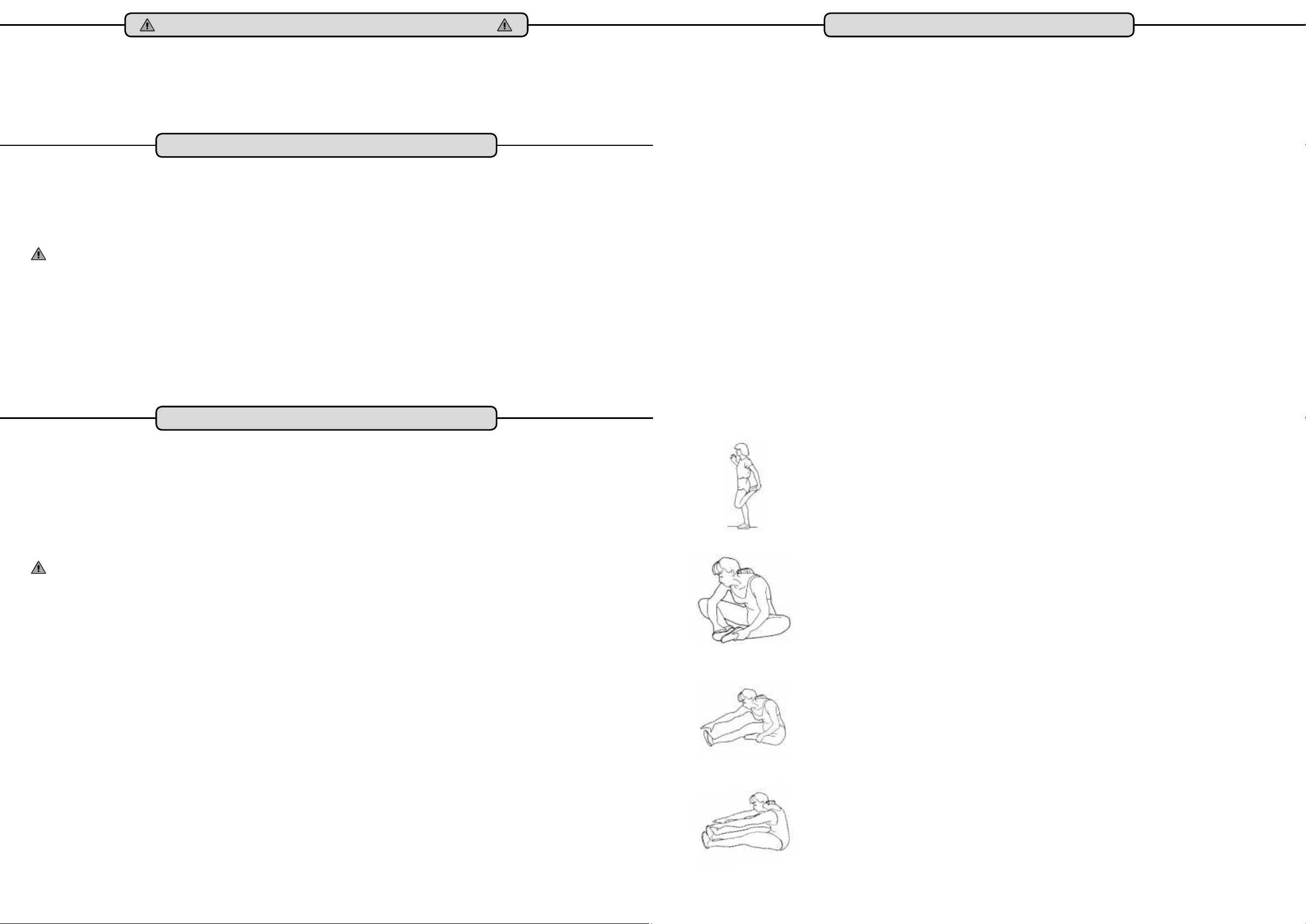

Training Recommendations 23 – 24

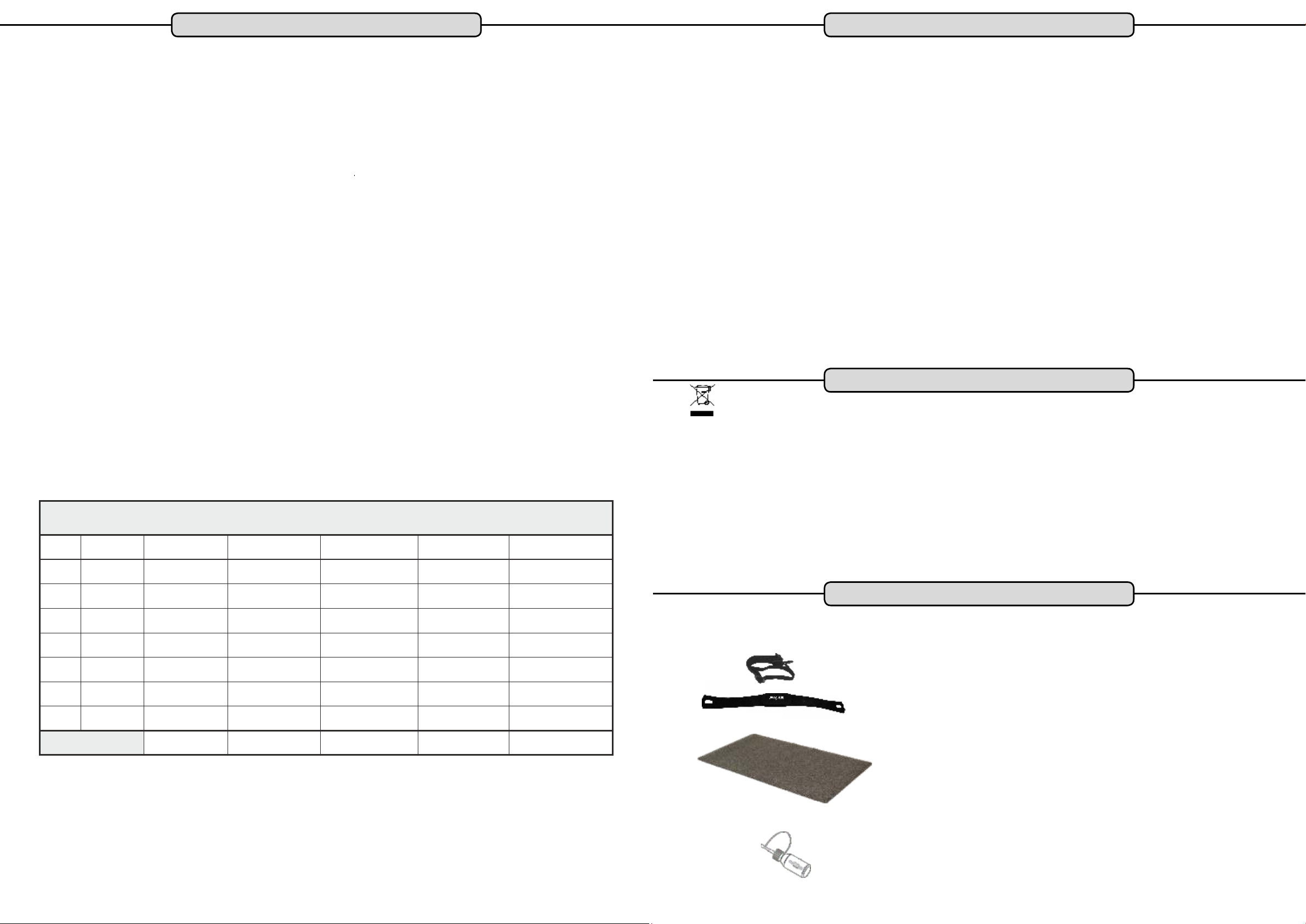

Technical Details 25
Disposal 25
Recommended Accessories 25

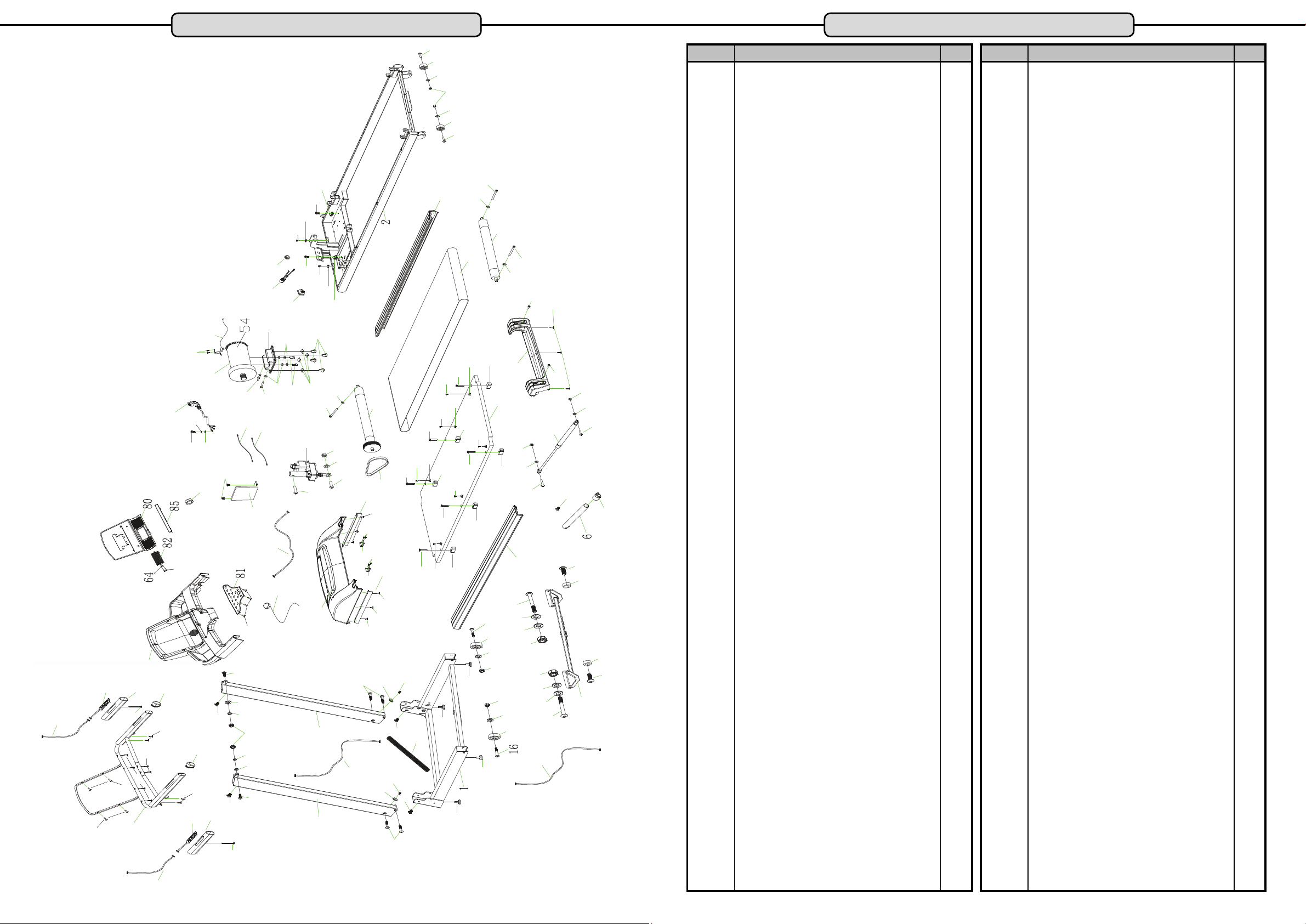

Explosion Drawing 26
Parts List 27 – 28
Warranty 29
Repairs Contract / Notication of Damage Claim 30
Notes 31
© 2015 by MAXXUS Group GmbH & Co. KG
All rights reserved
This publication may not be reproduced, stored in retrieval system, or transmitted on whole or in part, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of Maxxus Group GmbH & Co. KG.
Errors, colour and technical modication subject to change, reproduction as well as electronic duplication only with written permission of MAXXUS Group GmbH & Co. KG.
Please read and observe all sections of this Operating Manual. Thorough attention should be paid to the safety, service and
maintenance instructions and adherence to the given training information at all times.
It is very important to adhere strictly to the service and maintenance instructions contained in this Manual.
This training device is only to be used for it‘s intented purpose.
If this equipment is used for any other purposes than intended, there will be a possible risk of accident, damage to health or
damage to the training device. The Distributor cannot be held responsible in this case.
Electrical Connection
− A mains voltage of 220-230V is required to operate this training device.
− The training device is only to be connected to the mains with the mains cable supplied using a 16A individually fused
and earthed socket installed by a qualied electrician.
− The training device is only to be switched on and o using the ON/OFF switch.
− Always remove the electric plug from the socket before moving the training device.
− Remove the electric plug from the socket before commencing any cleaning, maintenance or other works.
− Do not connect the mains plug to a socket on a socket strip or on a cable drum.
− If using a cable extension please ensure that this complies with VDE guidelines and regulations.
− Always place the mains cable so it cannot be damaged or cause a tripping hazard.
− In operating or standby mode, electrical devices such as mobile phones, PCs, Televisions (LCD, plasma, tube, etc.),
game consoles etc. will emit electro-magnetic radiation. For this reason, all these types of devices should be kept
away from your training device as they could lead to malfunction, disturbances or false outputs being shown in heart
rate measurements.
Training Environment
− Select a suitable space for your training device to provide an optimum amount of free space and highest level of safe-
ty. You should leave a free space of at least 200 cm long and 100 cm wide behind the training device. A minimum of
100 cm free space to each side and in front of the training device should be allowed for.
− Make sure that the area is well ventilated and that an optimum amount of oxygen is available during training. Avoid
drafts.
− Your training device is not suitable for outside use and so storage and training can only take place in a temperate, dry
and clean room.
− Operation and storage of your training device in wet areas such as in swimmingpools, saunas etc. is not possible.
− Make sure that your training device is is kept on at, hard and clean ground both in operation and at stillstand. Any
uneven surfaces must be romoved or made good.
− It is recommended that a oor covering (carpet, mat, etc.) should be placed under the device to protect damageable
oors such as wood, laminates, oor tiles etc. Please ensure that this underlay cannot slip or slide.
− Do not put this training device on pale or white coloured carpets or rugs as the feet of the device may leave marks.
− Make sure that your training device and mains cable are kept out of contact with hot items and are kept at a safe dis-
tance from any sources of heat eg. central heating, hot stoves, furnaces, ovens or open res.
Personal Safety Instructions for Training
− The safety key must be inserted correctly before each training session can begin.
− Remove the safety key and mains cable from the training device when not in use to avoid inappropriate or uncontrolled
use by any other third party, eg. children.
− Stop training immediately if you feel physically unwell or are experiencing any breathing diculties.
− Always start your training session at a low workload increasing it slowly but steadily throughout. Reduce the workload
again towards the end of your training session.
− Suitable sports shoes and clothes should always be worn during training sessions. Make sure that loose clothes do not
get caught up in the treadmill belt or rollers.
− Your training device is only to be used by one person at a time.
− Check each time before a training session to see if your device is in perfect condition. Never use your training device if
it is faulty or defect.
− You are only permitted to carry out repairs to the device yourself after having contacted our Service Department and
on receipt of explicit permission to do so. Only original spare parts may be used at any time.
− Your training device must be cleaned after each use. Remove all dirt including body sweat or any other liquids.
− Always make sure that liquids (drinks, body sweat, etc.) do not get into the vibrating plate or into the cockpit as this can
cause damage to the mechanical and electronic components.
− Your training device is not suitable to be used by children.
− Third parties, in particular children and animals, must be kept at an appropriate safety distance during training.
− Check before each training session if there are any items underneath the training device and remove them without fail.
Never use the training device when items are underneath it.
− Do not allow children to misuse your training device as a toy or climbing frame at any time.
− Ensure that no body parts of your own or other third parties ever come into contact with any of the moving mecha-
nisms.
The construction of this training device is based on state of the art technology and highest modern technical safety standards. This training device is to be used by adults only!
Extreme misuse and/or unplanned training can cause damage to your health!
2 3
Overview of the Device Assembly
Storage Pocket
Side Frames
Cockpit
Safety Key
Motor Housing
Hand Pulse Sensor
Running Deck
Foot Rail
Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and
heavy.
Check that all the parts and xing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assembly are not
covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully before you start assembling, follow each assembly step exactly as described and keep to the correct sequence of assembly as instructed.
Assembly of the training device must be carried out thoroughly by an adult person only.
Assemble the training device in a location which is level, clean and clear of obstructions.2 people are required to carry out
the assembly.
Training can only start when the training device has been fully assembled.
Step 1:
Lift both upright side frames (4L / 4R) simultaneously until they are pressed into the bearings on the base frame. The boreholes on the side frames should be in line with the boreholes on the base frame.
Screw in two socket head screws M8x50 at each side of the frame (4L/4R) and one M8x15 socket head screw at the front
of each side of the frame.
Assembly Material & Tools
Socket Head Screw
M8x50
2 Pieces
If preferred, the tools supplied may be supplemented or replaced by your own tools.
Make sure that each tools are an exact tting to the parts.
Socket Head Screw
M8x15
4 Pieces
Spanner for Socket Head
Screw S6
Scope of Delivery
Allen Key
Safety Key
Base Frame
Tablet-PC Holder
4 5
Maintenance Oil
5
6
X
8
M
5
6
X
8
M
5
6
X
8
M
5
6
X
8
M
M8X15
Set of Screws
M8x15
M8x50
4L
4R
Assembly Folding Mechanism
Step 2:
Lift the cockpit up and x it with an oval socket head screw M8x15 on both sides of the frame (4L/4R).
M8x15
4L
4R
Step 3:
Fix the tablet holder on the front of the cockpit below the display.
This treadmill is equipped with a folding mechanism. To save space fold the
treadmill deck up and down as follows:
Folding up the Treadmill Deck
Step 1:
Make sure that the deck incline level is at “0”, switch the treadmill
o at the main switch and remove the mains plug from the socket.
WARNING:
Never fold up the treadmill deck without ensuring that the incline
is on level “0” and the treadmill is switched o.
Step 2:
Hold onto the rear end of the treadmill deck and lift it upwards.
Make sure that you are standing with your feet rmly on the
ground.
Folding Mechanism
Hydraulic Cylinder
The folding mechanism consists of a high pressure hydraulic cylinder lled with oil. If the cylinder becomes damaged, then
the safety of the folding system is no longer guaranteed. It is vital in this case to replace the damaged hydraulic cylinder
before lifting the treadmill deck again.
Step 3:
Push up the deck until you hear it lock into the catch.
Check that it is locked safely in the upright position by gently
shaking the deck.
Folding Down the Treadmill Deck
Step 1:
Take hold of the rear end of the deck with both hands. Press
down the safety lever on the catch with your foot to release the
lock. Pull the treadmill deck down gently to the oor.
Hydraulic Cylinder
6 7
Step 2:
The treadmill deck is equipped with a Soft-Fold-System
This allows the deck to move slowly down until it reaches contact
with the oor. You should never leave the deck to fold down
unsupervised.
WARNING:
Never allow children to fold up or fold down the treadmill.
Always make sure that there are no items or living beings under
the treadmill deck whilst it is being raised or lowered.
Transport
Mains Cable
When folded, the treadmill can be moved easily and without much
eort.
Move the treadmill as follows:
Step 1:
Fold up the treadmill as instructed in the “Folding Mechanism”
section
Take hold of the top ends of the deck on both sides with your left
and right hands and pull the deck towards you until the weight of
the deck is resting
on the transport rollers.
Make sure that you are standing with your feet rmly on the
ground.
Step 2:
The treadmill can now be moved easily and without much eort.
Make sure that there are no items or living beings in the way
when you are moving the treadmill.
Make sure that your feet are steadily on the ground when moving
the treadmill.
Mains Cable
Connect the mains plug on the mains cable to an electrical socket.
This device is only to be connected to an earthed socket installed
by a qualied electrician. Do not use a socket strip to connect
the treadmill belt. If an extension cable is required, then it must
comply with VDE regulations and guidelines.
Main Switch
The main switch is located next to the mains connection on the
front of the treadmill. Use this switch to turn the treadmill on and
o.
Switch position „I“ = treadmill turned on.
Main Switch position „0“ = treadmill turned o
Fault-Current Button Switch
Main Switch
Fault-Current Switch (depending on the model)
There is a fault-current button-switch next to the main switch on the front of the motor cover to prevent the treadmill from
being damaged by electrical surges in the network. This button-switch is triggered o by if a surge in the electrical supply
occurs and acts as a circuit breaker. In this case the treadmill will be completely switched o. If this occurs, switch o the
treadmill at the main switch, and pull the mains cable out of the socket with the plug. Press the button on the fault-current
switch back in. Re-connect the mains cable with the plug and switch the treadmill back on at the main switch.
Fuse (depending on the model)
There fuse next to the main switch on the front of the motor cover to prevent the treadmill from being damaged by electrical
surges which can occur in the network. In this case the treadmill will be completely switched o. If this occurs, switch o the
treadmill at the main switch, and pull the mains cable out of the socket with the plug. Check the fuse and replace it if necessary. Re-connect the mains cable with the plug and switch the treadmill back on at the main switch.
Step 3:
To set the treadmill safely down again, lift the deck right up until
the front frame base is completely on the ground.
WARNING:
The treadmill should only be moved by an adult.
Safety Key
Clip
Safety Key
Safety Key
The treadmill will only operate if the safety key is correctly in
contact with contact point in the cockpit. The treadmill will stop
automatically if the safety key is no longer in contact. Before
each training session make sure to attach the safety key to
your clothing with the clip.If you either want to stop the treadmill
quickly, cannot keep up with the speed, or any other emergency
arises, pull the string to remove the safety key out of the cockpit.
If the safety key is connected to your clothing it will automatically be pulled out of the cockpit if you fall. It is therefore vital to
make sure that the clip is securely fastened to your clothing and
cannot somehow be pulled o. Adjust the length of the string to
hang down losely during training. It is not possible to operate the
treadmill without the safety key being correctly inserted. Always
remove the saftey key when your treadmill is not in use to ensure
that it cannot be used by any other third party, for example by
children, without your permission or unsupervised.
The treadmill will stop automatically if the safety key is pulled out
of the cockpit during training. The incline will remain in the adjusted position and can only be lowered after the safety key has been
re-connected.
8 9
Safety Distance
Safety Distance
Select a suitable place to keep your training device with a free safety area space of at least 200 cm long and 100 cm wide
behind the training device. Furthermore, during training, a safety distance down the length of the treadmill with a minimum
width of 100 cm should be kept to the right and/or lefthand side of the treadmill.
What to do in an Emergency
Stop training immediately if you realise that you cannot keep up with the pace, if you start feeling sick or if any other emergency situation arises, pull the safety key out with the string to make an emergency stop.
Hold on rmly with both hands onto the handrails and place your feet on each side of the tread belt.
Care, Cleaning and Maintenance
WARNING
Turn o your training device and remove the plug from the mains before you carry out any maintenance, cleaning, servicing, repairs or similar on your training device. Check without fail that your device is completely disconnected from the mains
and turned o before you start with any work. Only reconnect your training device back to the mains when all works are
completed and the device has been completely put back together again.
Before re-starting the training device or before starting it back up again after a longer training
If you trip during training, hold onto the handrails immediately with both hands, support yourself with your hands and arms
on the handrails and put your feet on the footrails on either side of the belt.
You should practice this several times so that you will know what to do if an emergency situation arises.
Wear the safety key every time you use the treadmill. Make sure that all third parties are familiar with the safety instructions
and that they always use the safety key correctly whilst they are training!
break interval
Make sure that the treadmill is standing rmly on the ground. There should be no items on or underneath the device. Check
that there is an even lm of lubricant (silicon) on the treadmell deck. If this is not the case, then apply a lm of silicon provid-
ed by the distributor.
Service and Cleaning Intervals:
Clean the treadmill belt each time after training with a damp cloth to remove any sweat and or liquids. Do not use solvents.
Dry o the cleaned areas thoroughly.
Treadmill Belt Lubrication Check: 1 x per Week
If the lubrication is not sucient, lubricate it immediately and adapt the interval between checks accordingly. The lubrication checks require to be done more often at shorter intervals. If the device has a folding mechanism and has been left in a
folded position for a long period of time, check to see if it is lubricated suciently.
Belt Track Check: 1 x per Week
The belt track must be checked reularly. If the belt is running o to one side, this should be corrected immediately. Find and
read the appropriate instructions on how to do this in this Manual.
Cleaning the Motor Compartment: 1 x per Month
To clean the motor compartment undo the screws on the motor cover and lift it up.
WARNING: Only do this if the training device is switched o and the plug on the mains cable is removed from the socket.
Remove all visible dust with a small vacuum cleaner nozzle. Do not under any circumstances use any cleaning liquids or
compressed air.
Fixing Materials Check: 1 x per Month
Check the screws, nuts and bolts at least once a month and tighten them if necessary.
Why is maintenance work on my treadmill so important?
In order to have long term enjoyment with your treadmill it is important to carry out some basic maintenance on a regular
and thorough basis. The required intervals depend strongly on how much your training is used. For this reason, the mainte-
nance may need to be carried out at much shorter intervals than the ones recommended.
What can happen if maintenance works are not done properly?
When in use friction is caused between the treadmill belt and the deck. Any type of friction causes wear and will reduce
the service life of your training device. Friction is reduced by lubricating between the deck and the belt and this in turn will
increase the service life of the treadmill. If the belt is run with too little lubrication, signicant heat will be produced on the
running deck. The surface of the deck and the running belt will get damaged. Friction may then become so high that a static
charge may occur and it is highly likely that, if touched, it can be discharged via the frame into the body. This is not only
very unpleasant but it can also destroy the electronic components in the treadmill.
Why do I have to clean the motor compartment?
Movement of the treadmill belt and motor ventilator cause the belt to draw in dust from the enviroment. Dust will gather both
underneath and in the device. At some point so much dust could collect in the device to cause a short-circuit in the electronic components. To avoid this happening, it is necessary to clean the device regularly.
Damages caused by failure or lack of maintenance and care are excluded from the warranty
and guarantee.
The costs of repairing an training device which has not been properly maintained can very quickly amount to several hundred Euro.
A high price which can be avoided by carrying out regular care and maintenance.
10 11
Loading...
