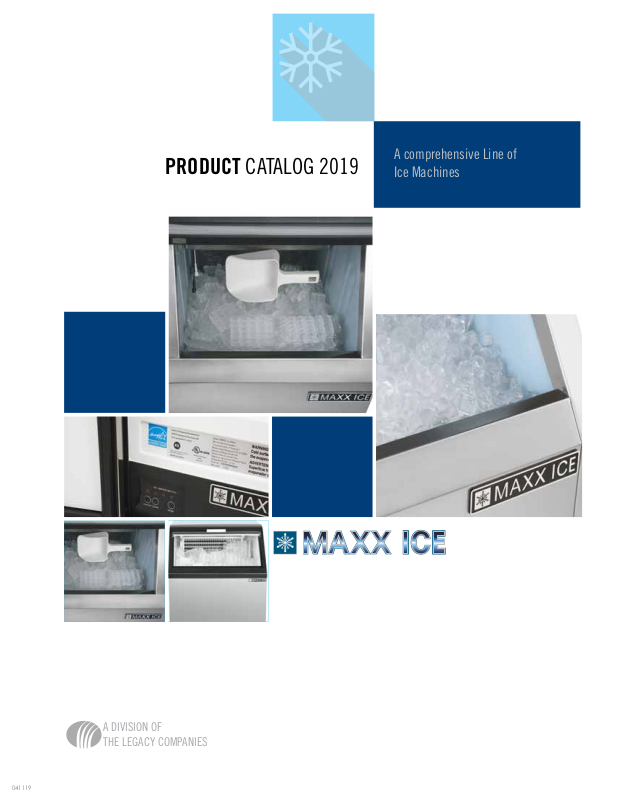

PRODUCT CATALOG 2019
A comprehensive Line of
Ice Machines
041119
A DIVISION OF
THE LEGACY COMPANIES
The clear choice for quality ice. Maxx Ice represents the most efcient and cost
effective method of meeting your ice needs. Designed to incorporate maximum
energy and water conservation and built to produce ice simply and efciently,
Maxx Ice is the clear choice for maximum value.
A Comprehensive Line of Ice Machines at Maxximum Value
TABLE OF CONTENTS
Compact Indoor/Outdoor Refrigeration
Wine Cellars & Beverage Centers
Ice Makers: Self Contained .......................................................................................................
Ice Makers: Modular ...................................................................................................................
Ice Makers: Hotel Ice Dispenser ...................................................................................................
Ice Makers: Bins .............................................................................................................................
Accessories: Water Filters .............................................................................................................
Details on Ice Cube Sizes ................................................................................................ 11
MODEL # PAGE
BIN650 ...........10
BIN950 ...........10
MCBC3U .........4
MCBC3U-O .......4
MCR3U ...........4
MCR3U-O .........4
MCR5U-O .........4
MCWC28 .........4
MCWC28-O .......4
MIB310N .........10
MIB400 ..........10
MIB470N .........10
MIB580 ..........10
MIB580N .........10
MID200X ..........9
MIM100 ...........6
MIM120 ...........6
MIM125H ..........6
.............................................................................. 4
........................................................................................ 4
5-6
7-8
10
11
MIM130 ...........6
MIM1000 ..........7
MIM1000N ........8
MIM1000NH .......8
MIM25 ............5
MIM25-0 ..........5
MIM250 ...........6
MIM265H ..........6
MIM360N .........8
MIM360NH ........8
MIM370N .........8
MIM370NH ........8
MIM452 ...........7
MIM475H ..........7
MIM50 ............5
MIM50-0 ..........5
MIM50P ...........5
MIM50P-O .........5
MIM50V ...........5
MIM500N .........8
MIM500NH ........8
MIM600 ...........7
MIM615H ..........7
MIM650N .........8
MIM650NH ........8
MIM75 ............6
MIM80 ............6
9
Limited
MIM85H ...........6
MIM915H ..........7
TLC-3200S ........11
TLC-107096 .......11
TLC-107097 .......11
ICE CUBE SIZES ....11
Guide for Sizing Ice Making Equipment*
RESTAURANTS
• 2 LB PER CUSTOMER
• 5 LB PER SEAT
COCKTAIL LOUNGE
• 3 LB PER CUSTOMER
SALAD BARS AND ICED DISPLAYS
• 10 – 12 LB PER SQUARE FOOT
(4" DEPTH)
HEALTH CARE
• 6 LB PER BED
• 2 LB PER EMPLOYEE
HOTEL AND LODGING
• 5 LB PER ROOM
CONVENIENCE STORES
• 5 OZ. PER 12 OZ. DRINK
• 8 OZ. PER 20 OZ. DRINK
• 12 OZ. PER 32 OZ. DRINK
• ADD 50% IF USING COLD PLATE
* Sizing guide reects
usage for 24 hours
44
Designed to full your outdoor entertainment area needs and dreams.
Perfect for any entertainment space, these units can be freestanding
or built-in and are designed to weather the elements when necessary
while providing years of enjoyment with easy maintenance.
COMPACT INDOOR/OUTDOOR
REFRIGERATION
MCR3U/MC3U-O
• Designed for household and commercial use
• Air-cooled condenser
• Stainless steel doors
MCR5U-O
• Indoor/Outdoor
• Brushed Stainless Steel exterior and handle
• Interior is ABS
MCR3U
Indoor Refrigerator
Model Dim (W"xD"xH") Capacity Temp Weight Shelves
MCR3U
MCR3U-O
MCR5U-O
MCR3U-O
Outdoor Refrigerator
Stainless Steel Exterior
14.5 x 23 x 33.5
368 x 584 x 851 mm
14.5 x 23 x 33.5
368 x 584 x 851 mm
23.625 x 23 x 33.5
600 x 584 x 851 mm
MCR5U-O
Outdoor Refrigerator
Stainless Steel Exterior
3 cu ft
85 L
3 cu ft
85 L
5 cu ft
142 L
WINE CELLARS & BEVERAGE CENTERS
• Designed for household and commercial use
• Air-cooled condenser
• LED Lighting
• Electronic control panel with LCD display on door
FPO
35° to 41°F
1° to 5°C
35° to 41°F
1° to 5°C
35° to 41° F
1° to 5° C
77 lb
35 kg
67 lb
30 kg
93 lb
42.5 kg
3
3
3
MCBC3U-O
Outdoor Beverage Center
Stainless Steel Exterior
3 cu ft
85 L
3 cu ft
85 L
3 cu ft
85 L
3 cu ft
85 L
35° to 40°F
1° to 5°C
35° to 40°F
1° to 5°C
35° to 40°F
1° to 5°C
35° to 40°F
1° to 5°C
76 lb
34 kg
76 lb
34 kg
77 lb
35 kg
67 lb
30 kg
6
6
4
4
MCWC28
Outdoor Wine Cellar
Black Painted Steel
Model Dim (W"xD"xH") Capacity Temp Weight Shelves
MCWC28
MCWC28-O
MCBC3U
MCBC3U-O
MCWC28-O
Outdoor Wine Cellar
Stainless Steel Exterior
14.5 x 23 x 33.5
368 x 584 x 851 mm
14.5 x 23 x 33.5
368 x 584 x 851 mm
14.5 x 23 x 33.5
368 x 584 x 851 mm
14.5 x 23 x 33.5
368 x 584 x 851 mm
MCBC3U
Indoor Beverage Center
Black Painted Steel
