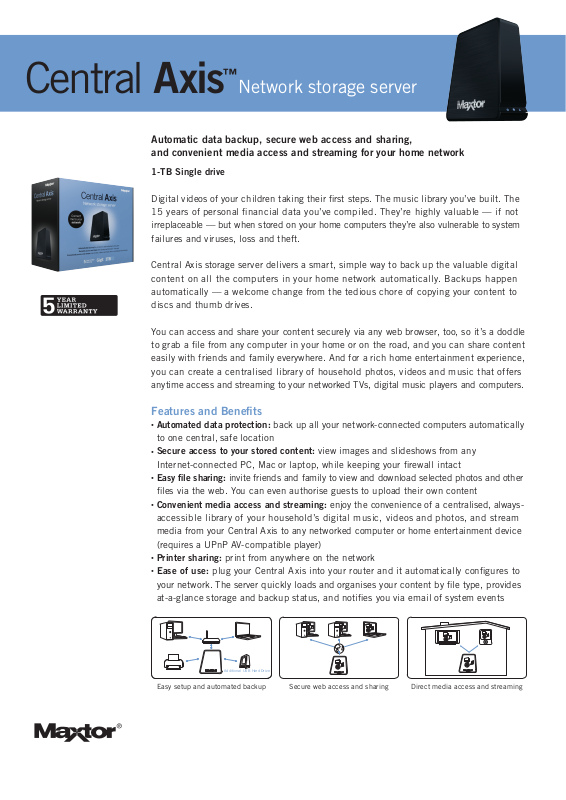

Central Axis
Automatic data backup, secure web access and sharing,
and convenient media access and streaming for your home network
1-TB Single drive
Digital videos of your children taking their first steps. The music library you’ve built. The
15 years of personal financial data you’ve compiled. They’re highly valuable — if not
irreplaceable — but when stored on your home computers they’re also vulnerable to system
failures and viruses, loss and theft.
Central Axis storage server delivers a smart, simple way to back up the valuable digital
content on all the computers in your home network automatically. Backups happen
automatically — a welcome change from the tedious chore of copying your content to
discs and thumb drives.
You can access and share your content securely via any web browser, too, so it’s a doddle
to grab a file from any computer in your home or on the road, and you can share content
easily with friends and family everywhere. And for a rich home entertainment experience,
you can create a centralised library of household photos, videos and music that offers
anytime access and streaming to your networked TVs, digital music players and computers.
™
Network storage server
Features and Benefits
•
Automated data protection: back up all your network-connected computers automatically
to one central, safe location
•
Secure access to your stored content: view images and slideshows from any
Internet-connected PC, Mac or laptop, while keeping your firewall intact
•
Easy file sharing: invite friends and family to view and download selected photos and other
files via the web. You can even authorise guests to upload their own content
•
Convenient media access and streaming: enjoy the convenience of a centralised, always-
accessible library of your household’s digital music, videos and photos, and stream
media from your Central Axis to any networked computer or home entertainment device
(requires a UPnP AV-compatible player)
•
Printer sharing: print from anywhere on the network
•
Ease of use: plug your Central Axis into your router and it automatically configures to
your network. The server quickly loads and organises your content by file type, provides
at-a-glance storage and backup status, and notifies you via email of system events
Additional USB Hard Drive
Easy setup and automated backup Secure web access and sharing Direct media access and streaming
Central Axis
™
Network storage server
Perfect for When you Need to
Requirements
Technical Specifications
Product Dimensions 6.8" H x 2.5" W x 5.9" L
•
Back up and protect the content on all your networked home computers automatically
•
Access your files securely when you’re on another computer in your home or on the road
•
Share files securely with friends and family around the globe
•
Create a centralised, always-accessible library of your household’s digital media
•
Play videos and music, and view photos on digital entertainment devices throughout your home
•
Have a network storage solution that is easy to install and use
•
Wired or wireless router with an available 10/100/1000 Ethernet port
•
Internet connection (for system updates and web access)
•
UPnP AV 1.0 certified Digital Media Adapter (if media streaming is desired)
Mac
•
Mac OS X 10.4.11 or later
•
Safari 3.1 or later
•
128-MB RAM
PC
•
Pentium III, 500-MHz equivalent processor or higher
•
Microsoft Windows XP or Vista
•
Internet Explorer 6.0 or later, or Firefox 2.X or later
(for management interface of, or web access to, Central Axis)
•
128-MB RAM
• LAN: IEEE 802.1, IEEE 802.3u
• Transmission Speed: 1000 Mbps/100 Mbps/10 Mbps
• Connectivity: 10/100/1000 RJ-45 Gigabit Ethernet port
• Expansion/Sharing: USB 2.0/1.1 port for additional external hard drives or printers
• Drive Performance: SATA II, 7,200 RPM
• Compatibility: UPnP AV 1.0 compliant
Weight: 1.5 lb (680 g)
172 mm x 63.3 mm x 150.3 mm
Retail Packaging Specs Box dimensions: 10.00" L x 11.00" W x 4.875" D (254 mm x 279.4 mm x 123.83 mm)
Box weight: 4.57 lb (2.07 kg)
Master carton dimensions: 14.75" L x 11.13" W x 10.13" D (37.46 cm x 28.26 cm x 25.72 cm)
Master carton weight: 135.58 lb (61.5 kg)
Master carton quantity: 3
Master cartons per pallet: 40
Pallet dimensions: 48.00" L x 40.00" W x 48.75" D (121.92 cm x 101.6 cm x 123.83 cm)
Pallet weight: 593.04 lb (269 kg)
Pallet layers: 4
Inside the Box
Capacities and Model Numbers
Support
•
Maxtor Central Axis storage server
•
Maxtor Installation CD
•
Quick Start Guide
•
Maxtor Manager Software
Capacity Model Number EAN Code Multi-pack
1 TB STM310005CAD00G-RK 7636490006425 10763649007867
Maxtor.com
Copyright © 2008 Seagate Technology LLC. All rights reserved. Printed in USA. Seagate, Seagate Technology and the Wave logo are registered trademarks of
Seagate Technology LLC in the United States and/or other countries. Maxtor, the Maxtor stylized logo, Central Axis, and Maxtor Manager are either trademarks
or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or
registered trademarks are the property of their respective owners. When referring to hard drive capacity, one gigabyte, or GB, equals one billion bytes and
one terabyte, or TB, equals one trillion bytes. Your computer’s ope rating system may use a different s tandard of measurement and report a lower capa city.
In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Quantitative usage examples
for various applications are for illustrative purposes. Actual quantities will vary based on various factors, including file size, file format, features and application
softw are. Seagate reser ves the right to change, without no tice, product of ferings or sp ecifications . DS1653.1-0810GB
•
Ethernet Cable
•
AC Power Adapter
•
User Guide on CD
•
5-Year Limited Warranty
