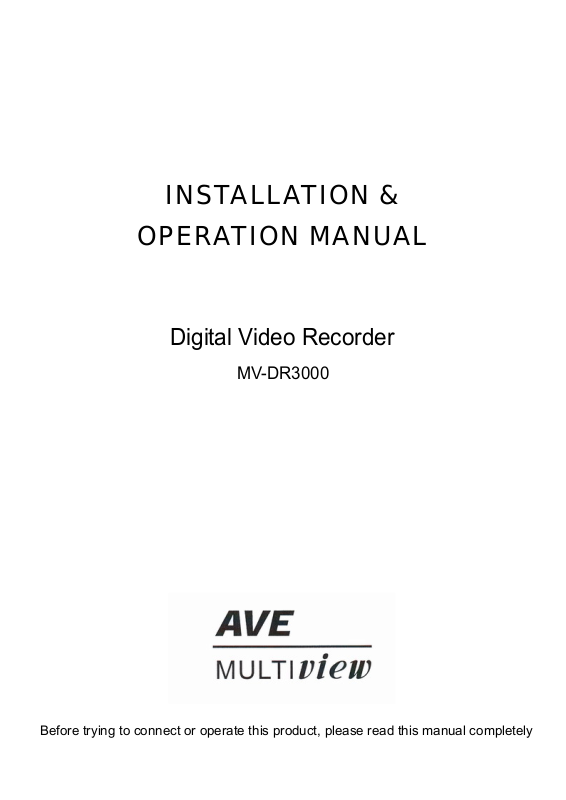

INSTALLATION &

OPERATION MANUAL

Digital Video Recorder

MV-DR3000

Before trying to connect or operate this product, please read this manual completely

SAFETY PRECAUTIONS

All the following safety and operated instructions which will prevent harm or damage to the operator and

other persons should be read before the unit is operated.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference with radio

communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

INFORMATION

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Do not block ventilation openings.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Please refer all servicing to qualified service personnel.

Do not use liquid cleaners or aerosols for cleaning.

This installation should be by a qualified service person and should conform to all local

codes.

To prevent fire or electric shock, do not overload wall outlets or extension cords.

This unit must be grounded to reduce the risk of electric shock hazard.

WARNING

Danger of explosion if battery( RTC Battery ) is incorrectly replaced. Replace only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to

the instructions.

CAUTION

CONTENTS

1. INTRODUCTION ................................. 4

1.1 Product Introduction................................4

1.2 Product Features ....................................4

1.3. FRONT / REAR VIEW............................5

1.3.1 Front View.............................................5

1.3.2 Rear View..............................................8

1.4 ALARM In / Out.......................................9

2. INSTALLATION ................................. 10

2.1 Basic Connection ..................................10

2.2 Hard-disk Drive Installation ................... 11

2.3 System Information ...............................12

2.4 Updating System Software....................13

3. OPERATIONS ................................... 14

3.1 Configuring Recording Settings ............14

3.2 Recording Operations ...........................17

3.2.1 Manual Recording...............................17

3.2.2 Timer Recording..................................17

3.5.2 Mobile Rack HD Backup Operations

(FOR REMOVABLE HDD MODEL ONLY)

................................................................ 27

3.5.3 SD Card Backup Operations for

Removable HDD Model .......................... 28

3.5.4 Backup the System setting info into an

SD card. .................................................. 29

3.5.5 Updating System Software................. 30

3.6 Key Lock Operation.............................. 30

4. MENU SETUP.................................... 31

4.1 REC Setting ......................................... 31

4.2 ALARM / MOTION Setting ................... 32

4.3 CLOCK / TIMER Setting ...................... 34

4.4 COMMUNICATION Setting .................. 35

4.5 DISK Setting......................................... 37

4.6 SYSTEM Setting .................................. 39

5. NETWORK......................................... 41

3.2.3 Alarm / Motion Recording....................18

3.2.4 Externally Triggered Recording ..........18

3.3 Playback Operations.............................20

3.3.1 Normal Playback.................................20

3.3.2 Fast Forward/Backward ......................20

3.3.3 Slow Forward/Reverse........................21

3.3.4 Play back Picture-by-picture ...............21

3.3.5 Playback Recorded Video from an HDD

of the mobile rack (for removable HDD

model only) ..............................................21

3.3.6 Picture in Picture ( PinP ) Display Mode

.................................................................21

3.4 Search Operations ................................22

3.4.1 FULL LIST Search ..............................22

3.4.2 ALARM LIST Search...........................22

3.4.3 TIME Search .......................................23

3.4.4 THUMBNAIL Search...........................23

3.4.5 SD CARD Search ...............................24

3.4.6 CD Menu (For CD-RW model only) ....25

3.5 Backup Operations ...............................26

3.5.1 CD Rewritable unit Backup Operations

(FOR CD-ROM MODEL ONLY)...............26

5.1 Network Configuration.......................... 41

5.1.1 Cable Connections............................. 41

5.1.2 Configure Your DVR Network Settings

................................................................ 42

5.1.3 TCP/IP Communication Setup ........... 44

5.1.4 Testing Connection............................. 46

5.2 TRIPLEX 1 CH DVR VIEWER

SOFTWARE: Introduction ............................ 47

5.2.1 Software installation ........................... 47

5.2.2 Short introduction ............................... 48

5.2.3 Operation............................................ 49

5.3 Microsoft Internet Explorer ................... 55

5.3.1 Connecting the DVR .......................... 55

5.3.2 Change Record / Alarm Setting ......... 56

5.3.3 Change Timer Record Setting............ 56

5.3.4 Pan / Tilt / Zoom Setting..................... 57

6. TEXT INSERTION FUNCTION .......... 58

7. MISCELLANEOUS ............................73

7.1 RS-232 & RS-485 Setup & Protocol .... 73

7.1.1 RS232 & RS485 Setup ...................... 73

7.1.2 Communication Protocol .................... 73

7.2 Hard Disk Installation ........................... 77

7.2.1 Built-in hard disk................................. 77

7.2.2 Mobile Rack (FOR REMOVABLE HDD

MODEL)...................................................78

7.3 System Default......................................80

7.4 O.S.D Message.....................................81

7.5 Time Index Table ...................................82

7.6 Specifications........................................83

7.7 Compatible Multiplexer Devices............84

7.8 ScanIP ..................................................85

APPENDIX 1. – Using CD Discs

(FOR CD-RW MODEL ONLY) ......... 87

1. INTRODUCTION

1.1 Product Introduction

z Refresh rate up to 60 IPS (50 IPS for

This 1CH Triplex DVR is a storage media of

digital video image, which uses hard disk

drives instead of VCR tapes to store video. It

enables you to enjoy the extreme flexibility of

digital image archiving instead of clumsy tape

management, and is compatible with most

multiplexers in the market. Equipped with a

range of comprehensive features, such as

playback picture-by-picture, fast accessed

video recording by time and event, system

software which can be upgraded, the

expandable capacities of hard drive, and

much more, the DVR will make your

applications far more flexible and effective

than ever before. For all, the DVR is going to

prove the timely substitute for Time-lapse

VCR.

PAL).

z Image quality selectable at 4 different

levels for recording.

z Event/Timer/Alarm recording mode.

z Quick search by time, alarm, event, and

recording list.

z Fast and slow playback of recorded video

at various speeds.

z Single-picture playback.

z On-screen setup menu, title and system

timer.

z Password protection.

z Motion detection.

z Disk-full warning and operation status

LEDs.

z RS-232, RS-485 communication ports.

z Remote control via RS-232, RS-485 and

1.2 Product Features

z The full-capability triplex DVR allows

video recording while viewing live video

images and video playback images at the

same time.

z Stores video in hard-disk drives instead of

VCR tapes.

z Main recording media: one fixed

hard-disk drive and one removable

hard-disk (for removable model only).

z Main recording media: one fixed HDD

plus a CD-RW. (For CD-ROM model only)

z Hard-disk drive hot-swapping capability.

z Pre-alarm image recording.

z Capable of working with various known

Ethernet ports.

z Power recovery on interruption.

z Operation-status record log.

z Distributes live and recorded images

through the TCP/IP network environment.

z Audio function included (

22KHz).

z Built-in SD card slot for copying image to

SD card.

z Supports DHCP protocol.

16 bits, 11 KHz /

multiplexers.

z Time-lapse and real-time recording.

INTRODUCTION ( continued )

1.3. FRONT / REAR VIEW

1.3.1 Front View

FOR CD-ROM MODEL FOR REMOVABLE HDD MODEL

24 2a 2b 23

Power Monitor Display Search Setup Enter Play Pause Stop Rec

7 8 9 4 3 5 6

16 10 15 13 12 11 14

19 18 17

DISK A-rec T-rec

SD Card

FFREW

Power Monitor Display Search Setup Enter Play Pause Stop Rec

7 8 9 4 3 5 616 10 15 13 12 11 14

21923 24

18 17

DISK A-rec T-rec

SD Card

FFREW

CD-RW device compartment:

The compartment allows you to burn the

data mostly for backup purposes. This tray

is for loading the CD disc. It will accept 120

mm and 80 mm discs. Please place the

discs in the exact center of the tray.

Writing Display Light:

When a disc is being burnt, the display

light will be a red flash.

Power Supply / Reading Light:

When a disc has been ejected, the display

light will be green. When a disc is unable to

be read, or the device is being repaired,

Hard-disk drive compartment:

The compartment allows you to install a

hard disk drive mostly for backup

purposes. Make sure the drive is well

secured with the mounting screws in the

mobile rack before you put the rack into

the compartment. And remember to turn

on the power of the compartment by

locking it.

Hard-disk compartment lock:

The key lock secures a hard disk in

place. Unlock the compartment before

you remove the hard disk from the slot

without turning off the device.

the display light will flash.

PAUSE button:

In a playback display, press this to freeze the display. During the freeze, press to display one

frame/field of a picture at a time in the forward direction. (A green light is on the PAUSE mode.)

PLAY button:

Press to play back a recorded video from the hard disk. (A green light shows in the PLAY mode.)

STOP button:

Press to stop playing back a recorded video. (A green light goes on in the STOP mode.)

REC button:

Push to start recording video into a hard disk while in the live display mode. (A red light turns on

in the REC mode.)

POWER button:

Press this button for at least 3 seconds to power off. Press again to activate the device.

DISPLAY button:

Press to show the system operation status on the screen.

Setup button:

Press this to enter the setup menu. Press again to exit the setup mode.

Search button:

Press to enter the search mode to access the recorded video.

11 14

Left / Right buttons:

Press the two buttons to highlight desired items in the menu setup mode. For the Key Lock

operation, press these two buttons simultaneously once; to disable Key Lock, press these two

buttons again simultaneously.

12 13

Up / Down buttons:

Press these two buttons to select the desired contents for programming in the setup menu mode.

Enter Button:

Press to enter a selected item and save the setting in the menu setup mode.

Monitor button:

Press to switch between a multiplexer-decoded video and the encoded video to be displayed

when connected with a multiplexer. When the button light is on it indicates the unit is displaying

the decoded video.( The images are not multiplexing . ) In this mode, the unit doesn’t display the

OSD message of the unit on the screen. However, this doesn’t affect the unit’s OSD message,

which is recorded into hard-disk drives. When the button light is off it indicates the unit is

displaying encoded video. (The images switch swiftly).

T-rec Indicator:

This indicator of the timer recording mode lights up to signal the scheduled record setting is on.

A-rec Indicator:

This indicator of the alarm-recording mode lights up to indicate the alarm record setting is on.

DISK Indicator:

The indicator shows the operation status of the unit’s hard-disk drives. The green light indicates

the hard-disk drive is storing or retrieving data. The red light signals the hard-disk drive is filling up.

The orange light indicates the hard-disk is retrieving a disk-full status.

Shuttle Ring:

The shuttle can be moved forward and backward for playback in either direction. Turn this left to

play a recorded video in the reverse direction at faster or slower speeds than the recorded speed.

Turn this right to play a recorded video in the forward direction at faster or slower speeds than the

recorded speed.

Jog Dial:

This dial can act in both a forward and a backward direction, as well as step by step. Turn this left

to play a recorded video in the reverse direction. Turn this right to play a recorded video in the

forward direction.

SD CARD Slot:

This is used for system software updating and archiving/accessing critical images.

Eject button

Pressing this controls the insertion and

Mobile Rack Power LED:

Indicates the power status of the Mobile

ejection of the tray.

Emergency Eject Button:

When the power supply has been

interrupted, or it is impossible to eject a

disc, please use a pin to press the

emergency eject button so that the

caddy will eject the disc.

Rack. The green light indicates the

Mobile Rack is activating.

Mobile Rack HDD LED:

Indicates the HDD status of the Mobile

Rack. The orange light indicates the

HDD is storing or retrieving data.

1.3.2 Rear View

25 26 27 28 29 31

VIDEO

MAIN MONITOR

OUT

MUX'S VCR IN

FROM MUX

MONITOR

AUDIO

OUT

RS-485

ETHERNET

10/100

RS-232

ALARM

I/O

DC12V

32 33

34 35 37 38 36

VIDEO IN Connector: This BNC connector is

used to connect the video output from a

camera or a MUX to the DVR.

FROM MUX MAIN MONITOR Connector:

This BNC connector is used to connect the

live video output from a MUX to the DVR.

AUDIO IN Connector: This connector is used

to connect the audio output from a camera, a

MUX or other devices to the DVR.

ETHERNET 10/100 Connector: This is a

standard RJ-45 connector for 10/100 Mbps

Ethernet networks.

RS-485 Port: The RS-485 communication

ports function as connectors when two or

MONITOR Connector: The connector

provides the unit’s composite video or a

MUX’s live signal if connected to a display

device.

AUDIO OUT: This provides the unit’s audio

signal to a speaker.

ALARM I/O: This is a 9-PIN D-SUB

connector including SWITCH OUT, GROUND,

ALARM OUT, DISK FULL, RECORD IN,

ALARM RESET, and ALARM IN points for

connecting with external devices. Please refer

to the next section for details.

Plug Inlet: The inlet connects to an external

power supply. Connect the 12 V DC UL-listed

more units are serially connected to an

external control device.

RS-232 Port: The RS-232 communication

port functions as a connector to an external

control device. Please refer to 6.1 RS-232 &

RS-485 Protocol for more details.

VIDEO OUT Connector: The connector

provides the unit’s composite video signals to

a MUX.

Class 2 Power Supply.

Wire Catch: The wire catch secures the

power cord and keeps it in place (so that it

does not droop or hang loosely).

Ground Screw’s: The ground screw is for a

chassis terminal.

1.4 ALARM In / Out

ALARM RESET

RECORD IN GROUND

DISK FULL

ALARM OUT

12345

ALARM IN

NO CONNECTION NO CONNECTION

The above figure is a rear view.

1. GND: Ground Contact.

2. ALARM OUT (OUTPUT): This is an

alarm-output trigger. Connect this to

external devices such as buzzers or

lights.

0V(Active)

3. DISK FULL (OUTPUT): This is a disk-full

output trigger. Connect this to external

devices such as buzzers or lights.

6789

SWITCH OUT

recording speed as the DVR.

7. NO CONNECTION

8. NO CONNECTION

9. ALARM IN (INPUT): This is an alarm input,

which can be programmed in the menu

system to Normally Open or Normally

Closed.

0V(Active)

4. ALARM RESET (INPUT): This pin

connects to an alarm-clear device for

clearing an alarm.

0V(Active)

5. RECORD IN (INPUT): This pin connects

to a record-triggering device for starting a

record.

0V(Active)

6. SWITCH OUT (OUTPUT): This pin,

sending out timing signals (falling /

negative) to a multiplexer, connects to a

multiplexer’s trigger terminal so the

multiplexer can switch to using the same

2. INSTALLATION

2.1 Basic Connection

. Connecting with a Single Camera

Please set the MULTIPLEXER option to OFF on

the REC SETTING page in the setup menu

when it is connected with a single camera.

(Please refer to section 4.1 MULTIPLEXER.)

B. Connecting with a Multiplexer

To match the multiplexer’s recording speed,

please set the MULTIPLEXER option to ON on

the REC SETTING page in the setup menu

when it is connected with a multiplexer. (Please

refer to section 4.1 MULTIPLEXER.)

MUX'S VCR IN

Trig In

Camera

VIDEO

FROM MUX

MAIN MONITOR

OUT

MONITOR

Multiplexer

Monitor

AUDIO

OUT

Monitor

S-video

Video in

Audio in

ETHERNET

10/100

VIDEO

MUX'S VCR IN

MAIN MONITOR

OUT

FROM MUX

MONITOR

RS-485

AUDIO

SWITCH OUT

Audio

OUT

GROUND

ALARM

RS-232

ETHERNET

I/O

DC12V

SD Card

RS-485

10/100

RS-232

ALARM

I/O

DC12V

12345

6789

C. Connecting with a Quad

Please set the MULTIPLEXER option to OFF on

the REC SETTING page in the setup menu

when it is connected with a quad. (Please refer

to section 4.1 MULTIPLEXER.)

Quad

Monitor

S-video

Video in

Audio in

VIDEO

MUX'S VCR IN

Audio

OUT

FROM MUX

MAIN MONITOR

AUDIO

OUT

MONITOR

ETHERNET

10/100

OUT

SD Card

RS-485

RS-232

ALARM

I/O

DC12V

INSTALLATION ( continued )

D. Attaching an

External Device to DVR

Connect an alarm out, alarm input, and a peripheral device as shown in the diagram below.

FROM MUX

MAIN MONITOR

MUX'S VCR IN

VIDEO

AUDIO

OUT

MONITOR

RS-485

ETHERNET

OUT

RS-232

10/100

ALARM

I/O

DC12V

Alarm Reset

(Normally Open)

Lamp

12345

Ground

Alarm in

(Normally Open)

6789

2.2 Hard-disk Drive Installation

the HD2 USAGE option to REC (please refer

The DVR is equipped with two compartments

of hard disk drive (for removable model

only), The unit usually comes with one

hard-disk drive installed in the compartment

HD1, which is default- configured as a master.

If you need a second hard-disk drive to be

installed in the compartment HD2 (Mobile),

please contact your distributors or installers

for specific instructions on how to install it.

Please don’t serve yourself before consulting

your installers. If there is only one hard-disk

drive in the mobile compartment, please set

to section 4.5) before proceeding with the

recording function. The jumper-settings

arrangement of installed hard-disk drives for

the system (Table 3.2 A.) is shown in the

tables below.

Note: The CD-RW model is equipped with a

fixed hard- disk and a CD-RW drive. The unit

usually comes with one hard-disk drive

installed in the compartment HD1, which is

default-configured as a master.

Table 3.2 A. The jumper settings of hard-disk drives in the system

Location Jumper

IDE 1 Compartment HD 1 Master (Default)

IDE 2 Compartment HD 2 Master

Table 3.2 B. Compatible hard-disk drives

Manufacturer Model Capacity Rotation

Seagate

Maxtor

Western Digital

Samsung

ST340810A 40G 5400 RPM ST380020A 80G 5400 RPM ST320014A 20G 5400 RPM ST340015A 40G 5400 RPM ST380012ACE 80G 5400 RPM ST3120025ACE 120G 5400 RPM ST340014A 40G 7200 RPM ST380011A 80G 7200 RPM ST380013A 80G 7200 RPM ST3120026A 120G 7200 RPM ST3160023A 160G 7200 RPM ST3200822A 200G 7200 RPM ST3250823A 250G 7200 RPM ST3400832A 400G 7200 RPM 4A160J0-1A 160G 5400 RPM 4R080L0-1 80G 5400 RPM 5A300J0-1A 300G 5400 RPM 6Y080L0 80G 7200 RPM 6Y080L0-3 80G 7200 RPM 6Y120L0-1 120G 7200 RPM 6Y200P0-1A 200G 7200 RPM 6Y250P0-1A 250G 7200 RPM 6B300R0 300G 7200 RPM 6L080P0 (RoHS) 80G 7200 RPM 6L100P0 (RoHS) 100G 7200 RPM 6L120P0 (RoHS) 120G 7200 RPM 6L160P0 (RoHS) 160G 7200 RPM 6L200P0 (RoHS) 200G 7200 RPM 6L250R0 (RoHS) 250G 7200 RPM 6L300R0 (RoHS) 300G 7200 RPM WD800AB 80G 5400 RPM WD1200AB 120G 5400 RPM WD800BB 80G 7200 RPM WD1200BB 120G 7200 RPM WD1800BB 180G 7200 RPM WD2000BB 200G 7200 RPM WD2500JB 250G 7200 RPM SV0802N 80G 5400 RPM SV1203N 120G 5400 RPM

NOTE: Hard-disk drives not shown on this list have not been tested by our engineering team

and are not recommended for use with this product. For the latest updated list on the recommended hard disk drives, please contact your dealers or distributors.

2.3 System Information

You can display system settings information as

shown on Table 3.3 A below at any time by

pressing the Display button

playback mode, the recorded video information

is displayed. In the live or recording mode, the

Manual Recording information is displayed.

However, when the DVR is displaying a

decoded image from a multiplexer, you must

first switch the unit to encoded image

displaying (the pictures is switching swiftly and

the light of the Monitor button

pressing the Monitor button

. In the

is off) by

. Each

sequential press of the Display button

displays a different message detailed in the

following example. By default, the unit displays

the time, date, and an indicating bar of capacity

status on a monitor as shown.

Default Display

( Capacity Used ) ( Capacity Remaining )

09- 05-2003 16:13:02

(Date) (Time)

Press the Display button

once; the DVR

will display the following sample message plus

the default display. Press the Display button

again; the unit will not display any OSD

message. Press the button one more time to

go back to the default display.

1+2 :59G 12.4 HR QUALITY : BEST RATE :6HR

MUX :ON

HD SIZE REC PLAY

NTSC

20 F/S

1 20G 10.0% 0.1%

2 39G 0.0% 0.0%

CD 133M 80.0% (For CD-RW model only)

IP : 192.168.1.90

14-04-2005 09:46:53

(For removable HDD model only)

Total capacity of installed hard disk: 59 GB.

(12.4 HR): Total 12.4 hour recording time available.

( ): Timer record activated.

(

): Alarm record activated.

): motion detection activated.

(

(QUALITY: BEST): Record quality setting: BEST.

(NTSC ): NTSC system.

(RATE: 6 HR): Setting of Record time mode: 6 hours.

(20 F/S): Record speed setting: 20 fields/sec.

(MUX: OFF): Only connected to a single camera.

( ): Audio function activated.

): Indicates which HDD is activated.

(

( 9K ): The image file size

( HD ): Hard-disk compartment.(HD2 IS FOR

REMOVABLE MODEL ONLY)

(CD):CD-RW Compartment. (FOR CD-RW MODEL

ONLY)

( SIZE 20G): The capacity of the installed hard disk.

( REC ): Percentage of system Recording.

2.4 Updating System Software

Please take the following steps to safely update it.

1. Inserting your SD card into your SD card reader.

2. Plug your card reader's USB connector into your PC.

3. Save the firmware ( the multi.bin file ) into the SD card.

4. After you have checked that the saving is complete, take the SD card out of the card reader.

5. Turn off the DVR.

6. Insert the SD card into the built-in SD slot of the unit.

7. Hold down the the Up buttons simultaneously, and then turn on the DVR.

8. Keep holding down the buttons until the DVR sounds a tone and display the message “ XXXXXX BYTES READ” Now the DVR is updating the system software, which will take approximately 90 seconds to process.

9. Restart the unit when the device sounds a tone twice and displays the message “PLEASE RESTART” The process is complete. (If you have already followed the procedure 1~9. the unit, however, not being able to power on. Please first check if the SD card you are using is functioning and the file is intact. And then start procedures 1 ~ 9 all over again.)

10. Verify the version of the system software from the “MAIN MENU -> SYSTEM -> VERSION” by push down Setup button. (Please refer to section 4.6 VERSION.)

Caution:

13 12

and Down 13

( PLAY ): Percentage of system Playback.

( IP : 192 . 168 . 1 . 90 ): Network IP Address

192.168.1.90

): External signal.

(

( x ): Cannot operate now.

1. Before carrying out the updating procedures, please

ensure the SD card is working and the file of system

software is intact.

2. Don’t interrupt the process while the unit is updating

itself, as this will cause the unit to crash.

3. OPERATIONS

This section shows you how to operate and

manage the DVR when it gets in the way.

3.1 Configuring Recording Settings

Recording time will vary depending on the

image size, recording rate, and the capacity of

the hard-disk drives. Generally, the DVR

comes with a built-in hard-disk drive for

continuous recording from one to four weeks

under most recording conditions. The table

below shows the possible recording times

based on a 20GB hard-disk drive at certain

refresh rates and the corresponding image

(1) If an APPRO multiplexer is connected for use,

you can program the REC time mode of the

multiplexer by referring to the table below (each

refresh rate refers to one REC time mode).

(2) For a multiplexer other than APPRO, please

connect the SW. OUT terminal in the 9-PIN

D-SUB connector on the rear panel of the DVR

to the multiplexer’s trigger contact. The DVR will

provide the timing signal (Negative/Falling) to

the multiplexer. Thus, if the DVR changes the

recording speed, the multiplexer will

automatically adjust the record to match. A

2-hour and 4-hour timing signal in NTSC or a

3-hour and 6-hour one in PAL is constantly

quality. With one or more hard-disk drives in

operation, please calculate the recording time

using the table below in accordance with your

requirement. For an NTSC unit, for example, if

the unit is set to record images with BEST

quality at a 60 fps record rate, normally a

20GB hard-disk drive will be filled in 3.7 hours

(see the gray area in the table). If the total

capacity of 80GB hard-disk drives is in use

under the same refresh rate and picture quality,

it will be filled in 14.8 hours (4 times the rate of

a 20GB hard-disk drive).

Note: Set up the REC Time Mode when a

multiplexer is connected.

If a multiplexer is connected, for optimum

negative / falling.

image recording and playback, the record

speed of the multiplexer must be correctly

adjusted to match the DVR and set the

MULTIPLEXER option on the setup menu to

ON. This can be done by either of the two

methods detailed below.

OPERATIONS ( continued )

NTSC (MUX ON)

Audio ON (11KHz)

BEST


Quality

Refresh Rate (Field/Sec) REC Time Mode

HIGH

STANDARD

BASIC

NTSC (MUX ON)

Audio OFF

BEST


Quality

Refresh Rate (Field/Sec) REC Time Mode

HIGH

STANDARD

BASIC

Possible Recording Time HDD=20GB ( hour )

3.5 4.4 6.6 11 .0 23.6 N.A. N.A. N.A. N.A. N.A. N.A.

3.5 5.5 8.3 13.7 29.2 N.A. N.A. N.A. N.A. N.A. N.A.

3.7 7.4 11 .0 18.1 38.2 N.A. N.A. N.A. N.A. N.A. N.A.

5.5 11.0 16.4 26.7 55.3 N.A. N.A. N.A. N.A. N.A. N.A.

60 30 20 12 5.5 2.4 1.22 0.71 1/4 1/6 1/8

2 hr 4 hr 6 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

Possible Recording Time HDD=20GB ( hour )

3.6 4.5 6.7 11 .3 24.8 56.5 110.7 192.1 544.7 816.0 1087.3

3.6 5.6 8.4 14.1 31.0 70.6 138.4 240.1 680.9 1020.0 1359.1

3.7 7.5 11 .3 18.8 41.1 94.1 184.6 320.2 907.9 1360.0 1812.2

5.6 11.3 16.9 28.2 62.1 141.2 276.9 480.3 1361.9 2040.1 2718.3

60 30 20 12 5.5 2.4 1.22 0.71 1/4 1/6 1/8

2 hr 4 hr 6 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

NTSC (MUX OFF)

Audio ON (11KHz)

BEST


Quality

Refresh Rate (Field/Sec) REC Time Mode

HIGH

STANDARD

BASIC

NTSC (MUX OFF)

Audio OFF

BEST


Quality

Refresh Rate (Field/Sec) REC Time Mode

HIGH

STANDARD

BASIC

Possible Recording Time HDD=20GB ( hour )

3.5 4.4 8.8 13.2 25.7 N.A. N.A. N.A. N.A. N.A. N.A.

3.5 5.5 11.0 16.4 31.7 N.A. N.A. N.A. N.A. N.A. N.A.

3.7 7.4 14.6 21.6 41.4 N.A. N.A. N.A. N.A. N.A. N.A.

5.5 11. 0 21.6 31.7 59.7 N.A. N.A. N.A. N.A. N.A. N.A.

60 30 **20 **12 **5.5 2.4 1.22 0.71 1/4 1/6 1/8

2 hr 4 hr 6 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

Possible Recording Time HDD=20GB ( hour )

3.6 4.5 9.0 13.5 27.1 58.7 113.0 194.4 547.0 818.3 1089.5

3.6 5.6 11.3 16.9 33.9 73.4 141.2 243.0 683.8 1022.8 1361.9

3.7 7.5 15.0 22.6 45.2 97.9 188.3 324.0 911.7 1363.8 1815.9

5.6 11. 3 22.6 33.9 67.8 146.9 282.5 486.0 1367.6 2045.7 2723.9

60 30 **20 **12 **5.5 2.4 1.22 0.71 1/4 1/6 1/8

2 hr 4 hr 6 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

PAL (MUX ON)

Audio ON(11KHz)

BEST


Quality

Refresh Rate (Field/Sec) REC Time Mode

HIGH

STANDARD

BASIC

Possible Recording Time HDD=20GB ( hour )

3.5 5.3 8.0 13.2 23.2 N.A. N.A. N.A. N.A. N.A. N.A.

3.5 6.6 9.9 16.4 28.7 N.A. N.A. N.A. N.A. N.A. N.A.

4.4 8.8 13.2 21.6 37.6 N.A. N.A. N.A. N.A. N.A. N.A.

6.6 13.2 19.5 31.7 54.4 N.A. N.A. N.A. N.A. N.A. N.A.

50 25 17 10 5.5 2.9 1.52 0.88 1/4 1/6 1/8

3 hr 6 hr 9 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

PAL (MUX ON)

Audio OFF

BEST


Quality

HIGH

STANDARD

BASIC Refresh Rate (Field/Sec) REC Time Mode

PAL (MUX OFF)

Audio ON(11KHz)

BEST


Quality

HIGH

STANDARD

BASIC Refresh Rate (Field/Sec) REC Time Mode

Possible Recording Time HDD=20GB ( hour )

3.6 5.4 8.1 13.5 24.4 46.1 89.5 154.6 545.2 816.5 1087.7

3.6 6.7 10.1 16.9 30.5 57.6 111 .8 193.2 681.5 1020.6 1359.7

4.5 9.0 13.5 22.6 40.6 76.8 149.1 257.7 908.7 1360.8 1812.9

6.7 13.5 20.3 33.9 61.0 115.2 223.7 386.5 1363.1 2041.2 2719.4

50 25 17 10 5.5 2.9 1.52 0.88 1/4 1/6 1/8

3 hr 6 hr 9 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

Possible Recording Time HDD=20GB ( hour )

3.5 5.3 10.6 15.7 25.7 N.A. N.A. N.A. N.A. N.A. N.A.

3.5 6.6 13.2 19.5 31.7 N.A. N.A. N.A. N.A. N.A. N.A.

4.4 8.8 17.4 25.7 41.4 N.A. N.A. N.A. N.A. N.A. N.A.

6.7 13.5 27.1 40.6 67.8 N.A. N.A. N.A. N.A. N.A. N.A.

50 25 **17 **10 **5.5 2.9 1.52 0.88 1/4 1/6 1/8

3 hr 6 hr 9 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

PAL (MUX OFF)

Audio OFF

BEST


Quality

HIGH

STANDARD

BASIC Refresh Rate (Field/Sec) REC Time Mode

3.6 5.4 10.8 16.2 27.1 48.8 92.2 157.3 547.9 819.2 1090.4

3.6 6.7 13.5 20.3 33.9 61.0 115.2 196.6 684.9 1024.0 1363.1

4.5 9.0 18.0 27.1 45.2 81.3 153.7 263.2 913.2 1365.3 1817.4

6.7 13.5 27.1 40.6 67.8 122.0 230.5 393.3 1369.8 2048.0 2726.2

50 25 **17 **10 **5.5 2.9 1.52 0.88 1/4 1/6 1/8

3 hr 6 hr 9 hr 12 hr 24 hr 48 hr 96 hr 168 hr 480 hr 720 hr 960 hr

NOTE: Recording times on the tables above are

estimated. For actual available

recording time of a recording

configuration, please refer to the system

information of the DVR. (Please refer to

section 2.3 system information for more

details.)

NOTE: There is no audio function at the refresh

Possible Recording Time HDD=20GB ( hour )

** : In the NTSC and Mux Off mode, a recording

rate of 20F/S would be actually 15 F/S,

12F/S would be 10 F/S and 5.5 F/S would be

5F/S.

** : In the PAL and Mux Off mode, a recording

of rate 17F/S would be actually 12.5 F/S,

10F/S would be 8.3 F/S and 5.5 F/S would be

actually 5F/S.

rate in NTSC: 2.4 fields/sec ~ 1 fields/ 8

sec. There is no audio function at the

refresh rate in PAL: 2.9 fields/sec ~ 1

fields / 8 sec.

NOTE: An actual recording field number could

be less than the Refresh Rate on the

table above.

(This adjustment is to avoid image shaking during playback at the same speed. )

3.2 Recording Operations

This section details the way to record video

into hard-disk drives. Before commencing with

(2) Select the CLOCK / TIMER and press the

Enter button

to enter the CLOCK /

TIMER page.

the recording function, please configure the

recording setting properly according to your

needs.

3.2.1 Manual Recording

Take the following steps to start and stop

recording:

(1) Press the REC button

to record video

into a hard-disk drive with the corresponding

programmed recording settings. The REC

button

will light up indicating the DVR is

in the recording status.

(2) Press the REC button

for 3 seconds to

stop recording any time.

(3) To access just recorded video, please refer to

section 3.4 for more details.

3.2.2 Timer Recording

Timer recording provides 2 periods of time

each day in a weekly table which programs

(3) Select the TIMER－SET.

(4) Press the Enter button

to enter the REC

SCHEDULE table.

(5) You can set up by using the “<” button

and the “>” button

day/hour/minute and use the “

and the “v” button

to locate the specific

^” button

to set the

day/hour/minute you wish.

You can also set up by using the Shuttle

Ring and the Jog Dial.

the “<” button

“>” button

button

and is the equal of the “v”

, is the equal of the

, is the equal of the “^”

is the equal of

The time is displayed in a 24-hour clock

format.

(6) After scheduling is completed, press the

Enter button

and set OK to save the

setting or select CANCEL to leave the page

the DVR to turn on and off at specified times.

This way the DVR will start/ stop recording

according to the programmed schedule.

MAIN MENU

RECORD ALARM / MOTION

CLOCK/ TIMER

COMMUNICATION DISK SYSTEM

(1) Press the Setup button

GOTO CLOCK/ TIMER PAGE

REC SCHEDULE

START END

00:00- 00:00

TO MOVE TO CHANGE

CLOCK/TIMER

CLOCK :SET

DAYLIGHT SAVING :OFF REC ENABLE :OFF

TIMER :SET

TITLE :SET

to enter the

START END

00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00

CANCEL

MAIN PAGE

MAIN MENU.

without saving.

(7) To activate/ deactivate the programmed

recording schedule, set the REC ENABLE

to ON/ OFF. If the scheduled recording is on,

the red indicator of the Timer Record

will be on as well.

MAIN MENU

RECORD ALARM / MOTION

CLOCK/ TIMER

COMMUNICATION DISK SYSTEM

GOTO CLOCK/ TIMER PAGE

CLOCK :SET

DAYLIGHT SAVING :OFF

REC ENABLE :OFF

TIMER :SET TITLE :SET

MAIN PAGE

CLOCK/TIMER

(8) Press the REC button

for 3 seconds

during the scheduled recording to stop it any

time. If you wish to continue the scheduled

recording, press the REC button

proceed.

MAIN MENU

RECORD

ALARM / MOTION

CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO ALARM/ MOTION PAGE

Note : You can proceed to start the scheduled

recording from the current time if it is in the

scheduled interlude as soon as setting is

completed, and come out from the menu to

start recording.

Note : If you activate the recording function

before the scheduled recording, the unit will

operate recording as shown in the diagram

below and keep those Images in different files.

STAR T END START END

03:00 06:00 08:00 12:00 14:00

Start Manual

Recording

Timer Manual Timer Manual

3.2.3 Alarm / Motion Recording

Take the following steps to activate the

programmed alarm recording. For the ALM

OPERATION, REC RATE, REC QUALITY,

AUDIO, ALM TYPE, ALM DURATION, and

ALM OPERATION

REC RATE REC QUALITY AUDIO ALM TYPE ALM DURATION PRE-ALARM

MOTION SETTING

ALARM/ MOTION

: ON : 30 F/S : BEST : OFF : NO : 0 SEC : OFF

MAIN PAGE

(5) To active the motion alarm recording, select

MOTION SETTING and press the Enter

MAIN MENU

to enter the MOTION SETTING

ALARM/ MOTION

ALM OPERATION

REC RATE REC QUALITY AUDIO ALM TYPE ALM DURATION PRE-ALARM

MOTION SETTING

MAIN PAGE

button

PAGE, set MOTION ENABLE TO ON, and

set a suitable SENSITIVITY and REGION

according to the video sources.

RECORD

ALARM / MOTION

CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO ALARM/ MOTION PAGE

: OFF : 30 F/S : BEST : OFF : NO : 0 SEC : OFF

PRE-ALARM settings, please refer to section

4.2 for more details.

(1) Press the Setup button

to enter the

MAIN MENU.

(2) Select ALARM / MOTION and press the

Enter button

to enter the ALARM /

MOTION.

(3) Set the desired REC RATE, REC

QUALITY, ALM TYPE, and ALM

DURATION for use. If audio is required,

set AUDIO to ON. If pre-alarm recording is

required, set PRE-ALARM to ON.

(4) To activate/deactivate the alarm recording,

set ALM OPERATION to ON/ OFF.

MOTION

SENSITIVITY

REGION

MOTION SETTING

: ON : 3 : SET

MAIN PAGE

3.2.4 Externally Triggered Recording

By connecting/ disconnecting RECORD IN of

ALARM I/O on the rear panel of the DVR, you

can activate/deactivate the recording function of

a DVR. The file will be kept with a prefixed “R”.

NOTE: The status of recording operations

when an alarm takes place is shown in the

diagrams below.

Manual or Externally

Triggered Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Timer Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm Normal

Timer Recording

Alarm Takes Place

Actual Recording

Speed

Normal Alarm

Timer Recording

Alarm Takes Place

Actual Recording

Speed

Alarm Normal

3.3 Playback Operations

This section shows you how to operate the fast,

While playing back recorded video at the

slow, and single-picture playback functions,

and details how the unit is to playback a file in

a different operation status. Please refer to the

following paragraphs specifying the relevant

details. When playing a file, the monitor should

display a flashing PLAY message and the

PLAY button

will light up indicating that the

DVR is in the playback status.

3.3.1 Normal Playback

Once the user presses the PLAY button, the

DVR will start playing back the recorded data

at the recorded speed. The starting position

varies according to different operation

sequences.

A. Play back from the latest playback STOP

recorded speed:

Forward: Turn the Shuttle dial

to view the recorded video in the

forward direction at a speed faster

than the recorded speed. Each

subsequent turn of the shuttle to the

right increases the forward rate, as

2x, 4x, 8x, 16x, 30x and 100x.

Backward: Turn the Shuttle dial

to view the recorded video in the

reverse direction at a speed faster

than the recorded speed. Each

subsequent turn of the shuttle to

the left increases the reverse rate,

as -1x, -2x, -4x, -8x, -16x, -30x and

-100x.

to the right

to the left

position.

[ PLAY ] - [ STOP ] - [ PLAY ]

B. Play back from the latest recorded video.

[ REC ] – [ PLAY ] or

[ REC ] – [ REC Stop ] – [ PLAY ]

C. Play back from a video clip in Search List.

[Search] – [ PLAY ]

D. Play back from the start of hard disk

recorded data.

[STOP – press the key for 3 sec. ] – PLAY

Once playback reaches the end of an HDD’s

recorded data, the DVR will show a message

signaling the recording’s end ( use the SEARCH

functions or rewind to replay the file if

required ) .

Normal: Release the Shuttle dial

to return

to the normal speed of playback.

NOTE: While Normal playing a recorded video

from a multiplexer at 60 F/S~30F/S

(50F/S~25F/S for PAL), the playback

speed is half the recorded speed.

NOTE: The playback speed will be displayed on

the screen. However, when playing a

recorded video from a multiplexer, the

playback speed will only display in

encoding (multiplexing) the mode. Press

the Monitor button between decoding and encoding modes.

to switch

3.3.2 Fast Forward/Backward

There are

2x, 4x, 8x, 16x, 30x and 100x.

7 speeds available for playback: 1x,

3.3.3 Slow Forward/Reverse

There are

playback: 1/2, 1/4, 1/8, 1/16.

4 speeds available for a slow

A. By PAUSE button

Press the PAUSE button

to display

one frame/field of a picture at a time in the

forward direction. (When playing back

While playing back recorded video at the

recorded speed:

(1) Press the PAUSE button

for the slow

playback mode.

(2) Forward: Turn the Shuttle dial

right to view the recorded video in

the forward direction at a speed

slower than the recorded speed.

Each subsequent turn of the shuttle

to the right increases the forward

rate, as 1/2, 1/4, 1/8, and 1/16.

(3) Reverse: Turn the Shuttle dial

left to view the recorded video in the

reverse direction at a speed slower

than the recorded speed. Each

subsequent turn of the shuttle to the

left increases the reverse rate, as

to the

video recorded by a multiplexer, each

sequential press of the PAUSE button

will display each camera in

sequence.)

B. By JOG dial

Turn the JOG dial

clockwise to display

one frame/field of a picture at a time in the

forward direction. Turn the JOG dial

counterclockwise to display one frame/field

of a picture at a time in the backward

direction.

(3) Press the PLAY button

to return to

the normal speed of playback.

3.3.5 Playback Recorded Video from

-1/2, -1/4, -1/8, and -1/16.

(4) Normal: Release the Shuttle dial

and then press the PLAY button

to return to the normal speed of

playback.

3.3.4 Play back Picture-by-picture

While playing back recorded video at the

recorded speed:

(1) Press the PAUSE button

picture-by-picture mode.

(2) There are two ways, by PAUSE button or

by JOG, available to play in the

picture-by-picture mode, but the PAUSE

button

can only function in a forward

direction; the other, JOG dial

in both a forward and a backward direction,

for the

, can act

an HDD of the mobile rack (for

removable HDD model only)

To play back a recorded video from an HD2,

take the following steps:

(1) Press the Search button

search mode.

^”

(2) Press the “

and 13 “v” buttons to

select a video; press the

“>” buttons to flip over a page.

(3) Use the search function to access desired

recorded video. For specific operation

details please refer to the next section 3.4

(Search Operations).

to enter the

“<” and 14

3.3.6 Picture in Picture ( PinP )

Display Mode

While playing back recorded video, the

display mode can be switched to 2 different

as well as picture-by-picture.

PinP mode by pressing the DISPLAY

button8. This function is available only

when the MUX option has been set to

OFF.

Playback

Live

When the DVR is under PinP display mode,

please use the “<”, “>”, “v”, “^”

11 ~14

buttons

to move the position of the small windows as

your desire.

3.4 Search Operations

This section shows you how to access

recorded video.

Note: The Search button has another special

function. You can press and hold it down

for over 3 seconds. The REVIEW TEXT

mode will then be activated. The

REVIEW TEXT page has 6 items for

selection. Please refer to Chapter 6. for

more details.

3.4.1 FULL LIST Search

Take the following steps to proceed with the

full-list search function.

(1) Press the Search button 10 to enter the

search mode.

(2) Select the FULL LIST and press the Enter

button

to access the complete list of

recorded video.

(3) Highlight the specific recorded video you

require and press the Enter button

display the selected video.

( Key Operation: Press the “

“v”

the

buttons to select a video; press

“<” and 14 “>” buttons to flip

^”

over a page.)

FULL LIST

ALARM LIST TIME SEARCH

THUMBNAIL

SD CARD CD (For CD-RW model only)

HD1

1 08-11-04 21:47:55 28.3G 2 08-12-04 06:55:58 8.03G 3 08-12-04 10:02:15 1.00G 4 08-12-04 12:42:31 18.0M

5 08-12-04 12:42:47 10.0M

NOTE: T: Timer recording; R: External trigger

recording; A: Alarm recording.

NOTE: The maximum number of index in the

list, for a respective HDD, is 3000.

3.4.2 ALARM LIST Search

Take the following steps to proceed with the

alarm-list search function.

(1) Press the Search button 10 to enter the

search mode.

(2) Select the ALARM LIST and press the

Enter button

to access the complete

list of alarm-event recorded video.

(3) Highlight the specific recorded video you

require and press the Enter button

display the selected video.

(Key Operation: Press the “

“v”

the

buttons to select a video; press

“<” and 14 “>” buttons to flip

over a page.)

^”

and

FULL LIST

ALARM LIST

TIME SEARCH THUMBNAIL SD CARD

(For CD-RW model only)

MM DD YEAR HH MM

08 /12 / 2004 12 42

TIMER SEARCH

10 / 01 / 2004 15:10:30

HD1

A 1 08-12-04 10:02:15 1.00G A 2 08-12-04 12:42:31 18.0M

A 3 08-12-04 12:42:47 10.0M

3.4.3 TIME Search

Take the following steps to proceed with the

time-list search function.

(1) Press the Search button 10to enter the

search mode.

(2) Select the TIME SEARCH and press the

Enter button

to access the time-setting

page.

3.4.4 THUMBNAIL Search

Take the following steps to proceed with the

thumbnail search function.

(1) Press the Search button 10 to enter the

search mode.

(2) Select the THUMBNAIL and press the

Enter button

to access the thumbnail

page.

(3) Set the date you wish to search for the

recorded video.

(4) Press the Enter button

searching and displaying the concerned

image.

● You can set up by using the “<”

“^” 12 “v” 13 buttons to move

focus.

to start

“>”

(3) Set the time period you wish to search for

the recorded video.

(4) Press the Enter button

to start searching

and displaying the concerned image.

(5) If no video is found, please return to the

time-setting page and repeat steps (3) and

(4) again for another search.

FULL LIST ALARM LIST

TIME SEARCH

THUMBNAIL SD CARD

(For CD-RW model only)

● You can also set up by using the Shuttle

Ring and the Jog Dial to move eye focus.

is the equal of the “<” button

is the equal of the “>” button 14, is

the equal of the “

the equal of the “v” button

(5) There are

5 levels of recording range

^” button

and is

modes to choose from: 1 Hour, 10

Minutes, 1 Minute, 10 Seconds and 1

Second. Select the specific field you

require and press the Enter button

enter the next level. If you want to return to

the previous level, please press the Setup

button

(6) On reaching the critical point at any level,

the user can start playback by just

clicking the PLAY button

FULL LIST

ALARM LIST TIME SEARCH

THUMBNAIL

SD CARD

(For CD-RW model only)

THUMBNAIL

MM DD YEAR

10 / 10 / 2004

LEVEL 1 : Interval = 1 Hour

00:00:00 01:00:00 02:00:00 03:00:00

00:00:00

04:00:00

05:00:00 06:00:00

07:00:00

08:00:00

09:00:00

10:00:00

11:00:00 12:00:0 0

13:00:00

14:00:00

15:00:00

20:00:00

16:00:00 17:00:00

21:00:00 22:00:00 23:00:00

18:00:00

19:00:00

2004:10:20

LEVEL : 1

1 HR

LEVEL

2 : Interval = 10 Min.

15:00:00

15:10:00

15:20:00

15:30:00

15:40:00

15:50:00

2004:10:20

LEVEL : 2

10 MIN

LEVEL 3 : Interval = 1 Min

15:30:00

15:31:00

15:32:00

15:33:00

15:34:00 15:35:00

15:38:00 15:39:00

15:36:00

15:37:00

2004:10:20

LEVEL : 3

1 MIN

LEVEL 4 : Interval = 10 Sec.

LEVEL 5 : Interval = 1 Sec.

15:35:00

15:35:30

15:35:10

15:35:40

15:35:20

15:35:50

2004:10:20

LEVEL : 4

10 SEC

10 / 01 / 2004 15:10:30

15:35:30

15:35:34 15:35:35

15:35:38 15:35:39

3.4.5 SD CARD Search

Take the following steps to proceed with the SD

card search function.

(1) Insert an SD Card into the SD card slot of

(2) Press the Search button

(3) Select the SD CARD and press the Enter

(4) Highlight the specific JPG file you require

(5) If you need another, please return to the

15:35:31

15:35:32

15:35:36

15:35:33

15:35:37

2004:10:20

LEVEL : 5

1 SEC

the rear unit.

to enter the

search mode.

button

JPG files.

and press the Enter button

the image.

SD card JPG file list page and repeat steps

3 and 4 again for another search.

FULL LIST

ALARM LIST TIME SEARCH THUMBNAIL

SD CARD

to access the complete list of

(For CD-RW model only)

SD CARD JPEG FILE

F0000.JPG F0001.JPG F0002.JPG F0003.JPG


to display

NOTE: To delete a JPG file in the SD card,

NOTE: If by accident one selects a CD

please return to the SD CARD JPG FILE list

page, and highlight the specific JPG file,

press the Setup button

to delete the image.

, then select “Yes”

3.4.6 CD Menu (For CD-RW model only)

Take the following steps to proceed with

the CD search function.

(1) Place the disc in the tray.

(2) Press the Search button

search mode.

(3) Select the CD option and press the Enter

button

to access the complete list of JPEG

files.

(4) Highlight the specific JPEG file you require and

press the Enter button

(5) If you need another, please press the Enter

button

to return to the CD MENU page and

repeat step (4) again for another search.

to enter the

to display the image.

item and forgets to insert it: See the

picture below for this status and please

insert a CD or press the search button to

exit the CD menu.

EMPTY

FULL LIST ALARM LIST TIME SEARCH THUMBNAIL SD CARD

CD (For CD-RW model only)

SEARCH CD

DVR0001\ DVR0002\ DVR0003\ DVR0004\

Search EXIT

v SELECT <PAGE UP >PAG E D OW N

(“CD” STANDS FOR THE CD-ROM

MODEL AND “BACKUP” IS FOR THE

REMOVABLE HDD MODEL ONLY IN ITEM

6.)

3.5 Backup Operations

3.5.1 CD Rewritable unit Backup

iii ) Press the Seq./Save button

select # 3 ( "CD JPEG" ) and enter.

and

Operations (FOR CD-ROM MODEL

ONLY)

This device now includes a CD-RW unit.

(1) SD JPEG: Archive single image clips into

an SD card.

i ) Insert an SD Card into the SD card slot

ii ) Play the video back to find your desired

iii ) Press the Seq./Save button

iv ) Press the Enter button

(2) SD AVI: Archive video of AVI clips into an

SD card.

i ) Insert an SD Card into the SD card slot

ii ) Play the video back to find your desired

iii ) Press the Seq./Save button

iv ) Press the Enter button

(3) CD JPEG: You can archive a lot of single

images in a CD disc by entering this item.

Please follow the steps given below.

i ) Please insert the CD disc in its tray. You’ll

ii ) Play the video back to find your desired

SAVE

SD JPEG SD AVI CD JPEG CD AVI EXIT

of the rear unit.

item. Press PAUSE button when you find

it.

select # 1 ( "SD JPEG" ).

image in the SD Card.

of the rear unit.

item. Press PAUSE button when you find

it.

select # 2 ( "SD AVI" ).

video in the SD Card.

hear a signaling beep to tell you the disc is

ready.

item. Press PAUSE when you find it.

PAUSE

and

to save the

and

to save the

iv ) You've entered the CD JPEG menu.

v ) Select item 1( “ADD” ) to add your

image into the buffer.

SAVE/CD JPEG

ADD EDIT BURN EXIT

vi ) Turn the jog dial or Play button to find

the next image you want. Now repeat

the last step again to add this image to

the buffer. You can continue in this way

indefinitely.

vii ) If you now wish to edit your buffer,

select item 2 ( "EDIT" ) in the CD

JPEG menu. Now in the EDIT jpeg

page, press “ < ”, ” > ”, ” v ”and “

buttons to review your selected images.

As the images move, you can decide to

delete or not delete any image you find

unnecessary or not by pressing the

"Setup" buttons to "NO" ( meaning no

deletions ) or "YES" ( meaning you're

deleting a particular image ). Press the

"Search" button to exit this page.

viii ) If your selection is complete, enter item

3 ( "BURN" ) in the CD JPEG menu.

Give the device some time to complete

this process.

ix ) Press the eject button to open the CD

tray, take out the CD disc, and enter it

in a PC to view your selections.

(4) CD AVI: You can archive a video in the CD

disc by entering this item.

Please follow the steps given below.

i ) Please insert the CD disc in its tray.

PAUSE

^ ”

Hear that beeping signal to confirm your

disc is ready.

ii ) Play the video back to find your desired

item. Press PAUSE when you want to

start.

iii ) Press the Seq./Save button

and

select # 4 ( "CD AVI" ) and enter.

iv ) You're in the CD AVI menu now.

v )

BURN 30S BURN 1 M BURN 3 M BURN 5 M BURN 10 M EXIT

SAVE/CD AVI

PAUSE

Use the ” v ”and “

^ ”buttons to select

the time length of your saved recording

between “30 seconds”, “1M”, “3M”, “5M”

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION

DISK

SYSTEM

GOTO DISK PAGE

DISK SETTING

HD REFORMAT

HD2 USAGE REC

HD BACKUP BACKUP HD FAT32 SD FILE AUTO ERASE SD REFORMAT CD REFORMAT

MAIN PAGE

ALARM MIRROR

(2) FULL: Duplicate all the recorded video

and “10M”. Then enter this item to start

burning your video in the CD disc.

vi ) Press the eject button to open the CD

tray, take out the CD disc, and enter it

in a PC to view your video.

3.5.2 Mobile Rack HD Backup

Operations

MODEL ONLY)

There are 3 ways available to duplicate the

recorded video from HD 1 (Fixed HD) to HD 2

(Mobile Rack HD). Please take the following

steps to proceed.

(1) Set HD 2 to BACKUP first. Take the

following steps.

z Press the Setup button

z Highlight DISK and press the Enter

(FOR REMOVABLE HDD

to enter

the setup mode and select the DISK.

button

SETTING page.

to enter the DISK

from HD1 to HD2.

On the DISK SETTING page, use the “

and “v” buttons and button13 to

highlight HD BACKUP, select FULL, then

press the Enter button

to proceed.

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION

DISK

SYSTEM

GOTO DISK PAGE

DISK SETTING

HD REFORMAT HD2 USAGE

HD BACKUP FULL

HD FAT32 ALARM SD FILE SELECT AUTO ERASE SD REFORMAT CD REFORMAT

MAIN PAGE

^”

z Then set HD 2 USAGE to BACKUP.

ALARM: Duplicate all the alarm-event

recorded video from HD 1 to HD2.

Stay on the DISK SETTING page.

Use the “

button

to highlight BACKUP; select

^”

and “v” buttons and

ALARM, then press the Enter button

to proceed.

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION

DISK

SYSTEM

GOTO DISK PAGE

MAIN MENU

HD REFORMAT HD2 USAGE

DISK SETTING

HD BACKUP FULL

HD FAT32 ALARM SD FILE SELECT AUTO ERASE SD REFORMAT CD REFORMAT

MAIN PAGE

DISK SETTING

HD REFORMAT HD2 USAGE

HD BACKUP FULL

HD FAT32 ALARM SD FILE SELECT AUTO ERASE SD REFORMAT CD REFORMAT

MAIN PAGE

HD1

1 08-11-04 21:47:55 28.3G 2 08-12-04 06:55:58 8.03G A 3 08-12-04 10:02:15 1.00G + A 4 08-12-04 12:42:31 18.0M +

A 5 08-12-04 12:42:47 10.0M

TOTAL : 41M

READY TO GO

OK CANCEL

SELECT: Duplicate a particular recorded

video from HD1 to HD2.

Stay on the DISK SETTING page.

Use the “

^”

and “v” buttons 13, to

highlight HD BACKUP, choose the

“SELECT” item and then press the Enter

button

Press the “

to list all the recorded video.

^”

and “v” 13 buttons to

select the desired clip and press the

Search button

to mark it.

After completing the selection, press the

to proceed.

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION

DISK

SYSTEM

GOTO DISK PAGE

Enter button

MAIN MENU

NOTE: If the capacity of HD 2 is not sufficient to

store all selected video, a warning message “HD2

SPACE NOT ENOUGH” will be displayed on the

screen. Please, insert a larger capacity of

hard-disk drive and start the process all over

again.

3.5.3 SD Card Backup Operations for

Removable HDD Model

The SD card slot of the rear unit has four

functions as shown below:

3.5.3.1 Archive Single image Clips into an SD

Card

Please take the following steps to archive a

critical image in an SD card.

(1) Press the Setup button

to enter the

setup mode and select the DISK.

(2) Highlight DISK and press the Enter

button

to enter the DISK SETTING

page.

(3) Then set SD FILE to JPEG.

HD REFORMAT HD2 USAGE HD BACKUP HD FAT32

SD FILE JPEG

AUTO ERASE AVI SD REFORMAT CD REFORMAT

MAIN PAGE

DISK SETTING

(4) Insert an SD Card into the SD card slot of

the rear unit.

(5) Start playing back the recorded video.

(6) Press the PAUSE button

to freeze

the desired pictures.

(7) Press the Seq./Save button

to save

the image in the SD Card.

The quantity of pictures which can be stored

depends on the SD card capacity. You can

have the saved images printed out in any

computer. The image is stored in the JPEG

compressed format. If more than one clip is

stored in an SD card, file names will be

assigned in sequence as shown below.

SAVE TO F0000.JPG

SAVE TO F0001.JPG

…

SAVE TO F000N.JPG

(5) If you have already saved the current

picture on your screen. Then press

Seq./Save

button to save.

3.5.3.2 Archive video of AVI clips into an SD

card

Please take the following steps to archive a

critical video in an SD card.

(1) Press the Setup button

to enter the

setup mode and select the DISK.

(2) Highlight DISK and press the Enter

button

to enter the DISK SETTING

page.

(3) Then set SD FILE to AVI.

HD REFORMAT HD2 USAGE HD BACKUP HD FAT32

SD FILE JPEG

AUTO ERASE AVI SD REFORMAT CD REFORMAT

MAIN PAGE

DISK SETTING

(4) Insert an SD Card into the SD card slot of

the rear unit.

(5) Start playing back the recorded video. (6) Press the PAUSE button

to freeze

the desired pictures.

(7) Press the Seq./Save

button to save

the video in the SD Card.

The quantity of video which can be stored depends

on the SD card’s capacity. The image is stored in

the AVI compressed format. If more than one clip is

stored in an SD card, file names will be assigned in

sequence as shown below.

SAVE TO M0000.AVI

SAVE TO M0001.AVI

…

SAVE TO M000N.AVI

NOTE:

●The JPEG file format can be played and deleted

in the DVR. Please refer to section 3.4.5.

● The AVI file format cannot be played and

deleted in the DVR. It can only be played in a

card reader connected to a computer.

●The file format can be selected from the “SD

FILE” item in the Setup Menu. Please refer to

section 4.5 for more detail.

3.5.4 Backup the System setting info into

an SD card.

The DVR offers a quick setup method by

using the SD card. If a user wants to set

many DVR devices with the same settings,

the DVR could save the whole setting in the

SD card, then transfer it to another DVR.

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION DISK

SYSTEM

GOTO SYSTEM PAGE

OPERATION LOG MENU BACKGND

BUZZER PASSWORD SETUP PWD DEFAULT

SD / CD SETUP

VERSION

SYSTEM

SAVE

LOAD

MAIN PAGE

3.6 Key Lock Operation

The Key lock operation protects the unit

against unauthorized use by disabling the

entire front panel controls. Simultaneously

press these two

for at least 3 seconds to lock the unit; to

release the Key Lock, simultaneously press

these two buttons again.

“<” and 14 “>” buttons

3.5.4.1 Save the whole setting into the SD

card:

1. Insert an SD card into the SD card slot.

2. Press the Setup button

to enter the

setup mode.

3. Highlight SYSTEM and press the Enter

button

to enter the SYSTEM SETTING

page.

4. Set SD SETUP to SAVE. Then the system

setting info will auto save into SD card.

3.5.4.2 Transfer the system setting info of

DVR to another:

1. Insert the SD card which has stored the

system setting info into the DVR.

2. Press the Setup button

to enter the

setup mode and select the SYSTEM.

3. Highlight SYSTEM and press the Enter button

to enter the SYSTEM SETTING page.

4. Then set SD SETUP to LOAD.

3.5.5 Updating System Software

Please refer to section 2.4 for more details.

4. MENU SETUP

There are 6 categories for operation setting in the

setup menu system as shown below. The following

sections will instruct you step by step to configure

the operation setting and state each menu’s

purpose and options. Press the Setup button

to access the setup menu. Once inside the menu

system, the on-screen menu allows you to set up

the key features of the unit. The functions of

various buttons within the menu-setup mode are

described in the paragraphs below.

KEY FUNCTIONS

Setup button

Press to enter the setup menu. Press again to

exit the setup mode.

4.1 REC Setting

RECORD

ALARM/ MOTION CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO REC PAGE

This page allows you to set the recording rate

and recording quality, and enables you to

continue recording when the disk is full.

RECORD

ALARM/ MOTION CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO REC PAGE

MAIN MENU

^”

“

and “v” 13 buttons :

Press to select the desired item or entry for

setting.

“<”

and “>” 14 buttons :

Press to highlight the desired option or to select

the context for setting.

Enter

button :

Press to enter the selected item and to save the

setting.

Shuttle Ring 20 :

Turn to highlight the desired option or to select

the context for setting.

Jog Dial 21 :

Turn to select the desired item or entry for

setting.

AUTO START REC :OFF REC RATE :30 F/S REC QUALITY :BEST DISK FULL :REWRITE AUDIO :OFF MULTIPLEXER :ON TEXT INSERTION

MAIN PAGE

REC SETTING

AUTO START REC:

This option determines the way to record

automatically after power activated if

necessary.

OFF: Disables it. ON: Enables it.

REC RATE :

This option is for adjusting the number of

pictures recorded every second into a storage

disk. The recording rate controls the frequency

at which the number of video pictures can be

recorded.

z For an NTSC unit there are 11 different

recording rates you can select from: 60F/S (60

fields per second), 30F/S, 20F/S, 12F/S,

MENU SETUP ( continued )

5.5F/S, 2.4F/S, 1.22F/S, 0.71F/S, 1 F/4S,

1F/6S, and 1F/8S.

z For a PAL unit there are 11 different recording

rates you can select from: 50F/S (50 fields per

second), 25F/S, 17F/S, 10F/S, 5.5F/S, 2.9F/S,

1.52F/S, 0.88F/S, 1 F/4S, 1F/6S, and 1F/8S.

Please refer to the table in section 3.1 for

details.

NOTE: The 60 f/s (50 f/s for a PAL unit) recording

rate can only function in a 352x240

(352x288 for a PAL unit) resolution.

REC QUALITY:

This option determines the image quality to

be recorded. The DVR stores images in the

compressed format and allows the image

quality to be altered by the image size.

There are 4 levels of image quality you can

select from: BEST, HIGH, STANDARD, and

BASIC. Selecting the BEST image for use

provides higher-resolution recorded images,

and normally takes up more storage space

than a HIGH, STANDARD or BASIC image

does.

DISK FULL:

This option determines the way to utilize

storage media in case of a full disk.

REWRITE: When the hard disk is full, the

device continues recording by displacing the

old data.

STOP: When the hard -disk is full, the

device will stop recording.

AUDIO:

This option determines the way to record

sound if necessary.

OFF: Disables AUDIO recording.

11 KHz: Enables AUDIO recording.

22 KHz: Enables AUDIO recording.

NOTE: Audio function can only be activated at

the following refresh rates in NTSC(PAL):

60(50), 30(25), 20(17), 10(10), 5.5(5.5)

fields/sec.

MULTIPLEXER:

For optimum image recording please set this

option to ON when the DVR is connected to a

multiplexer for use. Set this option to OFF

when it is only connected to a single camera

or Quad processor.

TEXT INSERTION:

Please refer to Chapter 6. TEXT INSERTION FUNCTION for more details.

NOTE: The Text Insertion activates both the

text data and the channel information in a DVR,

and the remote viewer software takes effect

after this option has been turned on.

4.2 ALARM / MOTION Setting

RECORD

ALARM / MOTION

CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO ALARM/ MOTION PAGE

This menu allows users to program the

configuration of alarm recording only when an

alarm input is activated. The device will

record as long as the alarm input is activated.

RECORD

ALARM / MOTION

CLOCK/ TIMER COMMUNICATION DISK SYSTEM

GOTO ALARM/ MOTION PAGE

ALM OPERATION

REC RATE REC QUALITY AUDIO ALM TYPE ALM DURATION PRE-ALARM

MOTION SETTING

MAIN PAGE

ALM OPERATION:

This option determines whether to activate

MAIN MENU

ALARM/ MOTION

: OFF : 30 F/S : BEST : OFF : NO : 0 SEC : OFF

/ deactivate the alarm recording when it

detects an alarm input.

ON: The device activates the alarm

recording when it detects an alarm input.

OFF: The device ignores the alarm signal

when it detects an alarm input.

REC RATE:

This option is for the purpose of adjusting the

number of pictures recorded every second

into a storage disk when an alarm input is

activated. For an NTSC unit there are 5

different record speeds you can select from:

60F/S (60 fields per second), 30F/S, 20F/S,

12F/S, and REMAIN. For a PAL unit there are

5 different record speeds you can select from:

50F/S (50 fields per second), 25F/S, 17F/S,

10F/S, and REMAIN. If you select REMAIN

for use, the device will record images at the

same speed as set on the REC page.

REC QUALITY:

This option determines the image quality to

be recorded when an alarm input occurs.

There are 4 levels of image quality to choose

from: BEST, HIGH, STANDARD, and BASIC.

The table below shows the level of image

quality with the corresponding compression

ratio and image size.

REC

Best High Standard Basic

Quality


48KB 32KB 21KB 16KB

Size

AUDIO:

This option determines the way to record

sound if necessary.

ON: Enables AUDIO recording.

OFF: Disables AUDIO recording.

NOTE: Audio function can only be activated at

the following refresh rates in NTSC(PAL):

60(50), 30(25), 20(17), 10(10), 5.5(5.5)

fields/sec.

ALM TYPE:

This option allows users to set a type of alarm

input corresponding to the sensor signal in

use.

NO: Normally Open. This is to be used with

the type of alarm sensor whose contact

remains open in normal conditions and

closes in case of activation.

NC: Normally Closed. This is to be used with

the type of alarm sensor whose contact

remains closed in normal conditions and

opens in case of activation.

ALM DURATION:

This option allows users to set alarms for a

certain duration. You can select one of the six

following options: 0 SEC, 30SEC, 1 MIN, 5

MIN, 10 MIN, and NON-STOP.

Duration Setting

Alarm recording

Duration

Alarm

activated

deactivated

Non-Stop

Alarm recording

Alarm

activated

Alarm

deactivated

Duration

Reset

NOTE: Recording may be interrupted at the time of

Alarm-in or Alarm-out.

LIVE images may be interrupted at the time

of Alarm-out.

PRE- ALARM:

This option determines that images prior to an

alarm will be recorded in the hard-disk drive.

When an alarm is triggered the device will

record the image prior to the alarm for 5

seconds (

20 fields/sec).

ON: Enables this function.

OFF: Disables this function.

NOTE: If the device is already under recording

SENSITIVITY:

mode before an alarm occur, the

pre-alarm recording will not take effect.

MOTION SETTING:

The motion detection function is convenient for

people without an alarm trigger input, but it can

also used be with an alarm trigger input. If this

function is enabled, object’s movement will

trigger the alarm recording just like the outside

trigger signal. Before using the motion

detection function, please turn the ENABLE

option to ON, and set the SENSITIVITY (1 ~ 5)

to a suitable value.

NOTE: The MOTION ENABLE option is not allowed

set to ON when MULTIPLEXER option is set to ON

in the RECORD page, it is because the motion

This option allows users to set the motion

sensitivity. 1 is the most sensitive setting. 5 is

the least sensitive setting.

REGION:

This option allows users to set the motion

region.

4.3 CLOCK / TIMER Setting

RECORD ALARM / MOTION

CLOCK/ TIMER

COMMUNICATION DISK SYSTEM

GOTO CLOCK/ TIMER PAGE

MAIN MENU

detection function is for single camera only.

MOTION ENABLE SENSITIVITY

REGION

MOTION SETTING

: ON : 3 : SET

MAIN PAGE

SET MOTION REGION

( 30 , 40 ) - ( 99 , 99 )

MOTION ENABLE:

The DVR provides a weekly table consisting of

two periods of time each day for scheduled

recording. This option allows you to set the

time each day when the DVR will start and stop

recording.

MAIN MENU

RECORD ALARM / MOTION

CLOCK/ TIMER

COMMUNICATION DISK SYSTEM

GOTO CLOCK/ TIMER PAGE

CLOCK :SET

DAYLIGHT SAVING :OFF REC ENABLE :OFF

TIMER :SET

TITLE :SET

MAIN PAGE

CLOCK/TIMER

This option enables / disables the motion

detection.

ON: Enables the motion detection.

OFF: Disables the motion detection.

CLOCK:

This entry allows users to set the system

time.

NOTE: Clock data is retained for about 3 months

after the 15-hour power supply is used up (in the

operate On mode).

DAYLIGHT SAVING:

This entry allows users to set the daylight

saving time.

REC SCHEDULE

START END

00:00- 00:00

TO MOVE

START END

00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00 00:00- 00:00

00:00- 00:00

CANCEL

TO CHANGE

OFF: Disables the daylight saving time.

USA: Daylight saving time begins at 2:00 a.m.

on the first Sunday of April. Time reverts to

standard time at 2:00 a.m. on the last Sunday

of October.

EUROPE ( Except UK ): Daylight saving time

begins at 2:00 a.m. on the last Sunday of

March. Time reverts to standard time at 2:00

a.m. on the last Sunday of October.

UK: Daylight saving time begins at 1:00 a.m.

on the last Sunday of March. Time reverts to

standard time at 1:00 a.m. on the last Sunday

of October.

SET: to set the start and ending for the

daylight saving time.

REC ENABLE:

4.4 COMMUNICATION Setting

RECORD ALARM / MOTION CLOCK/ TIMER

COMMUNICATION

DISK SYSTEM

GOTO COMM PAGE

This option allows you to configure the

statuses of the RS-232 / RS485

communication ports when connected to

external devices, and the Ethernet

communications settings. Please refer to 6.1

RS-232/RS485 Protocols and 5. Network

MAIN MENU

This option enables/disables the programmed

scheduled recording.

ON: Enables the scheduled recording.

OFF: Disables the scheduled recording.

TIMER:

This entry allows users to program the time

each day when the DVR will start and stop

recording. There are

2 time periods each

day available for scheduling. The time is

displayed in a 24-hour clock format. If there

is a time overlapping showing between two

continual time period settings, the device

will automatically combine the two

time-period settings into one.

Functions for more details.

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER

COMMUNICATION

DISK SYSTEM

GOTO COMM PAGE

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

COMM ID:

Communication ID for the RS232 and RS485

communication ports. After the DVR

receives a

RS232 or RS485 command, it checks if the

<Dest ID> within the code is the same as the

COMM ID, in which case the particular

command can be accepted.

RS-232:

The RS-232 communication port can be

either in an importing or exporting mode

according to your applications.

ON: Enables the RS-232 communication port.

When you wish the unit to be controlled

by an external device, please select this

entry for use.

OFF: Disables the RS-232 communication

NET DHCP:

This option enables or disables the Ethernet

communication port.

OFF: Disables it.

ON: Enables it.

NOTE: If provided with a DHCP server, the DVR

can get an IP automatically by setting this option

to ON.

NET IP:

This option is used to configure the Ethernet

communication settings. This is required for

the purpose of making a network connection.

Please consult with a qualified MIS

professional to configure it.

IP: XXX

.XXX.XXX.XXX

port.

RS-485:

The RS-485 communication port can be

either in an importing or exporting mode

according to your applications.

ON: Enables the RS-485 communication port.

When you wish the unit to be controlled

by an external device, please select this

entry for use.

OFF: Disables the RS-485 communication

port.

BAUD:

You have the option of using a Baud rate ( at

8 different levels : 2400, 4800, 9600, 19200,

28800, 38400, 57600 or 115200).

MASK: XXX

GATEWAY: XXX

HTTP PORT: XXXX

.XXX.XXX.XXX

NET ACCOUNT:

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

USERNAME

ADMIN [admin ] [9999]

VIEW [view ] [0000]

NET ACCOUNT

PASSWORD

SET NET ACCOUNT

NET ENABLE:

This option enables or disables the Ethernet

communication port.

OFF: Disables it.

ON: Enables it.

FTP SETTING:

This entry allows users to set the FTP File

Transfer Protocol.

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

ENABLE

REC MODE REC RATE FTP ACCOUNT

FTP SETTING

: OFF

: ALARM REC : 1F/ 1S : SET

FTP IP USER PAS SW ORD

PATH

FTP ACCOUNT

: 192.168.001.128 : [dvr ] : [00000000 ] : [/dvrvideo ]

MAIN PAGE

FTP IP

Every FTP server has to own an IP address

MAIN PAGE

ENABLE:

This option is to select enable or disable for

the FTP function.

ON: Enables it.

OFF: Disables it.

REC MODE:

This option determines the recording mode

to be recorded when the FTP function

occurs. There are 2 levels of recording

mode to choose from: ALARM REC and

ALL REC.

ALARM REC: Only to record the

alarm-event recorded video.

ALL REC: To record all the recorded video.

REC RATE:

This option determines the recording rate to

be recorded at when the FTP function occurs.

There are 4 levels of recording rates to

choose from: 1 F / 1 S, 1 F / 10 S, 1 F / 30 S

and 1 F / 60 S.

FTP ACCOUNT:

This option is used to configure the FTP

account settings. This is required for the

purpose of making an FTP connection.

Please consult with a qualified MIS

professional to configure it.

to be identified on the network. Input the IP

address of the FTP server.

USER

Type in the FTP user name (Login Name).

PASSWORD

Enter the FTP password (Password).

PATH

Enter the upload path while connecting the

FTP.

4.5 DISK Setting

HD REFORMAT:

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION

DISK

SYSTEM

GOTO DISK PAGE

DISK SETTING

HD REFORMAT : HD HD2 USAGE HD BACKUP

(FOR REMOVABLE HDD MODEL ONLY) : REC (FOR REMOVABLE HDD MODEL ONLY) : FULL

HD FAT32 : BUILD SD FILE

(FOR REMOVABLE HDD MODEL ONLY) : JPEG

AUTO ERASE : SET SD REFORMAT : START CD REFORMAT

(FOR CD-ROM MODEL ONLY) : START

MAIN PAGE

This option allows you to clear out all the data in the hard-disk drive. You will be required to enter the pre-set password before proceeding with

clearing out the data. Enter the standard password “9999” if you haven’t set your own individual password. To set your individual password, please refer to section 4.6 System

Setting - PASSWORD option. HD 1 / 2: Clears out all the data stored in HD

1 and HD 2.

BACKUP HD: Clears out all the data stored

in HD 2, which is set to backup purpose only. (This function has to be proceeded with when the HD 2

USAGE option is set to BACKUP.)

NOTE: In the case of the CD-RW model, only

one HD can be reformatted. No backup HD can be used.

HD2 USAGE:

This option determines the way to utilize the hard-disk drive in the mobile compartment.

REC

: Used for the regular recording

hard-disk drives.

BACKUP: Used for data backup only, which

will not be part of regular recording hard-disk drive.

ALARM MIRROR : The mirror function serves

HD1. As HD1 records alarm data, that data is simultaneously written to HD2.

NOTE: In the case of the CD-RW model, no

backup HD can be used. So you won’t see that item mentioned in the menu.

HD BACKUP:

This function allows you to duplicate data from HD 1 to HD 2. Please set HD 2 as BACKUP first. (For operation details, please refer to section 3.5) FULL: Duplicates all the recorded video from

HD1 to HD2.

ALARM: Duplicates all the alarm-event

recorded video from HD 1 to HD2

SELECT: Duplicates a particular recorded

video from HD1 to HD2.

NOTE: In the case of the CD-RW model, no

backup HD can be used. So you won’t see that item mentioned in the menu.

HD FAT32:

This function builds the FAT32 file system a the hard-disk, enabling the data in it to be played back on the PC.

SD FILE:

This option determines the format to save the important image files in an SD card. JPEG: Archives images in the JPEG format

to save a single picture in every file.

AVI: Archives images in the AVI format to

save a sequence of images in a file, the maximum limit being 300 images for every file. You can stop recording whenever you want, and if you don’t, recording will automatically stop at the optimum of

NOTE: In the case of the CD-RW model you

won’t see the “SD FILE” item mentioned in the menu, because it’s not used here.

NOTE: To save images or videos in a

CD-ROM or SD Card, please refer to section 3.5 for more details.

AUTO ERASE:

This item offers you two options. OFF: Choosing this alternative disables the

"AUTO ERASE" function.

SET: This choice enables the "AUTO ERASE"

function. Select "SET" and press the

ENTER button to enter the "AUTO ERASE SETTING" page, where you can

enable the settings to save data for storage for any period of time from 1 to 365 days. After the expiry of the time period you set, the data will be erased automatically. This process of storage and erasure over the time period you set will be repeated indefinitely until you disable the settings or change the settings to a different time period.

SD REFORMAT:

This option allows you to clear out all the data in the SD card.

CD REFORMAT:

This option allows you to clear out all the data in the CD-ROM.

NOTE: In the case of the model with the

removable HDD you won’t see the “CD REFORMAT” item mentioned in the menu, because this model doesn’t have a CD-ROM unit.

300 images.

4.6 SYSTEM Setting

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION DISK

SYSTEM

MAIN MENU

V-IN: Video input is connected.

V-LOSS: Video loss occurs.

P-LOSS: Power interruption occurs.

A-IN: Detects an alarm input.

LOCK:

Disables the entire front panel

controls.

UNLOCK:

Releases the key lock.

GOTO SYSTEM PAGE

This page is used for accessing the history of the

operation statuses, setting the password, resuming

factory default, and determining the menu display

background.

OPERATION LOG:

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER COMMUNICATION DISK

SYSTEM

GOTO SYSTEM PAGE

OPERATION LOG

MENU BACKGND

BUZZER PASSWORD SETUP PWD DEFAULT SD / CD SETUP VERSION

SYSTEM

MAIN PAGE

05/15/04 18:19:30 ON 05/15/04 18:19:36 OFF 05/15/04 18:23:10 ON 05/15/04 18:23:50 REC 05/15/04 18:25:05 STOP 05/15/04 18:27:12 V-LOSS 05/15/04 18:50:30 PLAY 05/15/04 18:51:20 STOP-P

^ v SELECT <PAGE UP >PAGE DOWN

OPERATION LOG

This log shows the history of the operation

statuses in chronological order. What the

following entries represent is detailed below.

ON: Switches on the device.

OFF: Turns off the device.

REC: Starts recording.

STOP: Ceases recording.

STOP-P: Ceases playback.

PLAY: Shows recorded video.

: ENTER : 2 : OFF

: SET : OFF : LOAD

: SAVE : ENTER

UPDATE:

Note: The log keeps an operation history on a

Updates system software.

revolving basis because of a limit of 4000.

When the log is full, the newly registered

record of an operation will replace the

existing records from the oldest one

onwards.

MENU BACKGND:

There are

3 levels of background color

transparency you can choose from: level 1 is

totally transparent, level 3 is opaque, and level

2 is between levels 1 and 3. The background

color is used in the setup menu and search

function.

BUZZER:

This option determines the embedded buzzer

sounding a tone to signal the following

situations. A tone lasts about two seconds.

ON: Enables buzzer.

OFF: Disables buzzer.

Situation

Alarm occurs Video loss occurs Disk is full Load factory default Buzzer is set to ON Enables/disables the key lock function Power on /off in a mobile rack HDD Backup operation is complete Timer activates/deactivates Recording is switching between HDDs

PASSWORD:

This option allows you to set a password to

prevent any unauthorized re-formatting of the

hard disk drives or use by a network viewer.

The standard password is “9999”.

OLD PASSWORD: Enter the pre-set

password (or the standard

password if this is the initial setting)

to access the password setting

system.

NEW PASSWORD: Enter a 4-digit-number

password of your choosing which

will replace the pre-set password

(or the standard password “9999”).

SETUP PWD:

When this option is on, the user must pass the

password check before entering the setup

menu.

ON: Enables pass protection for the setup

menu.

MAC : 00:0C:0C:00:00:10 BIOS : 1.00 SW : 1.11GBT DATE: Feb 24 2006

TEXT# : 186/ 65536

PRESS ENTER TO RETURN

OFF: Disables pass protection for the setup

menu.

DEFAULT:

This option allows you to reload the factory

default setting. Please do note that the

password would not be changed in the factory

default setting.

SD SETUP:

The DVR offers a quick setup method by using

an SD card. If the user wants to set up a lot of

the same devices with the same settings, he

can save the whole settings to an SD card, then

transfer them to another DVR.

SAVE: Saves the whole setting to the SD

card.

LOAD: Loads the whole setting from the SD

card.

VERSION:

This item is in the setup menu revealing the

network MAC, the BIOS version, software

version, and the last updated date.

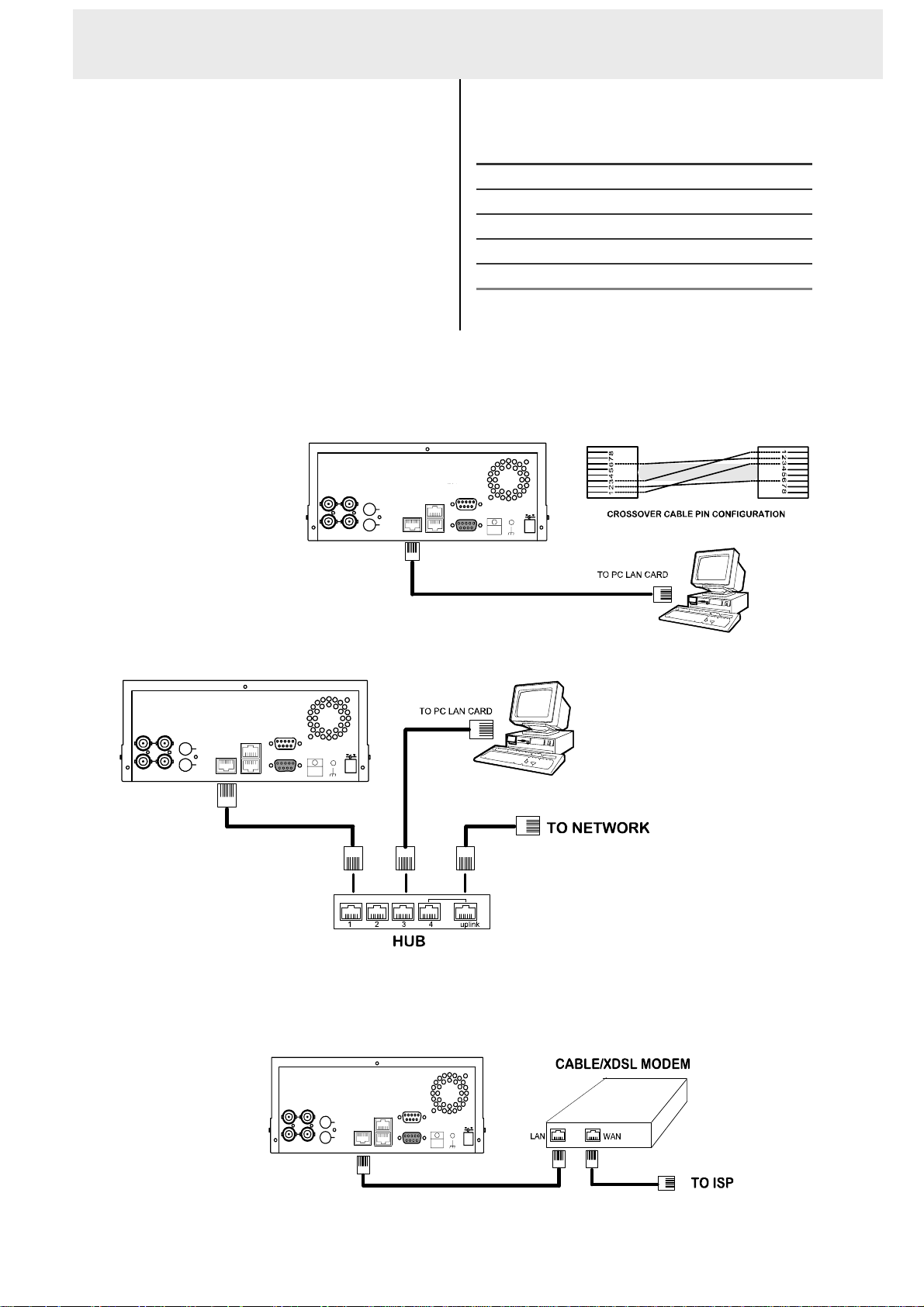

5. NETWORK

5.1 Network Configuration

5.1.1 Cable Connections

Please follow the instructions below to

connect your DVR to a computer or a network

and to choose a proper RJ-45 cable

configuration for connections.

A. Connect to a PC

Use a crossover LAN cable to connect directly to a

VIDEO

MUX'S VCR IN

FROM MUX

MAIN MONITOR

AUDIO

OUT

MONITOR

ETHERNET

Physical Spec. of RJ-45 Cable for Ethernet

Wire Type

Connector Type

Max. Cable Length

Hub Wiring Configuration

PC Wiring Configuration

Cat. 5

RJ-45

30 m

Straight Through

Cross Over

PC.

SD Card

RS-485

10/100

RS-232

I/O

ALARM

DC12V

RJ-45

CROSSOVER CABLE

B. Connect to a LAN Hub ( Intranet )

The RJ-45 PIN configuration for connecting with a LAN Hub is shown below.

FROM MUX

VIDEO

MAIN MONITOR

MUX'S VCR IN

AUDIO

ETHERNET

OUT

MONITOR

SD Card

RS-485

10/100

RS-232

ALARM

I/O

DC12V

RJ-45

C. Connect to WAN ( Internet )

The RJ-45 PIN configuration for connecting to a WAN is the same as that for connecting to a LAN.

ETHERNET

SD Card

RS-485

RJ-45

RS-232

ALARM

I/O

DC12V

10/100

VIDEO

MUX'S VCR IN

FROM MUX

MAIN MONITOR

AUDIO

OUT

MONITOR

NETWORK ( continued )

PIN NO.

RJ-45 PIN configuration for LAN Hub

5.1.2 Configure Your DVR Network

Settings

Upon network hardware connection, you

need to activate the network function and

configure the proper network settings of the

DVR.

5.1.2.1 Enable DVR Network Function

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER

COMMUNICATION

DISK SYSTEM

GOTO COMM PAGE

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

z Press the Setup button to enter the

OSD MAIN MENU. Please use the“<”

and “>” 14 buttons to highlight

COMMUNICATION; then press the

Enter button to enter the COMM

SETTING page.

Assignment

TX +

TX -

RX + Not Connected Not Connected

RX Not Connected Not Connected

COMM SETTING

RJ-45 socke

1 2 3 4 5 6 7 8

z Use the “

^”

“v” 13 buttons to

highlight NET ENABLE; select ON. Then

press the Enter button to proceed.

5.1.2.2 Enable DHCP Function

MAIN MENU

RECORD ALARM / MOTION CLOCK/ TIMER

COMMUNICATION

DISK SYSTEM

GOTO COMM PAGE

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

Use the “^” 12 and “v” 13 buttons to

highlight NET DHCP; select ON.

NOTE: This function can only work if the LAN

which the unit is connected to has a DHCP

server. If the DHCP server is working, the DVR

will obtain an IP address automatically from

the DHCP server. In that case please skip

section 5.1.2.3 (Set IP address) and follow

section 5.1.3 (TCP/IP Communication

Software).

5.1.2.3 Set IP Address

RECORD ALARM / MOTION CLOCK/ TIMER

COMMUNICATION

DISK SYSTEM

GOTO COMM PAGE

MAIN MENU

COMM ID :01 RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

You don’t need to set a NET IP for the unit

2. Connecting to a network, each connected

DVR must be assigned a unique IP, which

must be in the same class type as your

network address. IP addresses are written as

four sets of numbers separated by periods:

for example, 192.168.0.1 Therefore, if the

connected network is identified as Class C,

for example, the first three sets of numbers of

the DVR IP address must be the same as the

network address. If the connected network is

identified as Class B, the first two sets of

if the LAN which the unit is connected to

has a DHCP server. Otherwise, please

follow the instructions given below:

Enter the NET IP page, and set the IP,

MASK and GATEWAY. Then press the

Enter button to proceed. The following is a

sample setting.

IP: 192.168.1.100

MASK: 255.255.255.0

GATEWAY: 0.0.0.0

HTTP PORT: 80

NOTE:

1. When only one unit of the DVR is

connected to a computer or LAN, you can

freely assign an IP address for the DVR. For

example, there is a range of DVR IP addresses

numbers of the DVR IP address must be the

same as the network address. If you have any

questions regarding these settings, please

contact a qualified MIS professional or your

ISP.

from 192.168.1.1 to 192.168.1.255. You can

pick one for use from the range of the IPs. It’s

not necessary to set MASK and GATEWAY;

leave the settings as default.

When a DVR is connected to a WAN, you must

acquire a unique, permanent IP address and

correctly configure the MASK and GATEWAY

settings according to your network

architecture. If you have any questions

regarding those settings, please contact a

qualified MIS professional or your ISP.

5.1.3 TCP/IP Communication Setup

Follow the instructions below to install the

TCP/IP communication program into your

computer.

1. Click the Start Menu from your computer,

and point to the Control panel.

Point to the Local Area Connection and click

the right bottom of the mouse. Click the

Properties to enter the Local Area

Connection.

3. Click on the Configuration tag; check if

the TCP/IC is included among the network

component list. If the TCP/IP is included,

2. Click the Network Connections icon twice

to enter the Network setting windows.

please process step 5. If it is not included,

please follow step 4 to install the TCP/IP.

4. TCP/IP installation

During the installation, you will be requested

to insert the windows XP CD ROM. After

installation, the PC will be restarted.

TCP/IP Configuration setting

z Click Start Æ Control Panel Æ

If you are using a DHCP server, please select

“Obtain an IP address automatically”. Any

assigned the IP address for the connected

DVRs must be in the same class type as the

Network.Connections Æ Local Area

Connection

z Select Internet Protocol (TCP/IP)

then click Properties.

z Before processing the DVR installation in

a WAN, please make sure the Internet

connection works properly. If not, please

contact your ISP provider.

, and

server. If there is no DHCP server, please

select and specify an IP address and type in

the IP address of your PC. This IP address

must be different from the DVR IP but in the

same class type.

NOTE: The IP address of a DVR in a network

must be unique to itself as opposed to

those of the other chosen PCs, but in the

same class type.

5.1.4 Testing Connection

With the previous settings, follow the

instructions below to ensure whether you

have established the connection

successfully.

1. Click Start Æ Command Programs

3. If you receive a response as in the

sample screen below, the connection

hasn’t been successfully established.

Please re-check all the hardware and

software installation by repeating steps 1

to 5. If you still can’t establish the

connection after rechecking, please

contact your dealer.

2. Type in ping 192.168.1.1 then Enter.

(See the sample screen below)

** This IP is the DVR IP address that is

assigned for the connected DVR.

4. If you receive a response as in the sample

screen below, you have successfully made

the connection.

5.2 TRIPLEX 1 CH DVR VIEWER SOFTWARE:

1. Intel Pentium III 750MHz (at least).

2. 256 MB RAM.

Introduction

This version of the TRIPLEX 1CH DVR

Viewer Software uses the Microsoft .Net

Framework version. The .Net Framework

performs the XML Web Services, which

applies this operation system. The .Net

Framework provides a very high performance

environment to solve the network program.

Therefore, please use our Viewer Software to

connect the TRIPLEX 1CH DVR. It will satisfy

our users as being safer, faster, and more

stable and reliable than other software. See

below for the chief features of this Viewer

Software：

1. This software supports the multiple

3. Windows 98, NT, ME, 2000 and XP.

4. A 4 MB Video card capable of 24-bit true color display.

5. A 160 MB free hard-disk space for software installation.

6. A 10-base T network for LAN operation.

5.2.1 Software installation

Step 1：Exit all applications currently running

in the selected PC.

Step 2: Insert the supported PC in the CD ROM device. The program will execute the installation of the .Net Framework automatically after you click the "Setup.exe" file.

functions of the network.

2. It can search as many DVRs as

necessary.

3. It can support single display modes.

4. It has an extremely powerful search mode

to help you search recorded data for the

event / time you want.

5. It supports your local PC simultaneously

with the DVR backup data.

The programs can be operated by a selected

PC equipped with the following requirements：

※Note: If you choose "Yes" in the above

window, the installation will be completed automatically. You may need to wait 3 - 5 minutes during the installation.

Step 3: After you have completed installing the ".Net 1.0 Framework Viewer", you'll automatically enter the "Viewer Software" installation screen. Please see the screen below.

※Note: Please choose the "Next" button to

continue.

Step 4: The installation screen will show the

message "C:\Program Files\AVE TECH\

Viewer Software\". Or you can select the path

you want.

page. Then click the "AVE Viewer Software"

tag to start the DVR Viewer Software Program.

5.2.2 Short introduction

Now the "Login" page appears. Enter the

default "User Name: admin" and the

"Password: 9999" in their respective entries,

and click the "Login" button to log into the

application.

※Note: Click "Next" to continue the installation.

Step 5: The window below tells you the process

is complete.

※Note: Click the "Close" button to complete

the installation process.

Step 6: After completing installation, you can

double - click the file shown below. Or click the

"Start Menu" in the computer and select

"Programs" to open the "Program Selection"

5.2.2.1 Program introduction

【Working Device】：After you enter the

DVR, the section in the upper left margin will show the information in all the cameras.

【Screen】：The videos of the camera will

show.

【 Available Devices】： Here the whole

DVR list is shown. You can connect with your selection. Double click any of them to open the screen below. Please enter the correct "Username" and "Password" to log into this DVR. The default

"Username" and "Password" are "admin" and "9999" respectively.

※ Step 3: The default multi-screen is the 1-channel mode you see now.

※ Step 4 : The Viewer Software helps you

see any display mode you want.

【Function Key】：Click each of these

buttons to execute its functions.

【Multiscreen Buttons】：You can

interchange between three buttons here : the "Video Panel", "Web Page" and the

"Viewer Settings" buttons.

5.2.3 Operation

5.2.3.1 Remote Control

※ Step 1: After entering the "Viewer Software",

please click the button to select “1 Channels

DVR (Enhanced) ” and then click the "Available Devices" button. The software will

automatically search the whole local LAN 1-channel DVR device to see a list.

NOTE: If you want to create a new DVR, please press the

button to add it.

※ Step 2: Double click your selected device to

see a window as on the right. Enter the "Username" and "Password" -- the default name and password are "admin" and "9999".

1. Adjust the screen size: Move the mouse

to the vertical bar on the right side of the

"Work Devices" / "Available Devices"

box on the left margin of the screen. This bar runs from the top to the bottom of the screen, and when you move the mouse to this bar, it shows like this: . You can move this bar to the left to narrow the

"Working Devices" / "Available Devices" box and to the right to widen it.

2. Text Insertion Mode: enable / disable. Note: If the connected DVR has incoming

text data, that data will be shown in the corresponding area for each channel at the same time. Please remember to turn on the RECORD/ TEXT INSERTION setting in the DVR setup menu.

3. Text Insertion Setting: To set the

phrase/exception for the DVR, please click

this button option in the lower corner. The

following is the phrase setting page.

For the exception setting, please click the

"Exception List" next to the "Phrase

List

". Then input the exception strings

and exception count for remote alter

triggering. Click the

submit the settings. The DVR will send the

viewer software an alert when the

exception has reached a particular count.

The alert window will show in the lower

right corner. The following is the alert

window page.

4. Hide Device Panel: Click this button to

hide the "Available Devices / Working

Devices" box from view behind the video

display screen.

5. Full Screen: Click this button to show

the full screen for surveillance. All the

setting buttons will be hidden in this

mode. If you want to return to the

previous mode, use the mouse to click

the right key, and choose "Close".

6. Re-arrange the divisions: Click this

button to see the following channels.

7. Screen divisions: Choose any of the

buttons you want.

8. Pop-menu: You can use the mouse to

move to each channel. Click the right

key of the mouse to show a window.

You can select "Close", "Full Screen",

or "Capture / Print".

"Refresh" button to

※ Close: Stops the channel's display.

※ Full Screen: Enlarges the display to

"Full Screen".

※ Capture / Print:

"Capture":

See the "Image Preview" page for the

"Preview Setting" which has two choices :

"Mark Date and Time" and "Dimension".

Mark the item “Mark Date and Time” to set the

date and time stamp on a chosen picture.

Choose an appropriate dimension before

saving the image. To save the image, click

"Save" at the bottom to enter the "Save Page"

window. Give the file name. If you want to exit,

click "Cancel".

"Print": Click the "Print Preview" button and go to the "Preview" option to adjust the image size. Go to the "Print Settings" area and then go to "Mark Date and Time" if you wish to stamp the date and time of the image on the image itself. Select "Dimension" to scroll the "Original Image Size" from the drop - down list. Click "Print" to start the printing. Click "Cancel" to exit.

conditions for searching. After a search, the Viewer software will list the data that meets the search conditions. Now the user can page up and down among that data. The user can also click that data record to start playback.

9. Motion / Alarm: The warning icons. Motion icon: When there is a detection of

motion in any channel, it will display this icon on the right upper corner on that channel to warn the user. Alarm icon: When there is a detection of

external devices such as a sensor, it will display this icon on the right upper corner on that channel to warn the user.

10. Remind the condition of recording:

When the user start to record, it will

show this icon on the screen, and it will

disappear when stop the recording.

5.2.3.2

Remote play and PTZ control.

This device has the full triplex so you can use the Viewer Software in the remote without affecting the performance of the 1-channel DVR. You can also use the Viewer Software to play and back up. If you have a PTZ camera, the Viewer Software can also control it.

5.2.3.2.1 Remote play

“Play": Click it to see the DVR play

window. Use the "Previous page" and "Next page" buttons to find the record you want from the record list. Click the "Time Search" page to use the time and date search entries to help your search. Click the "Review Text" page to use the text search. The search conditions include:

. Channel . String . Date/Time . Amount

The user can input any combination of the above

Please directly click the "Search" button for the FULL

LIST, or enter the proper conditions in the Channel,

String, Date/ Time and Amount fields for searching.

The search results will be shown in the list. To

playback from the list, please select one of the items

on the list, and then click the "Play" button.

For the

Log

DVR keep up to 100 records of Alert log for viewing and playback. The records marked as means it can be click to start playback.

recorded video.

"REC": Click to control the recording of the

DVR. Press the button to start or stop the

recording.

reverse direction at speeds, which are faster

"Alert Log", please click the "Alert

" next to the "Review Text".

"REC"

"Pause": Click to freeze the image. "Stop": Click to stop playing back the

"REV": Click to play a recorded video in the

than the recorded speed.

"FWD": Click to play a recorded video in the

forward direction at speeds, which are faster

than the recorded speed.

5.2.3.2.2 Change Pan/Tilt/Zoom Setting

Click the

the Speed Dome Controller.

1. Click the

setting on the Speed Dome Controller.

button on the home page to open

button to control the Zoom

be able to display the listed IDs by turn.

Each of the ten buttons under ‘Set’ is

connected with a specific position and angle

of either panning or tilting of the camera.

Click each button to activate its particular

position and angle. Press the button under

‘Preset‘ to turn the camera angle by angle in

the set positions.

Each of the ten buttons under ‘Clear’ can be

clicked to delete the corresponding ‘Set’

button above it. For example, if you wish to

de-activate ‘Set’ button #4, please click

‘Clear’ button #4 to delete its corresponding

2. The right-hand set,

buttons, each of which, upon being clicked,

will turn the camera all the way, without

stopping, in one of the four designated

directions. The fifth button, in the center, will

stop the camera at any point you prefer.

The left-hand set of buttons,

four buttons, each of which, upon being

clicked, will move one short step only in any

of the four designated directions.

3. Select a Speed Dome device Model

from the drop-down list

on the Speed Dome Controller. The

Controller will be able to display the listed

, has four

, has

‘Set’ counterpart.

Each of the ten buttons designated ‘Go to’

can be clicked to view the particular

corresponding angle of the position in which

it is set.

The ‘AutoPan’ section

buttons. The ‘Start’ and ‘End’ buttons fix the two

points of any panning movement you select. The

third or bottom button sets the chosen

movement in the play mode.

has three

Models by turn.

4. Select a Speed Dome device ID

from the drop-down list on the

Speed Dome Controller. The Controller will

5.2.3.3 Backup and video edit

Use the

window.

button to see the "Backup"

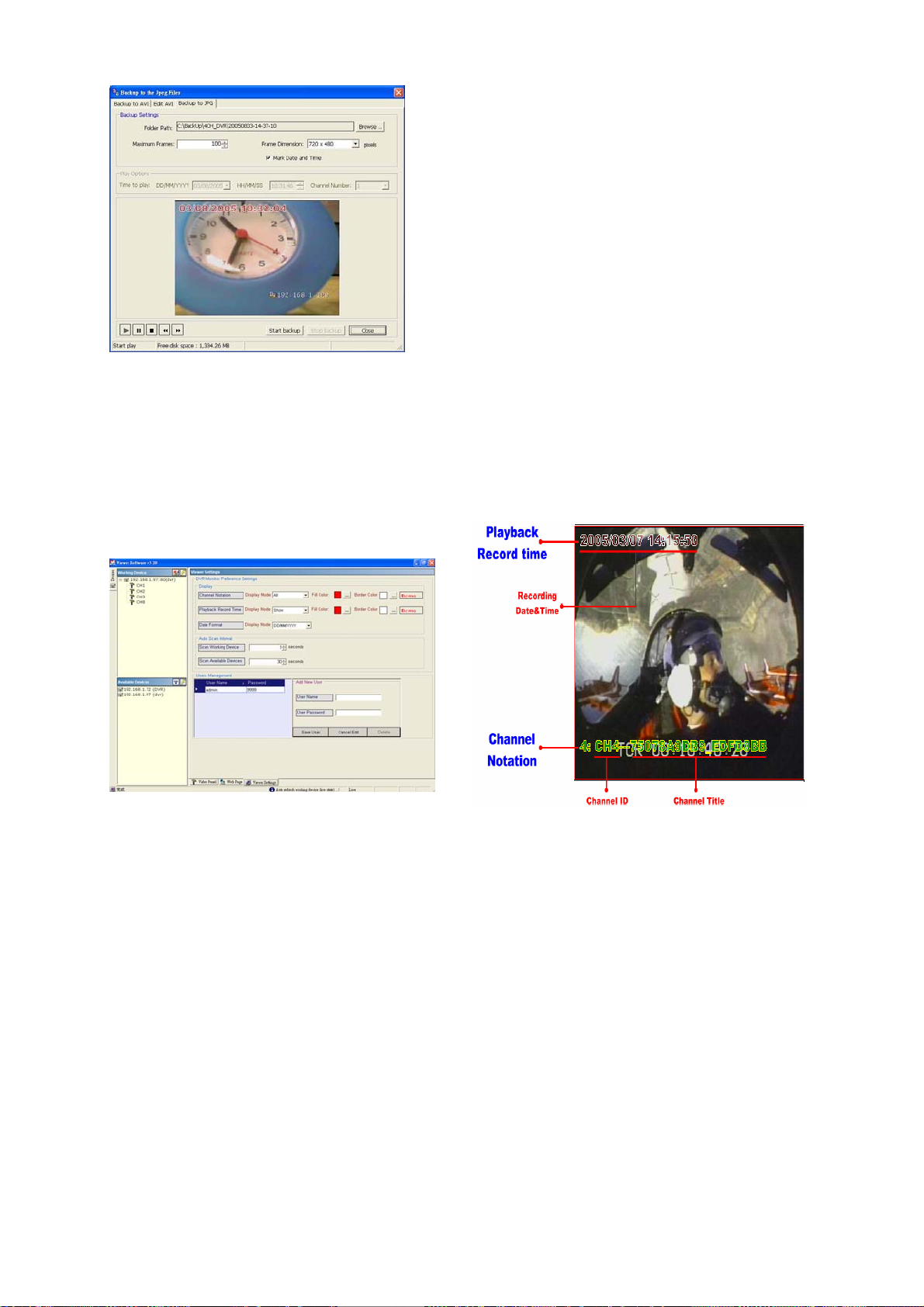

【Backup up to AVI】：

Backup Settings：

● File Path : To set the backup file path

and the file name, click the "Browser" button on the right.

● Frame Rate : Sets the backup record

file speed.

● Maximum File Size : Sets the

maximum file size.

● Frame dimension : Sets the resolution.

● Mark Day and Time : Sets the date and

time stamp.

Play Options：

● Time to play: To search the date and

time you want.

● Channel ID: To choose the camera.

Play Monitor：

● Use the panel below to play or stop, etc.

to start editing.

● Frame Rate Modification: To see the

total number of frames, modify your frame rate.

● File Preview: Click the "Start" button to

start your setting component. You can

also use the "Start" button to interrupt

the code. You can click the "Save to

new file" button to save a new file after the edit code.

● If you already want to back up, click the

"Start backup" button. If you want to

stop, click the "Stop backup" button.

【Edit AVI】：

● File Path: To set the backup file and the

file name, check the "Browser" button

on the right. Click "Edit Selected File"

【Backup to JPG】：

● Folder Path: To set the backup file path,

click the "Browser" button on the right.

● Maximum Frames: Sets the maximum

amount of the frames which to backup.

● Frame Dimension : Sets the resolution.

● Mark Day and Time : Sets the date and

time stamp.

Play Options：

● Time to play: To search the date and

time you want.

● Channel Number: To choose the

camera.

Play Monitor：

● Use the panel below to play or stop, etc.

If you already want to back up, click the "Start

backup" button. If you want to stop, click the

"Stop backup" button.

5.2.3.4 Web Page Viewer

This section provides instructions for using the Viewer Software to view the Web Page.

NOTE: This device also provides the IE Browser function. Open the browser and view the

images directly via the browser. Please refer to section 5.3 for more details.

5.2.3.5 Viewer setting

1. "Channel Notation". If you wish to change the "Display Mode", open its drop-down list and select any of the four items there. Your choice will automatically appear in the relevant blank space. Similarly you can enter the "Fill Color" and "Border Color" entries to open their respective color tables. Click "OK" in each case to set your choice.

2. "Playback Record Time". Click the "Display Mode" to select from a drop - down list of two choices, "Hide" and "Show". Your choice will decide whether the images will display their date and time or not.

3. "Auto Scan Interval". Here you have two entries, "Scan Working Devices" and "Scan Available Devices". Set the time in seconds for both entries as per your requirements. The "Scan Working Devices" entry has a time span of 1 to 5 seconds only. The "Scan Available Devices" time range covers 30 to 1000 seconds.

4."Users Management". Click the "Save User" button to add the new user’s name and password under "Add New User": Enter the "User Name" and "Password" and click "Save User " again. Your new user and his password will appear on the "User Name & Password " list to the left. If you proceed to enter a new user and then click "Cancel Edit", no new name will be added to your list. If you wish to delete any user, click his name and click "Delete" to effect the change.

5.3 Microsoft Internet Explorer

This section provides instructions for using the

Microsoft Internet Explorer.

5.3.1 Connecting the DVR

Start up the Microsoft Internet Explorer, and then

follow the steps given below to connect the

DVR:

1. Type in the URL address of the DVR into the

URL block and press the “Enter” button to enter

the login page. The default User Name and

password are admin and 9999 respectively.

2. Enter the User name and Password.

3. Click the “Login” button and enter the home

page of the DVR: both the user name and

password must be provided correctly.

Browsing images from the DVR

The images from the DVR will be displayed on

the home page while going online with the DVR.

There are some buttons provided on the bottom

of the home page for further setting.

Option Buttons

Description

Click to stop playing back the recorded video.

Click to a recorded video from

the PLAY LIST.

Click to freeze the image.

Click to activate or stop the recording function of the device.

Click to leave the home page of the DVR.

Press to enter the SETUP window, and open the device setting page in order to add more devices for viewing. This allows you to program the Record Setting and Record Schedule. Press to enter the IMAGE window and open the device home page for viewing. Click to open the control panel and remote-control the pan/tilt/zoom function of a live camera within a local network or the Internet. Recorded video list box. This box allows you to access all recorded video, which are stored in the HDD of the connected devices. To review a recorded video, simply select an entry from the list and click

the PgUp/PgDn: Enables you to scroll up and down the list.

Time & Status Box. This box indicates the device status.

button.

This allows you to search a recorded video stored under the “Date” entry of the device. Enter the YEAR/ MONTH/DAY HOUR: MINUTE you wish to search and click the GO button to proceed.

Record / Alarm setting page to enter the Timer

5.3.2 Change Record / Alarm Setting

Please follow the steps given below to change the

Record / Alarm setting through the network as and

when necessary.

1. Click the

enter the Record / Alarm setting page.

2. Adjust the Record / Alarm setting, including

button on the home page to

Record setting page.

3. Set the TIMER RECORD to ON to enable the

TIMER RECORD function.

4. There are two time-periods available for

scheduling each day. The Timer Record setting

page allows users to program the time each day

that the DVR will start and stop recording. The

time is displayed in a 24-hour clock format. If

“REC rate”, “REC quality”, “ALARM REC

enable”, “ALARM REC rate”, and “ALARM REC

quality” as and when necessary.

3. Click the

Record / Alarm setting.

4. Click the

home page while the new image setting acts on

the images to effect the desired changes

instantly. (If the setting has not been changed by

the above steps, any (re)entry to the home page

will find images in their earlier or original

setting. )

button to submit the new

button to return to the

5.3.3 Change Timer Record Setting

1. Click the button on the home page

to enter the Record / Alarm setting page.

there is a time overlap showing between two

continual time-period settings, the device will

automatically combine the two time-period

settings into one combined time-period setting.

5. Click the

Timer Record setting.

6. Click the

home page while the new image setting acts on

the images to effect the desired changes

instantly. (If the setting has not been changed by

the above steps, any (re)entry to the home page

will find images in their earlier or original

setting. )

button to submit the new

button to return to the

2. Click the

connection on the

5.3.4 Pan / Tilt / Zoom Setting

Click the

Speed Dome model on the left hand side. The function varies for different Speed Dome models. Here is an

example.

7. Click the button to control the Zoom

setting on the Speed Dome Controller.

button on the main page to open the Speed Dome Controller page. Then select a proper

Each of the ten buttons under ‘Set’ is connected

with a specific position and angle of either panning

8. The right-hand set,

buttons, each of which, upon being clicked, will

turn the camera all the way, without stopping, in

one of the four designated directions. The fifth

button, in the center, will stop the camera at any

point you prefer.

9. The left-hand set of buttons,

four buttons, each of which, upon being clicked,

will move one short step only in any of the four

designated directions.

10.

from the drop-down list on the Speed Dome

Controller. The Controller will be able to display

Select a Speed Dome device ID

, has four

, has

or tilting of the camera. Click each button to

activate its particular position and angle. Press the

button under “Preset” to turn the camera angle by

angle in the set positions.

Each of the ten buttons on the “Clear” row can be

clicked to delete the corresponding “Set” button

above it. For example, if you wish to de-activate

‘Set’ button #4, please click ‘Clear’ button #4 to

delete its corresponding ‘Set’ counterpart.

Each of the ten buttons designated ‘Go to’ can be

clicked to view the particular corresponding angle

of the position in which it is set.

12.

The ‘AutoPan’ section has three buttons.

the ID entries by turn.

11.

The ‘Start’ and ‘End’ buttons fix the two points of

any panning movement you select. The third or

bottom button sets the chosen movement in the

play mode.

6. TEXT INSERTION FUNCTION

1. Purpose

The purpose of the Text Insertion function is to make the DVR accept the text

information coming from external devices like ATM machines, cash registers, and

access control systems. The DVR stores the text information in the hard disk, and

shows the information on the screen during a video playback. Through various

interfaces for text review, the user can search for and playback a desired video.

The main functions include:

1. DISPLAY – Desired text information will be shown on the screen in the

playback mode.

2. Various TEXT REVIEW interfaces, including:

● FULL LIST – Lists all the recorded text information page by page for

selection.

● BY STRING – Searches all the text information including the desired

strings.

● BY DATE/TIME - Lists some of the records with the text information

within a desired period.

● BY AMOUNT - Lists some of the records with the text information whose

cash amount meets the desired range.

● BY COMBINATION – Combines the above search interfaces on one and

the same page.

3. Various EXCEPTION ALERT monitoring functions, including:

● ALERT: A Trigger Alert signal after a specific number of exceptions. The

number of exceptions and the reset time for the alert can be

configurable.

● BUZZER: The DVR Buzzer sound for exceptions.

● FLAG: The DVR OSD flag display for exceptions.

● NOTIFY: Notifies the remote viewer software after an ALERT has been

● FTP: Transfers images to an FTP server after an ALERT.

2. Specifications.

2.1 Hardware connection.

Connect the DVR and the text device through the RS-232 Null Modem Cable

( Pin 2, Pin3 Cross over , Pin5 Ground ).

generated.

TEXT INSERTION FUNCTION ( continued )

2.2 RS-232 baud rate setting.

Baud rates can be set in the DVR, the baud rate selections including

2400, 4800, 9600, 19200, 28800, 38400, 57600 and 115200.

2.3 The maximum number of text information records.

For every 10.24 Giga bytes of hard disk capacity, the DVR reserves space for

32768 text records. Each hard disk keeps its own data in itself. In a DVR with two

hard disks, the user can remove any one of them, and the remaining one will keep

working.

For example, in the case of an 80G hard disk, the maximum number of recorded

text information is ( 80 / 10.24 ) x 32768 = 196608.

2.4 Data size.

Each text information contains up to 100 characters.

2.5 PROTOCOL.

The DVR supports the following two protocols; please set the appropriate one in

the Setup Menu.

2.5.1 GENERIC.

All the text data is delimitated by CR (Carriage Return = 0x0d ) and LF( Line

Feed = 0x0a ).

2.5.2 VSI-ADD.

The text data includes CHANNEL information for application in the

multi-channel environment as follows:

0x1b, <CH>, <TEXT> , 0x0d.

3. Operation

3.1 Settings.

3.1.1 Text Insertion Protocol.

SETUP / RECORD / TEXT INSERTION.

Set one of the following:

GENERIC:

Text format : <TEXT >+ CR( 0x0d ) + LF ( 0x0a )

VSI-ADD:

Text format: 0x1b + Ch + <TEXT> + CR( 0x0d )

Note: The Text Insertion activates both the text data and the channel

information in a DVR, and the remote viewer software takes effect after this

option has been turned on.

3.1.2 RS232 Baud Rate.

SETUP / COMMUNICATION / BAUD

Set at the same speed as that in the Text Input device.

3.1.3 Firmware version and capacity usage.

SETUP / SYSTEM / VERSION.

MAC : 00:0C:0C:00:00:10

BIOS : 1.00

SW : 1.11GBT

DATE: Feb 24 2006

TEXT# : 186/ 65536

PRESS ENTER TO RETURN

The 2 numbers after “TEXT # :” are the current index number of the TEXT

data and the total number of TEXT data.

3.1.4 Text color setting.

There are 8 options (BLUE, ORANGE, RED, MAGENTA, GRAY, WHITE,

YELLOW, GREEN); If the TEXT INSERTION option has been set as

VSI-ADD protocol, and incoming texts come from different channels, all the

messages of the channels could be set in different colors are shown as

below.

TEXT INSERTION : OFF

TEXT COLOR : SET

TEXT DISPLAY : BY CHANNEL PHRASE : #1..10 EXCEPTION : #1..10

MAIN PAGE

TEXT COLOR

TEXT INSERTION

TEXT COLOR

CH1 █ WHITE CH2 █ YELLOW CH3 █ GREEN CH4 █ BLUE

3.1.5 Text display setting.

There are 2 options (BY CHANNEL, MIXED); If the TEXT INSERTION option has been set as VSI-ADD protocol, and incoming texts come from different channels, all the messages of the channels could be set in different channels.

By channel: This mode shows a 4-channel screen where each channel displays

information text against a background of images -- both the text and the images belong to that channel only.

Mixed: This mode shows a 4-channel screen where each channel shows its own

images only; but the entire screen shows information text overlapping across all the channels. The data for all the channels will show as it comes in, without following any channel sequence by numerical order.

TEXT INSERTION : OFF TEXT COLOR : SET TEXT DISPLAY : BY CHANNEL PHRASE : #1..10 EXCEPTION : #1..10

MAIN PAGE

TEXT DISPLAY

TEXT INSERTION

TEXT INSERTION TEXT COLOR TEXT DISPLAY BY CHANNEL PHRASE MIXED EXCEPTION

MAIN PAGE

TEXT DISPLAY

TEXT INSERTION

3.1.6 Phrase setting.

The 100 built-in phrases enable the user to input the strings more quickly.

Since users need to change the characters one by one when they input the string value in the search menu or search menu, the phrase offers another shortcut to input the common strings.

Enter SETUP/ RECORD/ TEXT INSERTION/ PHRASE

There are 11 options ( 1..10,11..20,…. 99..100,” FACTORY DEFAULT” ); please select one, and then enter the inner page for the string settings. The last one, “FACTORY DEFAULT”, is used to go back to the default values.

TEXT INSERTION TEXT COLOR TEXT DISPLAY # 1..10 PHRASE EXCEPTION #21..30 #31..40 #41..50 #51..60 #61..70 #71..80 #81..90 #91..100

MAIN PAGE

# 1..10

TEXT INSERTION

#11..20

TEXT INSERTION TEXT COLOR TEXT DISPLAY #11..20 PHRASE EXCEPTION #31..40 #41..50 #51..60 #61..70 #71..80 #81..90 #91..100 FACTORY DEFAULT

MAIN PAGE

FACTORY DEFAULT

TEXT INSERTION

#21..30

PHRASE # 1..10

1 [ACCOUNT ] 2 [ALCOHOL ] 3 [ALE ] 4 [AMERICAN EXPRESS ] 5 [ATM ] 6 [AX ] 7 [BALANCE ] 8 [BASS ] 9 [BEER ]

10 [BOURBON ]

While the users input string data in the setup menu or search menu, they can

also press the SETUP button to quickly acquire the required or relevant

phrases; please see the following examples.

CHANNEL ALL

TEXT [ ]

BY STRING

03-20-2006 13:36:08

CHANNEL ALL

TEXT [ ]

PHRASE PAGE 5

BY STRING

EXTRA EXTRA LARGE

►FISH

GAS GASOLINE GIN GUINESS HEINKEN INPORT KEG

03-20-2006 13:36:08

EXCEPTION # 1..10

1 [ALE ] [00] 2 [CANCEL ] [00] 3 [CASH BACK ] [00] 4 [CASH OUT ] [00] 5 [CHARGE ] [00] 6 [CHECK ] [00] 7 [CIGARETTES ] [00] 8 [CIGS ] [00] 9 [COMP ] [00]

PHRASE PAGE 5

EXTRA EXTRA LARGE

►FISH

GAS GASOLINE GIN GUINESS HEINKEN INPORT KEG

10 [CORRECTION ] [00]

3.1.7 Exception setting.

Enter SETUP/ RECORD/ TEXT INSERTION/ EXCEPTION

The purpose of using the exceptions is to filter some special string and alter

the remote users. There are 4 options (1 ..10, 11..20, 21..25, “FACTORY

DEFAULT” ); please select one, and then enter the inner page for the string

settings. The last one, “FACTORY DEFAULT”, is used to go back to the

default values.

In the right-hand side of the Exception Setting page is the exception count. If

a number has been specified, the DVR will alert the remote Viewer Software

when the number of the exceptions exceeds the number set here.

TEXT INSERTION

TEXT INSERTION TEXT COLOR TEXT DISPLAY PHRASE EXCEPTION # 1..10 #11..20 #21..25 FACTORY DEFAULT

MAIN PAGE

# 1..10

EXCEPTION # 1..10

1 [BEER ] 2 [CANCEL ] 3 [CASH BACK ] 4 [CASH OUT ] 5 [CHARGE ] 6 [CHECK ] 7 [CIGARETTES ] 8 [CIGS ] 9 [COMP ]

10 [CORRECTION ]

3.1.8 EXCEPTION PARAMETER.

In the EXCEPTION setting page, press the SEARCH button to enter the EXCEPTION

PARAMETER setting page. In the PARAMETER EXCEPTION setting page, press the

SEARCH button to return to the EXCEPTION setting page.

For each EXCEPTION, the user can set the following parameters.

3.1.8.1 CNT ( Count ) 0..99

When the number of exceptions exceeds this number, the DVR will generate an

ALERT event. If this number is set as 0, any exception will be ignored.

3.1.8.2 RST ( Reset Time ) 0..24

If no exception has been detected for a certain number of hours, the Exception count

( in 3.1.8.1) will be reset to 0.

3.1.8.3 BUZ ( Buzzer ) Off/ On.

If the BUZ has been set as ON, the DVR will generate a buzzer sound as a warning

when an exception has been detected. The duration depends on the DWELL setting

( 3.1.8.7 ).

Note: The buzzer setting in SYSTEM/ BUZZER must also be set as ON, or the

function will not take effect.

3.1.8.4 FLG ( Flag ).

If the FLG has been set as ON, the DVR will show a mark ( *) on the screen, and

keep flashing for a duration depending on the setting in DWELL( 3.1.8.7 ).

3.1.8.5 NFY ( Notify Remote ).

If the NFY setting has been set as ON, the DVR will notify the remote viewer software

when the ALERT event has been generated. At the same time, a message “ALT” will

be shown on the screen.

3.1.8.6 FTP.

If the FTP setting has been set as ON, the DVR will start to send pictures to an FTP

server after the ALERT event has been generated. The rate is fixed at 1f/ 1s, and the

duration is 10 sec.

Note: The settings in the FTP SETTING must also be properly set, or the function will

not take effect. The FTP SETTING/ FTP MODE item must be set especially as

EXCEPTION.

3.1.8.7 DWE ( DWELL ).

The durations for the above BUZ ( 3.1.8.3 ) and FLG( 3.1.8.4 )functions are shown as

below.

EXCEPTION # 1..10

CNT RST BUZ FLG NFY FTP DWE 1 05 01 ON ON ON OFF 03 2 05 01 ON ON ON OFF 03 3 05 01 ON ON ON OFF 03 4 05 01 ON ON ON OFF 03 5 05 01 ON ON ON OFF 03 6 05 01 ON ON ON OFF 03 7 05 01 ON ON ON OFF 03 8 05 01 ON ON ON OFF 03 9 05 01 ON ON ON OFF 03

10 05 01 ON ON ON OFF 03

3.1.9 AMOUNT EXCEPTION.

In the EXCEPTION setting page, #25 is a special item for amount exception. When

the amount exceeds this number, the DVR will generate an Exception event, too.

EXCEPTION # 21..25

21 [RETURN ] 22 [TOTAL ] 23 [VOID ] 24 [WINE ] 25 AMOUNT >= 000000.00 (OR <= -N)

3.2 System Connection.

3.2.1 Single Device Connection.

When only one Text device ( such as a cash register ) is used, please set the

setting in the Setup Menu according to 3.1.1.1.

RS-232

Cash

DVR

3.2.2 Multiple Devices Connection.

By using AVE REGCOM and HYDRA, a multiple cash register can be linked

together through an RS-485, and can finally connect to the DVR through the

RS-232.

The following is an example of 4 cash registers connected to a DVR.

Cash

RegCom

( 1 )

RegCom

( 2 )

RS485

Cash

RegCom

( 3 )

RegCom

( 4 )

RS232

DVR

Hydra

For proper setting, please refer to 3.1.1 section in this chapter.

3.2.3 LIVE DISPLAY.

After the hardware has been connected, please power up the DVR. The DVR is

by default in the LIVE mode. Press the DISPLAY button to switch to different

display modes; under any one of the following modes, the contents of the

received text data will be shown on the screen.

3.2.3.1 Simple Text Display Mode.

An example:

On the left-lower corner, the OSD message “SM TOMATOS .48” is the newest

incoming TEXT data.

SM TOMATOS .48

01-05-2006 14:26:25

3.2.3.1 Full Text Display Mode.

All the incoming TEXT data are shown in the middle of the screen; the previous

data is scrolled up when the latest one arrives.

3 ALE .58

4 PLUM RED .68

1 10-01-97 10:53P

2 NECTARINES 1.78

3 10-01-97 11:20P

4 MILK 5.72

1 SM TOMATOS .48

2 CLASSIC COKE .58

3 BREAD .98

4 BANANAS 1.52

01-05-2006 14:26:25

If the TEXT INSERTION option has been set as VSI-ADD, and incoming texts

come from different channels.

A percentage bar in the right-lower corner reveals the text data usage. For

example, if the total number of text data is 65536 and the number of the current

used text data is 32768, the bar will be shown about 50% full. For the precise

number please refer to SETUP/ SYSTEM/VERSION in the local device OSD.

3.2.4 RECORDING

When the text data continuously inputs from the Text device, press the REC

button to activate recording; while the DVR is in the RECORD mode, there is a

small red ball periodically flashing in the right-upper corner of the screen. Please

press the DISPLAY button to switch to a desired mode to observe the incoming

TEXT data.

To stop recording, please press the REC button and hold for more than3 seconds

before releasing.

3.2.5 PLAYBACK.

Press the SEARCH button to enter the Search Menu, highlight a desired item in

the list, and then press the ENTER button to start playback. During playback, the

DISPLAY can also be used to switch to the display modes, to see the Text data

that was received when the corresponding video was recorded. The Text data is

shown even in the trick play mode, like fast forward and slow motion.

If the TEXT INSERTION option has been set as VSI-ADD and incoming texts

come from different channels.

3.2.6 REVIEW TEXT.

Press the SEARCH button and hold for more than 3 seconds. The REVIEW

TEXT mode will then be activated, with 6 items for selection.

3.2.6.1 FULL LIST.

If the TEXT INSERTION in the Setup Menu is set as GENERIC (refer to

3.1.1 section in this chapter), the list is shown as below.

1013 01-05-06 14:13:22 SANDY 0004 1014 01-05-06 14:13:22 PLUM RED 1015 01-05-06 14:13:22 ALEX 0005 1016 01-05-06 14:13:22 PLUM RED 1017 01-05-06 14:13:22 10-01-97 1 1018 01-05-06 14:13:22 NECTARINES 1019 01-05-06 14:13:22 10-01-97 1 1020 01-05-06 14:13:22 MILK

MILK 5.72

REVIEW TEXT

FULL LIST BY STRING BY DATE / TIME BY AMOUNT BY COMBINATION ALERT LOG

HD1

01-05-2006 14:26:25

Alternately, if the TEXT INSERTION is set as VSI-ADD,

the following channel selection screen will be shown first as the input of the

desired channel. The selectable options are ALL, CH1, CH2, CH3 and CH4.

FULL LIST

CHANNEL ALL

01-05-2006 14:26:25

Once a channel is selected and the ENTER button is pressed, all the Text

Data of the particular channel will be listed.

HD1 CH 1 2 3 4 781 01-02-06 11:34:12 CASH 782 01-02-06 11:34:12 CHANGE

783 01-02-06 11:34:12 ALEX 0005 784 01-02-06 11:34:13 PLUM RED

785 01-02-06 11:34:13 10-01-97 1 786 01-02-06 11:34:13 NECTARINES

787 01-02-06 11:34:13 10-01-97 1 788 01-02-06 11:34:13 SANDY 0004

SANDY 0004 24536

01-02-2006 18:59:25

3.2.6.2 BY STRING.

The "BY STRING" function offers an interface to search for some specific

material. The text may include names of personnel, goods, cash totals and

balances, and/ or other miscellaneous items. If you want to access the

records of a particular goods, see the “TEXT” entry and type in its name. At

once you may find classifications, appearing under the category of that

particular goods if such classifications exist. If you enter “COKE”, you’ll see

both “COKE” and “CLASSIC COKE” listed, for instance. You can highlight

the one you want, and start to playback.

If the TEXT INSERTION is set as GENERIC, the "BY STRING" screen will

have only a "TEXT" string as input. Up to 16 characters can be input for

searching.

If the TEXT INSERTION is set as VSI-ADD, there is a channel item which

will show on the screen, too.

BY STRING

CHANNEL ALL

TEXT [ ]

01-02-2006 19:26:55

To search for a two-word string, please enter the words with one space

between the words, for example, “SANDY 0004”

CHANNEL ALL

TEXT [SANDY 0004 ]

BY STRING

3.2.6.3 BY DATE/ TIME.

This function offers an interface to list the data within a specific time period.

If the TEXT INSERTION is set as GENERIC, the "BY DATE/ TIME" screen will

have starting DATE TIME items and ending DATE/TIME items as inputs.

01-02-2006 19:27:30

If the TEXT INSERTION is set as VSI-ADD, there is a channel item which

will be shown on the screen, too

CHANNEL CH1 MM DD YEAR HH MM 01 / 02 / 2006 00 00

MM DD YEAR HH MM 01 / 02 / 2006 23 59

3.2.6.4 BY AMOUNT.

This function offers an interface to search above and under a particular

BY DATE / TIME

01-02-2006 19:29:02

amount across the transactions recorded in the different channels.

If the TEXT INSERTION is set as GENERIC, the "BY AMOUNT" screen will

have only 2 sets of entries each under "OPERATION" and " AMOUNT" as

inputs.

The selectable operations are ">=", “>”, "=", “<” and "<=".

If the TEXT INSERTION is set as VSI-ADD, there is a channel item which

will show on the screen, too.

The following are some examples for your operations.

A. To search Amount >= 1.00, the following items are shown on the screen.

>= 00001.00

-- 00000.00

B. To search Amount <= 1.00, , the following items will be shown on the

screen.

<= 00001.00

-- 00000.00

C. To search Amount = 1.00 , the following items appear on the screen.

= 00001.00

-- 00000.00

D. To search 1.00 <= Amount <= 10.00, the following items will show on the

screen.

>= 00001.00

<= 00010.00

>= 00001.00

E. To search Amount <= 1.00 OR Amount >= 10.00, the following items will

be shown on the screen.

>= 00010.00

<= 00001.00

>= 00010.00

Note: If two operations are set and those two are exclusive of each other,

the system will automatically add an “OR” between them. Otherwise, the

system adds an “AND” between them.

BY AMOUNT

CHANNEL CH1

OPERATION AMOUNT

>= 0000.00

-- 0000.00

01-02-2006 19:31:33

3.2.6.5 BY COMBINATION

BY COMBINATION

CHANNEL ALL

STRING SET

BEER

DATE/ TIME SET

00/00/0000 00:00:00 00/00/0000 23:59:00

AMOUNT SET

>= 0010.00

◄► MOVE ▲▼CHANGE

BY COMBINATION is the combination of the above search interfaces.

The user can give the different conditions on the same page. The search

procedure can be repeated between the BY COMBINATION page and

the search result page ( TEXT LIST ).

If the TEXT INSERTION is set as VSI-ADD, there is a channel item

which will show on the screen, too.

In this page, please use the < and > buttons to move between items, and

use the ^ and v buttons to change the values. Once the value has been

set to “SET”, please press the ENTER button to enter the “BY

STRING”, ” BY DATE/ TIME” and “BY AMOUNT” pages for further

settings. For the operations in the lower level pages, please refer to

section 3.2.6.2, 3.2.6.3 and 3.2.6.4 in this chapter. When you are in

those lower level pages, press the ENTER button to go back to “BY

COMBINATION”. After all the conditions have been set properly, please

press the SEARCH button to start searching. In the “TEXT LIST” page,

please press the ENTER button to start playback, and press the

SEARCH button to return to the “BY COMBINATION” page.

7. MISCELLANEOUS

7.1 RS-232 & RS-485 Setup & Protocol

7.1.1 RS232 & RS485 Setup

Use a Null Modem cable (the standard RS-232 9 Pin Cable with Pin 2 and Pin 3 exchanged,

see pin configuration chart below for details) to connect the COM 1 on the rear panel of the

DVR to a PC.

Set the RS-232 option to ON in the COMMUNICATION page of the setup menu.

Set the PC communication parameters: 9600 bps, No Parity, 8 Data Bits, 1 Stop Bit.

7.1.2 Communication Protocol

7.1.2.0 General Command Format

<Lead Code = 0x41>, < Dest ID >, < Src ID >, <Main category >, <Second category >,

{<Number of parameters>, <Parameter 1>, <Parameter 2> ..,} <End Code= 0x4f>

Lead Code = 0x41

Dest ID = 0x01

Src ID = 0x20

Main Category = 0x01 Keys and Signals

= 0x02 Command

Second Category = 0x01 Handshake

= 0x02 Request Time/Set Time

= 0x06 Request System State

= 0x0b Time Search

= 0x10 Request HDD Info

= 0x11 Request REC Position

= 0x12 Playback Immediately

End Code= 0x4f

The different command types and their corresponding parameters are as follows:

MISCELLANEOUS ( continued )

7.1.2.1 Keys and signals ( Main Category = 0x01 )

PC message: <0x41>, <0x01>, <0x20>, <0x01>, <Key Value>, <0x4f>

< The value of a specific front panel key >

DEC HEX

KEY_PLAY 1 0x01

KEY_STOP 3 0x 03

KEY_PAUSE 4 0x 04

KEY_REC 6 0x 06

KEY_SETUP 7 0x 07

KEY_ENTER 8 0x 08

KEY_SEARCH 10 0x 0A

KEY_DISPLAY 11 0x 0B

KEY_UP 13 0x 0D

KEY_DOWN 14 0x 0E

KEY_LEFT 15 0x 0F

KEY_RIGHT 16 0x 10

KEY_MONITOR 36 0x 24

JOG_L 128 0x 80

JOG_R 129 0x 81

KEY_SHUTTLE_L8 130 0x 82 ( -100x, -1/16x )

KEY_SHUTTLE_L7 131 0x 83 ( -100x, -1/16x )

KEY_SHUTTLE_L6 132 0x 84 ( -30x, -1/8x )

KEY_SHUTTLE_L5 133 0x 85 ( -16x, -1/8x )

KEY_SHUTTLE_L4 134 0x 86 ( -8x, -1/4x )

KEY_SHUTTLE_L3 135 0x 87 ( -4x, -1/4x )

KEY_SHUTTLE_L2 136 0x 88 ( -2x, -1/2x )

KEY_SHUTTLE_L1 137 0x 89 ( -1x, -1/2x )

KEY_SHUTTLE_CT 138 0x 8A

KEY_SHUTTLE_R1 139 0x 8B ( 2x, 1/2x )

KEY_SHUTTLE_R2 140 0x 8C ( 4x, 1/2x )

KEY_SHUTTLE_R3 141 0x 8D ( 8x, 1/4x )

KEY_SHUTTLE_R4 142 0x 8E ( 16x, 1/4x )

KEY_SHUTTLE_R5 143 0x 8F ( 30x, 1/8x )

KEY_SHUTTLE_R6 144 0x 90 ( 100x, 1/8x )

KEY_SHUTTLE_R7 145 0x 91 ( 100x, 1/16x )

SIGNAL_REC_IN 163 0x A3

SIGNAL_ALARM_RESET 165 0x A5

SIGNAL_REC_OUT 169 0x A9

SIGNAL_ALARM_IN 189 0x BD

SIGNAL_ALARM_OUT 209 0x D1

7.1.2.2 COMMAND (Main Category=0x02)

A. Handshake (Second Category=0x01)

PC request: <0x41>, <0x01>, <0x20>, <0x02>, <0x01>, <0x00>, <0x4f>

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x08>, <0x00>, <0x4f>

B. Request Time (Second Category=0x02)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x02>, <0x00>, <0x4f>

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x02>, <0x07>, <7 Time

Value >, <0x4f>

The following case is an illustration of < 7 Time Value>

2004/06/20 17:05:00 = <0xD4>, <0x07>, <0x06>, <0x14>, <0x11>, <0x05>, <0x00>

C. Set Time (Second Category=0x02)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x02>, <0x07>, < 7 Time Value >,

<0x4f>

The following case is an illustration of < 7 Time Value>

2004/06/20 17:05:00 = <0xD4>, <0x07>, <0x06>, <0x14>, <0x11>, <0x05>, <0x00>

DVR Act: Changing the time and date.

D. Request State (Second Category=0x06)

PC Request: <0x41>, <0x01>, <0x20>, <0x02>, <0x06>, <0x00>, <0x4f>

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x06>, <0x01>, <System

State = 0..>, <0x4f>

Description of <System State>:

STATE_STOP 0

STATE_PLAY 3 STATE_SETUP 6

STATE_SEARCH 7

STATE_BACKUP 15

E. Time Search (Second Category=0x0b)

PC message: <0x41>, <0x01>, <0x20>, <0x02>, <0x0b>, <0x06>, <6 Bytes Date/Time>,

<0x4f> where < 6 bytes Date/Time >, = year (2 bytes, =LowByte + HighByte*256),

month (1 byte), day (1 byte), hour (1 byte), min (1 byte)

Example: to search 06/12/2004 17:00 the Date/Time = <0xd4>, <0x07>, <0x06>,

<0x0c>, <0x11>, <0x00> where 2004= 212(=0xd4) + 7(=0x07) *256

F. Request HDD Info (Second Category=0x10)

PC message: <0x41>, <0x01>, <0x20>, <0x02>, <0x10>, <0x00>, <0x4f>

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x10>, <0x32>, <0x00>,

<0x00>, <48 Bytes Data> <0x4f>

<48 Bytes Data>=4 HDD Status( Primary Master/Slave, Secondary Master/Slave )

Every HDD use 12 Bytes=

#0 :HDD Exist ( if = 1 )

#1 :Active HDD ( if = 1 )

#2 :Current HDD for REC ( if = 1 )

#3 :Current HDD for PLAY ( if = 1 )

#4…#7 :Capacity

#8.. #11 :REC/PLAY Position

G. Request REC Position (Second Category=0x11)

PC message: <0x41>, <0x01>, <0x20>, <0x02>, <0x11>, <0x00>, <0x4f>

REC Mode

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x11>, <0x08>, <HDD#>,

<0x0>, <4 Bytes REC Position>, <2 Bytes Image NO.>, <0x4f>

Get HDD#, REC Position and Image NO. used in Playback Immediately command

Non REC Mode

DVR Response ERROR: <0x41>, <0x20>, <0x01>, <0x02>, <0x11>, <0x01>, <0x45>,

<0x4f>

H. Playback Immediately (Second Category=0x12)

PC message: <0x41>, <0x01>, <0x20>, <0x02>, <0x12>, <0x0a>,<HDD#>, <0x0>,

<0x0>, <0x0>,<4 Bytes REC Position>, <2 Bytes Image NO.>, <0x4f>

On Success

DVR Response: <0x41>, <0x20>, <0x01>, <0x02>, <0x12>, <0x00>, <0x4f>

On Error

DVR Response ERROR: <0x41>, <0x20>, <0x01>, <0x02>, <0x12>, <0x01>,

<0x45>, <0x4f>

7.2 Hard Disk Installation

Usually the unit comes with one hard-disk

drive installed in compartment HD 1, which is

default-configured as a master. The jumper

settings configuration of the installed

hard-disk drives for the unit and compatible

drives which can be used with this unit are

listed in the table below. To install two hard

disk drives in compartment HD 1 and HD 2,

please take the following steps. (For

removable model only)

The jumper settings of hard-disk drives for the system

Location Jumper

Setting the jumper of your hard disk driver: The way to set the jumper of the drive varies between manufacturers; please refer to the instructions on the driver to set the jumpers in the master position.

Place the hard disk in the rack.

IDE 1 Compartment HD 1 Master

IDE 2 Compartment HD 2 Master

7.2.1 Built-in hard disk

Unscrew all the mobile rack of the unit and detach it.

4 mounting screws on the

Carefully lift the mobile rack to a vertical position.

Unscrew the secured screws to detach the hard disk rack.

Secure the driver in the rack using

screws in the side-mounting holes. Please don’t tighten the screws too much, otherwise that may damage the driver.

Screw the rack into the device, tightening in all

the

4 screws.

Attach the interface connector and the power connector to the drive. Please note the red lining of the IDE cable and the red wire of power cable must line up side by side.

4 mounting

Place the mobile rack back onto the device and

screw in all the

4 screws.

7.2.2 Mobile Rack (FOR REMOVABLE HDD MODEL)

Make sure that the key is unlocked.

Pull the active handle outward to detach the carrier body from the mobile rack.

Slide the top cover backward and remove.

Setting the jumper of your hard disk driver. The way to set the jumper of the drive varies between manufacturers; please refer to the instructions on the driver to set the jumpers in the master position.

Attach the interface connector and the power connector to the drive. Please note the red lining of the IDE cable and the red wire of power cable must line up side by side.

Place the top cover back on the carrier body by sliding it forward.

Place the HDD inside the mobile rack. Use four of the provided screws.

Slide the carrier body back in the mobile rack.

Push the active-handle inward.

Lock the Key.

Push the carrier body further into the mobile rack until fully inserted.

7.3 System Default

RECORD ALARM/ MOTION CLOCK/ TIMER COMMUNICATION DISK SYSTEM

AUTO START REC :OFF

REC RATE :30 F/S REC QUALITY :BEST DISK FULL :REWRITE AUDIO :OFF MULTIPLEXER :ON TEXT INSERTION

MAIN PAGE

REC SETTING

ALM OPERATION

REC RATE REC QUALITY AUDIO ALM TYPE ALM DURATION PRE-ALARM

MOTION SETTING

MAIN PAGE

ALARM/ MOTION

: OFF : 30 F/S : BEST : OFF : NO : 0 SEC : OFF

SETUP MENU

COMM ID :01

RS232 :ON RS485 :ON BAUD :2400 NET ENABLE :OFF NET DHCP :OFF NET IP :SET NET ACCOUNT :SET FTP SETTING

MAIN PAGE

COMM SETTING

HD REFORMAT : HD

HD2 USAGE HD BACKUP (FOR REMOVABLE HDD MODEL ONLY) : FULL HD FAT32 : BUILD SD FILE AUTO ERASE : SET SD REFORMAT : START CD REFORMAT

MAIN PAGE

DISK SETTING

(FOR REMOVABLE HDD MODEL ONLY) : REC

(FOR REMOVABLE HDD MODEL ONLY) : JPEG

(FOR CD-ROM MODEL ONLY) : START

CLOCK

DAYLIGHT SAVING REC ENABLE TIMER

MAIN PAGE

CLOCK/ TIMER

: SET : OFF : OFF : SET

OPERATION LOG : ENTER

MENU BACKGND : 2 BUZZER : OFF PASSWORD : SET SETUP PWD DEFAULT : LOAD SD / CD SETUP : SAVE VERSION : ENTER

MAIN PAGE

SYSTEM

: OFF

7.4 O.S.D Message

No. O.S.D Message Meanings

1 NO DISK

2 BATTERY LOW

3 LOADING

4 VIDEO LOSS

5 VIDEO IN

6 KEY LOCKED

7 KEY UNLOCKED

8 n1 OF n2 ITEMS PROGRESS n3 %

9 BACKUP COMPLETE

10 HD2 SPACE NOT ENOUGH

11 NO ENTRY FOR BACKUP

12 BACKUP INCOMPLETE

13 NOT FOUND

14 END

15 DISK FULL

16 EMPTY

17 SET TO NTSC, PLS RESTART

18 SOFTWARE UPDATE

19 PLEASE RESTART

20 NO DISK

21 DATA NOT CONTINUOUS

22 DISK ATTACHED

No hard-disk detected after power activated. Suggest change the battery and reset the system

time. System Boot up.

Video loss.

Video input source.

Key lock function is on.

Key lock function is off.

BACKUP n1/n2 NOW.

Backup complete.

HD2 has not enough space for backup.

No backup is possible. Backup incomplete, since the user has pressed

the STOP button to stop it. The system cannot find a video in the Search function. Playback of recorded video has reached the end point. Hard-disks are full; this happens only when the DISK FULL item in the setup menu is set to STOP. The user presses the PLAY button or uses the SEARCH function, but no video can be played. System has to be set to NTSC, please reboot (PAL is similar).

Software update.

The system should be rebooted after the software has been updated. The user has pressed the Save key without putting in an SD card, or there is a disk error. The system finds data in installed HDs cannot be used contiguously. Suggest you remove HD2 from the system.

HD2 has been attached.

23 DISK REMOVED

24 FAN STOPPED

25 HDn ERROR AT xxxxx

26 NOT PRESENT

27 SAVE TO DISK

28 SAVE TO Fnnn. JPG

29 SAVE OK

30 SD CARD WRITE PROTECTION

HD2 has been removed.

The chassis fan has stopped for over 30 seconds.

There has been a hard-disk error during recording, where n is the hard-disk number and xxxxx is the hexadecimal location. When the user tries to clear a disk that was not attached in the setup menu.

Start saving to the JPEG file.

Saving to Fnnn. JPG (where nnn= 0..999)

Save to the JEPG is ok.

An SD card is write-protected; or, there is an error.

7.5 Time Index Table

3000 Indexes

Previously

recorded data

overwritten

HD1

1 12-02-03 12:20:55 2 12-02-03 13:30:33 3 01-30-04 16:00:34

: : :

3000 02-03-04 16:00:56

HD1

1 2

2999 3000

12-02-03 12:20:55 01-30-04 16:00:34

: : :

02-03-04 16:00:56 02-08-04 17:30:58

The point stops recording

3000

Indexes

The DVR will generate a Time Index Table

indicating recorded data is kept in a particular

HDD. This allows individually selected recorded

data to be displayed via the alarm list search

and full list search. The maximum number of

lists, for a given HDD, is

any given HDD is used up and the disk is not full,

the unit will still use the rest of the space for

recording. In such a case, an index for the

recent recorded data will be generated and the

index of the next oldest data will be erased so

that the list does remain 3000 in total. And the

next oldest data will be kept in the index of the

3000. When the list of

Previously recorded data remaining

corresponding oldest data. For any

newly-recorded data, this approach will be

applied until the disk becomes full.

In the rewrite recording mode, when the

archived hard disk drive is full, the DVR will start

overwriting the oldest data recorded. As the

previous recorded data is being overwritten

by the recent recording, the indicating time index

of that data will be changed corresponding to the

starting time of the remaining session. The index

of the session will be deleted from the table

when it is fully overwritten.

7.6 Specifications

Model Number MV-DR3000L MV-DR3000CDL

Model REMOVABLE HDD MODEL CD-ROM MODEL

Image System NTSC/PAL

Resolution NTSC: 720 x 240 pixels ; PAL: 720 x 288 pixels

Video In Composite Video In (BNC) x 1, Multiplexer Monitor In (BNC) x 1

Video Out Composite Video Out (BNC) x 1, Multiplexer Monitor Out (BNC) x 1

Audio In/Out Line In / Out (RCAx2), 16 bits, 11 KHz / 22KHz

Storage Media

Compression MJPEG

Memory Card SD Card (JPEG / AVI)

Maxtor MV-DR3000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
