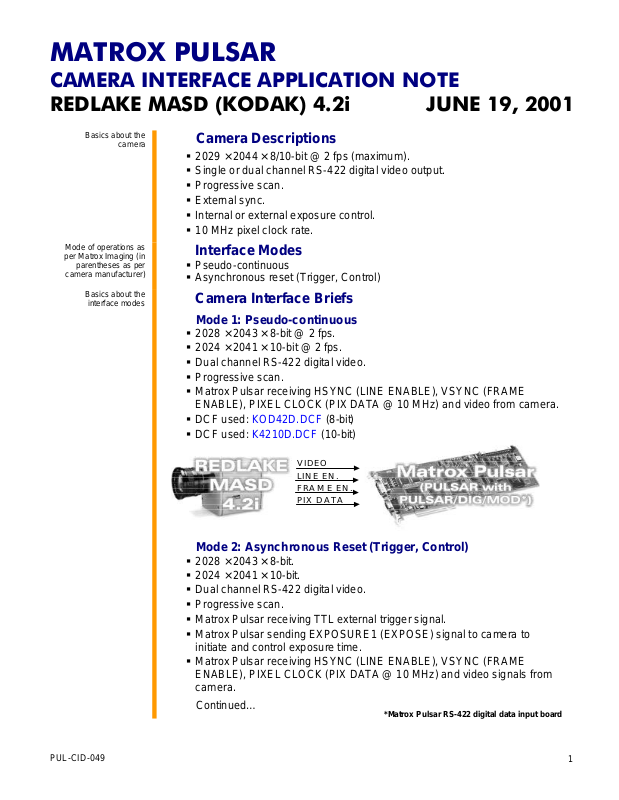

MATROX PULSAR
1
CAMERA INTERFACE APPLICATION NOTE
REDLAKE MASD (KODAK) 4.2i JUNE 19, 2001
Basics about the
camera
Mode of operations as
per Matrox Imaging (in
parentheses as per
camera manufacturer)
Basics about the
interface modes
Camera Descriptions
§ 2029 × 2044 × 8/10-bit @ 2 fps (maximum).
§ Single or dual channel RS-422 digital video output.
§ Progressive scan.
§ External sync.
§ Internal or external exposure control.
§ 10 MHz pixel clock rate.
Interface Modes
§ Pseudo-continuous
§ Asynchronous reset (Trigger, Control)
Camera Interface Briefs
Mode 1: Pseudo-continuous
§ 2028 × 2043 × 8-bit @ 2 fps.
§ 2024 × 2041 × 10-bit @ 2 fps.
§ Dual channel RS-422 digital video.
§ Progressive scan.
§ Matrox Pulsar receiving HSYNC (LINE ENABLE), VSYNC (FRAME
ENABLE), PIXEL CLOCK (PIX DATA @ 10 MHz) and video from camera.
§ DCF used: KOD42D.DCF (8-bit)
§ DCF used: K4210D.DCF (10-bit)
VIDEO
LINE EN.
FRAME EN.
PIX DATA
Mode 2: Asynchronous Reset (Trigger, Control)
§ 2028 × 2043 × 8-bit.
§ 2024 × 2041 × 10-bit.
§ Dual channel RS-422 digital video.
§ Progressive scan.
§ Matrox Pulsar receiving TTL external trigger signal.
§ Matrox Pulsar sending EXPOSURE1 (EXPOSE) signal to camera to
initiate and control exposure time.
§ Matrox Pulsar receiving HSYNC (LINE ENABLE), VSYNC (FRAME
ENABLE), PIXEL CLOCK (PIX DATA @ 10 MHz) and video signals from
camera.
Continued…
*Matrox Pulsar RS-422 digital data input board
PUL-CID-049
MATROX PULSAR
2
CAMERA INTERFACE APPLICATION NOTE
REDLAKE MASD (KODAK) 4.2i JUNE 19, 2001
Basics about the
interface modes
Camera Interface Briefs (Cont.)
Mode 2: Asynchronous Reset (Trigger, Control)
§ DCF used: KOD42DA.DCF (Trigger, 8 -bit)
§ DCF used: K4210DA.DCF (Trigger, 10-bit)
§ DCF used: KOD42DAE.DCF (Control, 8 -bit)
§ DCF used: K4210DAE.DCF (Control, 10-bit)
VIDEO
LINE EN.
FRAME EN.
PIX DATA
EXPOSE
Specifics about
the interface modes
TTL EXTERNAL TRIGGER
*Matrox Pulsar RS-422 digital data input board
Camera Interface Details
Mode 1: Pseudo-continuous
§ Frame Rate: Matrox Pulsar receives the continuous video from the
camera at 10 frames per second.
§ Exposure time: Exposure time is controlled by the Remote Panel
software. Refer to the camera manual for more information.
§ Remote Panel software settings: Settings for this mode are as follows:
DEF GAB BKB BKE MDE EXE STP TRM TRS TRE RDM TPD TPW DGN
on -22 0 0 PI 15.096 P P AIA 1 1 255 5 2
Mode 2: Asynchronous Reset (Trigger)
§ Frame rate: The frame rate is determined by the frequency of the
external trigger signal.
§ Exposure time: Exposure time is controlled by the Remote Panel
software. Refer to the camera manual for more information.
§ Remote Panel software settings: Settings for this mode are as follows:
DEF GAB BKB BKE MDE EXE STP TRM TRS TRE RDM TPD TPW DGN
on -22 0 0 TR 15.096 P P AIA 1 1 255 5 2
Mode 2: Asynchronous Reset (Control)
§ Frame rate: The frame rate is determined by the frequency of the
external trigger signal.
§ Exposure time: The width (rising to falling edge) of the EXPOSURE1
(EXPOSE) signal initiates and controls the exposure. The exposure time
can be modified in the DCF using Matrox Intellicam or with the MIL
MdigControl() function. Consult the manual for more information.
§ Remote Panel software settings: Settings for this mode are as follows:
DEF GAB BKB BKE MDE EXE STP TRM TRS TRE RDM TPD TPW DGN
on -22 0 0 CD 15.096 P P AIA 1 1 255 5 2
