Product Manual
LD25 Series
ST9402115A
ST920217A
100371274
Rev . C
August 2007
©2005-2007, Seagate Technology LLC All rights reserved.
Publication number: 100371274, Rev. C
August 2007
Seagate, Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC
in the United States and/or other countries. LD25 Series, SeaTools and SeaTDD are either trademarks or
registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States
and/or other countries. All other trademarks or registered trademarks are the property of their respective
owners.
One gigabyte, or GB, equals one billion bytes when referring to hard drive capacity. Accessible capacity
may vary depending on operating environment and formatting. Quantitative usage examples for various
applications are for illustrative purposes. Actual quantities will vary based on various factors, including file
size, file format, features and application software. Seagate reserves the right to change, without notice,
product offerings or specifications.
LD25 Series PATA Product Manual, Rev. C
i
Contents
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2.0 Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Specification summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Formatted capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Default logical geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Physical organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.5 Recording and interface technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.6 Physical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.7 Seek time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.8 Time to ready. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.9 Power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.9.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.9.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.9.3 Voltage tolerance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.9.4 Power-management modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.10 Environmental specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.10.1 Ambient temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.10.2 Temperature gradient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.10.3 Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.10.4 Altitude. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.10.5 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.10.6 Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.11 Acoustics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12 Electromagnetic immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.13 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.14 Agency certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.14.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.14.2 Electromagnetic compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.14.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.15 Environmental protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.15.1 European Union Restriction of Hazardous Substances (RoHS) . . . . . . . . . . . . 15
2.16 Corrosive environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.0 Configuring and mounting the drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.1 Handling and static discharge precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2 Jumper settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2.1 Master/slave configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2.2 Cable-select option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 Drive mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.0 ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 ATA interface signals and connector pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.1 Supported ATA commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.1.2 Identify Device command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1.3 Set Features command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.0 Seagate Technology support services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ii
LD25 Series PATA Product Manual, Rev. C
LD25 Series PATA Product Manual, Rev. C
iii
List of Figures
Figure 1. Jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

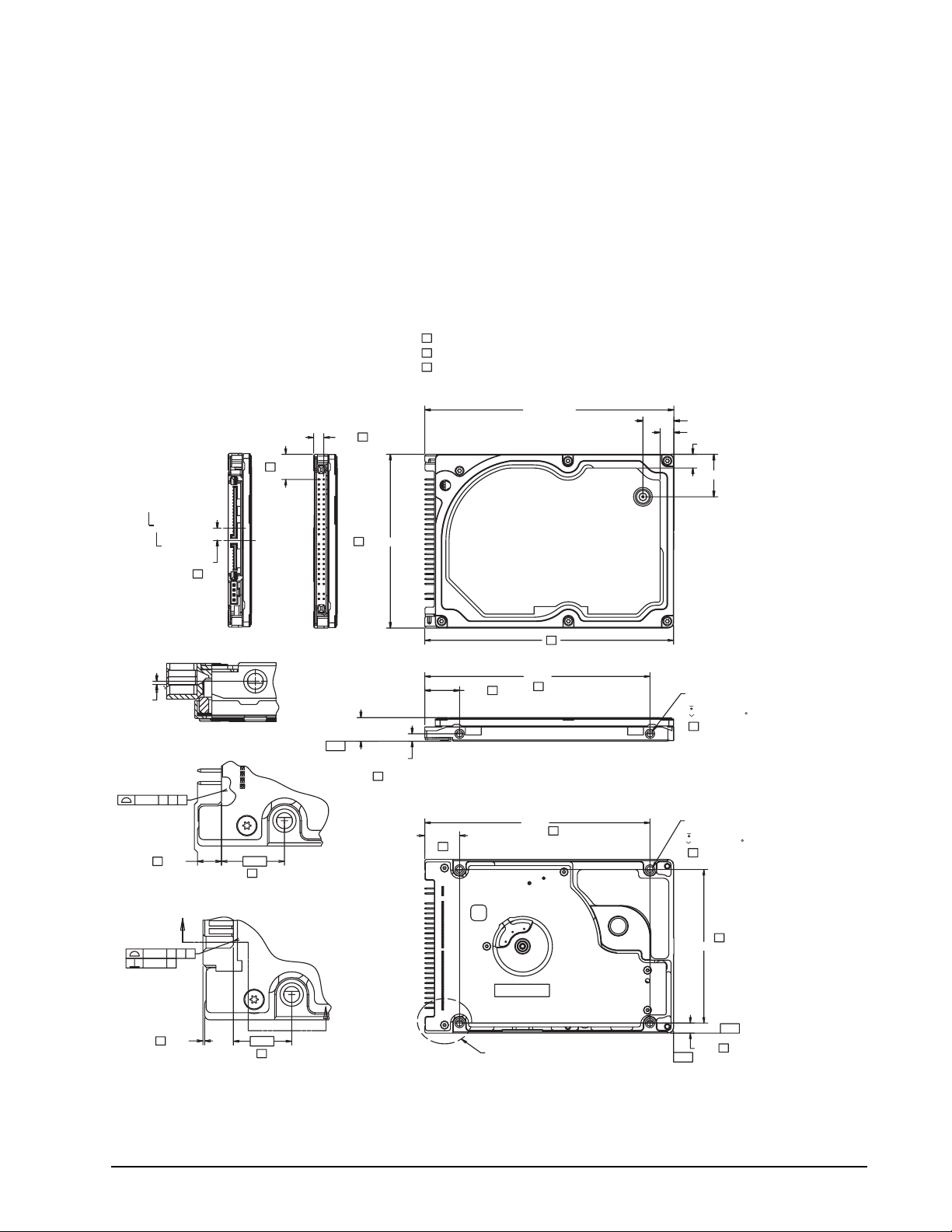

Figure 2. Mounting dimensions—top, side and end view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
iv
LD25 Series PATA Product Manual, Rev. C
LD25 Series PATA Product Manual, Rev. C
1
1.0 Introduction
This manual describes the functional, mechanical and interface specifications for the following Seagate® LD25
Series drives:
• ST9402115A
• ST920217A
Seagate LD25 Series drives comprise a new product category of 2.5-inch form factor drives designed for non-
notebook PC applications such as:
• Consumer electronics (gaming, small PVRs/DVRs)
• Ultra-small desktop PCs
• Internet appliances
LD25 Series drives are quieter, lighter and use less power than 3.5-inch drives. They are ideal for applications
requiring the form and fit of a notebook drive but without some of the design specifications required by notebook drives such as high shock tolerance, high performance, and power management. LD25 Series drives are
not presently suited for notebook applications or environments with high operating temperatures.
These drives provide the following key features:
• 5,400-RPM spindle speed
• 2-Mbyte buffer
• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.
• Tunneling Magnetoresistive (TMR) recording heads.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• 500 Gs nonoperating shock.
• SeaTools™ diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• The 3D Defense S ystem ™, which i nclude s Drive D efen se, Dat a Defe nse, and Diagnostic Defense , of fers the
industry’s most comprehensive protection for disc drives.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Support for Read Multiple and Write Multiple commands.
2
LD25 Series PATA Product Manual, Rev. C
LD25 Series PATA Product Manual, Rev. C
3
2.0 Drive specifications
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal
power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate
ST9402115A and ST920217A model drives.
2.1 Specification summary
The specifications listed in this table are for quick reference. For details on specification measurement or
definition, see the appropriate section of this manual.
T a ble 1: S pecifications
Drive specification ST9402115A ST920217A
Formatted Gbytes (512 bytes/sector)* 40 20
Guaranteed sectors 82,443,600 41,021,800
Bytes per sector 512
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Physical read/write heads 2 1
Discs 1 1
Recording density, BPI (bits/inch typical) 675,900
Track density. TPI (tracks/inch typical) 114,000
Areal density (Gbits/inch2 max) 81
Spindle speed (RPM) 5,400
Internal data transfer rate OD (Mbytes/sec max) 57.6
I/O data-transfer rate (Mbytes/sec max) 100
ATA data-transfer modes supported PIO modes 0–4
Cache buffer (Mbytes) 2
Height 9.5 +/-0.2 mm (0.374 +/-.008 inches)
Width 69.85 +/-0.25 mm (2.750 +/-0.010 inches)
Length 100.2 +/-0.25 mm (3.945 +/-0.010 inches)
Weight (typical) 100 grams (0.22 lb)
Average latency (msec) 5.6
Power-on to ready (sec typical) 4.0
Standby to ready (sec typical) 3.0
Track-to-track seek time (msec typical) 1.0 (read), 1.5 (write)
Average seek, read (msec typical) <16
Average seek, write (msec typical) <16
Multiword DMA modes 0–2
Ultra DMA modes 0–5
4
LD25 Series PATA Product Manual, Rev. C
T a ble 1: S pecifications
Drive specification ST9402115A ST920217A
Full-stroke seek (msec) 22 (typical); 24 (max)
Startup current 5V (amps typical) (max = +/- 10%) 1.0
Seek power, random r/w, desktop usage (watts, typical) 2.3
Idle mode (watts, typical) 2.0
Standby and sleep modes (watts, typical) <0.5
Voltage tolerance (including noise) 5V ± 5%
Ambient temperature 5° to 55°C (operating), –40° to 70°C (nonoperating)
Temperature gradient
(°C per hour max, noncondensing)
Relative humidity
(noncondensing)
Relative humidity gradient 30% per hour max
Wet bulb temperature (°C max) 30°C (operating)
Altitude, operating –304.8 m to 3,048 m (–1000 ft to 10,000 ft)
Altitude, nonoperating (below mean sea level, max) –304.8 m to 12,192 m (–1,000 ft to 40,000 ft)
Shock, operating (Gs max at 2 msec) 100
Shock, nonoperating (Gs max at 2 msec) 500
Shock, nonoperating (Gs max at 1 msec) 350
Shock, nonoperating (Gs max at 0.5 msec) 200
Vibration, operating 0.5 G (22–350 Hz)
Vibration, nonoperating 5 Gs (0 to peak, 22–350 Hz)
Drive acoustics, sound power (bels), 2 disc
Idle** 2.4 (typical)
Seek 2.7 (typical)
Nonrecoverable read errors 1 per 1014 bits read
Annualized Failure Rate (AFR) <1.0%, Desktop and gaming use
Service life 5 Y ears
Warranty To determine the warranty for a specific drive, use a web browser to access
Load/Unload (U/UL) cycles
Controlled L/UL cycles
(40°C, 50% relative humidity)
Emergency L/UL cycles
(40°C, 50% relative humidity)
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment
and formatting.
*Duri ng p eriod s of dri ve id le, some offl ine a c tivity m ay occur , accor di ng to the S.M.A .R .T. speci fic ation , w hich may incr ease acoustic and
power to operational levels.
20°C (operating)
30°C (nonoperating)
8% to 90% (operating)
5% to 95% (nonoperating)
40°C (nonoperating)
0.25 G (351–500 Hz)
1.0 G (351–500 Hz)
the following web page:
www.seagate.com/support/service/
From this page, click on the “Verify Y our Warranty” link. You will be asked to
provide the drive serial number, model number (or part number) and country
of purchase. The system will display the warranty information for your drive.
50,000
20,000
LD25 Series PATA Product Manual, Rev. C
5
2.2 Formatted capacity
Model Formatted capacity* Guaranteed sectors Bytes per sector
ST9402115A 40 Gbytes 82,443,600 512
ST920217A 20 Gbytes 41,021,800 512
*One Gbyte equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
2.3 Default logi cal geometry
Cylinders Read/write heads Sectors per track
16,383 16 63
LBA mode
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1,
where n is the number of guaranteed sectors as defined above.
2.4 Physical organization
Model Read/write heads Number of discs
ST9402115A 2 1
ST920217A 1 1
2.5 Recording and interfac e technology
Interface Parallel ATA
Recording density BPI (bits/inch typical) 675,900
Track density TPI (tracks/inch typical) 114,000
Areal density (Gbits/inch2 max) 81
Spindle speed (RPM) (± 0.2%) 5,400
Internal data-transfer rate OD (Mbytes/sec max) 57.6
I/O data-transfer rate (Mbytes/sec max) 100 (Ultra DMA mode 5)
Interleave 1:1
Cache buffer 2 Mbytes (2,048 kbytes)
6
LD25 Series PATA Product Manual, Rev. C
2.6 Physical characteristics
Height (mm)
(inches)
Width (mm)
(inches)
Length (mm)
(inches)
Typical weight (grams)
(pounds)
9.5 +/–0.2
0.374 +/–0.008
69.85 +/–0.25
2.750 +/–0.010
100.2 +/–1.45
3.945 +/–0.057
100
0.22
2.7 Seek time
Seek measurem ent s a re t ake n wi th nom inal po w er a t 25 °C amb ient temperature. All tim es a re m easu red using
drive diagnostics. The specifications below are defined as follows:
• Track-to-track seek time is an average of all possible single-track seeks in both directions.
• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between
random tracks, less overhead.
T yp ical seek times (msec) Read Write
Track-to-track <2 <2
Average <16 <16
Full-stroke <24 <24
Average latency 5.6 5.6
Note. These driv es ar e d es ig ne d t o con si sten tl y me et th e s ee k t imes re pre se nted in th i s m anual . Phy si cal se ek s,
regardless of mode (such as track-to-track and average), are expected to meet or exceed the noted values.
However, due to the manner in which these drives are formatted, benchmark tests that include command
overhead or measure logical seeks may produce results that vary from these specifications.
2.8 Tim e to ready
Time to ready Typical
Power-on to Ready (sec) 4.0 8.0
St andby to Ready (sec) 3.0 8.0
Max @ 25°C
LD25 Series PATA Product Manual, Rev. C
7
2.9 Power specifications
The drive receives DC power (+5V) through the 4-pin power connector.
2.9.1 Power consumption
Power requiremen ts for the dr i ves are lis ted in the ta bl e on p age 7 . Typical power measurements are based on
an average of drives tested, under nominal conditions, at 25°C ambient temperature.
• Spinup power
Spinup power is measured from the time of power-on to the time that the drive spindle re aches operating speed.
• Seek mode
During seek mod e, the read /write actuator arm move s toward a spe cific positi on on the d isc surface and does
not execute a read or write operati on. Servo ele ctronics ar e acti ve. Seek mode power is mea sure d based on
three random seek operations every 100 msecs. This mode is not typical.
• Read/write power and current
Read/write power is measured with the heads on track, based on three 63 sector read or write operations
every 100 msecs.
• Idle mode power*
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in
a random track location.
• Standby mode
During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/
write electronics are in power-down model
T a ble 2: DC power
Power di s s ipation +5V average (25° C)
Spinup (typical) 1.0 Amp
Seek, random r/w, desktop usage 2.3 Watts
Idle* 2.0 Watts
Standby and sleep modes <0.5 watts
*During periods of drive i dle, some offl ine activity may occur acc ording to the S. M.A.R.T. speci fica tion, which may i ncrease acoust ic and
power to operational levels.
8
LD25 Series PATA Product Manual, Rev. C
2.9.1.1 Typical current profile
Figure 1. Typical 5V startup and operation current profile
2.9.2 Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on
the +5 volt line.
Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave
injected noise at up to 10 MHz.
Note. Equivalent resistance is calculated b y dividing the nom inal volta ge by the typical RM S read/w rite curr ent.
2.9.3 Voltage tolerance
Voltage tolerance (including noise):
5V ± 5%
LD25 Series PATA Product Manual, Rev. C
9
2.9.4 Power-management modes
The drive provides programmable power management to provide greater energy efficiency. In most systems,
you can control power management through the system setup program. The drive features the following
power-management modes:
Table 3: Power management modes
Power modes Heads Spindle Buffer
Active (operating) Tracking Rotating Enabled
Idle Tracking Rotating Enabled
Idle, active Floating Rotating Disabled
Idle, low power Parked Rotating Disabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled
• Active mode
The drive is in Active mode during the read/write and seek operations.
• Idle mode
The buffer remains en abled in performance mode, and the dr ive accepts al l com mand s and ret urns to A ctive
mode any time disc access is necessary.
• Standby mode
The drive enters Standby mode when the host sends a Standby Immediat e c omma nd. If the ho st has set the
standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a
specifiable length of time. The standby tim er delay is establi shed using a Standb y or Idle command. In Sta ndby
mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive accepts all
commands and returns to Active mode any time disc access is necessary.
• Sleep mode
The drive enter s S leep m ode after rece iv ing a Slee p com man d fro m th e ho st. In Sl eep mod e, th e dr ive buffer
is disabled, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a
Hard Reset or So ft Reset from the host. After recei ving a reset, the drive exits S leep mode and en ters Standby
mode with all current translation parameters intact.
• Idle and Standby timers
Each time the drive performs an Active function (read, write or seek), the standby timer is reinitialized and
begins counting down from its specified dela y times to zero. If the standby tim er reaches zero bef ore any drive
activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive
accepts all commands and returns to Active mode when disc access is necessary.
10
LD25 Series PATA Product Manual, Rev. C
2.10 Environmental specificat ions
2.10.1 Ambient temperature
Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.
Actual drive case temperature should not exceed 65°C (149°F) within the operating ambient conditions.
Above 1,000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet.
Operating 5° to 55°C (41° to 131°F)
Nonoperating –40° to 70°C (–40° to 158°F)
2.10.2 Temperature gradient
Operating 20°C per hour (68°F per hour max), without condensation
Nonoperating 30°C per hour (86°F per hour max)
2.10.3 Humidity
2.10.3.1 Relative humidity
Operating 8% to 90% noncondensing (30% per hour max)
Nonoperating 5% to 95% noncondensing (30% per hour max)
2.10.3.2 Wet bulb temperature
Operating 30°C (86°F max)
Nonoperating 40°C (104°F max)
2.10.4 Altitude
Operating –304.8 m to 3,048 m (–1,000 ft to 10,000 ft)
Nonoperating –304.8 m to 12,192 m (–1,000 ft to 40,000 ft)
LD25 Series PATA Product Manual, Rev. C
11
2.10.5 Shock
All shock specifications assume that the drive is mounted securely with the input shock applied at the drive
mounting screws. Shock may be applied in the X, Y or Z axis.
2.10.5.1 Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum
operating shock of 100 Gs based on half-sine shock pulses of 2 msec. Shocks should not be repeated more
than two times per second.
2.10.5.2 Nonoperatin g sho ck
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 50 0 Gs based on a nonrepeti tive half-si ne shock pulse
of 2 msec duration.
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 35 0 Gs based o n a nonr epetitive hal f-sine shock pulse
of 1 msec duration.
The nonoperating shock level that the drive can experience without incurring physical damage or degradation
in performance when subsequently put into operation is 20 0 Gs based o n a nonr epetitive hal f-sine shock pulse
of 0.5 msec duration.
2.10.6 Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the
drive mounting screws. Vibration may be applied in the X, Y or Z axis.
2.10.6.1 Operating vibration
The following table lists the maximum vibration levels that the drive may experience while meeting the performance standards specified in this document.
22–350 Hz 0.5 Gs (0 to peak).
351-500 Hz 0.25 Gs
2.10.6.2 Nonoperatin g vibr ati on
The following table lists the maximum nonoperating vibration that the drive may experience without incurring
physical damage or degradation in performance when subsequently put into operation.
22–350 Hz 5.0 Gs (0 to peak)
351-500 Hz 1.0 G
12
LD25 Series PATA Product Manual, Rev. C
2.11 Acoustics
Drive acoustics are measured as overall A-weighted acoustic sound power levels. All measurements are consistent with ISO document 7779. Sound power measurements are taken under essentially free-field conditions
over a reflecting plane. For all tests, the drive is oriented with the cover facing upward.
Note. For seek mode tests, the drive is placed in seek mode only. The number of seeks per second is
defined by the following equation:
(Number of seeks per second = 0.4 / (average latency + average access time)
Table 4: Drive level acoustics
Idle* Seek
2.4 bels (typ) 2.7 bels (typ)
*Duri ng pe riods of driv e idl e, some off lin e a c tivit y ma y occu r ac cord in g t o t he S.M .A. R. T. speci fic ation , w hich may increase acou s tic an d
power to operational levels.
2.12 Electromagnetic immunity
When properly installed in a representative host system, the drive operates without errors or degradation in
performance when subjected to the rradio frequency (RF) environments defined in the following table:
T a ble 5: Elect roma gn etic immun ity
Performance
Test Description
Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN 61000-4-2: 95
Radiated RF immunity 80 to 2,000 MHz, 10 V/m,
80% AM with 1 kHz sine
900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz
Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95
Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95
Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz
Power Frequency H-field
immunity
Voltage dips, interrupts 30% Reduction for 25 cycles
A - 1) No upset or degradation in performance beyond manufacturer’s specified limits.
2) No data loss.
B - 1) Unit self recovers without user intervention.
2) No data loss.
C - 1) Upset OK provided that unit will function after user intervention.
sine
1 A/m, 50Hz/60Hz, 3 axes A EN 61000-4-8: 97
>95% Reduction for 250 cycles
>95%, 0.5 cycles
level
A EN 61000-4-3: 96
A EN 61000-4-6: 97
C
C
B
Reference
standard
ENV 50204: 95
EN 61000-4-11: 94
LD25 Series PATA Product Manual, Rev. C
13
2.13 Reliability
Measurement type Specification
Nonrecoverable read errors 1 per 1014 bits read, max.
Annualized Failure Rate (AFR) <1.0% Desktop and Gaming use
Load/Unload (L/UL)
Controlled L/UL cycles
(40°C, 50% Relative Humidity)
50,000
Emergency L/UL cycles
(40°C, 50% Relative Humidity)
Service Life 5 Years
Warranty To det ermine the warranty for a s pecific drive, us e a w eb brow s er to access t he f ol-
20,000
lowing web page:
www.seagate.com/support/service/
From this page, click on the “Verify Your Warranty” link. You will be asked to pro-
vide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for your drive.
2.14 Agency certification
2.14.1 Safety certification
The drives are recognized in accordance with UL 1950 and CSA C22.2 (950) and meet all applicable sections
of IEC950 and EN 60950 as tested by TUV North America.
2.14.2 Electromagnetic compatibilit y
Hard drives that displ ay th e CE mark com pl y wit h the Euro pean Union (EU) requirements specified in the Elec tromagnetic Compatibility Directive (89/336/EEC). Testing is performed to the levels specified by the product
standards for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and
the immunity levels are defined by EN 55024.
Seagate uses an inde pend ent laboratory to confirm compl ian ce with the EC directives specified i n t he pr evious
paragraph. Drives are teste d in representa tive end-user systems. Although CE-marked Seagate drives comply
with the directives when used in the test systems, we cannot guarantee that all systems will comply with the
directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O
cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators
should confirm EMC compliance and provide CE marking for their products.
14
LD25 Series PATA Product Manual, Rev. C
Korean RRL
If these drives have the Korea Ministry of Information and Communication (MIC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic Compatibility control Regulation and meet the Electromagnetic
Compatibility (EMC) Framework requirements of the Radio Research Laboratory (RRL) Ministry of Information
and Communication Republic of Korea.
These drives have been tested and com ply with the Electr omag netic Inter fere nce/E lectro magn etic Susce ptibility (EMI/EMS) for Class B products. Drives ar e tested in a representative, end-user system by a Korean-recognized lab.
• EUT name (model numbers): ST9402115A and ST920217A.
• Certificate numbers:
ST9402115A E-D011-05-2395(B)
ST920217A E-D011-05-2395(B)
• Trade name or applicant: Seagate Technology International
• Manufacturing date: June 2005
• Manufacturer/nationality: Seagate Technology International
Australian C-Tick (N176)
If these models have the C-Tick marking, they comply with the Australia/New Zealand Standard AS/NZS3548
1995 and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Australian Communication Authority (ACA).
2.14.3 FCC verification
These drives are intended to be cont ai ned solely w ithin a person al compute r or similar enclosu re (no t attached
as an external device ). As su ch, ea ch dr ive is co nsidere d to be a suba ssembly even when it is individually mar keted to the customer. A s a subassembly, no Federal Communications Commission verification or certification
of the device is required.
Seagate Technology LLC has tested this device in enclosures as described above to ensure that the total
assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B
computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified assemblies is
likely to result in interference to radio and television reception.
Radio and television interference. This equipment generates and uses radio frequency energy and if not
installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio
and television reception.
This equipment is designed to provide reasonable protection against such interference in a residential installation. However , there is no guarantee that interfer ence will not occur in a particular inst allation. If this equipm ent
does cause interference to radio or television, which can be determined by turning the equipment on and off,
you are encouraged to try one or more of the following corrective measures:
• Reorient the receiving antenna.
• Move the device to one side or the other of the radio or TV.
• Move the device farther away from the radio or TV.
• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.
If necessary, you should consult your dealer or an experienced radio/television technician for additional suggestions. You may find helpful the following booklet prepared by the Federal Communications Commission:
How to Identify and Resolve Radio-Television Interference Problems. This booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.
LD25 Series PATA Product Manual, Rev. C
15
2.15 Environmental protection
Seagate designs its products to meet environmental protection requirements worldwide, including regulations
restricting certain chemica l subst ances .
2.15.1 European Union Restriction of Hazardous Substances (RoHS)
A new law, the European Union Restriction of Hazardous Substances (RoHS) directive, will restrict the presence of chemical substances, including Lead (Pb), in electronic products effective July 2006.
A number of parts and materials in Seagate products are procured from external suppliers. We rely on the
rep-resentat ions o f our sup pl iers reg ardi ng the pr esence of RoHS subst ances in these p arts and mate rials. Our
supplier contracts require compliance with our chemical substance restrictions, and our suppliers document
their compliance wi th our re quire ment s by providing material conte nt declar ations for al l par ts an d mater ial s for
the disc drives documented in this publication. Current supplier declarations include disclosure of the inclusion
of any RoHS-regulated substance in such parts or materials.
Seagate also has internal system s in place to en sure ongoing complian ce with the RoHS Directive and all laws
and regulations which restrict chemical content in electronic products. These systems include standard
operat-ing procedures that ensure that restricted substances are not utilized in our manufacturing operations,
labora-tory analytical validation testing, and an internal auditing process to ensure that all standard operating
procedures are complied with.
2.16 Corrosive environment
Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to
light industrial environments containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM
B845. However, this accelerated testing cannot duplicate every potential application environment.
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electr onic dr i ve com ponen t reliab ilit y can be af fecte d by th e i nst allation environment. Th e si l-
ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide,
chloride, and nitr ate c ont ami na nt s. S ulfur is found to be the m ost dam aging . In ad di tion, e lectron i c comp onent s
should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or
exposed to an am bient rel at ive hum idity gr eate r th an 9 5%. Mat erial s used in cabin et fa bri cation , such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any
electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.
16
LD25 Series PATA Product Manual, Rev. C
LD25 Series PATA Product Manual, Rev. C
17
3.0 Configuring and mounting the drive
This section contains the specifications and instructions for configuring and mounting the drive.
3.1 Handling an d static discharge pr ecautions
After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions:
Caution:
• Keep the drive in the electrostatic discharge (ESD) bag until you are ready for installation to limit the drive’s
exposure to ESD.
• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal
chassis of a computer that is plugg ed into a grounded outlet. Wear a grounded wrist strap through out the entire
installation procedure.
• Handle the drive only by its edges or frame.
• The drive is fragile—handle it with care. Do not press down on the drive top cover.
• Always rest the drive on a padded, antistatic surface until you mount it in the computer.
• Do not touch the connector pins or the printed circuit board.
• Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids
the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are
used to seal out dirt and contamination.
3.2 Jumper settings
3.2.1 Master/slave configuration
Use the options jumper block shown in Figure 2 to configure the drive for operation. This jumper block is the
4-pin header adjacent to pins 1 and 2 of the I/O signal pins. For additional information about using the Cable
select option, see Section 3.2.2.
The “Master or single drive” option is the factory default setting.
Drive is master (or single drive)
Drive is slave
Cable select
Figure 2. Jumper settings
18
LD25 Series PATA Product Manual, Rev. C
3.2.2 Cable-select option
Computers that use cable select determine the master and slave drives by selecting or deselecting pin 28,
CSEL, on the interface bus. Master and slave drives are determined by their physical position on the cable. To
enable cable select, set a jumper as shown in Figure 2. Refer to your computer manual to determine whether
your computer supports this option.
LD25 Series PATA Product Manual, Rev. C
19
3.3 Drive mounting
You can mount the drive using four screws in the side-mounting holes or four screws in the bottom-mounting
holes. See Figure 3 for drive mounting dimensions (dimensions in inches with mm in parentheses). Follow
these important mounting precautions when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only M3 x 0.5 mounting screws.
• Do not overtighten the mounting screws (maximum torque: 4.0 inch-lb).
• Four (4) threads (0.080 inches) minimum screw engagement recommended.
Dimensions shown below are in inches.
1 DIMENSIONS PER EIA-720 OR SFF 8201 SPECIFICATION.
2 DIMENSIONS PER SFF 8212 OR SFF 8223.
3 DRIVE LENGTH W/ PATA IS 3.945±.057 (WORST CASE).
DRIVE LENGTH W/ SATA IS 3.957±.062 (WORST CASE).
3.945 ± .010
C
OF CONN.
OF DRIVE
C
DATUM B
( .189 )
2
(BASE)
2
.157
2
.399
1
2.750 ±.010
(BASE)
(.490 )
.217 ±.050
.217 ±.050
(.673 )
.020
)
(
SECTION B-B (SATA)
.039 B C D
2 .152
DETAIL A (PATA)
B
.039 B C D
.016 C
2 .012
DETAIL A (SATA)
SATA
.399
2
.370
PATA
.374 ±.008
-D-
2X .118
BOTH SIDES
1
BASE
BASE
.551
.551 1
1
3.567
1
3.567
(BASE) 1
3
2X M3 X 0.5-6H
MOUNTING HOLES; BOTH SIDES
.12 MIN FULL THREAD
0.148 ±.010 X 90
1
4X M3 X 0.5-6H
MOUNTING HOLES; BOTH SIDES
.10 MIN FULL THREAD
0.148 ±.010 X 90
1
1
2.430
B
-B-
1
2
DETAIL A
.160
-C-
Figure 3. Mounting dimens ions—top, side and e nd v ie w
20
LD25 Series PATA Product Manual, Rev. C
LD25 Series PATA Product Manual, Rev. C
21
4.0 ATA interface
These drives use the industry-standard ATA task file interface that supports 16-bit data transfers. It supports
ATA programmed input/output (PIO) modes 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–5. The
drive also supports the use of the IORDY signal to provide reliable high-speed data transfers.
For detailed information about the ATA interface, refer to the draft of AT Attachment with Packet Interface
Extension (ATA/ATAPI-6), NCITS T13 1410D, subsequently referred to as the Draft ATA-6 Standard.
4.1 ATA interface signals and connector pins
The following tab le summa rizes the sign als on the 44 -pin ATA interface connector. For a de ta ile d descr iption of
these signals, refer to the Draft ATA-6 Standard.
T a ble 6: Conn ecto r sign als
Connector
Signal Name
RESET- 1 1 2 2 Ground
DD7 3 3 4 4 DD8
DD6 5 5 6 6 DD9
DD5 7 7 8 8 DD10
DD4 9 9 10 10 DD11
DD3 11 11 12 12 DD12
DD2 13 13 14 14 DD13
DD1 15 15 16 16 DD14
DD0 17 17 18 18 DD15
Ground 19 19 20 20 (keypin)
DMARQ 21 21 22 22 Ground
DIOW- 23 23 24 24 Ground
DIOR- 25 25 26 26 Ground
IORDY 27 27 28 28 PSYNC:CSEL
DMACK- 29 29 30 30 Ground
INTRQ 31 31 32 32 IOCS16DA1 33 33 34 34 PDIAGDA0 35 35 36 36 DA2
CS1FX- 37 37 38 38 CS3FXDASP- 39 39 40 40 Ground
+5 V (Logic) 41 41 42 42 +5V (Motor)
Ground (Return) 43 43 44 44 No connection
Contact
Cable
Conductor
Cable
Conductor
Connector
Contact
Signal Name
22
LD25 Series PATA Product Manual, Rev. C
4.1.1 Supported ATA commands
The following table lists ATA-standard commands that the drive supports. For a detailed description of the ATA
commands, refer to the Draft ATA-6 Standard...
T a bl e 7: Suppo rt ed com ma nds
Command nam e Command code (in hex)
A TA-standard commands
ATA Device Configuration Overlay B1
ATA Service A2
Check Power Mode 98
Download Microcode 92
Execute Device Diagnostics 90
Flush Cache E7
Flush Cache Extended EA
Format Track (Legacy) 50
Identify Device EC
Idle 97
Idle Immediate 95
Initialize Device Parameters 91
Read Buffer E4
Read DMA C8
Read DMA Extended 25
Read Log Extended 22
Read Multiple C4
Read Multiple Extended 29
Read Native Max Address F8
Read Native Max Address Extended 27
Read Sectors 20
Read Sectors Extended 24
Read Verify Sectors 40
Read Verify Sectors Extended 42
Recalibrate 10
Security Disable Password F6
Security Erase Prepare F3
Security Erase Unit F4
Security Freeze Lock F5
Security Set Password F1
H
H
H, E5H
H
H
H
H
H
H
H, E3H
H, E1H
H
H
H, C9H
H
H
H
H
H
H
H, 21H
H
H, 41H
H
H
H
H
H
H
H
LD25 Series PATA Product Manual, Rev. C
23
T a bl e 7: Suppo rt ed com ma nds
Command name Command code (in hex)
Securit y Un l o ck F2
Seek 70
Set Drive Parameters 91
Set Features EF
Set Max Address F9
Note: Individual Set Max commands are identified by the value
placed in the Set Max Features
register as defined to the right.
H
H
H
H
H
Address
Password
Lock
Unlock
Freeze Lock
Set Multiple Mode C6
Sleep 99
S.M.A.R.T. B0
Standby 96
St andby Immediate 94
Vendor Unique 9A
Write Buffer E8
Write DMA CA
Write DMA Extended 35
Write Log Extended 32
Write Multiple C5
Write Multiple Extended 39
Write Sectors 30
Write Sectors Extended 34
H
H, E6H
H
H, E2H
H, E0H
H, FAH, FBH
H
H, CBH
H
H
H
H
H, 31H
H
ATA-st a ndard powe r- m a nagement c om m a nds
00
01
02
03
04
H
H
H
H
H
Check Power Mode 98H or E5
Idle 97H or E3
Idle Immediate 95H or E1
Sleep 99H or E6
Standby 96H or E2
St andby Immediate 94H or E0
A TA-standard security commands
Security Set Password F1
Securit y Un l o ck F2
Security Erase Prepare F3
Security Erase Unit F4
H
H
H
H
H
H
H
H
H
H
24
LD25 Series PATA Product Manual, Rev. C
T a bl e 7: Suppo rt ed com ma nds
Command name Command code (in hex)
Security Freeze Lock F5
Security Disable Password F6
H
H
LD25 Series PATA Product Manual, Rev. C
25
4.1.2 Identify Device command
The Identify Device command (command code ECH) transfers information about the drive to the host following
power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 7 on
page 22. All reserved bits or words should be set to zero. Parameters listed with an “x” are drive-specific or
vary with the state of the drive. See Section 2.0 on page 3 for default parameter settings.
The following comm ands contain drive-specific featur es that may not be included in the Draf t AT A-6 Stand ard.
Word Description Value
0 Configuration information:
0C5A
• Bit 15: 0 = ATA; 1 = ATAPI
• Bit 7: removable media
• Bit 6: removable controller
• Bit 0: reserved
1 Number of logical cylinders 16,383
2 ATA-reserved 0000
H
3 Number of logical heads 16
4 Retired 0000
5 Retired 0000
6 Number of logical sectors per logical track: 63 003F
7–9 Retired 0000
H
H
H
H
10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII
20 Retired 0000
21 Retired 0400
22 Obsolete 0000
23–26 Firmware revision
H
H
H
x.xx
(8 ASCII character string, padded with blanks to end of string)
27–46 Drive model number (40 ASCII characters, padded with blanks
to end of string)
ST9402115A
ST920217A
H
47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and
8010
Write multiple (16)
48 Reserved 0000
49 Standard Standby timer, IORDY supported and may be disabled 2F00
50 ATA-reserved 0000
51 PIO data-transfer cycle timing mode 0200
52 Retired 0200
53 Words 54–58, 64–70 and 88 are valid 0007
54 Number of current logical cylinders xxxx
55 Number of current logical heads xxxx
56 Number of current logical sectors per logical track xxxx
57–58 Current capacity in sectors xxxx
59 Number of sectors transferred during a Read Multiple or W rite
xxxx
Multiple command
H
H
H
H
H
H
H
H
H
H
H
H
26
LD25 Series PATA Product Manual, Rev. C
Word Description Value
60–61 Total number of user-addressable LBA sectors available
(see Section 2.2 for related information)
ST94021 15A = 82,443,600
ST920217A = 41,021,800
62 Retired 0000
63 Multiword DMA active and modes supported (see note following
xx07
this table)
64 Advanced PIO modes supported (modes 3 and 4 supported) 0003
65 Minimum multiword DMA transfer cycle time per word (120
0078
nsec)
66 Recommended multiword DMA transfer cycle time per word
0078
(120 nsec)
67 Minimum PIO cycle time without IORDY flow control (240 nsec) 00F0
68 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078
69–74 ATA-reserved 0000
75 Queue depth 0000
76–79 ATA-reserved 0000
80 Major version number 007E
81 Minor version number 0000
82 Command sets supported 346B
83 Command sets supported 7D01
84 Command sets support extension 4003
85 Command sets enabled 34xx
86 Command sets enabled 3xxx
87 Command sets enable extension 4003
88 Ultra DMA support and current mode
xx3F
(see note following this table)
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
89 Security erase time 0000
90 Enhanced security erase time 0000
91 Advanced power management value 0040
92 Master password revision code FFFE
93 Hardware reset value (see description following this table) xxxx
94 Auto acoustic management setting xxxx
95–127 ATA-reserved 0000
128 Security status 0001
129–159 Seagate-reserved xxxx
160–254 ATA-reserved 0000
255 Integrity word xxA5
H
H
H
H
H
H
H
H
H
H
H
Note. See the bit descriptions below for words 63, 88, 93 and 94 of the Identify Drive data.
LD25 Series PATA Product Manual, Rev. C
27
Description (if bit is set to 1)
Bit Word 63
0 M ultiword DMA mode 0 is supported.
1 M ultiword DMA mode 1 is supported.
2 M ultiword DMA mode 2 is supported.
8 M ultiword DMA mode 0 is currently active.
9 M ultiword DMA mode 1 is currently active.
10 Multiword DMA mode 2 is currently active.
Bit Word 88
0 U ltra DMA mode 0 is supported.
1 U ltra DMA mode 1 is supported.
2 U ltra DMA mode 2 is supported.
3 U ltra DMA mode 3 is supported.
4 U ltra DMA mode 4 is supported.
8 U ltra DMA mode 0 is currently active.
9 U ltra DMA mode 1 is currently active.
10 Ultra DMA mode 2 is currently active.
11 Ultra DMA mode 3 is currently active.
12 Ultra DMA mode 4 is currently active.
13 Ultra DMA mode 5 is currently active.
Bit Word 93
13 1 = 80-conductor cable detected, CBLID above VIH
0 = 40-conductor cable detected, CBLID below VIL
28
LD25 Series PATA Product Manual, Rev. C
4.1.3 Set Features command
This command con trols the implement ation of var ious features that the dr iv e sup port s. When the drive receives
this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
Power-on default has the read look-ahead and write caching features enabled. The acceptable values for the
Features register are defined as follows:
Table 8: Features register values
02
03
05
55
82
AA
F1
Enable write cache (default).
H
Set transfer mode (based on value in Sector Count register).
H
Sector Count register values:
00
H
01
H
08
H
09
H
0A
H
0B
H
0C
H
20
H
21
H
22
H
40
H
41
H
42
H
43
H
44
H
45
H
Enable advanced power management
H
Disable read look-ahead (read cache) feature.
H
Disable write cache.
H
Enable read look-ahead (read cache) feature (default).
H
Report full capacity available
H
Set PIO mode to default (PIO mode 2).
Set PIO mode to default and disable IORDY (PIO mode 2).
PIO mode 0
PIO mode 1
PIO mode 2
PIO mode 3
PIO mode 4 (default)
Multiword DMA mode 0
Multiword DMA mode 1
Multiword DMA mode 2
Ultra DMA mode 0
Ultra DMA mode 1
Ultra DMA mode 2
Ultra DMA mode 3
Ultra DMA mode 4
Ultra DMA mode 5
Note. At power-on or after a hardware or software reset the default values of the features are as indicated
above.
LD25 Series PATA Product Manual, Rev. C
29
5.0 Seagate Technology support services
Internet
For information regarding Seagate products and services, visit www.seagate.com. Worldwide support is
available 24 hours daily by email for your questions.
Presales Support:
Presales@Seagate.com
T e chn i cal Supp or t:
DiscSupport@Seagate.com
Warranty Support:
http://www.seagate.com/support/service/index.html
mySeagate
my.seagate.com is the industry's first Web portal designed specifically for OEMs and distributors. It provides
self-service access to critical applications, personalized content and the tools that allow our partners to
manage their Seagate account functions. Submit pricing requests, orders and returns through a single,
password-protected Web interface-anytime, anywhere in the world.
spp.seagate.com
spp.seagate.com supports Seagate resellers with product information, program benefits and sales tools. You
may register for customiz e d communi cation s that ar e not ava ila ble on the web. The s e communi catio ns cont ai n
product launch, EOL, pricing, promotions and other channel-related information. To learn more about the
benefits or to register, go to spp.seagate.com, any time, from anywhere in the world.
Seagate Service Centers
Presales Support
Our Presales Support staff can help you determine which Seagate products are best suited for your specific
application or computer system, as well as product availability and compatibility.
Technical Support
Seagate technical support is available to assist you online at support.seagate.com or through one of our call
centers. Have your system configuration information and your “ST” model number available.
SeaTDD™ (+1-405-324-3655) is a telecommunications device for the deaf (TDD). You can send questions or
comments 24 hours daily and exchange messages with a technical support specialist during normal business
hours for the call center in your region.
30
LD25 Series PATA Product Manual, Rev. C
Customer Service Operations
Warranty Service
Seagate offer s worldwi de custom er supp ort for Seagate pro duct s . Seagate distr i butors, OEM s and other direct
customers should contact their Seagate Customer Service Operations (CSO) representative for warrantyrelated issues. Resellers or end users of drive products should contact their place of purchase or Seagate
warranty service for assistance. Have your serial number and model or part number available.
Data Recove ry Services
Seagate offers data recovery services for all formats and all brands of storage media. Our data recovery
services labs are currently located throughout the world. . Additional information, including an online request
form and data loss prevention resources, is available at http://services.seagate.com/index.aspx
Authorized Service Centers
Seagate Service Centers are available on a global basis for the return of defective products. Contact your
customer support representative for the location nearest you.
USA/Canada/Latin America support services
For an extensive list of telephone numbers to technical support, presales and warranty service in USA/
Canada/Latin America, including business hours, go to the "Contact Us" page on www.seagate.com.
Global Customer Support
Presales, Technical, and Warranty Support
Call Center Toll-free Direct dial
USA, Canada,
and Mexico 1-800-SEAGATE +1-405-324-4700
Data Recovery Services
Call Center Toll-free Direct dial FAX
USA, Canada, 1-800-475-01435 +1-905-474-2162 1-800-475-0158
and Mexico +1-905-474-2459
Europe, the Middle East and Africa Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Europe, the
Middle East and Africa, go to the "Contact Us" page on www.seagate.com.
Asia/Pacific Support Services
For an extensive list of telephone numbers to technical support, presales and warranty service in Asia/Pacific,
go to the "Contact Us" page on www.seagate.com.
LD25 Series PATA Product Manual, Rev. C
31
Index
Numerics
3D Defense System 1
Download Microcode 22
Drive Defense 1
drive diagnostics 6
drive monitoring 1
drive self-test 1
A
acoustics 12
Active mode 9
AFR 13
agency certification (regulatory) 13
altitude 10
ambient conditions 3
ambient temperature 6, 10
Annualized Failure Rate 13
areal density 5
ATA interface 21
ATA-standard commands 22
Australian C-Tick 14
average seek time 6
B
BPI 5
buffer 1, 5
burst 1
C
cable-select option 18
cache 1, 5
case temperature 10
CE mark 13
certification 13
Check Power Mode 23
commands 22
compliance 13
conducted noise 8
conducted RF immunity 12
configuring the drive 17
connector pins 21
CSA C22.2 (950) 13
CSEL 18
C-Tick 14
current profile 8
D
Data Defense 1
data-transfer rates 1
DC power 7
density 5
Diagnostic Defense 1
diagnostic software 1
discs 5
dissipation 7
E
electrical fast transient 12
electromagnetic compatibility 13
Electromagnetic Compatibility Directive 13
electromagnetic immunity 12
electrostatic discharge 12
EMC compliance 13
EN 60950 13
enclosures 14
environmental specification s 10
error-correction algorithms 1
errors 13
European Union 13
European Union Restriction of Hazardous Substanc-
es 15
Execute Device Diagnostics 22
F
FCC verification 14
Features register 28
Flush Cache 22
Flush Cache Extended 22
formatted capacity 5
frequency 12
G
guaranteed sectors 5
H
handling 17
Hazardous Substances 15
heads 1, 5
height 6
humidity 10
I
I/O data-transfer rate 5
Identify Device 22
Identify Device command 25
Idle 7, 23
Idle and Standby timers 9
Idle Immediate 23
Idle mode 9
Idle mode power 7
IEC950 13
Information Technology Equipment 13
Initialize Device Parameters 22
32
LD25 Series PATA Product Manual, Rev. C
interface 5, 21
interface signals 21
interference 14
interleave 5
internal data-transfer rate OD 5
ISO document 7779 12
J
jumper settings 17
K
Korean RRL 14
L
LBA mode 5
length 6
Load/Unload 13
logical geometry 5
M
Master/slave configuration 17
maximum temperature 10
modes 21
monitoring 1
mounting the drive 17, 19
N
noise 8
nominal power 3
nonoperating shock 11
nonoperating vibration 11
nonrecoverable read errors 13
O
operating shock 11
operating vibration 11
P
physical characteristics 6
physical organization 5
pins 21
PIO 21
power consumption 7
power dissipation 7
power frequency h-field immunity 12
power management 9
power specifications 7
power-management commands 23
power-management modes 9
Power-on to Ready 6
precautions 19
programmable power management 9
R
radiated RF immunity 12
radio and television interference 14
radio frequency (RF) 12
random track location 7
Read Buffer 22
Read DMA 22
Read DMA Extended 22
read errors 13
Read Multiple 1, 22
Read Multiple Extended 22
Read Native Max Address 22
Read Native Max Address Extended 22
Read Sectors 22
Read Sectors Extended 22
Read Verify Sectors 22
Read Verify Sectors Extended 22
read/write heads 5
read/write power and current 7
recording and interface technology 5
recording density 5
recording heads 1
register 28
relative humidity 10
reliability 13
resistance 8
RF 12
RoHS 15
S
S.M.A.R.T. 23
S.M.A.R.T. drive monitoring 1
safety certification 13
screws 19
SeaTools 1
sectors 5
security commands 23
Security Disable Password 24
Security Erase Prepare 23
Security Erase Unit 23
Security Freeze Lock 24
Security Set Password 23
Security Unlock 23
Seek 23
seek mode 7
seek time 6
Seeking 7
Service Life 13
servo electronics 7
Set Features 23
Set Features command 28
Set Max 23
Set Multiple Mode 23
shock 11
LD25 Series PATA Product Manual, Rev. C
33
signals 21
single-track seeks 6
Sleep 23
Sleep mode 9
sound 12
specifications 3
spindle speed 5
Spinup 7
spinup power 7
Standby 7, 23
Standby Immediate 23
Standby mode 7, 9
Standby to Ready 6
static-discharge precautions 17
subassembly 14
support services 29
surge immunity 12
T
technical support services 29
temperature 10
temperature gradient 10
time to ready 6
timers 9
TMR 1
track density 5
track-to-track seek time 6
TUV North America 13
U
UL 1950 13
V
vibration 11
voltage 8
voltage dips, interrupts 12
voltage tolerance 8
W
Warranty 13
weight 6
wet bulb temperature 10
width 6
Write Buffer 23
Write DMA 23
Write DMA Extended 23
Write Multiple 1, 23
Write Multiple Extended 23
Write Sectors 23
Write Sectors Extended 23
34
LD25 Series PATA Product Manual, Rev. C
Seagate Technology LLC
920 Disc Drive, Scotts Valley, California 95066-4544, USA
Publication Number: 100371274, Rev. C, Printed in U.S.A.
Loading...
