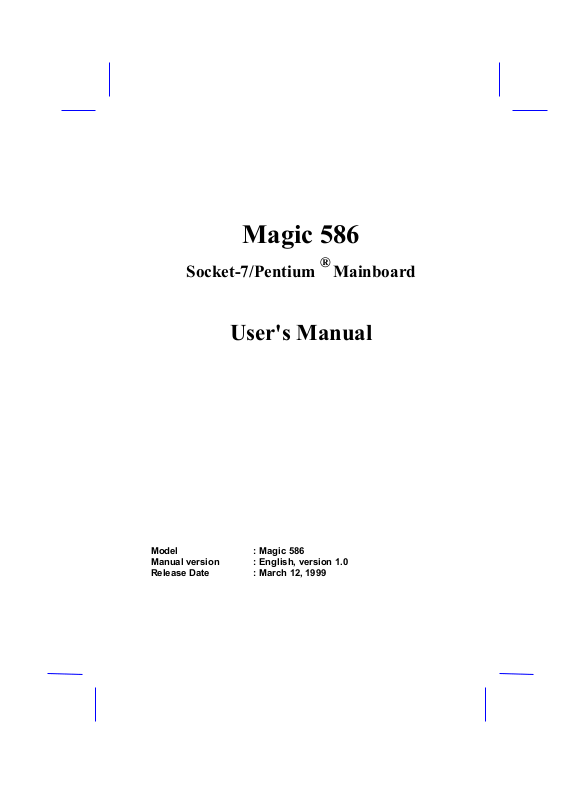

Maxtium Computer Magic586 User Manual

Magic 586

Socket-7/Pentium

®

Mainboard

User's Manual

Model : Magic 586
Manual version : English, version 1.0
Release Date : March 12, 1999

Copyright

Copyright Ó 1998 by this company. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language in any form or by any
means, electronic, mechanical, magnetic, optical, manual or otherwise,
without the prior written consent of the copyright holders.

User’s Notice

The contents of this publication are subject to change. This company reserves
the right to alter the contents of this publication at any time and without
notice. The contents of this publication may contains inaccuracies or
typographical errors and is supplied for informational use only.

Intel and Pentium are registered trademarks of Intel Corporation.

OS/2 and IBM are registered trademarks of International Business Machines.

Windows and MS-DOS are registered trademarks of Microsoft Corporation.

AWARD is a registered trademark of Award Software Inc.

Other brand, corporate, and product names may or may not be registered
trademarks or copyright of their respective companies.

II

FCC & & DOC Compliance

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:

 This device may not cause harmful interference, and
 This device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
manufacturer3s instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

 Re-orient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

 Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Warning! The use of shielded cables for the connection of the monitor to
the graphics card is required to assure compliance with FCC regulations
Changes or modifications to this authority to operate this equipment.

III

CONTENTS

SECTION 1: PRODUCT INFORMATION

1-1 Manual Features………………………….…...1-1

1-2 Package Check List.....................................1-1

1-3 Mainboard Specifications.……….………….1-2

1-4 Mainboard Layout ……………………………1-4

SECTION 2: HARDWARE INSTALLATION

2-1 Jumper Settings..........................................2-1

2-1.1 CMOS Clear Setting ………..............………… … ……... 2-1

2-1.2 CPU Type Setting …........………………..............……....2-2

- CPU Voltage ………..............………… … ………….....2-2

- CPU Clock Ratio …........………………..............……....2-3

- CPU Clock Frequency……..............………… ………...2-4

- SDRAM Clock Select........………………..........….…....2-5

- Burst Type …………….…...............………… … ……... 2-5

2-2 Connectors ……….……....……………..........2-7

2-2.1 Panel Connector……….…...….……………………………2-7

2-2.2 AT Power Connector…....…………………….……….……2-8

2-2.3 ATX Power Connector…………....…………………………2-8

2-2.4 Fan Connectors…….……..…….….....….…………………2-9

2-2.5 PS/2 Mouse Connector…………..…………………………2-9

IV

2-2.6 Keyboard Connector………....……………………………2-10

2-2.7 Serial Device (COM1/COM2) Connector……….....……2-10

2-2.8 Printer Connector.….….….….……..….…....….….….…. 2-11

2-2.9 Floppy Drive Connector…….….….……...........…...…… 2-11

2-2.10 IDE Hard Disk and CD-ROM Connector..…….….…..…2-12

2-2.11 IrDA Connector. .….….……………….……….....…….…2-13

2-2.12 USB Device Connector.………………………........….…2-13

2-2.13 Wake on LAN Connector .……………………........….…2-14

2-3 System Memory Installation .......………...2-14

2-3.1 Type .............………………………….........….…………2-15

2-3.2 Speed ..……….……………………………………………2-15

2-3.3 Buffered and Non-buffered ..……..........….....….…...…2-15

2-3.4 2-clock and 4-clock ………………..….…...……….....…2-16

2-3.5 Parity and Non-parity………....……...………….........…2-16

2-3.6 Memory Auto detection by BIOS …....….………………2-16

2-3.7 Suggested SDRAM combination ….........…...………… 2-16

2-4 Game/Audio Connector ..…….........……...2-17

SECTION 3: CMOS SETUP UTILITY

3-1 BIOS Setup Main Menu...............................3-1

3-2 Standard CMOS Setup................................3-2

3-3 BIOS Features Setup...................................3-4

3-4 Chipset Features Setup...............................3-8

3-5 Power Management Setup........................3-12

3-6 PNP/PCI Configuration..............................3-17

V

3-7 Load Setup Defaults..................................3-22

3-8 Load BIOS Defaults...................................3-22

3-9 Integrated Peripherals...............................3-23

3-10 Password Setting………................…..……3-27

3-11 IDE HDD Auto Detection…....….…..………3-28

3-12 Save & Exit Setup………..........….….…..…3-28

3-13 Exit with Saving………….……......….….….3-28

SECTION 4: SOFTWARE UTILITY

4-1 BIOS Flash/Upgrade Procedures................4-1

4-2 VIA Chipset Driver Utility……….......….…....4-2

4-3 VIA Audio Driver Utility ..……….......….

…....4-3

VI

SECTION 1.

PRODUCT INFORMATION

Thanks for purchasing Magic 586 socket-7 mainboard.

This user’s manual contains all the information and features that show you
how to use the Magic 586 mainboard. Please take a moment to familiarize
yourself with the design and organization of this manual.

1-1 Manual Features

This manual is divided into the following four sections:

Section 1: Product Information

A brief overview of what comes in the mainboard package, the mainboard
layout and the specification it appears.

Section 2: Hardware Installation

Tell you the usage of the mainboard jumpers and the connectors.

Section 3: CMOS Setup Utility

A summary of the mainboard CMOS (BIOS) Setting.

Section 4: BIOS/Software Utility

Introduction of some useful mainboard BIOS/Software utility.

1-2 Package Check List

This mainboard package contains the following items. Please inspect the
package contents and confirm that everything is there. If anything is missing
or damaged, call your vendor for instructions before operating.

Magic 586 User’s Manual

< 1-1 >

I. PRODUCT INFORMATION

The package includes:

 One Magic 586 Mainboard

 One Floppy Interface Cable

 One IDE Interface Cable

 Audio Cable

 One Motherboard Resource CD

 One User’s Manual

1-2 Mainboard Specifications

Form Factor

 Baby AT form factor , 22 cm x 22.5 cm

CPU

 Supports Pentium / Socket-7, external bus speed up

to 100MHZ

System Memory

 DIMM 168-pin x 3 , supports SDRAM up to 768MB

 Supports 64M-bit DRAM / SDRAM technology

 512K/1MB L2 cache

Chipset

 VIA MVP3 VT82C598MVP + MVP4 VT82C686A

chipset for socket-7 CPU

Expansion Slots

 1 x AGP bus / 2 x ISA bus / 3 x PCI bus with bus

master mode

 1 x AMR connector for AC97 modem card

Serial Port

 Two serial ports UART 16C550 compatible

 Supports HPSIR or ASKIR infrared interface

Parallel Port

 One parallel port supports : SPP (standard parallel

port), EPP(enhanced parallel port) and ECP(extended
capabilities port)

Floppy Interface

 Supports drives inches/format as:

- 3.5 inches—720KB/1.44MB/2.88MB

- 5.25 inches—360KB/1.2MB

IDE Interface

 Dual PCI IDE interface support up to 4 x IDE HDD

or CDROM

Magic 586 User’s Manual

< 1-2 >

I. PRODUCT INFORMATION

 Supports PIO mode 4 , DMA mode 2 & Ultra DMA 33

USB Interface
(optional)

 Two USB ports supported

 USB legacy keyboard function supported

PS/2 Mouse

 PS/2 mouse supported by connector onboard

Keyboard

 AT compatible keyboard

 MINI-DIN PS/2 keyboard connector (optional)

RTC and Battery

 RTC build in chipset

 Lithium (CR-2032) battery

Wake Up Function

 Modem ring wake up / LAN wake up / RTC alarm

wake up

Synchronous
Switching Regulator

 High efficient synchronous switching regulator for

CPU core voltage

 Supports over-voltage / over-current protection

function

Power connector

 Supports AT(12-pin) power connector

 Supports ATX(20-pin) power connector

BIOS

 Award BIOS

 Year 2000 Compliance

 PCI 2.1/ PNP BIOS v1.0a / APM v1.2 / DMI v2.0

compliance

 Supports ACPI (Advanced Configuration and Power

Interface) and OS Directed Power Management

 Anti-Virus protection supported

 Floppy drive swapping function supported

 Supports SOFT power

Sound

 AC97 audio & game / MIDI ports

LED Indicator

Connectors

 System power LED connector

 HDD activity LED connector

 System Suspend LED connector

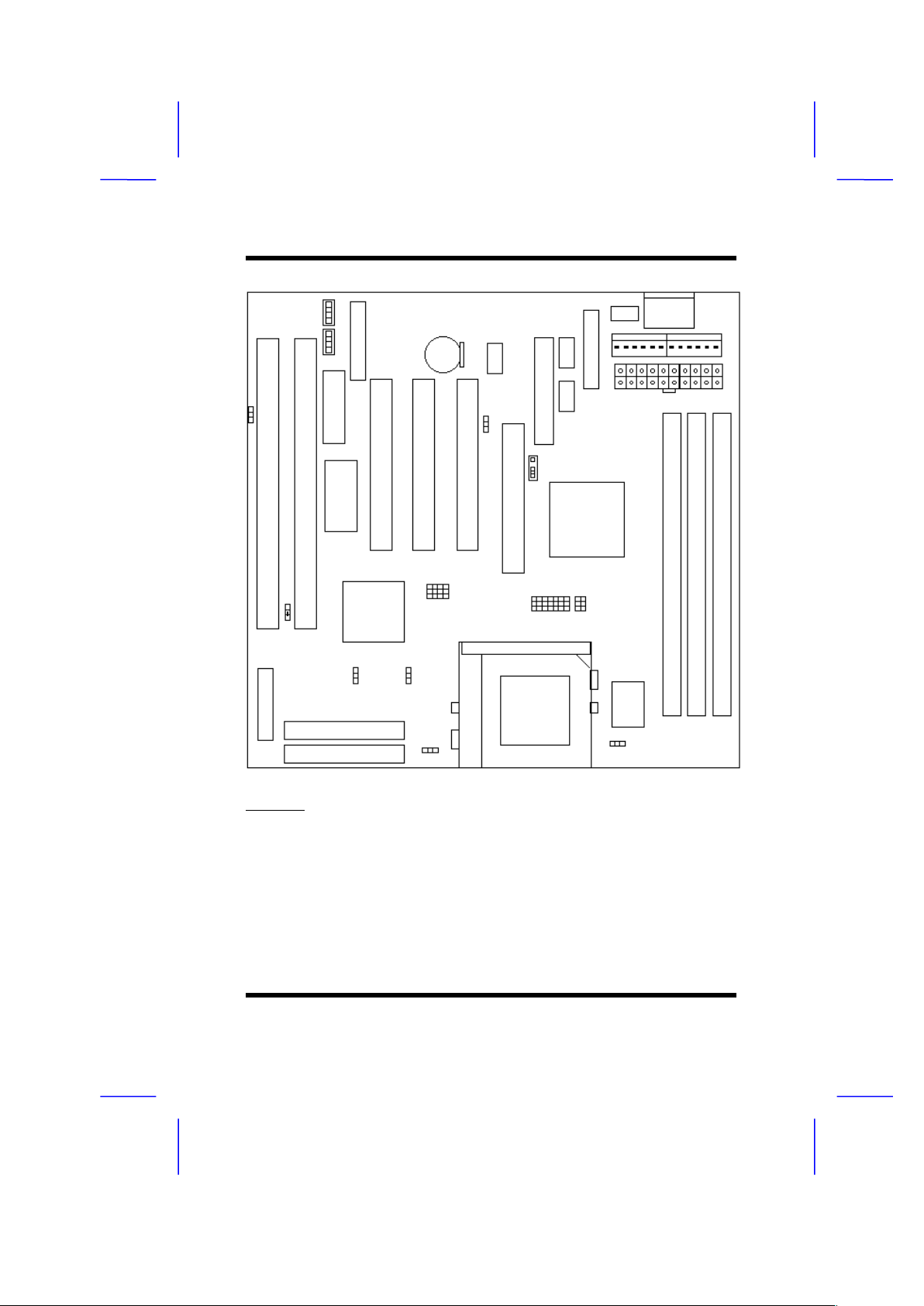

1-4 Mainboard Layout

Magic 586 User’s Manual

< 1-3 >

I. PRODUCT INFORMATION

Jumpers

1. JP1 L2 Cache Burst Type

2. JP2

3. JP3, JP4

4. JP5, JP6, JP7, JP8,
JP9

5. JP10, JP11, JP12,

CPU Clock Ratio
SDRAM Clock Select
CPU Bus Clock

CPU Vcore Voltage

Magic 586 User’s Manual

< 1-4 >

CD

I

I

S

S

A

A

1

2

CPU
FAN

A
R
M

B
I
O
S

GAME

PORT

VIA
686A

A

G

P

COM1

FDD

COM2

IR

VIA

USB

AGP
FAN

P

P

P

C

C

C

I

I

I

1

2

3

598MVP

JP2

JP10 ~ JP13

JP3 ~ JP9

Printer

PS2 MS

KB

ATX Power

D

I

M

M
3

D

I

M

M
2

AT
Power

D

I

M

M
1

JP14

PANEL

Wake on LAN

Socket 7

IDE1

IDE2

CPU
FAN

JP1

I. PRODUCT INFORMATION

JP13

6. JP14 Clear CMOS

Expansion Sockets

1. Socket 7

2. DIMM 1

3. DIMM 2

4. DIMM 3

CPU Socket
Support 168-pin DIMM Memory
Support 168-pin DIMM Memory
Support 168-pin DIMM Memory

Expansion Slots

1. ISA Slot 1 & Slot 2 16-bit ISA Bus Expansion Slot

2. PCI Slot 1 to Slot 3

3. ARM

32-bit PCI Bus Expansion Slot
ARM Expansion Slot for AC97 Devices

Connectors

1. AT KB AT Keyboard Connector

2. PS/2 Mouse PS/2 Mouse Connector

3. COM1/COM2 Serial Port 1 / Serial Port 2

4. PRINTER Printer (Parallel) Port Connector

5. AT POWER

6. ATX POWER

AT Power Connector
ATX Power Connector

7. AGPFAN

8. CPUFAN

9. CHAFAN

AGP Fan Connector
CPU Fan Connector
Chassis Fan Connector

10. Floppy Floppy Drive Connector

11. Primary IDE Primary IDE Connector

12. Secondary IDE Secondary IDE Connector

13. GAME PORT

14. CD

Game/Audio Connector
Audio CD-IN Connector

15. IR

16. USB

17. Wake on LAN

18. Panel:

Infrared Port Connector
Universal Serial Bus Port 1 and Port 2
LAN Wake Up Connector

Magic 586 User’s Manual

< 1-5 >

I. PRODUCT INFORMATION

- PWR LED Baby-AT Power LED Connector

- KBLCK Keyboard Lock Switch Connector

- SLP Suspend Switch Connector

- SPEAKER Chassis Speaker Connector

- HDD LED HDD LED Connector

- RESET

- GRN LED

Reset Switch Connector
Green LED Connector

Magic 586 User’s Manual

< 1-6 >

SECTION 2.

HARDWARE INSTALLATION

This section gives you a step-by-step procedure on how to install your system.
Follow each section accordingly.

2-1 Jumper Settings

Please refer the following figures for the locations of the jumpers on the
mainboard.

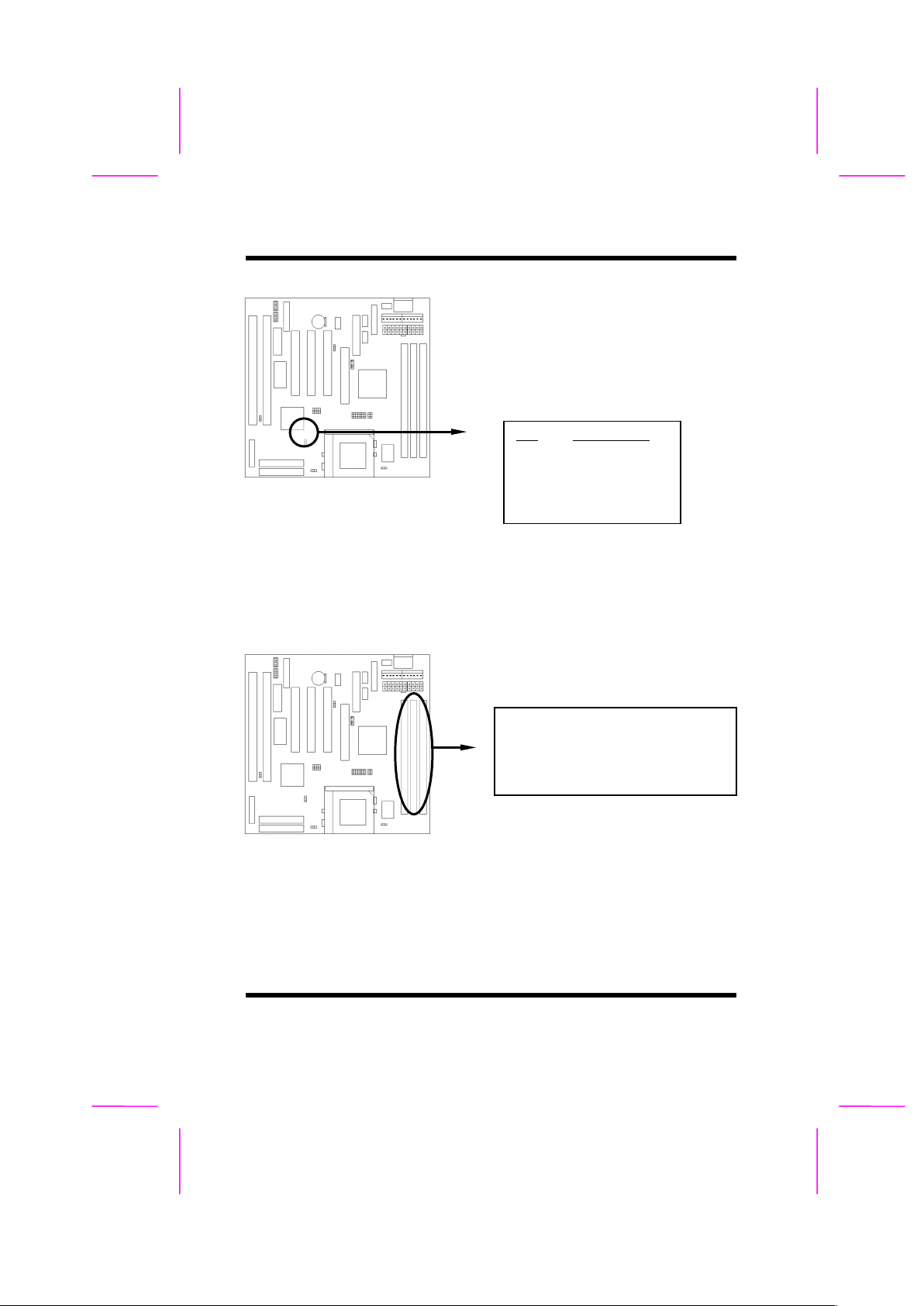

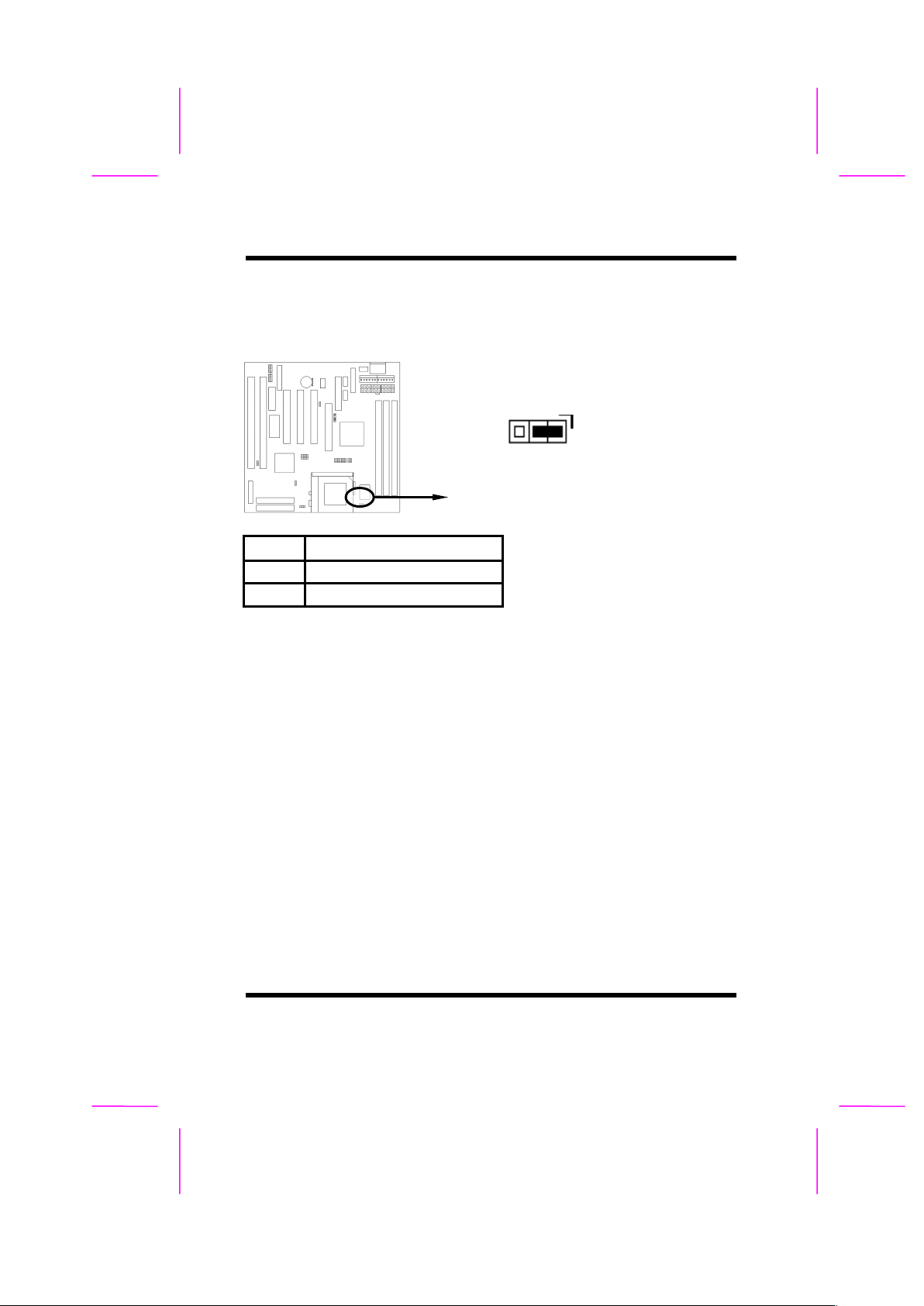

2-1.1 CMOS Clear Setting

To clear CMOS, please follow the steps below:

1. Power off the system and unplug the chassis AC power cord.

2. Short JP14 at pin 2-3 for few seconds.

3. Set JP14 back to its Normal position at pin 1-2.

4. Plug the AC power cord to the chassis.

Magic 586 User's Manual

<

2-1 >

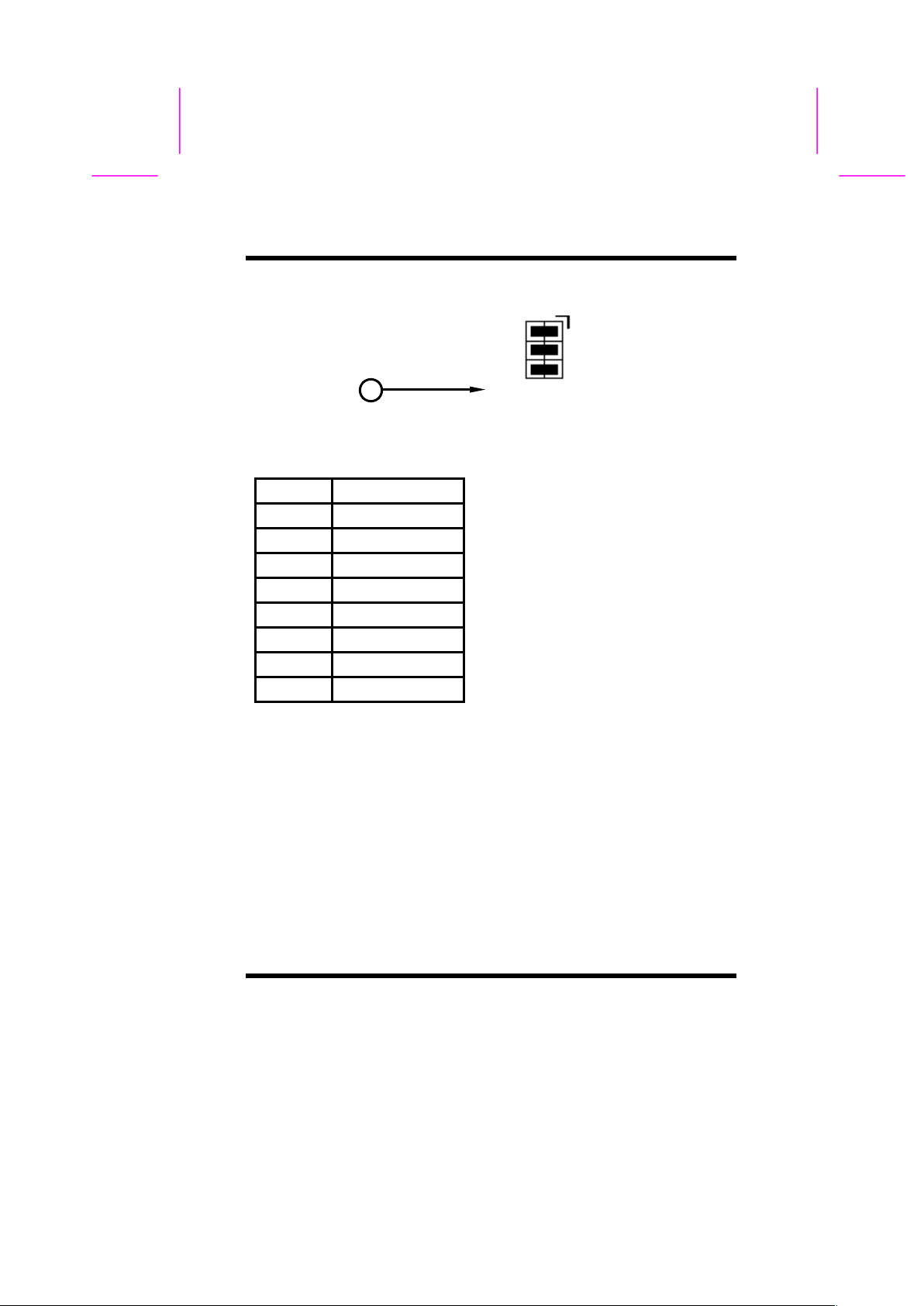

JP14 CMOS

Clear CMOS

Default

(Normal)

II.HARDWARE INSTALLATION

5. Power on the system and load the BIOS setup default.

Magic 586 User's Manual

< 2-2 >

II.HARDWARE INSTALLATION

2-1.2 CPU Type Setting

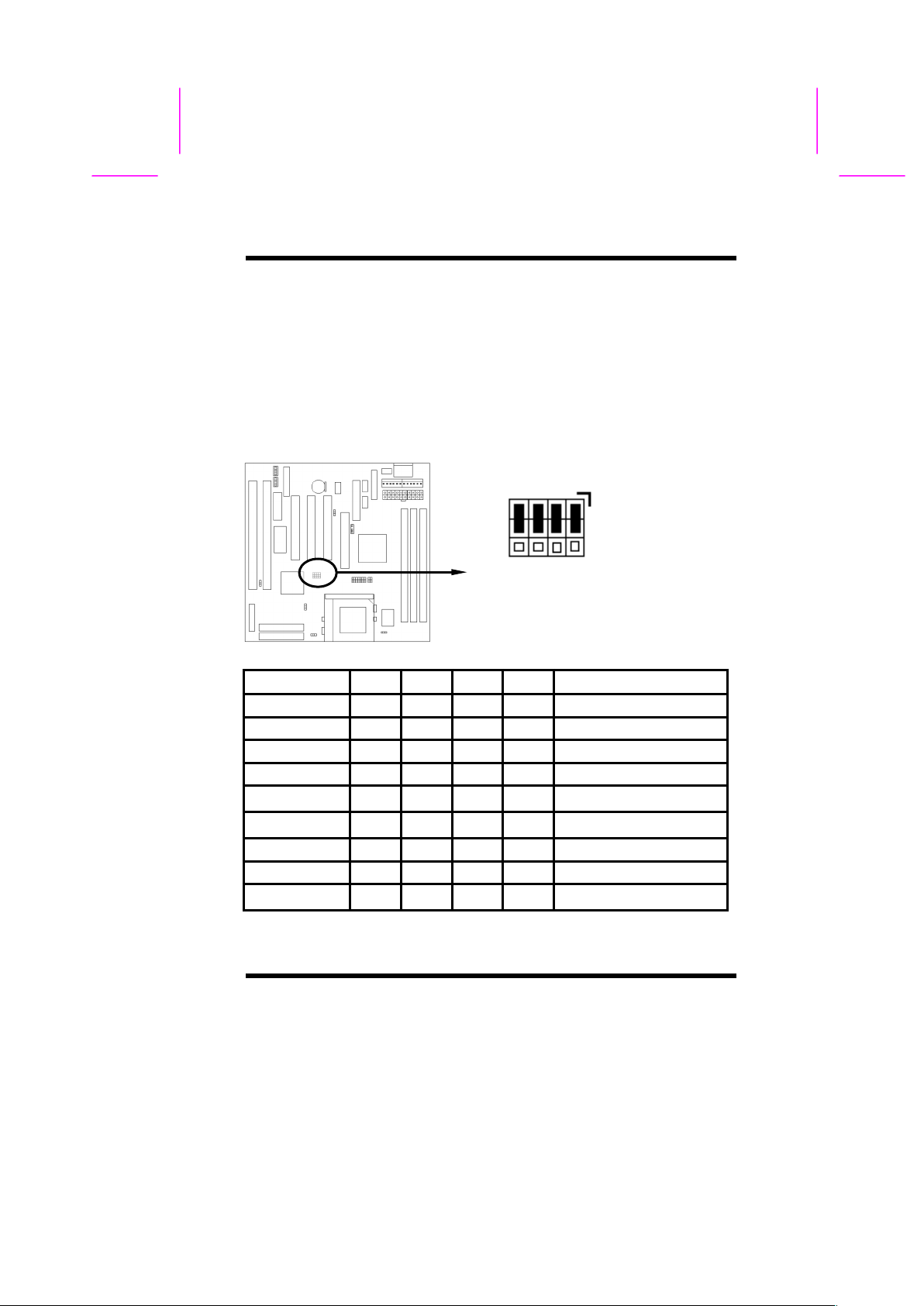

This mainboard supports socket-7 Pentium series CPU. Install your CPU type
with the following jumper settings.

 CPU Voltage:

JP10, JP11, JP12, JP13 are used to select the CPU Voltage.

CPU Voltage JP10 JP11 JP12 JP13 CPU Type

3.5V 2-3 1-2 2-3 2-3 AMD-K5

3.4V 1-2 1-2 2-3 2-3 INTEL P54C

3.3V 2-3 2-3 2-3 2-3 IDT C6

3.2V 1-2 2-3 2-3 2-3 AMD-K6 233

3.1V 2-3 1-2 1-2 2-3

3.0V 1-2 1-2 1-2 2-3

2.9V 2-3 2-3 1-2 2-3 AMD K6-166/200 / Cyrix M2

2.8V 1-2 2-3 1-2 2-3 Intel P55C / Cyrix 6x86L

2.7V 2-3 1-2 2-3 1-2

Magic 586 User's Manual

< 2-3 >

J
P

1
0

J
P

1
1

J
P

1
2

J
P

1
3

1
2
3

(Default)

II.HARDWARE INSTALLATION

2.6V 1-2 1-2 2-3 1-2

2.5V 2-3 2-3 2-3 1-2

2.4V 1-2 2-3 2-3 1-2 AMD-K6-III

2.3V 2-3 1-2 1-2 1-2

2.2V 1-2 1-2 1-2 1-2 AMD-K6-II

2.1V 2-3 2-3 1-2 1-2

2.0V 1-2 2-3 1-2 1-2

 CPU Clock Ratio:

JP2 is used to select the CPU clock ratio.

Magic 586 User's Manual

< 2-4 >

II.HARDWARE INSTALLATION

 CPU Clock Frequency:

Magic 586 User's Manual

< 2-5 >

Ratio

JP2

1.5x / 3.5x

ALL OPEN

2.0x

5-6

2.5x / 1.75x

3-4, 5-6

3.0x

3-4

4.0x

1-2, 5-6

4.5x

1-2, 3-4, 5-6

5.0x

1-2, 3-4

5.5x

1-2

2 1

JP2

6 5

(Default)

II.HARDWARE INSTALLATION

CPU Clock Frequency:

JP5, JP6, JP7, JP8, JP9 are used to select the CPU clock frequency.

Magic 586 User's Manual

< 2-6 >

J
P

5

J
P

6

J
P

7

J
P

8

J
P

9

(Default)

1
2
3

CPU Clock
Frequency

100.2MHz 33.30MHz 66.6MHz 2-3 1-2 2-3 2-3 1-2

95.25MHz 31.75MHz 63.5MHz 2-3 1-2 2-3 2-3 2-3

83.3MHz 33.30MHz 66.6MHz 2-3 2-3 1-2 2-3 1-2

133.3MHz 44.30MHz 88.7MHz 2-3 1-2 1-2 2-3 2-3

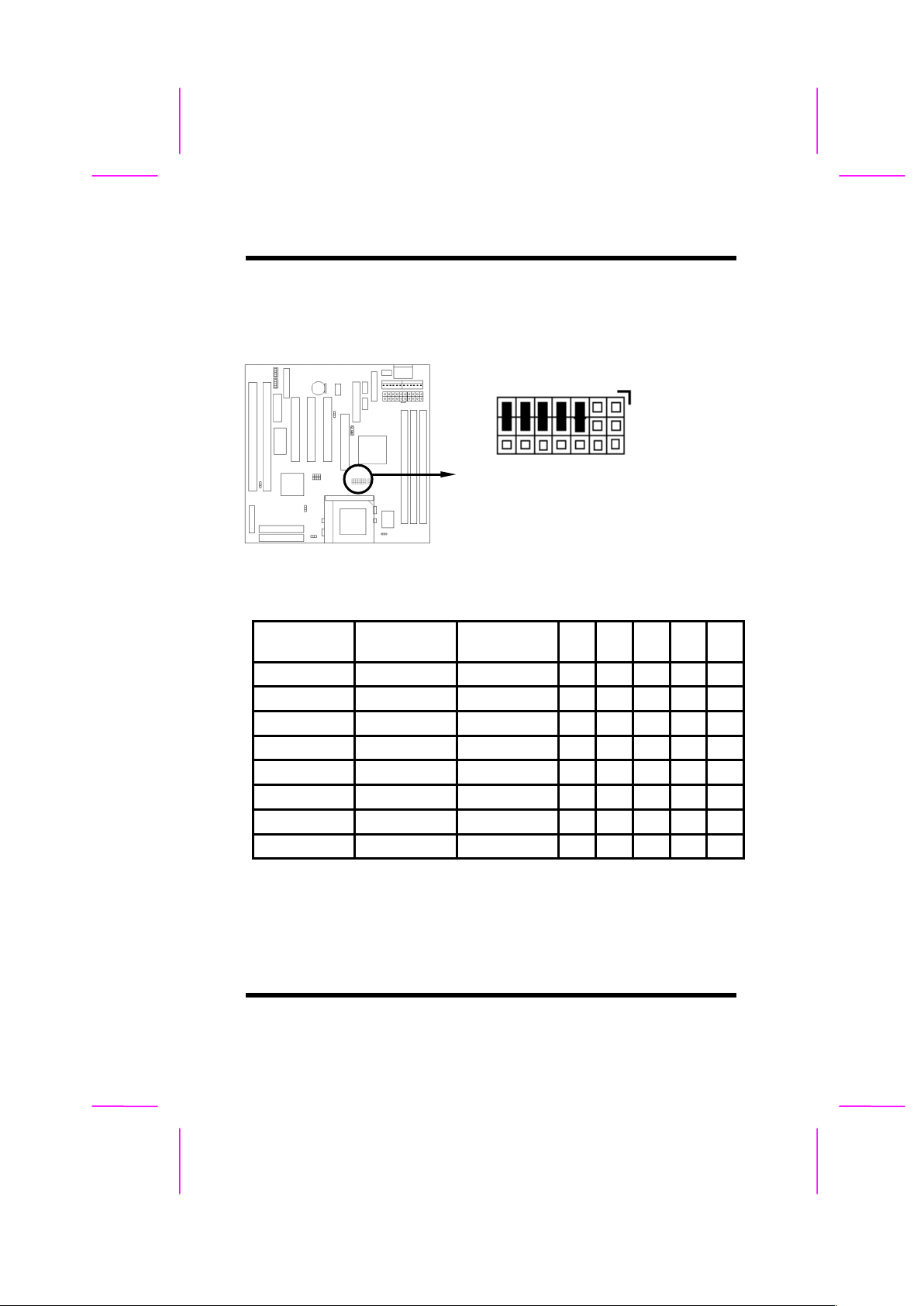

75MHz 37.50MHz 75.0MHz 1-2 1-2 2-3 1-2 1-2

124MHz 41.30MHz 82.7MHz 2-3 1-2 2-3 1-2 2-3

66.8MHz 33.40MHz 66.8MHz 1-2 1-2 1-2 1-2 1-2

112MHz 37.30MHz 74.7MHz 2-3 1-2 1-2 1-2 2-3

PCI Clock

Frequency

AGP Clock
Frequency

JP5 JP6 JP7 JP8 JP9

II.HARDWARE INSTALLATION

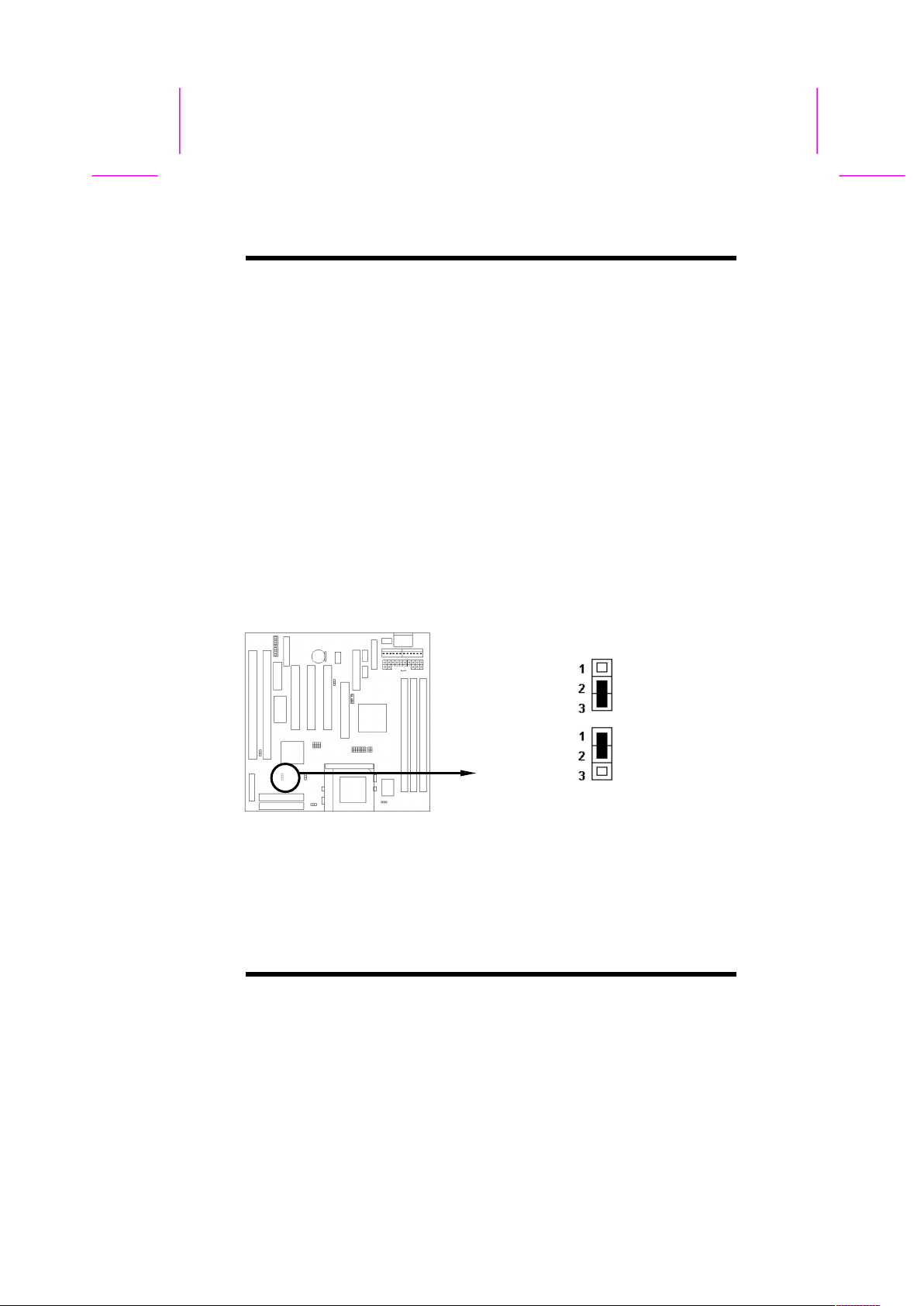

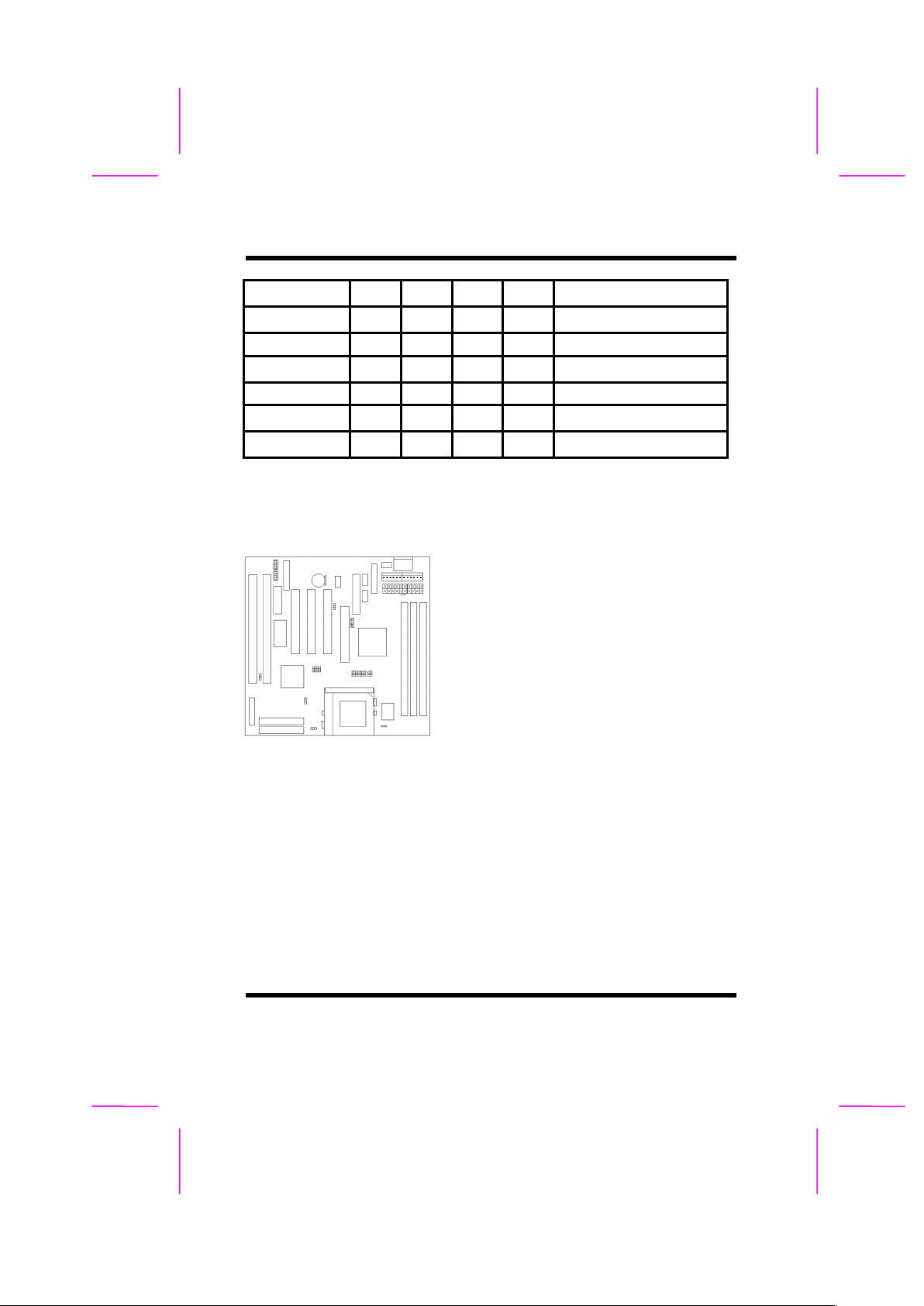

 SDRAM Clock Select:

JP3, JP4 are used to select the SDRAM clock.

JP3 JP4 SDRAM Clock Select

1-2 1-2 DRAM Run CPU Clock

2-3 2-3 DRAM Run AGP Clock

Magic 586 User's Manual

< 2-7 >

J
P

3

J
P

4

(Default)

1
2
3

II.HARDWARE INSTALLATION

 Burst Type:

JP1 is used to select the CPU Burst Type.

JP1 Burst Type

1-2 Interleave Burst

2-3 Linear Burst

Magic 586 User's Manual

< 2-8 >

(Default)

JP1

3 2 1

II.HARDWARE INSTALLATION

Below is a reference of different CPU currently supported by this mainboard.

System Frequency (MHz) CPU Clock

Ratio

CPU Clock
Frequency

100 (Intel P54C-100; AMD K5-100&133) 1.5x 66MHz

116 (AMD K5-166) 1.75x 66MHz

133 (Intel P54C-133;Cyrix P166+) 2x 66MHz

150 (Cyrix P200&M2-200;C6-150) 2x 66MHz

166 (Intel P54C&55C-166;Cyrix M2-200; AMD K6-166) 2.5x 66MHz

200 (Intel P54C&55C-200;AMD K6-200;Cyrix M2-233;

IDT C6-200)

3x 66MHz

225 (IDT C6-225;Cyrix M2-300) 3x 75MHz

233 (Intel P55C-233; AMD K6-233;Cyrix M2-300) 3.5x 66MHz

263 (Cyrix M2-333) 3.5x 75MHz

266 (AMD K6-266;Cyrix M2-333) 4x 66MHz

300 (AMD K6-II 300) 4x 75MHz

333 5x 66MHz

375 (AMD K6-II 350) 5x 75MHz

400 (AMD K6-III 400) 4x 100MHz

Magic 586 User's Manual

< 2-9 >

II.HARDWARE INSTALLATION

2-2 Connectors

2-2.1 Panel Connector

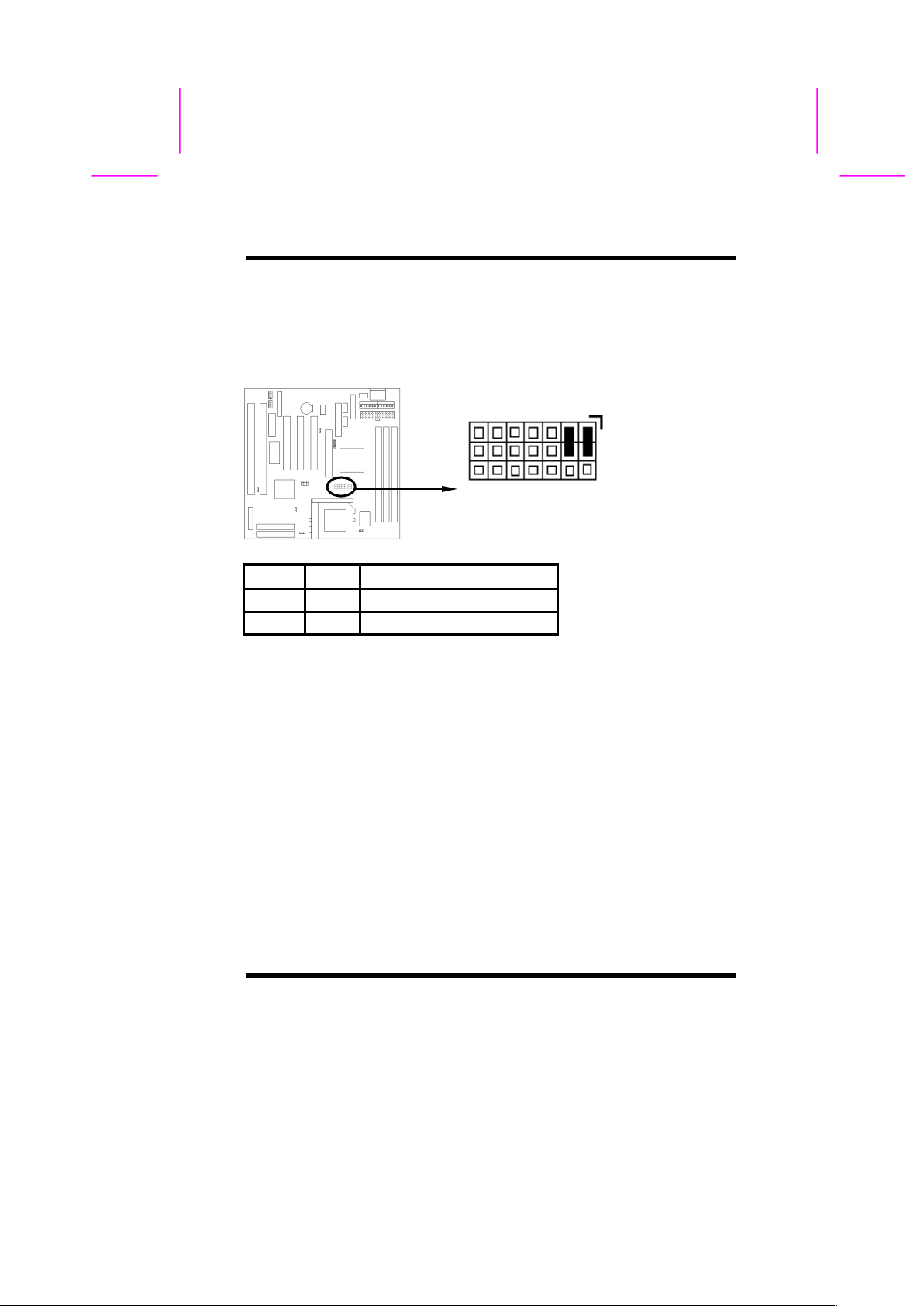

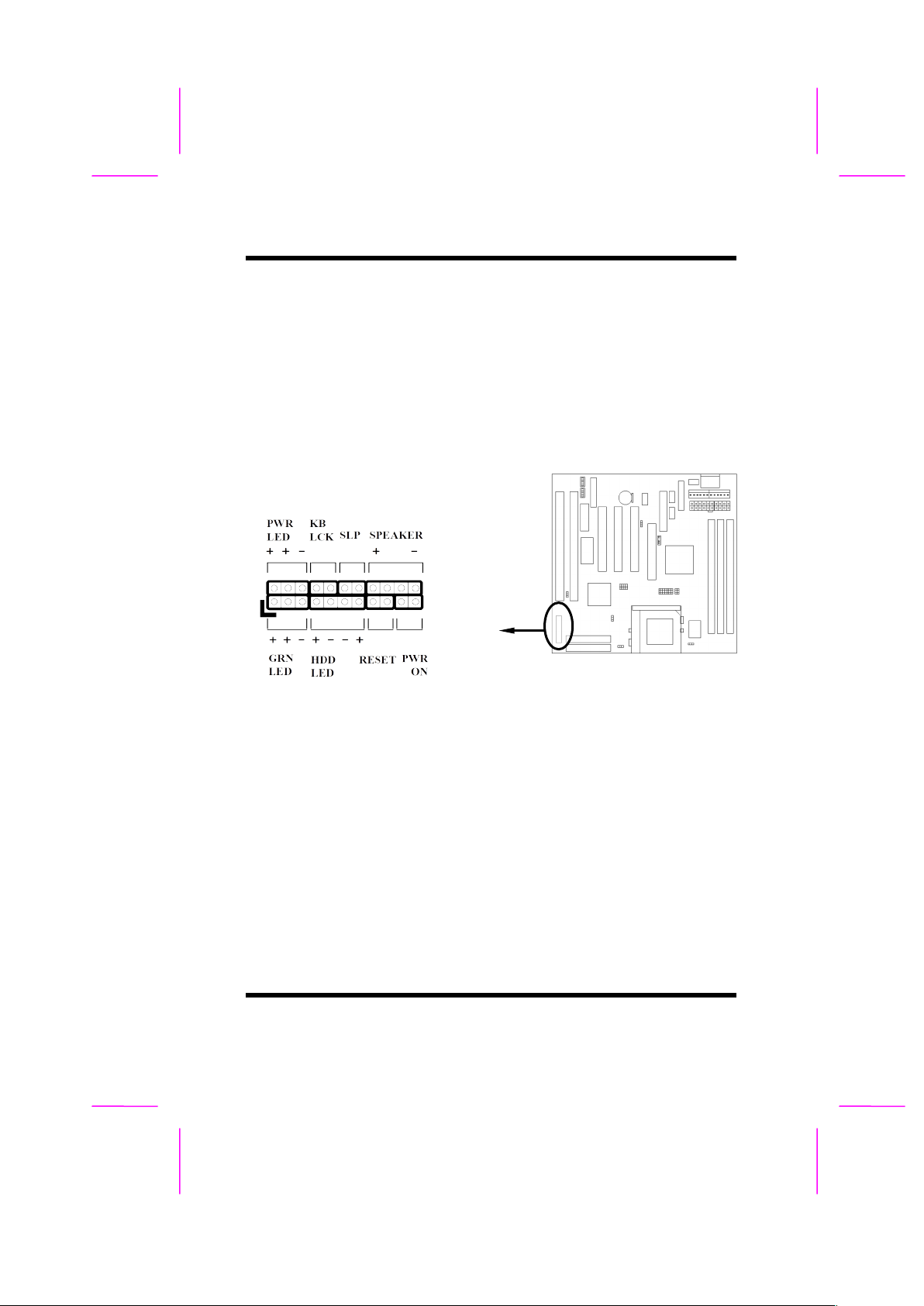

The Panel Connector is a 22-pin onboard connector. Connect the Power LED,
Keyboard Lock Switch, Suspend Switch, Speaker, Green LED, HDD LED, and
Reset Switch to the corresponding pins as shown in the below figure.

- PWR LED Power LED Connector (3 pins)

- KBLCK Keyboard Lock Switch Connector (2 pins)

- SLP Suspend Switch Connector (2 pins)

- SPEAKER

- GRN LED

Chassis Speaker Connector (4 pins)
Green Status LED Connector (3 pins)

- HDD LED HDD LED Connector (4 pins)

- RESET Reset Switch Connector (2 pins)

Magic 586 User's Manual

< 2-10 >

II.HARDWARE INSTALLATION

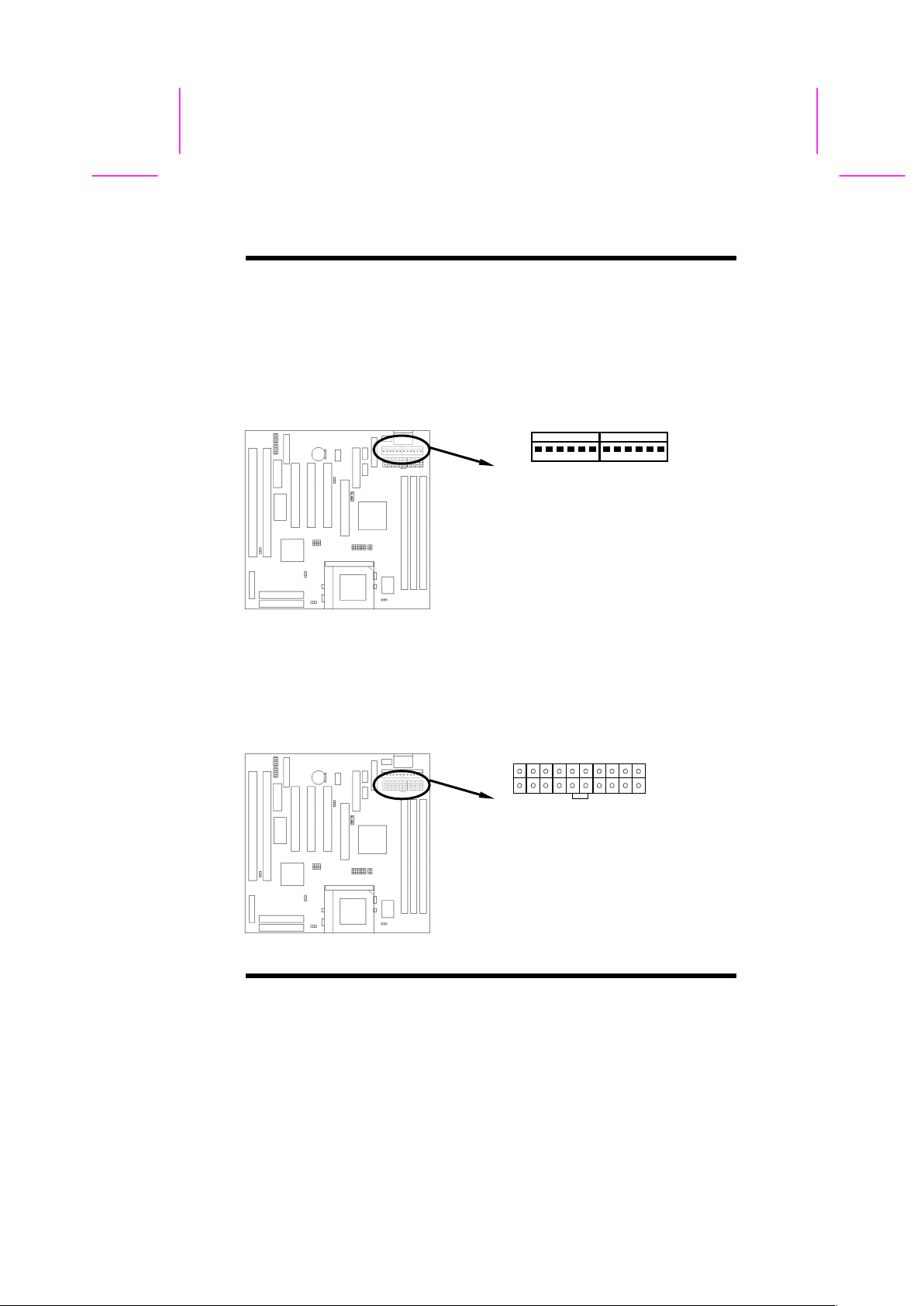

2-2.2 AT Power Connector

Connect the 12-pin AT power supply cable to this power connector. Make sure
the right plug-in direction and the power supply is off before connecting or
disconnecting the power cable.

2-2.3 ATX Power Connector

Connect the 20-pin ATX power supply cable to this power connector. Make
sure the right plug-in direction and the power supply is off before connecting or
disconnecting the power cable.

Magic 586 User's Manual

< 2-11 >

AT Power

ATX Power

II.HARDWARE INSTALLATION

Magic 586 User's Manual

< 2-12 >

II.HARDWARE INSTALLATION

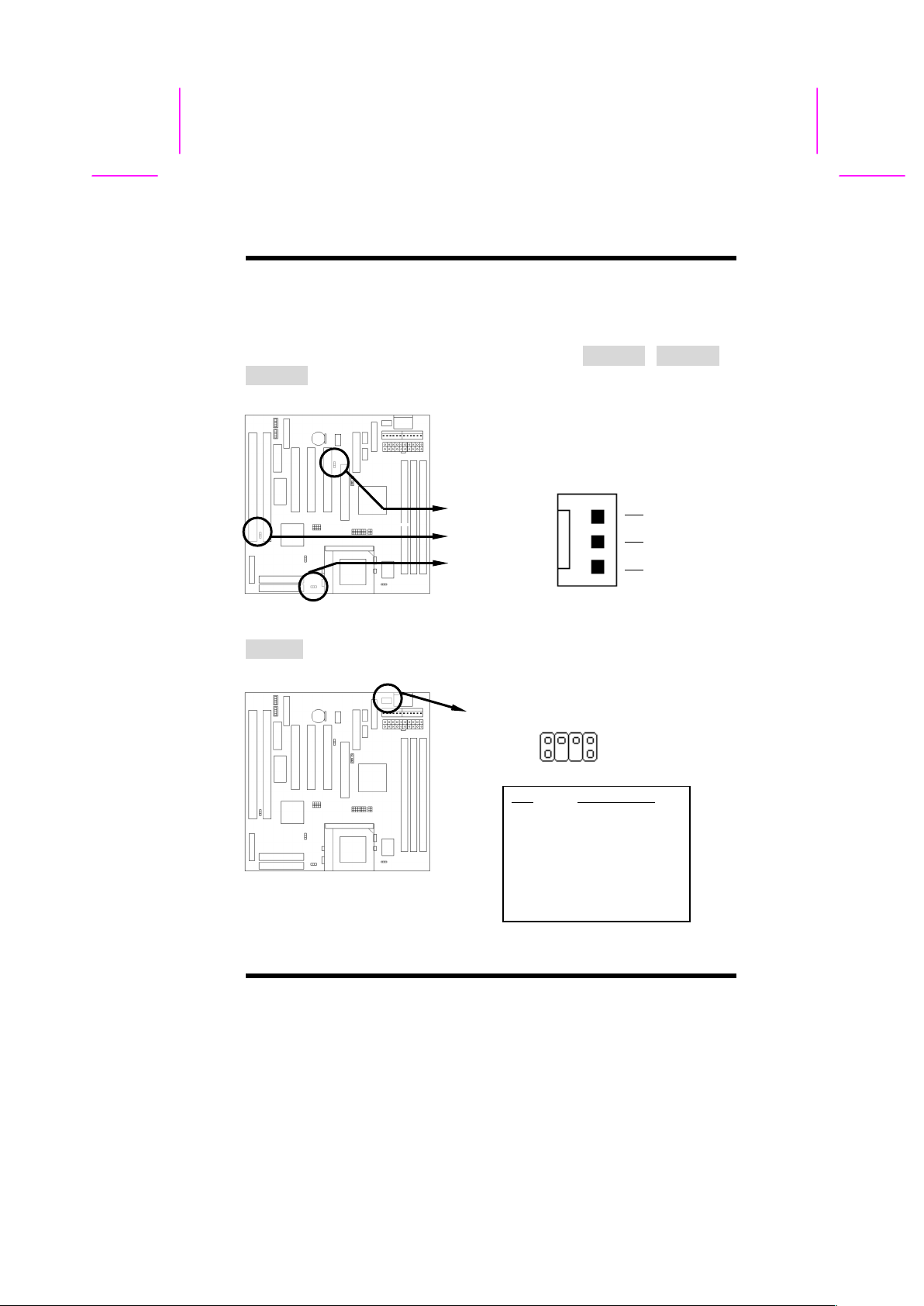

2-2.4 Fan Connectors

Connect the CPU, Chassis & AGP Fan cables to the 3-pin fan connectors
shown below. The fan connectors are marked as CPUFA1, CHAFA1 &
AGPFA1 on the mainboard.

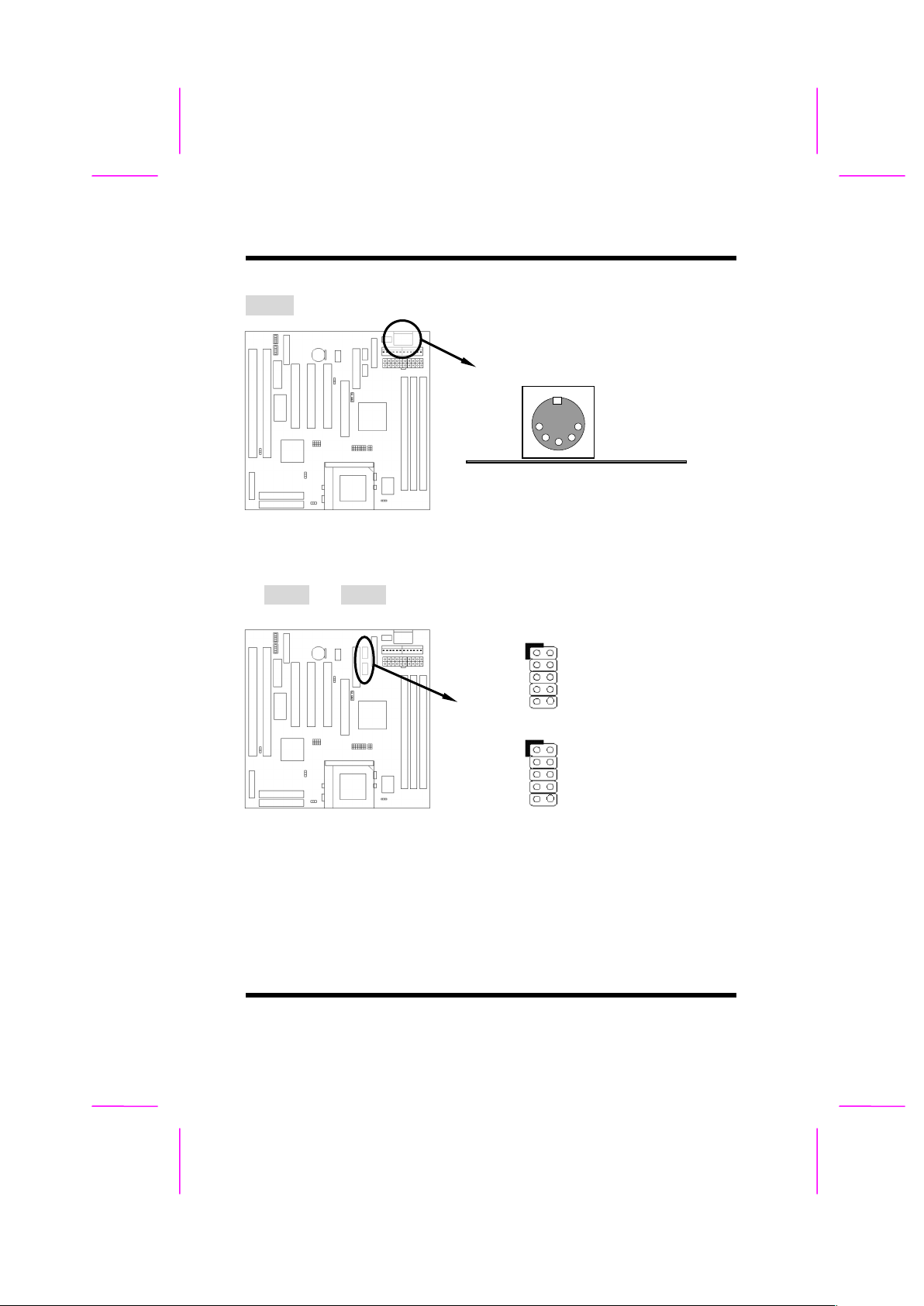

2-2.5 PS/2 Mouse Connector

Connect the PS/2 mouse to the onboard 6-pin Mini-Din connector marked as
PS2 MS.

2-2.6 Keyboard Connector

Magic 586 User's Manual

< 2-13 >

FAN CONNECTOR

3 1 2 4

AGPFA1

CHAFA1

CPUFA1

GND

+12V

SENSE

PS2 MS

Pin

1
2
3
4
5
6

Description

5 6

MS DATA
NC
GND
+5V
MS CLK
NC

II.HARDWARE INSTALLATION

Connect the AT keyboard to the onboard keyboard connector marked as

AT KB.

2-2.7 Serial Device(COM1/COM2) Connectors

Connect your serial device(s) to the onboard 9-pin serial connectors marked
as COM1 and COM2.

2-2.8 Printer Connctor

Magic 586 User's Manual

< 2-14 >

AT KB

1

2

9

COM2

10

1

2

9

COM1

10

II.HARDWARE INSTALLATION

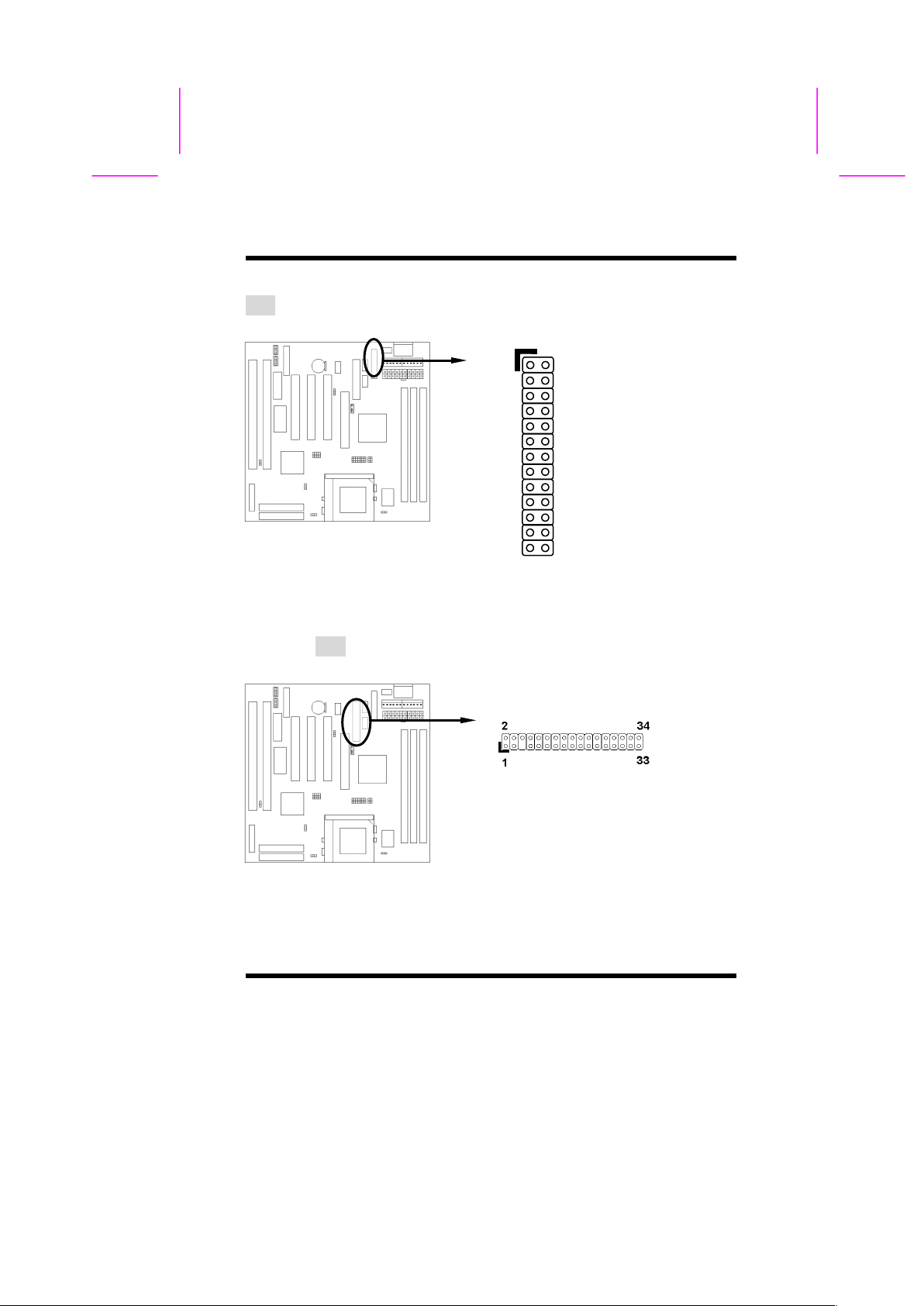

Connect your local printer to the onboard 25-pin printer connector marked as
LPT.

2-2.9 Floppy Drive Connector

Connect the floppy drive cable to the onboard 34-pin floppy drive connector
marked as FDD.

2-2.10 IDE Hard Disk and CD-ROM Connector

Magic 586 User's Manual

< 2-15 >

FDD

1

13

14

LPT

26

II.HARDWARE INSTALLATION

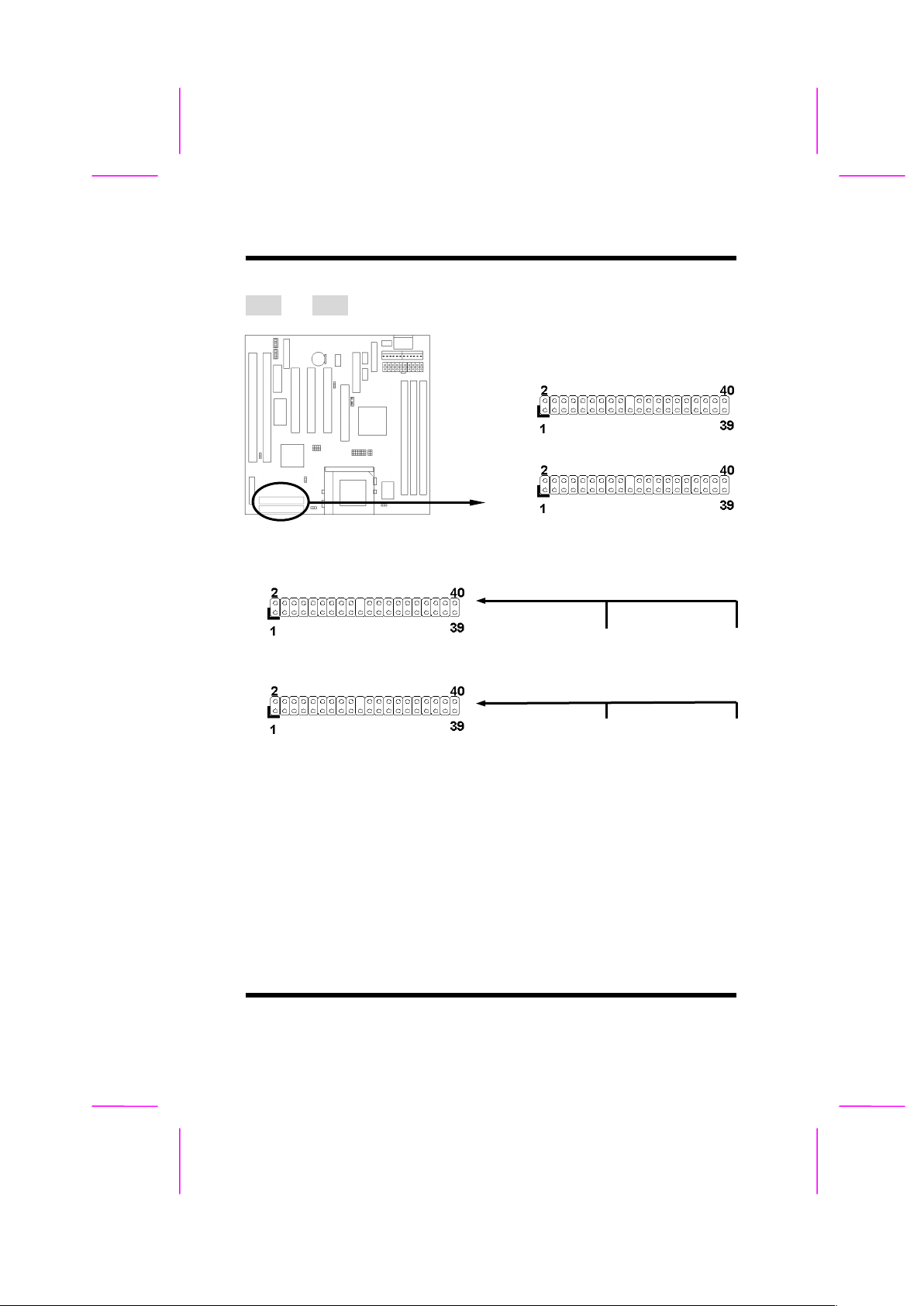

Connect your IDE devices to the onboard 40-pin IDE connectors marked as
IDE1 and IDE2.

It is suggested that you connect the IDE devices to your IDE cables as the
figure shown above. Each IDE channel, either Primary or Secondary, supports
two IDE devices which must be set differently to master mode and slave mode.

(Refer to your hard disk and CD-ROM user’s manual for detailed settings of
IDE master and slave mode.)

2-2.11 IrDA Connector

Magic 586 User's Manual

< 2-16 >

IDE1

IDE2

Primary IDE Cable

IDE1

IDE2

Slave

Secondary IDE Cable

Slave Master

Master

II.HARDWARE INSTALLATION

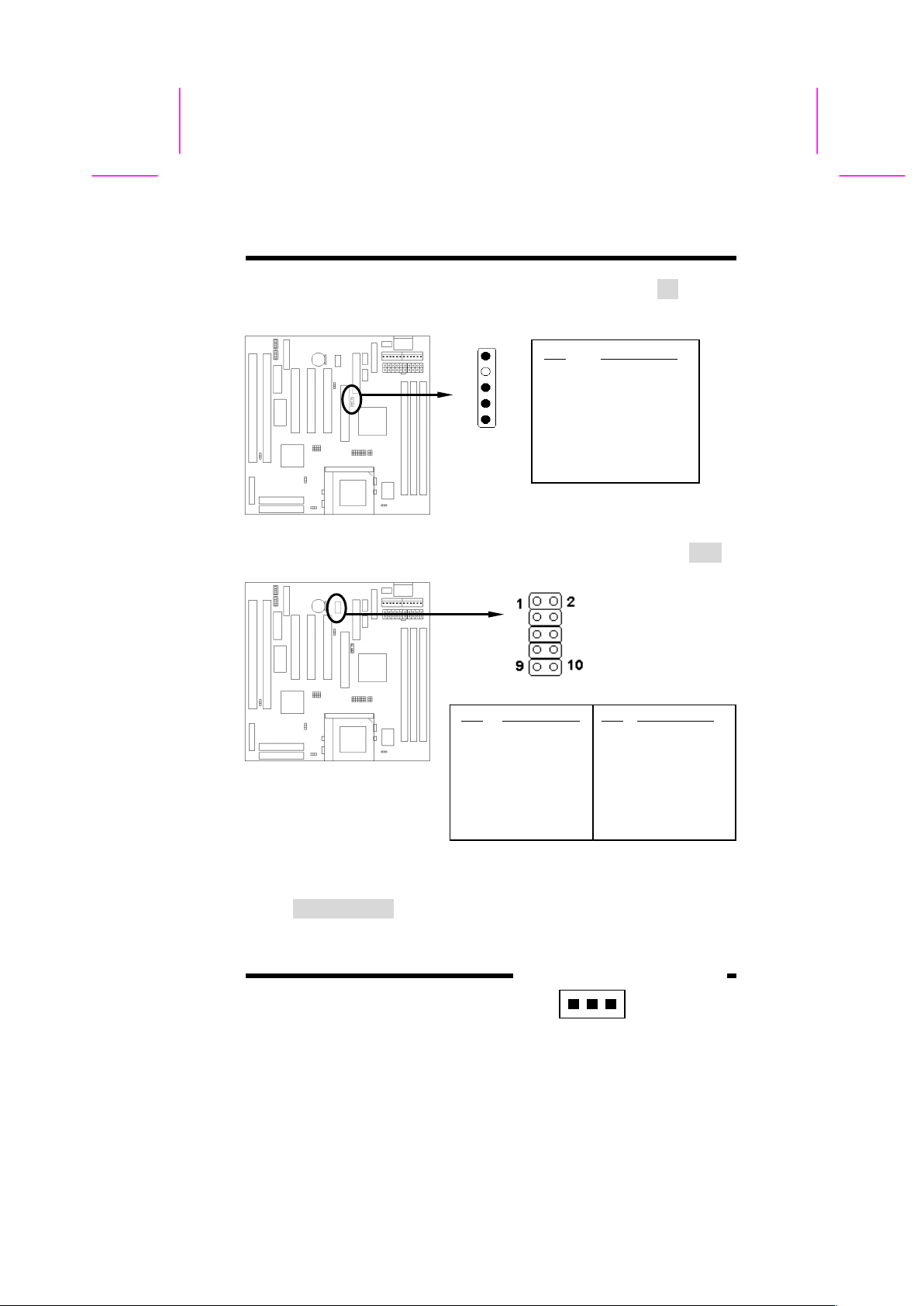

Connect your IR device to the onboard IrDA connector marked as IR.

2-2.12 USB Device Connector

Connect your USB device(s) to the onboard USB connector marked as USB.

2-2.13 Wake on LAN Connector

This mainboard supports wake up on LAN function. To use this function, you
need a Wake on LAN supported network card and software.

Magic 586 User's Manual

< 2-17 >

1

Pin Description

2

1 +5V

3

2 NC

4
5

3 IRRX

IR

4 GND

5 IRTX

USB

Pin

1
3
5
7
9

Description

V0
D0­D0+
GND
GND

Pin

2
4
6
8
10

Description

V1
D1­D1+
GND
GND

1 2 3

II.HARDWARE INSTALLATION

2-3 System Memory Installation

There are 3 pcs 168-pin DIMM (Dual Inline Memory Module) sockets on the
mainboard which support SDRAM and EDO DRAM memory.

Magic 586 User's Manual

< 2-18 >

Wake on LAN

Pin Description

1 +5V Standby

2 GND

3 Signal

There are 3 168-pin DIMM sockets
(DIMM1, DIMM2 & DIMM3) that
allow you to install system memory
maximum up to 768MB SDRAM.

II.HARDWARE INSTALLATION

2-3.1 Type

This mainboard supports SDRAM DIMM and EDO DIMM.

2-3.2 Speed

For SDRAM, the memory speed normally marked as: -15, -12, -10, -8, -7.

The meaning is,

-15 = 15ns, and the maximum clock is 66MHz

-12 = 12ns, and the maximum clock is 83MHz

-10 = 10ns, and the maximum clock is 100MHz

-8 = 8ns, and the maximum clock is 125MHz

-7 = 7ns, and the maximum clock is 142MHz

For EDO, the access time can be 50ns, 60ns & 70ns.

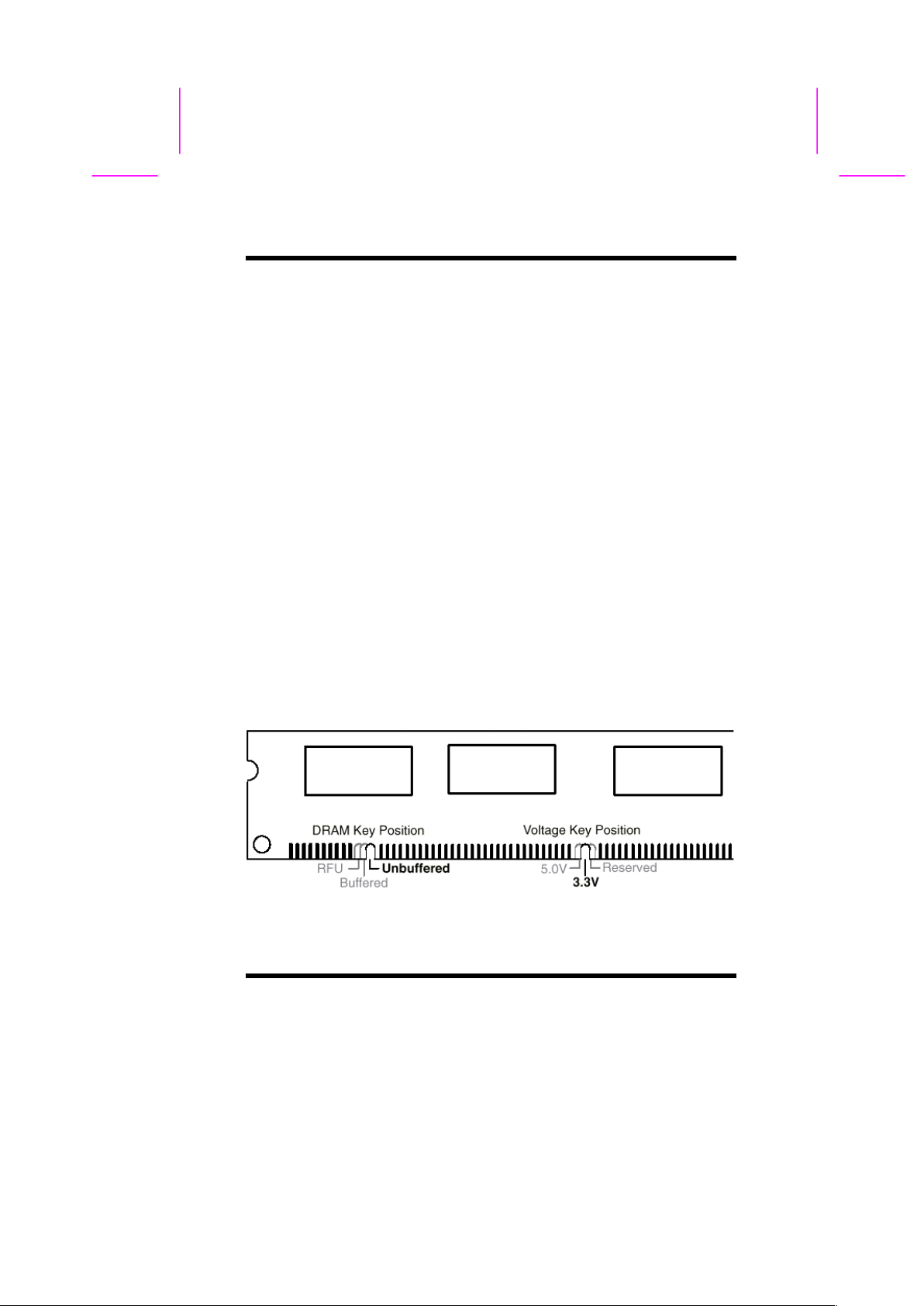

2-3.3 Buffered and Non-buffered

Only the non-buffered DIMM can be used in this mainboard. The difference
between buffered and non-buffered DIMM can be identified by the notch
position shown below.

Magic 586 User's Manual

< 2-19 >

II.HARDWARE INSTALLATION

2-3.4 2-clock and 4-clock signal

Both 2-clock and 4-clock SDRAM DIMM supported by this mainboard.

2-3.5 Parity and Non-parity

This mainboard supports 64 bit Non-parity and 72 bit Parity DIMM modules.

2-3.6 Memory Auto detection by BIOS

This mainboard BIOS can automatically detect the DIMM memory size and
type, so you do not need to adjust any hardware or software settings.

2-3.7 Suggested Memory combination

This mainboard supports the following SDRAM / EDO combination.

DIMM

Location

DIMM Size

DIMM1 8, 16, 32, 64, 128, 256MB

DIMM 2 8, 16, 32, 64, 128, 256MB

DIMM 3 8, 16, 32, 64, 128, 256MB

Total Memory Size = DIMM1 + DIMM2 + DIMM3

Magic 586 User's Manual

< 2-20 >

II.HARDWARE INSTALLATION

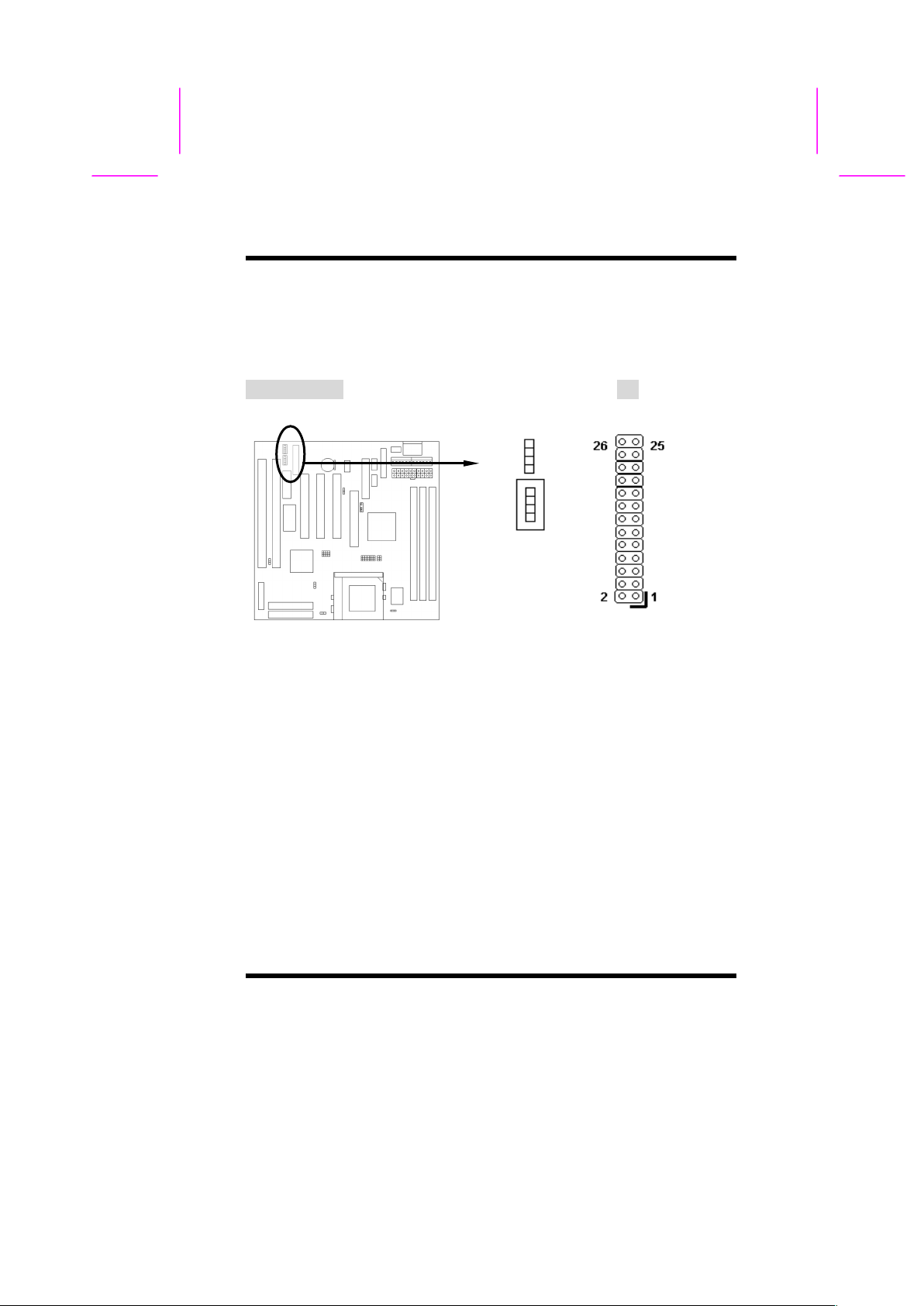

2-4 Game/Audio Connector

Connect the audio cable to the onboard Game/Audio connector marked as
GAME PORT. The onboard CD-IN connector marked as CD is for CD-ROM
audio.

Magic 586 User's Manual

< 2-21 >

CD

GAME PORT

SECTION 3.

CMOS SETUP UTILITY

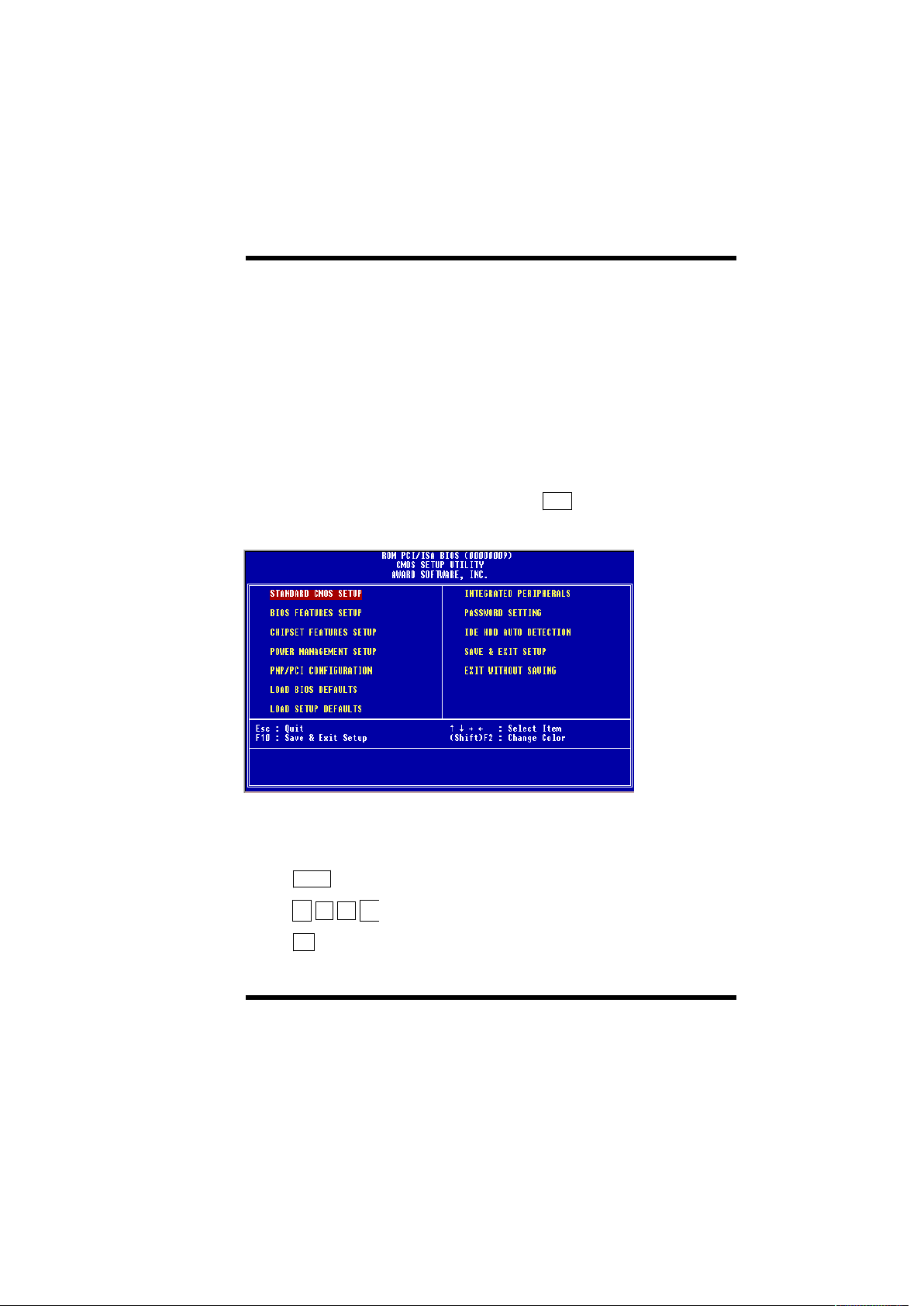

3-1 BIOS Setup Main Menu

This section tells you how to configure the system by changing BIOS setup
options. To enter the BIOS Setup Utility, press DEL key during POST (Power­On Self Test). The BIOS Setup Main Menu will appear as shown below.

The main menu displays a table of items which defines basic information about
your system. Below are the keyboard function keys you can use under the
menu.

Menu function keys:

E S C To close the BIOS Setup Utility.

   

To move around the screen. An item is highlighted if
it is selected.

F 1

To displays information about the highlighted item

Magic 586 User’s Manual

< 3-1 >

III. CMOS SETUP UTILITY

you selected.

S H I F T + F 2 To Change the color scheme.

F 1 0

To save the changes before exit the BIOS Setup
Utility.

ENTER To select or enter a submenu.

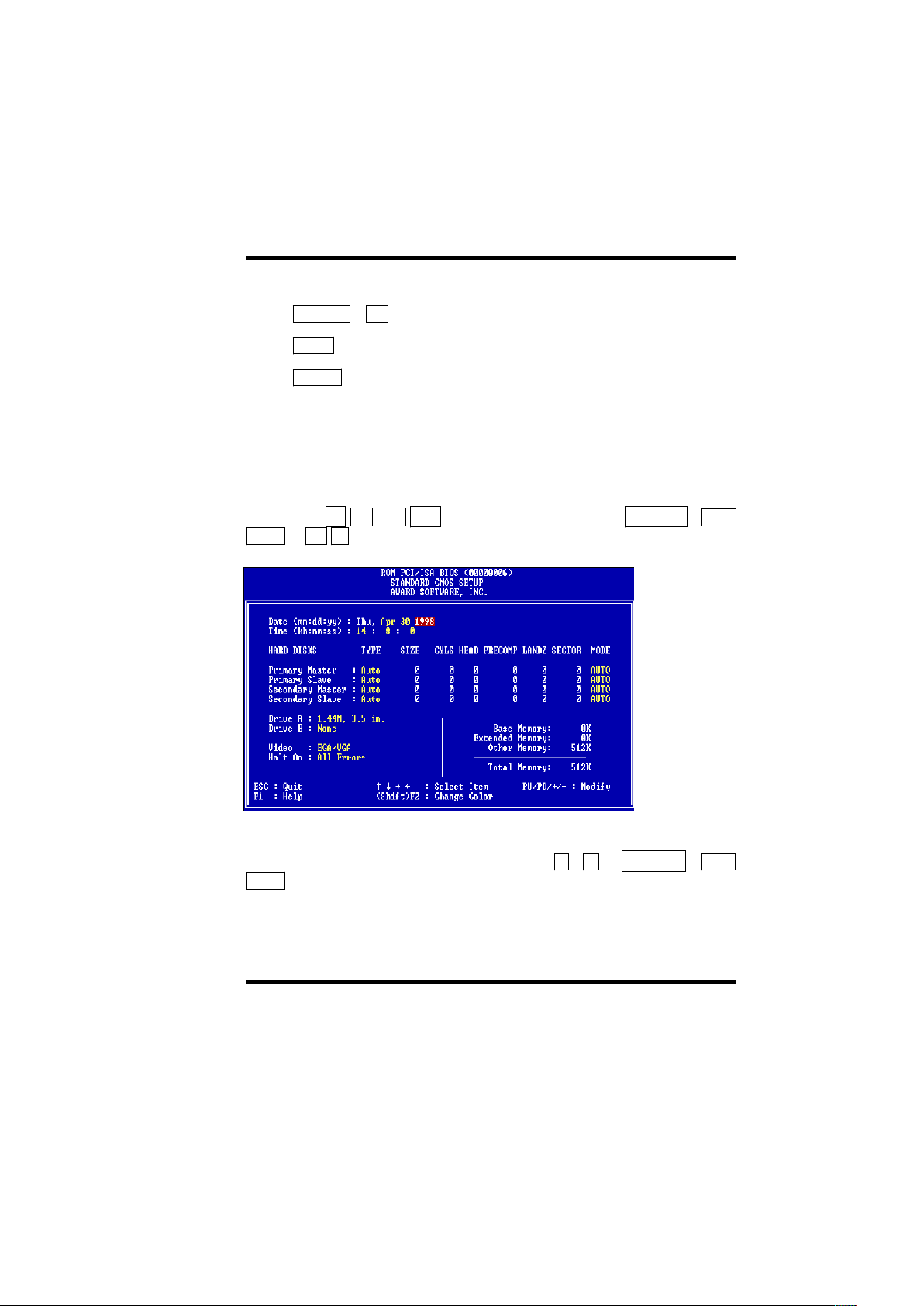

3-2 Standard CMOS Setup

This "Standard CMOS Setup" sets the basic system settings such as the date,
time, and the hard disk type, Video display type and error handling. Use the

arrows keys     to highlight an item and use Page Up / Page
Down or + - to set the value for each item.

 Date

To set the date, highlight the date area. Press + / - or Page Up / Page
Down to set the current date. The date format is month: Jan. ~ Dec., date: 1

~ 31, and year: 1994 ~ 2079.

Magic 586 User’s Manual

< 3-2 >

III. CMOS SETUP UTILITY

 Time

To set the time, highlight the time area. Press + / - or Page Up / Page
Down to set the current time. The time format is hour: 00 ~ 23, minute: 00 ~

59, and second: 00 ~ 59.

 Hard Disks  Primary Master / Slave  Hard Disks  Secondary Master / Slave

TYPE:

- Auto

- User

- None

This item lets you set your system IDE hard disk type.
Select Auto to let BIOS automatically detect the installed
hard disk when system boot up. Select User if you prefer
manually enter the hard disk type. The available
parameters are SIZE(HDD Size), CYLS(No. of Cylinder),
HEAD(No. of Head), PRECOMP(Pre-compensation),
LANDZ(Landing Zone), SECTOR(No. of Sector) and
MODE(HDD Mode). Select None if there is no hard disk
connected to the system. Default: Auto

MODE:

- AUTO

­NORMAL

- LBA

- LARGE

Select NORMAL for IDE HDD smaller than 528MB. Select
LBA for IDE HDD over than 528MB and support
LBA(Logical Block Addressing) mode. Select LARGE for
IDE HDD over than 528MB and do not support LBA mode.

Note: We recommend that you set both IDE HDD TYPE
and MODE to AUTO to let BIOS automatically detect the
hard disk drives for you. Default: Auto

 Floppy  Drive A / B

Drive A / B:

- None

- 360KB - 5.25"

- 1.2MB 5.25"

- 720KB 3.5"

- 1.44MB 3.5"

- 2.88MB 3.5"

Select the floppy drive type installed in your system.
The available options for Drive A and Drive B are:
360KB 5.25”, 1.2MB 5.25”, 720KB 3.5”, 1.44MB 3.5”,

2.88MB 3.5” and None.

Default: Drive A => 1.44MB 3.5”

Drive B => None

 Video

Magic 586 User’s Manual

< 3-3 >

III. CMOS SETUP UTILITY

Video:

- EGA/VGA

- CGA40

- CGA80

- Mono

Select the video display card type installed in your
system. The available types are: EGA/VGA, CGA 40,
CGA 80 and Mono.

Default: EGA/VGA

 Halt On

Halt On:

- All Errors

- No Errors

- All, But Keyboard

- All, But Diskette

- All, But Disk/Key

This item defines the operation of the system
POST(Power On Self Test). You can use this item to
select which kind of errors will cause the system to halt
during POST. Default: All Errors

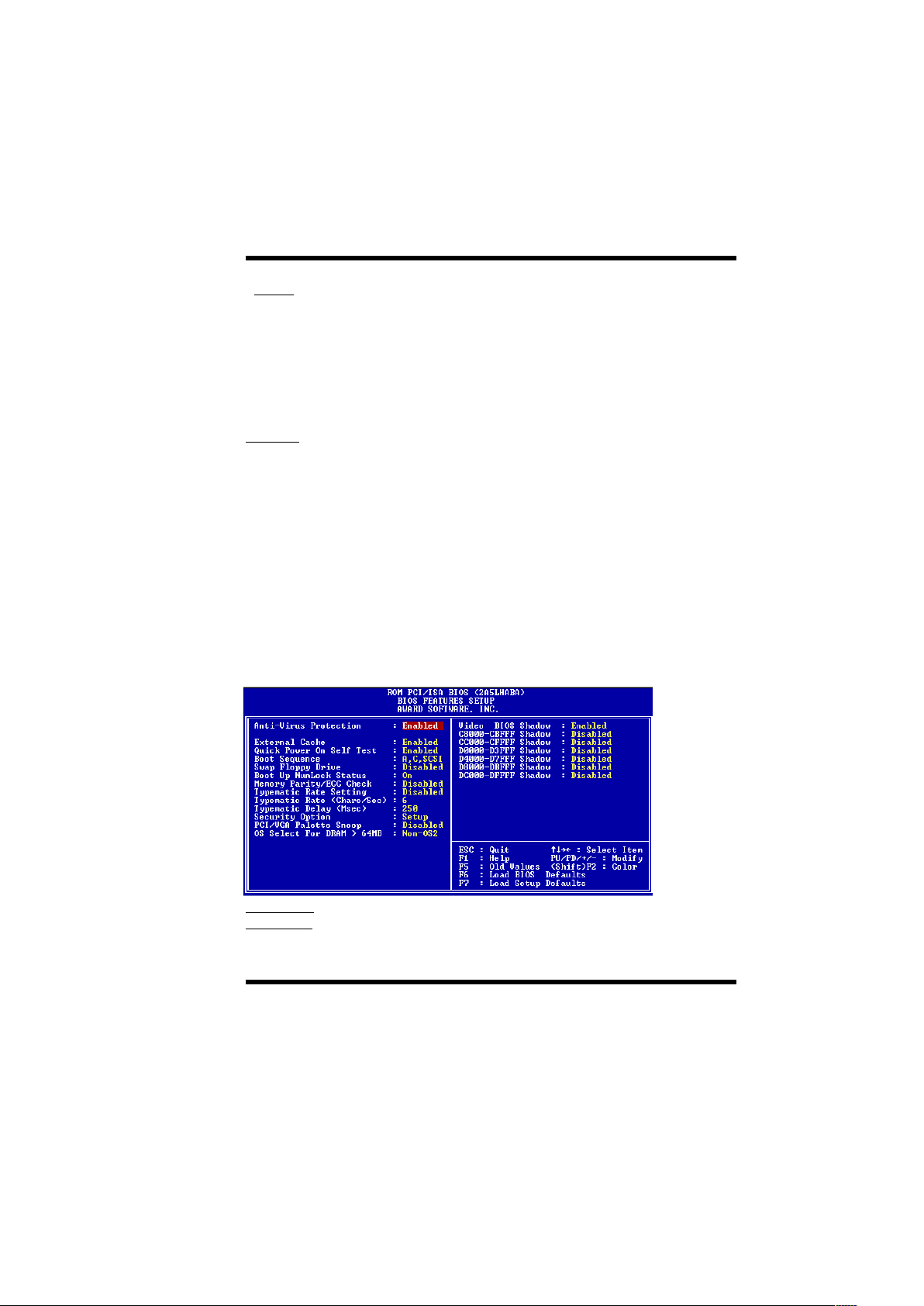

3-3 BIOS Features Setup

This "BIOS Features Setup" option allows you to setup and improve your
system features and performance.

 Anti-Virus Protection

Anti-Virus
Protection:

When this item is enabled, BIOS will automatically load
Anti-Virus program that will prevent your system being

Magic 586 User’s Manual

< 3-4 >

III. CMOS SETUP UTILITY

- Enabled

- Disabled

infected by Boot Viruses.

Default: Enabled

 External Cache

External Cache:

- Enabled

- Disabled

This item controls Enable/Disable the external L2 cache.

Default: Enabled

 Quick Power On Self Test

Quick Power On
Self Test:

- Enable

- Disabled

This item can be used to start operating system quickly by
skip some normal POST checking items.

Default: Enabled

 Boot Sequence

Boot Sequence:

- A,C,SCSI

- C,A,SCSI

- C,CDROM,A

- CDROM,C,A

- D,A,SCSI

- E,A,SCSI

- F,A,SCSI

- SCSI,A,C

- SCSI,C,A

- C only

- LS/ZIP,C B

This item defines where the system will look for an
operating system, and the order of priority. The boot up
search sequence shown as left.

Default: A, C, SCSI

 Swap Floppy Drive

Swap Floppy Drive:

- Enabled

- Disabled

If you have two floppy drives in your system, This item
allows you to swap around the assigned drive letters so
that drive A becomes drive B, and drive B becomes drive
A. Default: Disabled

Magic 586 User’s Manual

< 3-5 >

III. CMOS SETUP UTILITY

 Boot Up NumLock Status

Boot Up NumLock
Status:

- On

- Off

This item defines if the keyboard NumLock key is active
when your system is started.

Default: On

 Memory Parity/ECC Check

Memory
Parity/ECC Check:

- Enabled

- Disabled

To Enable or Disable the BIOS memory parity/ECC
check function.

Default: Enabled

 Typematic Rate Setting

Typematic Rate
Setting:

- Enabled

- Disabled

To Enable or Disable the speed of keyboard to send
repeat keystrokes.

Default: Disabled

 Typematic Rate (Chars/Sec)

Typematic Rate:

- 6

- 8

- 10

- 12

- 15

- 20

- 24

- 30

This item provides typematic rate setting, which allows
you to control the repeated keystrokes speed.

Default: 6

 Typematic Delay (Msec)

Typematic Delay:

- 250

- 500

- 750

- 1000

This item provides typematic delay setting, which allows
you control the delay time between the first and the
second keystroke.

Default: 250

Magic 586 User’s Manual

< 3-6 >

III. CMOS SETUP UTILITY

 Security Option

Security Option:

- Setup

- System

The “Setup” option is for password request in entering
BIOS setup.

The “System” option is for password request in entering
setup and system boot up. Default: Setup

 PCI/VGA Palette Snoop

PCI/VGA Palette
Snoop:

- Enabled

- Disabled

Set this item to Enabled to reduce display problem when
both PCI VGA and some graphic accelerator devices
such as MPEG/Video capture cards are installed in your
system. Default:

Disabled

 OS Select for DRAM > 64MB

OS Select for
DRAM > 64MB:

- OS/2

- Non-OS/2

This item is to patch that OS/2 can not report correct
memory size for more than 64 MB. Set it to OS/2 if you
have an OS/2 installed and have over 64MB system
memory. Default: Non-OS/2

 Video BIOS Shadow

Video BIOS
Shadow:

- Enabled

- Disabled

This item defines if you leave default setting, video
BIOS memory will be copied from ROM into DRAM
area to enhance system performance as DRAM access
time is faster than ROM. Default: Enabled

 C8000-CBFFF Shadow to DC000-DFFFF Shadow

C8000-CBFFF to
DC000-DFFFF
Shadow:

- Enabled

- Disabled

Set Enabled if you know the address that your add-on
card ROM used to shadow them. If the item is Enabled,
BIOS will copy the selected area from ROM to RAM to
increase system performance.

Default: Disabled

Magic 586 User’s Manual

< 3-7 >

III. CMOS SETUP UTILITY

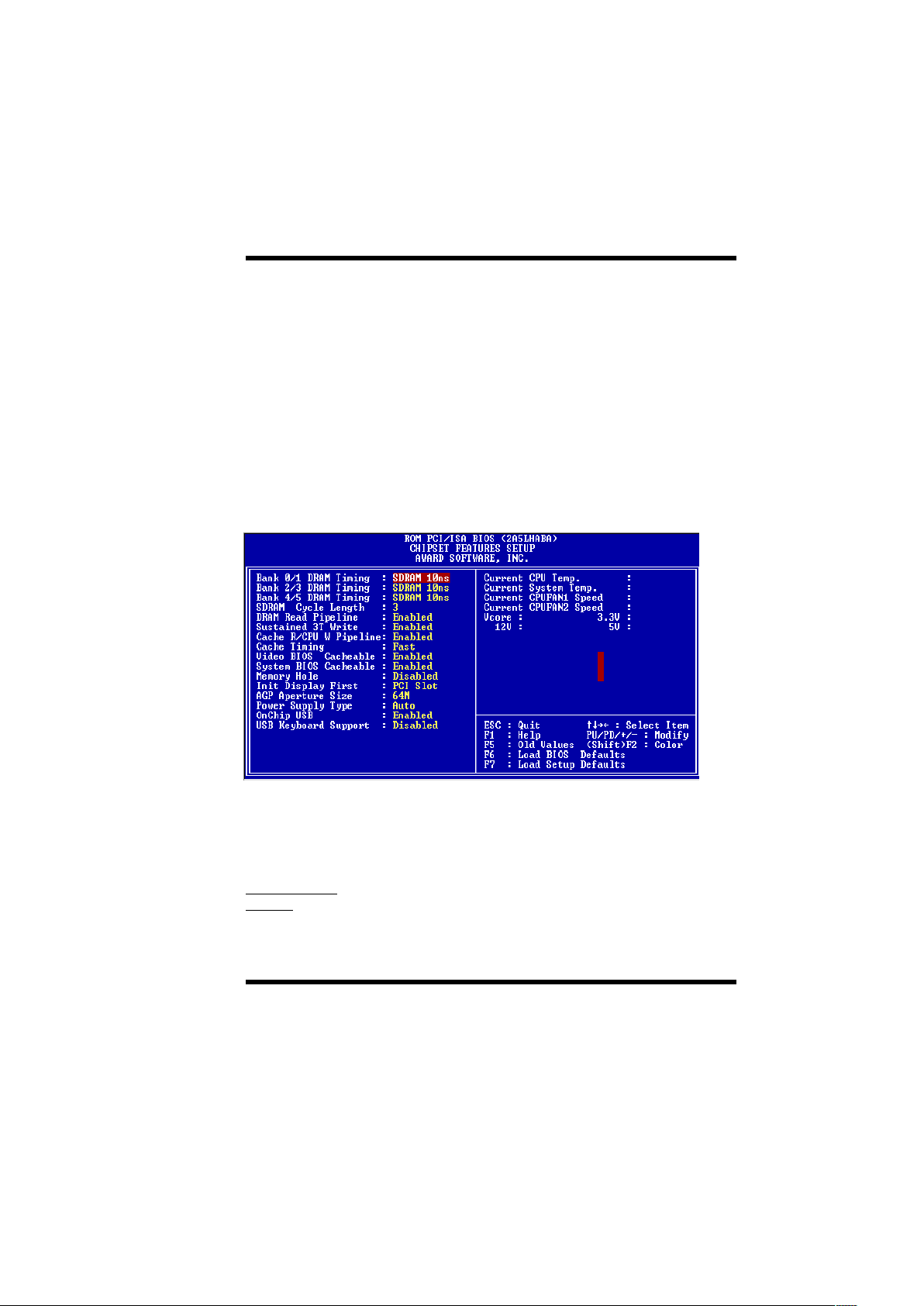

3-4 Chipset Features Setup

This option display a table of items which define timing parameters of the
mainboard components including the graphic system, memory, and the system
logic. In general rule, you should leave the items on this page at the default
values unless you are familiar with the technical specifications of your
hardware. If you change the values, you may introduce fatal errors or recurring
instability into your system.

 Bank 0/1 DRAM Timing
 Bank 2/3 DRAM Timing
 Bank 4/5 DRAM Timing

Bank 0/1 DRAM
Timing:

- SDRAM 10ns

- SDRAM 8ns

- Normal

- Medium

- Fast

- Turbo

These items allow you set the DRAM timing type on
the memory slot DIMM1, DIMM2 & DIMM3.

Default: SDRAM 10ns

 SDRAM Cycle Length

SDRAM Cycle
Length:

- 2

This item defines SDRAM Cycle Length.

Default: 3

Magic 586 User’s Manual

< 3-8 >

III. CMOS SETUP UTILITY

- 3

 DRAM Read Pipeline

DRAM Read Pipeline:

- Disabled

- Enabled

This item allows you enable or disable DRAM Read
Pipeline.

Default: Enabled

 Sustained 3T Write

Sustained 3T Write:

- Enabled

- Disabled

This item allows you enable or disable Sustained 3T
Write.

Default: Enabled

 Cache R/CPU W Pipeline

Cache R/CPU W
Pipeline:

- Enabled

- Disabled

This item enables or disables Cache R/CPU W
Pipeline.

Default: Enabled

 Cache Timing

Cache Timing:

- Fast

- Fastest

This item allows you set the L2 Cache Timing.

Default: Fast

 Video BIOS Cacheable

Video BIOS
Cacheable:

- Enabled

- Disabled

This item allows the video BIOS to be cached for
faster video performance.

Default: Enabled

Magic 586 User’s Manual

< 3-9 >

III. CMOS SETUP UTILITY

 System BIOS Cacheable

System BIOS
Cacheable:

- Enabled

- Disabled

This item allows the system BIOS to be cached for
faster system performance.

Default: Enabled

 Memory Hole

Memory Hole:

- 15M–16M

- Disabled

This item can be used to reserve memory space for
some ISA cards that require it.

Default: Disabled

 Init Display First

Init Display First:

- PCI Slot

- AGP

This item allows you select whether PCI Slot or AGP
device will be initialed first for display.

Default: PCI Slot

 AGP Aperture Size

AGP Aperture Size (MB):

- 4M

- 8M

- 16M

- 32M

- 64M

- 128M

This item defines the effective memory size of the
AGP Aperture.

Default: 64M

 Power Supply Type

Power Supply Type:

- ATX

- P8&P9

This item allows you set your system power supply
type. Select ATX for ATX power supply and P8&P9 for
AT power supply. Default: Auto

Magic 586 User’s Manual

< 3-10 >

III. CMOS SETUP UTILITY

- Auto

Note: The following BIOS items can be functioning
only when the system using ATX power supply and
ATX power supply type is selected in this item.

\ CMOS Setup \ Power Management \

- Wake Up On LAN/Ring

- RTC Alarm Resume

- Soft-Off by PWRBTN

 OnChip USB

OnChip USB:

- Enabled

- Disabled

This item allows you to enable or disable the
mainboard USB function.

Default: Enabled

 USB Keyboard Support

USB Keyboard
Support:

- Enabled

- Disabled

This item is displayed only when you enable the
“OnChip USB” item.

When you set this item to Enabled, the BIOS
simulates USB keyboard in legacy mode, which
means during POST or under operating system, you
can use a USB keyboard without loading USB driver.

Note you can not use both USB driver and USB
legacy keyboard at the same time. Set disabled if you
have USB driver in the operating system.

Default: Disabled

 Current CPU Temp. / Current System Temp.  Current CPUFAN1 Speed / Current CPUFAN2 Speed  Vcore / 3.3V / 5V / 12V

These items are the hardware monitor indicators for displaying the current
CPU/System temperature, CPU Fan Speed, and System voltage status.

Magic 586 User’s Manual

< 3-11 >

III. CMOS SETUP UTILITY

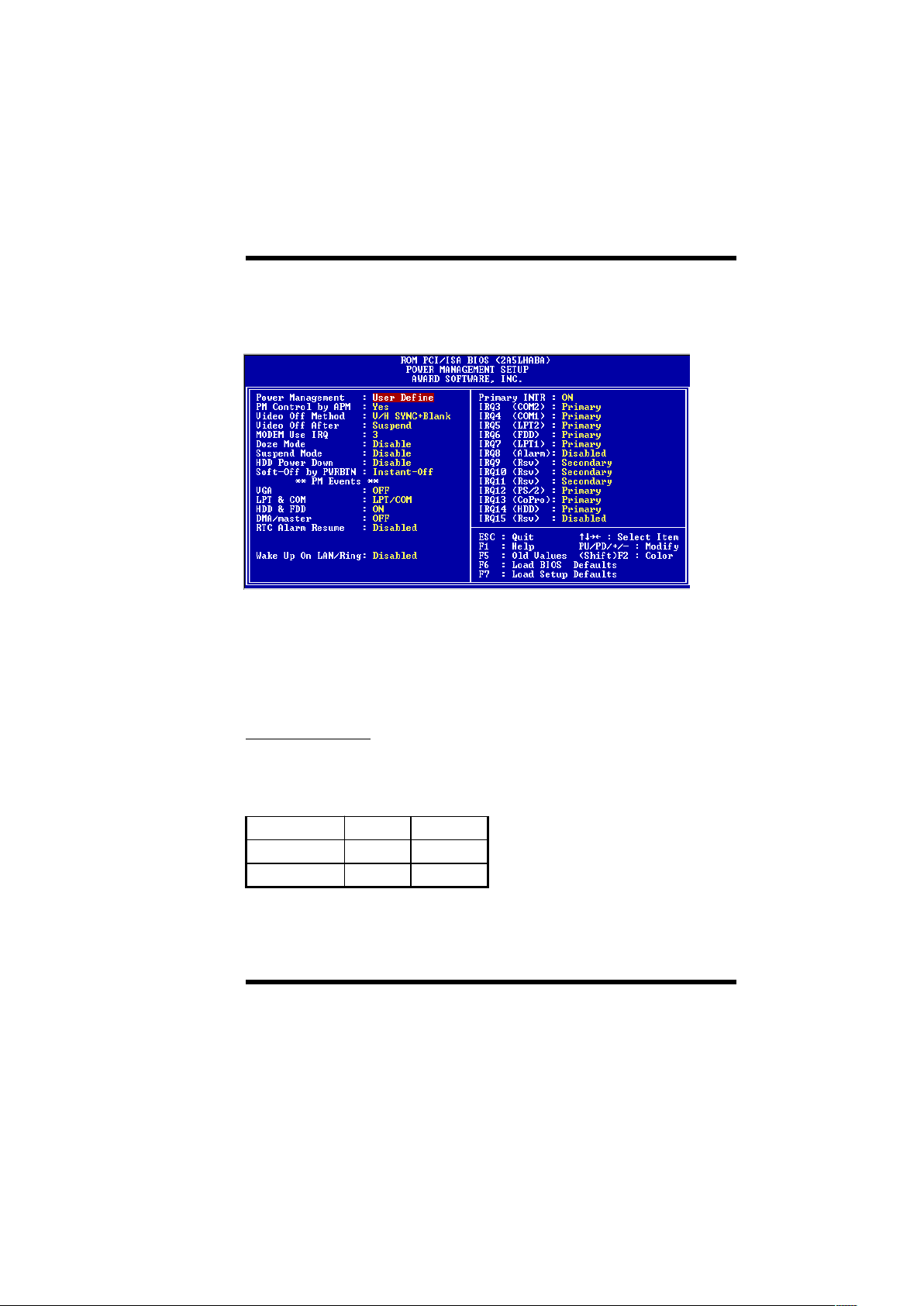

3-5 Power Management Setup

This option displays a table of items which lets you control the power
management of the system. Modern operating system take care of much of the
routine power management. This mainboard supports ACPI (Advanced
Configuration and Power Interface).

Note that the following items will be invisible and not functioning when the
system using P8&P9 AT power supply.

- Wake Up On LAN/Ring, RTC Alarm Resume, Soft-Off by PWRBTN

 Power Management

Power Management:

- Max Saving

- Mix Saving

- User Define

This item allows you to set the default parameters of
power-saving modes. Set to Disable to disable power
management function. Set to User Define to define
your own parameters.

Default: User Define

Mode Doze Suspend

Min Saving 1 hour 1 hour

Max Saving 10 sec 10 sec

 PM Controlled by APM

Magic 586 User’s Manual

< 3-12 >

III. CMOS SETUP UTILITY

PM Controlled by
APM:

- Yes

- No

Set to Yes to transfer power management control to
APM (Advanced Power Management) and enhance
power saving function.

Default: Yes

 Video Off Method

Video Off Method:

- V/H SYNC+Blank

- DPMS Support

- Blank Screen

To select the method to turn off the video monitor for
power saving mode.

Default: V/H SYNC+Blank

 Video Off After

Video Off After:

- Suspend

- Doze

- NA

To select at which power saving mode, the video
monitor will be turned off.

Default: Suspend

 Modem Use IRQ

Modem Use IRQ:

- 3

- 4

- 5

- 7

- 9

- 10

- 11

- NA

To select the IRQ which will be used by system
modem.

Default: 3

 Doze Mode

Doze Mode:

- Disabled

- 10 Sec

This item lets you set the timer after which the system
enters into Doze mode. The system event is detected
by monitoring the IRQ signals or other I/O events.

Magic 586 User’s Manual

< 3-13 >

III. CMOS SETUP UTILITY

- 20 Sec

- ….

- 1 Hour

Default: Disabled

 Suspend Mode

Suspend Mode:

- Disabled

- 10 Sec

- 20 Sec

- ….

- 1 Hour

This item lets you set the timer after which the system
enters into Suspend mode. The system activity is
detected by monitoring the IRQ signals or other I/O
events.

Default: Disabled

 HDD Power Down

HDD Power Down:

- Disabled

- 1 Min

- .....

- 15 Min

This item allows you specify the IDE HDD idle time
before the device enters the power saving mode.

Default: Disabled

 Soft-Off by PWRBTN

Soft-Off by
PWRBTN:

- Instant-Off

- Delay 4 Sec

When set to “Delay 4 Sec”, the power switch on the
front panel can be used to control power
On/Suspend/Off.

Press switch System status
Less than 4 seconds Suspend mode
Longer than 4 seconds Power off
When set to “Instant-Off”, the power switch is only

used to control On/Off, no Suspend mode function.

Default: Enabled

 PM Events  VGA

VGA:

- Off

- On

This item allows you enable or disable the detection of
VGA activities for power saving mode.

Default: Off

Magic 586 User’s Manual

< 3-14 >

III. CMOS SETUP UTILITY

 PM Events  LPT & COM

LPT & COM:

- LPT

- COM

- LPT/COM

- None

This item allows you enable or disable the detection of
LPT & COM activities for power saving mode.

Default: LPT/COM

 PM Events  HDD & FDD

HDD & FDD:

- Off

- On

This item allows you enable or disable the detection of
HDD & FDD activities for power saving mode.

Default: On

 PM Events  DMA/master

DMA/master:

- Off

- On

This item allows you enable or disable the detection of
DMA/master activities for power saving mode.

Default: Off

 PM Events  RTC Alarm Resume

RTC Alarm Resume:

- Enabled

- Disabled

To enable or disable the RTC Wake Up function.

Default: Disabled

 PM Events  Date (of Month)

Date (of Month):

- 0

- 1

- .....

- 31

This item displayed only when you enable the RTC
Alarm Resume item.

You can use this item to specify the date you want to
wake up the system. For Example, if you set to 18,
the system will wake up on the 18th day of every
month. If set to 0, the system will wake up on the
specified time every day.

Magic 586 User’s Manual

< 3-15 >

III. CMOS SETUP UTILITY

 PM Events  Timer (hh:mm:ss)

Timer (hh:mm:ss):

- hh:mm:ss

This item is displayed only when you enable the RTC
Alarm Resume item. You can use this item to specify
the time you want to wake up the system.

 PM Events  Wake Up On LAN/Ring

Wake Up On
LAN/Ring:

- Enabled

- Disabled

To enable or disable Modem or LAN Wake Up
function.

Default: Disabled

 PM Events  Primary INTR

Primary INTR:

- On

- Off

Use this item to enable or disable the detection of
IRQ3 ~ IRQ15 events for power saving mode.

Default: On

 PM Events  IRQ3 (COM2), IRQ4 (COM1), IRQ5 (LPT2), IRQ6

(Floppy), IRQ7 (LPT1), IRQ8 (Alarm), IRQ9 (Reserved), IRQ10
(Reserved), IRQ11 (Reserved), IRQ12 (PS/2 Mouse), IRQ13
(Coprocessor), IRQ14 (Hard Disk), IRQ15 (Reserved)

IRQ3 ~ IRQ15:

- Primary

- Secondary

- Disabled

Select Primary or Disabled to enable or disable the
detection of the specified IRQ for power saving mode.
Select Secondary to wake up the system for 2ms after
detecting the specified IRQ and then return to power
saving mode.

Default: IRQ3 ~ IRQ7, IRQ12 ~ IRQ14 => Primary

IRQ9 ~IRQ11 => Secondary

IRQ8, IRQ15 => Disabled

Magic 586 User’s Manual

< 3-16 >

III. CMOS SETUP UTILITY

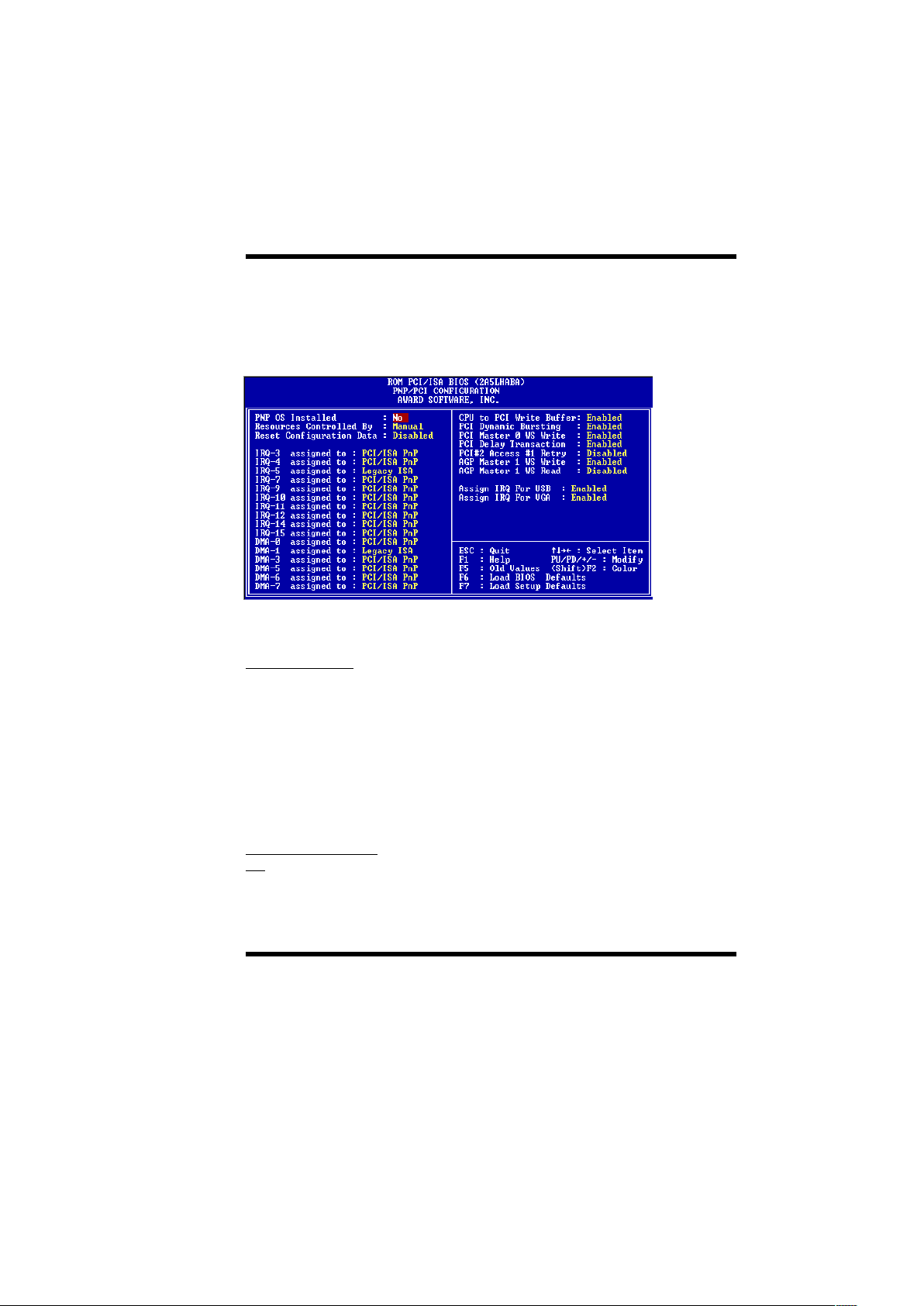

3-6 PNP/PCI Configuration Setup

This option display a table of items that configures how PNP (Plug and Play)
and PCI expansion cards operates in your system.

 PnP OS Installed

PnP OS Installed:

- Yes

- No

Normally, BIOS will allocate the PnP resources during
POST (Power-On Self Test). Set this item to Yes if
you have a PnP operating system such as Windows
95, BIOS will bypass PNP device initial except of boot
device (VGA/IDE or SCSI) and PNP operating system
will do these PNP devices resource allocation. If this
item is set to No, BIOS will handle all PNP devices.

Default: No

 Resources Controlled By

Resources Controlled
by:

- Auto

- Manual

Basically, BIOS will allocate the IRQ/DMA resources
automatically for these PNP/PCI and onboard devices.
The exception might be encountered when legacy ISA
devices are installed, which occupies resources that

Magic 586 User’s Manual

< 3-17 >

III. CMOS SETUP UTILITY

BIOS can not know. Therefore, this option is for BIOS
to know in advance that IRQ/DMA is occupied by
legacy ISA devices if Manual is selected.

Default: Manual

 Reset Configuration Data

Reset Configuration
Data:

- Enabled

- Disabled

When this item is set to Enabled, BIOS will turn it
Disabled again in the next boot up. This item is for
clearing ESCD data. The only reason to clear is the
data loosing the confidence. The engineering test is a
good reason to change the default setting.

Default: Disabled

 IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, IRQ12, IRQ14,

IRQ15

IRQ 3-5, 7, 9-12,

14-15:

- Legacy ISA

- PCI/ISA PnP

Set the selected IRQ to Legacy ISA if your ISA card is
not PnP compatible card and requires a special IRQ to
make it function.

These options provide IRQ resources allocation for
Legacy ISA or PCI/ISA PnP card.

Default: IRQ 5 => Legacy ISA

IRQ 3-4, 7, 9-12, 14-15 => PCI/ISA PnP

 DMA 0, DMA 1, DMA 3, DMA 5, DMA 6, DMA 7

DMA 0,1,3,5-7:

- Legacy ISA

- PCI/ISA PnP

Set the selected DMA channel to Legacy ISA if your ISA
card is not PnP compatible card and requires a special DMA
channel to make it function.

Default: DMA 1 => Legacy ISA

DMA 0, 3, 5-7 => PCI/ISA PnP

 CPU to PCI Write Buffer

CPU to PCI Write
Buffer:

To enable or disable CPU to PCI Write Buffer.

Default: Enabled

Magic 586 User’s Manual

< 3-18 >

III. CMOS SETUP UTILITY

- Enabled

- Disabled

 PCI Dynamic Bursting

PCI Dynamic
Bursting:

- Enabled

- Disabled

To enable or disable PCI Dynamic Bursting.

Default: Enabled

 PCI Master 0 WS Write

PCI Master 0 WS
Write:

- Enabled

- Disabled

To enable or disable PCI Master 0 WS Write.

Default: Enabled

 PCI Delay Transaction

PCI Delay
Transaction:

- Enabled

- Disabled

To enable or disable PCI Delay Transaction.

Default: Enabled

 PCI#2 Access #1 Retry

PCI#2 Access #1
Retry:

- Enabled

- Disabled

To enable or disable PCI#2 Access #1 Retry.

Default: Disabled

 AGP Master 1 WS Write

AGP Master 1 WS
Write:

- Enabled

- Disabled

To enable or disable AGP Master 1 WS Write.

Default: Enabled

Magic 586 User’s Manual

< 3-19 >

III. CMOS SETUP UTILITY

 AGP Master 1 WS Read

AGP Master 1 WS
Read:

- Enabled

- Disabled

To enable or disable AGP Master 1 WS Read.

Default: Disabled

 Assign IRQ For USB

Assign IRQ For USB:

- Enabled

- Disabled

To enable or disable assign IRQ for USB.

Default: Disabled

 Assign IRQ For AGP

Assign IRQ For AGP:

- Enabled

- Disabled

To enable or disable assign IRQ for AGP.

Default: Disabled

Magic 586 User’s Manual

< 3-20 >

III. CMOS SETUP UTILITY

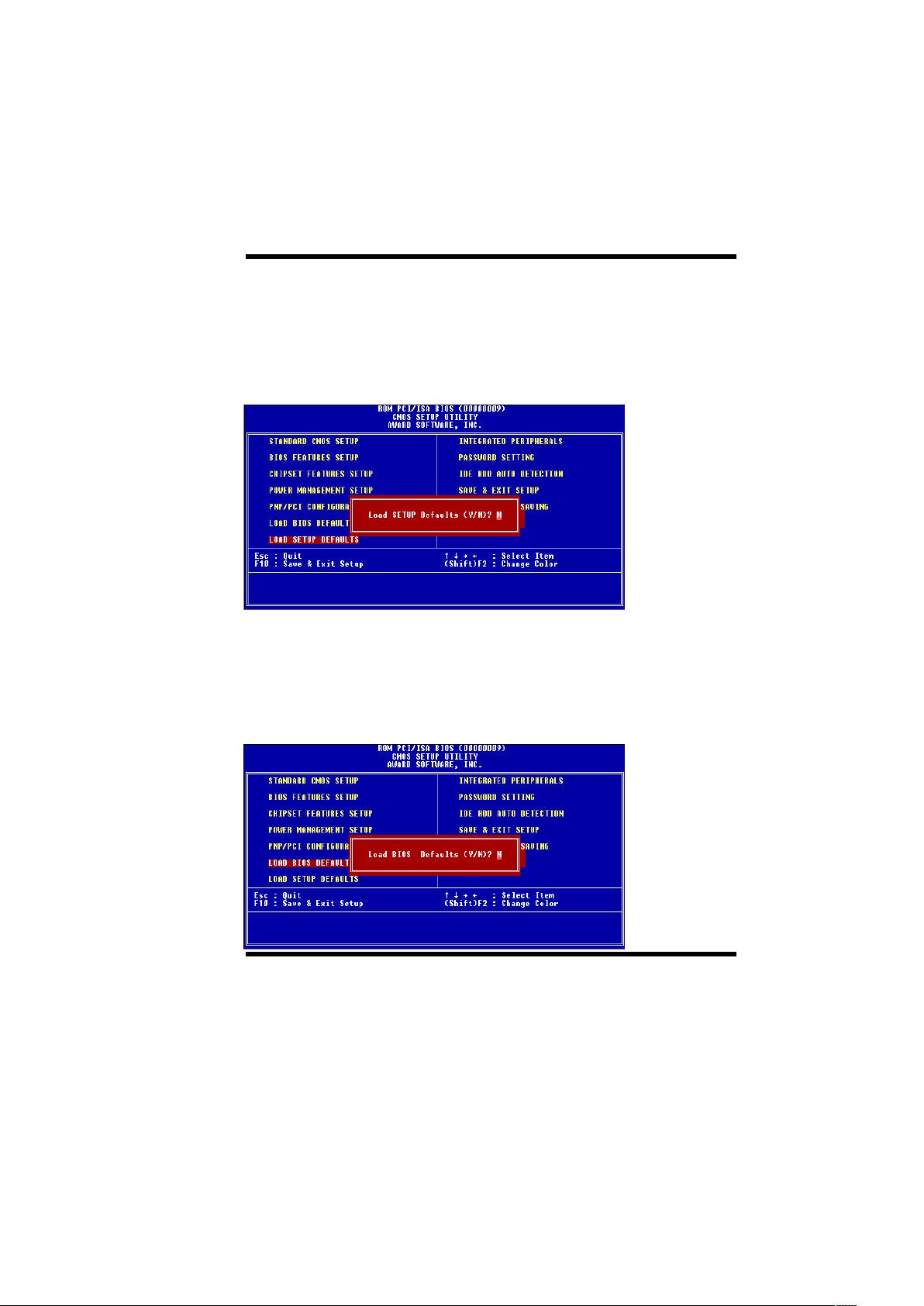

3.7 Load Setup Defaults

This option allows you load BIOS optimized settings for maximum system
performance.

To load Setup Default, press Y key to confirm the operation when you see the
above display.

3-8 Load BIOS Defaults

This option provides the minimum requirements for your system to operate.
Load the BIOS default values if your system has unstable problem with the
setup default value.

Magic 586 User’s Manual

< 3-21 >

III. CMOS SETUP UTILITY

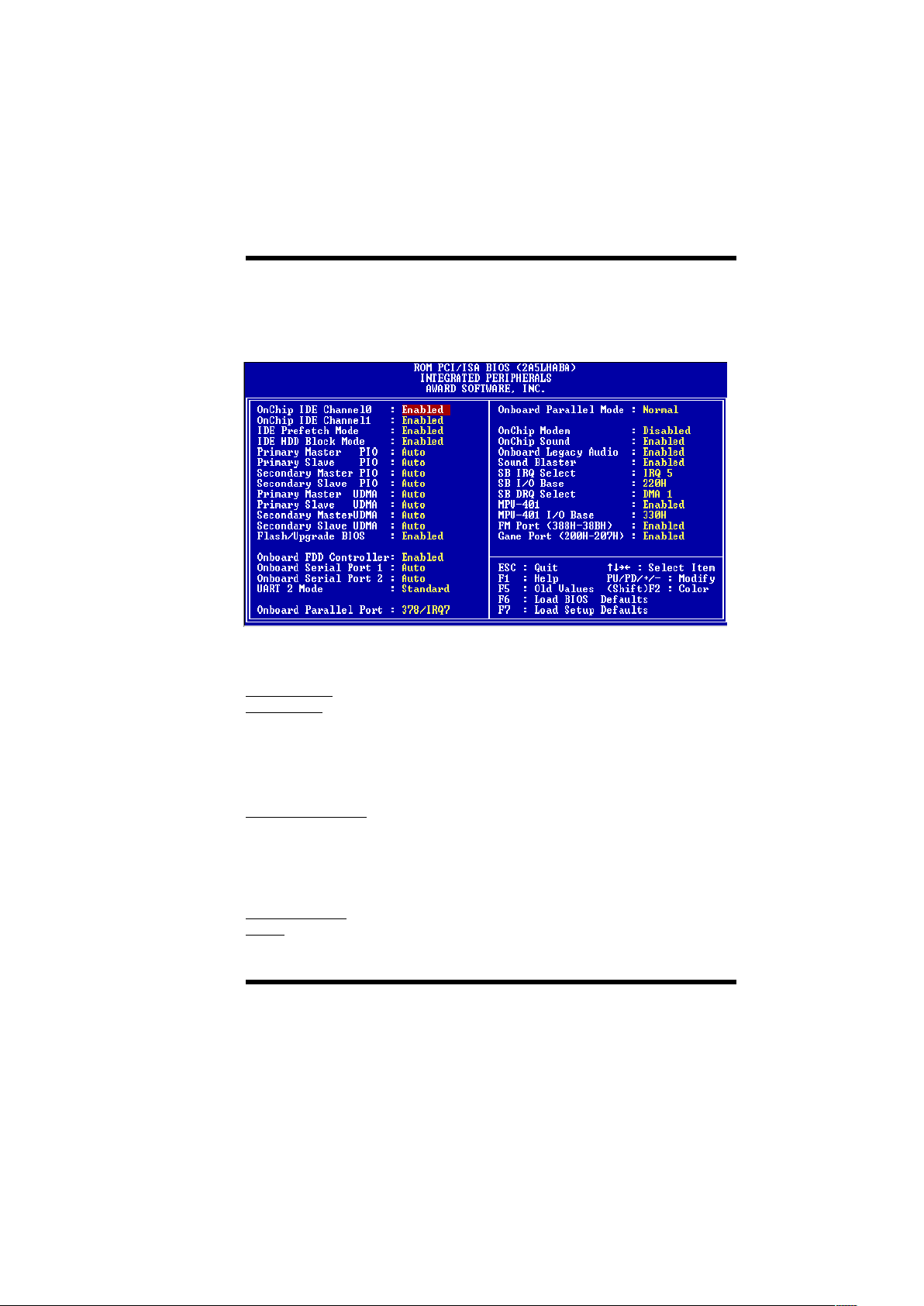

3-9 Integrated Peripherals

This option allows you to configure the I/O features.

 OnChip IDE Channel 0/1

OnChip IDE
Channel 0/1:

- Enabled

- Disabled

To enable or disable the IDE device connected to the
First/Second IDE connector.

Default: Enabled

 IDE Prefetch Mode

IDE Prefetch Mode:

- Enabled

- Disabled

This item allows you to enable or disable IDE Prefetch
Mode.

Default: Enabled

 IDE HDD Block Mode

IDE HDD Block
Mode:

This BIOS supports the enhanced IDE specification
and allow multiple sectors access in a time when

Magic 586 User’s Manual

< 3-22 >

III. CMOS SETUP UTILITY

- Enabled

- Disabled

read/write. If set this item to disabled, IDE runs in
single sector access. Default: Enabled

 Primary Master/Slave PIO  Secondary Master/Slave PIO

Primary/Secondary
Master/Slave PIO:

- Auto

- Mode 1

- Mode 2

- Mode 3

- Mode 4

Set these items to Auto to auto-detect the HDD speed.
The PIO mode specifies the data transfer rate of HDD.

IDE HDD Mode Transfer Rate
Mode 0 3.3MB/s
Mode 1 5.2MB/s
Mode 2 8.3MB/s
Mode 3 11.1MB/s
Mode 4 16.6MB/s.

Set to slower mode if your hard disk performance
becomes unstable. Default: Auto

 Primary Master/Slave UDMA  Secondary Master/Slave UDMA

Primary/Secondary
Master/Slave UDMA:

- Auto

- Disabled

These items allows you to set the Ultra DMA/33 mode
supported by the IDE hard disk drive installed in your
system.

Default: Auto

 Flash/Upgrade BIOS

Flash/Upgrade BIOS:

- Enabled

- Disabled

This item allows you to protect your mainboard BIOS
being flashed/upgraded by MAXFLASH.EXE flash
utility if you set this item disabled.

You can specify the BIOS password to avoid that
someone can change your setting.

Default: Enabled

 Onboard FDC Controller

Onboard FDC
Controller:

To enable or disable the onboard floppy disk
controller. Set to disabled if you want to use a

Magic 586 User’s Manual

< 3-23 >

III. CMOS SETUP UTILITY

- Enabled

- Disabled

separate floppy disk controller card.

Default: Enabled

 Onboard Serial Port 1 / Port 2

Onboard Serial Port 1
& 2:

- Auto

- 3F8/IRQ4

- 2F8/IRQ3

- 3E8/IRQ4

- 2E8/IRQ3

- Disabled

This item allows you to select the I/O port and IRQ
used by the onboard serial ports.

Default: Onboard Serial Port 1=> 3F8/IRQ4

Onboard Serial Port 2=> 2F8/IRQ3

 UART 2 Mode

UART 2 Mode:

- Standard

- HPSIR

- ASKIR

This item is selectable only when the onboard serial
port 2 is enabled. The available mode selections for
the serial port 2 are Standard, HPSIR, and ASKIR.

Standard: Configures serial port as normal mode.

HPSIR: Set to this setting if there is an infrared device

connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 115K baud.

ASKIR: Set to this setting if there is an infrared device
connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 19.2K baud.

Default: Standard

 IR Function Duplex

IR Function Duplex:

- Half

- Full

This item is selectable only when the onboard serial
port 2 is enabled and the HPSIR or ASKIR is selected
under UART 2 Mode item.

This item allows you to select the value required by
the IR device connected to the IR port. Full-duplex
mode permits simultaneous two-direction

Magic 586 User’s Manual

< 3-24 >

III. CMOS SETUP UTILITY

transmission. Half-duplex mode permits transmission
in one direction only at a time.

Default: Half

 Onboard Parallel Port

Onboard Parallel
Port:

- 3BC/IRQ7

- 378/IRQ7

- 278/IRQ7

- Disabled

This item controls the onboard parallel port address
and interrupt.

Default: 378/IRQ7

 Parallel Port Mode

Parallel Port Mode:

- Normal

- EPP

- ECP

- ECP + EPP

This item allows you to set the parallel port mode.

1. Normal => SPP (Standard Parallel Port): IBM AT
and PS/2 compatible mode

2. EPP (Enhanced Parallel Port): To enhances the
parallel port by directly write/read data to/from
parallel port without latch.

3. ECP (Extended Parallel Port): ECP supports DMA
and RLE (Run Length Encoded) compression and
decompression.

Default: SPP

 ECP Mode Use DMA

ECP Mode Use DMA:

- 3

- 1

This item displayed when select the ECP mode above
for the parallel port. You can set the DMA channel of
ECP mode. Default: 3

Magic 586 User’s Manual

< 3-25 >

III. CMOS SETUP UTILITY

3-10 Password Setting

Password prevents unauthorized use of your computer. If you set a password,
the system prompts for the correct password before boot or access to Setup,
the steps as follows,

1. Highlight the item Password Setting on the main menu and press ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password.
Press ENTER after you have typed in the password. If you are deleting a
password that is already installed just press ENTER when the password
dialog box appears.

4. The system will ask you to confirm the new password by asking you to
type it in a second time. Carefully type the password again and press
ENTER, or just press ENTER if you are deleting a password that is
already installed.

5. If you typed the password correctly, the password will be installed.

[Note]

If you forget your password, or you want to cancel your password, you can do

the steps as the following,

(1) Password forgotten:

i> Turn off the system

ii> Short JP1 at Pin 2-3 for a few seconds to clear CMOS.

iii> Set the JP1 back to Pin 1-2.

iv> Power on the system.

(2) Clear Password:

Clear your password by key-in the password you installed before,
then go to PASSWORD SETTING to press ENTER twice.

Magic 586 User’s Manual

< 3-26 >

III. CMOS SETUP UTILITY

3-11 IDE HDD Auto Detection

This item automatically detects and installs any hard disk drives installed on
the primary and secondary IDE channel. Most modern drives can be detected.
If you are using a very old drive that can27t be detected, you can install it
manually using the Standard CMOS Setup option. Setup will check for two
devices on the primary IDE channel and then two devices on the secondary
IDE channel. At each device, the system will flash an N in the dialog box.
Press Enter to skip the device and proceed to the next device. Press Y, then
Enter to tell the system to accept the BIOS auto-detected device type.

3-12 Save & Exit Setup

Highlight this item and press ENTER to save the changes that you have made in the setup utility and exit the setup program. When the Save and Exit dialog box appears, press Y to save and exit, or press N to return to the setup main menu.

3-13 Exit without Saving

Use this option to exit Setup Utility without saving the CMOS value changes.

Magic 586 User’s Manual

< 3-27 >

SECTION 4.

SOFTWARE UTILITY

4-1 BIOS Flash/Upgrade Procedures

To upgrade your mainboard BIOS, please follow the steps below:

1. Get the newest version BIOS to fit your mainboard model from your

mainboard distributor.
! Boot up your system without loading config.sys and autoexec.bat !

2. For Win95/98 system, press F8 before Win95/98 boot-up, and select

"Safe mode command prompt only".
For Non-Win95/98 system, boot-up the system into DOS prompt with
a bootable floppy disk.

3. Run A:\> or C:\>bxa120.exe

(Assuming model is BXA, execution file is bxa120.exe, and your floppy
drive is drive A and hard disk drive is drive C)

4. After loading the new BIOS code, the utility will prompt you to save

original BIOS code into your HDD or floppy. Please press "Y" to store
it as "BIOS.OLD".

5. After the old BIOS has been successfully saved, press "Y" to upgrade

BIOS.

!!! DO NOT TURN OFF THE POWER DURING THE FLASHING
PROCESS.!!!

6. After the flashing process, reboot the system by turn off the power.

7. Press "DEL" key to enter BIOS setup during POST. Reload the "BIOS

SETUP DEFAULT" and reconfigure the other items as your previous
setting.

8. Then save and exit.

Magic 586 User’s Manual

< 4-1 >

IV.SOFTWARE UTILITY

4-2 VIA Chipset Driver Utility

This mainboard has five sets of VIA chipset drivers as below. All drivers can
be found under the directory \IDE\VIA in the bundled CD title. Please follow
the installation instruction in the bundled CD to install all these necessary
drivers.

Drivers Overview:

 VIA Bus Master IDE Driver

- Microsoft Windows 95/Windows 98

- Microsoft Windows NT

 VIA AGP Driver

- Microsoft Windows 95/Windows 98

 VIA IRQ Routing Driver

- Microsoft Windows 95/Windows 98

For all VIA chipsets using VT82C586A or VT82C586B south-bridge

chipsets.

 VIA USB Filter Driver

This driver adds support for more USB devices to the VT82C586B and

VT82C596

 PCI Bridge Patch

This patch allows Win95/98 to recognize the VIA chipset in the system
device manager.

Magic 586 User’s Manual

< 4-2 >

IV.SOFTWARE UTILITY

4-3 VIA Audio Driver Utility

This mainboard has three sets of audio drivers for different operation
system. All drivers can be found under the directory \AUDIO\VIA in the
bundle CD title.

Drivers Overview:

 Microsoft Windows DOS

 Microsoft Windows 95

 Microsoft Windows 98

Magic 586 User’s Manual

< 4-3 >

SECTION 5.

Audio Driver/Utility

This mainboard has four sets of audio drivers for different operation system.
All drivers can be found in the bundle CD title.

Drivers Overview:

 Microsoft Windows 95/Windows 98

 Microsoft Windows NT 3.50/3.51/4.00

 Microsoft Windows 3.1

 OS/2 2.1/3.0

5-1 Windows 95/98 Driver Installation

5-1.1 Driver files location:

Windows 95/98 audio driver for English version: \Audio\win95

Windows 95/98 audio driver for Chinese version: \Audio\multi_l\Chinese

Windows 95/98 audio driver for French version: \Audio\multi_l\ French

Windows 95/98 audio driver for Germany version: \Audio\multi_l\ German

Windows 95/98 audio driver for Japan version: \Audio\multi_l\ Japanese

Windows 95/98 audio driver for Spanish version: \Audio\multi_l\ Spanish

Windows 95/98 audio driver for Korea version: \Audio\multi_l\Korean

Windows 95/98 audio driver for Italian version: \Audio\multi_l\ Italian

Magic 586 User’s Manual

< 5-1 >

V. AUDIO DRIVER & UTILITY

5-1.2 Procedure:

Magic 586 User’s Manual

< 5-2 >

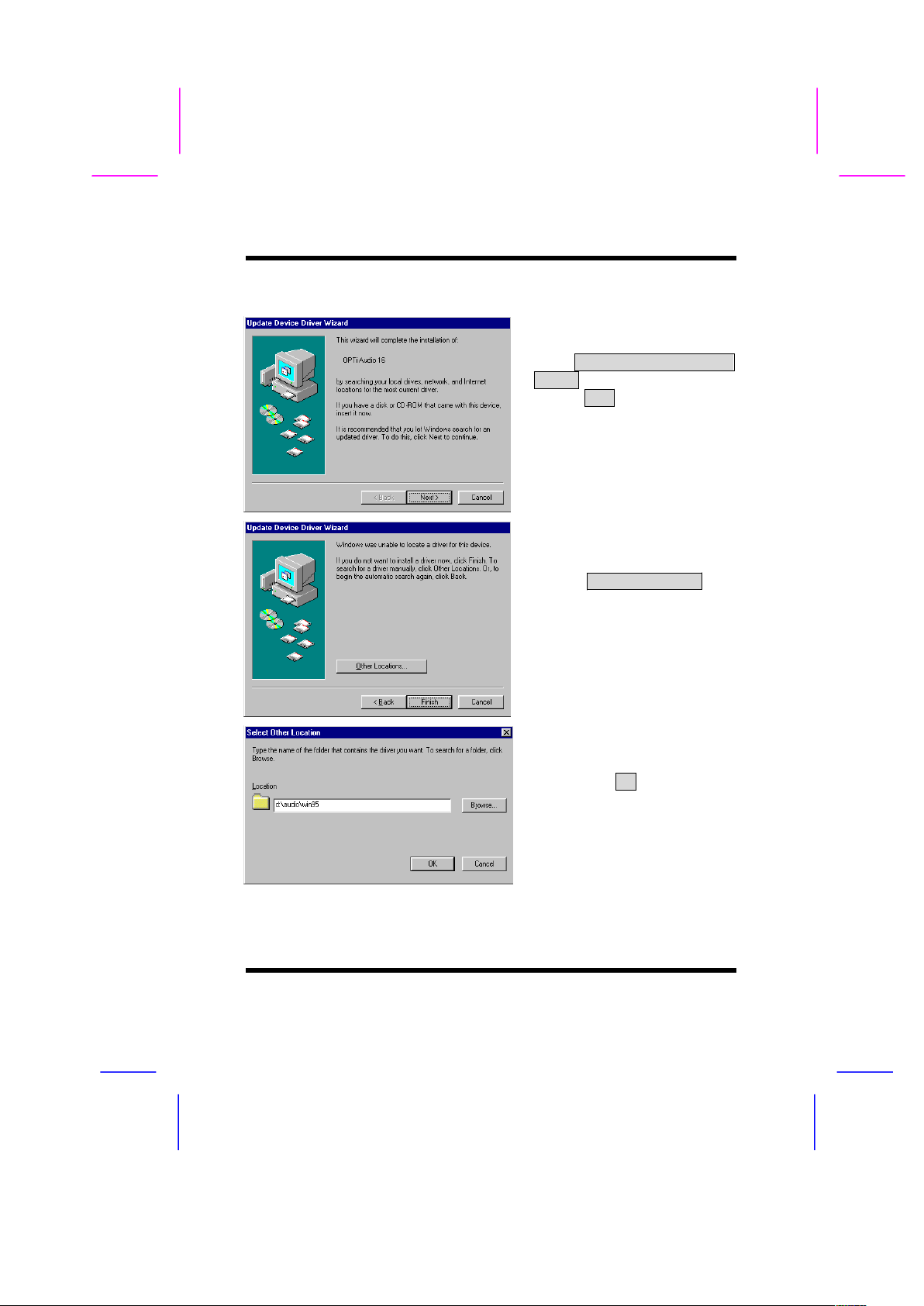

1.Update Device Driver Wizard

When windows 95/98 boot up,
the ”Update Device Driver
Wizard” will appear. Please
select ”Next” to complete the
Audio driver installation.

2.Select Location

If Windows can not find the
proper driver location, please
select ”Other Locations.. ” for
the right driver location.

Type in the driver location: D:\
audio\win95(assuming your CD­ROM disc drive is in drive D),
then select OK.

V. AUDIO DRIVER & UTILITY

After finishing the driver installation, the following sound devices will be added
under Win95 Device Manager.

Magic 586 User’s Manual

< 5-3 >

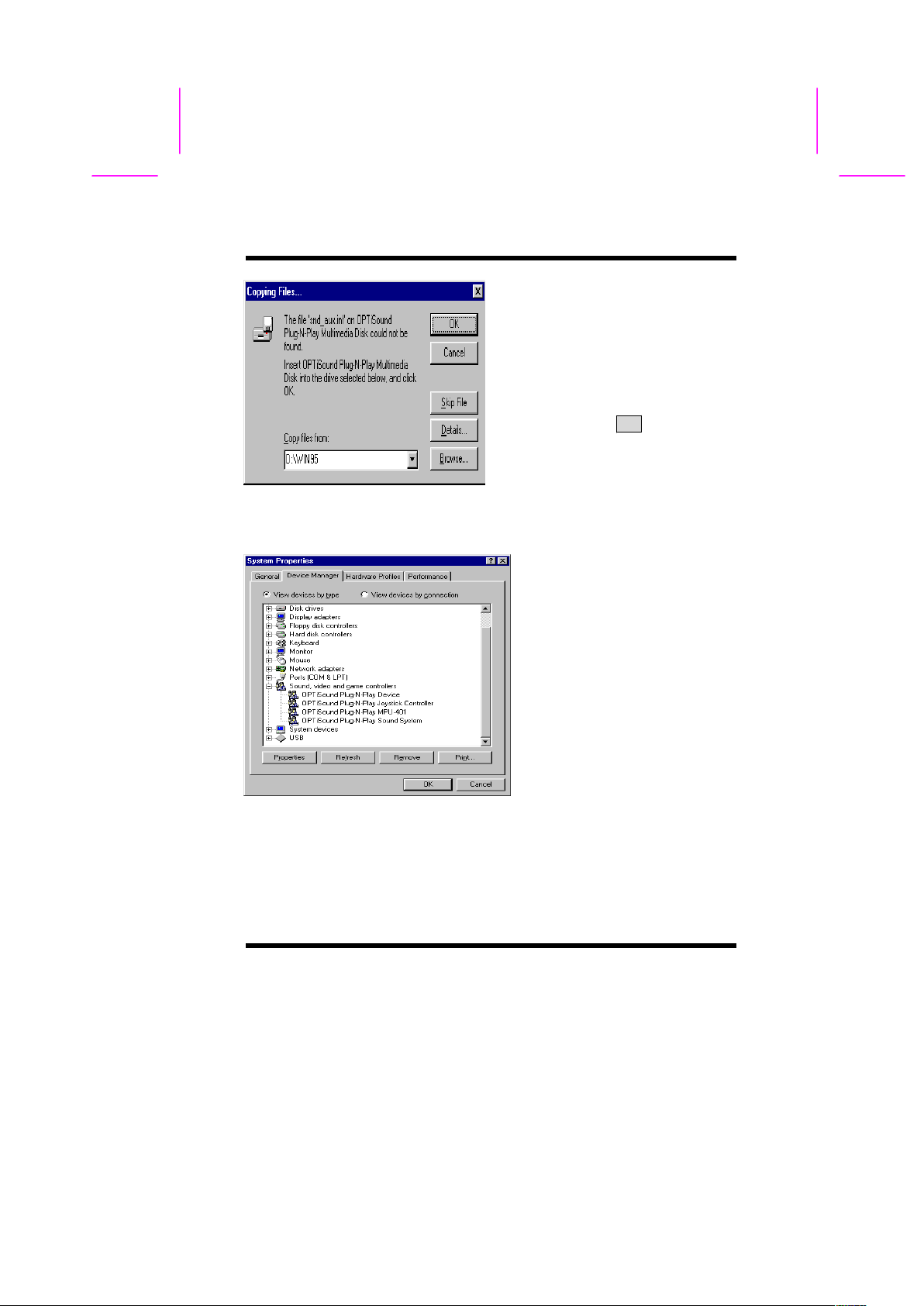

3.Copy Files From:

Windows 95 will then ask you
confirm the driver location,
please type in D:\audio\win95
(assuming your CD-ROM disc
drive is in drive D).

After Windows 95 has finished
copying all necessary files,
please select Yes to restart
your computer.

V. AUDIO DRIVER & UTILITY

5-1.3 Install Utility:

Insert the Super586 installation CD. The Super586 Install Shell will appear. If it
does not appear, run D:\setup.exe. You will be presented with a list of install
options. Below screen will appear if select OPTi sound Utility Installation.

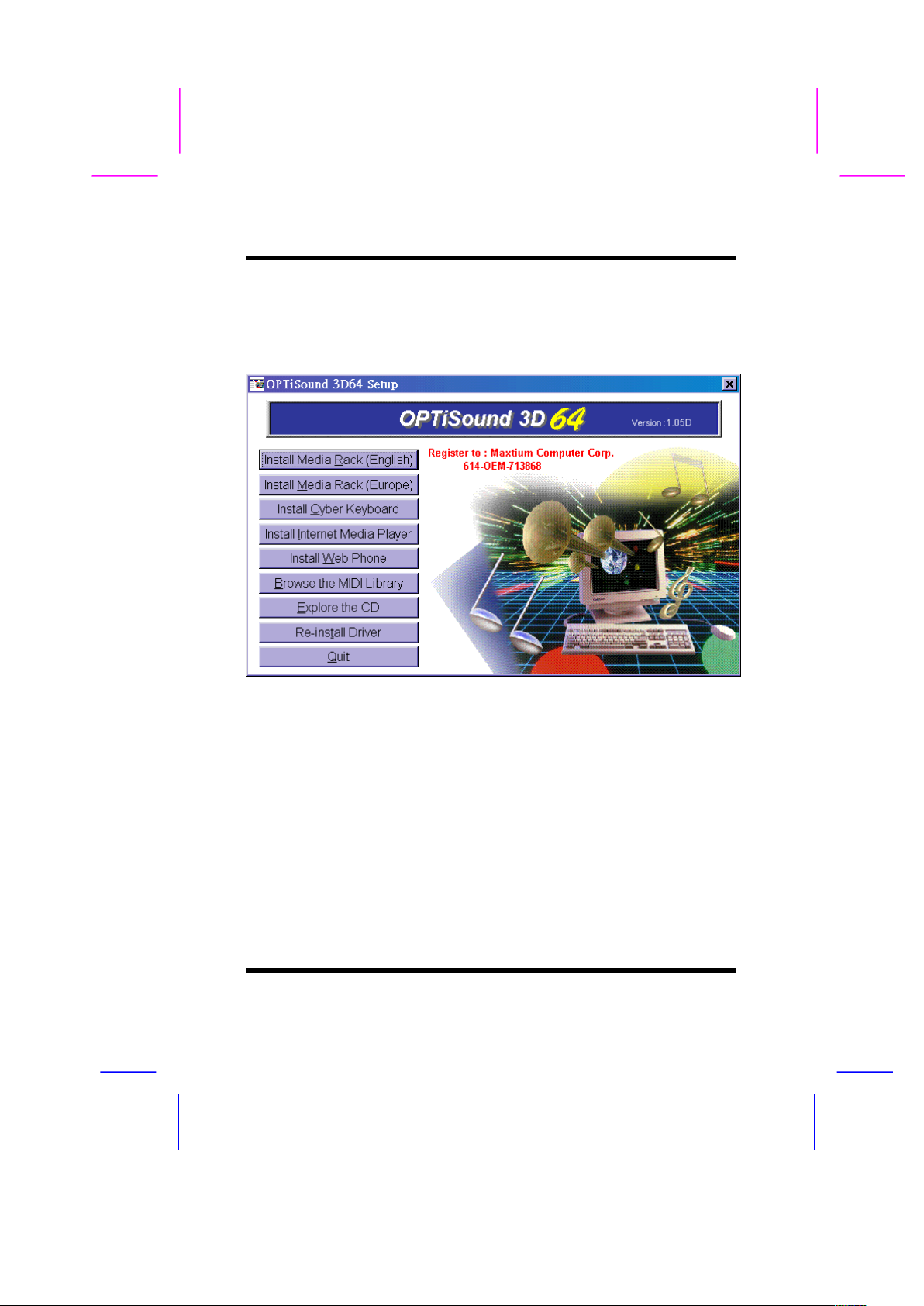

5-2 Windows NT Driver Installation

5-2.1 Divers Files Location

Windows NT audio driver: \Audio\win_nt

Magic 586 User’s Manual

< 5-4 >

V. AUDIO DRIVER & UTILITY

5-2.2 Procedure:

1. Click Start Setting  Control Panel

2. Double Click Multimedia Icon

3. Click DeviceAdd

4. Select Unlisted or Updated Driver then click ok.

5. Input Driver Path <CD-ROM Drive>:\Audio\win_nt

6. Select OPTi 82c933 then click ok .

7. Restart your System , Driver Installation Finished.

5-3 DOS/Windows 3.1 Driver Installation

5-3.1 Divers Files Location

Windows 3.1 audio driver: \Audio\win_nt

5-3.2 Procedure:

Run<CD-ROM Drive>:\Audio\dos_w31\setup.exe

5-4 OS/2 Driver Installation

5-4.1 Divers Files Location

Windows 3.1 audio driver: \Audio\OS2

5-4.2 Procedure:

Run<CD-ROM Drive>:\Audio\os2\minstall.exe

Magic 586 User’s Manual

< 5-5 >
