Maxon MM-5100U User Manual

FCC Documentation (MM-5100U)

1/21

confidential and proprietary information

FCC Documentation

MM-5100U CDMA 1X Voice/Data Modem

Version : 0.1
Date : NOV. 05, 2003

36a Gibson Avenue, Padstow

New South Wales, 221 1. Australia

Phone:[phone]

URL: http//www.maxon.com.au

Maxon Proprietary : Restricted Distribution

This document is the sole and exclusive
property of Maxon. Not to be distributed or
divulged without prior written agreement.

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

FCC RF EXPOSURE COMPLIANCE

In August 1996 the Federal Communications Commission (FCC) of the United States with its action
in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines
are consistent with the safety standard previously set by both U.S. and international standards
bodies. The design of this phone complies with the FCC guidelines and these international
standards.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, o

r

attachments could impair call quality, damage the phone, or result in violation of FCC regulations.

This MM-5100U CDMA card has been tested for FCC RF exposure hand and body SAR
compliance. In order to comply with FCC RF exposure requirements, this product must be
operated with the MM-5100U CDMA card. The use of this card in any other type of host
configuration may not comply with FCC RF exposure requirements and should be avoided.
During operation, a 1.5cm separation distance should be maintained between the antenna,
whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists,
feet, and ankles) to ensure FCC RF exposure compliance.

CAUTION

Change or modification without the express consent of CMOTech Co., Ltd. voids the user’s
authority to use the equipment. This equipment has been tested and found to comply with the
limits pursuant to Part 22 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in an appropriate installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can
cause harmful radiation to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If the equipment does cause harmful interference in radio
and television reception, which can be determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna
 Increase the separation distance between the equip ment and the receiver
 Contact CMOTech Co., Ltd. Technical Support for assistance.

2/21

Confidential and proprietary information

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

Table of contents

1.

Contact Information·······························································································4

2. Product Overview ··································································································5

2.1

Overview........................................................................................................5

2.2

What is the MM-5100U CDMA 1X Voice/Data Modem................................5

2.3

Supplied accessories................................................................................... 5

3. Specifications ········································································································6

3.1

Mechanical Specifications........................................................................... 6

3.2

Environment Specifications........................................................................ 6

3.3

Electrical Specifications.............................................................................. 6

3.4

CDMA RF Specifications..............................................................................7

4. Instruction··············································································································9

4.1

Supplied accessories................................................................................... 9

4.2

Getting start.................................................................................................. 9

5. Circuit description·······························································································13

5.1

MM-5100U CMDA 1X Modem circuit description.....................................13

5.2

Power interface part...................................................................................14

5.3

Digital part................................................................................................... 14

5.4

RF part.........................................................................................................15

6. Range of operating power levels and description of means for variation of

operating power

···································································································17

7. Description of frequency determining and stabilizing circuitry······················ 18

8. Description of circuit employed for suppression of spurious radiation········ 19

9. Description of modulation system used ···························································20

1.

3/21

Confidential and proprietary information

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

Contact Information

If you have any technical queries about this manual, please contact:
Maxon Electronics Australia Pty. Ltd.
36a Gibson Avenue
Padstow, New South Wales 2211
Australia
Phone: [phone]
Fax: [phone]
Mr. Ray Sanders-Managing Director
Mr. Ashween Prasad- T echnical Manager
Email:

[e-mail]

4/21

Confidential and proprietary information

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

2. Product Overview

2.1 Overview

The MM-5100U CDMA 1X Voice/Data Modem provides the most convenient environment for
wireless voice communication, wireless internet and wireless e-mail at up to 153kbps of data rate
anywhere. This modem functions as a wireless Voice/Data Modem, a modem, a mobile phone and
allows you to connect to the Internet, send and receive e-mail, connect to a corporate network, and
make phone calls, without the need of a network cable or phone line.
The MM-5100U card performs data communication functions between Host and IS-95 CDMA
Cellular station.

2.2 What is the MM-5100U CDMA 1X Voice/Data Modem

- IS-95A, B, and cdma2000-1X CDMA Protocol Support

- Remote controlled by AT commands

- DATA transmission up to 153Kbps [network limited]

- LED indicating of the modem status

2.3 Supplied accessories

- MM-5100U CDMA 1X Voice/Data Modem (1)

- Ear-piece assembly (1)

- USB interface cable assembly (1)

- Driver CD (1)

3.

5/21

Confidential and proprietary information

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

Specifications

3.1 Mechanical Specifications

Table 3.1 mechanical specifications
Dimensions 58mm x 38mm x 12mm, except antenna & USB connector parts
Weight Approx. 35g , except ear-piece & USB cable assemblies
Housing Material ABS

3.2 Environment Specifications

Table 3.2 environment specifications
Operating conditions 0°C ~ +60°C , 85%(at 50(C), relative humidity (non-condensing)
Storage Temperature -40°C ~ +70°C
Humidity 95%, non-condensing

3.3 Electrical Specifications

Table 3.3 Current Consumption

- DC input voltage +5VDC from USB port

- Maximum current Under 850mA

- Typical current Under 200mA

- Digital block operating voltage +3.0V (typical)

On communication @ Maximum TX Power (24+/- 0.3dBm) Under 700mA

(Note) The current consumption might vary of 5% over the whole operating temperature range.

6/21

Confidential and proprietary information

This document is the sole and exclusive property of Maxon Australia.

Not to be distributed or divulged without prior written agreement.

FCC Documentation- MM-5100U CDMA 1X Voice/Data Modem

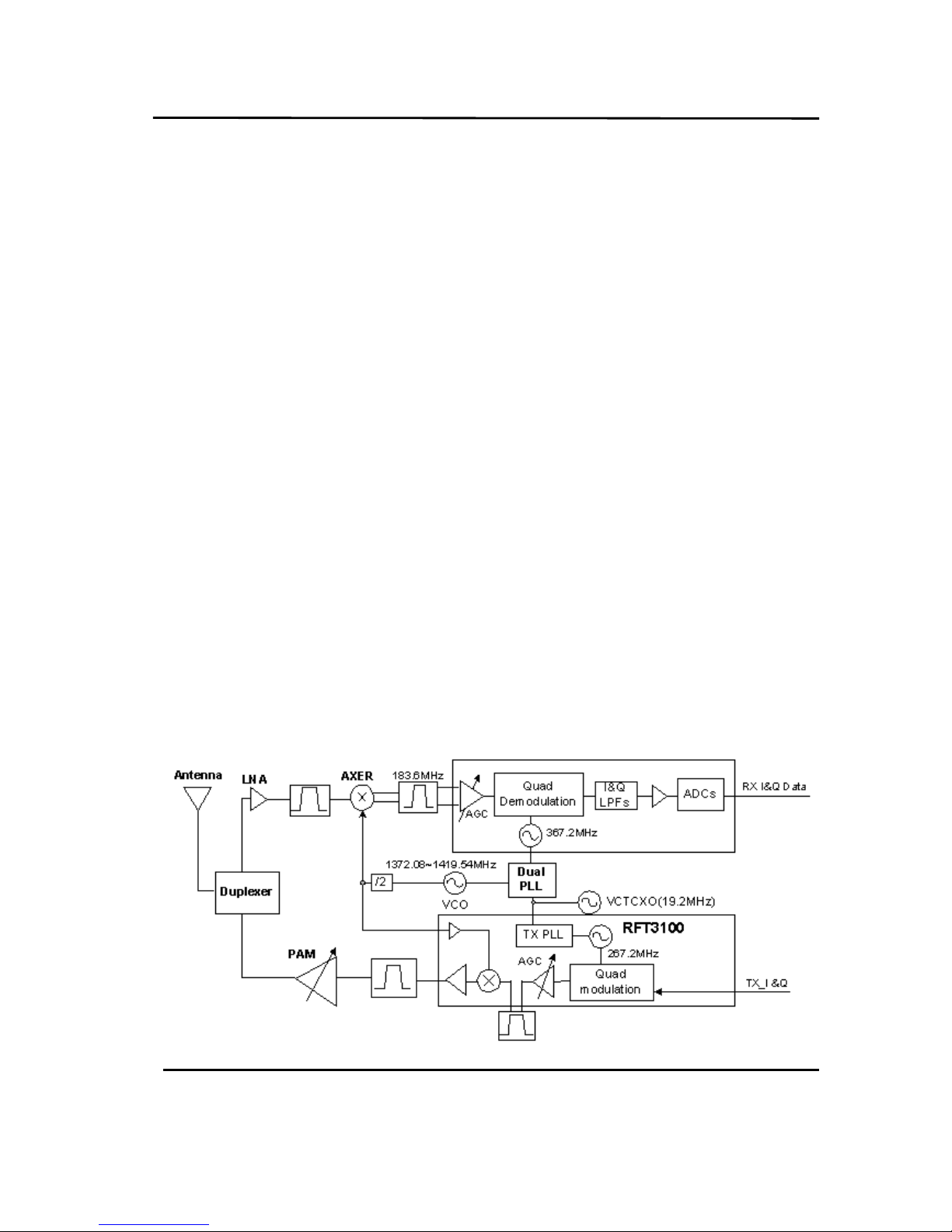

3.4 CDMA RF Specifications

RF performances are compliant with IS-95A/B, cdma2000-1X RTT CDMA Protocol.

3.4.1 Transmitter specifications

Table 2.4 Transmitter performance
Type of Multiplexing Frequency-Division Duplex
Frequency Range 824.64MHz ~ 848.37MHz
Channel Number 20CH
Bandwidth 1.23MHz
Occupied Bandwidth Under 1.32MHz
Type of Oscillation PLL Synthesizer & VCTCXO(19.2MHz)
VCO Output Frequency Range
( divide-by-2 frequency range)

1372.08MHz ~ 1421.54MHz

(686.04MHz ~ 710.77MHz)
Intermediate Center Frequency 138.6MHz
Modulation Method OQPSK
RF Maximum Output Power 0.28W (24.5dBm/1.23MHz)
Frequency Stability(Accuracy) Under defined freq. +/- 300Hz
Waveform Quality Over 0.944
Conducted Spurious Emission Over carrier +/-900KHz, -42dBc/30KHz

Over carrier +/-1980KHz, -54dBc/30KHz
Common RF Impedance 50ohm
Supplied voltage +3.8V DC @ Power Amp.

+2.85V DC @ TX block
