Maxoak Bluetti User Manual
500Wh Portable Power Station
User Manual
Contents
English................................01-14
Deutsch..............................15-29
日本語
................................30-42
Forehead
Please note the below comments while reading the instruction manual
●Due to product improvements, partial changes in appearance and specications may
be made without prior notice.
●This manual cannot be copied or reproduced without the use of the individual.
●If the product requires maintenance, please contact the local designated system
installation and maintenance personnel.
Disclaimer
●The company shall not be liable for any damage caused by force majeure such as re,
typhoon, ood, earthquake or customer's intentional negligence, misuse or use under
other abnormal conditions.
●Defect caused by the non-standard connectors is not compensable.
●The company does not assume any responsibility for damage caused by not operating
the product in accordance with the instructions in the operating instructions.
●This product is not suitable neither for atomic energy equipment, aerospace equipment,
transportation equipment, medical equipment, etc. which are related with personal
safety or equipment relies heavily on uninterrupted electricity must be guaranteed. It is
assumed that the product is used on the above equipment or machine, the company
is not liable for any personal accidents, re accidents, or malfunctions caused by the
malfunction of the product.
EN-01
Safe Operating Guidelines
！
！
！
！
！
！
Please be sure to observe the following for safe use
The situation in which people die or are seriously injured to a large extend
DANGER
WARNING
ATTENTION
Serious Injury: refers to blindness, injury, electric shock, fracture, poisoning and other
sequelae, and to be hospitalized or regularly need to go to the hospital for treatment.
Injuries: refer to injuries, burns, electric shocks that do not require hospitalization or go
to the hospital regularly for a long time.
Properties Damage: refers to damage to houses, household property and livestock,
pets.
●In order to use the product safely, a clear note label was pasted. Please use it with the
contents and labels of this manual.
●Please do not make the labels sticking on this product dirty or fall off.
due to improper operation
The possibility of death or serious injury due to incorrect operation)
Human or properties damage may occur due to incorrect operation
It indicates that attention should be paid to re, rupture and high temperature
when operating the product. Specic attention is described in the gure.
This means that this behavior is prohibited when operating a product. Specic
prohibited content is described in the icons or text in or near the icons.
Represents the mandatory operation of the product in accordance with the
instructions. Specic mandatory content is described in graphics or text in or
near the gure number.
DANGER
Please do not disassemble, repair or transform, which may cause electric shock,
heat, re and other dangers.
Do not put the product near the re source or put it into the re or heat, which
will cause re or burns and other dangers.
This product can not be charged and used in dew, bathhouse, rain and other
places; do not use water to clean the product, it will cause electric shock, heat,
re and other dangers.
Do not touch this product or connector plug when your hands are wet. It may
cause electric shock hazard.
EN-02
Do not use metal to contact AC output interface. It may cause electric shock,
！
！
！
！
！
fever, re and other dangers.
Do not wipe the liquid inside the eye. After washing with clean water, please see
a doctor immediately. It may cause the risk of blindness.
Please do not use it as general waste disposal. Electricity shock, heat and re
may occur in the garbage collection truck or in the garbage collection truck.
Do not use AC connections other than those specied. It may cause electric
shock, fever, re and so on.
Please conrm the rated specications of the connection interface or the
connecting machine, and do not exceed the specications. It may cause electric
shock, fever, re and so on.
Please do not have a strong impact on the product such as a drop or a hammer
strike. It may cause electric shock, heat, re or damage to the unit.
Do not place, store, and use in places that are prone to falling or dropping (such
as high shelves). It may cause electric shock, heat, re or damage to the unit.
Do not move the product while it is charging or in use. Due to vibration and shock
during movement may cause heat or re or electric shock or damage to the unit.
Warning
！
Please keep the place clean for use and storage. Powder or small metal contact
terminal may cause short circuit, accidents such as smoke or re.
Be sure to check before use. In case of any abnormality such as breakage, crack,
leakage, fever and AC line breakage, please stop using the product immediately.
When AC wire is damaged, please pay attention to operation. Do not move the
AC wire. Do not unplug the AC wire from the input port. Keep the AC wire away
from the heat source. Do not trample or pull the AC wire, etc that would lead to
AC wire damage. These are the causes of AC wire damage, heat, re, electric
shock.
Do not let children use this product. Or it may cause accidents or injuries.
Do not use if the interface cannot be fully plugged in due to loose or deformed
interface, otherwise which may cause electric shock, heat and re.
Please do not use it on the beach or in dusty places. Or it may cause smoke, re.
Please do not use and keep in the car, trunk, loading table or high temperature
place under direct sunlight. Otherwise, it may cause product failure obstacles or
deterioration or cause fever.
When the liquid inside the product sticks to the skin or clothes, please wash it
with water immediately. Otherwise may cause the skin injury and so on.
EN-03
！
Remove the AC cable from the socket when lightning strikes during charging.
！
！
！
！
！
！
！
！
When it thunders, a large current from the socket may be generated Into a fever,
re, re and other accidents.
Please charge in the specied voltage range (AC 100-240v).Otherwise, it may
cause heating, re, re and other accidents.
Please do not put the product in reverse or sideways when using and storing.
Otherwise may cause leakage, heat, re, re and other accidents.
Note
！
Please stop using the product immediately when there is any abnormality such
as rusting, peculiar smell, fever, etc.
The transportation of the product shall conform to the provisions of laws and
regulations of dangerous goods. The built-in lithium ion battery capacity is more
than the United Nations regulations (100Wh), therefore, the product must be
packed, labeled and declared in accordance with IATA(international air transport
association) regulations when transported by air or ship. Please consult with the
shipping company for details.
When transporting the product with a car, etc., please x the product so that it
cannot be moved. Otherwise it May cause damage to the product, resulting in
electric shock, heat, re, etc.
Do not allow this product and the AC cable to get wet with water or other liquids.
It may cause short circuit, heat, re, etc.
Please charge, use and storage this product under 0-40℃, otherwise may cause
poor performance or heat up.
In case of accidental fall and impact, the body may be damaged due to electric
shock, heat, re, etc., please stop using it immediately. To prevent accidents,
please contact the local designated system installation and maintenance
personnel immediately.
Please carefully read the operating instructions of the electrical products to be
connected. Failure to operate the electrical products may result in accidents or
injuries.
Before connecting electrical products, please make sure that the electrical
products are stopped (power off), and sudden start of electrical products may
cause accidents or injuries.
Be sure to turn off the main power button during storage to prevent unnecessary
discharge of the battery and prevent electric shock.
EN-04
Please read this manual before use and follow its guidance. Keep this manual for future
！
reference

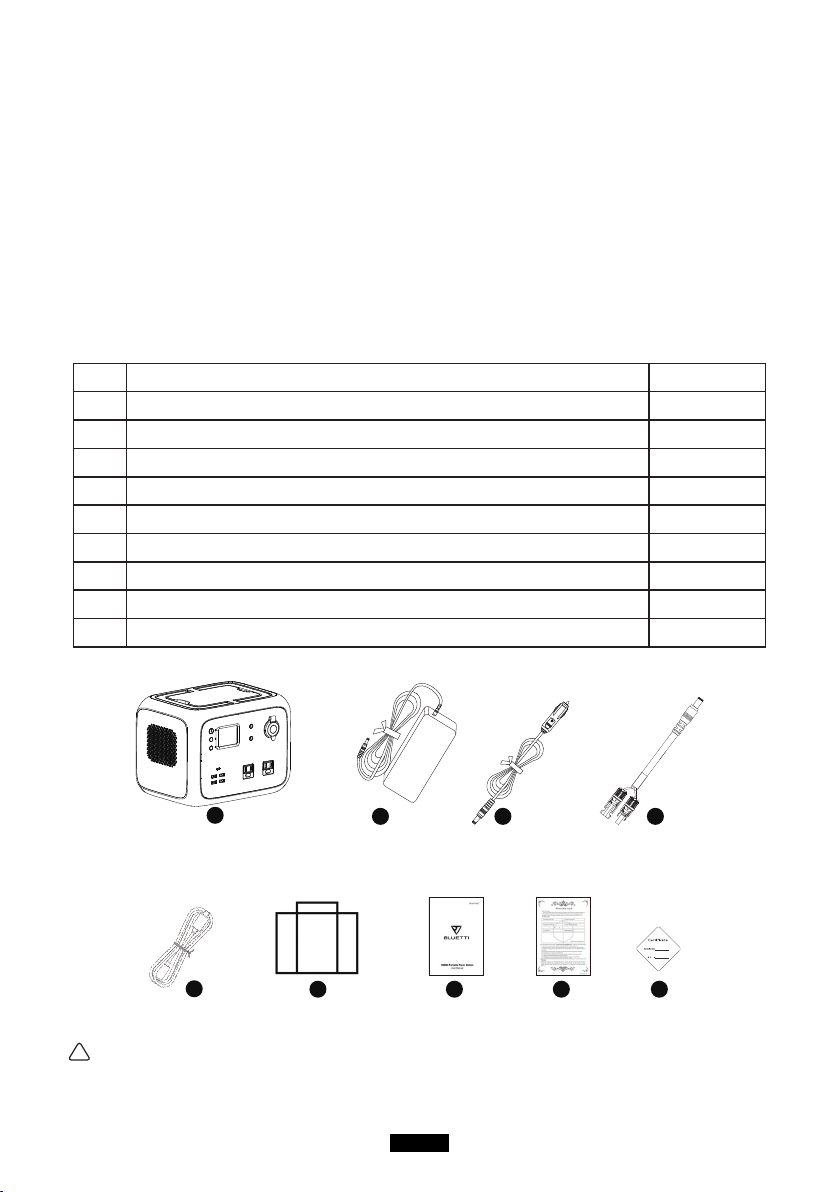

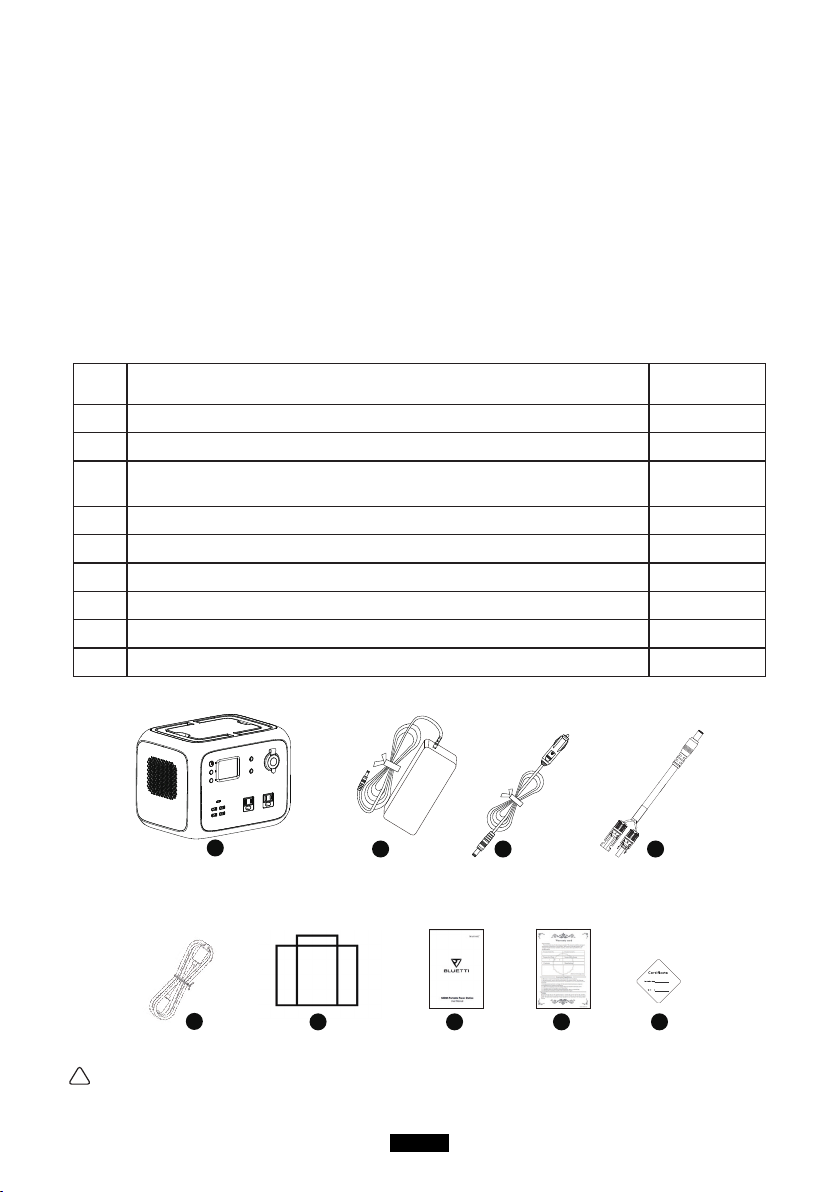

1. Packed Items
Before opening the package, please check whether the package is damaged or not,
after opening the package, please check whether the product appearance is damaged
or lack of accessories.
No. Item Quantity
1 Portable Power Station
2 AC adaptor (including AC charging cable)
3 Cigarette lighter cable( cigarette port to DC7909 connector male)
4 MC4 cable (MC4 conncetor to DC 7909 connector male )
5 USB Type-C cable 1
6
Carry bag
7 User manual
8 Warranty card
9 Certicate of QC PASS
1
1
1
1
1
1
1
1
1
5
Note: picture is only for reference, pls take the product as the standard.
6 7 8 9
2 3 4
EN-05

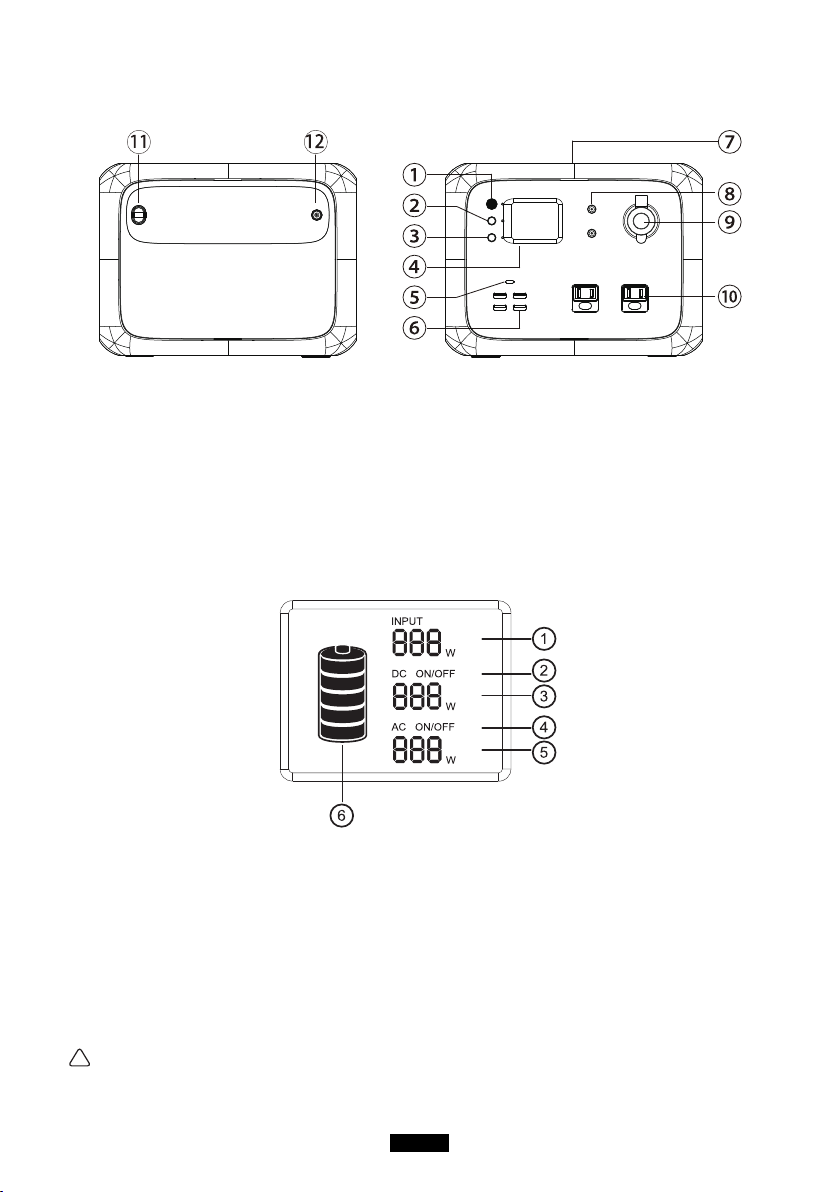

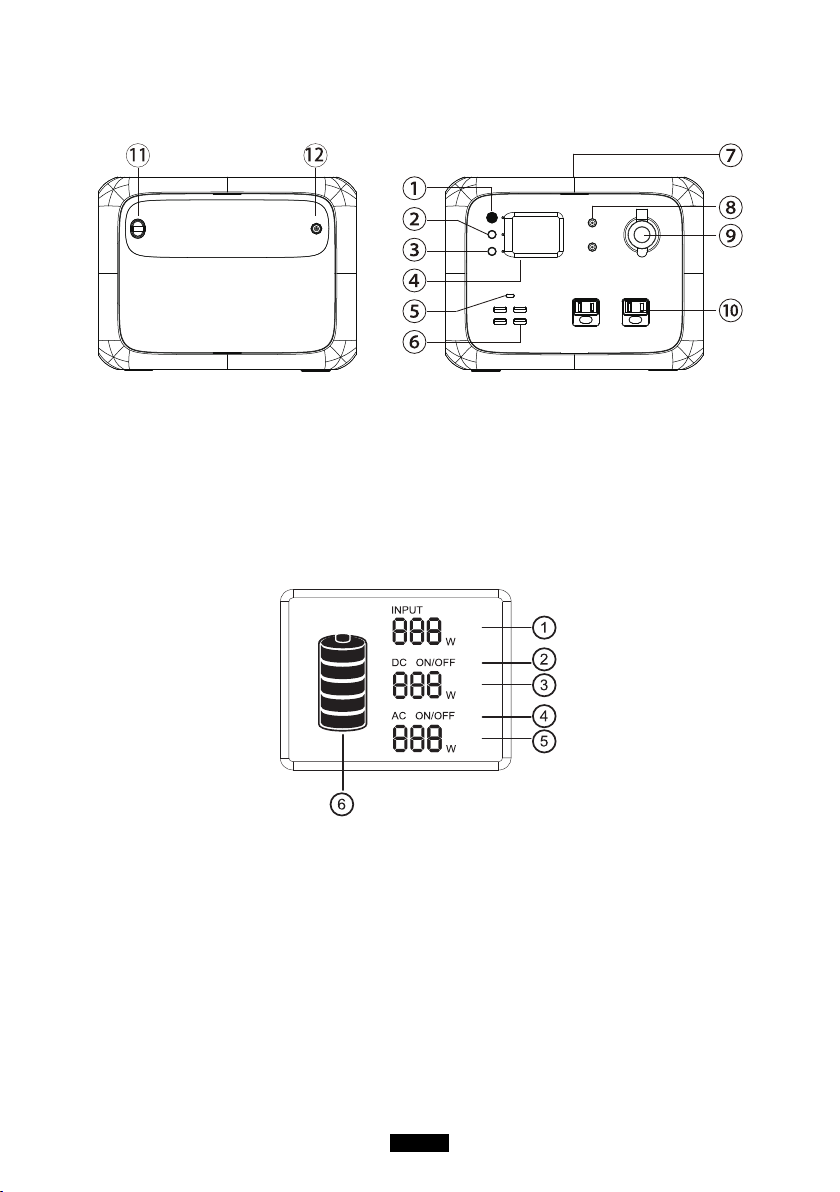

2. Function Introduction
1. Main power button 7. Wireless discharging plate
2. DC power button 8. DC 12V 5521 output port
3. AC power button 9. DC12V car ignitor output port
4. LCD screen 10. AC output port
5. Type-C PD output port 11. LED light button
6. USB output port
LCD Screen
12. Charging port
1. Charging power 4. AC ON/OFF
2. DC ON/OFF 5. AC output power
3. DC output power 6. Battery capacity indicator
LCD Battery Display:
The LCD Battery Display indicates the charge level. There are 5 segments of the
battery, approximating 20%~40%~60%~80%~100% of capacity. During using, segments
will disappear from the display, indicating the remaining capacity. When charging it, you
will notice a battery segment blinking with 1 second interval. This indicates the current
EN-06
charge status and the number under INPUT shows the real-time charging power. Once
！
！
！
！
！
！
！
！
it is fully charged, all battery segments will be lit and remain solid.
Note:If the product malfunctions, error codes would be displayed on screen.
3. Charging Instructions
Note: Please charge the product to 100% before using.
When charging the product, the battery capacity display icon on LCD screen will be on
dynamic status, after the battery is charged fully, the display icon will on static status.
How to charge this product

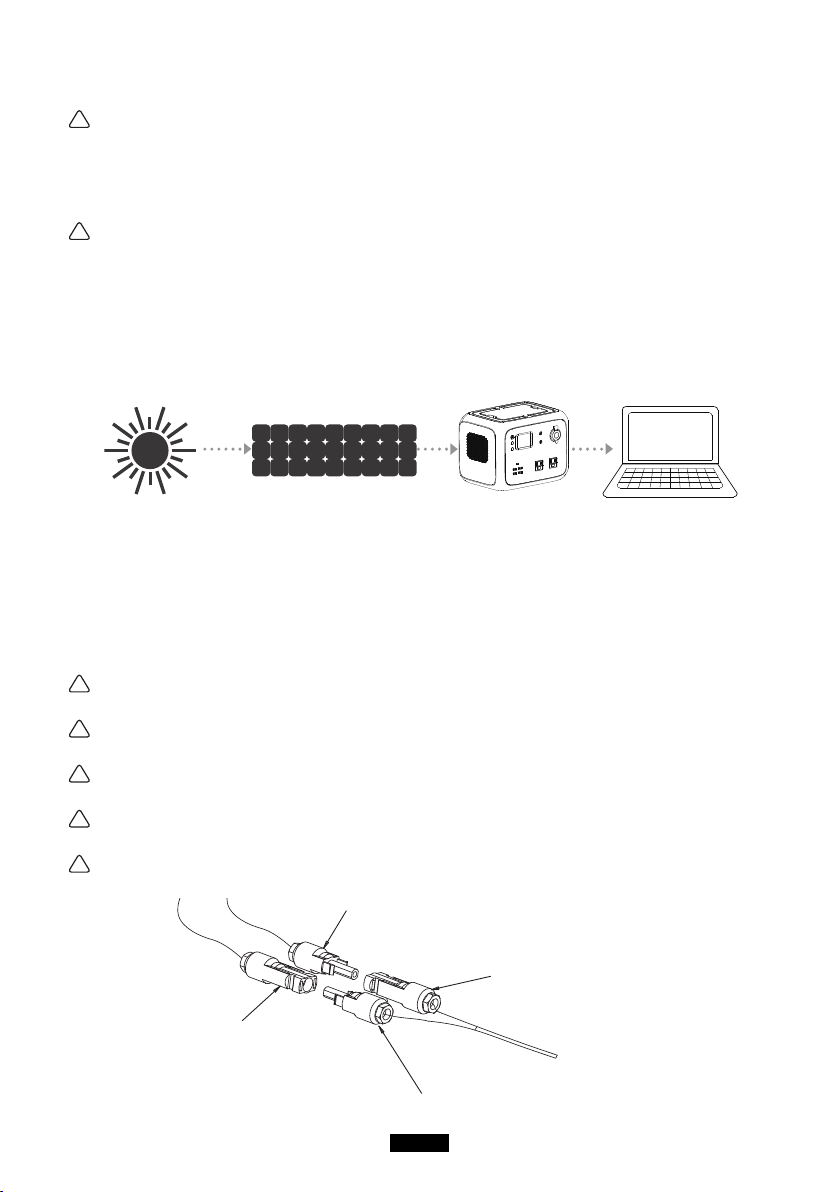

●Solar Panel charge the product
(1)Chose suitable solar panel (DC14~40V/120W)
(2)Put the solar panel under strong sunshine, face to the sun positively.
(3)Take the part MC4 cable, connect the solar panel and the product.
(4)When the product is charged fully by the Solar, it will stop charging automatically.
Please take out the charging cable, and turn off the product.
Note: Please make sure the cable connecting is correct and stable, or will cause
the connector in high temperature status or sparking
Note: Please charge the product under 0~40℃ temperature environment.
Note: During the charging, it is normal situation if the product is getting a little bit
hot.
Note: The charging time is different when light intensity is different.
Note: Make sure that the positive and negative poles of solar panels are connected
correctly. Refer to the following connection chart.
.
Solar panel PV+
Connecting cable PV+
Solar panelPV-
Connecting cable PV-

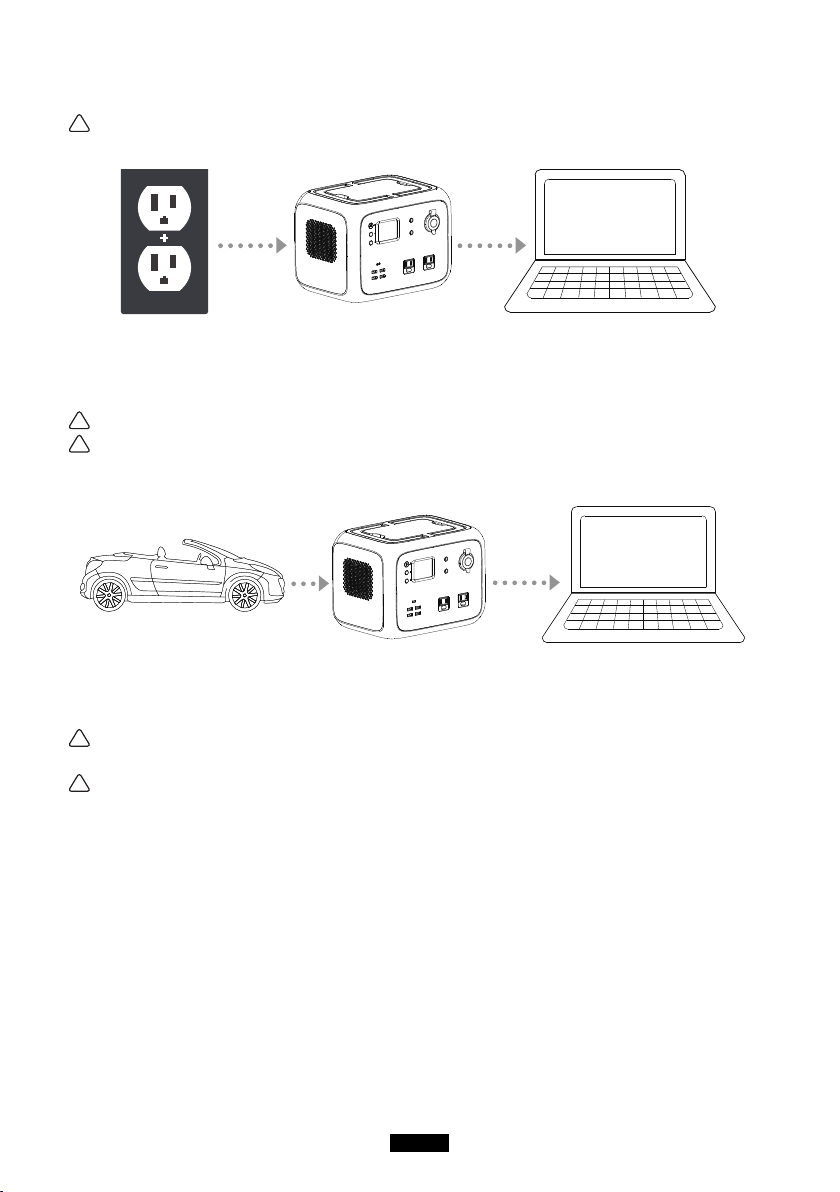

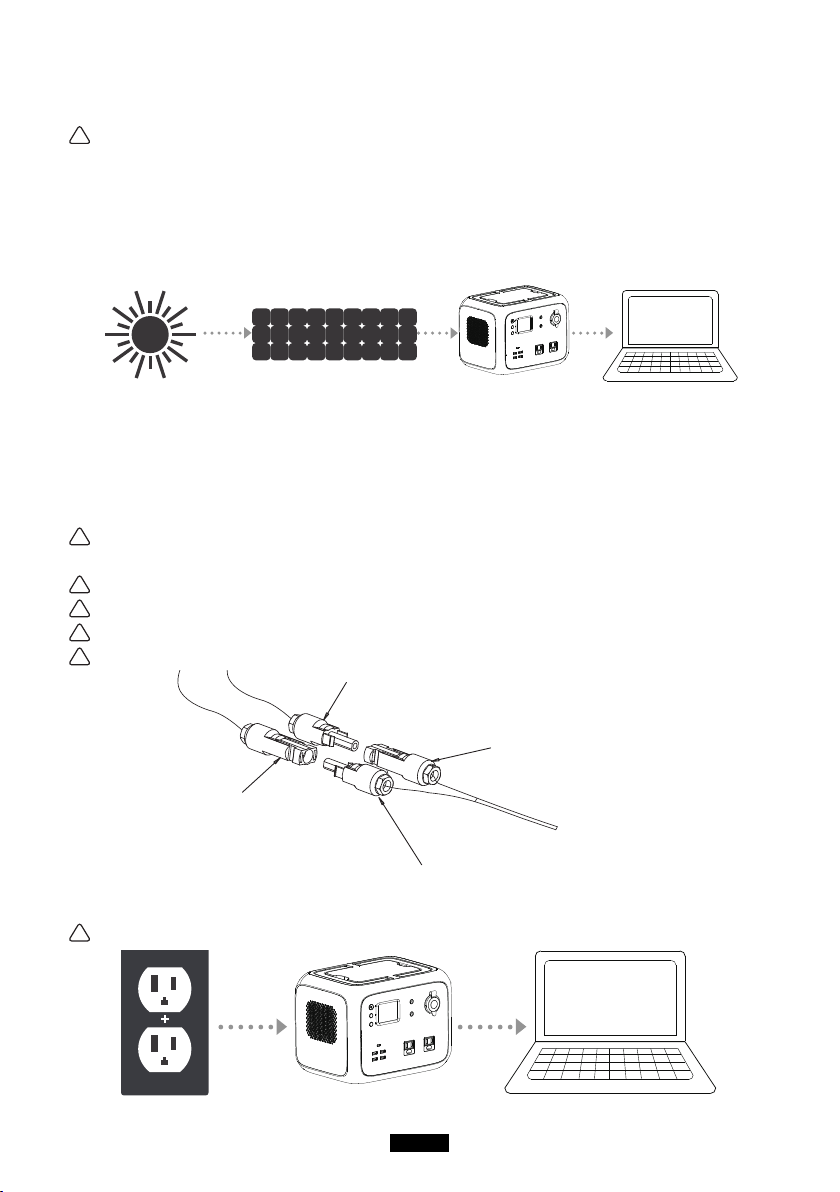

●AC charger charge the product
Note: Always use the standard AC charger that comes with the product.
EN-07
(1) Connect the product and socket with the AC charger in the package.
！
！
！
！
(2) please unplug the charger when charging completed.(it takes about 6-7hrs to fully
recharge the product if using 90W AC adapter charger)
Note: It is normal for this product to get hot during charging.
Note: Make sure that the wiring is in good contact, otherwise the contact terminals
may melt or ignite at high temperatures.

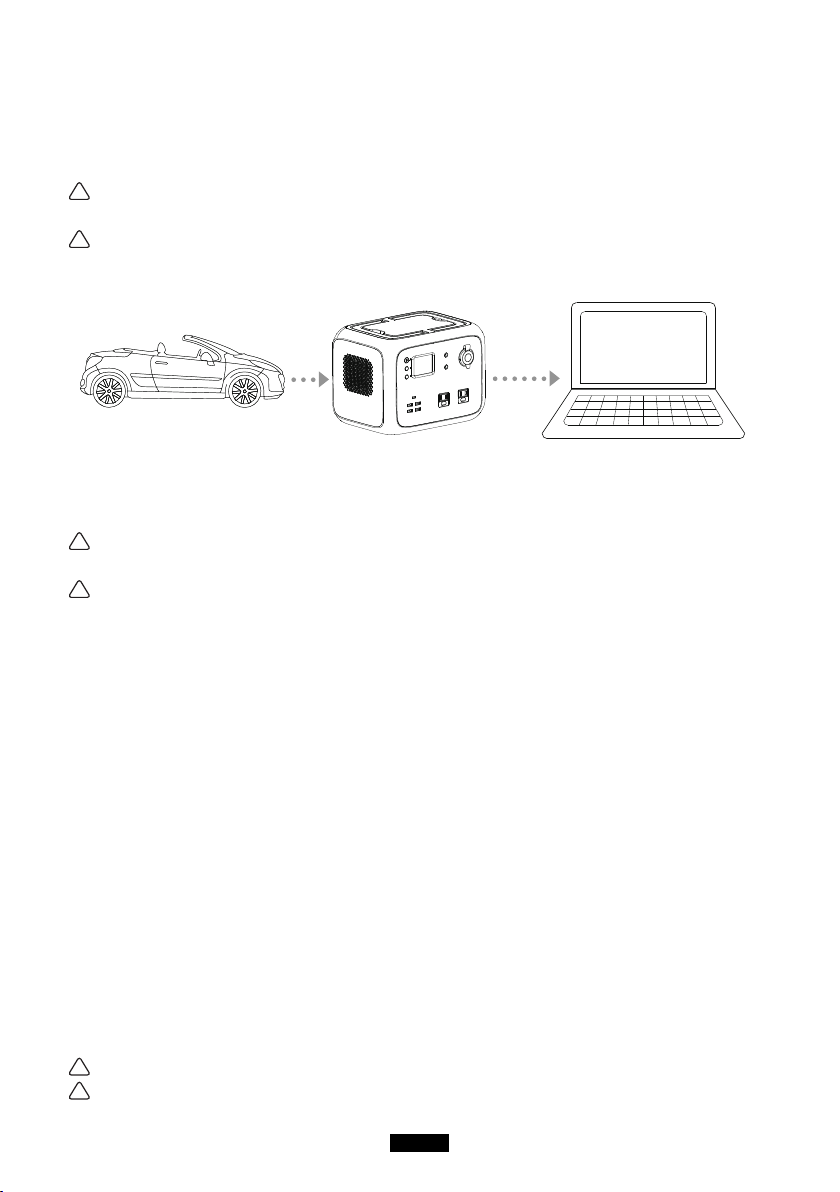

●Car charger charge the product
(1) Connect the product and the cigarette lighter socket with the cigarette lighter cable in
package
(2) Charge the product after starting the car.
Note: Make sure that the wiring is in good contact, otherwise the contact terminals
may melt or ignite at high temperatures.
Note: If the car battery is 12V, the product cannot be fully charged. If the car battery
is 24V, the product can be fully charged.
4. Discharge instructions
●Buttons operation
(1) Main power button
Power on: Short press the main power button, the power indicator lights, and the LCD
screen lights up.
Power off: Press and hold the main power button over 2 seconds, the indicator will be
off and the LCD screen will be off.
(2) DC power button
DC power on : Press and hold the DC button over 2 seconds, the DC indicator will
light, and the LCD will display “DC ON”.
DC power off: Press and hold the DC button for over 2 seconds, the DC indicator will
be off, and the LCD will display “AC OFF”.
(3) AC power button
DC power on: Press and hold the AC button for over 2 seconds, the AC indicator will
EN-08
light, and the LCD will display “AC ON”.
！
！
！
！
！
！
！
！
！
！
DC power off : Press and hold the AC button for over 2 seconds, the AC indicator will
be off, and the LCD will display “AC OFF”.
Note: Turn off these buttons to save power when no using.
Note: The LCD background light will automatically go off after no operation for a
period of time, and will be on again when short pressing any button.
Note: If the DC/AC button is turned off and there is no other operation, it will shut
down automatically after 10 minutes to save power.
●Connectible devices
USB output port: smartphone, MP3 player, digital camera, electronic reader, tablet
computer, etc.
Type-C PD output port: smart phones, tablets, etc.
DC 12V 5521 output port: mainly used for LED light bulb lighting.
DC12V Cigarette Lighter output port: Vehicle Refrigerator and Other 12V
equipment.
AC output port: notebook computer, camera, display devices and other AC power
supply working equipment.
Note: DC output is suitable for most products in the market. Some products with
instantaneous high current may trigger over-current protection.
Note: Please make sure that the connected electrical products can work properly
before using this product.
Note: AC output uses electrical products with power below 300W.
Note: According to different electrical products, rated power below 300W may not
be used (air conditioning, motor and other equipment requiring instantaneous high
current).
Note: The output will stop automatically after overload protection.
Note: If the output stops repeatedly, please stop using it immediately. Only by
eliminating the problem can it be used. Please contact the local designated system
installation and maintenance personnel.
Note: Noise may occur in the broadcast or video player or TV and etc which are
connected to this product.
EN-09
●Estimation of backup time
！
！
25smartphones
2 hours
10Watt load
80W electric tool
6 hours
80Watt load
500Wh÷ =
consumption(W)
20W LED lamp
25 hours
20Watt load
90W refrigerator
5.5 hours
90W load
load power
75W LCD TV
6.6 hours
75Watt load
200W electric
stewing pot
2.5 hours.
200Watt load
h(approx.)
Note: The above data are for reference only. The backup time varies with the power
of different loads.
5. Storage and maintenance
1. Full charge the machine before storage.
2. Switch off all power buttons.
3. If there is any dirt, soak and wring out the cloth to wipe it clean.
4. Please do not use gasoline, volatile oil, thinner, kerosene, etc. which have the function
of dissolving the resin.
5. Keep it in dry and less dusty place. Temperature within 0 - 40℃, avoid direct sunlight.
6. Please full charge the product at least once every six months.
Note: Please do not keep it in the car, trunk, loading platform or other hot place
under direct sunlight. It may cause the product failure, degradation or thermal problem.
EN-10
6. Technical specification
！
Rated voltage 100-120Vac 220-240Vac
Rated power 300 W
AC output
DC12V output
(cigarette
lighter)
DC12V output
(5521)
USB output
Type-C
output
Wireless
charge
Peak power 450W
Overload
capability
Frequency 50/60Hz(adjustable)
Rated voltage 9.6-12.6Vdc
Rated current 10A
Rated voltage 9.6-12.6Vdc
Rated current 3A
QC BC1.2,Apple,Samsung
Rated voltage 5V
Rated current 3A
QC PD2.0 (45W)
Rated output 5V3A, 9V3A ,12V3A ,15V3A , 20V2.25A
QI 1.2.4 Most devices
Output power 5W/7.5W/10W
Output
300W≤load<450W@120S;
450W≤load@1s;
①
②
LED lighting
Working environment condition
Note:
①②
it may cause input low-voltage protection of some equipment if the voltage is low.
③
Solar panel charge type: MPPT
While the power button is on, press the LED light button in turn, the order
of LED light will be: full brightness--half brightness—SOS--turn off
③
Input
Input voltage 14-40 Vdc
Input power 120W MAX
Battery
Rated capacity 500Wh
Rated voltage 11.1 Vdc
Battery cell type Li-ion
Voltage range 9.6-12.6Vdc
General
Protection level IP21
Relative humidity: 10%-90%
Temperature: 0-40
Size 259.5*191*196mm
Net weight 6.2 kgs
EN-11
℃
7. Trouble shooting
If the product cannot charge or power other devices, please check according to following
steps:
1. Make sure the power button is turned on.
2. Make sure the AC and DC power buttons are on, viz. the LED on the right of the
button is green
3. Check the battery capacity, if it’s lower than 10%, please recharge the product as
soon as possible.
4. Make sure the load power connected didn’t exceed the limit power of this product,
each port has a limit for the power connected
If you can’t clear the trouble after above steps, please contact our after sale service
center.
Error
code
E01
E02
E04
E05
E06
E07
E09 Total voltage too low <9.6V >10.5℃ recover charging.
Cause Protection Condition Recovery condition
Over Temperature
Protection
Low temperature
protection
Battery Over
temperature
Battery low
temperature
Battery charge over
temperature
Battery charge low
temperature
Heat sink Temp≥75
℃ ＞-2℃
<-8
℃
>68
<-8℃
℃
>48
℃
<0
Auto Recover when the
℃
temp≤70
<58℃,self-recovery
>-2 ℃,self-recovery
<38℃,self-recovery
>5℃,self-recovery
℃
,self-recovery
E18 PV input over voltage >45V <40V self-recovery
E25
E26
E27
E28
E29
E30
DC 12V output over
voltage
DC12V-1output over
loaded
DC12V-1 output over
current
DC12V-1 input over
current
DC12V-2 output over
loaded
DC12V-2 output over
current
Battery voltage >13V
Load power >140W
output current >11A or
short-circuit
Current >-1A
Load power >75W
Output current > 6A or
short-circuit
EN-12
Recover by pressing
button
Recover by pressing
button
Recover by pressing
button
Recover by pressing
button
Recover by pressing
button
Recover by pressing
button
Loading...
