Series 94 Condensed Catalog

Electronic Modulation Gas-Fired Temperature Controls Environmental and Industrial Gas Flame Applications

Selectra® systems from Maxitrol maintain precise, stable gas-fired temperatures. Selectra's unique electronic ModulatorRegulator valves control gas flow with instantaneous response and continual adjustment. They are the superior alternative to mod motors and butterfly valves.

OEM or retrofit applications include environmental climate control, as well as industrial or commercial heating processes. All fuel gases are compatible - capacities to 30,000,000 Btu/h.

Available standard companion electronics include temperature selectors, amplifiers, and temperature sensors, in a variety of configurations. The amplifier supplies output voltage to the M valve.

Series 94 Systems

Selectra® Series 94 systems are designed for use with atmospheric and direct fired burners (used in furnaces, ovens, etc.).

Series 94 is used in either 'remote' or 'self-contained' systems, along with components common to either configuration. A remote system contains an amplifier with a separate temperature selector. A room override thermostat is optional with remote single dial selector. The self-contained system has the amplifier/selector combined

as a single unit. Common items include temperature sensors, mixing tubes, and modulator-modulator/regulator valves.

A dual remote temperature selector is also available and is primarily used for paint booth "spray/dry" applications.

A "K" thermocouple (not supplied by Maxitrol) may be used with "K" suffixed amplifier/selectors.

System Components

Description

Single Dial - Relay to Operate Automatic Valve

Single Dial - No Relay for Automatic Valve

Dual Dial - No Relay for Automatic Valve

Dual Dial - Relay to Operate Automatic Valve

*Single Dial - Relay to Operate Automatic Valve

Single Dial - No Relay for Automatic Valve

*Do not use relay on direct fired applications.

Amplifier

A1094

A1494

A1094

Amplifier/Selector

Remote

Selector

AD1094C

AD149CK

TD94

TD294

Sensor

TS 194/MT1 or TS394

TS 194/MT1 or TS 394

TS394

"K" Thermocouple Not

Supplied by Maxitrol

Optional Override

T115 (Can be used with

TD94E-0409 only)

T115 (Can be used with

TD94E-0409 only)

Not Available

Not Availabe

Valves

(see pg. 4)

M420, M520, M620,

M451, M551, M651

M411, M511, M611,

MR212D, E, G & J

M411, M511, M611,

MR212D, E, G & J

M420, M520, M620,

M451, M551, M651

M411, M420, M451, M511, M520, M551, M611, M620, M651,

MR212D, E, G & J

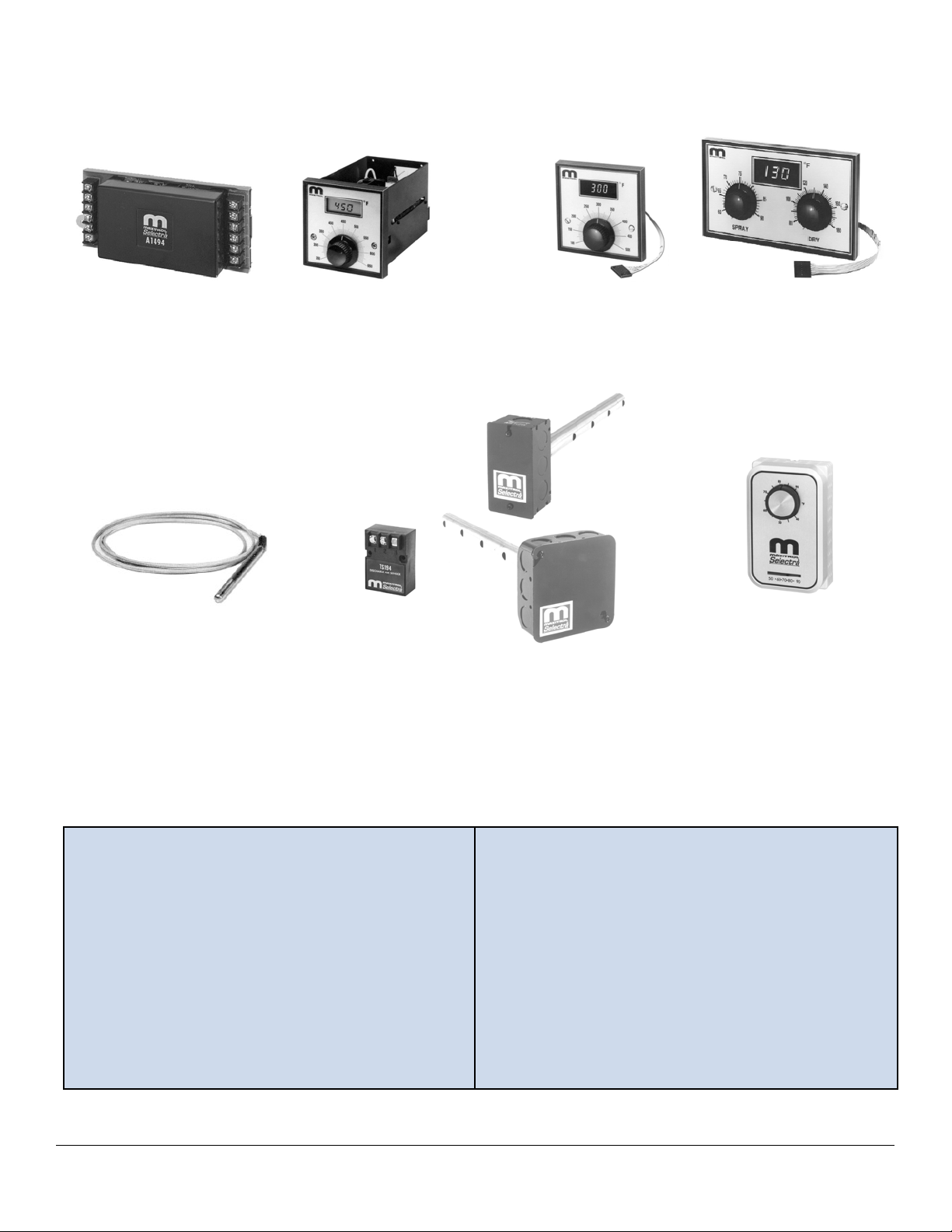

REMOTE SYSTEM ITEMS Remote Temperature Selectors (with LED Display):

TD94E-0409 (40° to 90° F) TD94E-0616 (60° to 160° F) TD94E-1030 (100° to 300° F) TD94E-609/0818 (dual temp 60° to 90° F and 80° to 180° F)

Amplifiers:

A1094 (all temperature ranges) A1494 (all temperature ranges)

Override Stst (optional):

T115 (40° to 90° F) use with TD94E-0409)

SELF-CONTAINED SYSTEM ITEMS Amplifier/Selectors (with LCD Display):

AD1094C-1050 (100° to 500° F) AD1094C-2565 (250° to 650° F) AD1094CM-1234 (120° to 345° F) AD1494CK-60120 (600° to 1200° F)

COMMON ITEMS Temperature Sensors:

TS194 (use with mixing tube) 300° maximum TS394-3B48FQ (3" x .19" dia. probe)

Mixing Tubes: (length)

MT1-9 or 2-9 (9" / 229 mm) MT1-12 or 2-12 (12" / 305 mm) MT1-23 or 2-23 (23" / 584 mm) MT1-28 or 2-28 (28" / 711 mm) MT-57 (57" / 1448 mm)

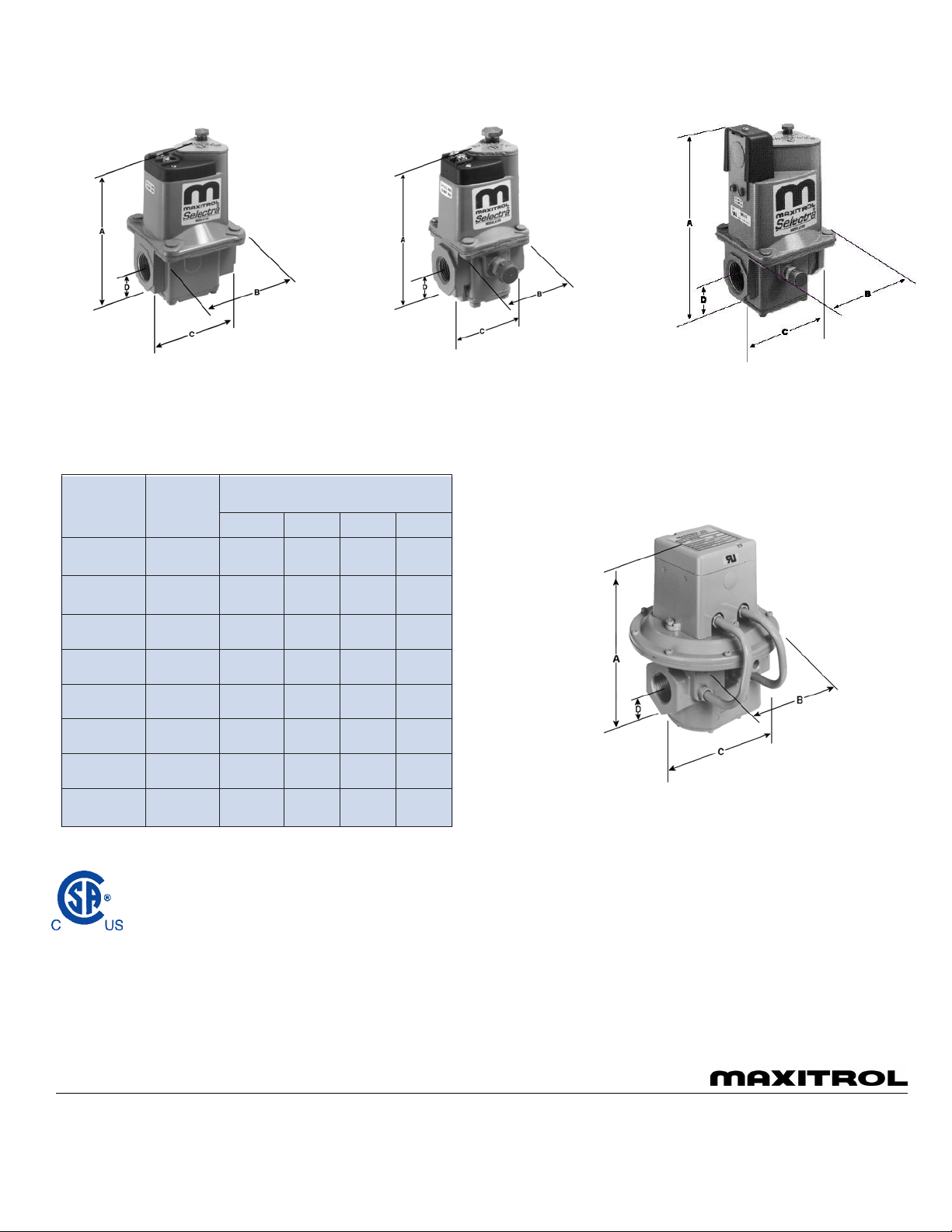

Valves:

M411, M420, M420H, and M451 (3/8" & 1/2" pipe size) M511, M520, M520H, and M551 (1/2" & 3/4" pipe size) M611, M620, M620H, and M651 (3/4" & 1" pipe size) MR212D (1", 11/4", and 11/2" pipe size) MR212E (11/2" & 2" pipe size) MR212G (21/2" & 3" pipe size) MR212J (4" flanged) MR212D-2, E-2, G-2, and J-2 (same pipe sizes as above, but used for 2-speed blower or dual fuel operation) MR251D, E, and G (same pipe sizes as above, but used for positive pressure atmospheric burner applications) Note: the M (modulator) valve requires a pressure regulator for high fire setting. The MR (modulator/regulator) valve requires no pressure regulator up to 5 psi.

M411, M420, M420H, M451,M611, M520, M520H, M611, M620, M620H, MR212D, E, G & J with AD1094 controls - CSA listed to certify compliance with nationally published safety, construction and performance standards.

M611, MR212D, E & G - UL recognized for compliance to nationally published

safety, construction and performance standards.
