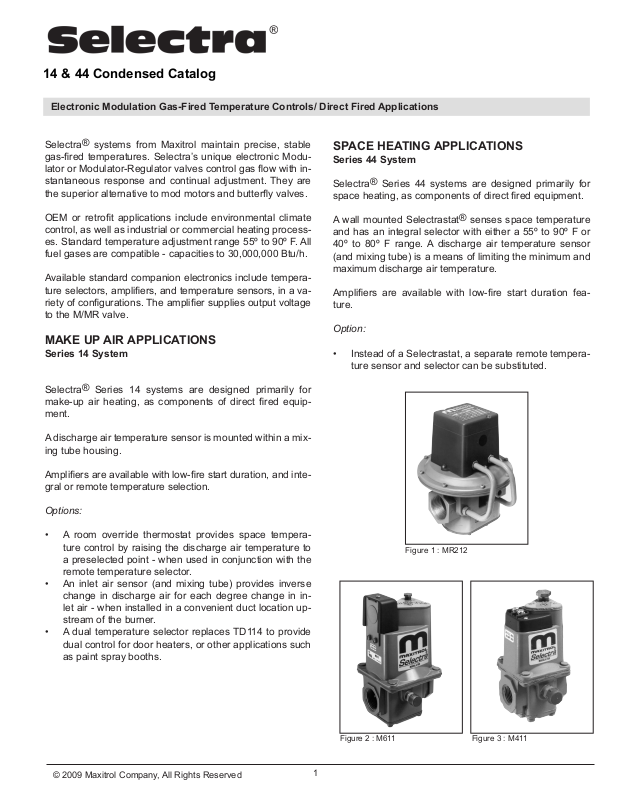

14 & 44 Condensed Catalog

Electronic Modulation Gas-Fired Temperature Controls/ Direct Fired Applications

Selectra® systems from Maxitrol maintain precise, stable

gas-red temperatures. Selectra’s unique electronic Modu­lator or Modulator-Regulator valves control gas ow with in­stantaneous response and continual adjustment. They are
the superior alternative to mod motors and buttery valves.

OEM or retrot applications include environmental climate
control, as well as industrial or commercial heating process­es. Standard temperature adjustment range 55º to 90º F. All
fuel gases are compatible - capacities to 30,000,000 Btu/h.

Available standard companion electronics include tempera­ture selectors, ampliers, and temperature sensors, in a va­riety of congurations. The amplier supplies output voltage
to the M/MR valve.

MAKE UP AIR APPLICATIONS

Series 14 System

Selectra® Series 14 systems are designed primarily for

make-up air heating, as components of direct red equip­ment.

SPACE HEATING APPLICATIONS

Series 44 System

Selectra® Series 44 systems are designed primarily for

space heating, as components of direct red equipment.

A wall mounted Selectrastat® senses space temperature
and has an integral selector with either a 55º to 90º F or
40º to 80º F range. A discharge air temperature sensor
(and mixing tube) is a means of limiting the minimum and
maximum discharge air temperature.

Ampliers are available with low-re start duration fea­ture.

Option:

Instead of a Selectrastat, a separate remote tempera-

•

ture sensor and selector can be substituted.

A discharge air temperature sensor is mounted within a mix­ing tube housing.

Ampliers are available with low-re start duration, and inte­gral or remote temperature selection.

Options:

A room override thermostat provides space tempera-

•

ture control by raising the discharge air temperature to
a preselected point - when used in conjunction with the
remote temperature selector.
An inlet air sensor (and mixing tube) provides inverse

•

change in discharge air for each degree change in in­let air - when installed in a convenient duct location up­stream of the burner.
A dual temperature selector replaces TD114 to provide

•

dual control for door heaters, or other applications such
as paint spray booths.

Figure 1 : MR212

© 2009 Maxitrol Company, All Rights Reserved

1

Figure 2 : M611

Figure 3 : M411

MAKE UP AIR APPLICATIONS - Series 14 System

Series 14 Basic System Options

Valves

M411, M511,

M611,

MR212D, E,

G, or J

(see pg. 4)

Note: Selector and sensor must have the same temperature range to be compatible.

Amplier or

Amplier-Selector

A1014, A1014U

AD1014U Single Integral __ TS114/ MT1 or 2 __ TS10765

AD1214 Dual Integral __ TS214/ MT1 or 2 __ __

Selection

Method

Single Remote TD114 TS114/ MT1 or 2 T115 TS10765

Dual Remote

Remote Selector Model

(if applicable)

TD114HD TS114/ MT1 or 2

TD214 TS214/ MT1 or 2

SYSTEM COMPONENTS

Sensor Override Stat

__ __

Inlet Air

Sensor

Ampliers (A1014 shown)

A1014 (all temperature ranges)
A1014U (replaces A1014L1, suitable
replacement for A1014)(all temperature
ranges - includes 10 or 20 second low re
start capability)

Amplier-Selectors (with integral temperature dial)

AD1014U (shown) (replaces AD1014
and AD1014L1)(all temperature ranges

- includes 10 or 20 second low re start
capability)

Dual Temperature Amplier-Selectors: (AD1214 shown)

AD1214__ (integral dual selector - any
comb. of 2 standard ranges avail.)
Example1 - AD1214BC (120° to 170° F
and 160° to 210° F, use w/TS214BC
Example2 - AD1214AD (80° to 130° F
and 200° to 250° F, use w/TS214AD

Remote Temperature Selectors:

TD114 (55° to 90° F w/override 0° to 40°
over set point)
TD114A (80° to 130° F)
TD114A-1 (80° to 130° F w/ override 0° to
40° F over set point)
TD114B (120 to 170° F)
TD114C (160° to 210° F)
TD114D (200° to 250° F)

TD114E (100° to 250° F)
TD114F (40° to 80° F w/override 0° to 40° over set point)
TD114G (90° to 140° F)
TD114-1 (55° to 90° F w/120° to 170° F override) * use w/TS114
TD114-2 (55° to 90° F w/two outputs)
TD114G-2 (90° to 140° F w/two outputs)
NOTE: Remote Selector and Discharge Temperature Sensor must have
same temperature range to be compatible.
Optional: ETD-1 enclosure, EFP-1 cover plate only - no enclosure

Discharge Air Temperature Sensors: use with Mixing Tube

TS114 (55° to 90° F)
TS114A (80° to 130° F)
TS114B (120° to 170° F)
TS114C (160° to 210° F)
TS114D (200° to 250° F)
TS114E (100° to 250° F)
TS114F (40° to 80° F)
TS114G (90° to 140° F)
TS114J (110° to 160° F) To be used w/ AD1014-1116

TS214__ (dual sensor - any combination of 2 standard ranges available)
Example 1 - TS214G (55° to 90° F and 90° to 140° F, use w/TD114 &
TD114G, or TD214G [selector w/switch], or AD1214G)
Example 2- TS214AD (80° to 130° F and 200° to 250° F, use w/TD114A &
TD114D, or TD214AD [selector w/ switch], or AD1214AD)

Mixing Tubes: (and sensor)

MT1-9 or 2-9 (9” length)
MT1-12 or 2-12 (12” length)
MT1-23 or 2-23 (23” length)
MT1-28 or 2-28 (28” length)
MT1-57 (57” length)

Valves:

M411 (3/8” & 1/2” pipe size)
M511 (1/2” & 3/4” pipe size)
M611 (3/4” & 1” pipe size)
MR212D (1”, 1-1/4”, 1-1/2” pipe size)
MR212E (1-1/2” & 2” pipe size)
MR212G (2-1/2” & 3” pipe size)
MR212J (4” anged)
MR212-2D, E, G, J (used for
2-speed blower or dual fuel
operation)
NOTE: M (Modulator) valve
requires a pressure regulator for
high re setting. MR (Modula­tor-Regulator) valve requires no
pressure regulator up to 5 psi.

OPTIONAL SYSTEM COMPONENTS:

Dual Temperature Selector:

DOOR HEATERS -TD114HD use w/TS114 (door closed 55° to 90°
F/open 90° to 140° F)
PAINT SPRAY BOOTHS OR OTHER DUAL APPLICATIONS­TD214__ (dual selector w/switch - any comb. of 2 standard ranges avail.)
Example 1- TD214G (55° to 90° F [spray] and 90° to 140° F [dry], use w/TS214G
Example 2 - TD214AD (80° to 130° F and 200° to 250° F, use w/TS214AD
TD214__X (same as TD214__, less enclosure)

Inlet Air Temperature Sensors: use with Mixing Tube

TS10765A (8:1 ratio)
TS10765B (5:1 ratio)
TS10765C (3.5:1 ratio)

Override Stat: (use only with TD114, F ,-1, A-1)

T115 (40° to 90° F)

© 2009 Maxitrol Company, All Rights Reserved

2

SPACE HEATING APPLICATIONS - Series 44 System

Series 44 Basic System Options

Valves Amplier Selectrastat Discharge Temp.

M411, M511, M611,
MR212D, E, G, or J

(see pg. 4)

Note: Selector and sensor must have same temperature range to be compatible.

A1044, A1044U T244 TS144 / MT1 or 2 TD244 TS244

SYSTEM COMPONENTS

Sensor

Space Temperature

Selector

Space Temperature

Sensor

Ampliers

A1044U (replaces all A1044L1, suitable re­placement for A1044 [C,D,E,H]) (includes 0,
10, or 20 second low re start capability.)

A1044U

A1044 Amplier

A1044L Amplier

Discharge Temperature Sensors: use with Mixing Tube

Mixing Tubes: used with sensors

A1044UF (replacement for A1044FL1)
A1044UG (replacement for A1044G[L1])

A1044 (min. 40° to 80° F/ max. 80° to 140° F)
A1044C (min. 20° to 60° F/ max. 80° to 140° F)
A1044D (min. 20° to 60° F/ max. 35° to 75° F)
A1044E (min. 20° to 60° F/ max. 60° to 120° F)
A1044G (min. 40º to 80º F / max. 160º to 210º F)
A1044H (min. 40º to 80º F / max. 100º to 160º F)

NOTE: Amplier and Discharge Tempera­ture Sensor must have same temperature
range to be compatible.

Sensors compatible with A1044U:
TS144 (min. 40° to 80° F/max. 80° to 140° F)
TS144C (min. 20° to 60° F/max. 80° to 140° F)
TS144D (min. 20° to 60° F/max. 35° to 75° F)
TS144E (min. 20° to 60° F/max. 60° to 120° F)
TS144H (min. 40º to 80º F / max. 100º to 160º F)

Sensors compatible with A1044UF:
TS144F (min. 40º to 80º F / max. 60º to 95º F)
Sensors compatible with A1044UG:
TS144G (min. 40º to 80º F / max. 160º to 210º F)

MT1-9 or MT2-9 (9” length)
MT1-12 or MT2-12 (12” length)
MT1-23 or MT2-23 (23” length)
MT1-28 or MT2-28 (28” length)
MT1-57 (57” length)

Valves

M411 (3/8” & 1/2” pipe size)
M511 (1/2” & 3/4” pipe size)
M611 (3/4” & 1” pipe size)
MR212D (1”, 1¼”, 1½ pipe size)
MR212E (1½” & 2” pipe size)
MR212G (2½” & 3” pipe size)
MR212J (4” anged)
MR212D-2, E-2, G-2 & J-2 (same pipe
sizes as MR212D-J except used for 2­speed blower or dual fuel operation)

NOTE: M (Modulator) valve requires an
upstream pressure regulator for low re &
high re settings. MR (Modulator/Regula­tor) valve requires no upstream pressure
regulator up to 5 psi inlet.

Selectrastat (Senses and Selects)

T244 (55° to 90° F)
T244A (40° to 80° F)

or optional pair to replace
Selectrastat

Space Temperature Selector

TD244 (wall mount 55° to 90° F)
TD244A (wall mount 40° to 80° F)
TD244P (panel mount 55° to 90° F)
TD244AP (panel mount 40° to 80° F)

Space Temperature Sensor

TS244 (55° to 90° F)
TS244A (40° to 80° F)

© 2009 Maxitrol Company, All Rights Reserved

NOTE: Space Temperature
Selector and Space Tem­perature Sensor must have
same temperature range to be
compatible.

3

PRESSURES, DIMENSIONS

Valve Dimensions - in inches (millimeters)

Dimensions are to be used only as an aid in designing clearance for the valve.
Actual production dimensions may vary somewhat from those shown.

Model

Number

M411

M511

M611

MR212D

MR212E

MR212G

MR212J*

2

(51)

3.25
(83)

3.9

(99)

7

(178)

9.1

(232)

13.5

(343)

21.5

(546)

Call-Outs

2.1

(54)

3.4

(86)

4

(102)

5.5

(140)

8

(203)

11.75
(298)

13.9

(352)

.9

(24)

1.2

(30)

1.5

(37)

2.3

(59)

3

(76)

4.6

(118)

5.9

(149)

Swing

Radius

3.1

(79)

4.3

(109)

7.2

(183)

8.1

(206)

8.6

(218)

10.4

(264)

__ 24

A B C D

3.9

(100)

5.3

(135)

7.4

(188)

10.2

(259)

11.25
(286)

14.75
(375)

(610)

M411, M511, M611 - CSA tested for 1/2 psi inlet pressure, Maxitrol tested for
1 psi maximum operating inlet pressure.

MR212D, E, G, J - CSA rated for 5 psi inlet pressure, Maxitrol tested for 5
psi maximum operating inlet pressure.

See Bulletin MMR_MT_EN for additional valve information.

Figure 4 : M411, 511

Figure 5 : M611

Series 14 System

A1014 Amplier

4.51” (115) x 2.62” (67) x 1.34” (34)

AD1014 Amplier/Selector, A1014U Amplier

6” (152) x 3.38” (86) x 2” (51)

AD1214 Dual Temp. Amplier-Selector

5.75” (146) x 2.62 (67) x 1.34” (34)

TD114 Remote Temp. Selector

2.62” (67) x 3” (76) x 1.75” (44)

TD114S Dual Temp. Selector

6” (152) x 4” (102) x 2” (51)

T115 Override Stat

2.96” (75) x 4.69” (119) x 2.56” (65)

ETD- 1 (opt. TD114 enclosure), MT1 Mixing Tube encl. (for sensor)

4.19” (106) x 4.19” (106) x 1.88” (48)

[Tube lengths: 9” (229), 12” (305), 23” (584), 28” (711), 57” (1448)]

MT2 Mixing Tube enclosure (for sensor)

2.19” (56) x 4.19” (106) x 1.88” (48)

[Tube lengths: 9” (229), 12” (305), 23” (584), 28” (711)]

Figure 6 : MR212

Series 44 System

A1044 Amplier

5.75” (146) x 2.62” (67) x 1.34” (34)

A1044L Amplier

6” (152) x 3.38” (86) x 2” (51)

T244 Selectrastat

2.56” (65) x 4.5” (114) x 1.79” (46)

TD244 Space Temp. Selector

2.56” (65) x 4.5” (114) x 1.79” (46)

TS244 Space Temp. Sensor

2.56” (65) x 4.5” (114) x 1.53” (39)

MT1 Mixing Tube enclosure (for TS144 sensor)

4.19” (106) x 4.19” (106) x 1.88” (48)

[Tube lengths: 9” (229), 12” (305), 23” (584), 28” (711), 57” (1448)]

MT2 Mixing Tube enclosure (for TS144 sensor)

2.19” (56) x 4.19” (106) x 1.88” (48)

[Tube lengths: 9” (229), 12” (305), 23” (584), 28” (711)]

Dimensions are to be used only as an aid in designing clearance. Actual production dimensions may vary somewhat from those shown.

Maxitrol Company
23555 Telegraph Rd., PO Box 2230
Southeld, MI 48037-2230

SEL1444_CC_EN.04.2009

4

www.maxitrol.com

© 2009 Maxitrol Company

All Rights Reserved
