MAXIM MAX1077, MAX1079 Technical data

General Description

The MAX1077/MAX1079 are low-power, high-speed, seri­al-output, 10-bit, analog-to-digital converters (ADCs) that
operate at up to 1.5Msps and have an internal reference.
These devices feature true-differential inputs, offering bet­ter noise immunity, distortion improvements, and a wider
dynamic range over single-ended inputs. A standard
SPI™/QSPI™/MICROWIRE™ interface provides the clock
necessary for conversion. These devices easily interface
with standard digital signal processor (DSP) synchronous
serial interfaces.

The MAX1077/MAX1079 operate from a single +2.7V to
+3.6V supply voltage. The MAX1077/MAX1079 include a

2.048V internal reference. The MAX1077 has a unipolar
analog input, while the MAX1079 has a bipolar analog
input. These devices feature a partial power-down mode
and a full power-down mode for use between conver­sions, which lower the supply current to 2mA (typ) and
1µA (max), respectively. Also featured is a separate
power-supply input (VL), which allows direct interfacing to
+1.8V to VDDdigital logic. The fast conversion speed,
low-power dissipation, excellent AC performance, and DC
accuracy (±0.5 LSB INL) make the MAX1077/MAX1079
ideal for industrial process control, motor control, and
base-station applications.

The MAX1077/MAX1079 come in a 12-pin TQFN pack­age, and are available in the commercial (0°C to +70°C)
and extended (-40°C to +85°C) temperature ranges.

Applications

Data Acquisition Communications

Bill Validation Portable Instruments

Motor Control

Features

♦ 1.5Msps Sampling Rate

♦ Only 22mW (typ) Power Dissipation

♦ Only 1µA (max) Shutdown Current

♦ High-Speed, SPI-Compatible, 3-Wire Serial Interface

♦ 61dB S/(N + D) at 525kHz Input Frequency

♦ Internal True-Differential Track/Hold (T/H)

♦ Internal 2.048V Reference

♦ No Pipeline Delays

♦ Small 12-Pin TQFN Package

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

________________________________________________________________ Maxim Integrated Products 1

12

AIN+11N.C.10SCLK

45

N.C.6GND

1

2REF

3

9

8

7RGND

CNVST

DOUT

V

L

MAX1077
MAX1079

AIN-

V

DD

TQFN

TOP VIEW

Pin Configuration

Ordering Information

MAX1077
MAX1079

DOUT

AIN+

4.7µF

10µF10µF

+2.7V TO +3.6V

0.01µF

0.01µF

0.01µF

+1.8V TO V

DD

AIN-

REF

V

DD

DIFFERENTIAL

INPUT

VOLTAGE

RGND

V

L

GND

CNVST

SCLK

µC/DSP

+

-

Typical Operating Circuit

19-3363; Rev 0; 8/04

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

SPI/QSPI are trademarks of Motorola, Inc.
MICROWIRE is a trademark of National Semiconductor Corp.

查询LMX321AUK-供应商

PART TEMP RANGE

MAX1077CTC-T 0°C to +70°C 12 TQFN-12 Unipolar

MAX1077ETC-T -40°C to +85°C 12 TQFN-12 Unipolar
MAX1079CTC-T 0°C to +70°C 12 TQFN-12 Bipolar
MAX1079ETC-T -40°C to +85°C 12 TQFN-12 Bipolar

PIN­PACKAGE

INPUT

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VDD= +2.7V to +3.6V, VL= VDD, f

SCLK

= 24MHz, 50% duty cycle, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at

T

A

= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDDto GND..............................................................-0.3V to +6V

V

L

to GND ................-0.3V to the lower of (VDD+ 0.3V) and +6V

Digital Inputs

to GND .................-0.3V to the lower of (V

DD

+ 0.3V) and +6V

Digital Output

to GND....................-0.3V to the lower of (V

L

+ 0.3V) and +6V

Analog Inputs and

REF to GND..........-0.3V to the lower of (V

DD

+ 0.3V) and +6V

RGND to GND .......................................................-0.3V to +0.3V

Maximum Current into Any Pin............................................50mA

Continuous Power Dissipation (T

A

= +70°C)

12-Pin TQFN (derate 16.9mW/°C above +70°C) ......1349mW

Operating Temperature Ranges

MAX107_ CTC ...................................................0°C to +70°C

MAX107_ ETC.................................................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-60°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

PARAMETER

CONDITIONS

UNITS

DC ACCURACY

Resolution 10 Bits

Relative Accuracy INL (Note 1)

LSB

Differential Nonlinearity DNL (Note 2)

LSB

Offset Error ±2 LSB

Offset-Error Temperature
Coefficient

±1

ppm/°C

Gain Error Offset nulled ±2 LSB

Gain Temperature Coefficient ±2

ppm/°C

DYNAMIC SPECIFICATIONS (f

IN

= 525kHz sine wave, VIN = V

REF

, unless otherwise noted.)

Signal-to-Noise Plus Distortion

SINAD 60 61 dB

Total Harmonic Distortion

THD Up to the 5th harmonic -80 -74 dB

Spurious-Free Dynamic Range SFDR -80 -74 dB

Intermodulation Distortion IMD f

IN1

= 250kHz, f

IN2

= 300kHz -78 dB

Full-Power Bandwidth -3dB point, small-signal method 15

MHz

Full-Linear Bandwidth S/(N + D) > 56dB, single ended 1.2

MHz

CONVERSION RATE

Minimum Conversion Time t

CONV

(Note 3)

µs

Maximum Throughput Rate 1.5

Msps

M i ni m um Thr oug hp ut Rate ( N ote 4) 10

ksps

Track-and-Hold Acquisition Time

t

ACQ

(Note 5) 125 ns

Aperture Delay 5ns

Aperture Jitter (Note 6) 30 ps

External Clock Frequency f

SCLK

(Note 7) 24

MHz

SYMBOL

MIN TYP MAX

-0.5 +0.5

-0.5 +0.5

0.667

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VDD= +2.7V to +3.6V, VL= VDD, f

SCLK

= 24MHz, 50% duty cycle, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at

T

A

= +25°C.)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

ANALOG INPUTS (AIN+, AIN-)

AIN+ - AIN-, MAX1077 0

Differential Input Voltage Range

V

IN

AIN+ - AIN-, MAX1079

V

Absolute Input Voltage Range 0

V

DC Leakage Current ±1 µA

Input Capacitance Per input pin 16 pF

Input Current (Average)

75 µA

REFERENCE OUTPUT (REF)

REF Output Voltage Range Static, TA = +25°C

V

Voltage Temperature Coefficient

ppm/°C

I

SOURCE

= 0 to 2mA

Load Regulation

I

SINK

= 0 to 100µA 1.0

mV/mA

Line Regulation VDD = 2.7V to 3.6V, static

mV/V

DIGITAL INPUTS (SCLK, CNVST)

Input Voltage Low VIL

V

Input Voltage High VIH 0.7 x V

L

V

Input Leakage Current I

IL

µA

DIGITAL OUTPUT (DOUT)

Output Load Capacitance C

OUT

For stated timing performance 30 pF

Output Voltage Low V

OL

I

SINK

= 5mA, VL ≥ 1.8V 0.4 V

Output Voltage High V

OH

I

SOURCE

= 1mA, VL ≥ 1.8V

V

Output Leakage Current I

OL

Output high impedance

µA

POWER REQUIREMENTS

Analog Supply Voltage V

DD

2.7 3.6 V

Digital Supply Voltage V

L

1.8

V

Static, f

SCLK

= 24MHz

68

Static, no SCLK 5 7

Analog Supply Current,
Normal Mode

I

DD

Operational, 1.5Msps 7 9

mA

f

SCLK

= 24MHz 2

Analog Supply Current,
Partial Power-Down Mode

I

DD

No SCLK 2

mA

f

SCLK

= 24MHz 1

Analog Supply Current,
Full Power-Down Mode

I

DD

No SCLK

1

µA

Operational, full-scale input at 1.5Msps

0.3 1

Static, f

SCLK

= 24MHz

Partial/full power-down mode,
f

SCLK

= 24MHz

0.1 0.3

mA

Digital Supply Current (Note 8)

Static, no SCLK (all modes)

1µA

Positive-Supply Rejection PSR VDD = 3V +20% -10%, full-scale input

mV

Time averaged at maximum throughput rate

-V

/ 2 +V

REF

2.038 2.048 2.058

V L - 0.5V

±50

0.35

0.25

0.05 ±10

±0.2 ±10

0.3

0.15 0.5

0.1

±0.2 ±3.0

V

REF

REF

V

DD

0.3 x V

V

DD

/ 2

L

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

4 _______________________________________________________________________________________

Note 1: Relative accuracy is the deviation of the analog value at any code from its theoretical value after the gain error and the offset

error have been nulled.

Note 2: No missing codes over temperature.
Note 3: Conversion time is defined as the number of clock cycles (16) multiplied by the clock period.
Note 4: At sample rates below 10ksps, the input full-linear bandwidth is reduced to 5kHz.
Note 5: The listed value of three SCLK cycles is given for full-speed continuous conversions. Acquisition time begins on the 14th ris-

ing edge of SCLK and terminates on the next falling edge of CNVST. The IC idles in acquisition mode between conversions.

Note 6: Undersampling at the maximum signal bandwidth requires the minimum jitter spec for SINAD performance.
Note 7: 1.5Msps operation guaranteed for V

L

> 2.7V. See the Typical Operating Characteristics section for recommended sampling

speeds for V

L

< 2.7V.

Note 8: Digital supply current is measured with the V

IH

level equal to VL, and the VILlevel equal to GND.

TIMING CHARACTERISTICS

(VDD= +2.7V to +3.6V, VL= VDD, f

SCLK

= 24MHz, 50% duty cycle, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at

T

A

= +25°C.)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

VL = 2.7V to V

DD

SCLK Pulse-Width High t

CH

VL = 1.8V to VDD, minimum recommended
(Note 7)

ns

VL = 2.7V to V

DD

SCLK Pulse-Width Low t

CL

VL = 1.8V to VDD, minimum recommended
(Note 7)

ns

SCLK Rise to DOUT Transition t

DOUT

CL = 30pF, VL = 1.8V to V

DD

24

ns

DOUT Remains Valid After SCLK

VL = 1.8V to V

DD

4ns

CNVST Fall to SCLK Fall t

SETUP

VL = 1.8V to V

DD

10 ns

CNVST Pulse Width t

CSW

VL = 1.8V to V

DD

20 ns

Power-Up Time; Full Power-Down

2ms

Restart Time; Partial Power-Down

t

RCV

16

Cycles

Figure 1. Detailed Serial-Interface Timing

GND

6kΩ

C

L

DOUT

DOUT

C

L

GND

V

L

a) HIGH-Z TO VOH, V

OL

TO VOH,

AND V

OH

TO HIGH-Z

b) HIGH-Z TO V

OL

, V

OH

TO VOL,

AND V

OL

TO HIGH-Z

6kΩ

Figure 2. Load Circuits for Enable/Disable Times

18.7

22.5

18.7

22.5

t

DHOLD

t

PWR-UP

CL = 30pF, VL = 2.7V to V

DD

17

CNVST

t

CL

t

CH

SCLK

t

SETUP

t

CSW

DOUT

t

DHOLD

t

DOUT

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

_______________________________________________________________________________________ 5

Typical Operating Characteristics

(VDD= +3V, VL= VDD, f

SCLK

= 24MHz, f

SAMPLE

= 1.5Msps, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

MAXIMUM RECOMMENDED f

SCLK

vs. V

L

MAX1077/79 toc01

VL (V)

f

SCLK

(MHz)

3.33.02.72.42.1

19

21

23

25

17

1.8 3.6

-0.20

-0.15

-0.10

-0.05

0

0.05

0.10

0.15

0.20

0 256 512 768 1024

INTEGRAL NONLINEARITY

vs. DIGITAL OUTPUT CODE (MAX1077)

MAX1077/79 toc02

DIGITAL OUTPUT CODE

INL (LSB)

-0.20

-0.15

-0.10

-0.05

0

0.05

0.10

0.15

0.20

-512 -256 0 256 512

INTEGRAL NONLINEARITY

vs. DIGITAL OUTPUT CODE (MAX1079)

MAX1077/79 toc03

DIGITAL OUTPUT CODE

INL (LSB)

-0.20

-0.15

-0.10

-0.05

0

0.05

0.10

0.15

0.20

0 256 512 768 1024

DIFFERENTIAL NONLINEARITY

vs. DIGITAL OUTPUT CODE (MAX1077)

MAX1077/79 toc04

DIGITAL OUTPUT CODE

DNL (LSB)

-0.20

-0.15

-0.10

-0.05

0

0.05

0.10

0.15

0.20

-512 -256 0 256 512

DIFFERENTIAL NONLINEARITY

vs. DIGITAL OUTPUT CODE (MAX1079)

MAX1077/79 toc05

DIGITAL OUTPUT CODE

DNL (LSB)

0

-0.50

-1.00

-1.50

-2.00

-40 10-15 35 60 85

OFFSET ERROR

vs. TEMPERATURE (MAX1077)

MAX1077/79 toc06

TEMPERATURE (°C)

OFFSET ERROR (LSB)

0

-0.50

-1.00

-1.50

-2.00

-40 10-15 35 60 85

OFFSET ERROR

vs. TEMPERATURE (MAX1079)

MAX1077/79 toc07

TEMPERATURE (°C)

OFFSET ERROR (LSB)

1.00

0.50

0

-0.50

-1.00

-40 10-15 35 60 85

GAIN ERROR

vs. TEMPERATURE (MAX1077)

MAX1077/79 toc08

TEMPERATURE (°C)

GAIN ERROR (LSB)

1.00

0.50

0

-0.50

-1.00

-40 10-15 35 60 85

GAIN ERROR

vs. TEMPERATURE (MAX1079)

MAX1077/79 toc09

TEMPERATURE (°C)

GAIN ERROR (LSB)

TWO-TONE IMD PLOT (MAX1079)

MAX1077/79 toc18

ANALOG INPUT FREQUENCY (kHz)

AMPLITUDE (dB)

625500375250125

-120

-100

-80

-60

-40

-20

0

-140
0750

f

IN1

= 250.102kHz

f

IN2

= 299.966kHz

IMD = -83.4dB

f

IN1

f

IN2

Typical Operating Characteristics (continued)

(VDD= +3V, VL= VDD, f

SCLK

= 24MHz, f

SAMPLE

= 1.5Msps, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

6 _______________________________________________________________________________________

62.0

61.5

61.0

60.5

60.0
100 300200 400 500

DYNAMIC PERFORMANCE

vs. INPUT FREQUENCY (MAX1077)

MAX1077/79 toc10

ANALOG INPUT FREQUENCY (kHz)

DYNAMIC PERFORMANCE (dB)

SNR AND SINAD

62.0

61.5

61.0

60.5

60.0
100 300200 400 500

DYNAMIC PERFORMANCE

vs. INPUT FREQUENCY (MAX1079)

MAX1077/79 toc11

ANALOG INPUT FREQUENCY (kHz)

DYNAMIC PERFORMANCE (dB)

SNR AND SINAD

-80

-84

-88

-92

-96
100 300200 400 500

THD vs. INPUT FREQUENCY

MAX1077/79 toc12

ANALOG INPUT FREQUENCY (kHz)

THD (dB)

MAX1079

MAX1077

82

84

88

86

90

92

SFDR vs. INPUT FREQUENCY

MAX1077/79 toc13

ANALOG INPUT FREQUENCY (kHz)

SFDR (dB)

100 300200 400 500

MAX1077

MAX1079

-140

-100

-120

-60

-80

-20

-40

0

0250375125 500 625 750

FFT PLOT (MAX1077)

MAX1077/79 toc14

ANALOG INPUT FREQUENCY (kHz)

AMPLITUDE (dB)

fIN = 500kHz
SINAD = 61.2dB
SNR = 61.2dB
THD = -81.7dB
SFDR = 83.5dB

-140

-100

-120

-60

-80

-20

-40

0

0 250 375125 500 625 750

FFT PLOT (MAX1079)

MAX1077/79 toc15

ANALOG INPUT FREQUENCY (kHz)

AMPLITUDE (dB)

fIN = 500kHz
SINAD = 61.2dB
SNR = 61.2dB
THD = -91.3dB
SFDR = 88.7dB

TOTAL HARMONIC DISTORTION

vs. SOURCE IMPEDANCE

MAX1077/79 toc16

SOURCE IMPEDANCE (Ω)

THD (dB)

100

-90

-80

-70

-60

-50

-100
10 1000

fIN = 500kHz

fIN = 100kHz

TWO-TONE IMD PLOT (MAX1077)

MAX1077/79 toc17

ANALOG INPUT FREQUENCY (kHz)

AMPLITUDE (dB)

625500375250125

-120

-100

-80

-60

-40

-20

0

-140
0750

f

IN1

= 250.102kHz

f

IN2

= 299.966kHz

IMD = -86.6dB

f

IN1

f

IN2

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

_______________________________________________________________________________________ 7

0

0.20

0.60

0.40

0.80

1.00

-40 10-15 35 60 85

VDD/VL FULL POWER-DOWN

SUPPLY CURRENT vs. TEMPERATURE

MAX1077/79 toc19

TEMPERATURE (°C)

V

DD

/V

L

SUPPLY CURRENT (µA)

VDD, SCLK = 24MHz

VDD, NO SCLK

VL, NO SCLK

0

50

25

75

100

-40 10-15 35 60 85

VL PARTIAL/FULL POWER-DOWN

SUPPLY CURRENT vs. TEMPERATURE

MAX1077/79 toc20

TEMPERATURE (°C)

V

L

SUPPLY CURRENT (µA)

VL, = 3V, SCLK = 24MHz

VL, = 1.8V, SCLK = 24MHz

0

3.0

1.5

6.0

4.5

7.5

9.0

-40 10-15 35 60 85

VDD SUPPLY CURRENT

vs. TEMPERATURE

MAX1077/79 toc21

TEMPERATURE (°C)

V

DD

SUPPLY CURRENT (mA)

CONVERSION

PARTIAL POWER-DOWN

8

6

4

2

0

0 750250 500 1000 1250 1500

VDD SUPPLY CURRENT

vs. CONVERSION RATE

MAX1077/79 toc22

f

SAMPLE

(kHz)

V

DD

SUPPLY CURRENT (mA)

0

0.10

0.30

0.20

0.40

0.50

-40 10-15 35 60 85

VL SUPPLY CURRENT

vs. TEMPERATURE

MAX1077/79 toc23

TEMPERATURE (°C)

V

L

SUPPLY CURRENT (mA)

CONVERSION, VL = 3V

CONVERSION, VL = 1.8V

0

50

150

100

200

250

0 500250 750 1000 1250 1500

VL SUPPLY CURRENT

vs. CONVERSION RATE

MAX1077/79 toc24

f

SAMPLE

(kHz)

V

L

SUPPLY CURRENT (µA)

VL = 3V

VL = 1.8V

2.00

2.02

2.01

2.04

2.03

2.05

2.06

-40 10-15 35 60 85

REFERENCE VOLTAGE

vs. TEMPERATURE

MAX1077/79 toc25

TEMPERATURE (°C)

REFERENCE VOLTAGE (V)

2.05

2.04

2.03

2.02

2.01
04268

REFERENCE VOLTAGE

vs. LOAD CURRENT (SOURCE)

MAX1077/79 toc26

LOAD CURRENT (mA)

REFERENCE VOLTAGE (V)

Typical Operating Characteristics (continued)

(VDD= +3V, VL= VDD, f

SCLK

= 24MHz, f

SAMPLE

= 1.5Msps, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

2.08

2.07

2.06

2.05

2.04
0 10050 150 200

REFERENCE VOLTAGE

vs. LOAD CURRENT (SINK)

MAX1077/79 toc27

LOAD CURRENT (µA)

REFERENCE VOLTAGE (V)

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

8 _______________________________________________________________________________________

Pin Description

PIN NAME FUNCTION

1AIN- Negative Analog Input

2 REF

Reference Voltage Output. Internal 2.048V reference output. Bypass REF with a 0.01µF capacitor and
a 4.7µF capacitor to RGND.

3 RGND Reference Ground. Connect RGND to GND.

4V

DD

Positive Analog Supply Voltage (+2.7V to +3.6V). Bypass VDD with a 0.01µF capacitor and a 10µF
capacitor to GND.

5, 11 N.C. No Connection

6 GND Ground. GND is internally connected to EP.

7V

L

Positive Logic Supply Voltage (1.8V to VDD). Bypass VL with a 0.01µF capacitor and a 10µF capacitor
to GND.

8DOUT Serial Data Output. Data is clocked out on the rising edge of SCLK.

9 CNVST

Convert Start. Forcing CNVST high prepares the part for a conversion. Conversion begins on the
falling edge of CNVST. The sampling instant is defined by the falling edge of CNVST.

10 SCLK Serial Clock Input. Clocks data out of the serial interface. SCLK also sets the conversion speed.

12 AIN+ Positive Analog Input

—EPExposed Paddle. EP is internally connected to GND.

Detailed Description

The MAX1077/MAX1079 use an input T/H and succes­sive-approximation register (SAR) circuitry to convert
an analog input signal to a digital 10-bit output. The
serial interface requires only three digital lines (SCLK,
CNVST, and DOUT) and provides easy interfacing to
microprocessors (µPs) and DSPs. Figure 3 shows the
simplified internal structure for the MAX1077/MAX1079.

True-Differential Analog Input T/H

The equivalent circuit of Figure 4 shows the input archi­tecture of the MAX1077/MAX1079, which is composed of
a T/H, a comparator, and a switched-capacitor digital-to­analog converter (DAC). The T/H enters its tracking mode
on the 14th SCLK rising edge of the previous conversion.
Upon power-up, the T/H enters its tracking mode immedi­ately. The positive input capacitor is connected to AIN+.
The negative input capacitor is connected to AIN-. The
T/H enters its hold mode on the falling edge of CNVST
and the difference between the sampled positive and
negative input voltages is converted. The time required
for the T/H to acquire an input signal is determined by
how quickly its input capacitance is charged. If the input
signal’s source impedance is high, the acquisition time
lengthens. The acquisition time, t

ACQ

, is the minimum

time needed for the signal to be acquired. It is calculated
by the following equation:

t

ACQ

≥ 8 × (RS + RIN) × 16pF

where RIN= 200Ω, and RS is the source impedance of
the input signal.

Note: t

ACQ

is never less than 125ns, and any source

impedance below 12Ω does not significantly affect the
ADC’s AC performance.

Input Bandwidth

The ADC’s input-tracking circuitry has a 15MHz small­signal bandwidth, making it possible to digitize high­speed transient events and measure periodic signals
with bandwidths exceeding the ADC’s sampling rate by
using undersampling techniques. To avoid high-fre­quency signals being aliased into the frequency band
of interest, anti-alias filtering is recommended.

Analog Input Protection

Internal protection diodes that clamp the analog input
to VDDand GND allow the analog input pins to swing
from GND - 0.3V to VDD+ 0.3V without damage. Both
inputs must not exceed VDDor be lower than GND for
accurate conversions.

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

_______________________________________________________________________________________ 9

Serial Interface

Initialization After Power-Up

and Starting a Conversion

Upon initial power-up, the MAX1077/MAX1079 require a
complete conversion cycle to initialize the internal cali­bration. Following this initial conversion, the part is ready
for normal operation. This initialization is only required
after a hardware power-up sequence and is not required
after exiting partial or full power-down mode.

To start a conversion, pull CNVST low. At CNVST’s
falling edge, the T/H enters its hold mode and a con­version is initiated. SCLK runs the conversion, and the
data can then be shifted out serially on DOUT.

Timing and Control

Conversion-start and data-read operations are con­trolled by the CNVST and SCLK digital inputs. Figures

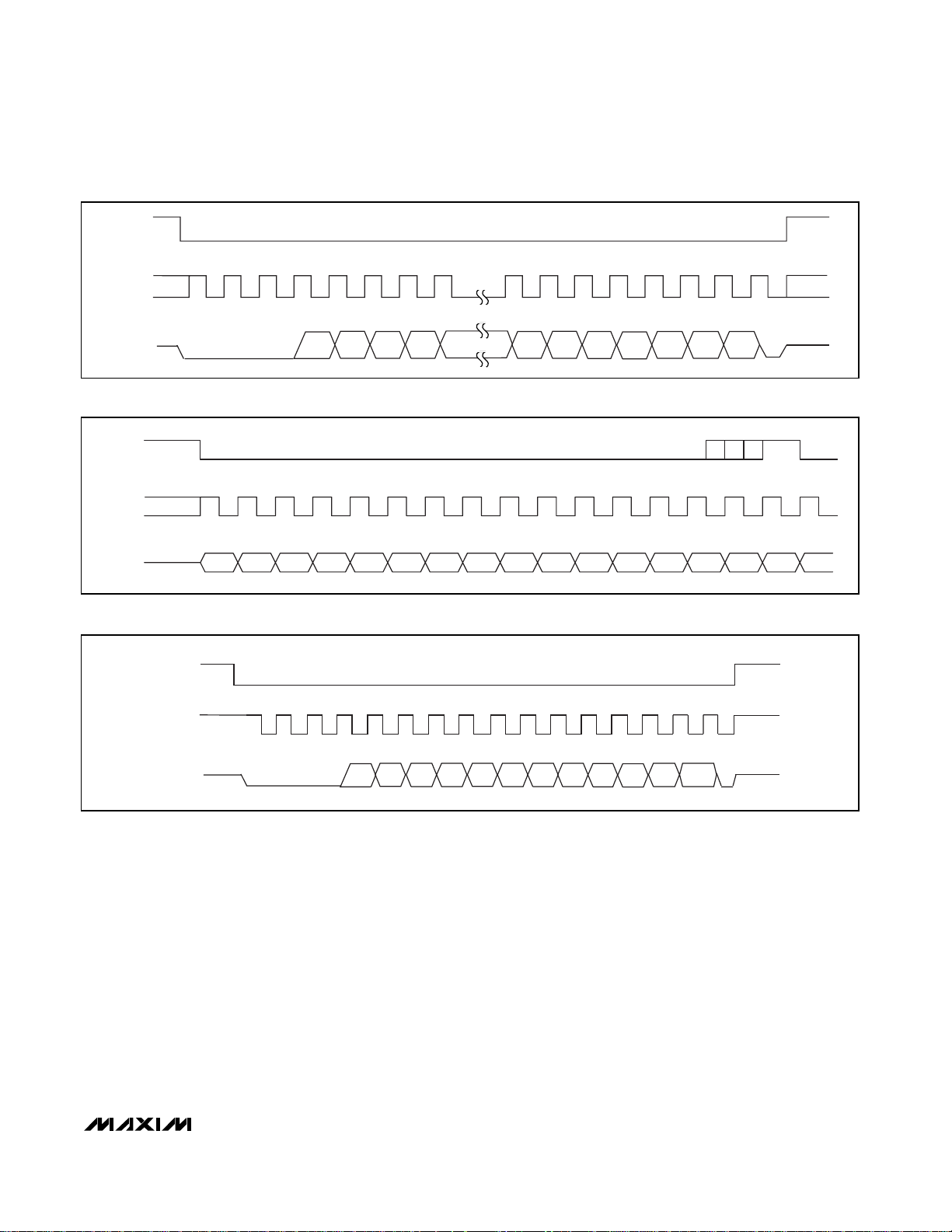

1 and 5 show timing diagrams, which outline the serial­interface operation.

A CNVST falling edge initiates a conversion sequence:
the T/H stage holds the input voltage, the ADC begins
to convert, and DOUT changes from high impedance
to logic low. SCLK is used to drive the conversion
process, and it shifts data out as each bit of the con­version is determined.

SCLK begins shifting out the data after the 4th rising
edge of SCLK. DOUT transitions t

DOUT

after each

SCLK’s rising edge and remains valid 4ns (t

DHOLD

)
after the next rising edge. The 4th rising clock edge
produces the MSB of the conversion at DOUT, and the
MSB remains valid 4ns after the 5th rising edge. Since
there are 10 data bits, 2 sub-bits (S1 and S0), and 3
leading zeros, at least 16 rising clock edges are need-

ed to shift out these bits. For continuous operation, pull
CNVST high between the 14th and the 16th SCLK ris­ing edges. If CNVST stays low after the falling edge of
the 16th SCLK cycle, the DOUT line goes to a high­impedance state on either CNVST’s rising edge or the
next SCLK’s rising edge.

Partial Power-Down and
Full Power-Down Modes

Power consumption can be reduced significantly by
placing the MAX1077/MAX1079 in either partial power­down mode or full power-down mode. Partial power­down mode is ideal for infrequent data sampling and
fast wake-up time applications. Pull CNVST high after
the 3rd SCLK rising edge and before the 14th SCLK
rising edge to enter and stay in partial power-down
mode (see Figure 6). This reduces the supply current
to 2mA. While in partial power-down mode, the refer­ence remains enabled to allow valid conversions once
the IC is returned to normal mode. Drive CNVST low
and allow at least 14 SCLK cycles to elapse before dri­ving CNVST high to exit partial power-down mode.

Full power-down mode is ideal for infrequent data sam­pling and very low supply-current applications. The
MAX1077/MAX1079 have to be in partial power-down
mode to enter full power-down mode. Perform the
SCLK/CNVST sequence described above to enter

RGND

AIN+

GND

DOUT

SCLK

CNVST

CONTROL

LOGIC AND

TIMING

AIN-

V

L

V

DD

REF

10-BIT

SAR
ADC

MAX1077
MAX1079

T/H

OUTPUT

BUFFER

REF 2.048V

Figure 3. Functional Diagram

C

IN+

R

IN+

R

IN-

C

IN-

V

AZ

AIN+

AIN-

CONTROL

LOGIC

CAPACITIVE

DAC

COMP

ACQUISITION MODE

C

IN+

R

IN+

R

IN-

C

IN-

V

AZ

AIN+

AIN-

CONTROL

LOGIC

CAPACITIVE

DAC

COMP

HOLD/CONVERSION MODE

Figure 4. Equivalent Input Circuit

MAX1077/MAX1079

partial power-down mode. Then repeat the same
sequence to enter full power-down mode (see Figure

7). Drive CNVST low, and allow at least 14 SCLK cycles
to elapse before driving CNVST high to exit full power­down mode. While in full power-down mode, the refer­ence is disabled to minimize power consumption. Be
sure to allow at least 2ms recovery time after exiting full
power-down mode for the reference to settle. In

partial/full power-down mode, maintain a logic low or a
logic high on SCLK to minimize power consumption.

Transfer Function

Figure 8 shows the unipolar transfer function for the
MAX1077. Figure 9 shows the bipolar transfer function for
the MAX1079. The MAX1077 output is straight binary,
while the MAX1079 output is two’s complement.

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

10 ______________________________________________________________________________________

DOUT

MODE

SCLK

CNVST

DOUT GOES HIGH IMPEDANCE ONCE CNVST GOES HIGH

CNVST MUST GO HIGH AFTER THE 3RD BUT BEFORE THE 14TH SCLK RISING EDGE

ONE 8-BIT TRANSFER

1ST SCLK RISING EDGE

PPD

000D9D8D7D6 D5

NORMAL

REF

ENABLED (2.048V)

Figure 6. SPI Interface—Partial Power-Down Mode

Figure 5. Interface-Timing Sequence

Figure 7. SPI Interface—Full Power-Down Mode

t

ACQUIRE

CONTINUOUS-CONVERSION
SELECTION WINDOW

CNVST

t

SETUP

DOUT

SCLK

41412 83 16

HIGH IMPEDANCE

S1D2D4 D3D7 D6 D5D9 D8

POWER-MODE SELECTION WINDOW

S0D0D1

CNVST

SCLK

DOUT

MODE

REF

FIRST 8-BIT TRANSFER

1ST SCLK RISING EDGE 1ST SCLK RISING EDGE

000D9D8D7D6 D5

ENABLED (2.048V)

EXECUTE PARTIAL POWER-DOWN TWICE

SECOND 8-BIT TRANSFER

DOUT ENTERS TRI-STATE ONCE CNVST GOES HIGH

000000

RECOVERYPPDNORMAL

0

0

FPD

DISABLED

Applications Information

Internal Reference

The MAX1077/MAX1079 have an on-chip voltage refer­ence trimmed to 2.048V. The internal reference output
is connected to REF and also drives the internal capac­itive DAC. The output can be used as a reference volt­age source for other components and can source up to
2mA. Bypass REF with a 0.01µF capacitor and a 4.7µF
capacitor to RGND.

The internal reference is continuously powered up dur­ing both normal and partial power-down modes. In full
power-down mode, the internal reference is disabled.
Be sure to allow at least 2ms recovery time after hard­ware power-up or exiting full power-down mode for the
reference to reach its intended value.

How to Start a Conversion

An analog-to-digital conversion is initiated by CNVST
and clocked by SCLK, and the resulting data is clocked
out on DOUT by SCLK. With SCLK idling high or low, a
falling edge on CNVST begins a conversion. This causes
the analog input stage to transition from track to hold
mode and DOUT to transition from high impedance to
being actively driven low. A total of 16 SCLK cycles are
required to complete a normal conversion. If CNVST is
low during the 16th falling SCLK edge, DOUT returns to
high impedance on the next rising edge of CNVST or
SCLK, enabling the serial interface to be shared by multi­ple devices. If CNVST returns high after the 14th, but
before the 16th SCLK rising edge, DOUT remains active
so continuous conversions can be sustained. The high­est throughput is achieved when performing continuous
conversions. Figure 10 illustrates a conversion using a
typical serial interface.

Connection to

Standard Interfaces

The MAX1077/MAX1079 serial interface is fully compati­ble with SPI/QSPI and MICROWIRE (see Figure 11). If a
serial interface is available, set the CPU’s serial interface
in master mode so the CPU generates the serial clock.
Choose a clock frequency up to 24MHz.

SPI and MICROWIRE

When using SPI or MICROWIRE, the MAX1077/MAX1079
are compatible with all four modes programmed with the
CPHA and CPOL bits in the SPI or MICROWIRE control
register. Conversion begins with a CNVST falling edge.
DOUT goes low, indicating a conversion is in progress.
Two consecutive 1-byte reads are required to get the full
10 bits from the ADC. DOUT transitions on SCLK rising
edges. DOUT is guaranteed to be valid t

DOUT

later and

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

______________________________________________________________________________________ 11

OUTPUT CODE

FULL-SCALE
TRANSITION

111...111

12 3

0

FS

FS - 3/2 LSB

FS = V

REF

DIFFERENTIAL INPUT

VOLTAGE (LSB)

1 LSB =

V

REF

1024

111...110

111...101

000...011

000...010

000...001

000...000

ZS = 0

Figure 8. Unipolar Transfer Function (MAX1077 Only)

OUTPUT CODE

FULL-SCALE
TRANSITION

FS0-FS

FS - 3/2 LSB

DIFFERENTIAL INPUT

VOLTAGE (LSB)

011...111

011...110

000...010

000...001

000...000

111...111

111...110

111...101

100...001

100...000

1 LSB =

V

REF

1024

FS =

V

REF

2

- FS =

-V

REF

2

ZS = 0

Figure 9. Bipolar Transfer Function (MAX1079 Only)

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

12 ______________________________________________________________________________________

000D9D8D7D6D5D4D3D2D1D0S1S0 0

DOUT

SCLK

CNVST

0

1

1

1614

Figure 10. Continuous Conversion with Burst/Continuous Clock

Figure 11. Common Serial-Interface Connections to the MAX1077/MAX1079

MAX1077
MAX1079

+3V TO +5V

CNVST
SCLK
DOUT

I/O

SCK

MISO

SS

A) SPI

MAX1077
MAX1079

+3V TO +5V

CNVST
SCLK
DOUT

CS

SCK

MISO

SS

B) QSPI

MAX1077
MAX1079

CNVST
SCLK
DOUT

I/O

SK

SI

C) MICROWIRE

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

______________________________________________________________________________________ 13

remains valid until t

DHOLD

after the following SCLK rising
edge. When using CPOL = 0 and CPHA = 0 or CPOL = 1
and CPHA = 1, the data is clocked into the µP on the
following rising edge. When using CPOL = 0 and CPHA
= 1 or CPOL = 1 and CPHA = 0, the data is clocked
into the µP on the next falling edge. See Figure 11 for
connections and Figures 12 and 13 for timing. See the
Timing Characteristics section to determine the best
mode to use.

QSPI

Unlike SPI, which requires two 1-byte reads to acquire
the 10 bits of data from the ADC, QSPI allows the mini­mum number of clock cycles necessary to clock in the

data. The MAX1077/MAX1079 require 16 clock cycles
from the µP to clock out the 10 bits of data. Figure 14
shows a transfer using CPOL = 1 and CPHA = 1. The
conversion result contains three zeros, followed by the
10 data bits, 2 sub-bits, and a trailing zero with the data
in MSB-first format.

DSP Interface to the TMS320C54_

The MAX1077/MAX1079 can be directly connected
to the TMS320C54_ family of DSPs from Texas
Instruments, Inc. Set the DSP to generate its own
clocks or use external clock signals. Use either the
standard or buffered serial port. Figure 15 shows the
simplest interface between the MAX1077/MAX1079 and

SCLK

DOUT

916

8

1

D0

D9

D8

D6

D5

D4

D3

D2

D1

D7

HIGH-Z

HIGH-Z

CNVST

S1

S0

Figure 13. SPI/MICROWIRE Serial-Interface Timing—Continuous Conversion (CPOL = CPHA = 0), (CPOL = CPHA = 1)

000D9D8D7D6D5D4D3D2D1D0S1S0 0

DOUT

SCLK

CNVST

0

1

1

14

16

Figure 12. SPI/MICROWIRE Serial-Interface Timing—Single Conversion (CPOL = CPHA = 0), (CPOL = CPHA = 1)

Figure 14. QSPI Serial-Interface Timing—Single Conversion (CPOL = 1, CPHA = 1)

SCLK

DOUT

CNVST

16

S0

S1

D9

D8

D4D5D6 D3 D2 D1 D0

HIGH-Z

D7

HIGH-Z

2

the TMS320C54_, where the transmit serial clock
(CLKX) drives the receive serial clock (CLKR) and
SCLK, and the transmit frame sync (FSX) drives the
receive frame sync (FSR) and CNVST.

For continuous conversion, set the serial port to trans­mit a clock, and pulse the frame sync signal for a clock
period before data transmission. The serial-port config­uration (SPC) register should be set up with internal
frame sync (TXM = 1), CLKX driven by an on-chip clock
source (MCM = 1), burst mode (FSM = 1), and 16-bit
word length (FO = 0).

This setup allows continuous conversions provided that
the data-transmit register (DXR) and the data-receive
register (DRR) are serviced before the next conversion.
Alternatively, autobuffering can be enabled when using
the buffered serial port to execute conversions and
read the data without CPU intervention. Connect the V

L

pin to the TMS320C54_ supply voltage when the
MAX1077/MAX1079 are operating with an analog sup­ply voltage higher than the DSP supply voltage. The
word length can be set to 8 bits with FO = 1 to imple­ment the power-down modes. The CNVST pin must idle
high to remain in either power-down state.

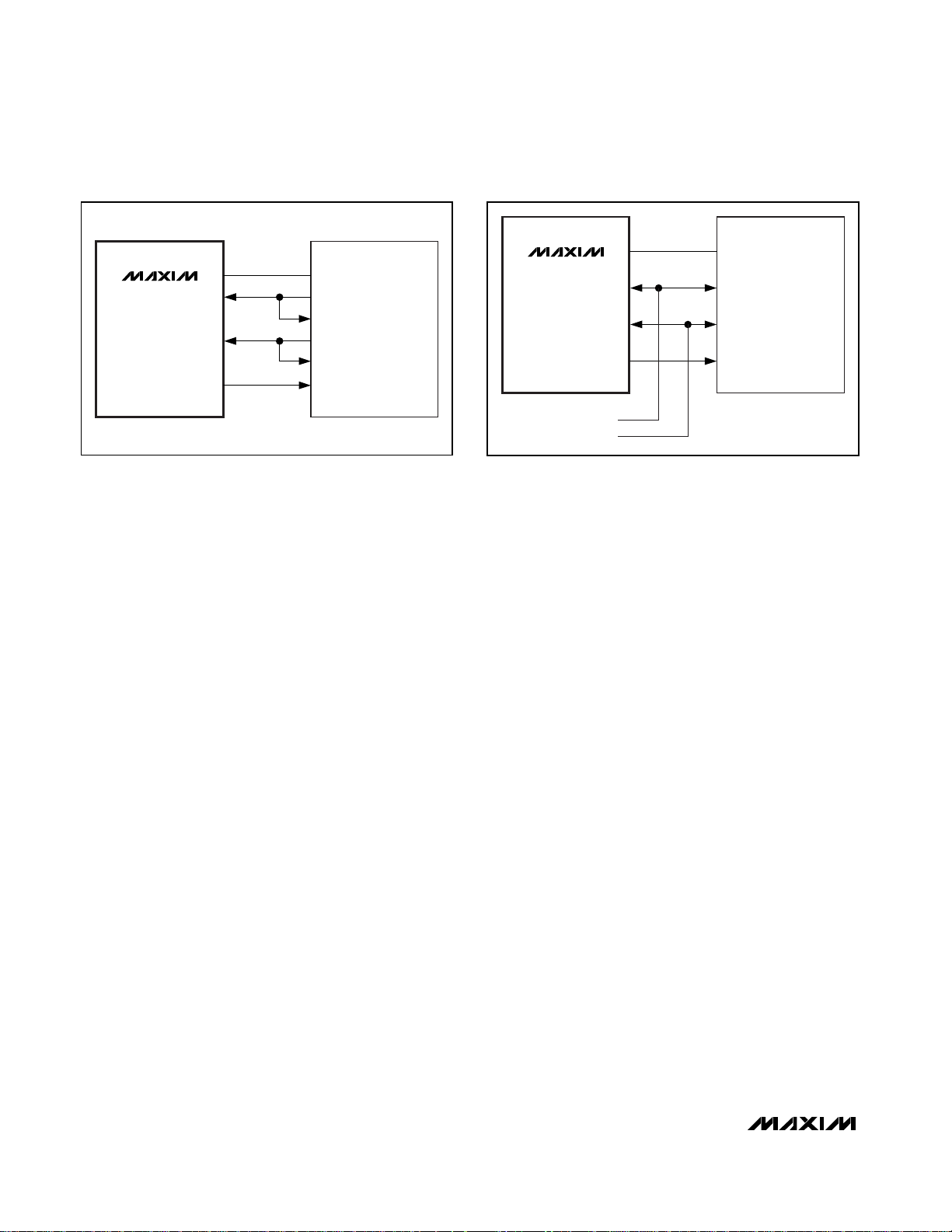

Another method of connecting the MAX1077/MAX1079
to the TMS320C54_ is to generate the clock signals
external to either device. This connection is shown in
Figure 16 where serial clock (CLOCK) drives the CLKR
and SCLK and the convert signal (CONVERT) drives
the FSR and CNVST.

The serial port must be set up to accept an external
receive-clock and external receive-frame sync.

The SPC register should be written as follows:

TXM = 0, external frame sync

MCM = 0, CLKX is taken from the CLKX pin

FSM = 1, burst mode

FO = 0, data transmitted/received as 16-bit words

This setup allows continuous conversion, provided that
the DRR is serviced before the next conversion.
Alternatively, autobuffering can be enabled when using
the buffered serial port to read the data without CPU
intervention. Connect the VL pin to the TMS320C54_
supply voltage when the MAX1077/MAX1079 are oper­ating with an analog supply voltage higher than the
DSP supply voltage.

The MAX1077/MAX1079 can also be connected to the
TMS320C54_ by using the data transmit (DX) pin to
drive CNVST and the CLKX generated internally to
drive SCLK. A pullup resistor is required on the CNVST
signal to keep it high when DX goes high impedance
and 0001hex should be written to the DXR continuously
for continuous conversions. The power-down modes
can be entered by writing 00FFhex to the DXR (see
Figures 17 and 18).

DSP Interface to the ADSP21_ _ _

The MAX1077/MAX1079 can be directly connected to
the ADSP21_ _ _ family of DSPs from Analog Devices,
Inc. Figure 19 shows the direct connection of the
MAX1077/MAX1079 to the ADSP21_ _ _. There are two
modes of operation that can be programmed to interface
with the MAX1077/MAX1079. For continuous conver­sions, idle CNVST low and pulse it high for one clock
cycle during the LSB of the previous transmitted word.
The ADSP21_ _ _ STCTL and SRCTL registers should be
configured for early framing (LAFR = 0) and for an
active-high frame (LTFS = 0, LRFS = 0) signal. In this
mode, the data-independent frame-sync bit (DITFS = 1)

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

14 ______________________________________________________________________________________

Figure 15. Interfacing to the TMS320C54_ Internal Clocks

Figure 16. Interfacing to the TMS320C54_ External Clocks

MAX1077
MAX1079

TMS320C54_

V

L

SCLK

CNVST

DOUT

DV

DD

CLKR

FSR

CLKX

FSX

DR

V

MAX1077
MAX1079

L DV

SCLK

DD

TMS320C54_

CLKR

CNVST

DOUT DR

CLOCK

CONVERT

FSR

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

______________________________________________________________________________________ 15

can be selected to eliminate the need for writing to the
transmit-data register more than once. For single conver­sions, idle CNVST high and pulse it low for the entire
conversion. The ADSP21_ _ _ STCTL and SRCTL regis­ters should be configured for late framing (LAFR = 1)
and for an active-low frame (LTFS = 1, LRFS = 1) signal.
This is also the best way to enter the power-down modes
by setting the word length to 8 bits (SLEN = 1001).
Connect the VL pin to the ADSP21_ _ _ supply voltage
when the MAX1077/MAX1079 are operating with a sup­ply voltage higher than the DSP supply voltage (see
Figures 17 and 18).

Layout, Grounding, and Bypassing

For best performance, use PC boards. Wire-wrap
boards are not recommended. Board layout should
ensure that digital and analog signal lines are separat­ed from each other. Do not run analog and digital
(especially clock) lines parallel to one another, or digital
lines underneath the ADC package.

Figure 20 shows the recommended system ground
connections. Establish a single-point analog ground
(star ground point) at GND, separate from the logic
ground. Connect all other analog grounds and DGND
to this star ground point for further noise reduction. The
ground return to the power supply for this ground
should be low impedance and as short as possible for

noise-free operation.

High-frequency noise in the VDDpower supply can
affect the ADC’s high-speed comparator. Bypass this
supply to the single-point analog ground with 0.01µF
and 10µF bypass capacitors. Minimize capacitor lead
lengths for best supply-noise rejection.

Definitions

Integral Nonlinearity

Integral nonlinearity (INL) is the deviation of the values on
an actual transfer function from a straight line. This
straight line can be either a best-straight-line fit or a line
drawn between the end points of the transfer function,
once offset and gain errors have been nullified. The static
linearity parameters for the MAX1077/MAX1079 are mea­sured using the end-points method.

Differential Nonlinearity

Differential nonlinearity (DNL) is the difference between
an actual step width and the ideal value of 1 LSB. A DNL
error specification of 1 LSB or less guarantees no missing
codes and a monotonic transfer function.

Aperture Jitter

Aperture jitter (tAJ) is the sample-to-sample variation in
the time between the samples.

000D9D8D7D6D5D4D3D2D1D0S1S0 0

DOUT

SCLK

CNVST

00S0

1 1

Figure 17. DSP Interface—Continuous Conversion

000D9D8D7D6D5D4D3 D2 D1D0S1S0 0

DOUT

SCLK

CNVST

0 0

1

1

Figure 18. DSP Interface—Single-Conversion, Continuous/Burst Clock

MAX1077/MAX1079

Aperture Delay

Aperture delay (tAD) is the time defined between the
falling edge of CNVST and the instant when an actual
sample is taken.

Signal-to-Noise Ratio

For a waveform perfectly reconstructed from digital sam­ples, signal-to-noise ratio (SNR) is the ratio of full-scale
analog input (RMS value) to the RMS quantization error
(residual error). The theoretical minimum analog-to-digital
noise is caused by quantization error, and results directly
from the ADC’s resolution (N bits):

SNR = (6.02 x N + 1.76)dB

In reality, there are other noise sources besides quantiza­tion noise, including thermal noise, reference noise, clock
jitter, etc. Therefore, SNR is computed by taking the ratio
of the RMS signal to the RMS noise, which includes all
spectral components minus the fundamental, the first five
harmonics, and the DC offset.

Signal-to-Noise Plus Distortion

Signal-to-noise plus distortion (SINAD) is the ratio of the
fundamental input frequency’s RMS amplitude to the
RMS equivalent of all other ADC output signals:

SINAD(dB) = 20 x log (Signal

RMS

/ Noise

RMS

)

Effective Number of Bits

Effective number of bits (ENOB) indicates the global
accuracy of an ADC at a specific input frequency and
sampling rate. An ideal ADC’s error consists of quantiza­tion noise only. With an input range equal to the full-scale
range of the ADC, calculate the ENOB as follows:

Total Harmonic Distortion

Total harmonic distortion (THD) is the ratio of the RMS
sum of the first five harmonics of the input signal to the
fundamental itself. This is expressed as:

where V

1

is the fundamental amplitude, and V2through
V5are the amplitudes of the 2nd- through 5th-order
harmonics.

Spurious-Free Dynamic Range

Spurious-free dynamic range (SFDR) is the ratio of the
RMS amplitude of the fundamental (maximum signal
component) to the RMS value of the next-largest distor­tion component.

Full-Power Bandwidth

Full-power bandwidth is the frequency at which the input
signal amplitude attenuates by 3dB for a full-scale input.

THD x

V VVV

V

log=

+++



















20

2232425

2

1

ENOB

SINAD

( .)

.

=

− 176

602

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

16 ______________________________________________________________________________________

MAX1077
MAX1079

ADSP21_ _ _

V

L

SCLK

CNVST

DOUT

VDDINT

RCLK

RFS

TCLK

TFS

DR

Figure 19. Interfacing to the ADSP21_ _ _

10µF

0.1µF

10µF

0.1µF

V

DD

GND V

L

SUPPLIES

DGND V

L

DIGITAL

CIRCUITRY

V

DD GND RGND

V

L

MAX1077
MAX1079

Figure 20. Power-Supply Grounding Condition

Full-Linear Bandwidth

Full-linear bandwidth is the frequency at which the sig­nal-to-noise plus distortion (SINAD) is equal to 56dB.

Intermodulation Distortion

Any device with nonlinearities creates distortion prod­ucts when two sine waves at two different frequencies
(f1 and f2) are input into the device. Intermodulation
distortion (IMD) is the total power of the IM2 to IM5
intermodulation products to the Nyquist frequency rela­tive to the total input power of the two input tones, f1
and f2. The individual input tone levels are at -7dBFS.

The intermodulation products are as follows:

• 2nd-order intermodulation products (IM2): f1+ f2,

f2- f

1

• 3rd-order intermodulation products (IM3): 2f1- f2,

2f2- f1, 2f1+ f2, 2f2+ f

1

• 4th-order intermodulation products (IM4): 3f1- f2,

3f2- f1, 3f1+ f2, 3f2+ f

1

• 5th-order intermodulation products (IM5): 3f1- 2f2,

3f2- 2f1, 3f1+ 2f2, 3f2+ 2f

1

MAX1077/MAX1079

1.5Msps, Single-Supply, Low-Power, True-

Differential, 10-Bit ADCs with Internal Reference

______________________________________________________________________________________ 17

Chip Information

TRANSISTOR COUNT: 13,016

PACKAGE INFO: T1244-3

PROCESS: BiCMOS

MAX1077MAX1079

1.5Msps, Single-Supply, Low-Power, True­Differential, 10-Bit ADCs with Internal Reference

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

18 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2004 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

24L QFN THIN.EPS

C

1

2

21-0139

PACKAGE OUTLINE
12, 16, 20, 24L THIN QFN, 4x4x0.8mm

C

2

2

21-0139

PACKAGE OUTLINE
12, 16, 20, 24L THIN QFN, 4x4x0.8mm
