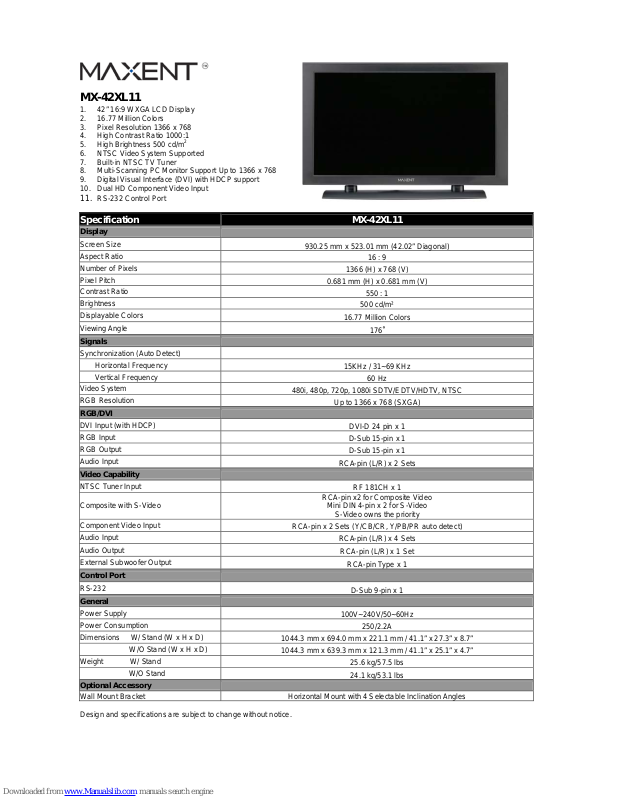

Maxent MX-42XL11 Specifications

MX-42XL11

1. 42” 16:9 WXGA LCD Display

2. 16.77 Million Colors

3. Pixel Resolution 1366 x 768

4. High Contrast Ratio 1000:1

5. High Brightness 500 cd/m

6. NTSC Video System Supported

7. Built-in NTSC TV Tuner

8. Multi-Scanning PC Monitor Support Up to 1366 x 768

9. Digital Visual Interface (DVI) with HDCP support

10. Dual HD Component Video Input

2

11. RS-232 Control Port

Specification

Display

Screen Size
Aspect Ratio
Number of Pixels
Pixel Pitch
Contrast Ratio
Brightness
Displayable Colors
Viewing Angle

Signals

Synchronization (Auto Detect)
Horizontal Frequency
Vertical Frequency
Video System
RGB Resolution

RGB/DVI

DVI Input (with HDCP)
RGB Input
RGB Output
Audio Input

Video Capability

NTSC Tuner Input

Composite with S-Video

Component Video Input
Audio Input
Audio Output
External Subwoofer Output

Control Port

RS-232

General

Power Supply
Power Consumption
Dimensions W/ Stand (W x H x D)
W/O Stand (W x H x D)
Weight W/ Stand
W/O Stand

Optional Accessory

Wall Mount Bracket Horizontal Mount with 4 Selectable Inclination Angles
Design and specifications are subject to change without notice.

930.25 mm x 523.01 mm (42.02” Diagonal)

480i, 480p, 720p, 1080i SDTV/EDTV/HDTV, NTSC

RCA-pin x 2 Sets (Y/CB/CR, Y/PB/PR auto detect)

1044.3 mm x 694.0 mm x 221.1 mm / 41.1” x 27.3” x 8.7”

1044.3 mm x 639.3 mm x 121.3 mm / 41.1” x 25.1” x 4.7”

MX-42XL11

16 : 9

1366 (H) x 768 (V)

0.681 mm (H) x 0.681 mm (V)
550 : 1

500 cd/m²

16.77 Million Colors
176˚

15KHz / 31~69 KHz

60 Hz

Up to 1366 x 768 (SXGA)

DVI-D 24 pin x 1
D-Sub 15-pin x 1
D-Sub 15-pin x 1

RCA-pin (L/R) x 2 Sets

RF 181CH x 1

RCA-pin x2 for Composite Video

Mini DIN 4-pin x 2 for S- Video

S-Video owns the priority

RCA-pin (L/R) x 4 Sets

RCA-pin (L/R) x 1 Set

RCA-pin Type x 1

D-Sub 9-pin x 1

100V~240V/50~60Hz

250/2.2A

25.6 kg/57.5 lbs

24.1 kg/53.1 lbs
