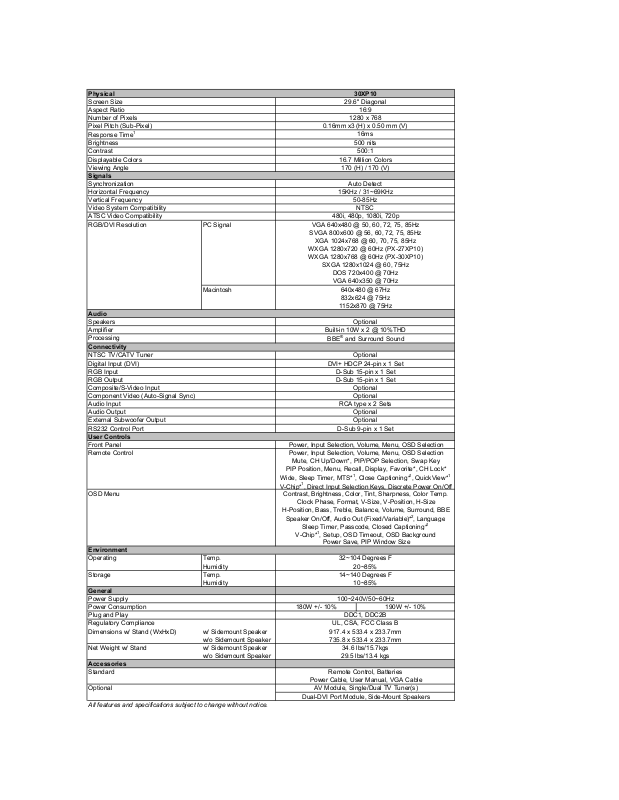

Page 1
Physical
p
,
,
g*
,
*
p*
,
f
p
)*
,
ge
g*
p*
,
d
Screen Size
Aspect Ratio
Number of Pixels
Pixel Pitch (Sub-Pixel)
Res
Brightness
onse Time
1
Contrast
Displayable Colors
Viewing Angle
Signals
Synchronization
Horizontal Frequency
Vertical Frequency
Video System Compatibility
ATSC Video Compatibility
RGB/DVI Resolution
PC Signal
0.16mm x3 (H) x 0.50 mm (V)
VGA 640x480 @ 50, 60, 72, 75, 85Hz
30XP10
29.6" Diagonal
16:9
1280 x 768
16ms
500 nits
500:1
16.7 Million Colors
170 (H) / 170 (V)
Auto Detect
15KHz / 31~69KHz
50-85Hz
NTSC
480i, 480p, 1080i, 720p
SVGA 800x600 @ 56, 60, 72, 75, 85Hz
XGA 1024x768 @ 60, 70, 75, 85Hz
WXGA 1280x720 @ 60Hz (PX-27XP10)
WXGA 1280x768 @ 60Hz (PX-30XP10)
SXGA 1280x1024 @ 60, 75Hz
DOS 720x400 @ 70Hz
VGA 640x350 @ 70Hz
Macintosh
640x480 @ 67Hz
832x624 @ 75Hz
1152x870 @ 75Hz
Audio
Speakers
Amplifier
Processing
Connectivity
NTSC TV/CATV Tuner
Digital Input (DVI)
RGB Input
RGB Output
Composite/S-Video Input
Component Video (Auto-Signal Sync)
Audio Input
Audio Output
External Subwoofer Output
RS232 Control Port
User Controls
Front Panel
Remote Control
Power, Input Selection, Volume, Menu, OSD Selection
Power, Input Selection, Volume, Menu, OSD Selection
Optional
Built-in 10W x 2 @ 10%THD
®
and Surround Sound
BBE
Optional
DVI+ HDCP 24-pin x 1 Set
D-Sub 15-pin x 1 Set
D-Sub 15-pin x 1 Set
Optional
Optional
RCA type x 2 Sets
Optional
Optional
D-Sub 9-pin x 1 Set
Mute, CH Up/Down*, PIP/POP Selection, Swap Key
OSD Menu
PIP Position, Menu, Recall, Display, Favorite*, CH Lock*
Sleep Timer, MTS*
Wide
1
V-Chi
Direct Input Selection Keys, Discrete Power On/Of
Contrast, Brightness, Color, Tint, Sharpness, Color Temp.
1
Close Captionin
1
QuickView
Clock Phase, Format, V-Size, V-Position, H-Size
Environment
Operating Temp.
Humidity
Storage Temp.
Humidity
General
Power Supply
H-Position, Bass, Treble, Balance, Volume, Surround, BBE
S
eaker On/Off, Audio Out (Fixed/Variable
Sleep Timer, Passcode, Closed Captionin
1
V-Chi
Setup, OSD Timeout, OSD Backgroun
Power Save, PIP Window Size
32~104 Degrees F
20~85%
14~140 Degrees F
10~85%
100~240V/50~60Hz
2
Langua
Power Consumption 180W +/- 10% 190W +/- 10%
Plug and Play
Regulatory Compliance
Dimensions w/ Stand (WxHxD) w/ Sidemount Speaker
w/o Sidemount Speaker
Net Weight w/ Stand w/ Sidemount Speaker
w/o Sidemount Speaker
Accessories
Standard
DDC1, DDC2B
UL, CSA, FCC Class B
917.4 x 533.4 x 233.7mm
735.8 x 533.4 x 233.7mm
34.6 lbs/15.7kgs
29.5 lbs/13.4 kgs
Remote Control, Batteries
Power Cable, User Manual, VGA Cable
Optional
AV Module, Single/Dual TV Tuner(s)
Dual-DVI Port Module, Side-Mount Speakers
All features and specifications subject to change without notice.
