Maxent MX-42VM7 Owners Manual

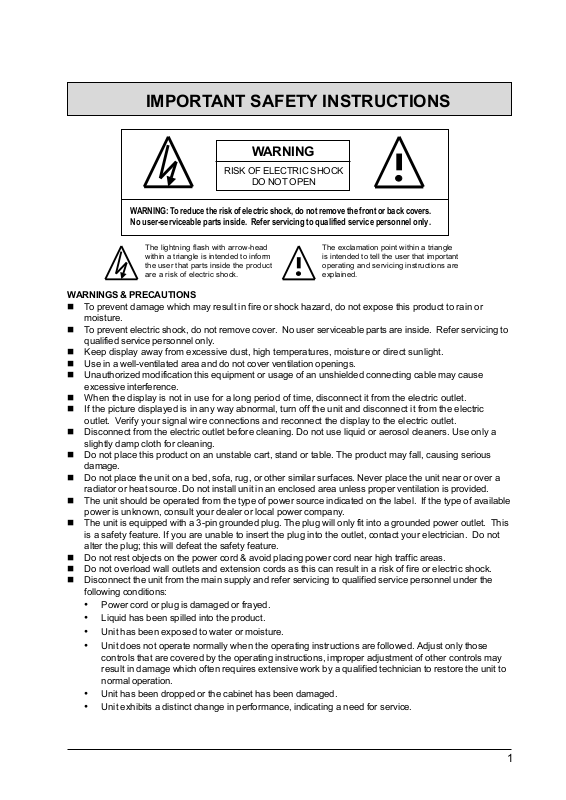

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of electric shock, do not remove the front or back covers.
No user-serviceable parts inside. Refer servicing to qualified service personnel only.
WARNINGS & PRECAUTIONS
! To prevent damage which may result in fire or shock hazard, do not expose this product to rain or
moisture.
! To prevent electric shock, do not remove cover. No user serviceable parts are inside. Refer servicing to
qualified service personnel only.
! Keep display away from excessive dust, high temperatures, moisture or direct sunlight.
! Use in a well-ventilated area and do not cover ventilation openings.
! Unauthorized modification this equipment or usage of an unshielded connecting cable may cause
excessive interference.
! When the display is not in use for a long period of time, disconnect it from the electric outlet.
! If the picture displayed is in any way abnormal, turn off the unit and disconnect it from the electric
outlet. Verify your signal wire connections and reconnect the display to the electric outlet.
! Disconnect from the electric outlet before cleaning. Do not use liquid or aerosol cleaners. Use only a
slightly damp cloth for cleaning.
! Do not place this product on an unstable cart, stand or table. The product may fall, causing serious
damage.
! Do not place the unit on a bed, sofa, rug, or other similar surfaces. Never place the unit near or over a
radiator or heat source. Do not install unit in an enclosed area unless proper ventilation is provided.
! The unit should be operated from the type of power source indicated on the label. If the type of available
power is unknown, consult your dealer or local power company.
! The unit is equipped with a 3-pin grounded plug. The plug will only fit into a grounded power outlet. This
is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician. Do not
alter the plug; this will defeat the safety feature.
! Do not rest objects on the power cord & avoid placing power cord near high traffic areas.
! Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
! Disconnect the unit from the main supply and refer servicing to qualified service personnel under the
following conditions:
The lightning flash with arrow-head
within a triangle is intended to inform
the user that parts inside the product
are a risk of electric shock.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within a triangle
is intended to tell the user that important
operating and servicing instructions are
explained.
• Power cord or plug is damaged or frayed.
• Liquid has been spilled into the product.
• Unit has been exposed to water or moisture.
• Unit does not operate normally when the operating instructions are followed. Adjust only those
controls that are covered by the operating instructions, improper adjustment of other controls may
result in damage which often requires extensive work by a qualified technician to restore the unit to
normal operation.
• Unit has been dropped or the cabinet has been damaged.
• Unit exhibits a distinct change in performance, indicating a need for service.
1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................ 1
TABLE OF CONTENTS .................................................................................................................... 2
FCC STATEMENT ............................................................................................................................ 3
CLEANING AND MAINTENANCE .................................................................................................... 4
PRODUCT FEATURES .................................................................................................................... 5

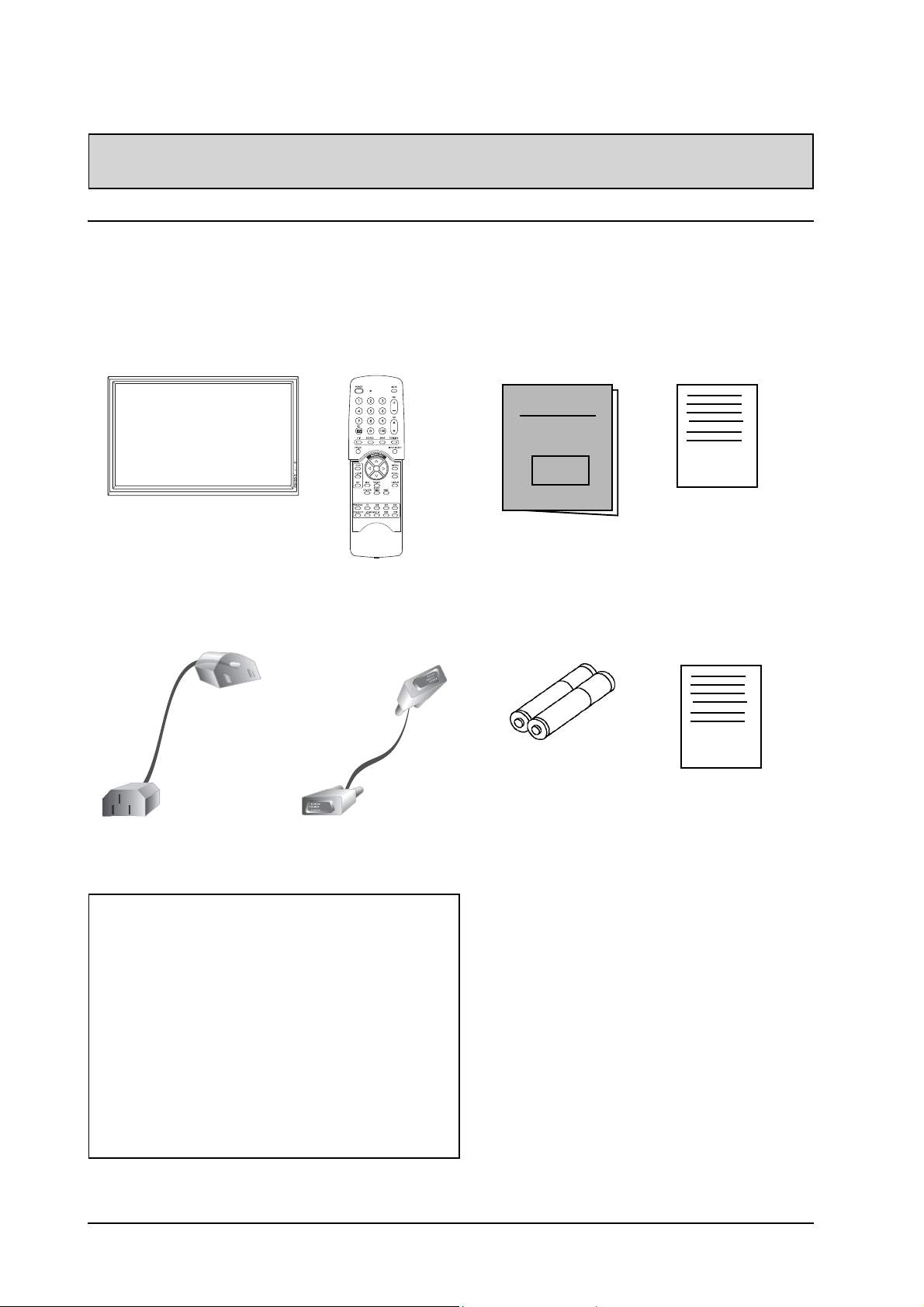

PACKAGE CONTENTS .................................................................................................................... 6
UNDERSTANDING YOUR DISPLAY

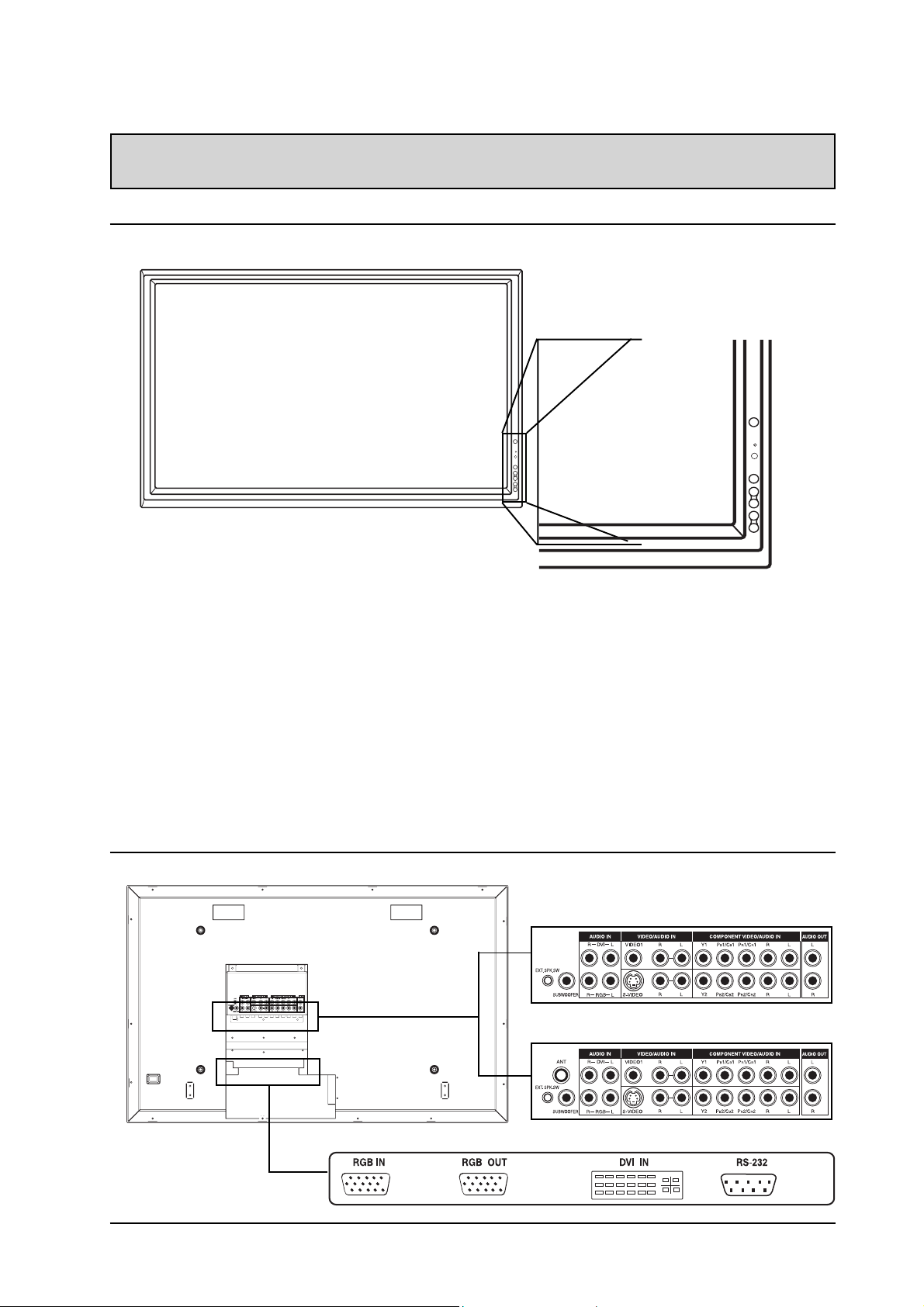

Front View ........................................................................................................................... 7
Rear View ........................................................................................................................... 7

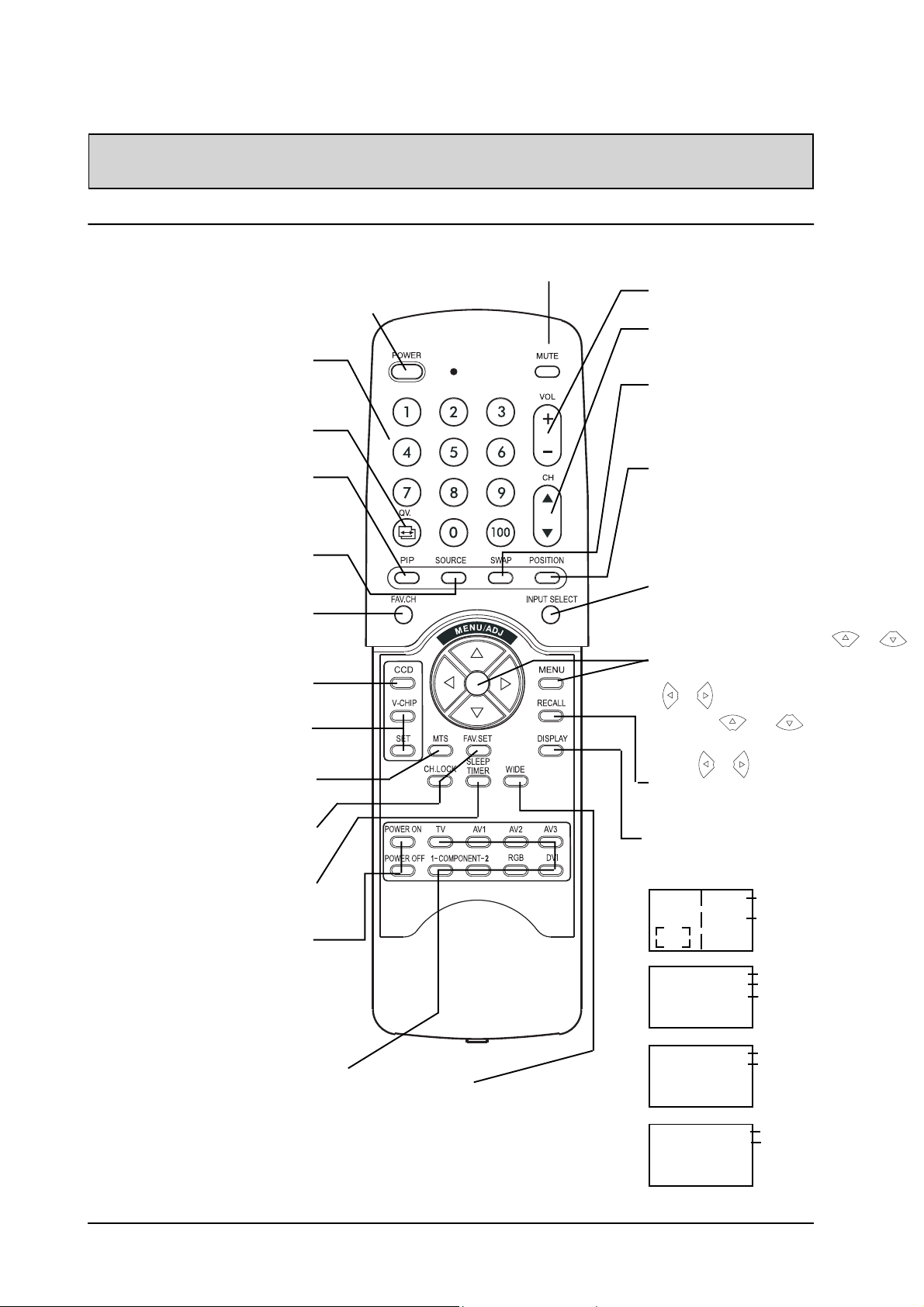

Full Function Remote Control .............................................................................................. 8
CONNECTING THE DISPLAY

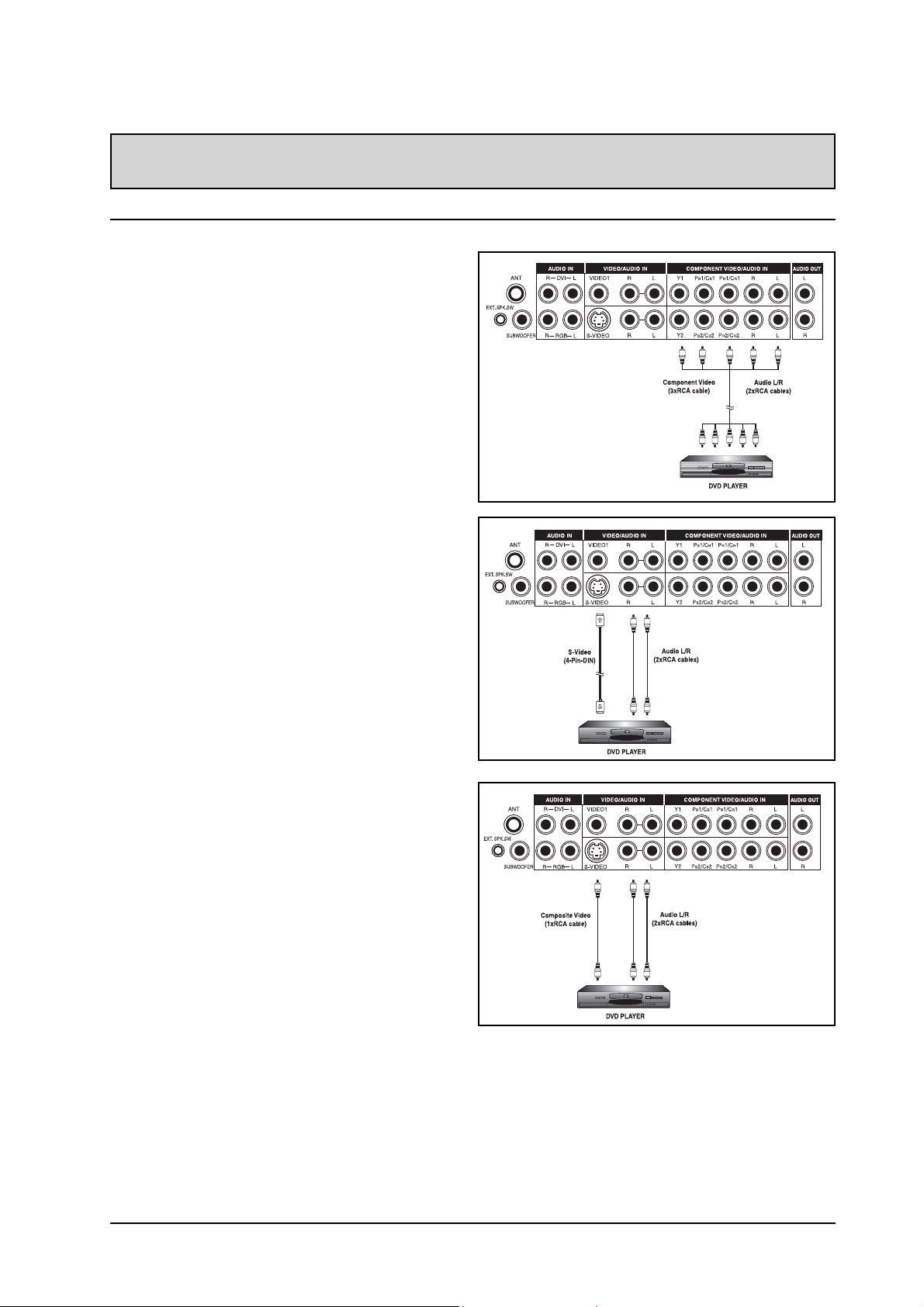

Connecting a DVD Player .................................................................................................... 9

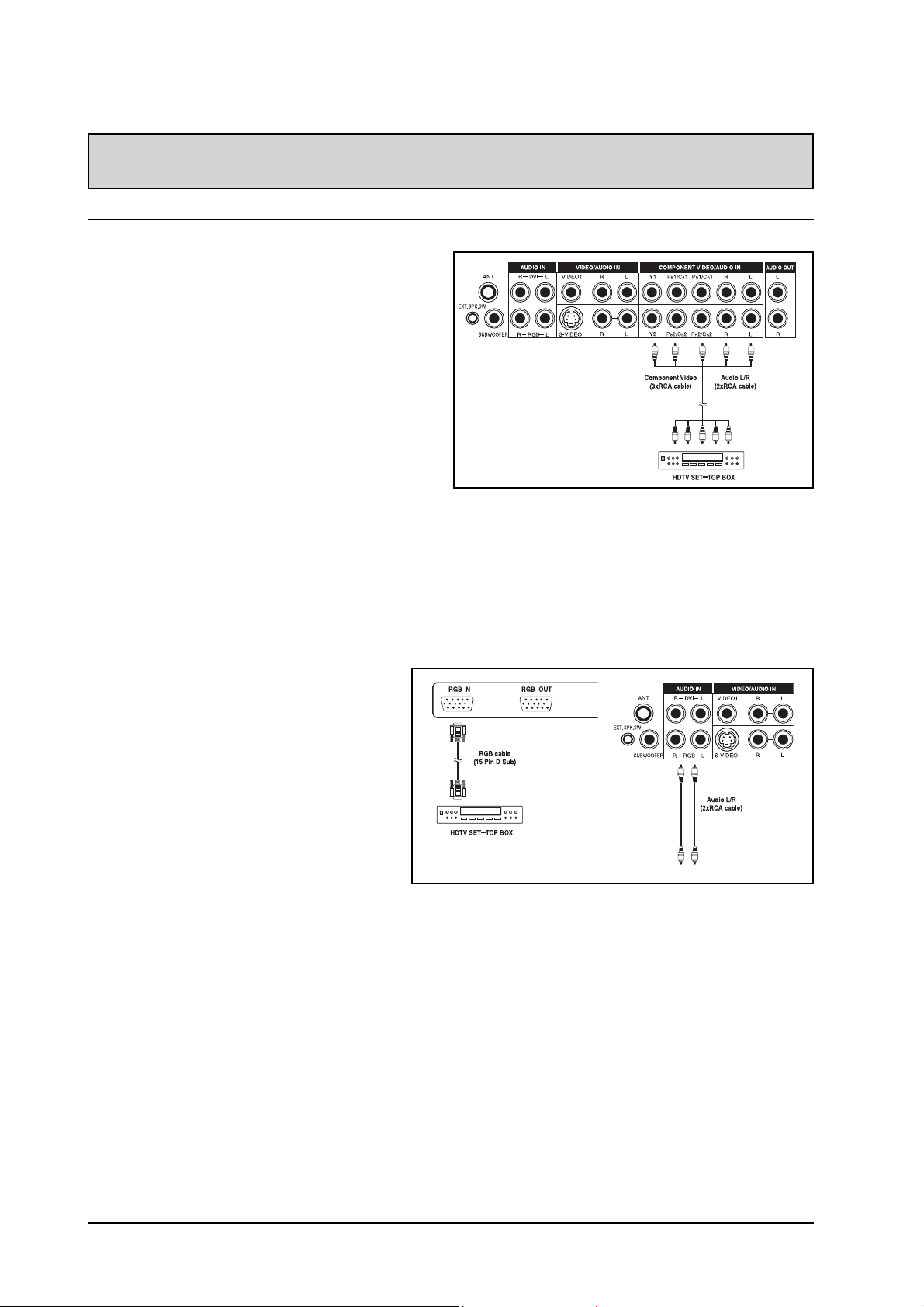

Connecting a HDTV Decoder Set-Top Box ........................................................................... 10
Connecting a VCR ............................................................................................................... 11

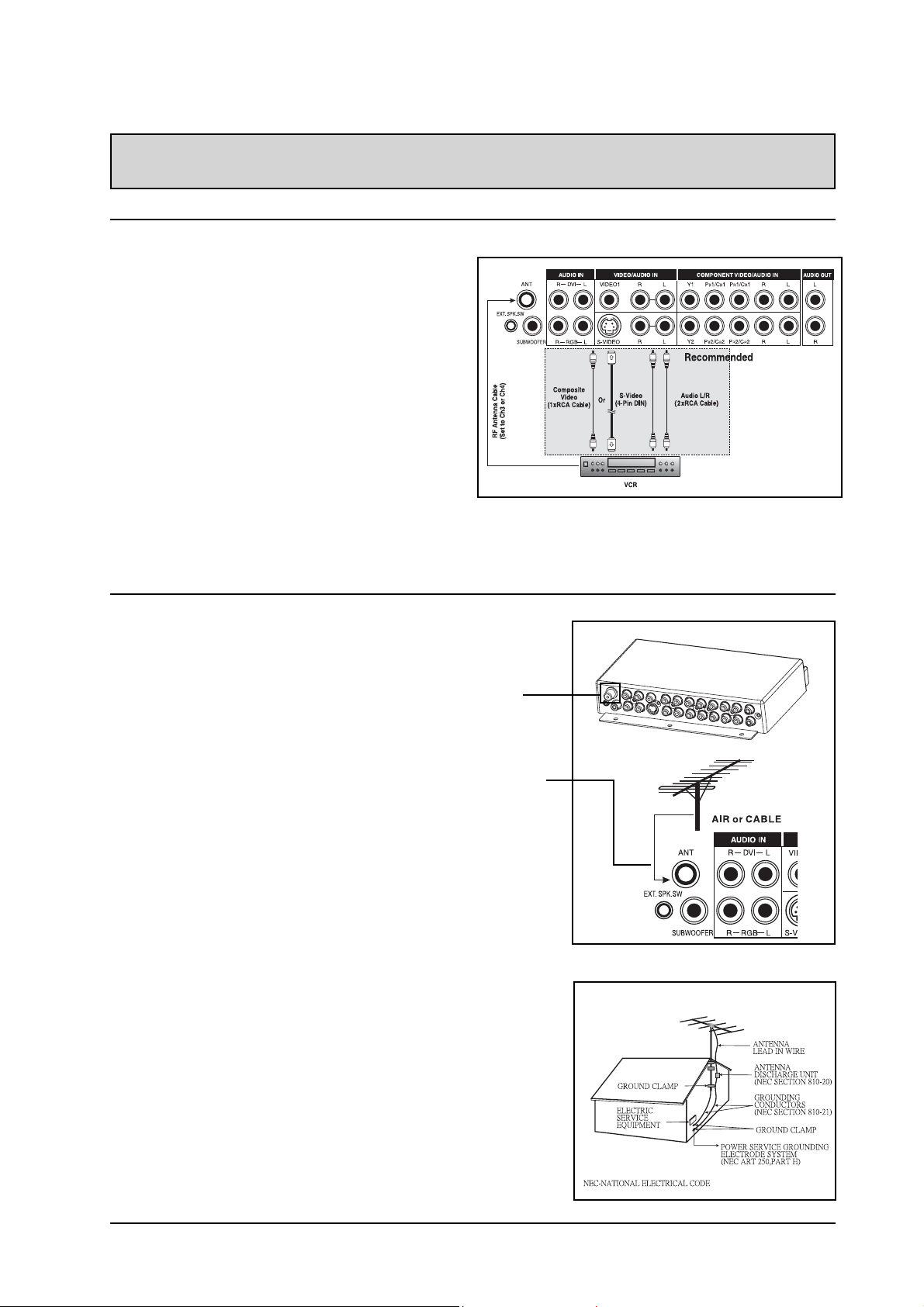

TV/Cable TV Connections ................................................................................................... 11

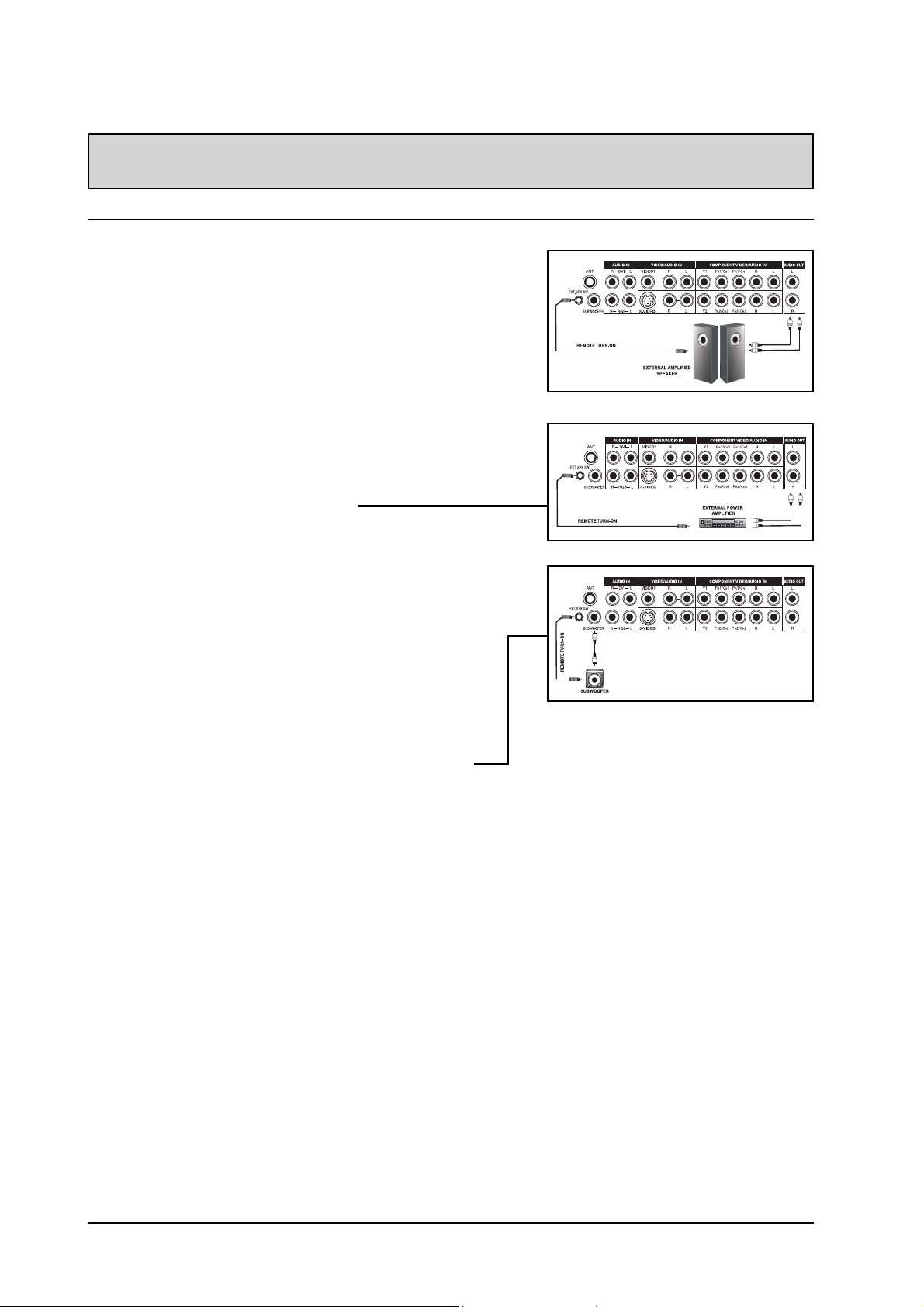

External Audio Connections ................................................................................................ 12

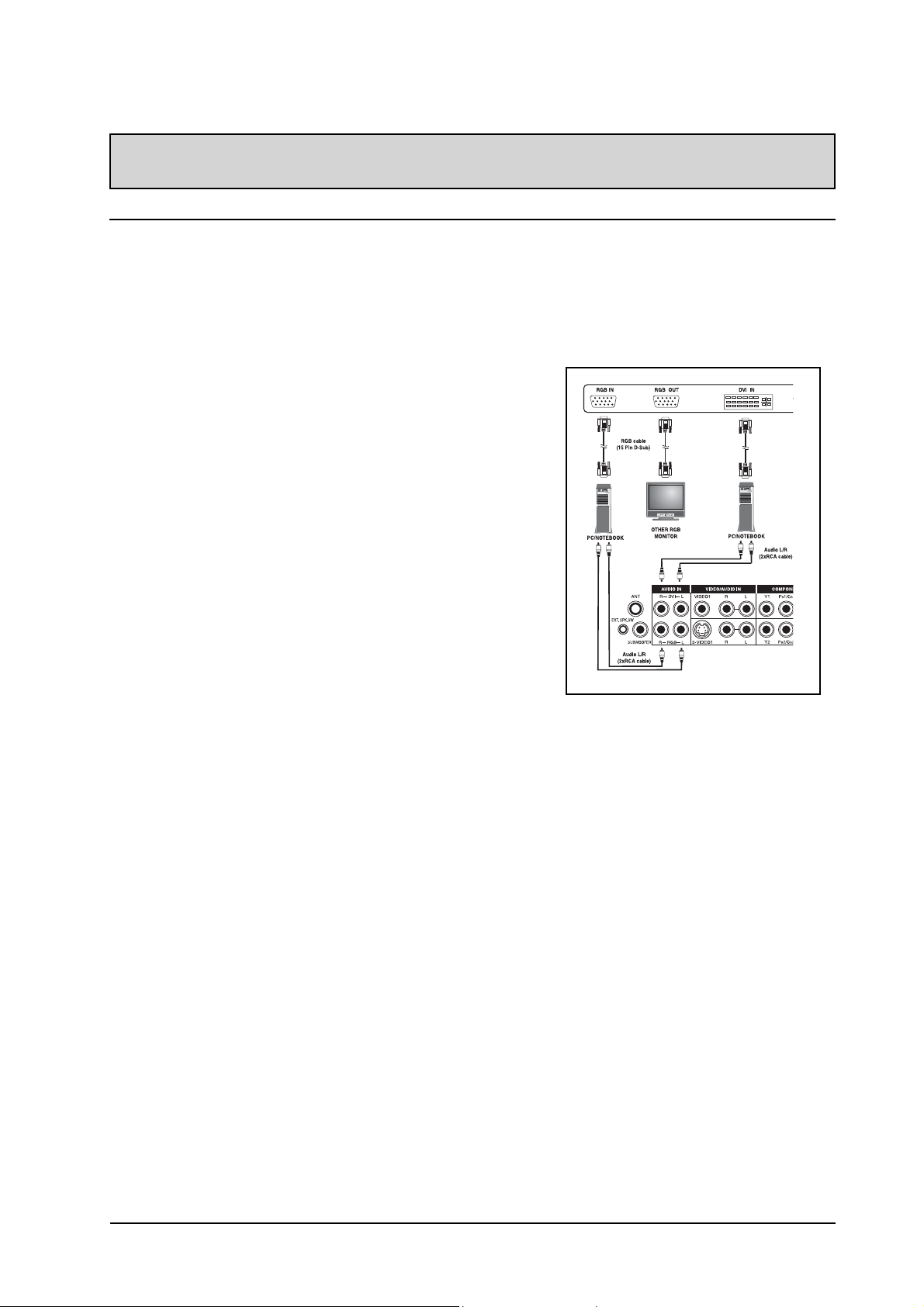

Connecting a PC ................................................................................................................. 13
RS-232 Remote Control Connections .................................................................................. 14
USING THE DISPLAY - BASICS
Powering ON/OFF ............................................................................................................... 15
Selecting Signal Source ...................................................................................................... 15
Adjusting Sound Volume ..................................................................................................... 16
Changing Channels (TV Mode Only) .................................................................................... 16
USING WITH HDTV
Understanding HDTV ........................................................................................................... 17
ADVANCED FUNCTIONS
Picture-In-Picture (PIP) / Side-by-Side Picture (POP) .......................................................... 19
Widescreen (16:9 Aspect Ratio) Viewing Modes ................................................................. 21
On-Screen Display (OSD) Settings ..................................................................................... 22
Sleep Timer Settings ........................................................................................................... 23
TV Tuner Settings ............................................................................................................... 24
Favorite Channel / Channel Lock ......................................................................................... 25
Variable and Fixed Audio Output ......................................................................................... 26
Quick View .......................................................................................................................... 26
Sound Adjustments ............................................................................................................. 26
SRS Surround ........................................................................................................ 26
BBE Sound ............................................................................................................ 26
Inner Speaker ON/OFF ........................................................................................... 27
Bass Extension ...................................................................................................... 27
V-Chip Settings ................................................................................................................... 27
PASSCODE Setting ............................................................................................................ 28
Signal Frequency Information Display .................................................................................. 29
ADVANCED CALIBRATION .............................................................................................................. 30
ADJUSTING PICTURE
For TV / AV / Component Video(480i signal) ........................................................................ 34
For Component Video(480p, 720p and 1080i signal) ............................................................ 35
For RGB / DVI ..................................................................................................................... 37
TROUBLESHOOTING ...................................................................................................................... 38
SPECIFICATIONS ............................................................................................................................ 39
WALL MOUNT (OPTIONAL) INSTALLATION .................................................................................... 45
2
FCC STATEMENT
FCC Compliance Statement
The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
strict accordance with the instruction manual, may cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at the user’s own expense.
Shielded interconnected cables and shield power cords must be employed with this equipment to insure
compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment and invalidate the warranty.
Canadian Compliance Statement
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment
Regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
3
CLEANING AND MAINTENANCE
Cautions When Using the Plasma Display
! Do not bring your hands, face or objects close to the ventilation holes of the plasma
display. Top of plasma display is usually very hot due to the high temperature of exhaust
air being released through the ventilation holes. Burns or personal injuries may ocurr if
any body parts are brought too close. Placing any object near the top of the display
could also result in heat related damages to the object as well as the display itself.
! Be sure to disconnect all cables before moving the plasma display. Moving the display with its cables
attached may damage the cables and thus case fire or electric shock danger.
! Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of
cleaning or maintenance procedure.
Front Panel Cleaning Instructions
! The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth
or a soft, lint-free cloth.
! If the surface is particular dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth
to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the
same type to dry.
! Do not scratch or hit the surface of the panel with fingers or hard objects of any kind.
! Do not use volatile substances such as insect sprays, solvents and thinners.
Cabinet Cleaning Instructions
! If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.
! If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution. Wring
the cloth to remove as much moisture possible. Wipe the cabinet. Use another dry cloth
to wipe over until the surface is dry.
! Do not allow any water or detergent to come into contact with the surface of the display.
If water or moisture gets inside the unit, operating problems, electrical and shock hazards may result.
! Do not scratch or hit the cabinet with fingers or hard objects of any kind.
! Do not use volatile substances such as insect sprays, solvents and thinners on the cabinet.
! Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.
Avoid Still Images
! Do not allow a still picture to be displayed for extended periods of time. This can cause a
permanent image to remain on the plasma display. Examples of still images may
include: still computer images, still video game images, still logos or pictures, text and
images displayed in 4:3 Normal mode.
Contents of this manual is subject to change without notice.
Trademark Credits
! VGA is a trademark of IBM Corporation.
! Macintosh is a registered trademark of Apple Computer Corporation.
! SVGA is a registered trademark of the Video Electronics Standard Association.
! BBE is a registered trademark of BBE Sound Inc.
! SRS and (o) symbol are trademarks of SRS Labs Inc.
SRS technology is incorporated under license from SRS Labs, Inc.
! All other trademarks are the properties of theri respective owners.
4
PRODUCT FEATURES
!!
! Quiet Fanless Operation
!!
This plasma display is built without any fans for
quiet operations suitable for home theater
related applications.
!!
! Advanced Digital Image Processing
!!
Advanced digital processor with adaptive motion
de-interlacing converts all 15KHz signals into
progressive scan for a brighter, flicker free
image.
!!
! 3:2 Pull-Down for Film Scan Conversion
!!
Built-in 3:2 pull-down processing can automatically detect and convert film content to properly display with minimal motion artifacts.
!!
! 3D Comb Filter
!!
Built-in 3D comb filter coverts analog signal into
a digital signal for more accurate processing,
eliminating cross-color interference for superior
NTSC video performance.
!!
! Dual HD Component Video Inputs
!!
Two high-definition component video inputs with
auto-detection capabilities will automatically
synchronize the display to match the incoming
signal source without manual intervention.
!!
! TV Tuner Option
!!
An optional television tuner module turns this
display into a standard TV receiver.
!!
! Picture-in-Picture (PIP)
!!
Watch two programs simultaneously using the
display’s picture-in-picture with four selectable
window position settings.
!!
! Side-by-Side Picture (POP)
!!
Watch two programs silmultaneous by splitting
the screen in half.
!!
! HDTV Signal Compatible
!!
This display is capable of accepting 1080i and
720p HDTV signals via an external HDTV
decoder with RGB or Component Video outputs.
!!
! Digital Zoom Modes
!!
Digital zoom modes gets rid of black bars
common to non-16:9 aspect ratio movie content.
!!
! BBE® Sound Maximizer
!!
Built-in BBE sound processor maximizes the
sound quality.
!!
! SRS® Sound Processing
!!
Built-in SRS sound processor simulates
surround effects with only two speakers.
!!
! Selectable Fixed/Variable Audio Outputs
!!
Software selectable fixed or variable audio
outputs ensures flexible audio application
installations.
!!
! Built-in Internal Amplification & Speakers
!!
This display contains an internal 10-watt (5
watts x2) audio amplifier and built-in speakers
sufficient for multimedia applications.
!!
! DVI Digital Video Interface with HDCP(High-
!!
Bandwidth Digital Content Protection)
Protocol
Standard DVI interface supports the lastest in
digital video peripherals equipped with DVI
HDCP digital video output(s). This means that
digital content can now pass from sources such
as a set-top box, directly to this display without
digital-to-analog conversion that erodes video
quality. Direct digital-to-digital connection
ensures the abolute best in video quality.
!!
! 1280x1024 SXGA Support
!!
The onboard digital scaling engine can accept
various PC and HDTV signals and digitally map
the signals to fit within 852x480 pixels. Compatible signals include PC resolutions up to
1280x1024 and HDTV signals including 720p
and 1080i.
!!
! Discrete Power ON/OFF
!!
Separate Power ON/OFF buttons on the remote
control facilitates the recording of IR macros
with advanced system setups.
!!
! Direct Input Selection Keys
!!
Separate input selection keys on the remote
control allows quick and easy selection of
various inputs.
!!
! Bass Extension Circuitry / Subwoofer Out
!!
Enhance bass performance by adding a separate powered subwoofer to the display’s
subwoofer output.
!!

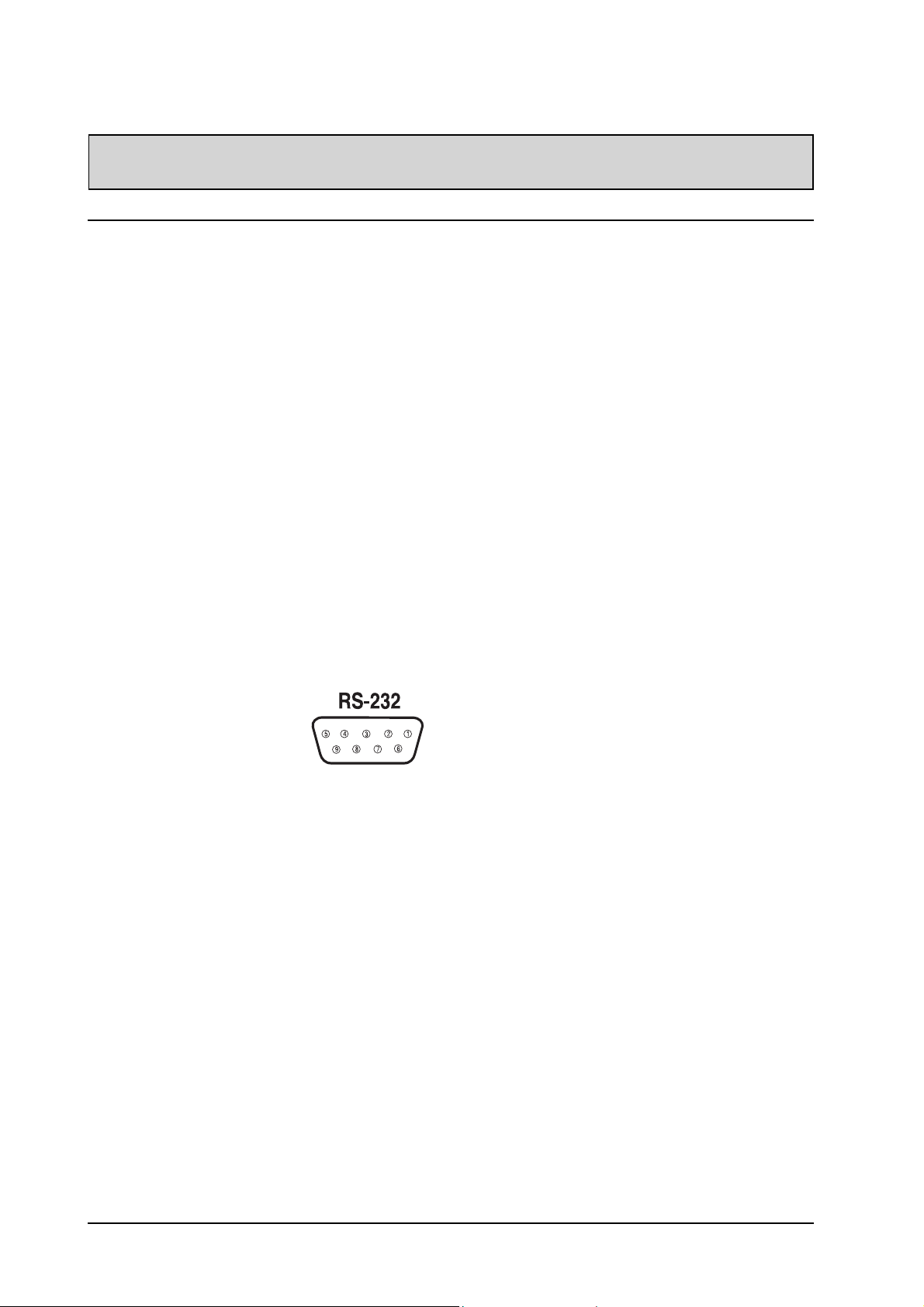

! RS-232 Serial Connection
!!
The RS-232 command set includes front panel
lock, input selectoin, power on/off, volume and
other standard RS-232 command controls.
5
Loading...
