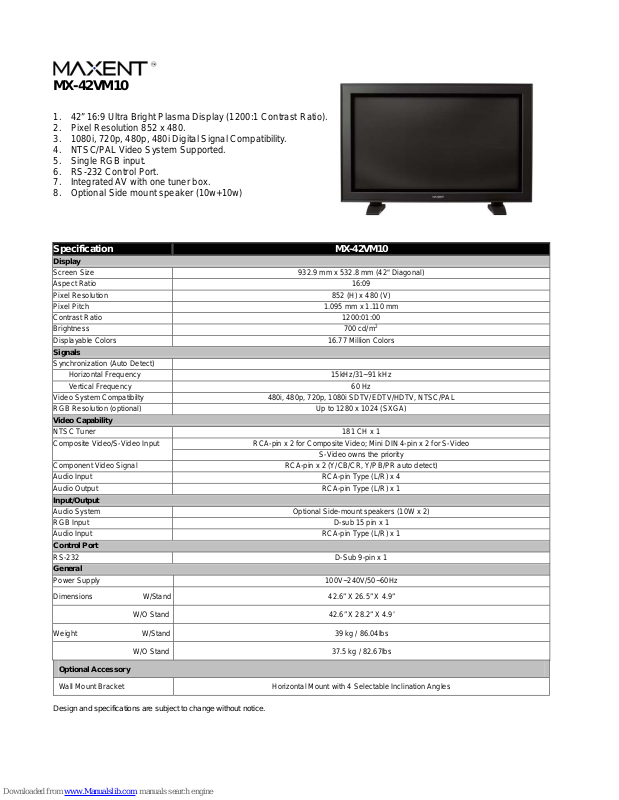

Maxent MX-42VM10 Specifications

MX-42VM10

1. 42” 16:9 Ultra Bright Plasma Display (1200:1 Contrast Ratio).

2. Pixel Resolution 852 x 480.

3. 1080i, 720p, 480p, 480i Digital Signal Compatibility.

4. NTSC/PAL Video System Supported.

5. Single RGB input.

6. RS-232 Control Port.

7. Integrated AV with one tuner box.

8. Optional Side mount speaker (10w+10w)

Specification MX-42VM10

Display

Screen Size 932.9 mm x 532.8 mm (42" Diagonal)
Aspect Ratio 16:09
Pixel Resolution 852 (H) x 480 (V)
Pixel Pitch 1.095 mm x 1.110 mm
Contrast Ratio 1200:01:00
Brightness 700 cd/m

2

Displayable Colors 16.77 Million Colors

Signals

Synchronization (Auto Detect)
Horizontal Frequency 15kHz/31~91 kHz
Vertical Frequency 60 Hz
Video System Compatibilty 480i, 480p, 720p, 1080i SDTV/EDTV/HDTV, NTSC/PAL
RGB Resolution (optional) Up to 1280 x 1024 (SXGA)

Video Capability

NTSC Tuner 181 CH x 1

RCA-pin x 2 for Composite Video; Mini DIN 4-pin x 2 for S-Video Composite Video/S-Video Input

S-Video owns the priority
Component Video Signal RCA-pin x 2 (Y/CB/CR, Y/PB/PR auto detect)
Audio Input RCA-pin Type (L/R) x 4
Audio Output RCA-pin Type (L/R) x 1

Input/Output

Audio System Optional Side-mount speakers (10W x 2)
RGB Input D-sub 15 pin x 1
Audio Input RCA-pin Type (L/R) x 1

Control Port

RS-232 D-Sub 9-pin x 1

General

Power Supply 100V~240V/50~60Hz
Dimensions W/Stand 42.6” X 26.5” X 4.9”

W/O Stand 42.6” X 28.2” X 4.9’

Weight W/Stand 39 kg / 86.04lbs

W/O Stand 37.5 kg / 82.67lbs

Optional Acce sso ry

Wall Mount Bracket Horizontal Mount with 4 Selectable Inclination Angles

Design and specifications are subject to change without notice.
