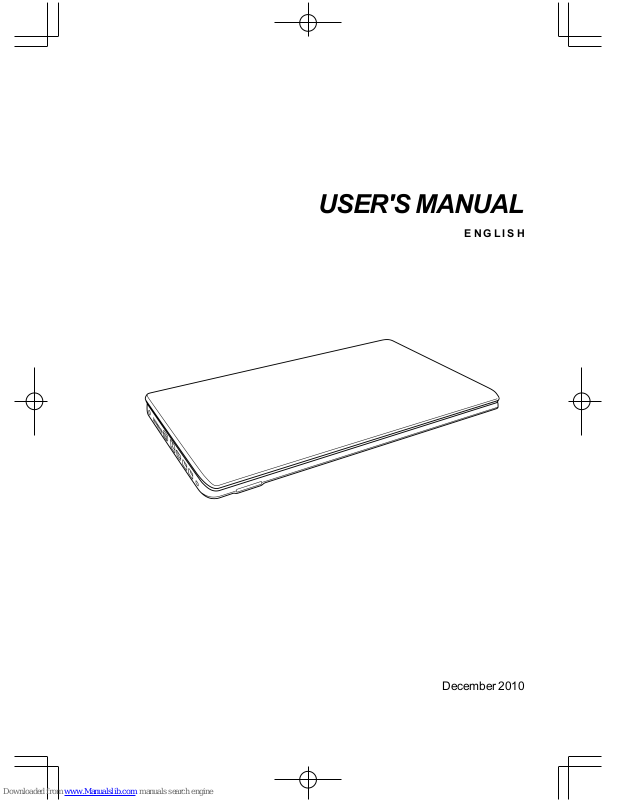

MAXDATA M-book 5000, M-book 5500 User Manual
USER'S MANUAL
December 2010
ENGLISH
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
2
CONTENTS
BEFORE YOU START ............................................................................................. 5
Make sure you have everything ..................................................................................... 5
Familiarize yourself with the computer ........................................................................ 6
OPENING THE DISPLAY PANEL ................................................................................ 6
FRONT OVERVIEW .................................................................................................... 7
LEFT SIDE OVERVIEW .............................................................................................. 9
RIGHT SIDE OVERVIEW .......................................................................................... 11
BACK OVERVIEW ..................................................................................................... 12
BOTTOM OVERVIEW ................................................................................................ 13
GETTING STARTED ............................................................................................. 14
Power Sources ............................................................................................................. 14
CONNECTING THE POWER ADAPTERS ............................................................... 14
RECHARGING THE BATTERY ................................................................................. 15
Starting Your Notebook................................................................................................. 16
POWER ON .............................................................................................................. 16
Status Indicators ...................................................................................................... 17
Using Function Keys ................................................................................................ 19
Using the TouchPad................................................................................................. 20
Memory Module Upgrade ......................................................................................... 21
TROUBLESHOOTING ........................................................................................... 22
Identifying the Problem................................................................................................. 22
3
TAKING CARE OF YOUR NOTEBOOK PC
DO NOT place or drop objects on the computer
and DO NOT apply heavy pressure on it.
DO NOT subject the computer to magnetic
fields.
To prevent possible overheating of the computer's
processor, make sure you don't block the openings provided for ventilation.
DO NOT press or touch the display panel.
DO NOT place on uneven or unstable work
surfaces.
DO NOT use your notebook computer under
harsh conditions.
DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
4
DO NOT expose to dust and/or corrosive
chemicals.
DO NOT spray water or any other cleaning fluids
directly on the display.
DO NOT slam your notebook shut and never
pick up or hold your notebook by the display.
If you are traveling with your computer, remember to carry it as hand luggage. Do not check it in
as baggage.
DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them
away from children.
Avoid sudden changes in temperature or humidity by keeping it away fromA/C and heating vents.
DO NOT expose the computer to rain or
moisture.
5
BEFORE YOU START
Make sure you have everything
When you receive your notebook PC, unpack it carefully, and check to make sure you have all the
items listed below. For a pre-configured model you should have the following:
• Notebook Computer
• Lithium-Ion battery
• AC adapter with power cord
• Driver and Applications CD
• Quick Start Guide or User Guide
Depending upon the configuration of your notebook, you may also need the following items:
• Dual DVD+/-RW Application CD
• Super Multi DVD RW Application CD
• Blu-ray/DVD RW Application Disc
Once you have checked and confirmed that your notebook system is complete, read through the
following pages to learn about all of your notebook components.
Depending on the model you purchased, the actual appearance of your notebook may vary from that shown in this manual.
NOTE
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
BEFORE YOU START
6
Familiarize yourself with the computer
OPENING THE DISPLAY PANEL
To open the display panel, simply lift the lid up.
When closing it, be sure not to slam it shut.
BEFORE YOU START
7
Display Panel
Keyboard
Status Indicator Lights
Suspend/Power On
Button
Memory Card Reader
TouchPad
Pointing Device
FRONT OVERVIEW
The following is an overview of the front of the notebook.
Camera
Microphone
The built-in microphone allows for the reception and transmission of voice and/or other audio data
to any program capable of accepting such input.
Camera
The built-in 0.3 or 1.3 megapixel camera allows you to snap a photo or create a video chat or video
conference with just a click.
Display Panel
The display panel is a color LCD panel with back lighting for the display of text and graphics.
Microphone
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
BEFORE YOU START
8
Keyboard
A full-size keyboard with the numeric keys and the dedicated Windows® keys.
TouchPad Pointing Device
The TouchPad pointing device is a mouse-like cursor control with two buttons and a touch
sensitive movement pad.
Status Indicator Lights
The Status indicator lights correspond to specific operating modes. These modes are: battery/AC
adapter status, hard drive activity (HDD) and Wireless LAN activity.
Memory Card Reader
The memory card reader offers the fastest and most convenient method to transfer pictures, music
and data between your notebook and flash compatible devices such as digital cameras, MP3
players, mobile phones, and PDAs.
Suspend/Power On Button
This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button
in the Power On section for more information.)
