USER'S MANUAL

September 2013

ENGLISH

CONTENTS

BEFORE YOU START ........................................................................................... 5

Make sure you have everything .................................................................................... 5

Familiarize yourself with the computer........................................................................ 6

OPENING THE DISPLAY PANEL ............................................................................... 6

FRONT OVERVIEW ................................................................................................... 7

LEFT SIDE OVERVIEW ............................................................................................. 9

RIGHT SIDE OVERVIEW ......................................................................................... 11

BACK OVERVIEW .................................................................................................... 12

BOTTOM OVERVIEW .............................................................................................. 13

GETTING STARTED ............................................................................................ 14

Power Sources .............................................................................................................. 14

CONNECTING THE POWER ADAPTERS .............................................................. 14

RECHARGING THE BATTERY ................................................................................ 15

Starting Your Notebook................................................................................................ 16

POWER ON .............................................................................................................. 16

Status Indicators ....................................................................................................... 17

Using Function Keys ................................................................................................. 19

Using the TouchPad .................................................................................................. 20

Memory Module Upgrade ......................................................................................... 21

TROUBLESHOOTING ......................................................................................... 22

Identifying the Problem................................................................................................ 22

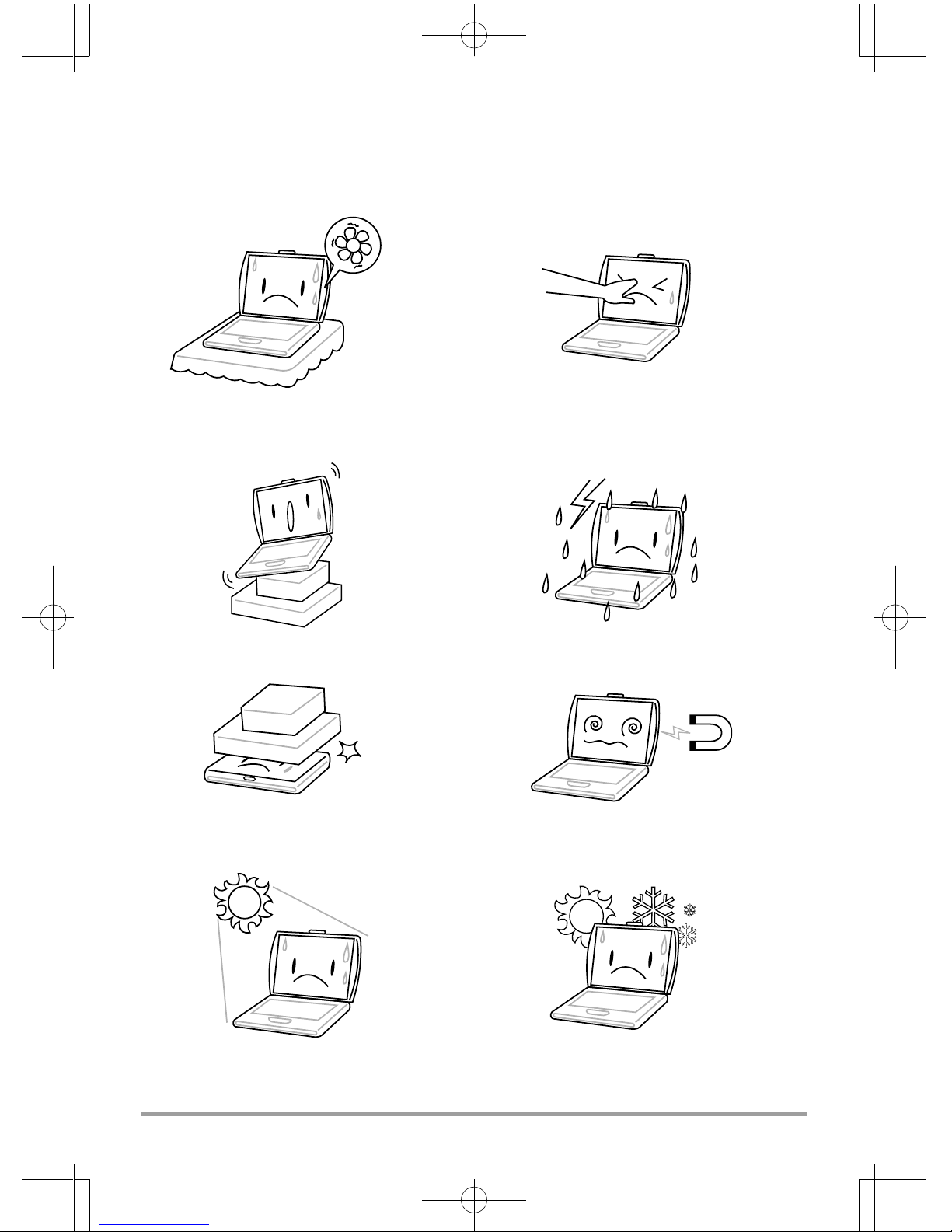

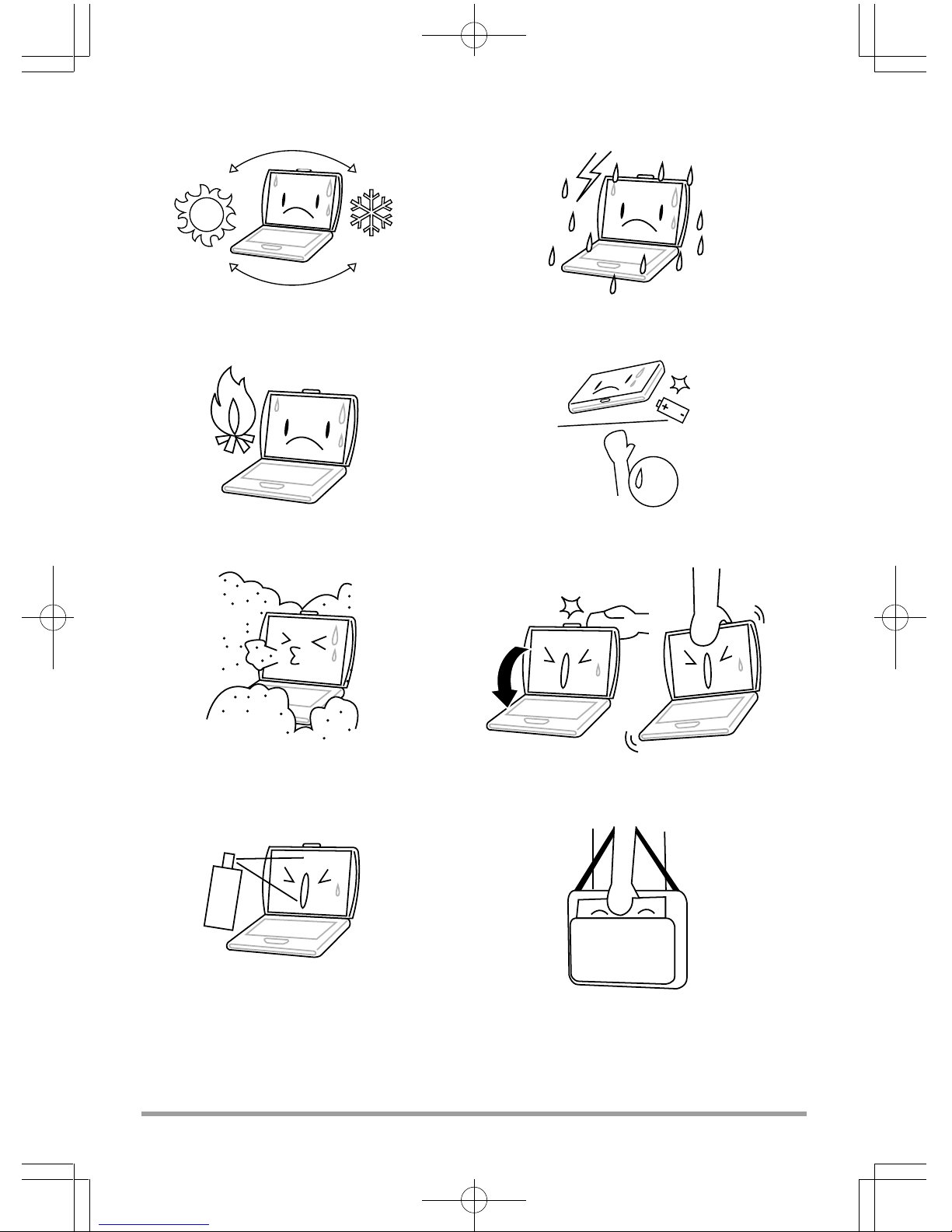

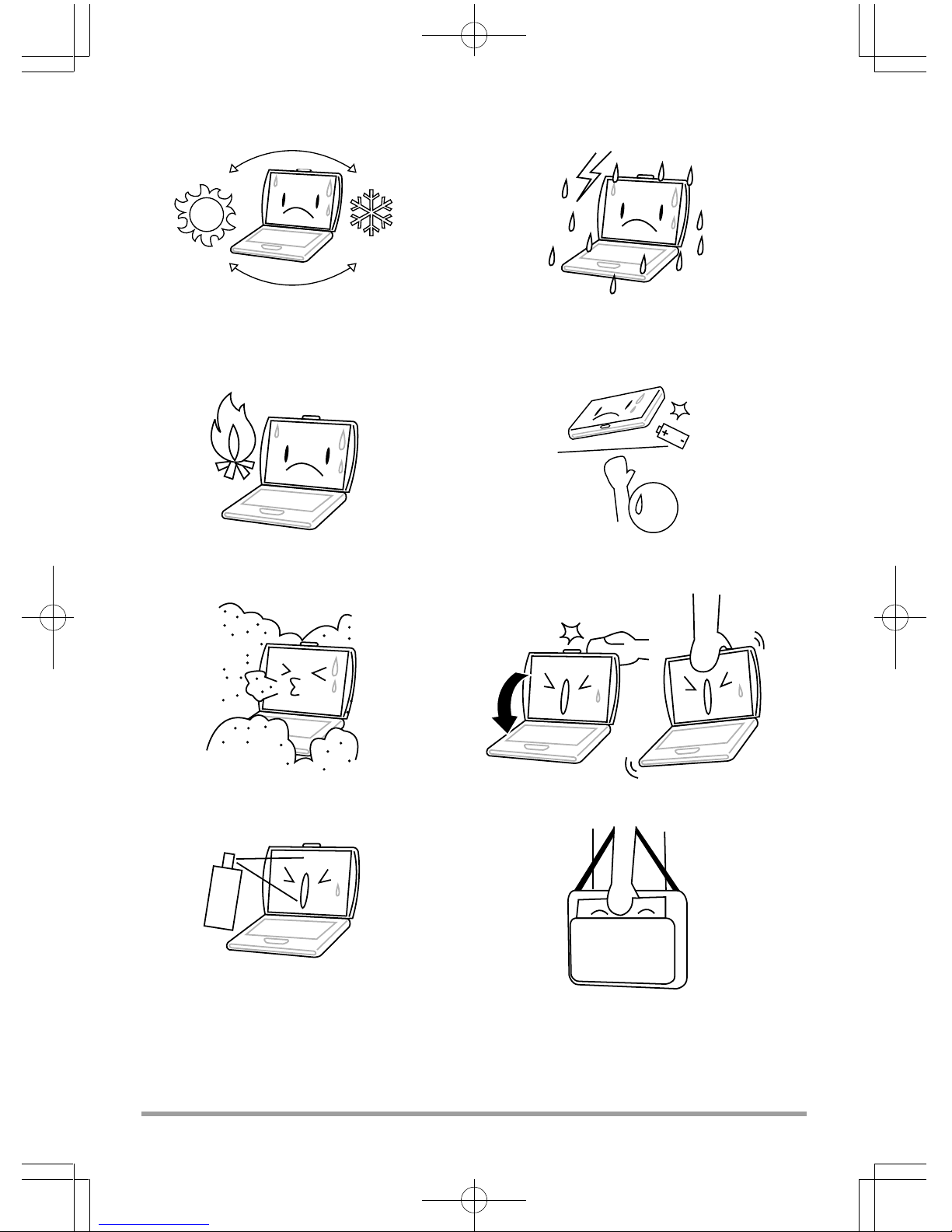

TAKING CARE OF YOUR NOTEBOOK PC

DO NOT place or drop objects on the computer and DO NOT apply heavy pressure on it.

DO NOT subject the computer to magnetic fields.

To prevent possible overheating of the computer's processor, make sure you don't block the openings provided for ventilation.

DO NOT press or touch the display panel.

DO NOT place on uneven or unstable work

surfaces.

DO NOT use your notebook computer under harsh conditions.

DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.

DO NOT expose to dust and/or corrosive chemicals.

DO NOT spray water or any other cleaning fluids directly on the display.

DO NOT slam your notebook shut and never pick up or hold your notebook by the display.

If you are traveling with your computer, remember to carry it as hand luggage. Do not check it in as baggage.

DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them

away from children.

Avoid sudden changes in temperature or humidity by keeping it away fromA/C and heating vents.

DO NOT expose the computer to rain or moisture.

BEFORE YOU START

Make sure you have everything

When you receive your notebook PC, unpack it carefully, and check to make sure you have all the items listed below. For a pre-configured model you should have the following:

• Notebook Computer

• Lithium-Ion battery

• AC adapter with power cord

• Driver and Applications CD

• Quick Start Guide or User Guide

Depending upon the configuration of your notebook, you may also need the following items:

• Dual DVD+/-RW Application CD

• Super Multi DVD RW Application CD

• Blu-ray/DVD RW Application Disc

Once you have checked and confirmed that your notebook system is complete, read through the following pages to learn about all of your notebook components.

Depending on the model you purchased, the actual appearance of your notebook may vary from that shown in this manual.

NOTE

BEFORE YOU START

Familiarize yourself with the computer

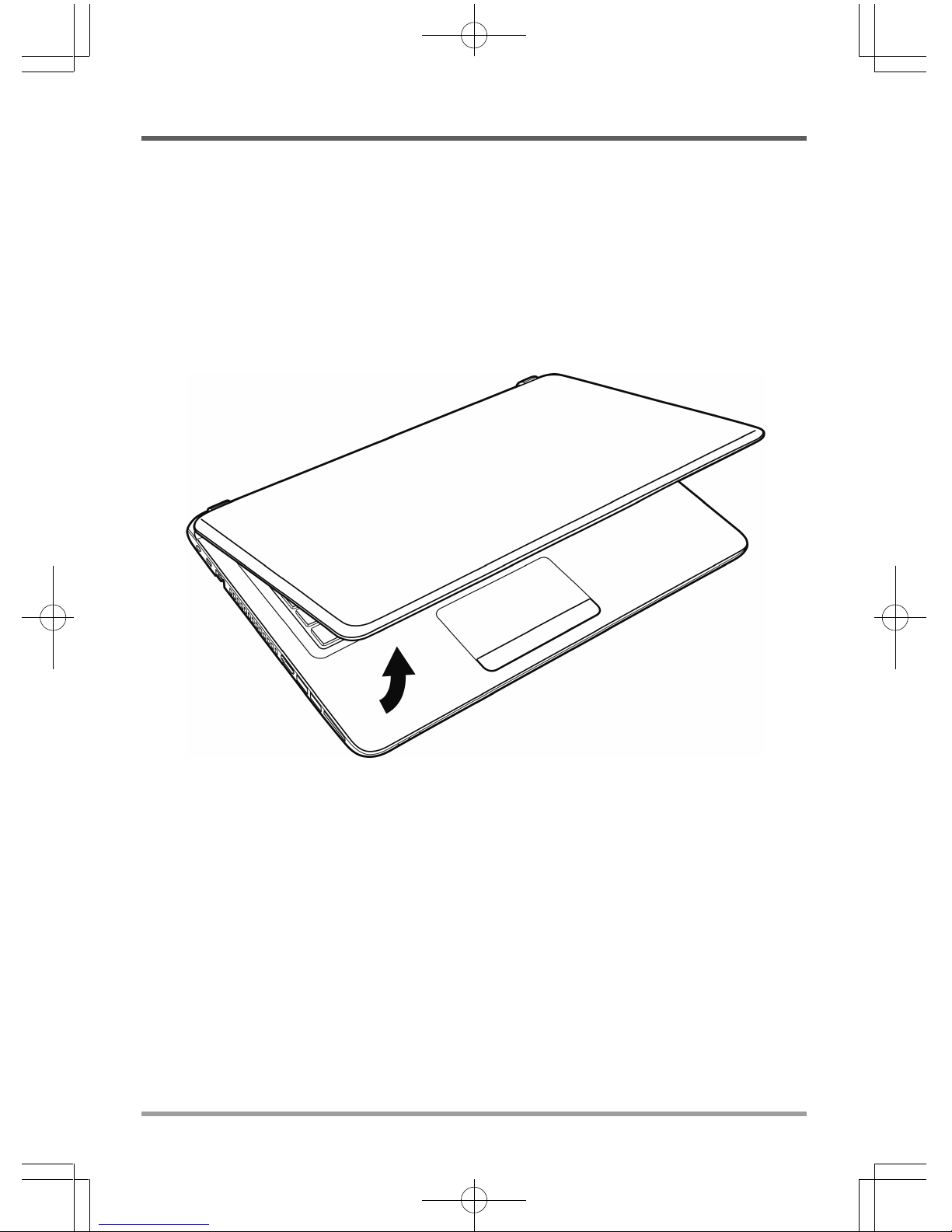

OPENING THE DISPLAY PANEL

To open the display panel, simply lift the lid up.

When closing it, be sure not to slam it shut.

BEFORE YOU START

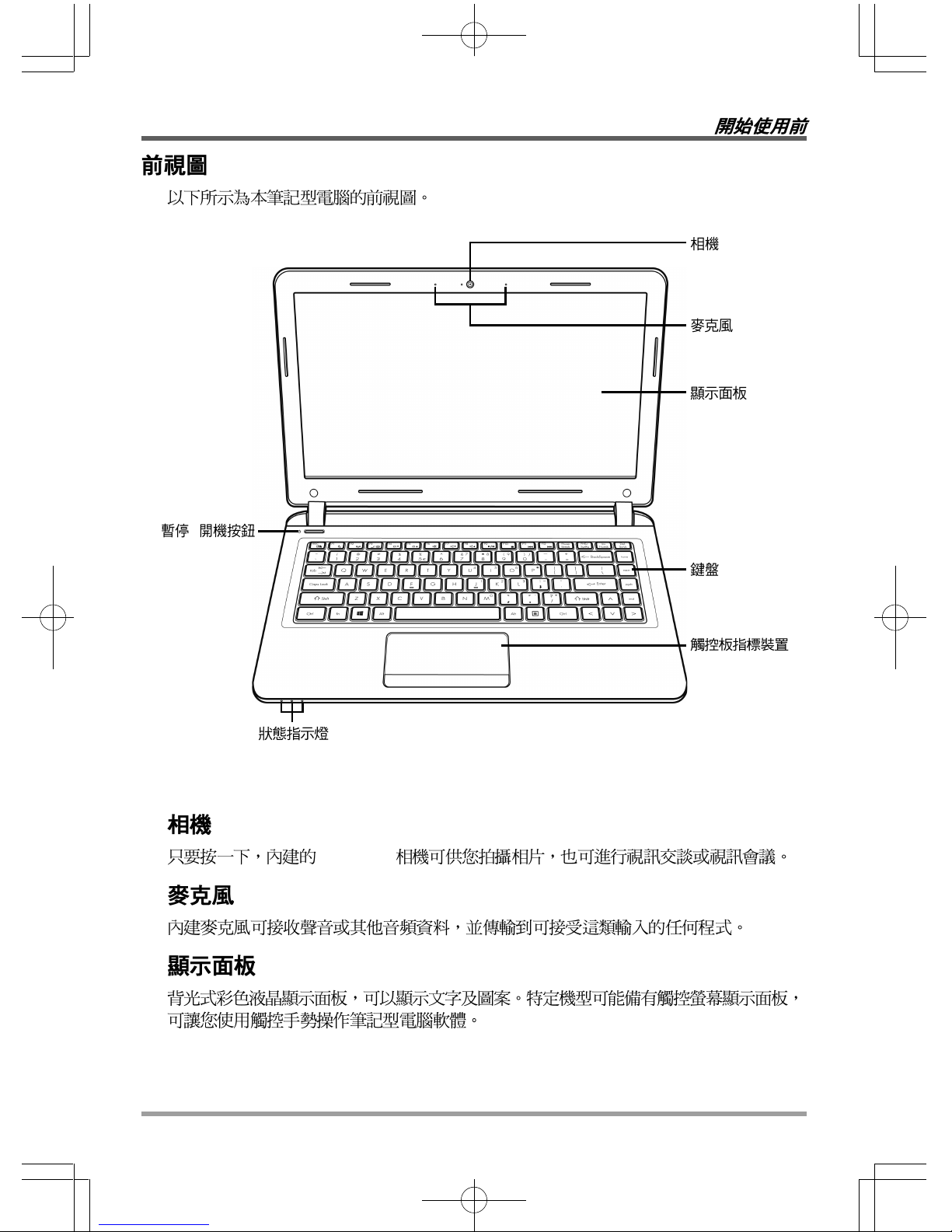

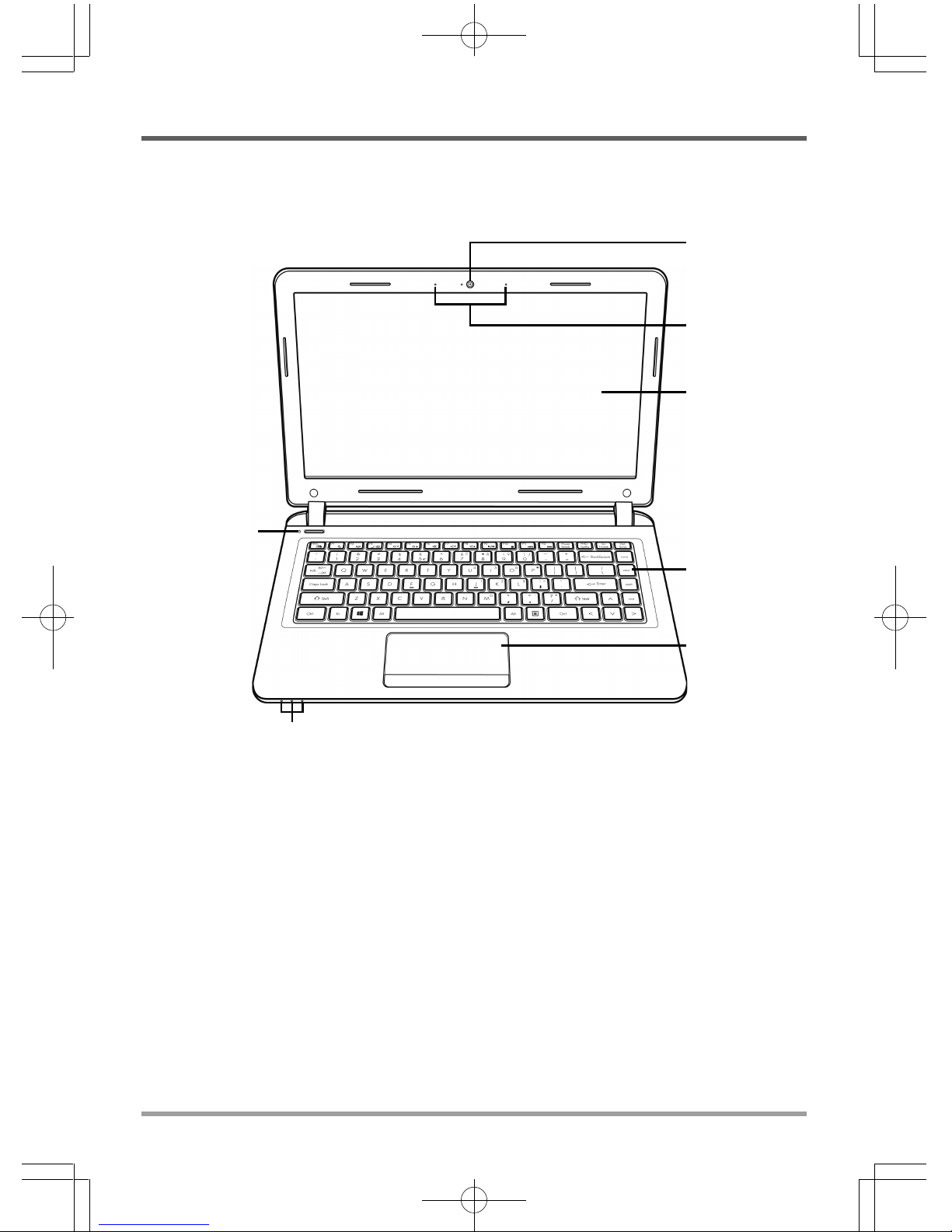

FRONT OVERVIEW

The following is an overview of the front of the notebook.

Display Panel

Suspend/

Power On Button

TouchPad Pointing Device

Microphone

Keyboard

Status Indicator Lights

Camera

The built-in HD/VGA camera allows you to snap a photo or create a video chat or video conference with just a click.

Microphone

The built-in microphone allows for the reception and transmission of voice and/or other audio data to any program capable of accepting such input.

Display Panel

The display panel is a color LCD panel with back lighting for the display of text and graphics. Select models may feature a touchscreen display panel, which allows you to operate software on your notebook using touch gestures.

BEFORE YOU START

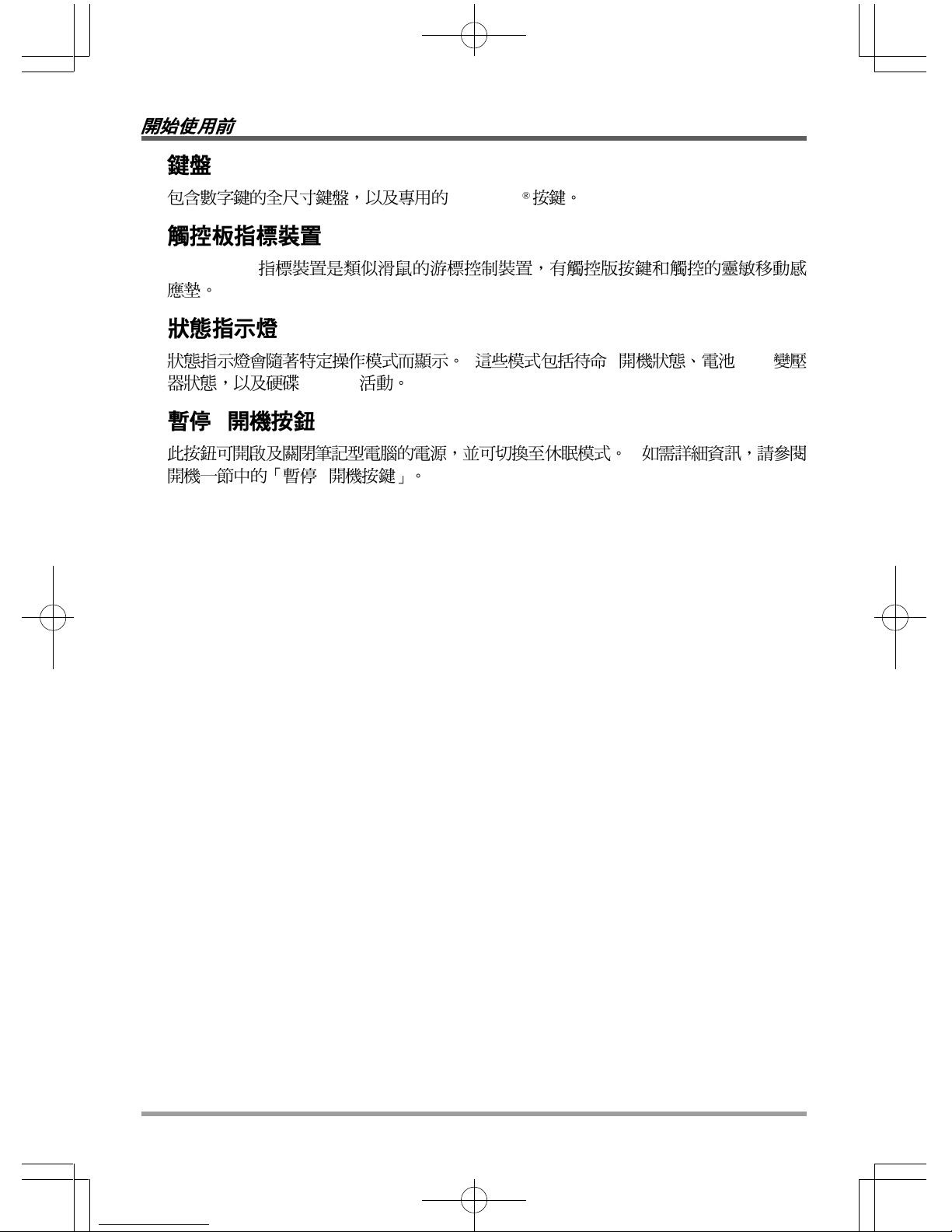

Keyboard

A full-size keyboard with the numeric keys and the dedicated Windows® keys.

TouchPad Pointing Device

The TouchPad pointing device is a mouse-like cursor control with a single rocker bar and a touch sensitive movement pad.

Status Indicator Lights

The Status indicator lights correspond to specific operating modes. These modes are: Suspend/ Power On status, battery/AC adapter status, and hard disk drive (HDD) activity.

Suspend/Power On Button

This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button in the Power On section for more information.)

BEFORE YOU START

Power Adapter Port

The power adapter port allows you to plug in the AC adapter to power your notebook and charge the internal Lithium-Ion battery.

LAN (RJ-45) Port

The LAN port is designed to support a 10/100/1000 Base-T standard RJ-45 plug.

HDMI Port

The HDMI port allows you to connect a video device such as a television, a projector, or a VCR to your computer.

USB Ports

The USB ports allow you to connect Universal Serial Bus devices. They support v3.0 of the USB standard, which allows data exchange rates as high as 4.8 Gb/s. USB 3.0 is backwards compatible with USB 2.0.

Memory Card Reader

The memory card reader offers the fastest and most convenient method to transfer pictures, music and data between your notebook and flash compatible devices such as digital cameras, MP3 players, mobile phones, and PDAs.

LAN (RJ-45) Port

USB Ports

HDMI Port

Memory Card Reader

Kensington Lock Slot

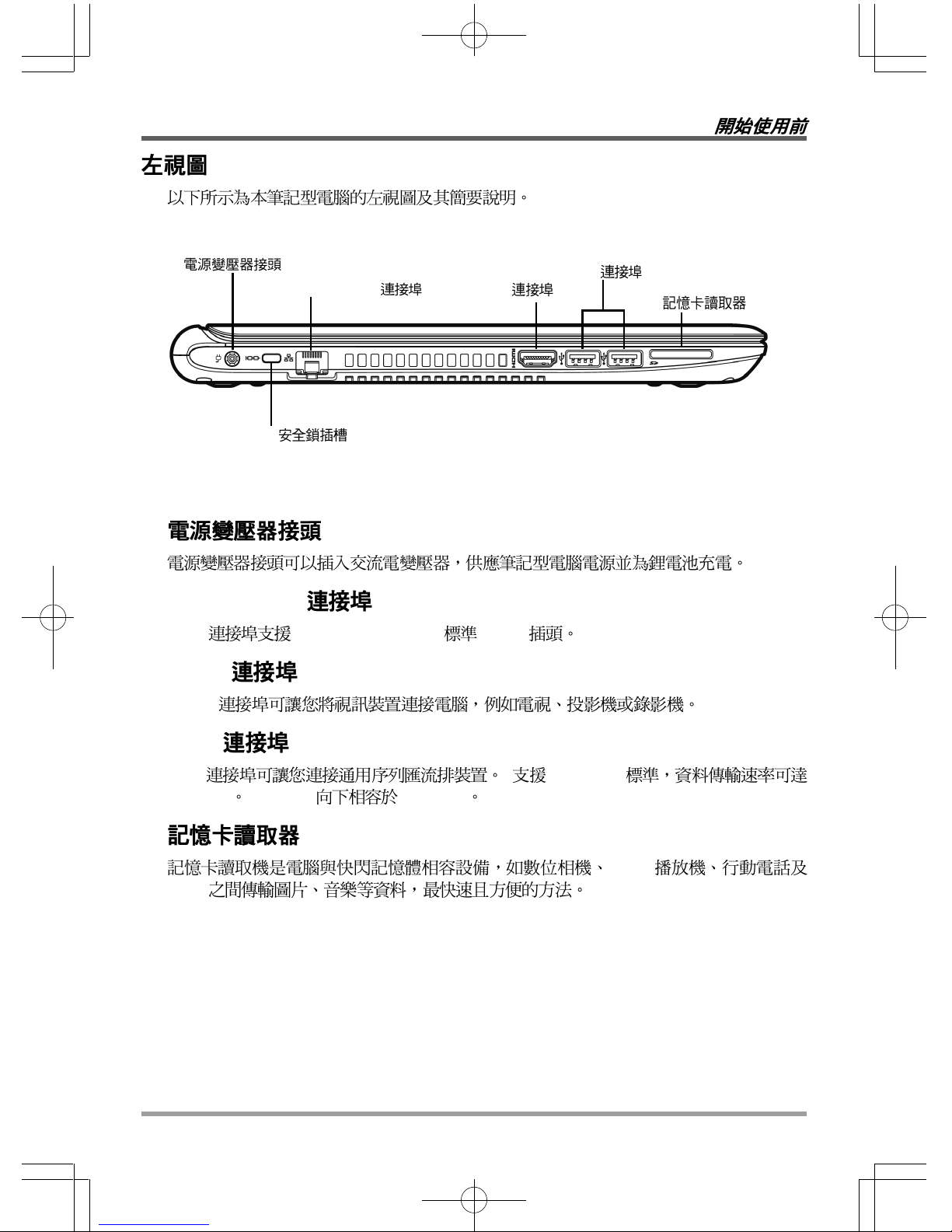

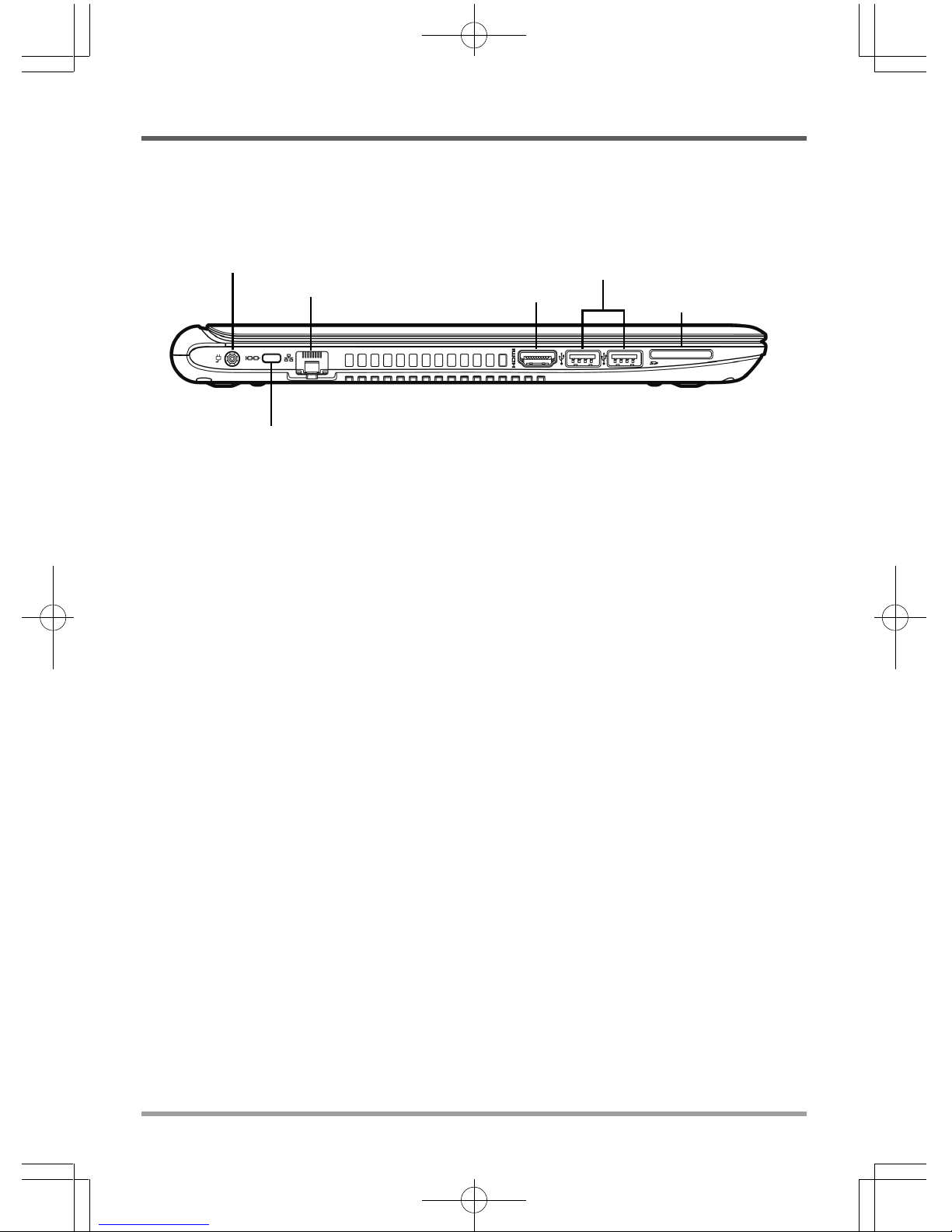

LEFT SIDE OVERVIEW

The following is a brief description of the left side of the notebook.

BEFORE YOU START

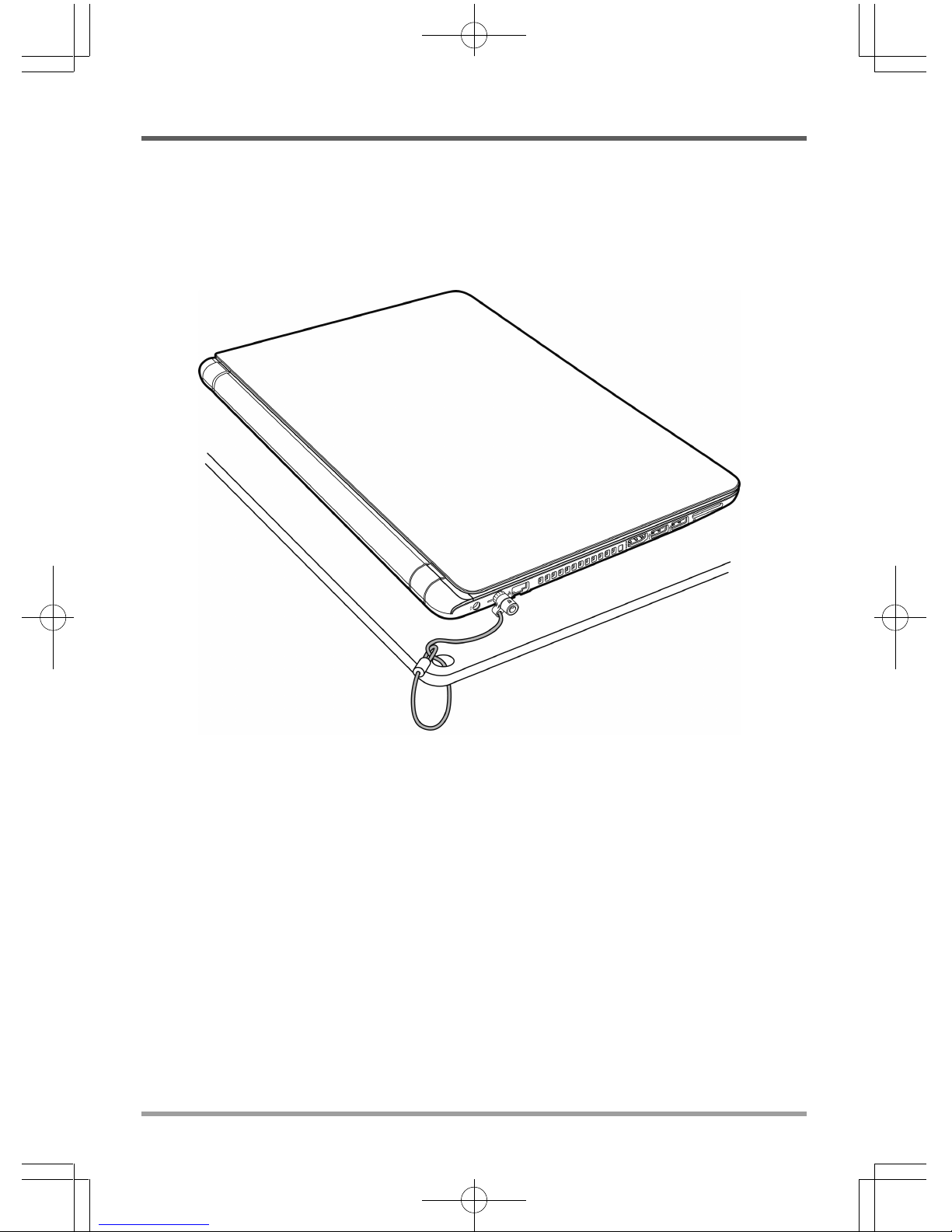

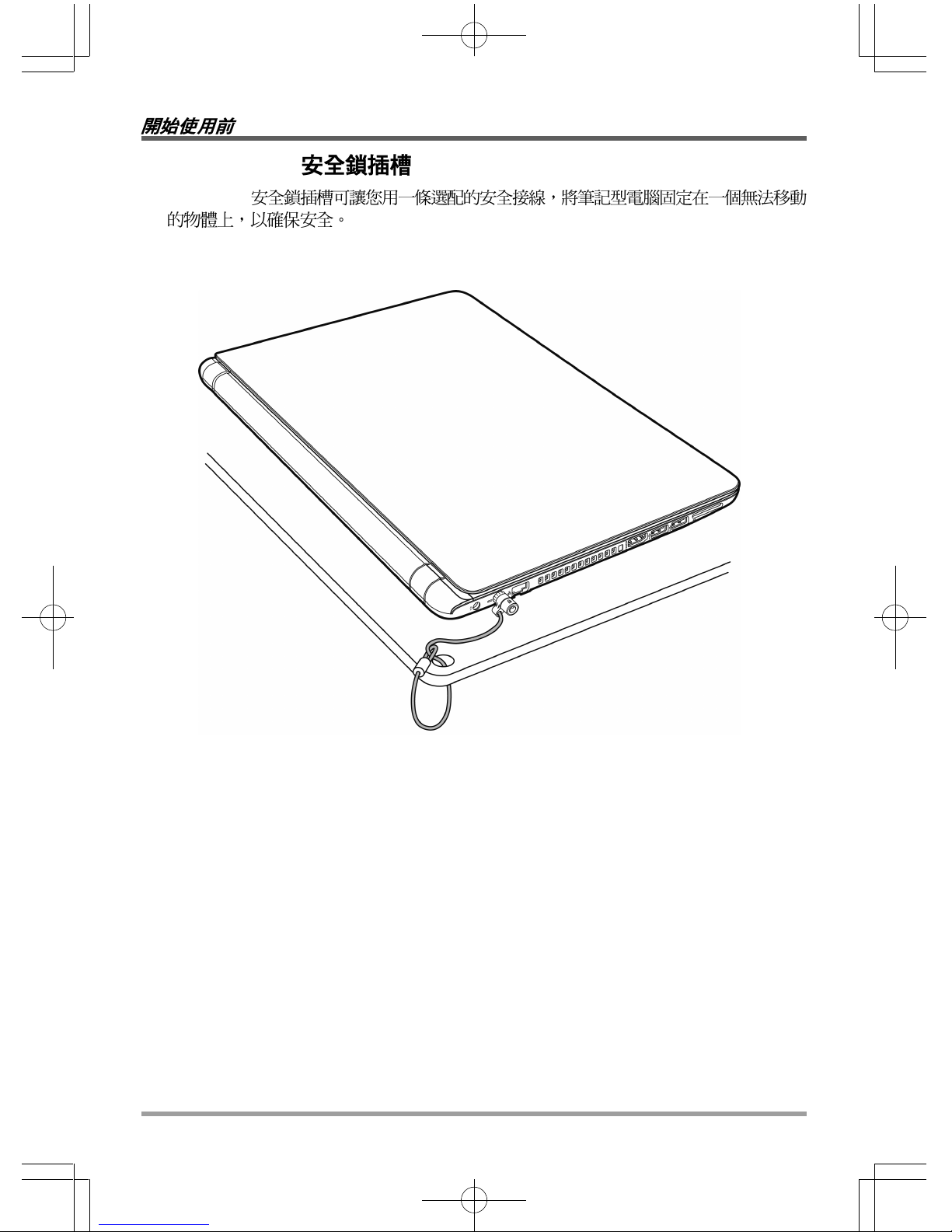

Kensington Lock Slot

The Kensington lock slot allows you to secure your notebook to an immovable object with an optional security cable.

BEFORE YOU START

Audio Combo Jack (Headphone & Microphone)

The audio combo jack allows you to connect headphones, external speakers, amplifiers or an external mono microphone.

USB Port

The USB port allows you to connect Universal Serial Bus devices. It supports v2.0 of the USB standard, which allows data exchange rates as high as 480 Mb/s.

Optical Drive*

The optical drive allows you to play back media discs such as CDs and DVDs. Depending on the configuration of your notebook, it may also allow you to burn CDs and DVDs.

Optical Drive Eject Button*

The optical drive eject Button allows you to open the optical drive tray to remove or insert a DVD or CD.

Emergency Tray Release*

The emergency tray release allows you to open the optical drive tray without powering on your notebook.

*Select models only.

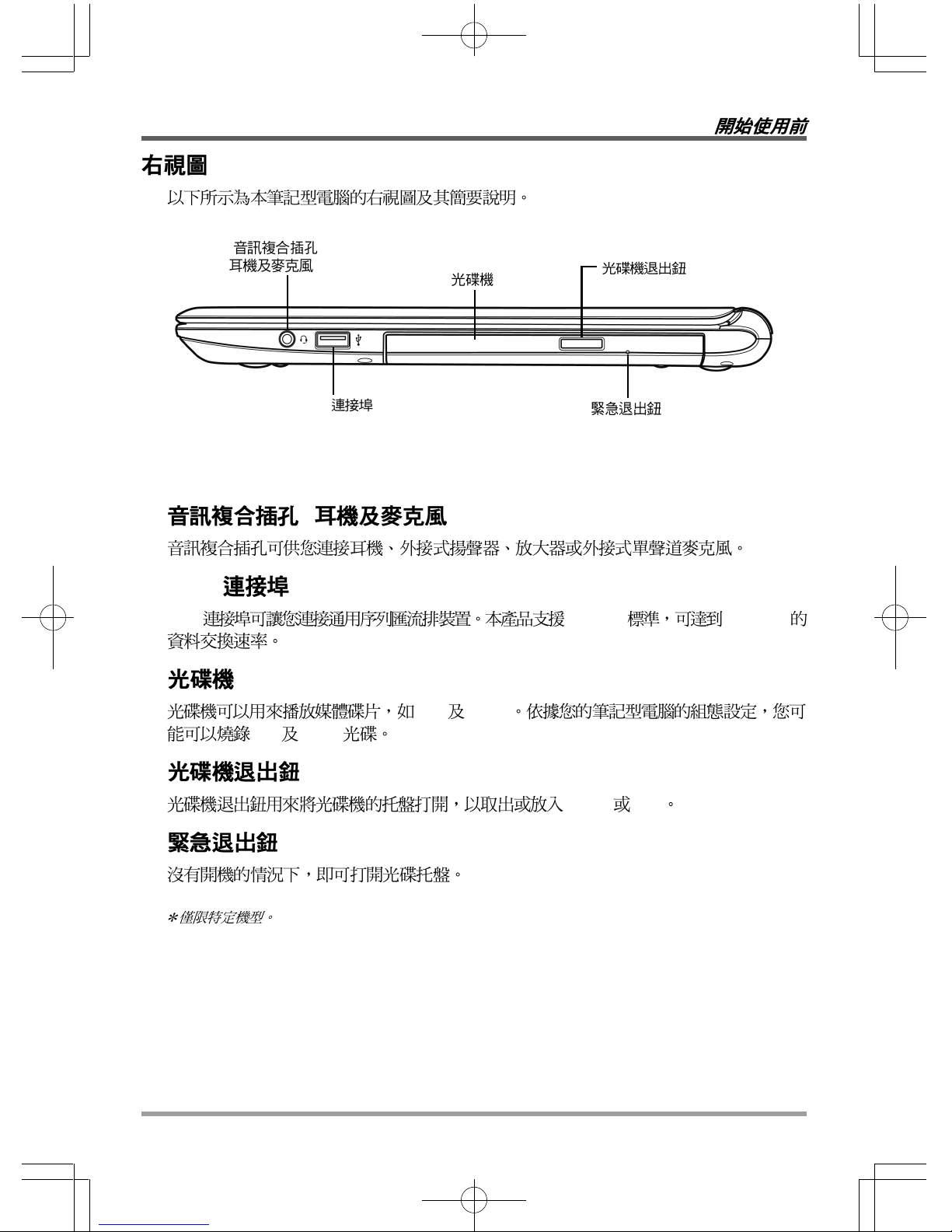

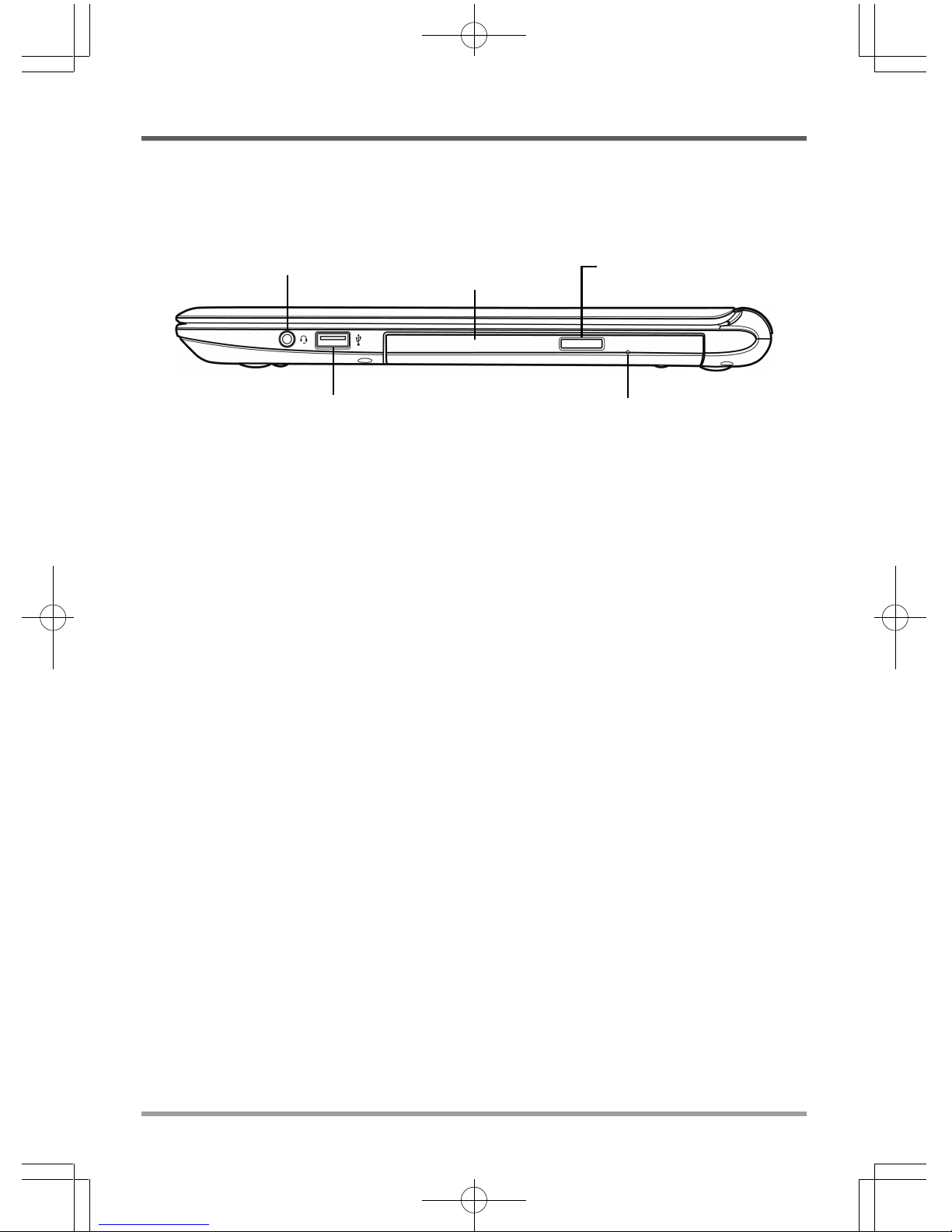

RIGHT SIDE OVERVIEW

The following is a brief description of the right side of the notebook.

Optical Drive Eject Button*

Optical Drive*

Audio Combo Jack

(Headphone & Microphone)

USB Port

Emergency Tray Release*

BEFORE YOU START

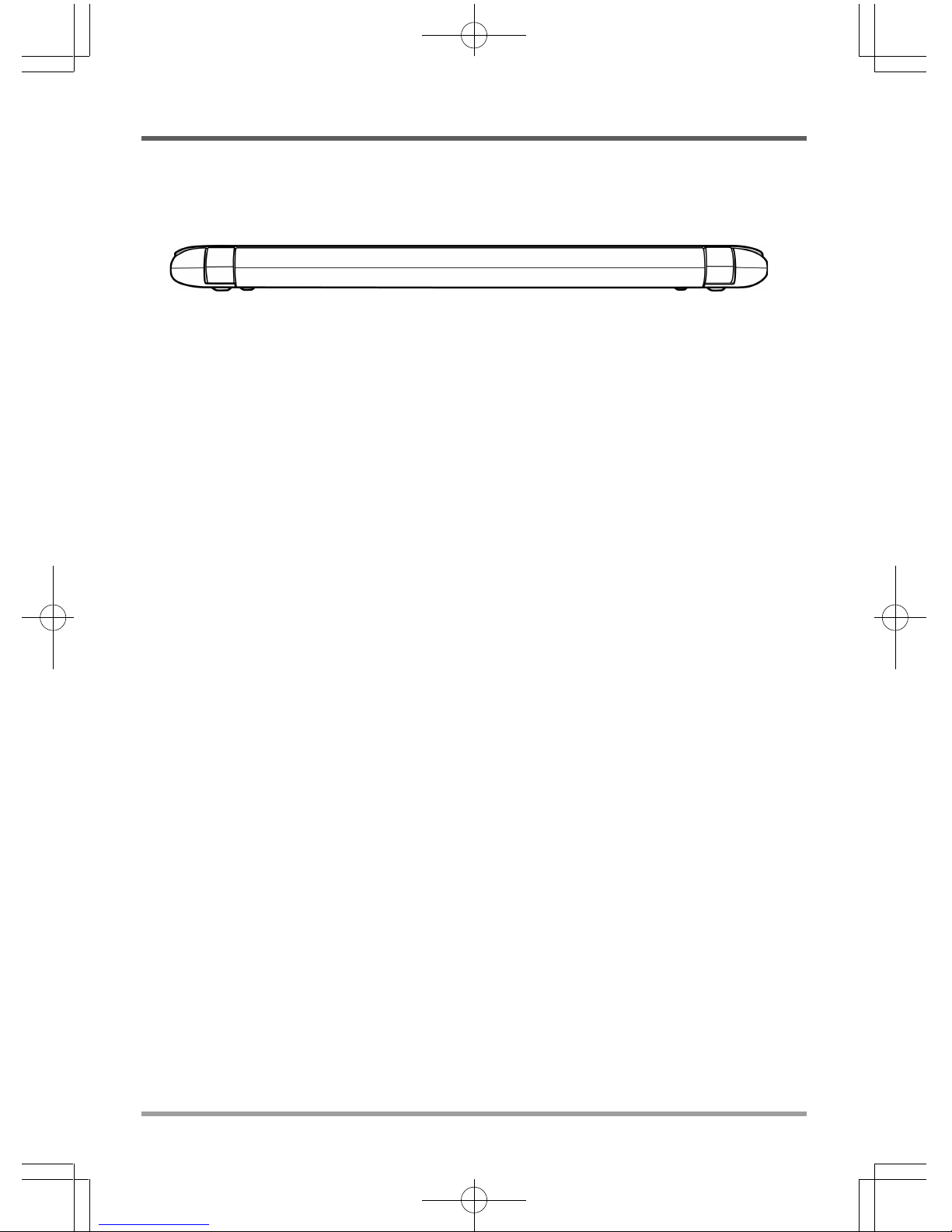

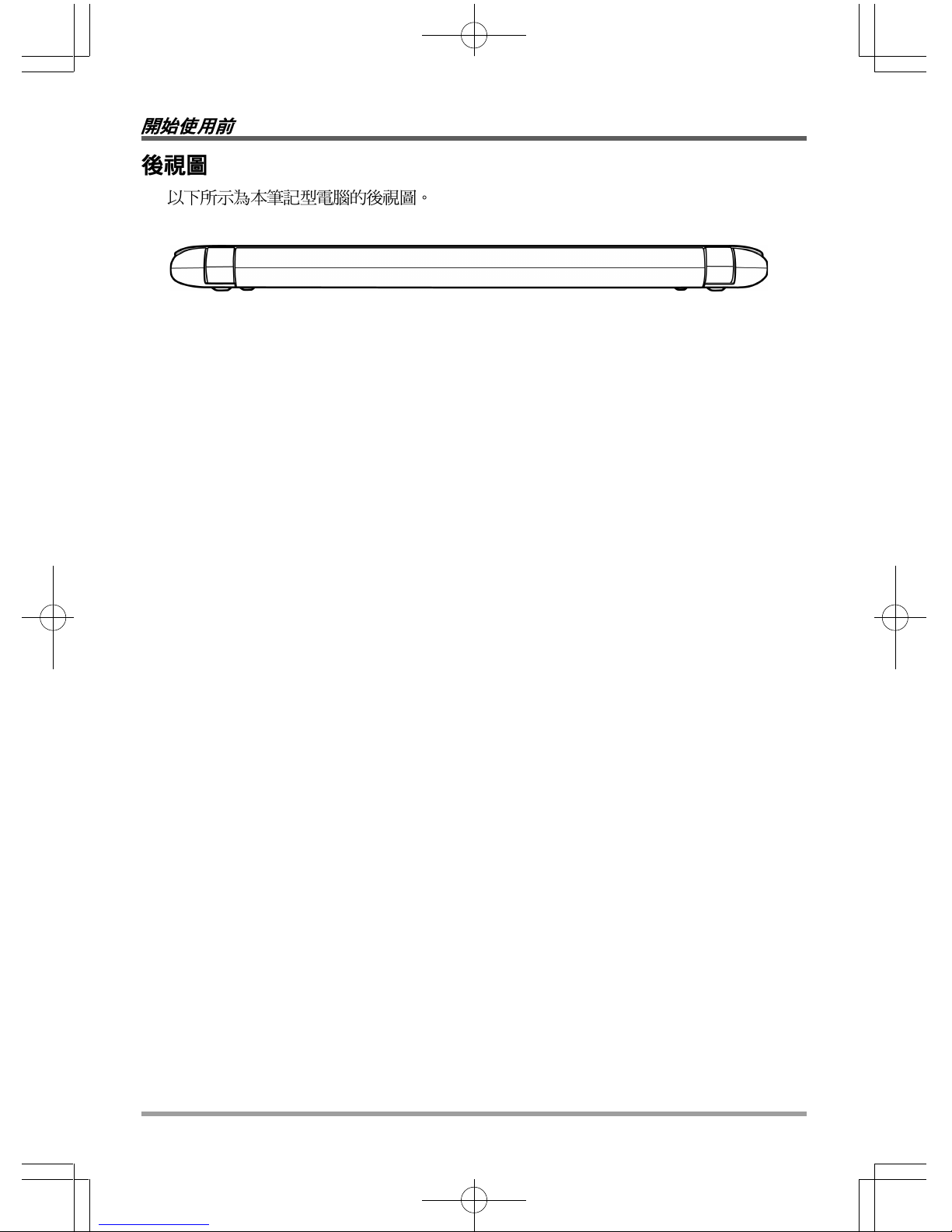

BACK OVERVIEW

The following is an overview of the back of the notebook.

BEFORE YOU START

Rating

Label

Lithium-Ion Battery Compartment

Fan Outlets

Compartment Covers

Battery Release Latch

Battery Lock

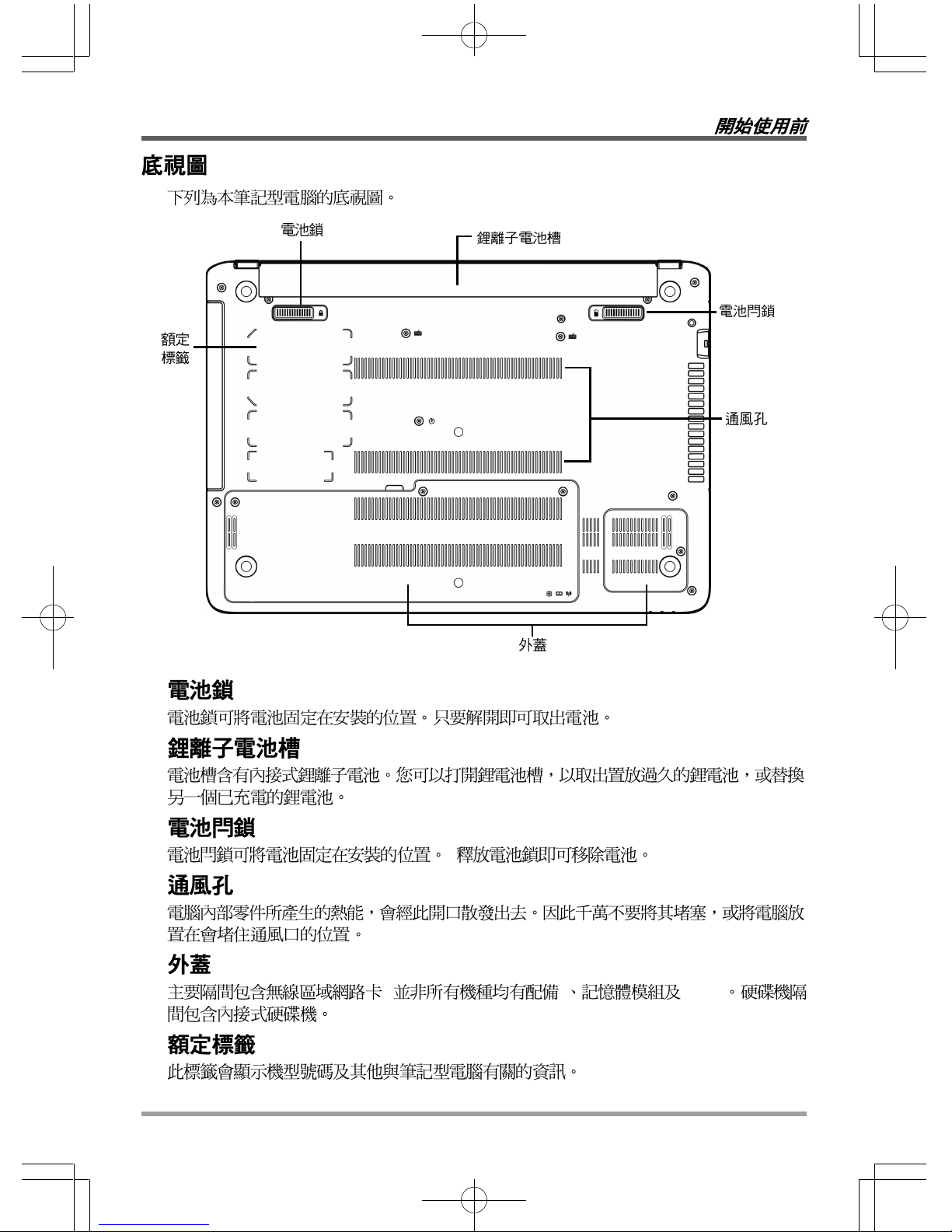

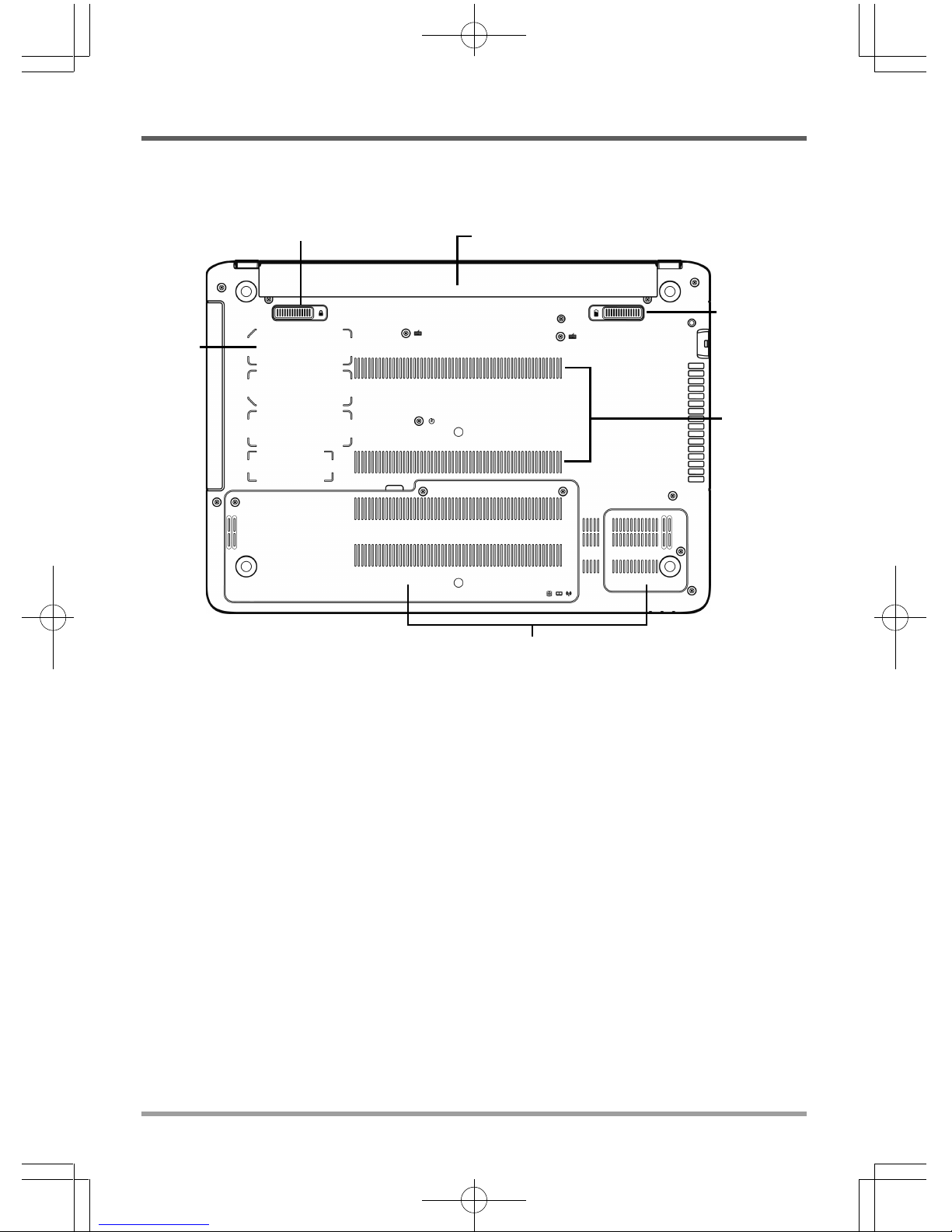

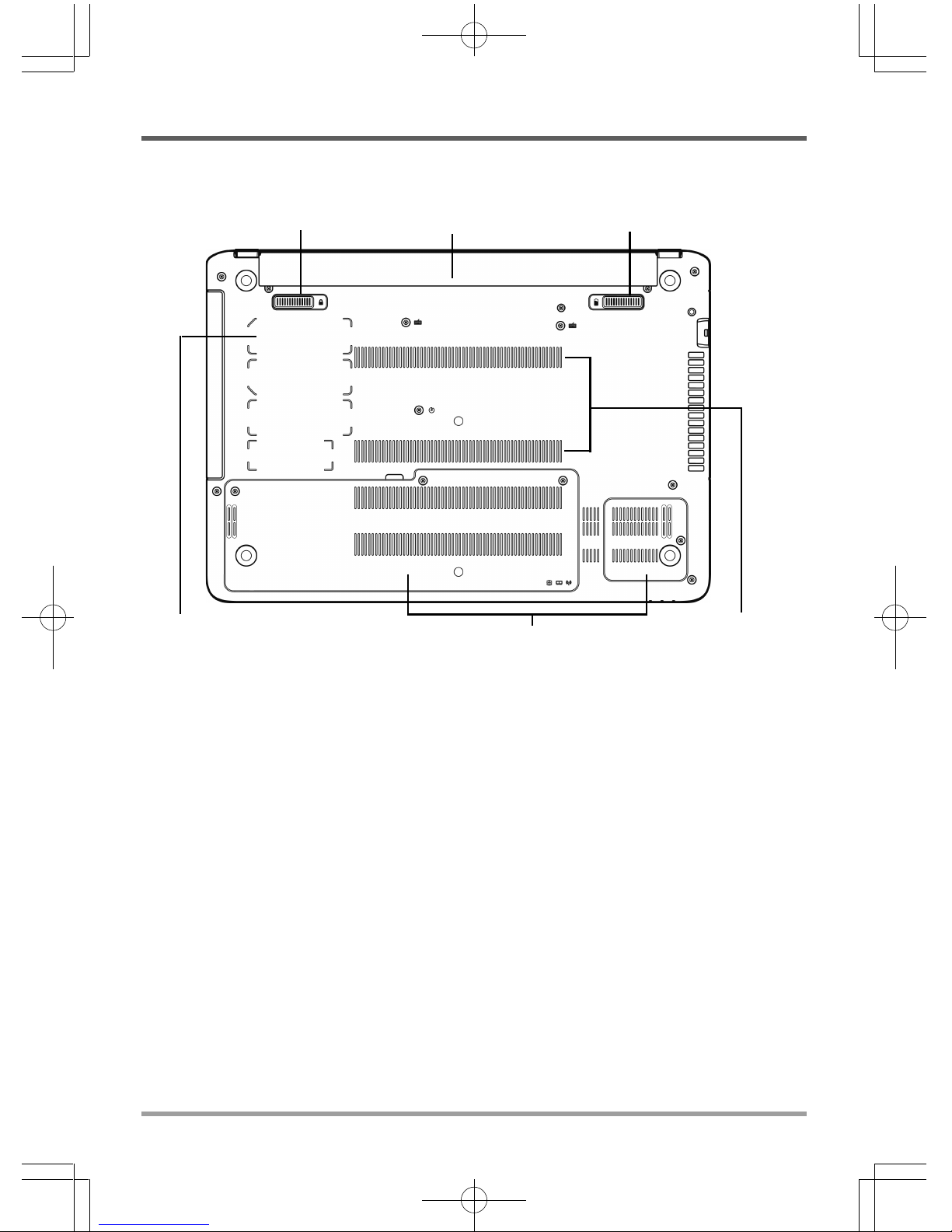

BOTTOM OVERVIEW

The following is an overview of the bottom of the notebook.

Battery Lock

The battery lock holds the battery in place. It can be unlocked to remove the battery.

Lithium-Ion Battery Compartment

The battery compartment contains the internal Lithium-Ion battery. It can be unlocked for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium-Ion battery.

Battery Release Latch

The battery release latch holds the battery in place. It can be released to remove the battery.

Fan Outlets

These are open ports for the fan to dissipate heat from the computer's internal components. Do not block or place the computer in such a position that you inadvertently allow the outlet to become blocked.

Compartment Covers

The main compartment contains the Wireless LAN card (Not available in all configurations), memory modules and CPU. The hard disk drive compartment contains the internal hard disk drive.

Rating Label

The label shows the model number and other information about your notebook.

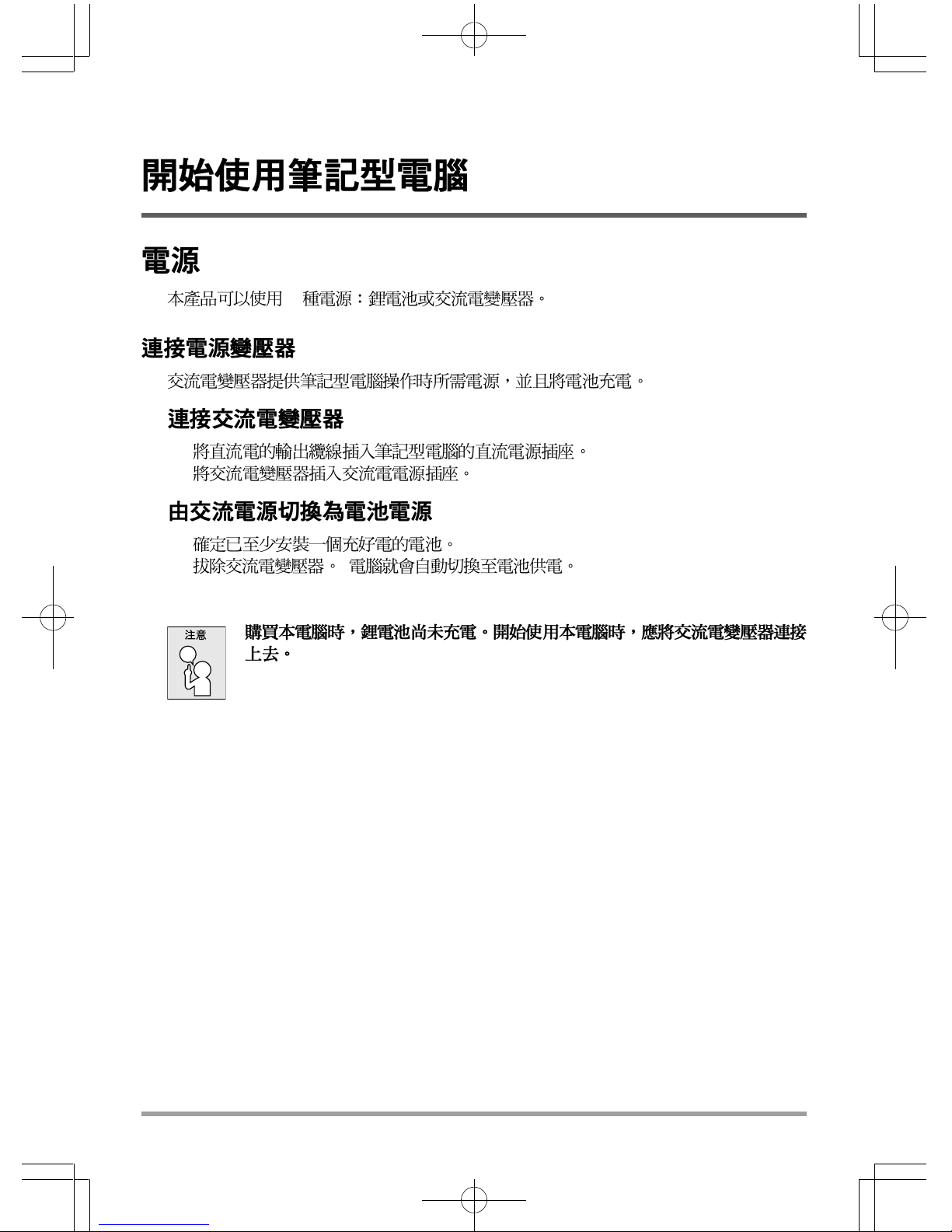

GETTING STARTED

Power Sources

Your computer has two types of power source: a Lithium-Ion battery or an AC adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter provides power for operating your notebook PC and charging the battery.

Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack of your notebook PC.

2. Plug the AC adapter into an AC electrical outlet.

Switching from AC Adapter Power to Battery Power

1. Be sure that you have at least one charged battery installed.

2. Remove the AC adapter. Your notebook will automatically switch to battery power.

The Lithium-Ion battery is not charged upon purchase. Initially, you will need to connect the AC adapter to use your notebook PC.

NOTE

GETTING STARTED

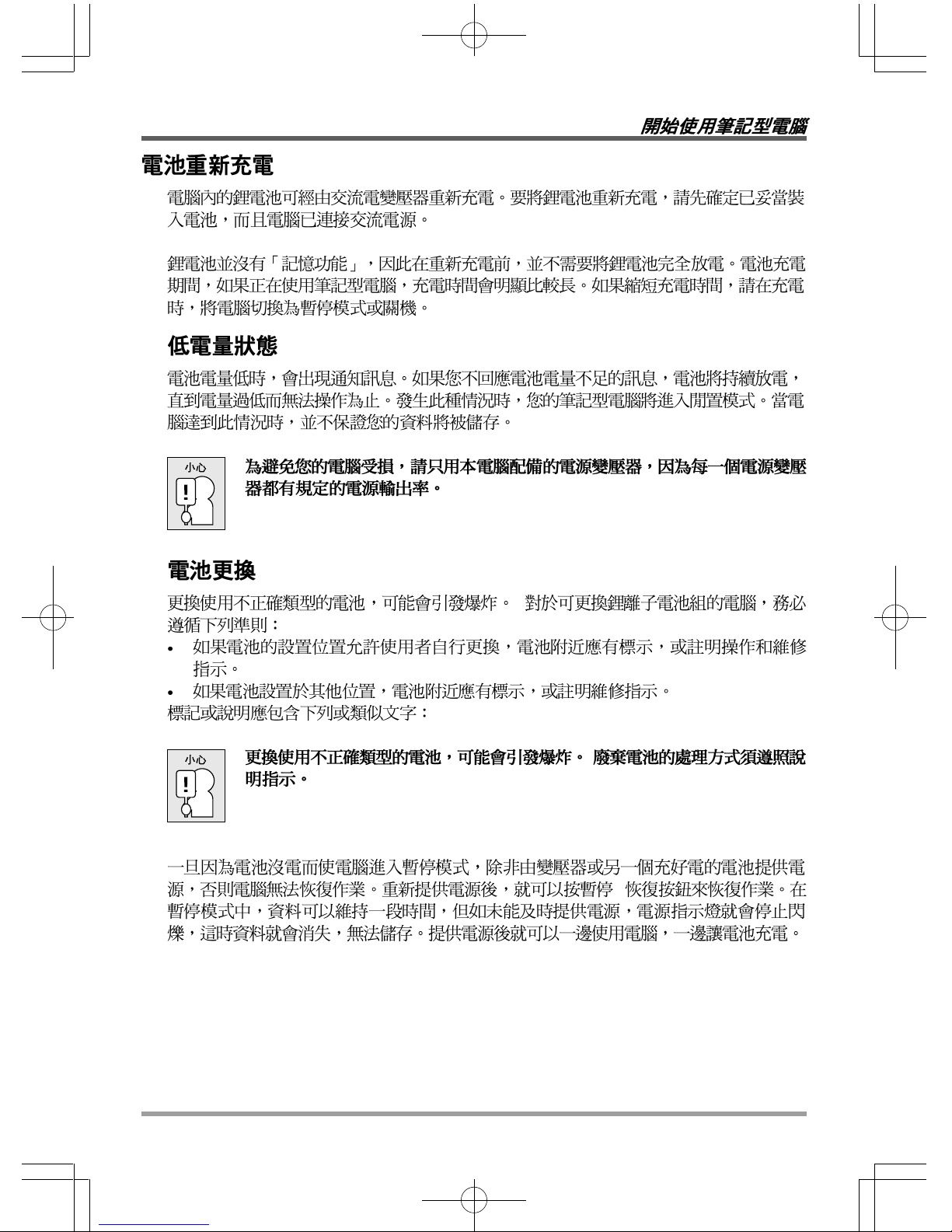

RECHARGING THE BATTERY

The Lithium-Ion battery is recharged internally using the AC adapter. To recharge the battery, make sure the battery is installed and the computer is connected to the AC.

There is no "memory effect" in Lithium-Ion batteries; therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your notebook PC is in use while the battery is charging. If you want to charge the battery more quickly, put your computer into Suspend mode, or turn it off while the adapter is charging the battery.

Low Battery State

When the battery charge is low, a notification message appears. If you do not respond to the low battery message, the battery continues to discharge until it is too low to operate. When this happens, your notebook PC goes into Suspend mode. There is no guarantee your data will be saved once the notebook reaches this point.

To protect your computer from damage, use only the power adapter that came with it because each power adapter has its own power output rating.

Battery Replacement

There is danger of explosion of an incorrect battery type is used for replacement. For computers equipped with a replaceable lithium-ion battery pack, the following applies:

• if the battery is placed in an OPERATOR ACCESS AREA, there shall be a marking close to the battery, or a statement in both the operating and the servicing instructions;

• if the battery is placed elsewhere in the computer, there shall be a marking close the battery or a statement in the servicing instructions.

The marking or statement shall include the following or similar text:

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries according to the instructions.

Once your note computer goes into Suspend mode as a result of a dead battery you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you can press the Suspend/Resume button to resume operation. In Suspend mode, your data is maintained for some time, but if a power source is not provided promptly, the Power indicator stops flashing and the goes out, in which case you have lost the data that was not saved. Once you provide power, you can continue to use your computer while an adapter charges the battery.

CAUTION

GETTING STARTED

Starting Your Notebook

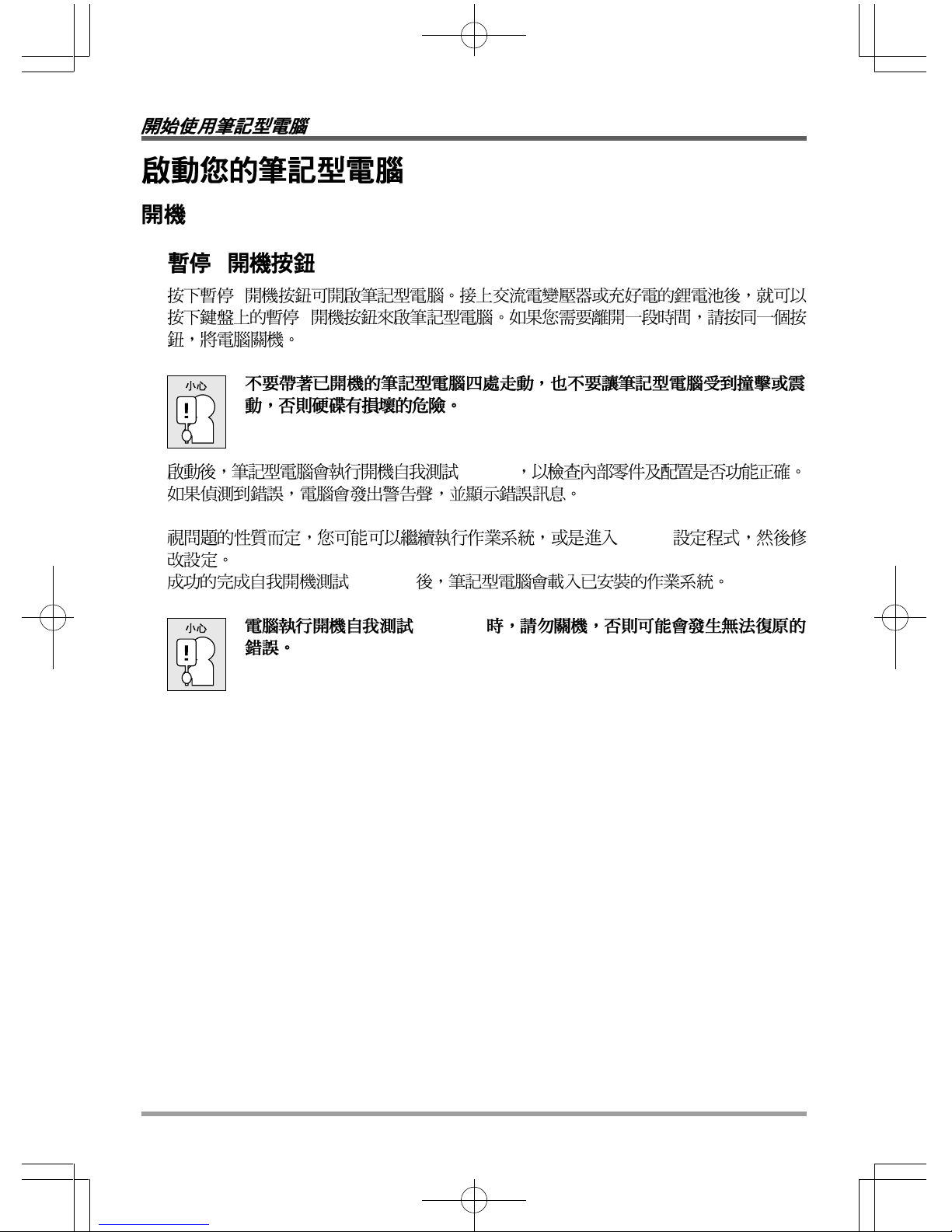

POWER ON

Suspend/Power On Button

The suspend/power on switch is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium-Ion battery, you can power on your notebook by pressing the suspend/power on button located above the keyboard. If you need to take an extended break press the button again to turn it off.

Do not carry your notebook around with the power on or subject it to shocks or vibration, as you risk damaging the hard disk.

When you power on your notebook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your computer emits an audio warning and or displays and error message.

Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the Power On Self Test (POST), your notebook loads the installed operating system.

Never turn off your notebook during the Power On Self Test (POST), or an unrecoverable error may occur.

CAUTION

GETTING STARTED

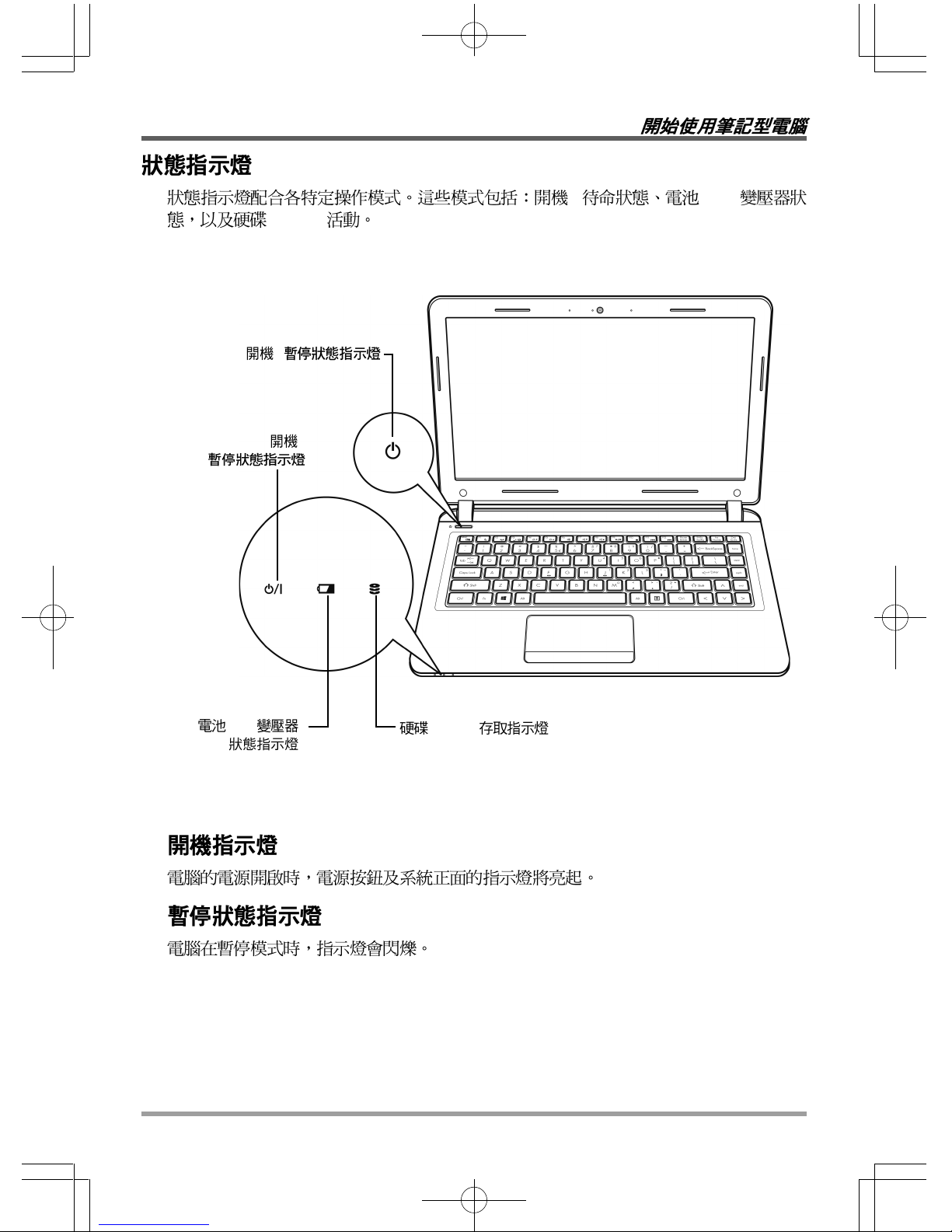

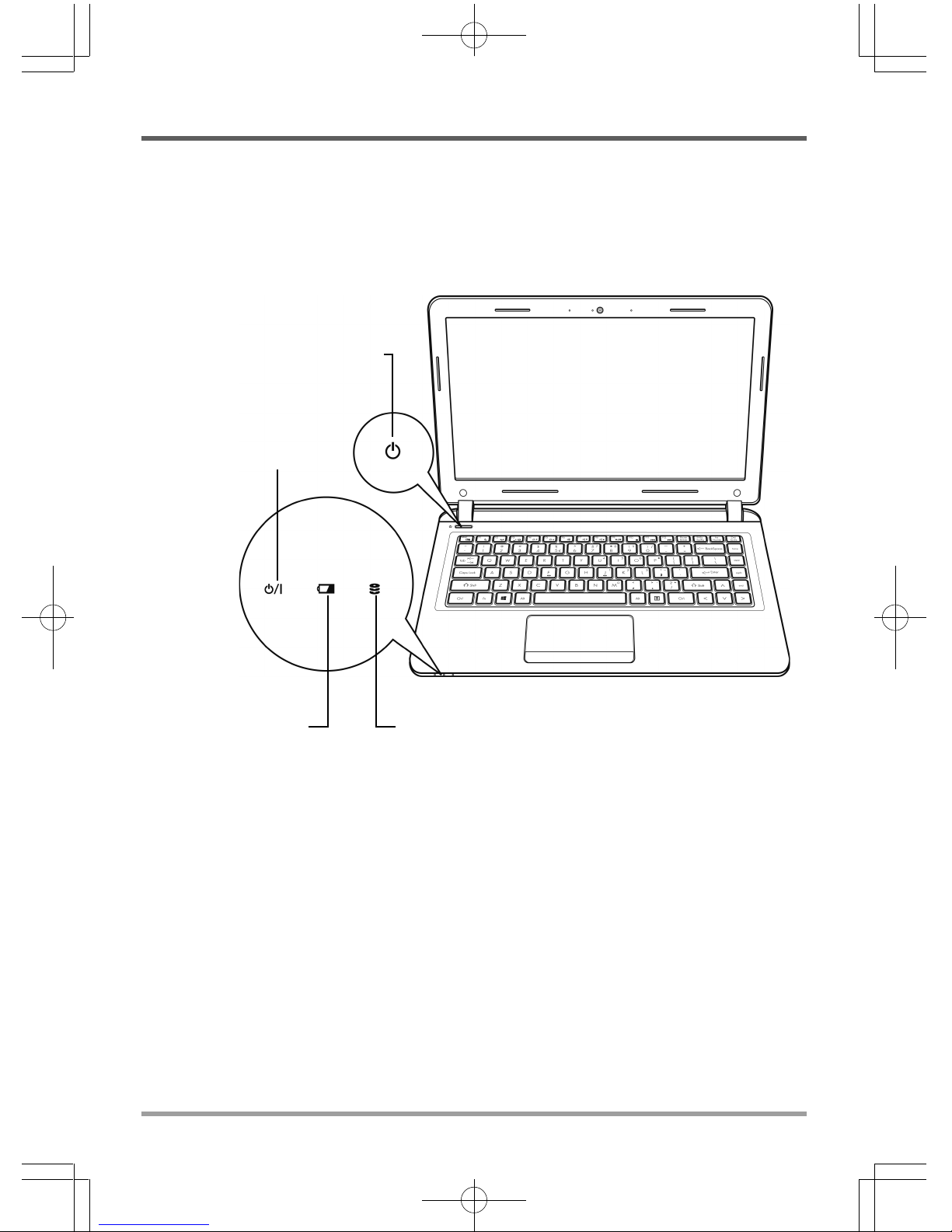

Power On/Suspend Status Indicator

Battery/AC Adapter

Status Indicator

Hard Disk Drive (HDD) Activity Indicator

Power On/

Suspend Status Indicator

STATUS INDICATORS

The status indicator lights correspond to specific operating modes. These modes are: Power on/Suspend status, Battery/AC Adapter status, and hard disk drive (HDD) activity.

Power On Indicator

This light on the power button and on the front of the system illuminates when the computer is powered on.

Suspend Status Indicator

This light flashes when the computer is in the Suspend mode.

GETTING STARTED

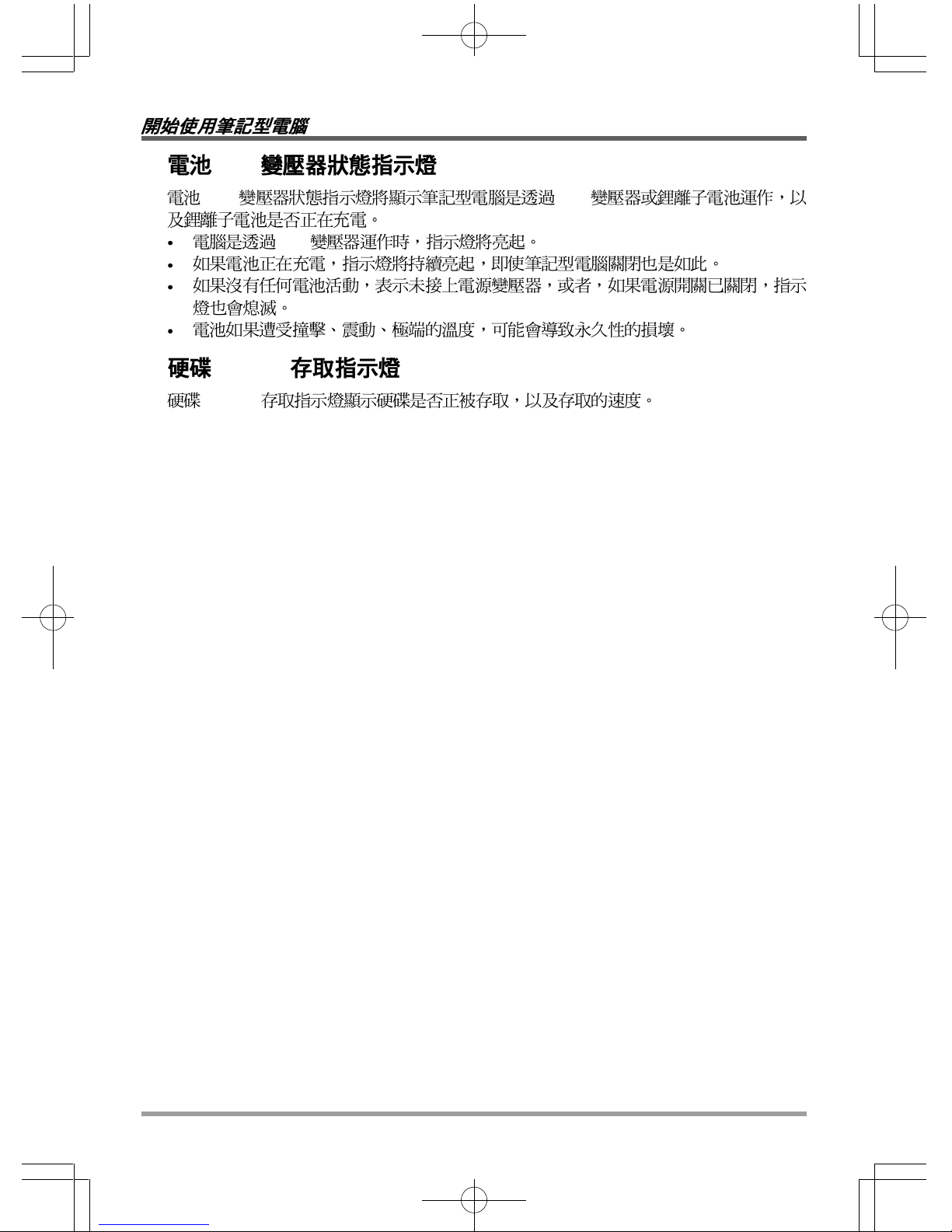

Battery/AC Adapter Status Indicator

The Battery/AC Adapter status indicator tells you whether your notebook is operating from the AC Adapter or the Lithium-Ion battery, and whether the Lithium-Ion battery is charging or not.

• The light illuminates when the computer is operating from the AC Adapter.

• If you are charging your battery, the indicator remains on even if your notebook is shut off.

• If there is no battery activity, the power adapter is not connected, or the power switch is Off, the indicator will also be off.

• Batteries subjected to shocks, vibrations or extreme temperatures can be permanently damaged.

Hard Disk Drive (HDD) Activity Indicator

The Hard Disk Drive (HDD) Activity indicator tells you whether your internal hard drive is being accessed and, if so, how fast.

GETTING STARTED

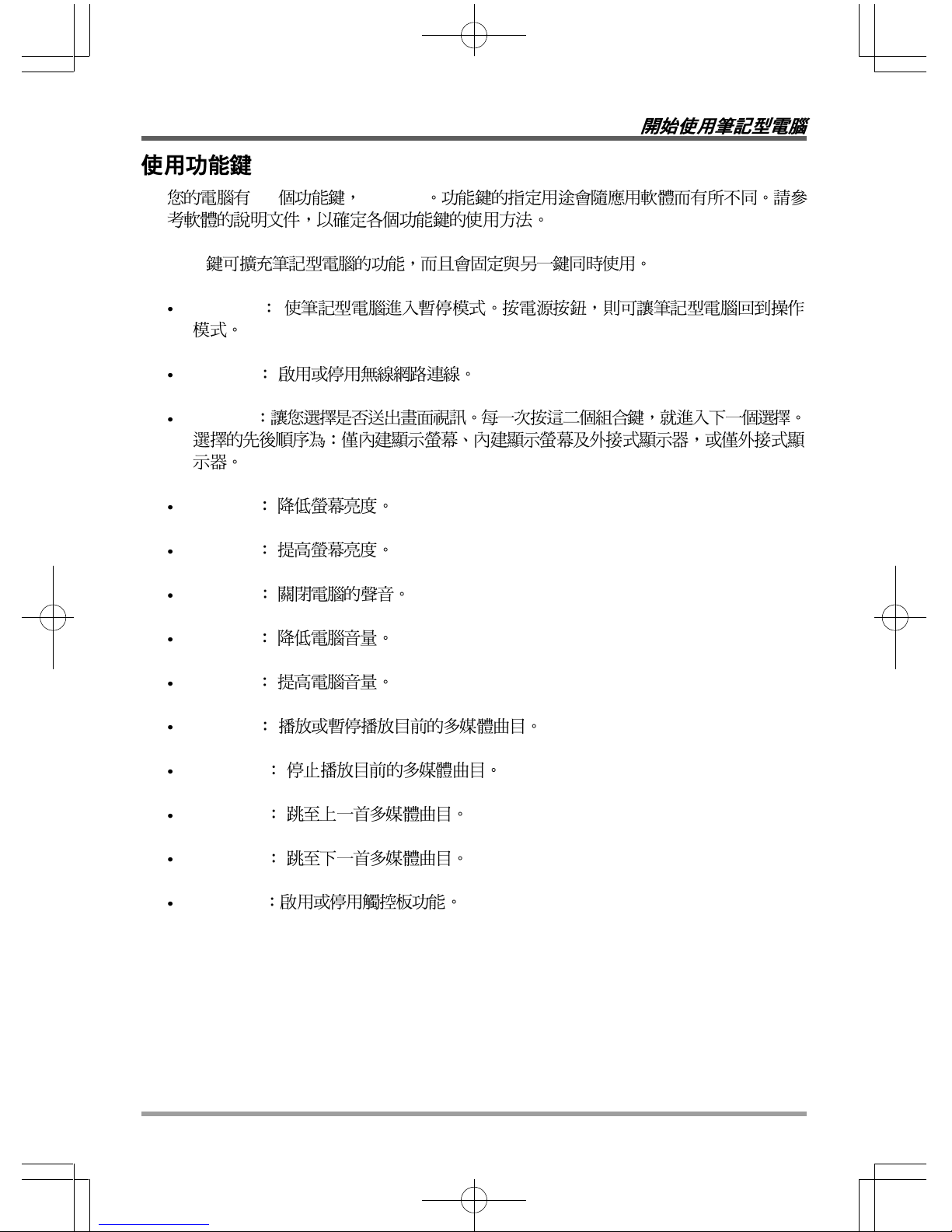

USING FUNCTION KEYS

Your computer has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

The [FN] key provides extended functions for the notebook and is always used in conjunction with another key.

• [FN+F1]: Places the notebook in Suspend mode. Pressing the Power button returns it to active mode.

• [FN+F2]: Enables or disables the wireless network connection.

• [FN+F3]: Allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, both built-in display panel and external monitor, or external monitor only.

• [FN+F4]: Decreases the screen Brightness.

• [FN+F5]: Increases the screen Brightness.

• [FN+F6]: Mutes the computer's volume.

• [FN+F7]: Decreases the computer's volume.

• [FN+F8]: Increases the computer's volume.

• [FN+F9]: Plays or pauses the current multimedia track.

• [FN+F10]: Stops the current multimedia track.

• [FN+F11]: Goes to the previous multimedia track.

• [FN+F12]: Goes to the next multimedia track.

• [FN+Esc]: Enables or disables the TouchPad function.

GETTING STARTED

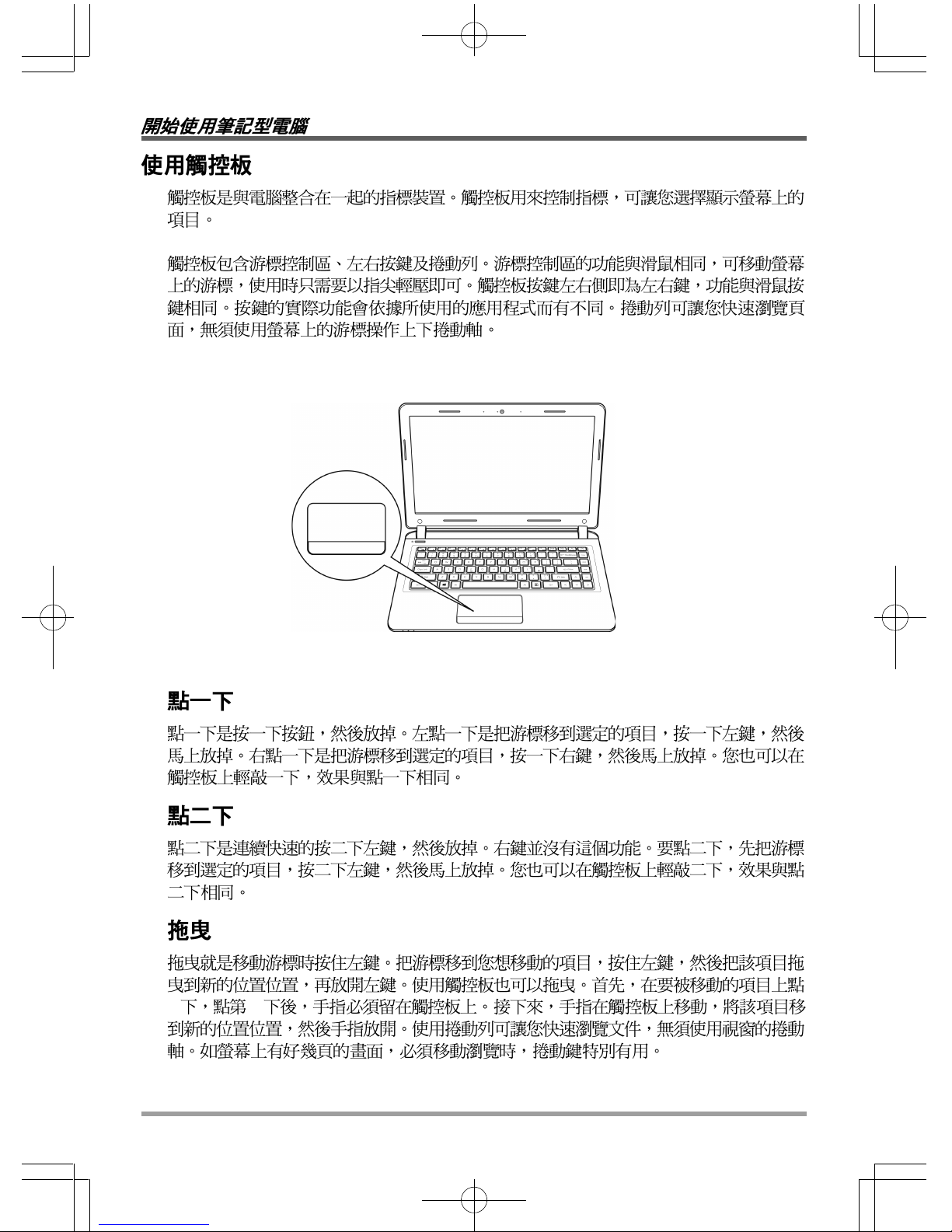

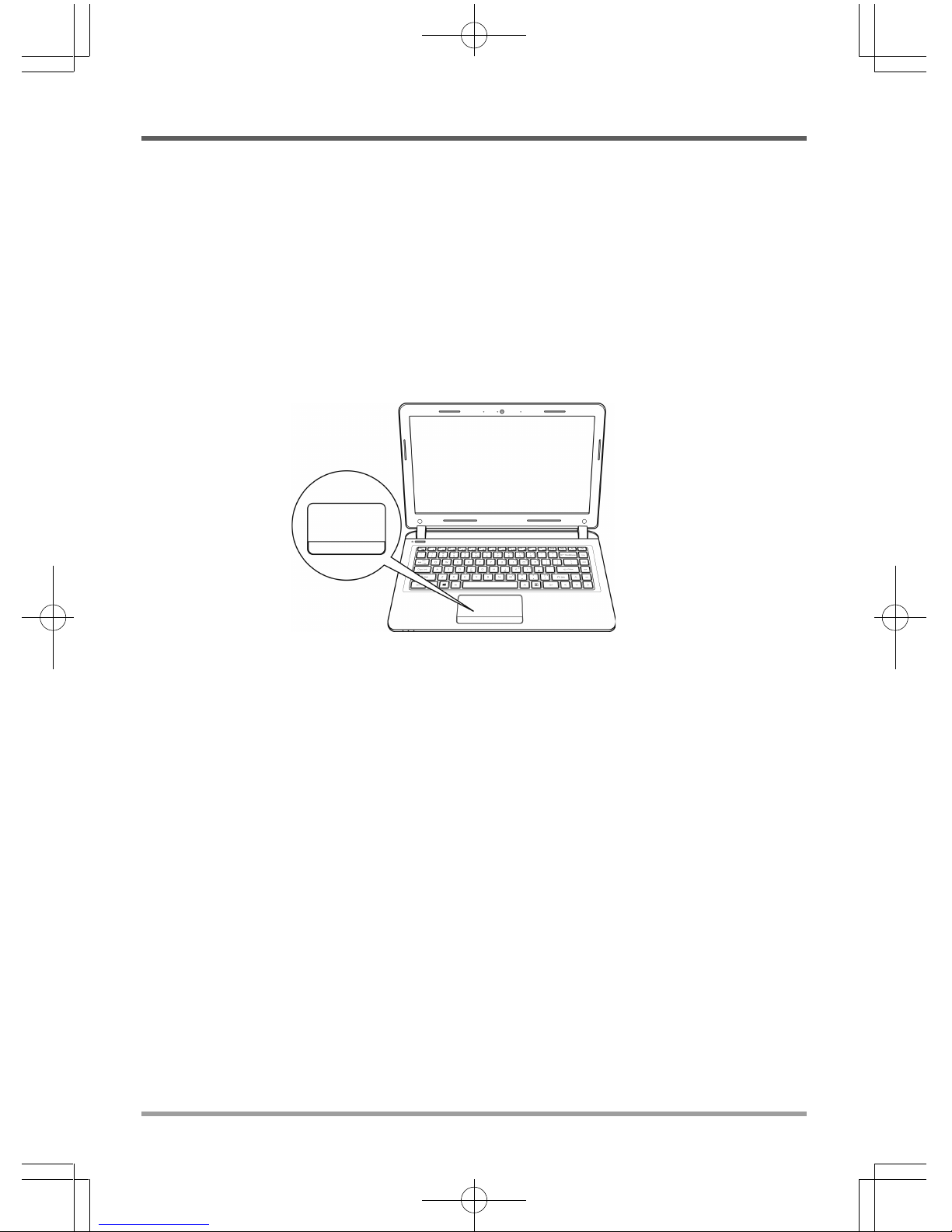

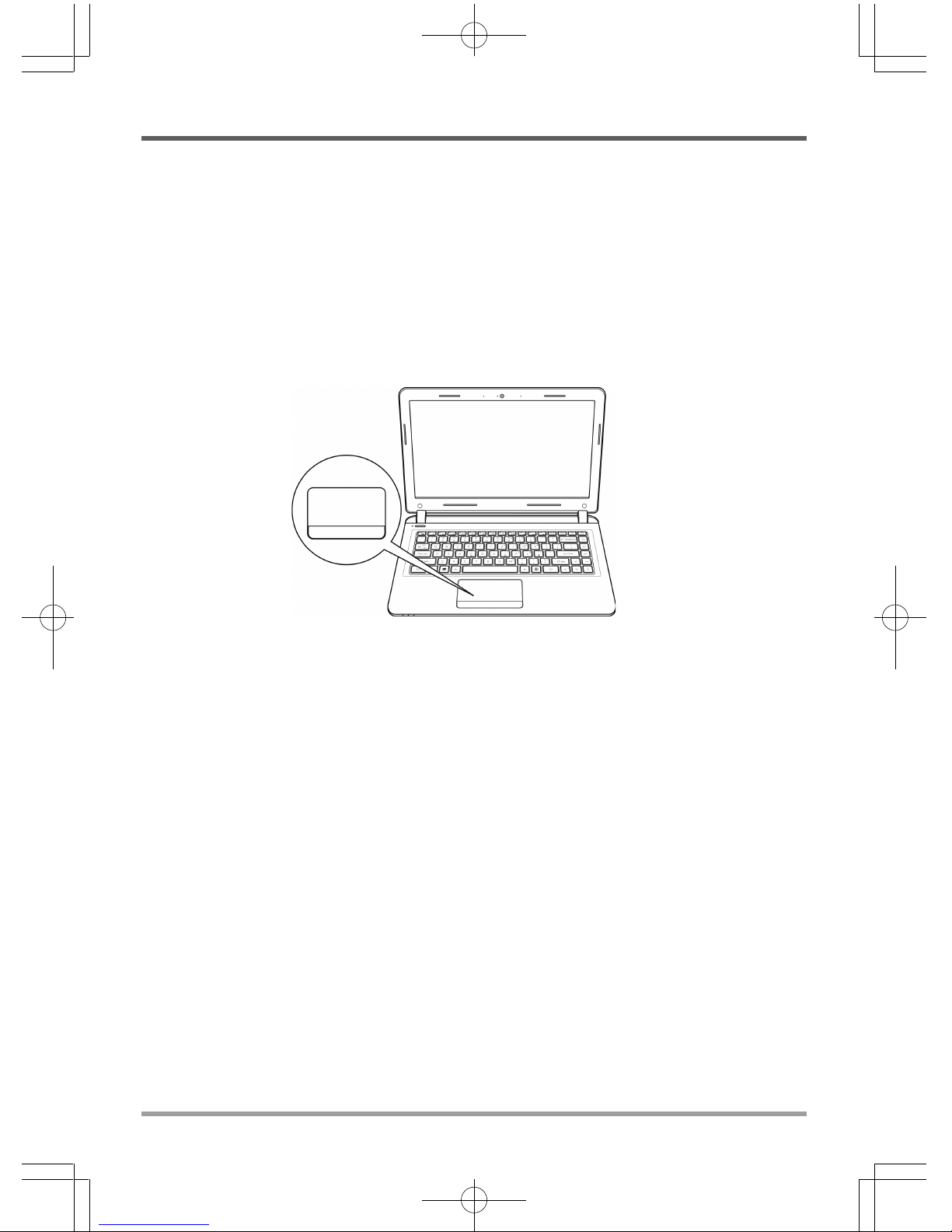

USING THE TOUCHPAD

A TouchPad pointing device comes built into your computer. It is used to control the movement of the pointer to select items on your display panel.

The TouchPad consists of a cursor control, a single rocker bar, and a scroll bar. The cursor control works the same way a mouse does, and moves the cursor around the display. It only requires light pressure from the tip of your finger. The single rocker bar includes the left and right buttons that function as mouse buttons. The actual functionality of the rocker bar may vary depending on the application that is being used. Finally, the scroll bar allow you to navigate quickly through pages, without having to use the on-screen cursor to manipulate the up and down scroll bars.

Clicking

Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the TouchPad once.

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and then immediately release it. You also have the option to perform the double-click operation by tapping lightly on the TouchPad twice.

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using only the TouchPad. First, tap the TouchPad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the TouchPad, and then release your finger. Using the Scroll bar allows you to navigate through a document quickly without using the window's scroll bars. This is particularly useful when you are navigating through on-line pages.

GETTING STARTED

MEMORY MODULE UPGRADE

To increase your notebook's memory capacity (up to 8 GB maximum), additional memory modules may be installed. The memory upgrade must be a dual-in-line (DIMM) SDRAM module.

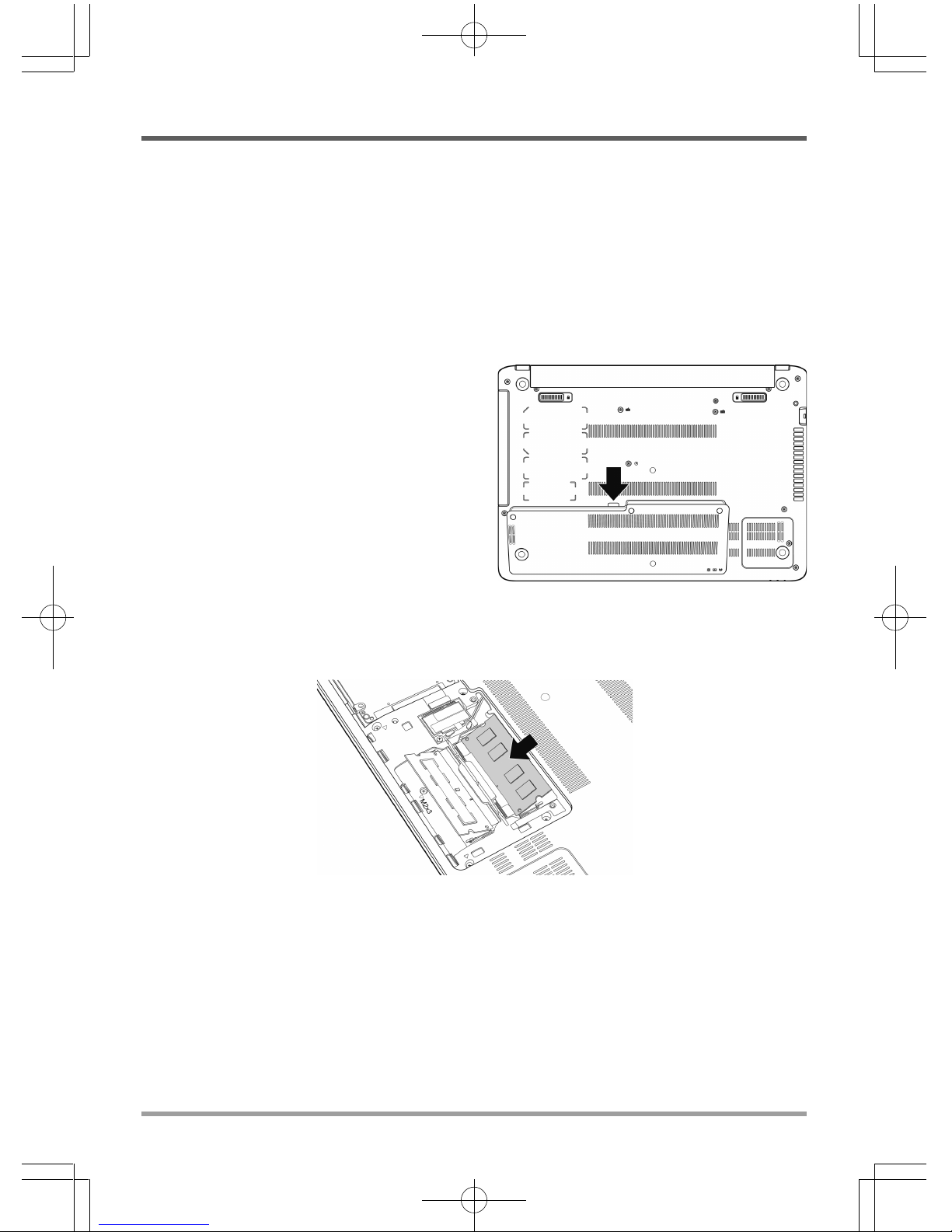

Installing a Memory Module

The following steps describe how to install a memory upgrade module. We do not recommend that you do this yourself.

1. Turn off power to your notebook using the power switch, disconnect the power adapter, and/or remove the battery pack.

2. Place your notebook upside-down on a clean work surface.

3. Remove the three screws securing the main compartment cover in place.

4. Pry up the main compartment cover starting from the center of the top edge, then around the left and right side. Once the cover is released from the securing tabs, lift it away from the system.

5. The memory upgrade module can be severely damaged by electrostatic discharge (ESD). Be sure you are properly grounded when handling and installing the module.

6. Align the connector edge of the memory upgrade module, chip side up, with the connector slot in the compartment.

7. Insert the memory upgrade module at a 45

angle and press it firmly onto the connector.

8. Press the memory upgrade module down into the compartment until it locks into the retaining clips on either side. You will hear a click when it is properly in place. If you are using two memory modules, repeat steps 5 to 7 for the other slot.

9. Replace and align the cover with the tabs on the right side. Press downward on the cover to engage the tabs and around the left side to the bottom edge until it clicks into place. Installation of the new memory module is now complete.

The memory upgrade module is not something you routinely remove from your notebook PC. Once it is installed, you should leave it in place unless you want to increase system memory capacity.

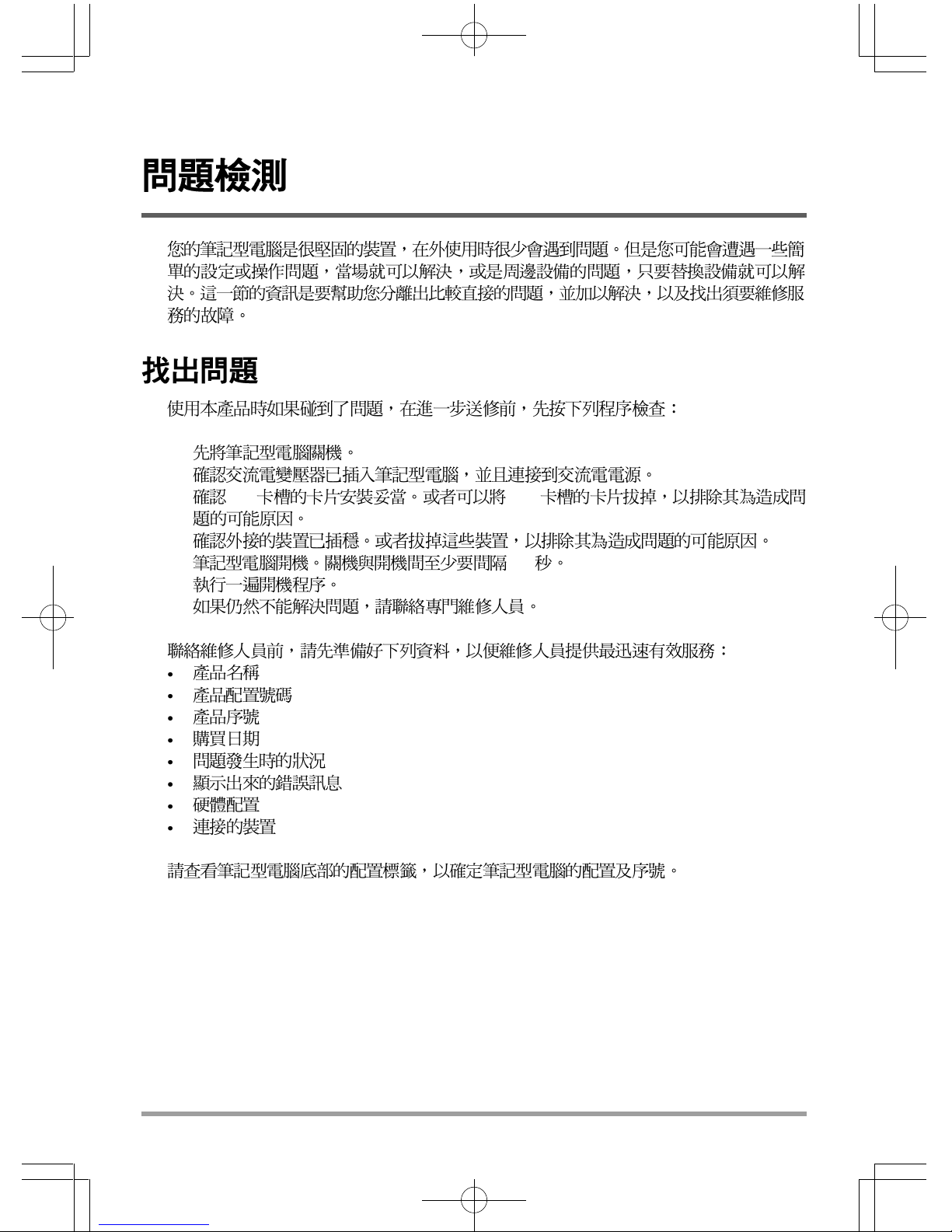

TROUBLESHOOTING

Your notebook PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1. Turn off your notebook.

2. Make sure the AC adapter is plugged into your notebook and to an active AC power source.

3. Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure.

4. Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure.

5. Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it on.

6. Go through the boot sequence.

7. If the problem has not been resolved, contact your support representative.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Hardware configuration

• Type of device connected, if any

See the Configuration Label on the bottom of your notebook for configuration and serial numbers.

MEMO

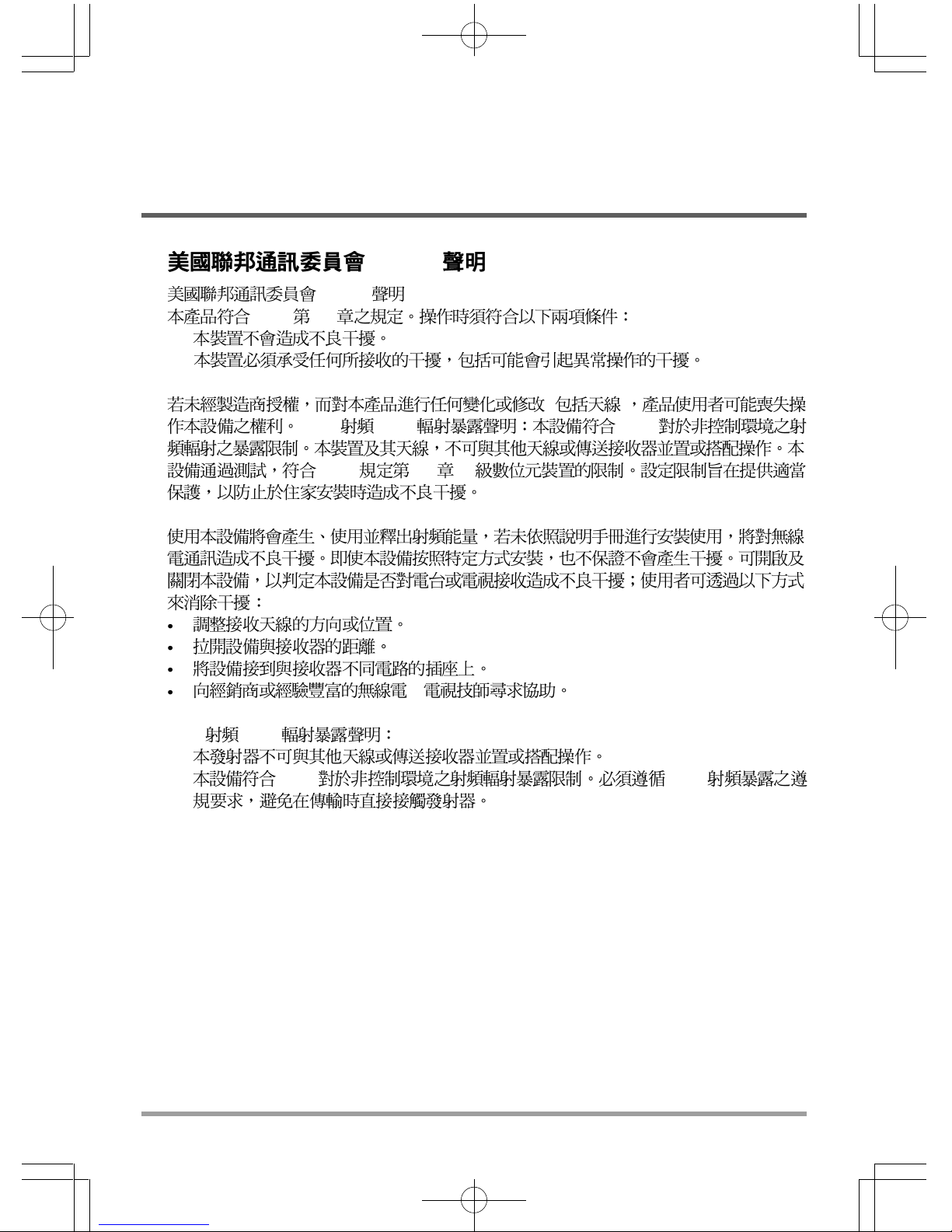

Federal Communications Commission (FCC) Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that maycause

undesired operation.

Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting.

MEMO

2013 9

..............................................................................................................

....................................................................................................................

..............................................................................................................

.........................................................................................................................

.......................................................................................................................

.............................................................................................

.................................................................................................................................

.........................................................................................................

............................................................................................................

.......................................................................................................

...........................................................................................................................

................................................................................................................

.........................................................................................................

................................................................................................................

..........................................................................................................................

•

Dual DVD+/-RW CD

•

Super Multi DVD RW

•

Blu-ray/DVD RW

+ 186 hidden pages

MAXDATA M-BOOK 4500 U G1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
