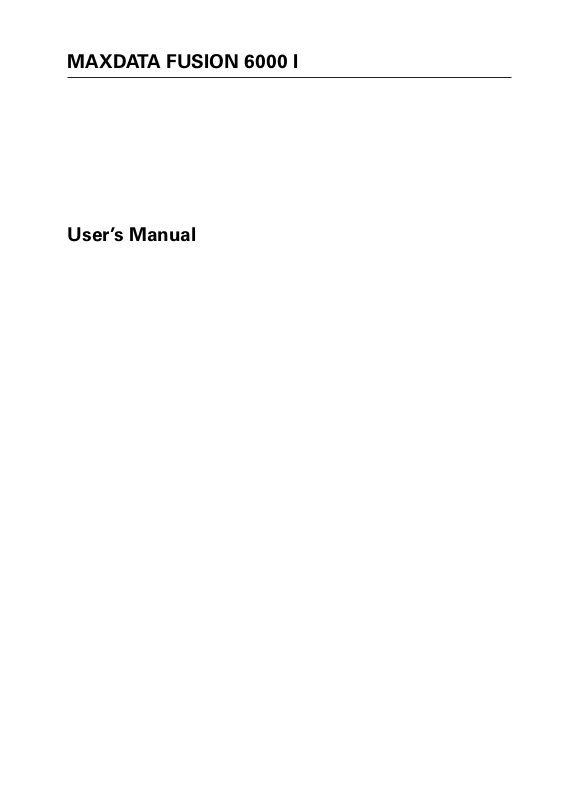

MAXDATA FUSION 6000 I
User’s Manual
2 3MAXDATA FUSION 6000 IContents
Contents
1 Setting up the System 7
Workstation Position ...............................................................................................................................7
Connecting the System ...........................................................................................................................8
Powering up the System .........................................................................................................................8
2 Board Features 9
Board Components ...............................................................................................................................11
Main Memory ........................................................................................................................................12
Audio Subsystem ..................................................................................................................................13
Input/Output (I/O) Controller ..................................................................................................................14
LAN Subsystem ....................................................................................................................................14
Hi-Speed USB 2.0 Support ....................................................................................................................14
Enhanced IDE Interface .........................................................................................................................15
Serial ATA ..............................................................................................................................................15
Expandability .........................................................................................................................................15
BIOS ...................................................................................................................................................... 15
Chassis Intrusion ................................................................................................................................... 16
Power Management Features ...............................................................................................................16
Fan Speed Control (Intel® Precision Cooling Technology) ................................................................16
Speaker .................................................................................................................................................18
Battery ...................................................................................................................................................18
Real-Time Clock .....................................................................................................................................18
3 Installing and Replacing Board Components 19
Before You Begin ..................................................................................................................................19
Installation Precautions .........................................................................................................................19
Installing a Processor ............................................................................................................................20
Installing and Removing Memory ..........................................................................................................23
Installing and Removing a PCI Express x16 Card ..................................................................................27
Configuring the System for Intel® Matrix Storage Technology for Serial ATA .......................................28
Configuring the BIOS for Intel® Matrix Storage Technology ............................................................28
Loading the Intel® Application Accelerator Drivers ...........................................................................28
Connecting Internal Headers .................................................................................................................29
Installing Other Connectors ...................................................................................................................32
Setting the BIOS Configuration Jumper Block ......................................................................................33
Clearing Passwords ...............................................................................................................................33
Setting Up Full 7.1-Channel Surround Sound (Optional) ........................................................................35
Replacing the Battery ............................................................................................................................36
BIOS ...................................................................................................................................................... 39
Error Messages and Indicators ..............................................................................................................39
4 Regulatory and Integration Information 41
Product Regulatory Compliance ............................................................................................................41
Product EMC Compliance ....................................................................................................................41
Product Regulatory Compliance Markings ............................................................................................41
Electromagnetic Compatibility Notices .................................................................................................42
Installation Precautions .........................................................................................................................42
Installation Requirements ......................................................................................................................43
Use Only for Intended Applications .......................................................................................................43
4 5MAXDATA FUSION 6000 IContents
Figures
1. Rear connectors ................................................................................................................................8
2. The Controls ......................................................................................................................................8
3. Board Components .........................................................................................................................11
4. Location of Standby Power Indicator ..............................................................................................17
6. Lift the Load Plate and Don’t Touch the Socket Contacts ..............................................................20
5. Lift Socket Lever ............................................................................................................................20
8. Remove the Processor from the Protective Processor Cover and Do Not Touch ..........................21
7. Remove the Protective Socket Cover .............................................................................................21
9. Install Processor ..............................................................................................................................22
10. Close the Load Plate .......................................................................................................................22
11. Dual Configuration Example 1 .........................................................................................................23
12. Dual Configuration Example 2 .........................................................................................................23
13. Dual Configuration Example 3 .........................................................................................................24
14. Position of DIMM sockets ...............................................................................................................25
15. Installing a DIMM ............................................................................................................................25
16. Removing the PCI Express x16 Card ..............................................................................................27
17. Internal Headers .............................................................................................................................. 29
18. Location of Other Connectors .........................................................................................................32
19. Location of the BIOS Configuration Jumper Block ..........................................................................33
20. Back Panel Audio Connectors .........................................................................................................35
21. Removing the Battery .....................................................................................................................38
Tables
1. Feature Summary .............................................................................................................................. 9
2. Board Components .........................................................................................................................11
3. Memory Configurations ...................................................................................................................12
4. RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs ............................................................14
5. Front Panel Audio Header Signal Names ........................................................................................30
6. IEEE 1394 Header Signal Names ....................................................................................................30
7. USB 2.0 Header Signal Names ........................................................................................................30
8. Front Panel Header Signal Names ...................................................................................................31
9. Jumper Settings for the BIOS Setup Program Modes .................................................................... 33
10. Beep Codes .....................................................................................................................................39
11. BIOS Error Messages ......................................................................................................................39
12. Product Certification Markings ........................................................................................................41
6 MFMAXDATA FUSION 6000 I
1 Setting up the System
Workstation Position
Please take note of the following criteria for creating a practical and safe workplace when setting up your computer:
The system can be used anywhere the temperature is suitable for people. However, rooms
with humidity over 70 %, and dusty or dirty areas are not appropriate. In addition, do not expose the workstation to any temperatures over +35 °C or under +10 °C.
Make sure that the cables connecting the workstation to peripheral devices are not tight.
Make sure that all power and connection cables are positioned so that they are not trip
hazards.
When you save data to your workstation‘s hard disks or to a floppy disk, they are stored as
magnetic information on the media. Make sure that they are not damaged by magnetic or electromagnetic fields.
Because the electronics in your computer can be damaged by jarring, no mechanical devices
should be placed on the same surface as the workstation. This is especially important for impact printers whose vibrations could damage the hard disk.
ATTENTION
In order to fully separate the workstation from current, the power cord must be removed from the wall outlet.
ATTENTION
To ensure stability, the floor stands must be turned outwards.
Connecting the System
Rear Connectors
NOTE
The line out connector, located on the back panel, is designed to power either headphones or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this output.
Figure 1. Rear connectors
A. PS/2-Mouse G. MIC
B. Parallel port
C. Line in I. Optical line out
D. IEEE 1394 J.
E. Gigabit NIC K. Serial port
F. USB ports
H. Audio out
Coaxial line out
L. PS/2-Keyboard
Powering up the System
At the front of the case, you can find the necessary controls like power button, reset button and the HDD Leds. Press the power button one time briefly in order to boot the workstation.
Figure 2. The Controls
A. Power switch
B. Power LED
C. HDD LED
D. Key Lock
8 MFMAXDATA FUSION 6000 ISetting up the System
2 Board Features
This chapter briefly describes the main features of the board.
Table 1 summarizes the major features of the board.
Table 1. Feature Summary
Form Factor • ATX (12.00” x 9.60”) Board
Processor Support for an Intel
package with 800 MHz or 533 MHz front side bus
Main Memory • Four 240-pin, 1.8 V SDRAM Dual Inline Memory Module
(DIMM) sockets
• 533/400 MHz single or dual channel DDR2 SDRAM interface
• Designed to support up to 4 GB of system memory
NOTE: System resources (such as PCI and PCI Express) require physical memory address locations that reduce avail able memory addresses above 3 GB. This may result in less than 4 GB of memory being available to the operating system and applications.
Chipset Intel® 925X Express Chipset consisting of:
®
82925X Memory Controller Hub (MCH) with Direct
• Intel Media Interface
• Intel® 82801FR I/O Controller Hub (ICH6-R) supporting Intel® Matrix Storage Technology
®
Audio • Intel
925X Express Chipset
®
• Intel
high-definition audio codec
Expansion Capabilities • Up to four PCI bus add-in card connectors (SMBus routed
to PCI bus connector 2)
• One PCI Express x16 connector
• One PCI Express x1connector (second connector optional)
• Four Serial ATA (SATA) connectors
• Two front panel USB 2.0 headers
• One front panel audio header
• Two IEEE 1394 headers
LAN Subsystem Marvell 88E8050 PCI Express Gigabit Ethernet Controller
(10/100/1000 Mbit/sec) with RJ-45 connector
BIOS • Intel® BIOS
• 8 Mbit symmetrical flash memory
• Support for SMBIOS
®
Rapid BIOS Boot
• Intel
®
• Intel
Express BIOS Update
RAID Intel® Matrix Storage Technology for Serial ATA
®
Pentium® 4 Processor in the LGA775
-
continued
Table 1. Feature Summary (Continued)
Peripheral Interfaces • Up to eight USB 2.0 ports
• Four ports routed to the back panel
• Four ports routed to two USB headers
• Four Serial ATA channels, via the ICH6-R, one device per channel
• Up to three IEEE 1394 ports
• One port routed to the back panel
• Two ports routed to two IEEE 1394 headers
• One IDE interface with ATA-66/100 support
• One diskette drive interface
• One parallel port
• One serial port
• PS/2 keyboard and mouse ports
Power Management • Support for Advanced Configuration and Power Interface
(ACPI)
• Suspend to RAM (STR)
• Wake on USB, PCI,PCI Express, PS/2, LAN, and front panel
Hardware Management Hardware monitor with:
• Four fan sensing inputs used to monitor fan activity
• Remote diode temperature sensing
®
Precision Cooling Technology fan speed control
• Intel that automatically adjusts processor fan speeds based on processor temperature and chassis fan speeds based on system temperature
• Voltage sensing to detect out of range values
10 11MAXDATA FUSION 6000 IBoard Features
Board Components


 
 


Figure 3 shows the approximate location of the major components on board.
Figure 3. Board Components
Table 2. Board Components
Label Description Label Description
A. PCI Express x1 connectors M. Chassis intrusion header
B. Front panel audio header (yellow)
C. PCI Express x16 connector O. Front chassis fan header (fan speed control)
D. Rear chassis fan header
(fan speed control)
E. Alternate power connector (1x4) Q. Alternate power LED header
F. 12 V power connector (2x2)
G. Processor socket (LGA775) S. USB 2.0 headers
H. Processor fan header(4-pin, fan
speed control)
I. Main power connector (2x12) U. Speaker
J. Diskette drive connector V. PCI bus add-in card connectors
K. IDE connector W. Rear fan header (4-pin)
L. Battery
N. BIOS configuration jumper
P. Serial ATA connectors (four)
R. Front panel header
T. IEEE 1394 headers (blue)
Main Memory
The mainboard supports dual or single channel memory configurations defined in Table 3.
NOTE
To be fully compliant with all applicable memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation.
Table 3. Memory Configurations
Memory Speed
DDR2 533 Intel® Pentium® 4
DDR2 400
Processor FSB frequency
Processor
Intel® Pentium® 4 Processor
(MHz)
800 533
533 533
800 400
533 333
Memory Speed Outcome (MHz)
• Four 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module (DIMMs) connectors with gold-plated contacts.
• Support for:
- Unbuffered, non-registered single or double-sided DIMMs
- Serial Presence Detect (SPD) memory only
- 1.8 V memory
- Memory configuration listed below:
- Up to 2.0 GB utilizing 256 MB technology
- Up to 4.0 GB utilizing 512 MB or 1 GB technology
NOTE
System resources (such as PCI and PCI Express) require physical memory address locations that reduce available memory addresses above 3 GB. This may result in less than 4 GB of memory being available to the operating system and applications.
12 13MAXDATA FUSION 6000 IBoard Features
Audio Subsystem
The board includes a flexible 7.1-channel audio subsystem based on an Intel® high-definition audio codec:
The audio subsystem features:
• Impedance sensing capability for jack re-tasking
• S/N (signal-to-noise) ratio: > 90 dB
• Power management support for ACPI 2.0 (driver dependent)
®
• Intel
• Realtek Semiconductor Corporation audio codec
• Microphone input that supports:
- Microphone array
- Acoustic Echo (AEC)
- Beam Forming (BF)
- Noise Supression (NX) technology
The subsystem includes the following connectors:
• Front panel audio connector, including pins for:
- Line out
82801FR I/O Controller Hub (ICH6-R)
- Mic
• Back panel audio connectors that are configurable through the drivers of the audio devices:
- Line in
- Three Line out
- Mic in or Center LFE out
- Two digital line out:
• One coaxial line out
• One optical (Toslink) line out
Input/Output (I/O) Controller
The super I/O controller features the following:
• Low pin count (LPC) interface
• One serial port
• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) support
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• PS/2-style mouse and keyboard interfaces
• Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive
• Intelligent power management, including a programmable wake up event interface
• PCI power management support
LAN Subsystem
The LAN subsystem provides a Fast PCI LAN subsystem. The LAN subsystem provides the following functions:
• Marvell 10/100/1000 Gigabit Ethernet LAN
• Support for RJ-45 connector with status indicator LEDs
• Programmable transit threshold
• Configurable EEPROM that contains the MAC address
RJ-45 LAN Connector LEDs
Table 4 describes the LED states when the board is powered up and the 10/100/1000 Gigabit Ethernet LAN subsystem is operating.
Table 4. RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs
LED Color LED State Indicates
Bi-color LED Off 10 Mbit/sec data rate is selected.
Green 100 Mbit/sec data rate is selected.
Yellow
Green LED Off LAN link is not established.
On (pulsing) The computer is communicating with
1 Gbit/sec data rate is selected.
another computer on the LAN.
Hi-Speed USB 2.0 Support
NOTE
Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a full-speed USB device.
The board supports up to eight USB 2.0 ports via ICH6-R; four ports routed to the back panel and four routed to two internal USB 2.0 headers. USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.
14 15MAXDATA FUSION 6000 IBoard Features
Enhanced IDE Interface
The ICH6-R’s IDE interface handles the exchange of information between the processor and peripheral devices like hard disks, CD-ROM drives, and Iomega Zip drives inside the computer. The interface supports:
• Up to two IDE devices (such as hard drives)
• ATAPI-style devices (such as CD-ROM drives)
• Older PIO Mode devices
• Ultra DMA-33 and ATA-66/100 protocols
• Laser Servo (LS-120) drives
Serial ATA
The board supports four Serial ATA channels via the ICH6-R, connecting one device per channel in either a RAID or non-RAID configuration.
Expandability
The board supports the following:
• One PCI Express x16 add-in card
• Two PCI Express x1 add-in cards
• Four PCI bus add-in cards
BIOS
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI and IDE auto­configuration utilities, and the video BIOS.
Serial ATA and IDE Auto Configuration
If you install a Serial ATA or IDE device (such as a hard drive) in your board, the auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing a Serial ATA or IDE device. You can override the auto-configuration options by specifying manual configuration in the BIOS Setup program.
When booting from a Serial ATA device, Serial ATA connector 0 is the first boot device and Serial ATA connector 3 is the last boot device.
PCI and PCI Express Auto Configuration
If you install a PCI/PCI Express add-in card in your board, the PCI/PCI Express auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI/PCI Express add-in card.
Security Passwords
The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup and for booting the computer, with the following restrictions:
• The supervisor password gives unrestricted access to view and change all Setup options. If only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives the user restricted access to Setup.
• If both the supervisor and user passwords are set, you must enter either the supervisor password or the user password to access Setup. Setup options are then available for viewing and changing depending on whether the supervisor or user password was entered.
• Setting a user password restricts who can boot the computer. The password prompt is displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, you can enter either password to boot the computer.
Chassis Intrusion
The board supports a chassis security feature that detects if the chassis cover has been removed. The security feature uses a mechanical switch on the chassis that can be connected to the chassis intrusion header on the board. See Figure 15 on page 29 for the location of the chassis intrusion header.
Power Management Features
Power management is implemented at several levels, including:
• Advanced Configuration and Power Interface (ACPI)
• Hardware support:
- Fan connectors
- Suspend to RAM (Instantly Available PC technology)
- Resume on Ring
- Wake from USB
- Wake from PS/2 keyboard/mouse
- PME# wakeup support
ACPI
ACPI gives the operating system direct control over the power management and Plug and Play functions of a computer. The use of ACPI with the board requires an operating system that provides full ACPI support.
Fan Connectors
The board has three chassis fan headers (two 3-pin and one 4-pin) and one processor fan header (4-pin).
Fan Speed Control (Intel® Precision Cooling Technology)
Intel® Precision Cooling Technology automatically adjusts the processor fan speed based on the processor temperature and adjusts the chassis fan speeds depending on the system temperature. System fan noise may be reduced by operating controlled chassis and processor fans at the minimum necessary speeds.
NOTE
Not all chassis fan headers on the board are controlled. Refer to Table 2 to identify controlled chassis fan headers.
The processor and chassis fan speed control features can be disabled independently through the board BIOS. Disabling the processor fan speed control will result in the fan operating at full speed if it is not a self controlled fan.
16 17MAXDATA FUSION 6000 IBoard Features
Suspend to RAM (Instantly Available PC Technology)


Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. When signaled by a wake-up device or event, the system quickly returns to its last known awake state.
The board’s standby power indicator, shown in Figure 4, is lit when there is standby power to the system. This includes the memory modules and PCI bus connectors, even when the computer appears to be off.
Figure 4. Location of Standby Power Indicator
Resume on Ring
The operation of Resume on Ring can be summarized as follows:
• Resumes operation from either ACPI S1 or ACPI S3 state
• Requires only one call to access the computer
• Detects incoming call similarly for external and internal modems
• Requires modem interrupt be unmasked for correct operation
Wake from USB
USB bus activity wakes the computer from an ACPI S1 or S3 state.
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
Wake from PS/2 Keyboard/Mouse
PS/2 keyboard/mouse activity wakes the computer from an ACPI S1 or S3 state.
PME# Wakeup Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, or S5 state.
Speaker
A speaker is mounted on the board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST).
Battery
A battery on the board keeps the values in CMOS RAM and the clock current when the computer is turned off.
Real-Time Clock
The board has a time-of-day clock and 100-year calendar. The battery on the board keeps the clock current when the computer is turned off.
18 MFMAXDATA FUSION 6000 IBoard Features
3 Installing and Replacing Board Components
Before You Begin
WARNING
The procedures in this chapter assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications links, networks, or modems before performing any of the procedures described in this chapter. Failure to disconnect power, telecommunications links, networks, or modems before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.
Follow these guidelines before you begin:
• Always follow the steps in each procedure in the correct order.
• Set up a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Installation Precautions
When you install and test the board, observe all warnings and cautions in the installation instructions.
To avoid injury, be careful of:
• Sharp pins on connectors
• Sharp pins on printed circuit assemblies
• Rough edges and sharp corners on the chassis
• Hot components (like processors, voltage regulators, and heat sinks)
• Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.
Place Battery Marking
There is insufficient space on this board to provide instructions for replacing and disposing of the Lithium ion coin cell battery. For system safety certification, the following statement or equivalent statement is required to be permanently and legibly marked on the chassis near the battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.
Installing a Processor
Instructions on how to install the processor to the board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure that AC power has been removed by unplugging the power cord from the computer; the standby power LED should not be lit (see Figure 4 on page 17). Failure to do so could damage the processor and the board.
To install a processor, follow these instructions:
1. Observe the precautions in “Before You Begin”.
2. Open the socket lever by pushing the lever down and away from the socket (see Figure 5, A and B).
Figure 5. Lift Socket Lever
3. Lift the load plate. Do not touch the socket contacts (see Figure 6, C and D)
Figure 6. Lift the Load Plate and Don’t Touch the Socket Contacts
20 21MAXDATA FUSION 6000 IInstalling and Replacing Board Components
4. Remove the protective socket cover from the load plate. Do not discard the protective socket
�
cover. Always replace the socket cover if the processor is removed from the socket (see Figure 7, E).
Figure 7. Remove the Protective Socket Cover
5. Remove the processor from the protective processor cover. Hold the processor only at the edges, being careful not to touch the bottom of the processor. Do not discard the protective processor cover. Always replace the processor cover if the processor is removed from the socket (see Figure 8).
Figure 8. Remove the Processor from the Protective Processor Cover and Do Not Touch
6. Hold the processor with your thumb and index fingers oriented as shown in Figure 9. Make
sure fingers align to the socket cutouts (see Figure 9, F). Align notches (see Figure 9, G) with the socket see (Figure 9, H). Lower the processor straight down without tilting or sliding the processor in the socket.
Figure 9. Install Processor
7. Pressing down on the load plate (Figure 10, I) close and engage the socket lever (Figure 10, J).
Figure 10. Close the Load Plate
22 23MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Installing and Removing Memory
The board has four 240-pin DIMM sockets arranged as DIMM 0 and DIMM 1 in both Channel A and Channel B, as shown in Figure 14.
CAUTION
To be fully compliant with all applicable SDRAM memory specifications, the board requires DIMMs that support the Serial Presence Detect (SPD) data structure.
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel configuration.
Two or Four DIMMs Install a matched pair of DIMMs equal in speed and size (see Figure 11) in DIMM 0 (blue) of both channels A and B.
Channel A
1 GB, 400 MHz DIMM 0
DIMM 1
Channel B
1 GB, 400 MHz DIMM 0
DIMM 1
Figure 11. Dual Configuration Example 1
If additional memory is to be used, install another matched pair of DIMMs in DIMM 1 (black) in both channels A and B (see Figure 12).
Channel A
256 MB, 400 MHz DIMM 0
512 MB, 400 MHz
DIMM 1
Channel B
256 MB, 400 MHz DIMM 0
512 MB, 400 MHz
Figure 12. Dual Configuration Example 2
DIMM 1
Three DIMMs
Install a matched pair of DIMMs equal in speed and size in DIMM 0 (blue) and DIMM 1 (black) of channel A. Install a DIMM equal in speed and total size of the DIMMs installed in channel A in either DIMM 0 or DIMM 1 of channel B (see Figure 13).
Channel A
256 MB, 400 MHz DIMM 0
256 MB, 400 MHz
DIMM 1
Channel B
512 MB, 400 MHz DIMM 0
DIMM 1
Figure 13. Dual Configuration Example 3
NOTE
All other memory configurations will result in single channel memory operation.
24 25MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Installing DIMMs





CAUTION
Install memory in the DIMM sockets prior to installing the PCI Express x16 card to avoid interference with the memory retention mechanism.
To install DIMMs, follow these steps:
1. Observe the precautions in “Before You Begin” on page 19.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see Figure 14).
Figure 14. Position of DIMM sockets
4. Remove the PCI Express x16 card if it interferes with the DIMM retaining clips from being easily opened and closed.
5. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the open position.
6. Holding the DIMM by the edges, remove it from its anti-static package.
7. Position the DIMM above the socket. Align the small notch at the bottom edge of the DIMM with the keys in the socket (see Figure 15).
Figure 15. Installing a DIMM
8. Insert the bottom edge of the DIMM into the socket.
9. When the DIMM is inserted, push down on the top edge of the DIMM until the retaining clips snap into place. Make sure the clips are firmly in place.
10. Reinstall the PCI Express x16 card if it was removed prior to installing the DIMMs.
11. Replace the computer’s cover and reconnect the AC power cord.
Removing DIMMs
To remove a memory module, follow these steps:
1. Observe the precautions in “Before You Begin”.
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Remove the PCI Express x16 card if it interferes with the DIMM clips from being easily opened and closed.
6. Gently spread the retaining clips at each end of the DIMM socket. The DIMM pops out of the socket.
7. Hold the DIMM by the edges, lift it away from the socket, and store it in an anti-static package.
8. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM sockets.
9. Replace the computer’s cover and reconnect the AC power cord.
26 27MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Installing and Removing a PCI Express x16 Card
CAUTION
When installing any PCI Express x16 card on the board, ensure that it is fully seated in the PCI Express x16 connector before you power on the system. If the card is not fully seated in the PCI Express x16 connector, an electrical short may result across the PCI Express x16 connector pins. Depending on the over-current protection of the power supply, certain board components and/or traces may be damaged.
The board has an integrated PCI Express x16 card retention mechanism (RM).
Installing a PCI Express x16 Card
Follow these instructions to install a PCI Express x16 card:
1. Observe the precautions in “Before You Begin”.
2. Place the card in the PCI Express x16 connector.
3. Press down on the card until it is completely seated in the PCI Express x16 connector and the card retention notch snaps into place around the RM pin.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the RM:
1. Observe the precautions in “Before You Begin”.
2. Remove the screw that secures the card’s metal bracket to the chassis back panel (Figure 16, 1).
3. Push back on the RM lever until the retention pin completely clears the notch in the card (Figure 16, 2).
4. Pull the card straight up (Figure 16, 3).
Figure 16. Removing the PCI Express x16 Card
Configuring the System for Intel® Matrix Storage Technology for Serial ATA
Configuring the BIOS for Intel® Matrix Storage Technology
1. Assemble your system and attach two SATA hard drives.
2. Enter system BIOS Setup by pressing the <F2> key after the Power-On-Self-Test (POST) memory tests begin.
®
3. Go to Advanced Drive Configuration; ensure Intel
Matrix Storage Technology is enabled.
4. Then save your settings by pressing <F10>.
Creating your RAID set
1. Upon re-boot you will see the Intel® Application Accelerator RAID Option ROM status message on the screen. (Press<cntrl-I> to enter RAID Configuration Utility), then press CTRL-I to enter the RAID Option ROM user interface.
2. In the User Interface menu, select option #1; Create RAID Volume. Enter a volume name, press <enter>.
NOTE
The RAID Volume name must be in English alphanumeric ASCII characters.
3. Use the arrow keys to select RAID 0 or RAID 1, press <enter>.
4. Select the drives to be used in the RAID array (only if there are more than two drives available), press <enter>.
5. Select the strip size (only for RAID 0), and press <enter>.
6. Enter the size of the volume (If you select less than the maximum volume size you can then create a second RAID array on the remaining portion of your volume), and press <enter>.
7. Finally press <Y> to confirm your selections.
8. Exit the Option ROM user interface by pressing <esc>.
Loading the Intel® Application Accelerator Drivers
1. Begin Microsoft® Windows® Setup by booting from the Microsoft® Windows® installation CD.
®
2. At the beginning of Microsoft
Windows® Setup, press <F6> to install a third-party SCSI or RAID driver. When prompted, insert the floppy disk labeled RAID Driver. Install the Intel® 82801FR SATA RAID Controller driver.
®
3. Finish the Microsoft
4. Install the Intel
Windows® installation and install all necessary drivers.
®
Application Accelerator software via the Intel® Express Installer CD included with your motherboard or after downloading it from the Internet. This will add the Intel® Storage Utility which can be used to manage the RAID configuration.
Setting Up a “RAID Ready” System
The Intel® Application Accelerator software offers the flexibility to upgrade from a single Serial ATA drive to RAID without reinstalling the Operating System (OS), when a second SATA hard drive is added to the system.
®
Follow the steps described in “Configuring the BIOS for Intel “Loading the Intel® Application Accelerator Drivers”.
Matrix Storage Technology” and
28 29MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Connecting Internal Headers










    





    
 
  


    
Before connecting cables to the internal headers, observe the precautions in “Before You Begin” on page 19. Figure 17 shows the location of internal headers.
Figure 17. Internal Headers
A. Chassis intrusion
Alternate power LED
B.
C. Front panel
USB 2.0
D.
E. IEEE 1394
F. Front panel audio
Front Panel Audio Header
Figure 17, F shows the location of the yellow front panel audio header. Table 5 shows the pin assignments for the front panel audio header.
Table 5. Front Panel Audio Header Signal Names
Pin Signal Name Pin Signal Name
1 Port1L 2 GND
3 Port1R 4 Presence#
5 Port2R 6 Sense1 Ret
7 Sense Send 8 Key (no pin)
9 Port2L 10 Sense2 Ret
IEEE 1394 Headers
See Figure 17, E for the location of the blue IEEE 1394 headers. Table 6 shows the pin assignments for the headers.
Table 6. IEEE 1394 Header Signal Names
Pin Signal Name Pin Signal Name
1 TPA1 + 2 TPA1 -
3 Ground 4 Ground
5 TPA2 + 6 TPA2 -
7 +12 V 8 +12 V
9 Key (no pin) 10 Ground
USB 2.0 Headers
See Figure 17, D for the location of the black USB 2.0 headers. Table 7 shows the pin assignments for the headers.
Table 7. USB 2.0 Header Signal Names
USB Port A USB Port B
Pin Signal Name Pin Signal Name
1 Power 2 Power
3 D- 4 D-
5 D+ 6 D+
7 Ground 8 Ground
9 Key 10 No connect
NOTE
USB ports may be assigned as needed.
30 31MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Front Panel Header
Figure 17, C shows the location of the multi-colored front panel header. Table 8 shows the pin assignments for the front panel header.
Table 8. Front Panel Header Signal Names
Pin Signal In/Out Description Pin Signal In/Out Description
Hard Drive Activity LED (Yellow) Power LED (Green)
1 HD_PWR Out Hard disk LED
pull-up (330 Ω) to +5 V
3 HDA# Out Hard disk active
LED
Reset Switch (Purple) On/Off Switch (Red)
5 Ground Ground 6 SWITCH_ON# In Power
7 FP_RESET# In Reset switch 8 Ground Ground
9 N/C Not connected 10 No pin
2 HDR_BLNK_GRN Out Front panel
green LED
4 HDR_BLNK_YEL Out Front panel
yellow LED
switch
Alternate Power LED Header
Figure 17, B shows the location of the alternate power LED header.
Chassis Intrusion Header
Figure 17, A shows the location of the chassis intrusion header.
Installing Other Connectors




Figure 18 shows the location of the:
• PCI bus add-in card connectors
• PCI Express x1 connectors
• PCI Express x16 connector
• Floppy drive connector
• IDE drive connector
Figure 18. Location of Other Connectors
A. PCI bus add-in card connector 4
PCI bus add-in card connector 3
B.
C. PCI Express x1 connectors
PCI bus add-in card connector 2 (SMBus routed)
D.
E. PCI bus add-in card connector 1
F. PCI Express x16 connector
G. IDE drive connector
H. Floppy drive connector
32 33MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Setting the BIOS Configuration Jumper Block


The location of the board’s BIOS configuration jumper is shown in Figure 19.
CAUTION
Always turn off the power and unplug the power cord from the computer before changing the jumper. Moving the jumper with the power on may result in unreliable computer operation.
Figure 19. Location of the BIOS Configuration Jumper Block
Table 9 shows the jumper settings for the Setup program modes.
Table 9. Jumper Settings for the BIOS Setup Program Modes
Jumper Setting
Mode Description
Normal (default) (1-2)
Configure (2-3)
Recovery (None)
The BIOS uses the current configuration and passwords for booting.
After the Power-On Self-Test (POST) runs, the BIOS displays the Maintenance Menu. Use this menu to clear passwords.
The BIOS recovers data from a recovery diskette in the event of a failed BIOS update.
Clearing Passwords
This procedure assumes that the configuration jumper block is set to normal mode.
1. Observe the precautions in “Before You Begin” on page 19.
2. Turn off all peripheral devices connected to the computer. Turn off the computer. Disconnect the computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Find the configuration jumper block (see Figure 19).
5. Place the jumper on pins 2-3 as shown below.
6. Replace the cover, plug in the computer, turn on the computer, and allow it to boot.
7. The computer starts the Setup program. Setup displays the Maintenance menu.
8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a pop-up screen requesting that you confirm clearing the password. Select Yes and press <Enter>. Setup displays the maintenance menu again.
9. Press <F10> to save the current values and exit Setup.
10. Turn off the computer. Disconnect the computer’s power cord from the AC power source.
11. Remove the computer cover.
12. To restore normal operation, place the jumper on pins 1-2 as shown below.
13. Replace the cover, plug in the computer, and turn on the computer.
34 35MAXDATA FUSION 6000 IInstalling and Replacing Board Components
Setting Up Full 7.1-Channel Surround Sound (Optional)
After installing the audio driver from the Intel® Express Installer CD-ROM, the multi-channel audio feature can be enabled. Figure 20 shows the location of back panel audio connectors.
A. Rear left/right out (multi-channel audio)
Line in
B.
C. Line out (2-channel) or front left/right out (multi-channel)
D. Mic in (re-task for multi-channel)
E. Center/Low Frequency Effects (LFE) out (multi-channel)
F. Optical S/PDIF (Toslink) line out
G. Coaxial S/PDIF (RCA) line out
Figure 20. Back Panel Audio Connectors
Multi-Channel Analog Audio
Connect speakers to A, B, C, D, or E as shown in Figure 20, up to eight speakers.
Multi-Channel Digital Audio
Two types of S/PDIF connectors are available: coaxial (G) and optical (F). Select the proper connector according to the style of S/PDIF speakers to be used.
Replacing the Battery
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied.
When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 21 on page 38 shows the location of the battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.
PRÉCAUTION
Risque d’explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l’environnement.
FORHOLDSREGEL
Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.
OBS!
Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.
VIKTIGT!
Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.
VARO
Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.
VORSICHT
Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.
AVVERTIMENTO
Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.
PRECAUCIÓN
Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.
WAARSCHUWING
Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.
36 37MAXDATA FUSION 6000 IInstalling and Replacing Board Components
ATENÇÃO
Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região.
UPOZORNÌNÍ
V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné, baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními předpisy o životním prostředí.
Προσοχή Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η µπαταρία αντικατασταθεί
από µία λανθασµένου τύπου. Οι µπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι δυνατό. Η απόρριψη των χρησιµοποιηµένων µπαταριών πρέπει να γίνεται σύµφωνα µε τους κατά τόπο περιβαλλοντικούς κανονισµούς.
VIGYAZAT
Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi előírásoknak megfelelően kell kiselejtezni.
AWAS
Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan.
OSTRZEŻENIE
Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi przepisami ochrony środowiska.
PRECAUŢIE
Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător. Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să respecte reglementările locale privind protecţia mediului.
UPOZORNENIE
Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu. Batérie by sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí vykonávať v súlade s miestnymi predpismi na ochranu životného prostredia.
POZOR
Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo. Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi okoljevarstvenimi predpisi.
To replace the battery, follow these steps:


1. Observe the precautions in “Before You Begin” on page 19.
2. Turn off all peripheral devices connected to the computer. Disconnect the computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 21).
5. With a medium flat-bladed screwdriver, gently pry the battery free from its connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.
Figure 21. Removing the Battery
38 39MAXDATA FUSION 6000 IInstalling and Replacing Board Components
BIOS
Using the BIOS Setup Program
The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
Error Messages and Indicators
The board reports POST errors in two ways:
• By sounding a beep code
• By displaying an error message on the monitor
BIOS Beep Codes
The BIOS beep codes are listed in Table 10. The BIOS also issues a beep code (one long tone followed by two short tones) during POST if the video configuration fails (a faulty video card or no card installed) or if an external ROM module does not properly checksum to zero.
Table 10. Beep Codes
Beep Description
1, 3 Memory Error
8 Video Error
BIOS Error Messages
When a recoverable error occurs during the POST, the BIOS displays an error message describing the problem.
Table 11. BIOS Error Messages
Error message Explanation
GA20 Error An error occurred with Gate-A20 when switching to
protected mode during the memory test.
Pri Master HDD Error Pri Slave HDD Error Sec Master HDD Error Sec Slave HDD Error
Pri Master Drive - ATAPI Incompatible Pri Slave Drive - ATAPI Incompatible Sec Master Drive - ATAPI Incompatible Sec Slave Drive - ATAPI Incompatible
A: Drive Error B: Drive Error No response from the diskette drive.
CMOS Battery Low The battery may be losing power. Replace the battery soon.
CMOS Display Type Wrong The display type is different than what has been stored in
CMOS Checksum Bad The CMOS checksum is incorrect. CMOS memory may have
CMOS Settings Wrong CMOS values are not the same as the last boot. These
CMOS Date/Time Not Set The time and/or date values stored in CMOS are invalid.
DMA Error Error during read/write test of DMA controller.
Could not read sector from corresponding drive.
Corresponding drive is not an ATAPI device. Run Setup to make sure device is selected correctly.
CMOS. Check Setup to make sure type is correct.
been corrupted. Run Setup to reset values.
values have either been corrupted or the battery has failed.
Run Setup to set correct values.
continued
Table 11. BIOS Error Messages (Continued)
FDC Failure Error occurred trying to access diskette drive controller.
HDC Failure Error occurred trying to access hard disk controller.
Checking NVRAM..... NVRAM is being checked to see if it is valid.
Update OK! NVRAM was invalid and has been updated.
Updated Failed NVRAM was invalid but was unable to be updated
Keyboard Is Locked The system keyboard lock is engaged. The system must be
unlocked to continue to boot.
Keyboard Error Error in the keyboard connection. Make sure keyboard is
connected properly.
KB/Interface Error Keyboard interface test failed.
Memory Size Decreased Memory size has decreased since the last boot. If no
memory was removed, then memory may be bad.
Memory Size Increased Memory size has increased since the last boot. If no
memory was added, there may be a problem with the system.
Memory Size Changed Memory size has changed since the last boot. If no memory
was added or removed, then memory may be bad.
No Boot Device Available System did not find a device to boot.
Off Board Parity Error A parity error occurred on an offboard card. This error is
followed by an address.
On Board Parity Error A parity error occurred in onboard memory. This error is
followed by an address.
Parity Error A parity error occurred in onboard memory at an unknown
address.
NVRAM / CMOS / PASSWORD cleared by Jumper
<CTRL_N> Pressed
NVRAM, CMOS, and passwords have been cleared. The system should be powered down and the jumper removed.
CMOS is ignored and NVRAM is cleared. User must enter Setup.
40 MFMAXDATA FUSION 6000 IInstalling and Replacing Board Components
4 Regulatory and Integration Information
Product Regulatory Compliance
Product Safety Compliance
The workstation board complies with the following safety requirements:
• EN 60 950 (European Union)
• IEC60 950 (International)
• CE – Low Voltage Directive (73/23/EEC) (European Union)
Product EMC Compliance
The workstation board has been has been tested and verified to comply with the following electromagnetic compatibility (EMC) regulations when installed a compatible host system.
• CISPR 22, 3rd Edition (Class A) – Radiated & Conducted Emissions (International)
• EN55022 (Class A) – Radiated & Conducted Emissions (European Union)
• EN55024 (Immunity) (European Union)
• CE – EMC Directive (89/336/EEC) (European Union)
Product Regulatory Compliance Markings
This product is marked with the following Product Certification Markings:
Table 12. Product Certification Markings
CE Mark
Electromagnetic Compatibility Notices
Europe (CE Declaration of Conformity)
This product has been tested in accordance to, and complies with the Low Voltage Directive (73/23/ EEC) and EMC Directive (89/336/EEC). The product has been marked with the CE Mark to illustrate its compliance.
Installation Precautions
When you install and test the workstation board, observe all warnings and cautions in the installation instructions.
To avoid injury, be careful of:
• Sharp pins on connectors
• Sharp pins on printed circuit assemblies
• Rough edges and sharp corners on the chassis
• Hot components (like processors, voltage regulators, and heat sinks)
• Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.
42 43MAXDATA FUSION 6000 IRegulatory and Integration Information
Installation Requirements
CAUTION
Follow these guidelines to meet safety and regulatory requirements when installing this board assembly.
Read and adhere to all of these instructions and the instructions supplied with the chassis and associated modules. If the instructions for the chassis are inconsistent with these instructions or the instructions for associated modules, contact the supplier’s technical support to find out how you can ensure that your computer meets safety and regulatory requirements. If you do not follow these instructions and the instructions provided by chassis and module suppliers, you increase safety risk and the possibility of noncompliance with regional laws and regulations.
Prevent Power Supply Overload
Do not overload the power supply output. To avoid overloading the power supply, make sure that the calculated total current loads of all the modules within the computer is less than the output current rating of each of the power supplies output circuits.
Place Battery Marking
There is insufficient space on this workstation board to provide instructions for replacing and disposing of the battery. For system safety certification, the following statement or equivalent statement may be required to be placed permanently and legibly on the chassis near the battery.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace with only the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Use Only for Intended Applications
This workstation board was evaluated as Information Technology Equipment (I.T.E.) for use in computers that will be installed in offices, homes, schools, computer rooms, and similar locations. The suitability of this product for other applications or environments, (such as medical, industrial, alarm systems, test equipment, etc.) may require further evaluation.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
