M-Audio M Specifications

Download

Page 1

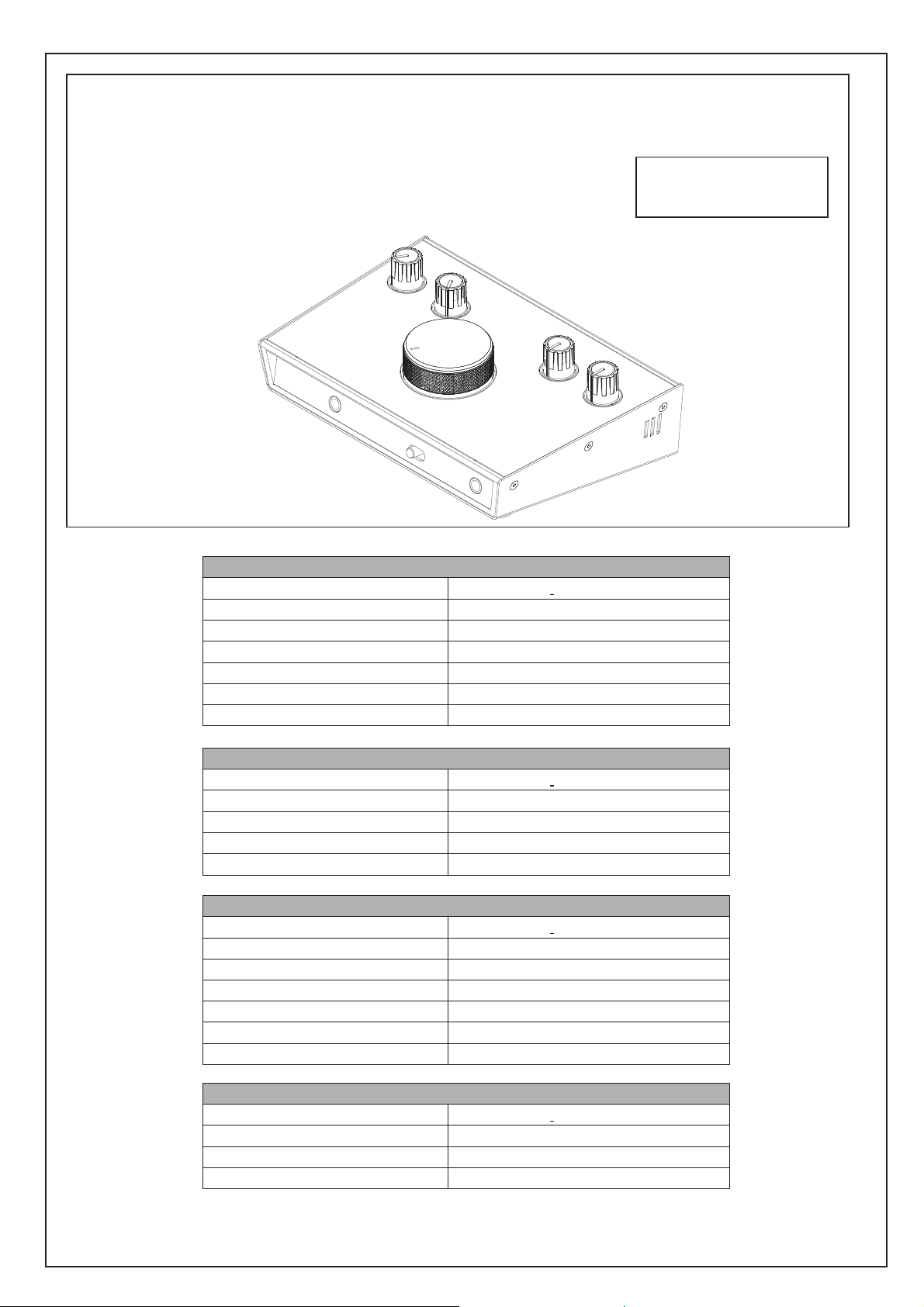

SPECIFICATIONS

Mic Input 1 (balanced XLR)

Frequency Response 20 Hz – 20 kHz (+0.1 dB)

Dynamic Range

104 dB (A-weighted)

Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)

THD+N

0.003%

Preamp EIN

-128 dBu (max gain, 150  source, A-weighted)

Max Input Level +1.5 dBu

Gain Range

55 dB

Line Input 1 (balanced 1/4" [6.35 mm] TRS)

Frequency Response 20 Hz – 20 kHz (+0.05 dB)

Signal-to-Noise Ratio 101 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.003%

Max Input Level 16 dBu

Gain Range 55 dB

Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)

Frequency Response

20 Hz – 20 kHz (+0.05 dB)

Dynamic Range 100 dB (A-weighted)

Signal-to-Noise Ratio 102 dB (+ 4 dBu, A-weighted)

THD+N

0.004%

Max Input Level 6 dBu

Input Impedance

1 M

Gain Range 24 dB

Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)

Frequency Response 20 Hz – 20 kHz (+0.06 dB)

Dynamic Range / Signal-to-Noise Ratio

102 dB (A-weighted)

THD+N

0.005%

Max Output Level +7 dBu (1 kHz, -1 dBFS)

SERVICE MANUAL

MODEL:

M-TRACK 2X2

Page 2

Headphone Output (1/4” [6.35 mm] TRS)

THD+N

Output Impedance

General

Power

Dimensions

(width x depth x height)

Weight

0.005%

10 

USB-bus-powered

6.0” x 2.8” x 7.8”

15.2 cm x 7.1 cm x 19.8 cm

2.0 lbs.

0.9 kg

Page 3

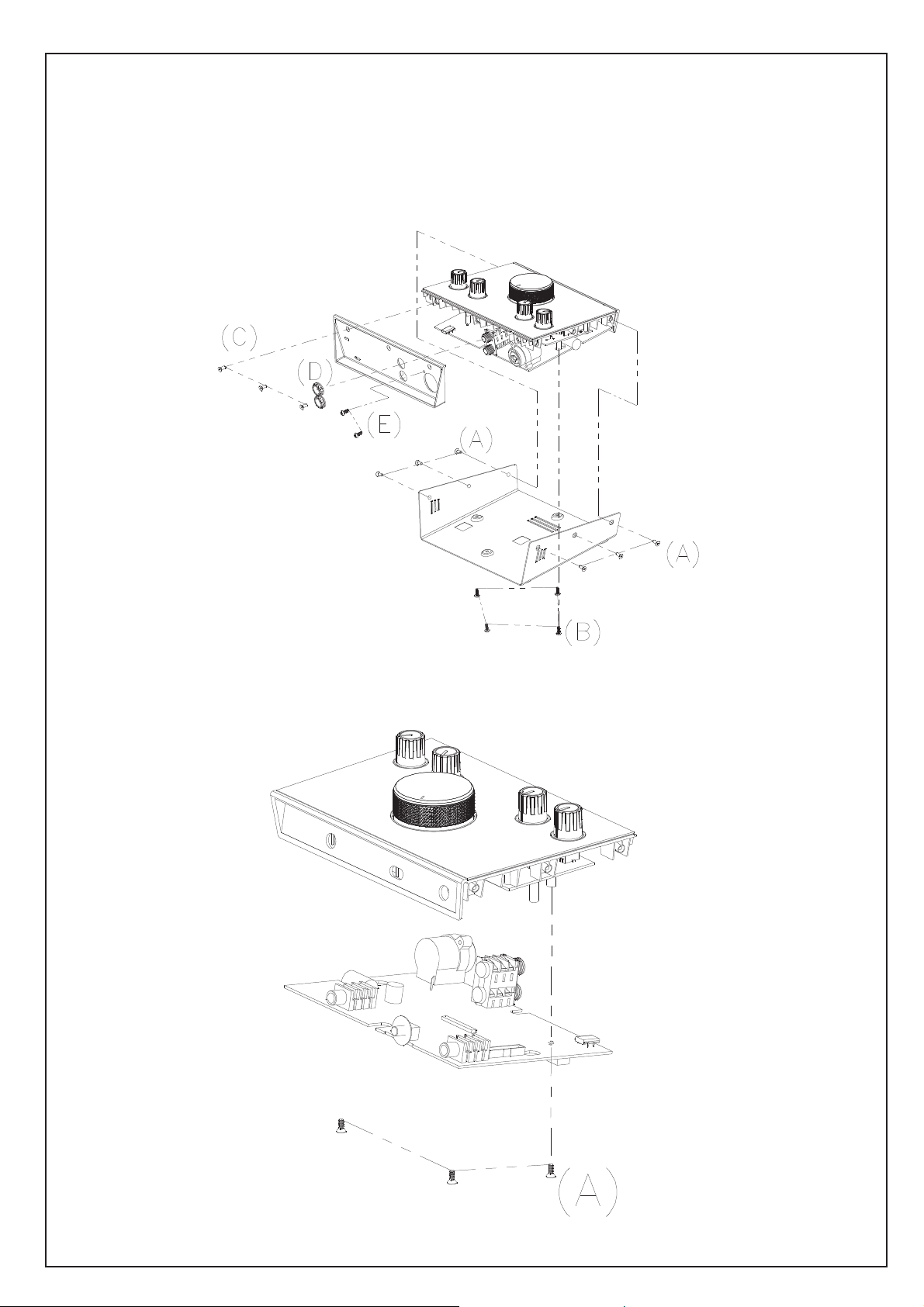

DISASSEMBLY PROCEDURES

DISASSEMBLE THE BOTTOM PANEL AND BACK PANEL.

(A) REMOVE 6 PCS HEXAGON SOCKET SCREW FROM THE BOTTOM PANEL. (B) REMOVE 4 PCS SCREW FROM THE BOTTOM PANEL. (C) REMOVE 3 PCS HEXAGON SOCKET SCREW FROM THE BACK PANEL. (D) REMOVE 2 PCS NUT FROM THE BACK PANEL. (E) REMOVE 2 PCS SCREW FROM THE BACK PANEL.

(Fig1)

DISASSEMBLE THE MAIN PCB ASS’Y.

(A)REMOVE 3 PCS SCREW FROM THE MAIN PCB ASS’Y.

(Fig2)

Page 4

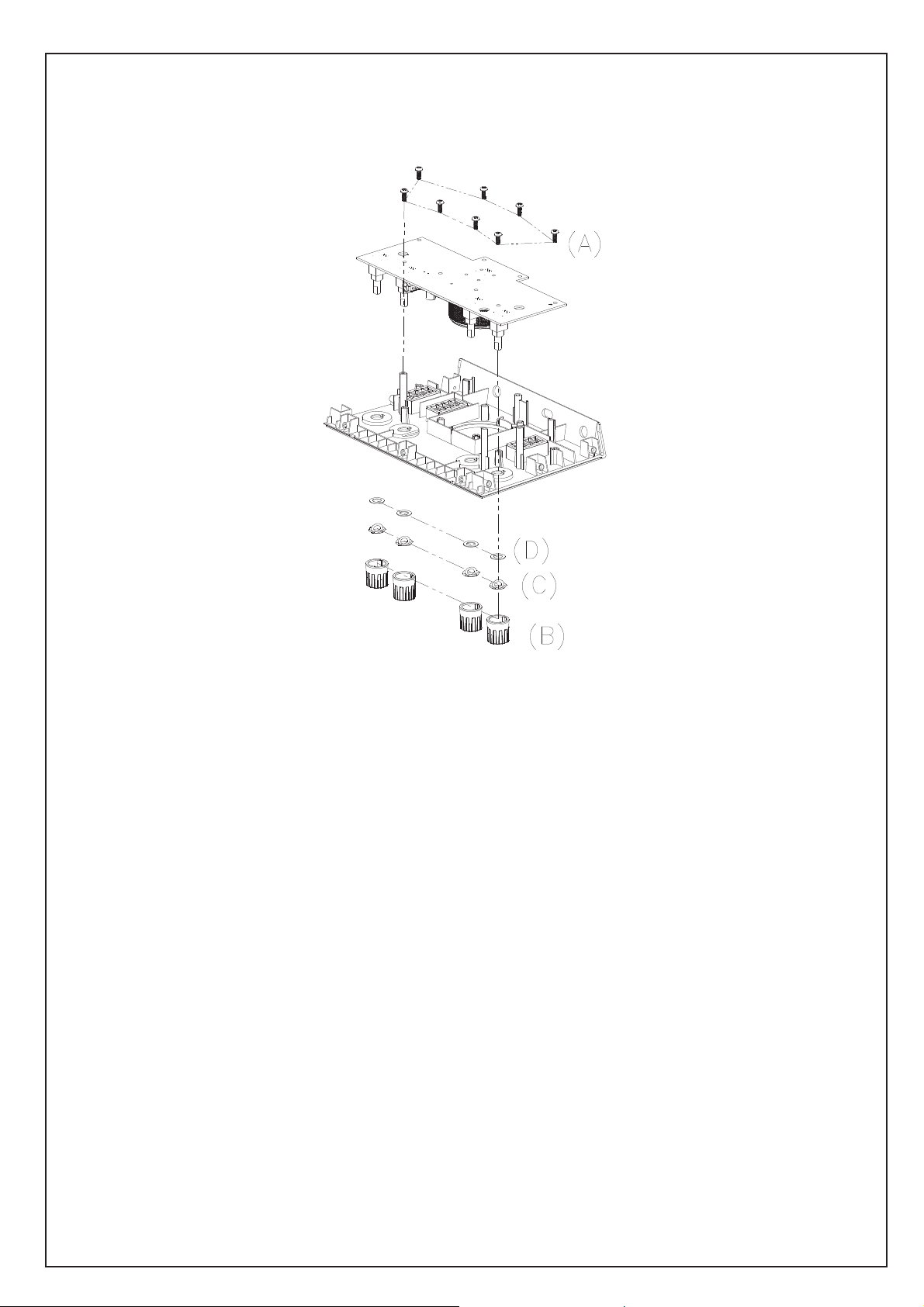

DISASSEMBLE THE VR PCB ASS’Y.

(A) REMOVE 8 PCS SCREW FROM THE VR PCB ASS’Y. (B) REMOVE 4 PCS KNOB FROM THE VR PCB ASS’Y. (C) REMOVE 4 PCS NUT FROM THE VR PCB ASS’Y. (D) REMOVE 4 PCS WASHER FROM THE VR PCB ASS’Y.

(Fig3)

Page 5

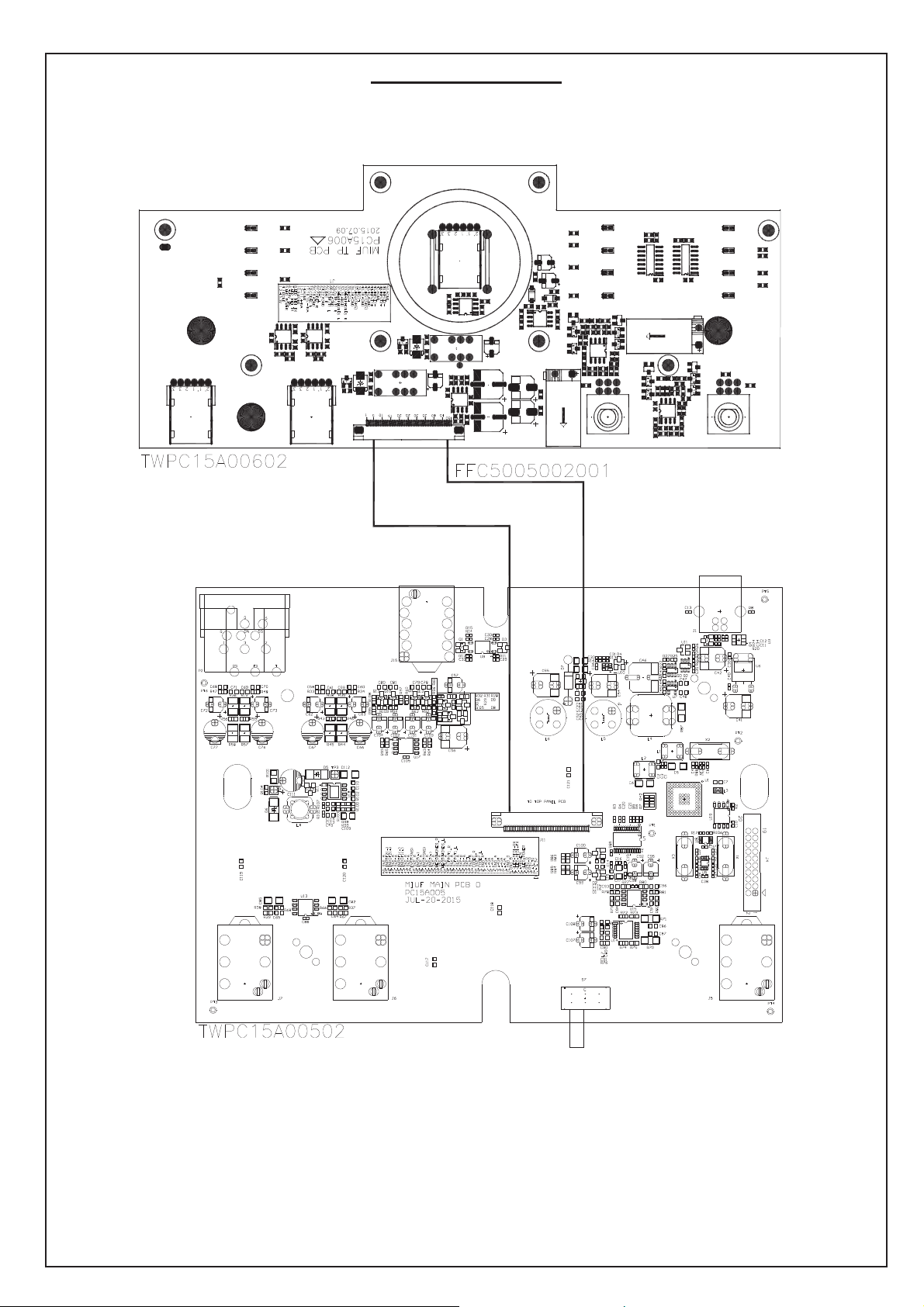

WIRING DIAGRAM

(US)

Page 6

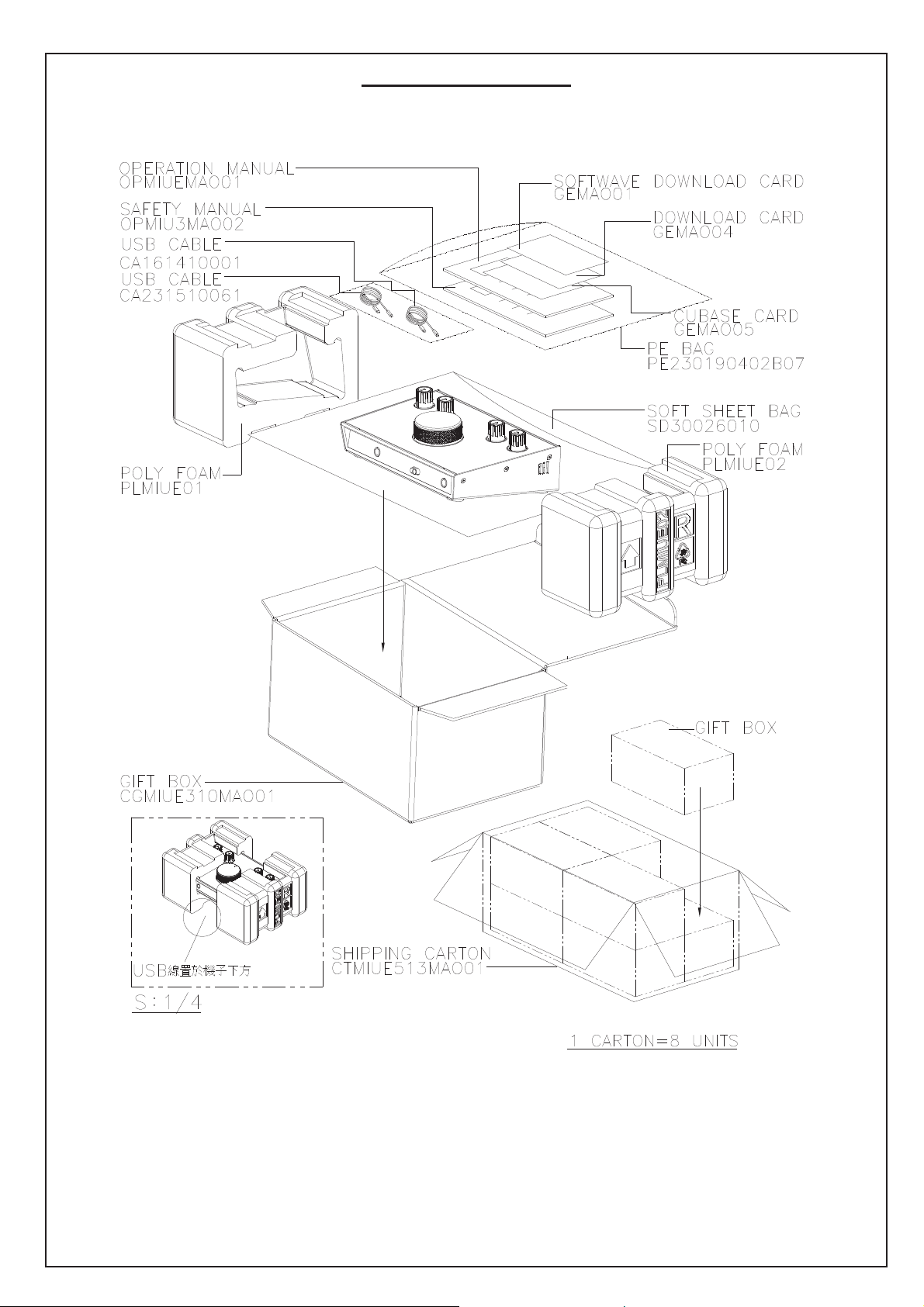

PACKING DIAGRAM

(US)

Page 7

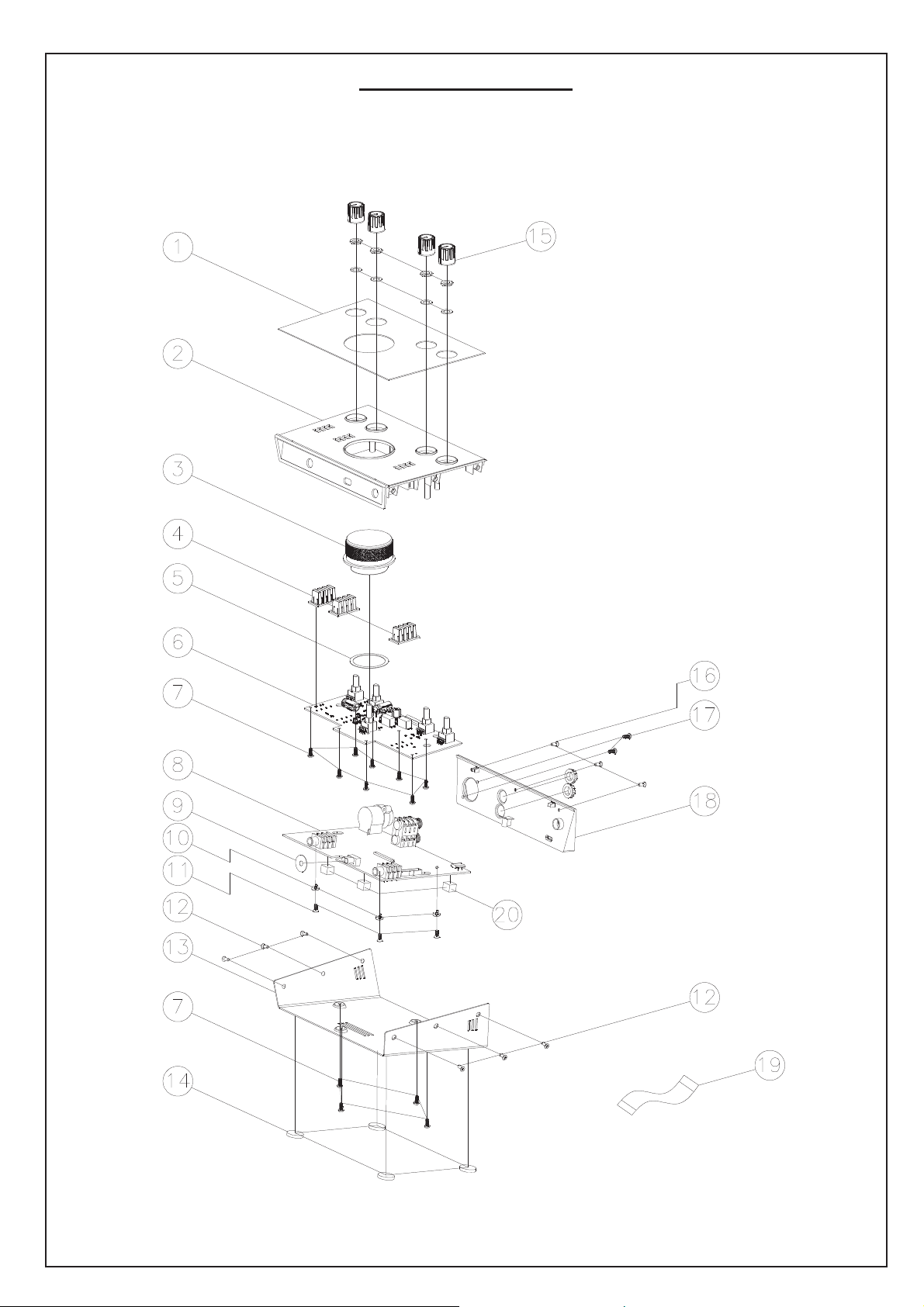

EXPLODE DIAGRAM

(US)

EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

Page 8

MIUEMAO01 BOM

MIUEMAO01 MIUE USB USA 0

1 CA161410001 USB 2.0 Cable 1M A/type C Black 1

1 CA231510061 USB 2.0 Cable 1M type C/type C Black 1

1 FFC5005001503 FFC 50P 0.5mm Length:150mm 1

1 LAC22MAO43 Serial Number Label 1

1 LAC53AKA442 Safety Label 1

1 LAC62MAO44 Bar Code Label(CODE 39) 0.125

1 LAC62MAO45 Bar Code Label(GTIN14) 0.125

1 LAC62MAO63 CUBASE(Barcode Label) 1

1 LAC67MAR681 Label(Circle Limpid) 2

1 LAC67YAH261 Label ĳ8mm Green 0.125

1 MT133036201 Bottom Panel(Painting 877C) 1

2 MT1330362 Bottom Panel 1

1 NM1104412 VELVET CARPET 1

1 NP213MAO06 Name Plate 1

1 PMIUEMAO01 Pack Assembly 1

2 AL7-91-1002 Gel Silica 1

2 CGMIUE310MAO01 Gift Box 1

2 CTMIUE513MAO01 Shipping Carton 0.125

2 GEMAO01 Software Download Card 1

2 GEMAO04 Download Card 1

2 GEMAO05 Cubase Card 1

2 OPMIU3MAO02 Operation Manual 1

2 OPMIUEMAO01 Instruction Book 1

2 PE230190402B07 Pe Bag 1

2 PLMIUE01 Poly Foam(LEFT) 1

2 PLMIUE02 Poly Foam(RIGHT) 1

2 SD30026010 Soft Sheet Bag 1

1 PT1304365 Light Pige 3

1 PT13044142 PCB Fixed Holder 3

1 PT132040101 Back Panel(Print Paint) 1

2 PT1320401 Back Panel 1

1 PT133022201 Chassis(Printing Painting) 1

2 PT1330222 Chassis 1

1 PU010010007 Conductive Foam 3

1 RU1130728 Rubber Pad 4

1 RU1304435 Rubber 2

1 SC0308F2BNI Screw M3*8 HFN Tapping 6

1 SC0308FBNI SCREW M3X8 PFN TAPPING 3

1 SC0308PBBI Screw M3X8 PBB Tapping 2

1 SC0308PBNI Screw M3X8 PBB Tapping 12

1 SC0310F2BBI Screw M3X10 HFB Tapping 3

1 TWMT13302040101 Knob Assembly(Print) 1

2 MT1330204 Knob Body 1

2 PT13044145 Knob Plastic 1

2 RU1304434 Rubber Ring 1

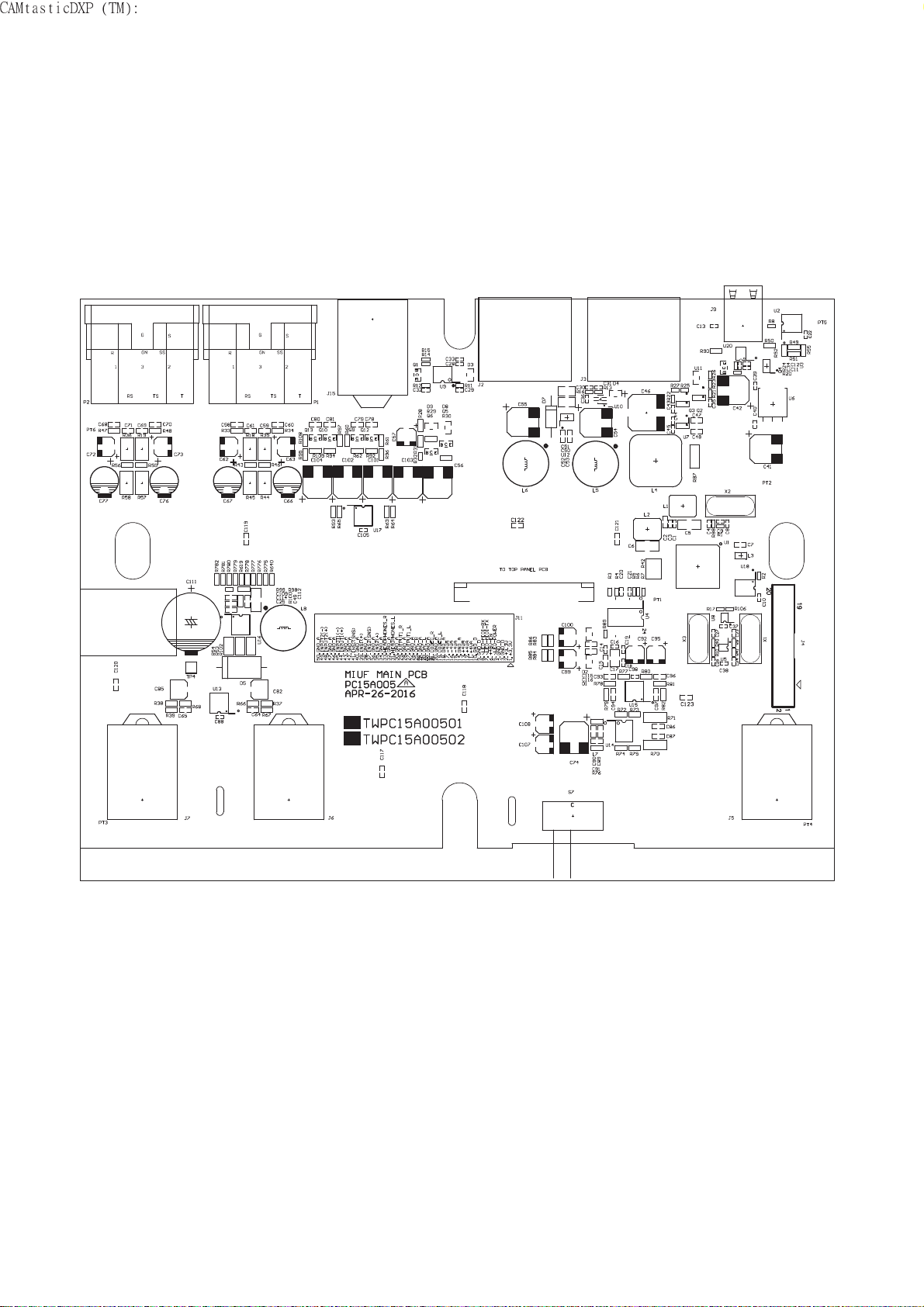

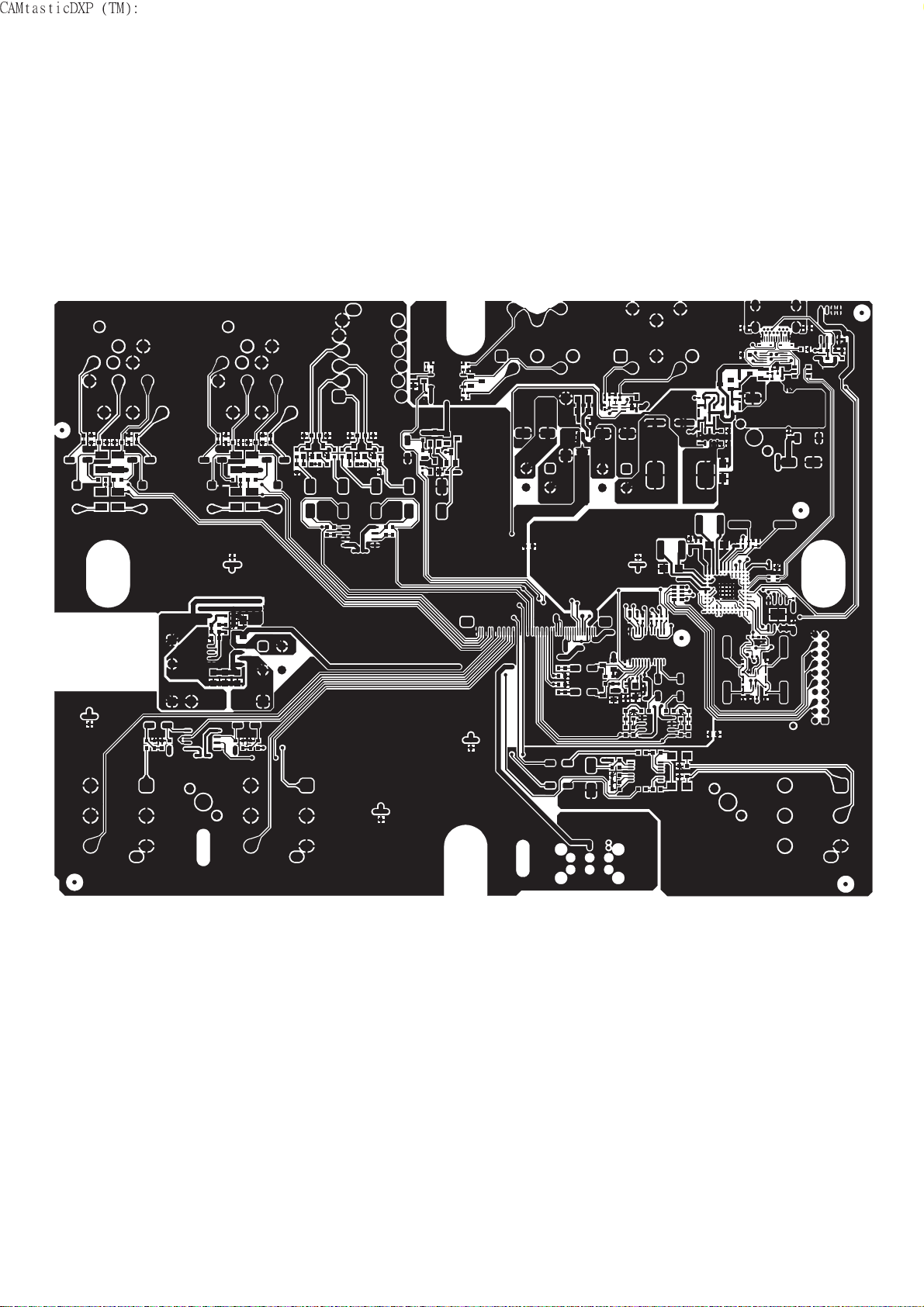

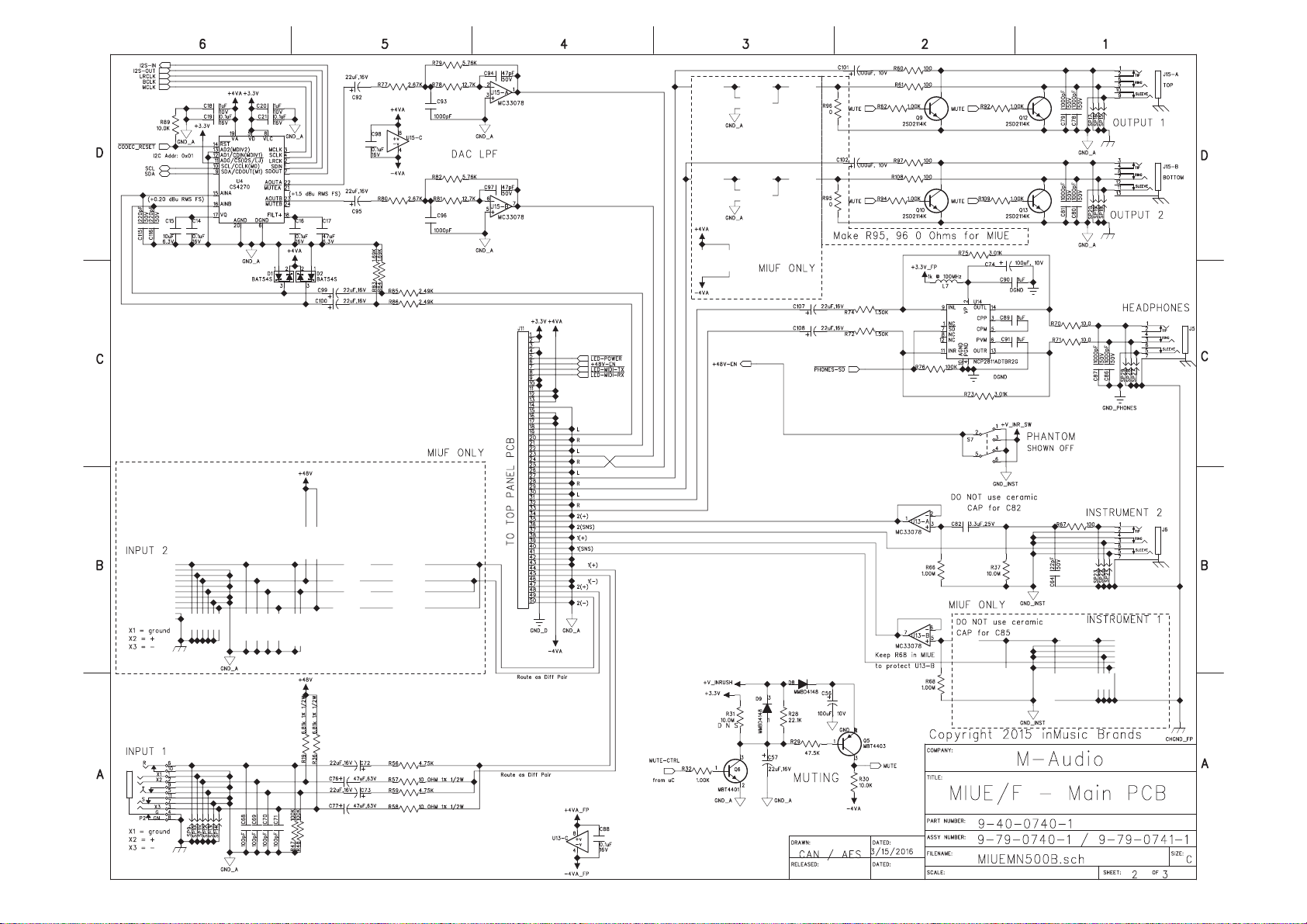

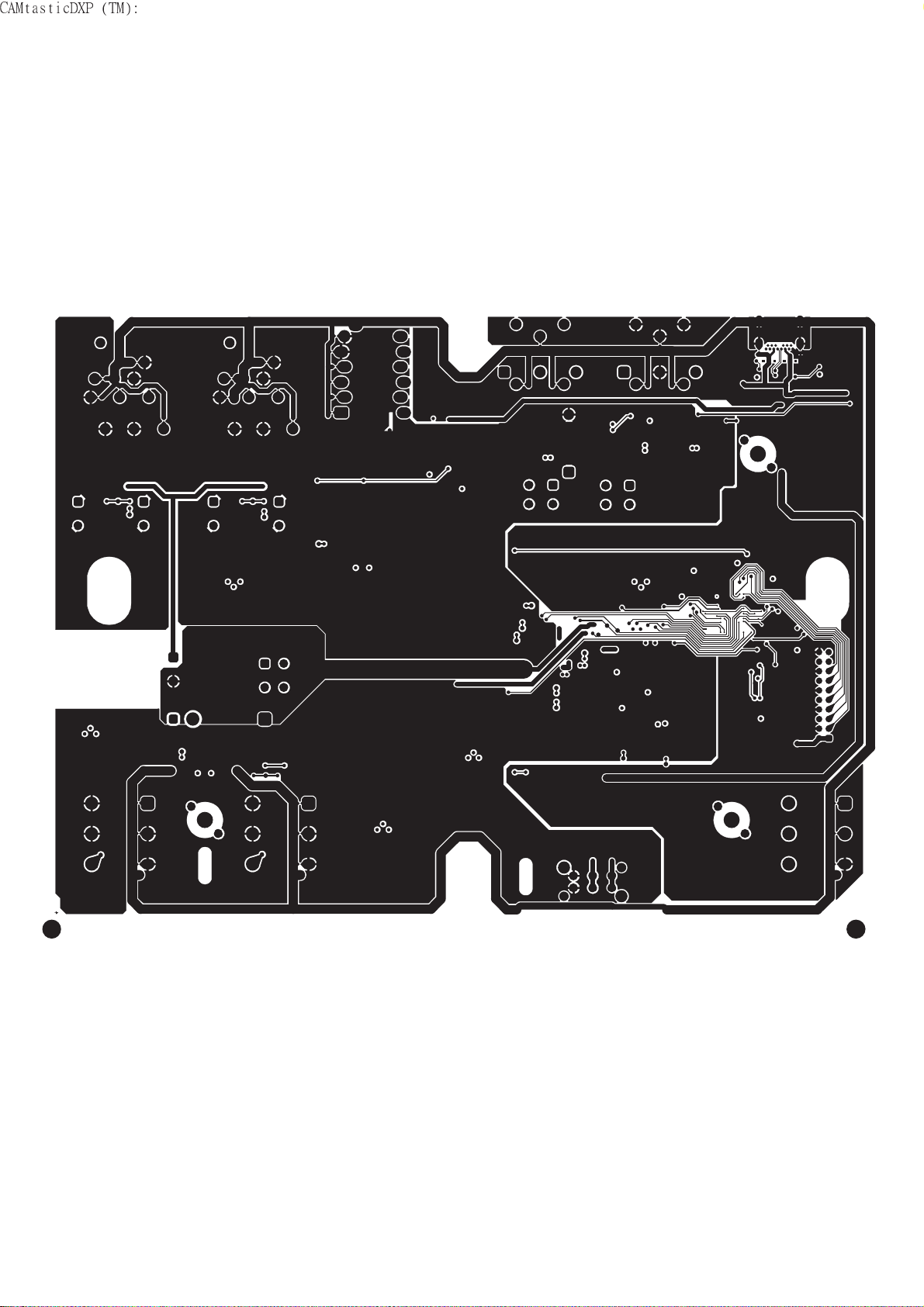

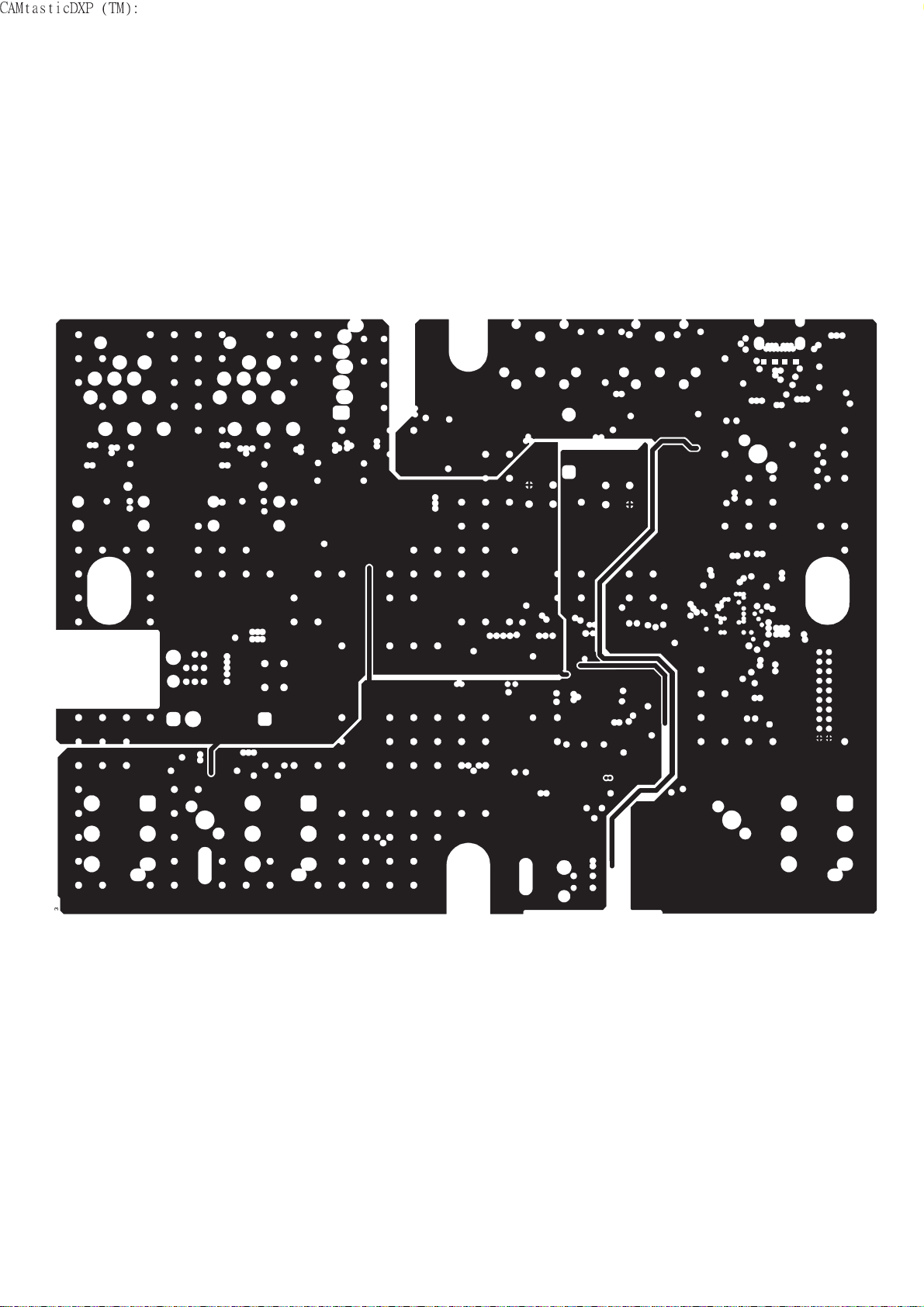

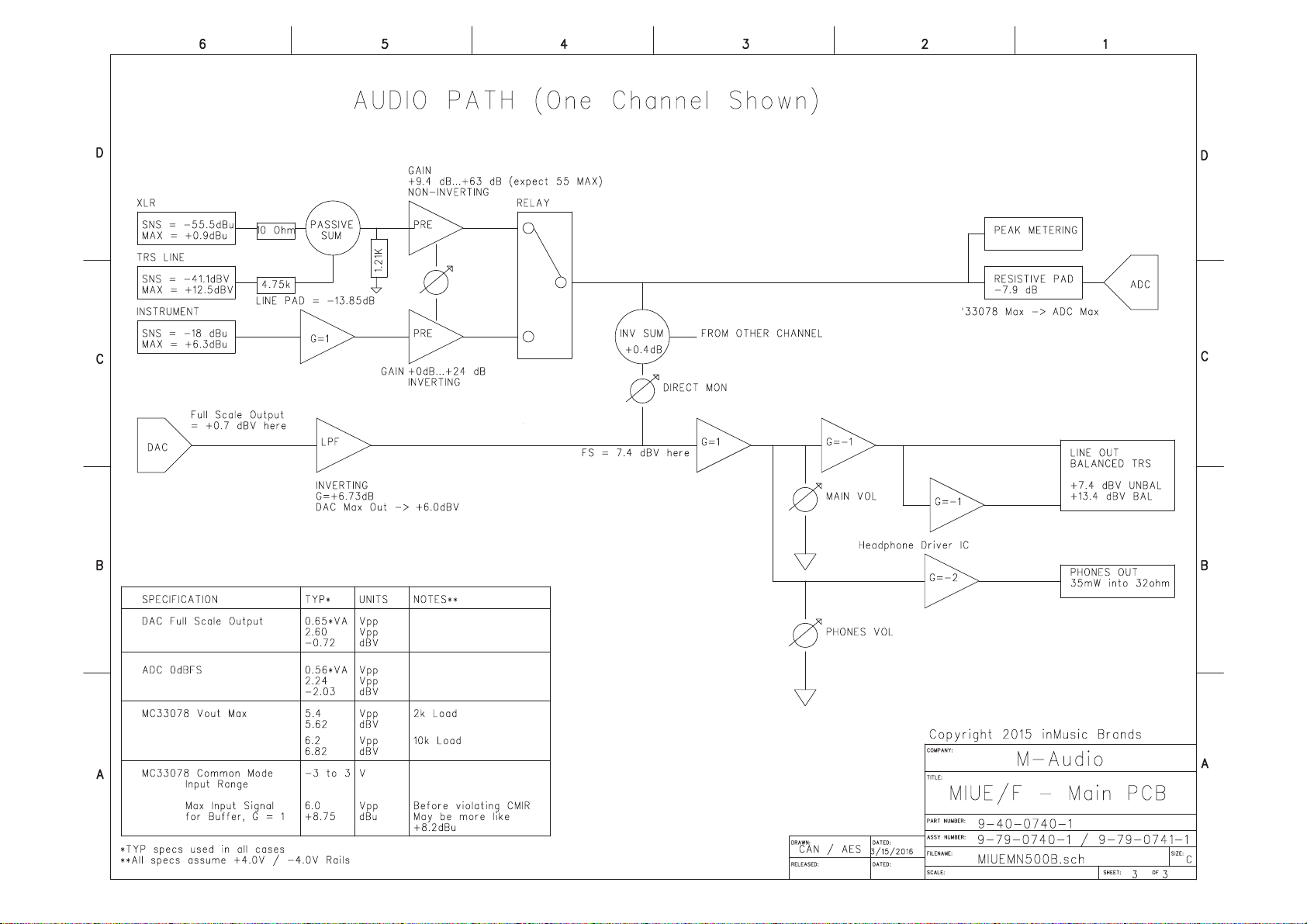

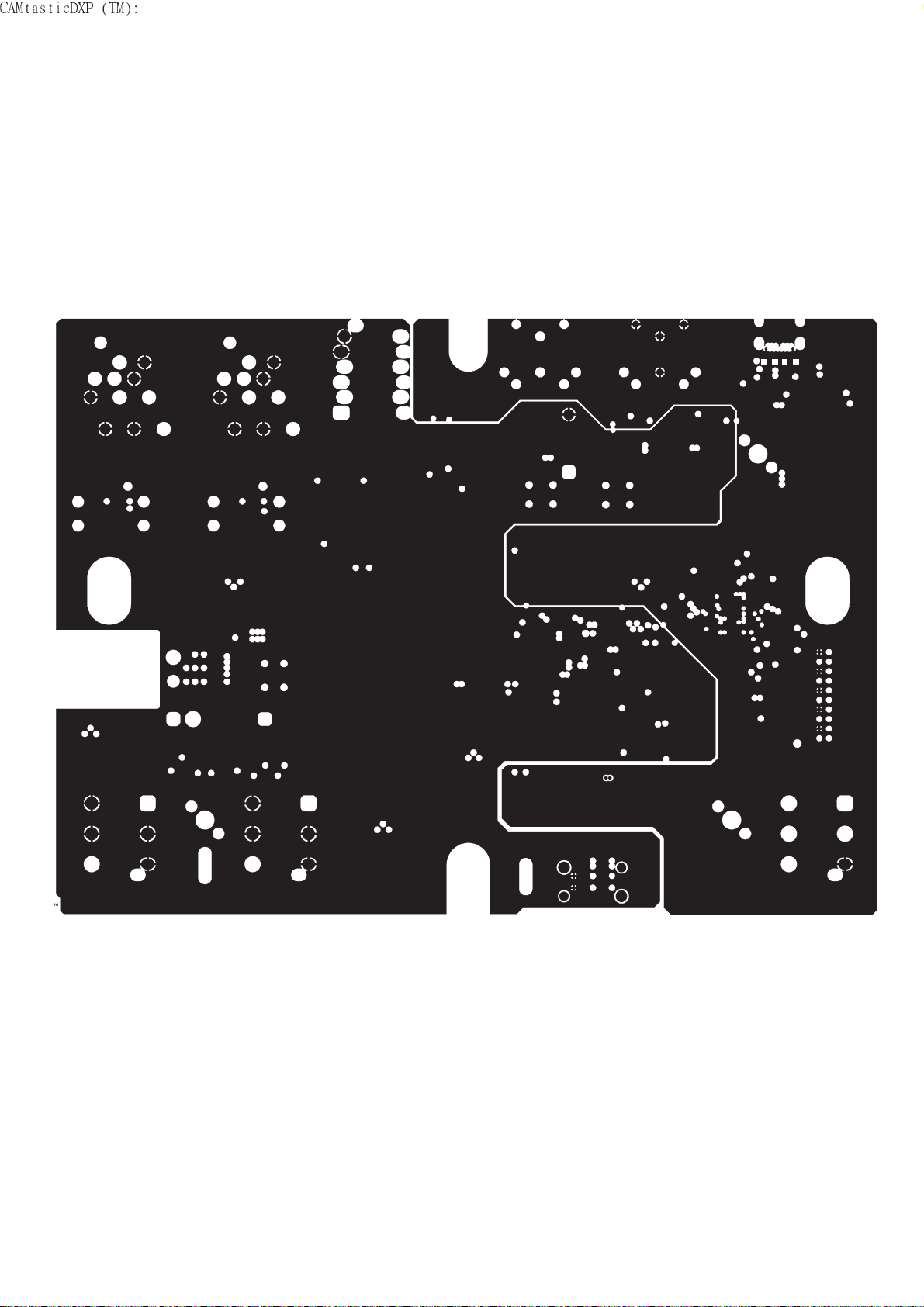

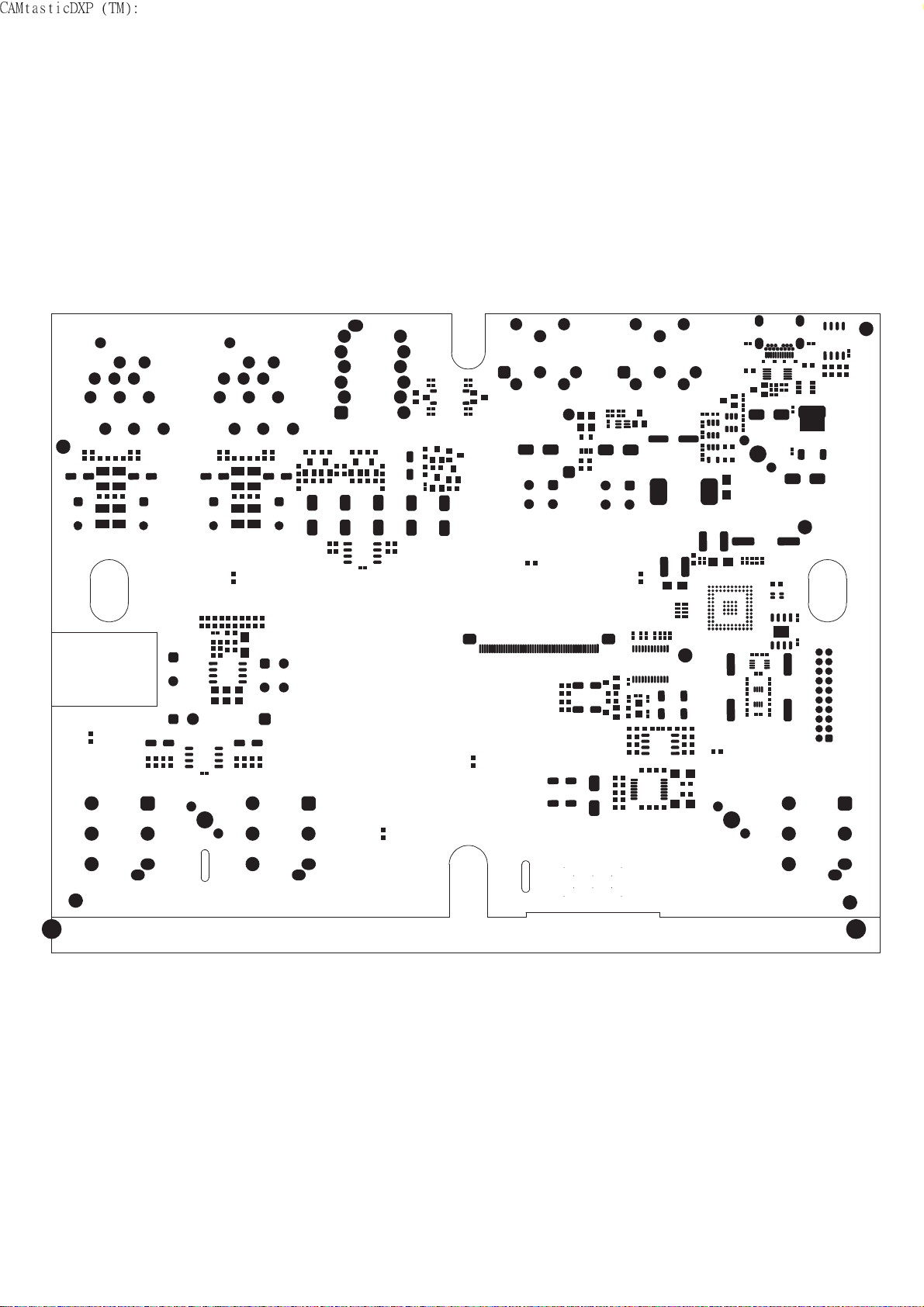

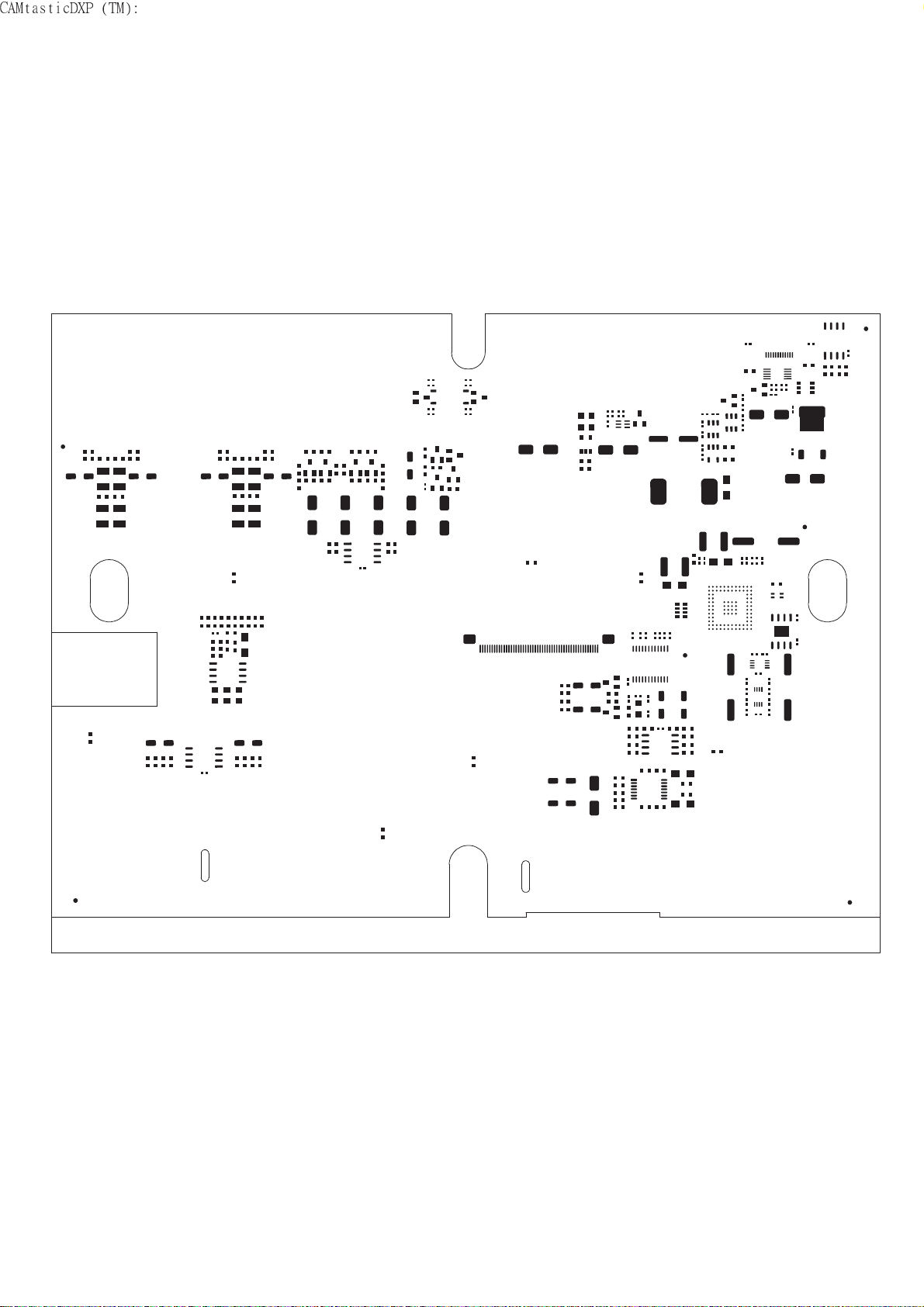

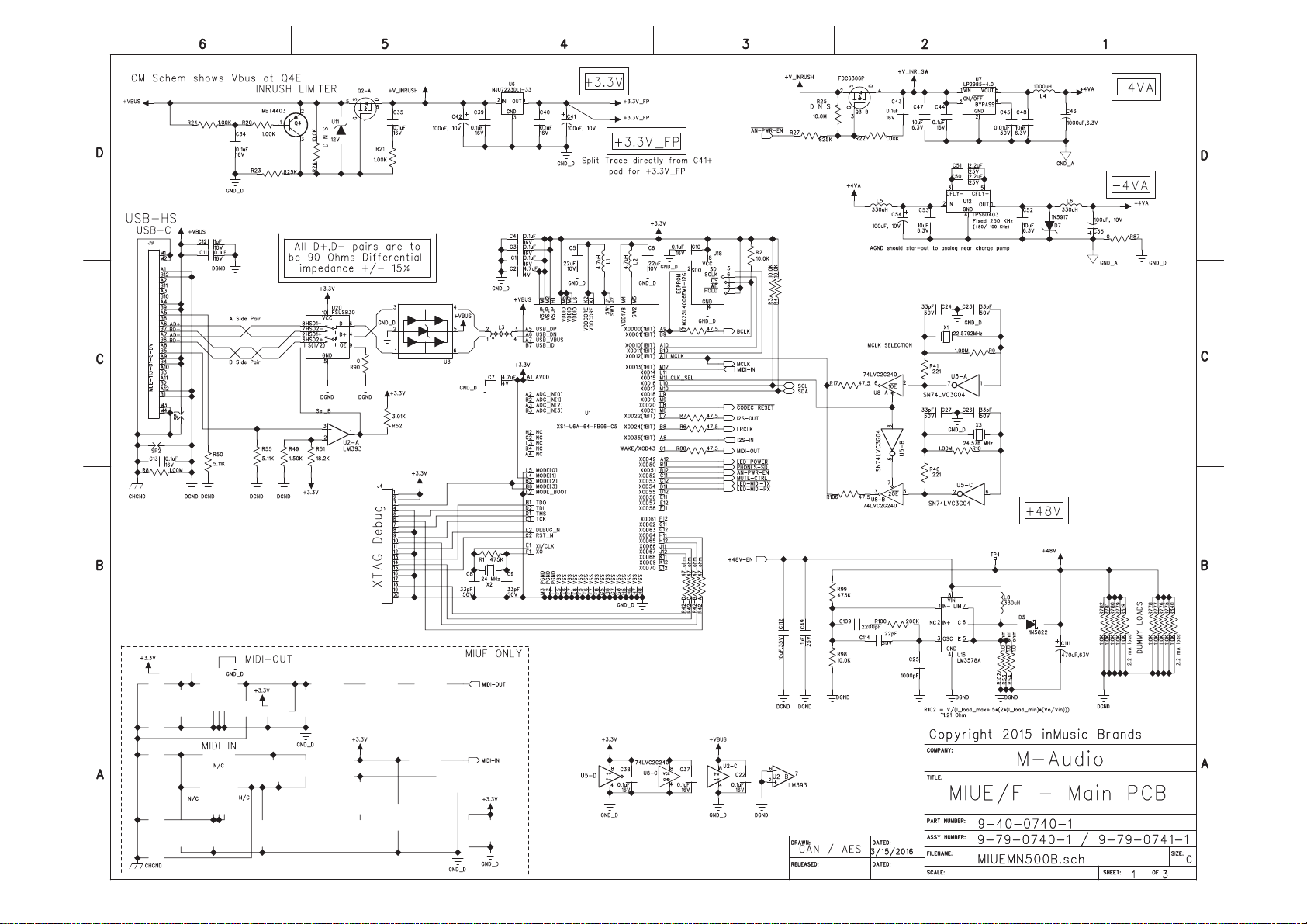

1 TWPC15A00502 Main PCB Assembly 1 8

2 AL0-17-0470 RES Array 4X47 1/10W 0603 1 R42

2 AL1-12-0472 Capacitor Electrolytic 47uF/63V 6.3*11mm 2 C76,77

2 AL1-60-2222 Ecap 22UF/16V SMD-B 9 C57,72,73,92,95,99,100,107,108

Page 9

AL2-01-5822 DIODE IN5822 1 D5

2 AL2-50-4149 Diode Single 1N4148 100V 200mA SOT-23 2 D8,9

2 AL2-51-4401 Transistor 2N4401 NPN SOT-23 (Transistor 1 Q6

MMBT4401LT1 NPN SOT-23)

2 AL2-51-4403 Transistor 2N4403 PNP SOT-23 2 Q4,5

2 AL2-52-5242 Diode MMBZ5242B 1 U11

2 AL2-54-6306 Mosfet FDC6306P P-CH SSOT-6 2 Q2,3

2 AL2-61-2985 IC LP2985IM5 1 U7

2 AL2-61-7223 IC NJU7223DL1-33 3.3V TO-252 1 U6

2 AL2-85-0403 IC TPS60403 1 U12

2 AL4-21-5000-R FCN Down Touch ZIF SMD Pitch:0.5mm 50P 1 J11

(Reel)

2 AL7-60-0003 Crystal 24.576MHZ 49US SMD Fundamental 1 X3

2 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 4 C68~71

2 CS102J5003NPO CCAP SMD 1nF/50V 5% 0603 NPO 9 C25,78~81,86,87,93,96

2 CS103K2502X7R CCAP SMD 0.01UF/25V 10% 0402 X7R 1 C45

2 CS104K1602X7R CCAP SMD 0.1uF/16V 10% 0402 X7R 21 C1,3,4,10,11,13,14,16,19,21,22,34,35

C37~40,43,44,88,98

2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 7 C117~123

2 CS105K1002X5R CCAP SMD 1uF/10V 10% 0402 X5R 3 C12,18,20

2 CS105K2503X5R CCAP SMD 1uF/10V 10% 0603 X5R 4 C49,89~91

2 CS106K3506X5RTY CCAP SMD 10UF/35V 10% 1206 X5R TAIYO 1 C112

2 CS106M0603X5R CCAP SMD 10uF/6.3V 20% 0603 X5R 5 C15,47,48,52,53

2 CS220J5003NPO CCAP SMD 22pF/50V 5% 0603 NPO 2 C64,114

2 CS221J5003NPO CCAP SMD 220pF/50V 5% 0603 NPO 2 C115,116

2 CS222J5003NPO CCAP SMD 2200P 50V 5% 0603 1 C109

2 CS225K2505X7R CCAP SMD 2.2UF/25V 0805 SMD 2 C50,51

2 CS226K1006X7R CCAP SMD 22UF/10V 10% 1206 X7R 2 C5,6

2 CS330J5002NPO CCAP SMD 33pF/50V 5% 0402 NPO 6 C8,9,23,24,26,27

2 CS470J5003NPO CCAP SMD 47pF/50V 5% 0603 NPO 2 C94,97

2 CS475K0603X5R CCAP SMD 4.7uF/6.3V 10% 0603 X5R 2 C2,7

2 CS476M0605X5R CCAP SMD 47uF 20% 6.3V 0805 X5R 1 C17

2 DISDBAT54SSM Diode BAT54S 30V 0.2A SOT-23 2 D1,2

2 DIZD1N5917BT Zener Diode 1N5917B 4.7V 3W DO-41 1 D7

2 EC47763LE ECAP General PURPUSE 470UF/63V Low ESR 1 C111

13MM*21mm

2 ECS10716D Capacitor Electrolytic 100uF/16V D type 8 C41,42,54~56,74,101,102

SMD

2 ECS10806F ECAP 1000UF/6.3V 8*10.2mm SMD F Type 1 C46

2 ECS33525BNP ECAP Non-Polar 3.3uF/25V 4*5.4mm SMD 1 C82

2 IC2811ADTBR2G IC OP-Amp Dual NCP2811A Gnd Ref Hp 1 U14

TSSOP-14

2 IC74LVC2G240DC IC 74LVC2G240DC VSSOP8 1 U8

2 IC74LVC3G04DCUR IC 74LVC3G04DCUR VSSOP8 1 U5

2 ICCS4270-CZZR IC CS4270-CZZR TSSOP-24 1 U4

2 ICFSUSB30 IC 1 U20

2 ICLM3578A IC LM3578A SOP-8 1 U16

2 ICLM393DR IC OPA LM393DR SOIC-8 1 U2

2 ICMC33078DR2G I.C. 2 U13,15

2 ICMX25L4006EM1I IC PMX25L4006EM1I SOP-8 1 U18

2 ICUSBLC62SC6 IC USBLC62SC6 SOT-23-6L 1 U3

2 ICYH104M05 IC(ICXS1U6A64FB96+Program)FBGA-96(MIUF) 1 U1

3 ICXS1U6A64FB96 IC XS1-U6A-64-FB96-C5 FBGA-96 1 (U1)

Page 10

JK4CCP381-11 USB 3.1 C-Type JACK 90° 1 J9

2 JKK6J62AL6E2KY TRS Jack 7P 90° Female 2 J5,6

2 JKK6J80LAA12E2K TRS Jack 13P 90° Female Dual 1 J15

2 JKK6X01-6-3B XLR Jack 11PIN 90° Female Combo 1 P2

2 PC15A005 Main PCB 4Layer FR-4 184x142mm 1 -

2 RS000004J06 RES 0ȍ 5% SMD 1206 1 R87

2 RS000010J03 RES 0ȍ 5% SMD 0603 3 R90,95,96

2 RS000108J05 RES 1.0 ȍ 5% SMD 0805 3 R53,54,102

2 RS001003F10 RES 10ȍ 1% SMD 1210 2 R57,58

2 RS001004F06 RES 10ȍ 1% SMD 1206 2 R70,71

2 RS001K10F03 RES 1K 1% SMD 0603 4 R62,92,94,109

2 RS001K16F02 RES 1K 1% SMD 0402 5 R20~22,24,32

2 RS001M10F03 RES 1M 1% SMD 0603 2 R66,68

2 RS001M16F02 RES 1M 1% SMD 0402 3 R8~10

2 RS010010F03 RES 100ȍ 1% SMD 0603 5 R60,61,67,97,108

2 RS010K10F03 RES 10K 1% SMD 0603 2 R30,98

2 RS010K16F02 RES 10K 1% SMD 0402 4 R2~4,89

2 RS010M10F03 RES 10M 1% SMD 0603 1 R37

2 RS01K510F03 RES 1.5K 1% SMD 0603 3 R49,72,74

2 RS022116F02 RES 221ȍ 1% SMD 0402 2 R40,41

2 RS100K10F03 RES 100K 1% SMD 0603 3 R47,48,76

2 RS110K10F03 RES 110K 1% SMD 0603 10 R619,640,775~782

2 RS12K710F03 RES 12.7K 1% SMD 0603 2 R78,81

2 RS18K210F03 RES 18.2K 1% SMD 0603 1 R51

2 RS1K6910F03 RES 1.69K 1% SMD 0603 2 R83,84

2 RS200K10F03 RES 200K 1% SMD 0603 1 R100

2 RS22K110F03 RES 22.1K 1% SMD 0603 1 R28

2 RS2K4910F03 RES 2.49K 1% 1/10W SMD 0603 2 R85,86

2 RS2K6710F03 RES 2.67K 1% SMD 0603 2 R77,80

2 RS3K0108F03 RES 3.01K 1% SMD 0603 3 R52,73,75

2 RS475K16F02 RES 475K 1% SMD 0402 2 R1,99

2 RS47K510F03 RES 47.5K 1% SMD 0603 1 R29

2 RS47R516F02 RES 47.5ȍ 1% SMD 0402 6 R5~7,17,88,106

2 RS4K7510F03 RES 4.75K 1% SMD 0603 2 R56,59

2 RS5K1110F03 RES 5.11K 1% SMD 0603 2 R50,55

2 RS5K7610F03 RES 5.76K 1% SMD 0603 2 R79,82

2 RS6K8103F10 RES 6.81K 1% SMD 1210 2 R19,36

2 RS825K16F02 RES 825K 1% SMD 0402 2 R23,27

2 SWSBH22B-10K SWITCH,SHAKE,DUAL,ROW,90° 1 S7

2 TE962002002 Header 20P 1 J4

2 TR2SD2114KSM Transistor 2SD2114K NPN SOT-23 4 Q9,10,12,13

2 UHACM2012900-2P Chock 90ȍ 0.4A 2.0X1.2mm 1 L3

2 UHBLM18AG102SN1 BEAD 1000ȍ 100MHZ 1 L7

2 UHFS4W1010-331K Capacitor 330UH 3 L5,6,8

2 UHNR5040T4R7N INDUCTOR 4.7uH 3.1A 0.038 OHM 5x5x4mm 2 L1,2

SMD

2 UHSCRH125-102 Inductor 1000UH 0.4A 1.53oHm SMD 1 L4

2 XTM225792X6F1 Crystal 22.5792MHz 49US SMD Fundamental 1 X1

2 XTM24000X6 Crystal 24MHZ 49US SMD Fundamental 1 X2

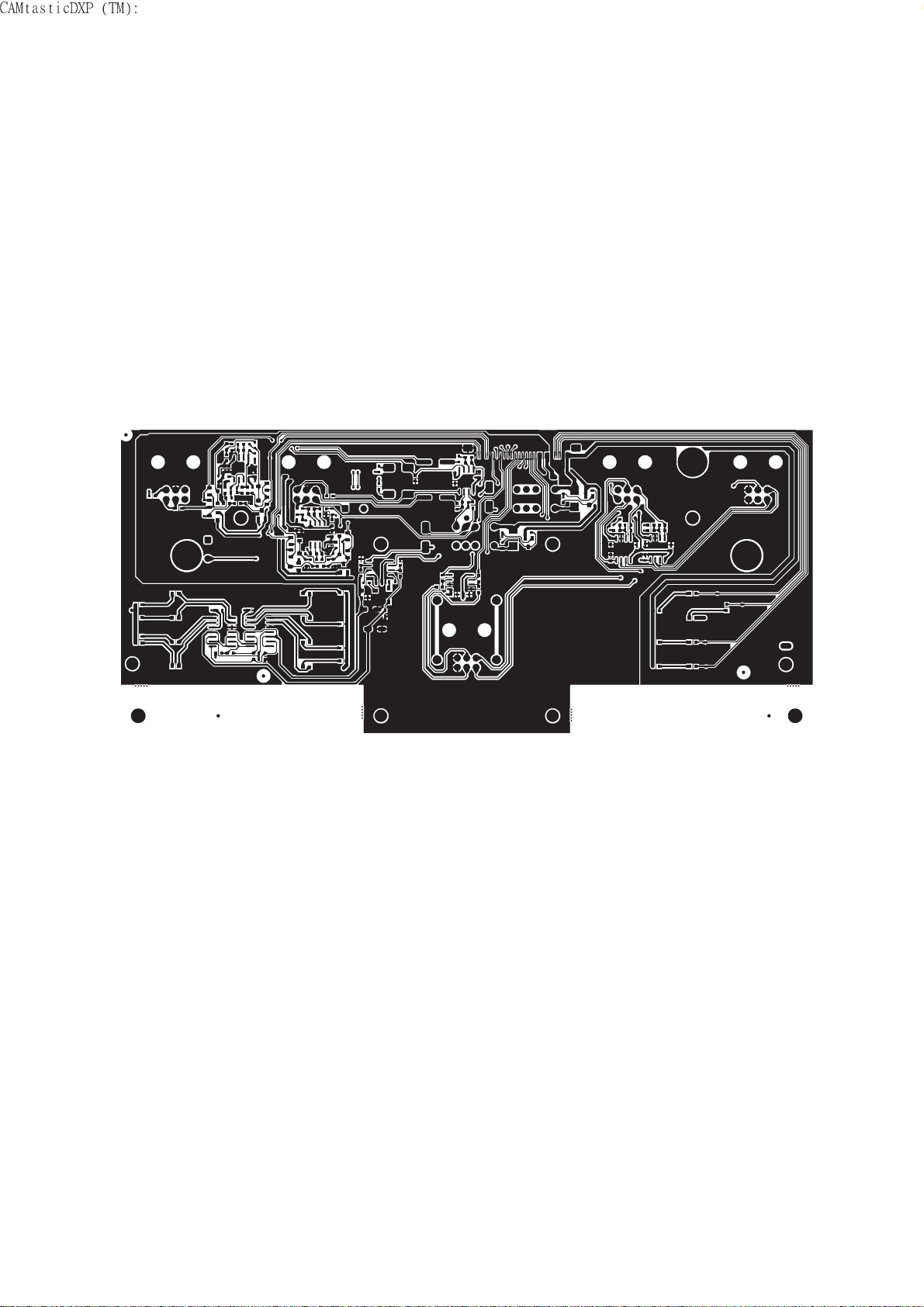

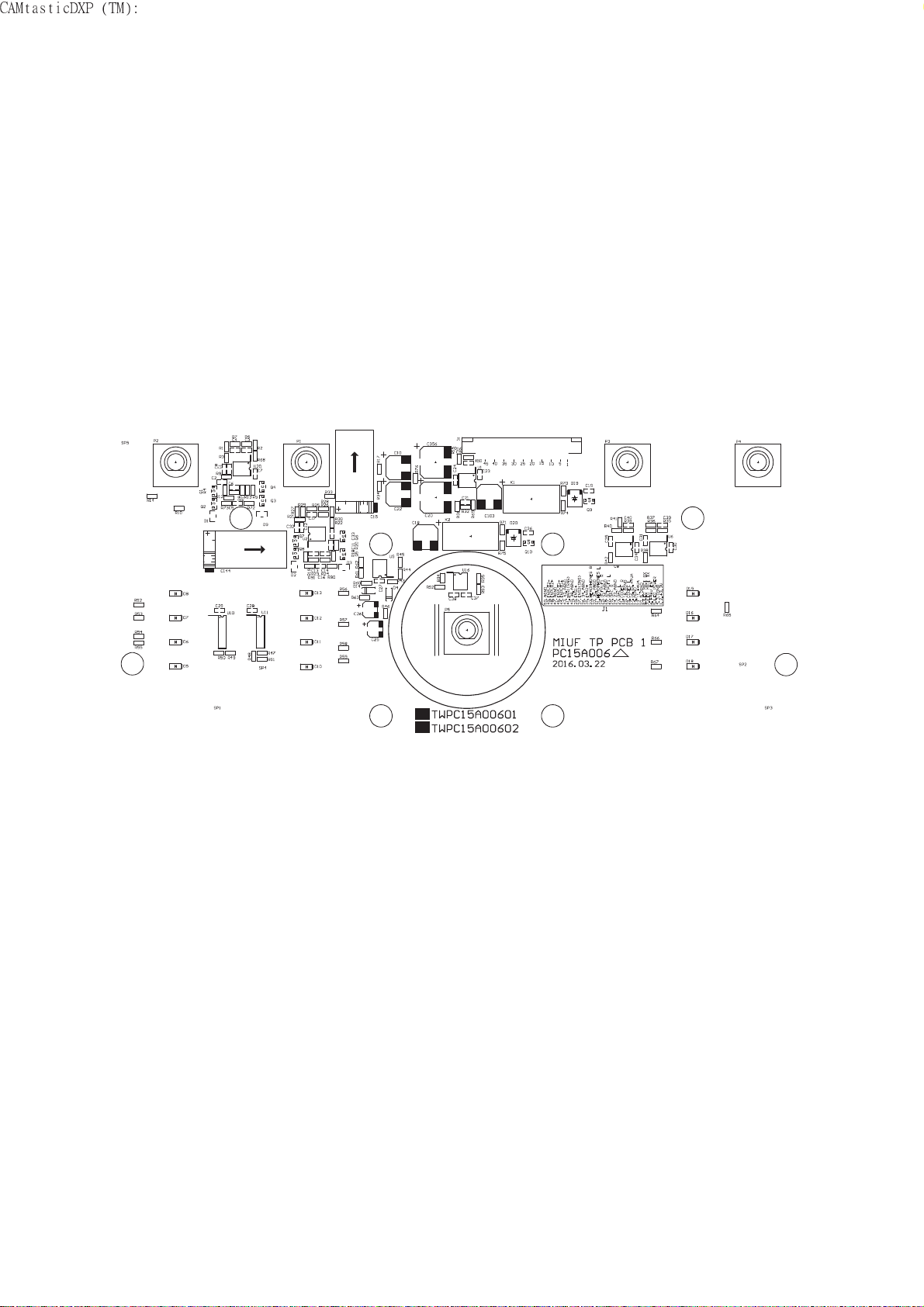

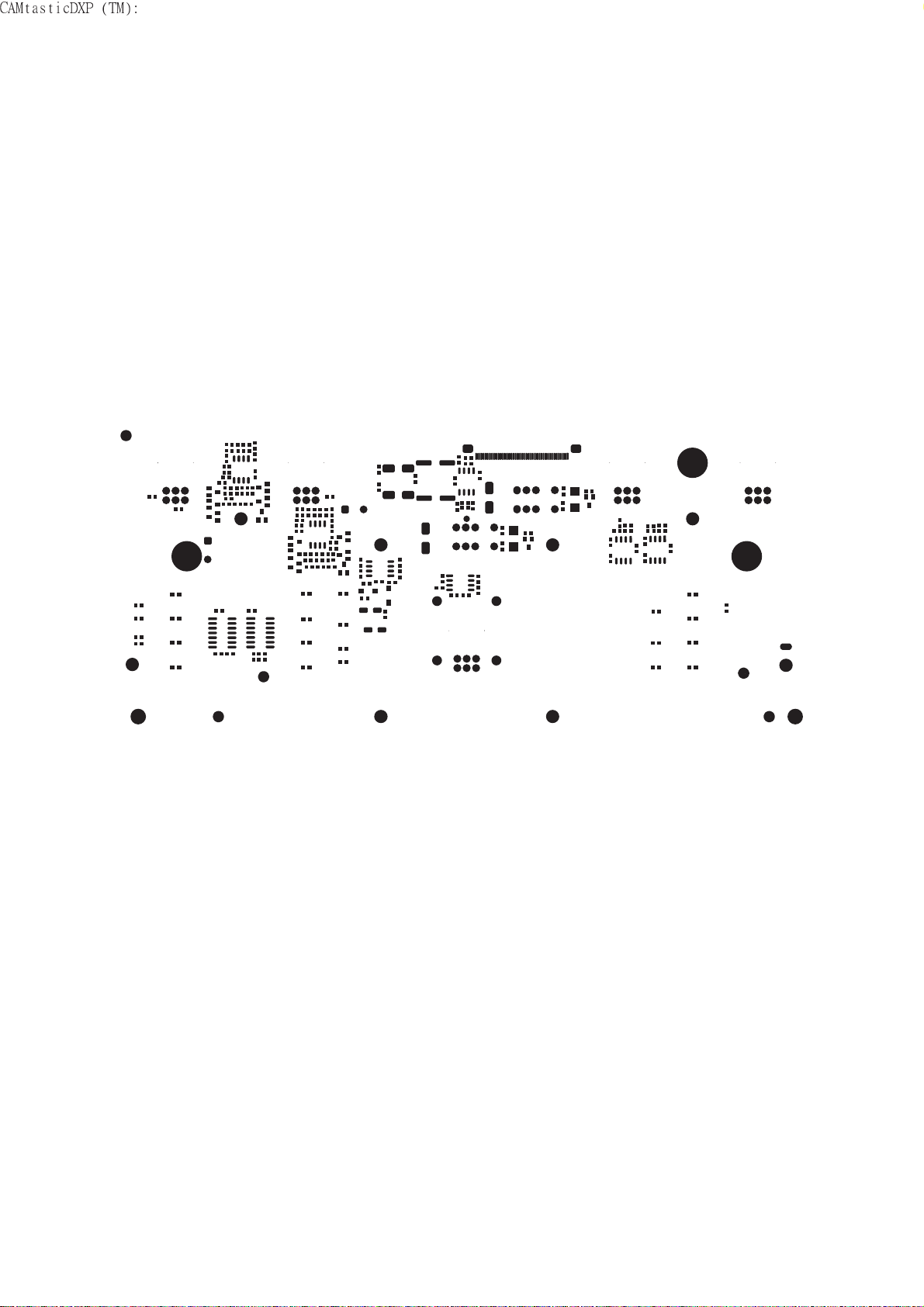

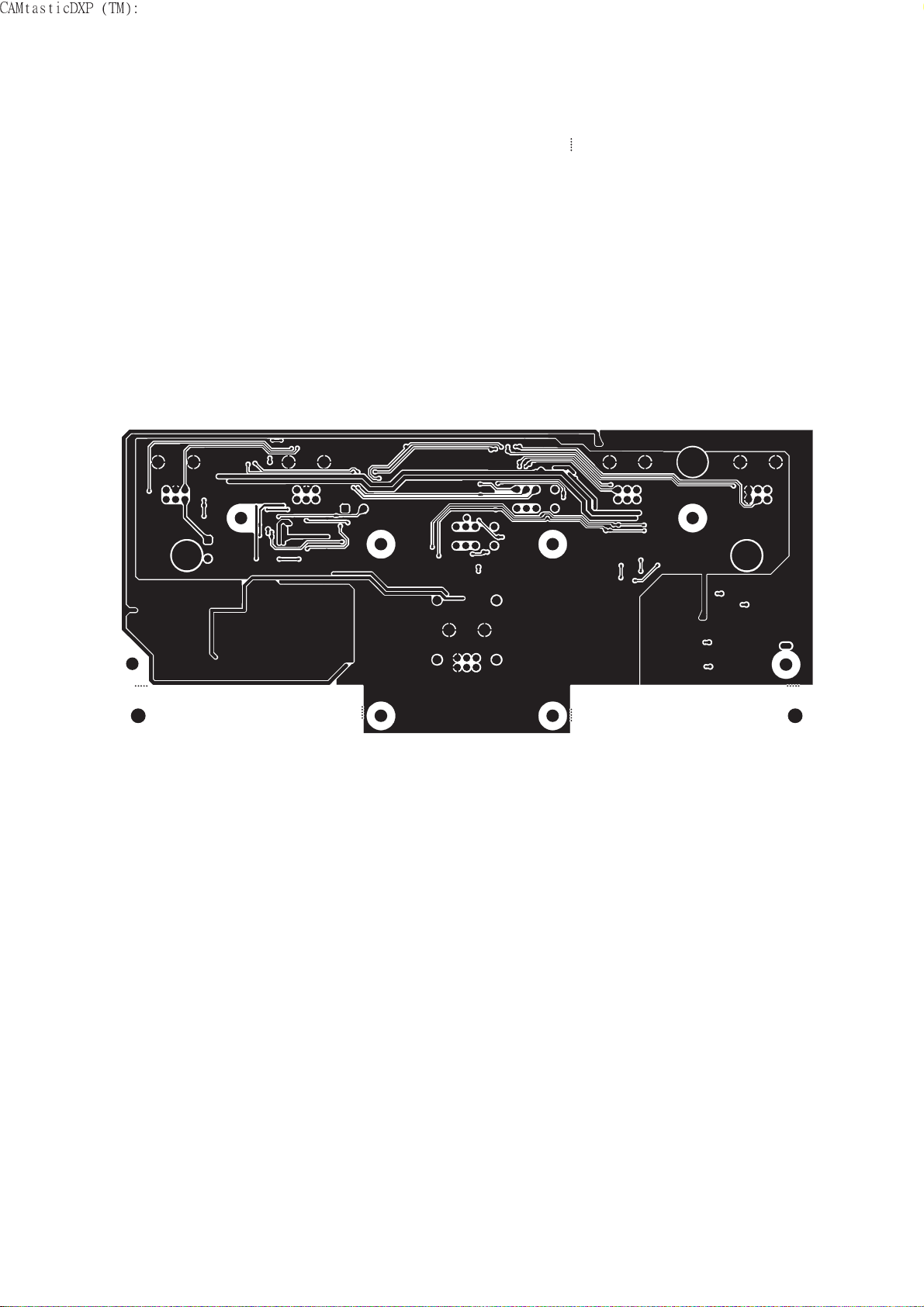

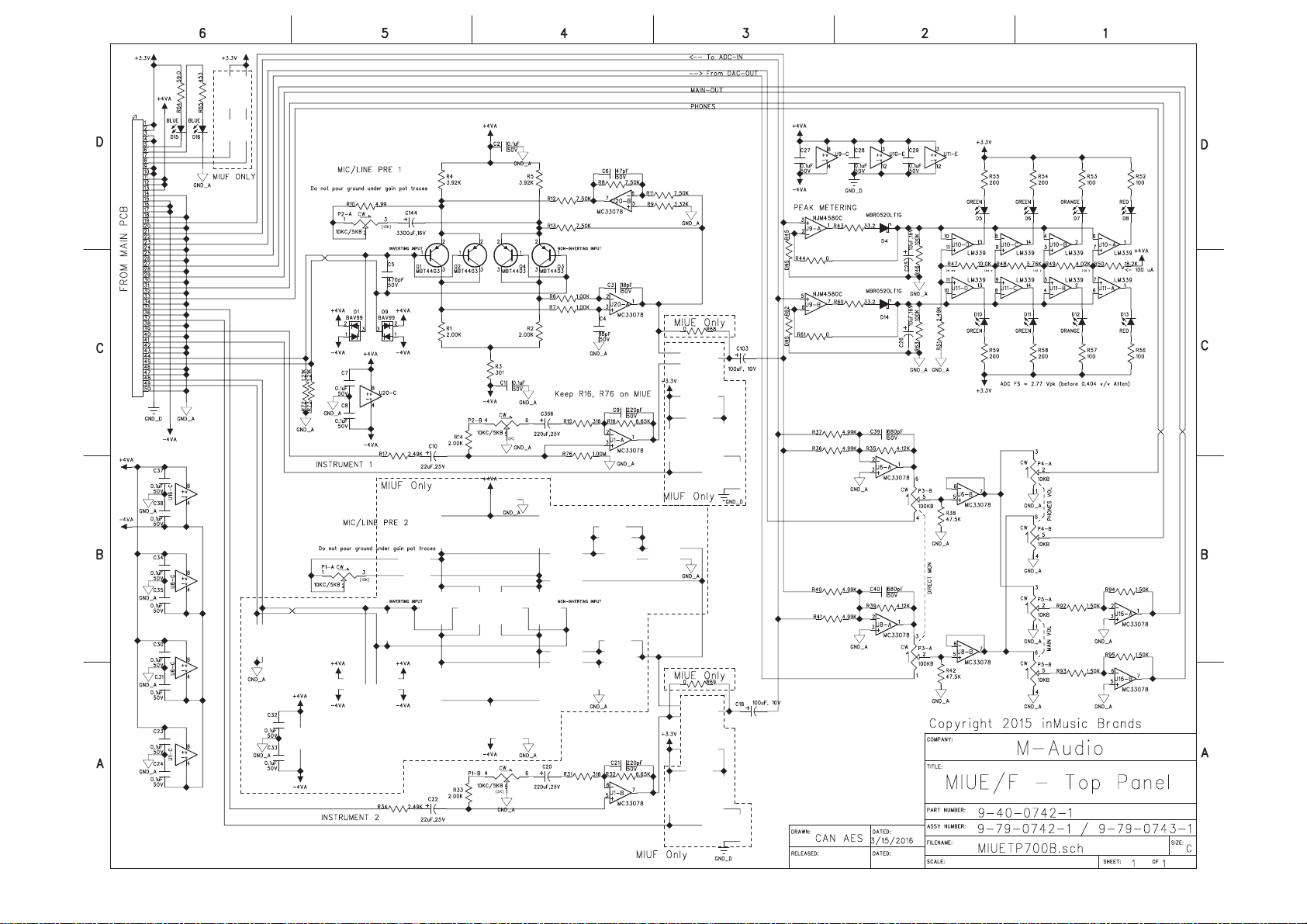

1 TWPC15A00602 TOP PCB Assembly 1 6

2 AA822748X Diode BAV99 2 D1,9

2 AL2-51-4403 Transistor 2N4403 PNP SOT-23 4 Q1~4

Page 11

AL2-72-0339 IC LM339 ANALOG COMP SOP-14 2 U10,11

2 AL4-21-5000-R FCN Down Touch ZIF SMD Pitch:0.5mm 50P 1 J1

(Reel)

2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 15 C1,2,7,8,23,24,27~31,34,35,37,38

2 CS180J5003NPO CCAP SMD 18pF/50V 5% 0603 NPO 2 C3,4

2 CS221J5003NPO CCAP SMD 220pF/50V 5% 0603 NPO 2 C9,21

2 CS470J5003NPO CCAP SMD 47pF/50V 5% 0603 NPO 1 C6

2 CS471J5003NPO CCAP SMD 470pF/50V 5% 0603 NPO 1 C5

2 CS681J5003NPO CCAP SMD 680pF/50V 5% 0603 NPO 2 C39,40

2 DIEN1N4148WSM Diode SMD 2 D4,14

2 EC33806 ECAP 3300UF/6.3V 10*20mm 1 C144

2 ECS10616BLE ECAP 10UF/16V 4*5.7mm SMD Low ESR 2 C25,26

2 ECS10716D Capacitor Electrolytic 100uF/16V D type 2 C18,103

SMD

2 ECS22650DLE ECAP LOWESR 22UF/50V 6.3*5.4MM SMD 1 C22

2 ECS22725F E CAP 220UF/25V 8*10MM SMD 1 C20

2 ICMC33078DR2G I.C. 5 U1,6,8,16,20

2 ICNJM4580CG ICNJM4580CG SOP8 1 U9

2 LDC191TBKT-5A Liquid-emitting Diode Blue SMD 0603 2 D15,16

angle 140°

2 LDKPT-1608SECK Liquid-emitting Diode amber SMD 0603 2 D7,12

2 LDKPT-1608SURCK Liquid-emitting Diode Red SMD 0603 2 D8,13

angle 120°

2 LDKPT-1608ZGC Liquid-emitting Diode Green SMD 0603 4 D5,6,10,11

Angle

2 PC15A006 TOP PCB 2Layer,FR-4,184x92mm 1 -

2 RS000010J03 RES 0ȍ 5% SMD 0603 4 R44,61,68,69

2 RS001K10F03 RES 1K 1% SMD 0603 2 R6,7

2 RS001M10F03 RES 1M 1% SMD 0603 1 R76

2 RS002K10F03 RES 2K 1% SMD 0603 3 R1,2,33

2 RS005910F03 RES 59ȍ 1% SMD 0603 1 R64

2 RS010010F03 RES 100ȍ 1% SMD 0603 4 R52,53,56,57

2 RS010K10F03 RES 10K 1% SMD 0603 1 R47

2 RS01K510F03 RES 1.5K 1% SMD 0603 4 R92~95

2 RS020010F03 RES 200ȍ 1% SMD 0603 4 R54,55,58,59

2 RS030110F03 RES 301 1% 1/10W 0603 1 R3

2 RS031610F03 RES 316ȍ 1% SMD 0603 1 R31

2 RS045310F03 RES 453ȍ 1% SMD 0603 1 R65

2 RS07K510F03 RES 7.5K 1% SMD 0603 4 R8,11~13

2 RS100K10F03 RES 100K 1% SMD 0603 2 R46,63

2 RS18K210F03 RES 18.2K 1% SMD 0603 1 R50

2 RS1K2110F03 RES 1.21K 1% SMD 0603 2 R72,73

2 RS2K4910F03 RES 2.49K 1% 1/10W SMD 0603 2 R34,51

2 RS33R210F03 RES 33.2 1% SMD 0603 2 R43,60

2 RS3K3210F03 RES 3.32K 1% SMD 0603 1 R9

2 RS3K9210F03 RES 3.92K 1% SMD 0603 2 R4,5

2 RS47K510F03 RES 47.5K 1% SMD 0603 2 R38,42

2 RS4K0210F03 RES 4K02 1% SMD 0603 1 R49

2 RS4K1210F03 RES 4.12K 1% SMD 0603 2 R35,39

2 RS4K9910F03 RES 4.99K 1% SMD 0603 4 R36,37,40,41

2 RS4R9910F03 RES 4.99ȍ 1% SMD 0603 1 R10

2 RS5K7610F03 RES 5.76K 1% SMD 0603 1 R48

2 RS6K6510F03 RES 6.65K 1% SMD 0603 2 R16,32

Page 12

VRR10301716 Potentiometer Rotary Volume:10K2B Length 1 P4

:17.5mm Dual Unit

2 VRR10302023 Potentiometer Rotary Volume:10K2B Length 1 P5

:20mm Dual Unit

2 VRR10401702 Potentiometer Rotary Volume:100k Length: 1 P3

17.5mm

2 VRR50201702 Potentiometer Rotary Volume:5KB/10KC 2 P1,2

Length:16.5mm Dual-unit

1 TWPT1110649801 Knob(18.0mm)(Gray)Assembly 4 15

2 PT11106498 Knob(18.0mm) 4

2 PT11106499 Decoretive(18.0mm) 4

2 PT113002301 Knob Plate(Printing) 4

1 WS142035004O Teflon Spacer 1

Page 13

!"#$%&'()*&+,-"')./0)

!"#$%&'()%*++,-./)-01%

)

$23-+4'1)%5-()6%

) .1(2)3)45)678)89:-()#;<:&)(")=>?)45)68)@;#A,)) >1(2)3)>1(2)678)B;<:&,) .1(2)3)C8D)B;<:&)

% 7')3+% %

./ E9&')FGCH)6&,()I99/%JK)L-(M)(M&)F;JF8N)7$'(-%&))

;*;-:;<:&);()O)

M((9OPPK-:&9-*"(/#"%P9+"@&#(,P%;J%,9@-((&+PK-:&,PF;JQ.RSJTQ7$'(-%&S.UV

U>./W-9)

>/ 8&()!+-*&+)("));XS;,-")FYI$X-")FY6+;#A)8":")I,-")!+-*&+) 0/ 8&()-'9$()(")ZG'(&+';:[) U/ 8&()E$(9$()(")ZE'[) \/ B:",&);X*;'#&X)"9(-"',)L-'X"L/))G()-,)'"()'&#&,,;+2)(")($+')I$X-")E'/)

)

*38-0%&'()%9% %

./ B"''&#();)678)#;<:&)K+"%)E$(9$().)(")G'9$().) >/ B"''&#();)678)#;<:&)K+"%)E$(9$()>)(")G',(+$%&'()>) 0/ 8&()G'9$()];-',)(")%-'-%$%)9",-(-"') U/ 8&()^;+_&+)"$(9$():&*&:)(")%;J)9",-(-"') \/ 8&()F-J)=$':;<&:&X?)A'"<)(")ZC8D[) Q/ N+&,,)Z.[)"')A&2<";+X)"+)9+&,,)(M&)6&,().)<$(("'/) R/ 6&,().)<$(("')L-::)($+')]+&&')-K)(M&)$'-()-,)9;,,&X)

% *38-0%&'()%:% %

./ C,-'_);)`)#;<:&)L-(M)45)678)(")=>?)45)68a)#"''&#()(M&)678)&'X)-'(")(M&)

M&;X9M"'&)"$(9$()@;#Aa);'X)(M&)(L")68),-X&,)-'(")G'9$()b.);'X)G',(+$%&'()

b>);,),$#MO)

;/ 6GN)9;+()"K)678)-,)#"''&#(&X)(")G'9$().)) </ 7Gc])9;+()"K)(M&)678)(")G',(+$%&'()>) d)c"(&a)2"$),M"$:X),&&)+&,$:(,)"K)Be.);'X)Be>)(")<&);99+"J/).)XD)-')8c7)-K) (M-,)-,)#"'K-_$+&X)#"++&#(:2/)G'#"++&#()#"'K-_$+;(-"'),M"$:X);)%$#M)%"+&)

,-_'-K-#;'()8c7)X-KK&+&'#&,)<&(L&&')Be.);'X)Be>/) >/ 8&()(M&)e&;X9M"'&)"$(9$()f;#A)(")%;J)9",-(-"'/) 0/ 8&()G'9$()];-',)(")%-'-%$%)9",-(-"') U/ 8&()^;+_&+)"$(9$():&*&:)(")%;J)9",-(-"') \/ 8&()F-J)=$':;<&:&X?)A'"<)(")ZC8D[) Q/ N+&,,)Z>[)"')A&2<";+X)"+)9+&,,)(M&)6&,()>)<$(("'/) R/ 6&,()>)<$(("')L-::)($+')]+&&')-K)(M&)$'-()-,)9;,,&X)

)

Page 14
