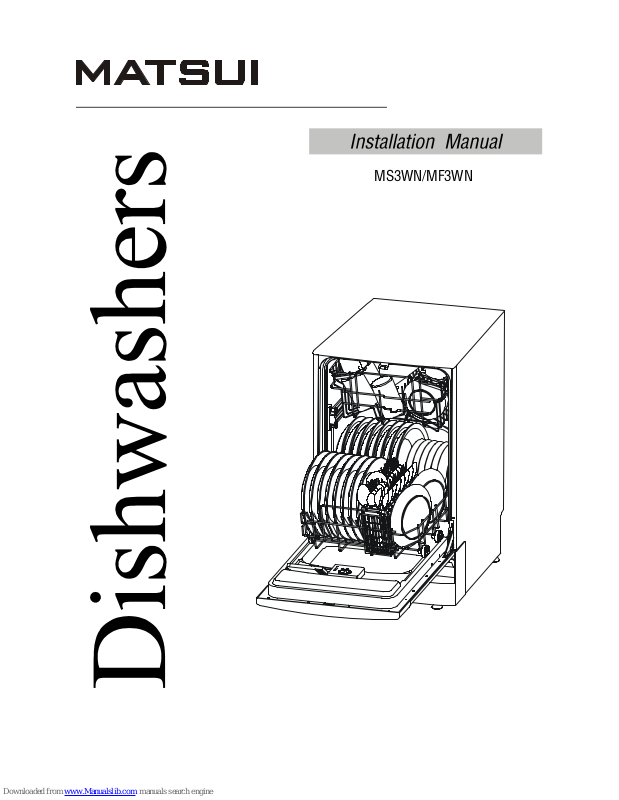

Matsui MF3WN, MS3WN Installation Manual

MS3WN/MF3WN

1

Carefully read this manual before installation
Reading this manual will help to understand the connections of inlet, drain hoses and
power cord, and to find a optimal position for the dishwasher.

Notes

●

The installation of the pipes
and electrical equipment
should be made by a qualified
person.

Electrical Shock Hazard
Disconnect electrical

p

ower before

carrying out any re-wiring.

Failure to do so can result in death or
electrical shock.

The installation position of the dishwasher should be near the existing inlet ,drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.

Preparations should be made before moving the dishwasher to the installation place.

Choose a

p

lace near the sink to facilitate the installation of inlet and drain hoses

(see Figure 1).

If dishwasher is installed at the corner of the cabinet, there should be some s

p

ace

(see Figure 2) when the door is opened.

2

1

Installation preparation

Installation instruction

Note: please check the accompanying installation accessories are provided.

●

●

Minimum space when
the door is opened

【Figure2】

Cabinet dimensions

【Figure1A,1B】

Cabinet

Dishwasher

Door of
dishwasher

Mini mum space of 50mm

Less than 5mm between the top of dishwasher and
cabinet and the outer door aligned to cabinet.

90 °

90 °

450 mm

820mm

100

580mm

80

Space between cabinet
bottom and floor

Electrical, drain and
water supply line
entrances

●

Insert the drain hos e i nto a drain pipe with a mini mum diameter of 4cm, or let it ru n i nto the sink ,
making sure to avoid bending or crimping . Use the speical plastic support that comes with the
appliance (Figure3). The free end of the hose must be at a height between 400 and 1000mm and
must not be immersed in water to avoid back flow. A TTENTION: The special plastic hose
support must be solidly fastened to the wall to prevent the drain hose fro m moving and allowing
water spilling outside the drain pipe.

Drain pipe connection

【Figure3】

Drain hose hook

Min 400mm

Max 1000mm

φ40mm

2

90 °

90 °

600 mm

820mm

100

580mm

80

Space between cabinet
bottom and floor

Electri cal, drain and
water supply line
entrances

Model:MS3WN_【Figure1A】 Model:MF3WN_【Figure1B】
