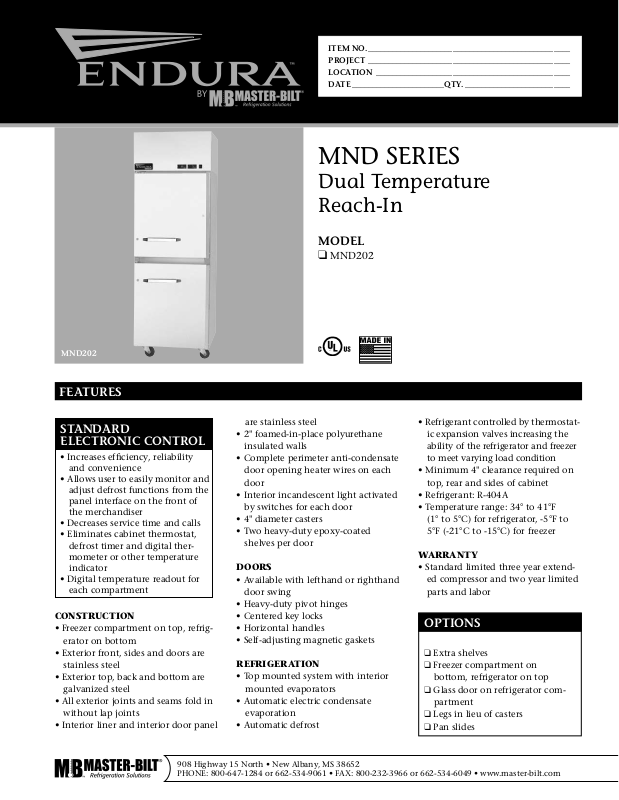

Master-Bilt MND202 User Manual
ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________
MND SERIES
Dual Temperature
Reach-In
MODEL
❑
MND202
MND202
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efciency, reliability
and convenience
• Allows user to easily monitor and
adjust defrost functions from the
panel interface on the front of
the merchandiser
• Decreases service time and calls
• Eliminates cabinet thermostat,
defrost timer and digital thermometer or other temperature
indicator
• Digital temperature readout for
each compartment
CONSTRUCTION
• Freezer compartment on top, refrigerator on bottom
• Exterior front, sides and doors are
stainless steel
• Exterior top, back and bottom are
galvanized steel
• All exterior joints and seams fold in
without lap joints
• Interior liner and interior door panel
are stainless steel
• 2" foamed-in-place polyurethane
insulated walls
• Complete perimeter anti-condensate
door opening heater wires on each
door
• Interior incandescent light activated
by switches for each door
• 4" diameter casters
• Two heavy-duty epoxy-coated
shelves per door
DOORS
• Available with lefthand or righthand
door swing
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
REFRIGERATION
• Top mounted system with interior
mounted evaporators
• Automatic electric condensate
evaporation
• Automatic defrost
• Refrigerant controlled by thermostatic expansion valves increasing the
ability of the refrigerator and freezer
to meet varying load condition
• Minimum 4" clearance required on
top, rear and sides of cabinet
• Refrigerant: R-404A
• Temperature range: 34° to 41°F
(1° to 5°C) for refrigerator, -5°F to
5°F (-21°C to -15°C) for freezer
WARRANTY
• Standard limited three year extended compressor and two year limited
parts and labor
OPTIONS
❑ Extra shelves
❑ Freezer compartment on
bottom, refrigerator on top
❑ Glass door on refrigerator com-
partment
❑ Legs in lieu of casters
❑ Pan slides
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
LISTINGS
HOOKUP
BID SPECIFICATIONS
MND SERIES
DUAL TEMPERATURE REACH-IN
DIMENSIONS
(in.)
MODEL
MND202 27
*Height includes casters. With optional 6" legs overall height is 823/4" **With solid doors.
L D H* L D H*
1
/2351/8811/2699 892 2070 115 13.0 1/2 2
DIMENSIONS
(mm)
VOLTS** AMPS
UNIT
H.P.
NO. OF
DOORS
NO. OF
SHELVES
2 per door
STANDARD
SHELF SIZE
(in inches)
22L x 28D 20.0 55.2
CAP.
CU.
FT.
SHIP
CU.
FT.
SHIP
WT.
LB/KG
400/182
PLAN VIEW SIDE VIEW ELEVATION VIEW
Via plug in, 10 foot long exible
three wire 12/3 cord with molded
plug.
Item no. MND202
Provide____________( ) Dual Temperature Reach-in(s), Master-Bilt model no.
MND202.
Reach-in will be supplied standard with
freezer compartment on top and refrigerator on bottom. Exterior front, sides and
doors will be stainless steel. Exterior top,
back and bottom will be galvanized steel.
Interior liner and interior door panel will
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
be stainless steel. Standard electronic
controllers with digital LED thermometer
reading for each compartment. Complete
perimeter anti-condensate door heater
wires will be supplied on each door.
The refrigeration system will be top
mounted with interior mounted evaporators. Automatic electric condensate evaporation will be standard as will automatic
defrost. Additionally, refrigerant will be
controlled by a thermostatic expansion
valve. Reach-in will use R-404A refrigerant.
The refrigerator compartment operating
temperature will be 38°F (3°C) while the
freezer compartment's will be 0°F (-18°C).
Reach-in to have standard limited three
year extended compressor warranty and two
year limited parts and labor warranty.
Reach-in to be UL and C-UL listed.
NEMA 5-20P
