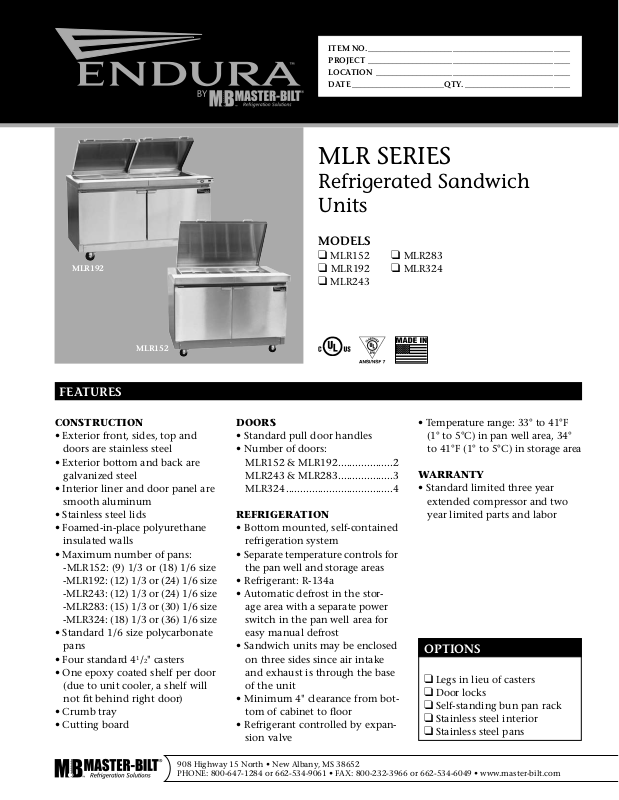

Master-Bilt MLR152 User Manual

MLR192
ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________
MLR SERIES
Refrigerated Sandwich Units
MODELS
MLR152 MLR283
MLR192 MLR324 MLR243
MLR152
FEATURES
CONSTRUCTION
• Exterior front, sides, top and doors are stainless steel
• Exterior bottom and back are galvanized steel
• Interior liner and door panel are smooth aluminum
• Stainless steel lids
• Foamed-in-place polyurethane insulated walls
• Maximum number of pans:
-MLR152: (9) 1/3 or (18) 1/6 size
-MLR192: (12) 1/3 or (24) 1/6 size
-MLR243: (12) 1/3 or (24) 1/6 size
-MLR283: (15) 1/3 or (30) 1/6 size
-MLR324: (18) 1/3 or (36) 1/6 size
• Standard 1/6 size polycarbonate pans
• Four standard 41/2" casters
• One epoxy coated shelf per door (due to unit cooler, a shelf will not t behind right door)
• Crumb tray
• Cutting board
DOORS
• Standard pull door handles
• Number of doors:
MLR152 & MLR192 ...................2
MLR243 & MLR283 ...................3
MLR324 .....................................4
REFRIGERATION
• Bottom mounted, self-contained refrigeration system
• Separate temperature controls for the pan well and storage areas
• Refrigerant: R-134a
• Automatic defrost in the stor­age area with a separate power switch in the pan well area for easy manual defrost
• Sandwich units may be enclosed on three sides since air intake and exhaust is through the base of the unit
• Minimum 4" clearance from bot­tom of cabinet to oor
• Refrigerant controlled by expan­sion valve
• Temperature range: 33° to 41°F (1° to 5°C) in pan well area, 34° to 41°F (1° to 5°C) in storage area
WARRANTY
• Standard limited three year extended compressor and two year limited parts and labor
OPTIONS
Legs in lieu of casters
Door locksSelf-standing bun pan rackStainless steel interiorStainless steel pans
908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MLR SERIES
REFRIGERATED SANDWICH UNITS
DIMENSIONS (in.) DIMENSIONS (mm)
MODEL
MLR152 473/4363/4361/21213 933 927 115 9.1 1/4 1*** 18 15.0 50.2 410/186 MLR192 593/4363/4361/21518 933 927 115 8.5 1/4 1*** 24 19.0 66.5 440/200 MLR243 713/4363/4361/21822 933 927 115 8.8 1/3 2*** 24 24.0 78.8 460/209 MLR283 833/4363/4361/22127 933 927 115 8.8 1/3 2*** 30 28.0 91.0 470/214 MLR324 953/4363/4361/22432 933 927 115 8.8 1/3 3*** 36 32.0 103.3 480/218
*Depth includes crumb tray. **Height includes casters. ***Due to refrigeration system, a shelf will not t behind the right door. deep, 2.25 liter capacity
L D* H** L D* H**
VOLTS AMPS
UNIT
H.P.
NO. OF
SHELVES
NO. OF
1/6 SIZE PANS
CU. FT.
CAP.
SHIP
CU. FT.
SHIP WT.
LB/KG
Pans are 6"
MODEL MLR152
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MODEL MLR192
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MODEL MLR243
PLAN VIEW
MODEL MLR283
PLAN VIEW
MODEL MLR324
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MLR SERIES
LISTINGS
HOOKUP
BID SPECIFICATIONS
REFRIGERATED SANDWICH UNITS
Item no. MLR_______________ Provide____________( ) Re­frigerated Sandwich Unit(s), Master-Bilt model no. MLR______.
Sandwich unit's exterior front, sides and doors will be stainless steel while the exterior bottom and back will be galvanized steel. The interior liner and door panel will be smooth aluminum. Unit will have stainless steel lids.
Standard features will include 1/6 size pans, cutting board and
Via plug in, 10 foot long exible three wire 14/3 cord with molded plug.
41/2" casters.
The refrigeration system will be bottom mounted and self­contained. The temperature range will be 33° to 41°F (1° to 5°C) in the pan well area, 34° to 41°F (1° to 5°C) in storage area. System will also feature automatic defrost in the storage area with a separate power switch in the pan well area for easy manual defrost. There will also be separate temperature con­trols for the pan well and storage
NEMA 5-15P
areas. Refrigeration sytem will use R-134a refrigerant. Refrigerant will be controlled by expansion valve.
Sandwich units may be enclosed on three sides since air intake and exhaust is through the base of the unit.
Sandwich unit to have standard limited three year extended com­pressor warranty and two year lim­ited parts and labor warranty.
Sandwich unit to be UL and C-UL listed and UL EPH classied.
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity. All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
© Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
1335-6/10-web
